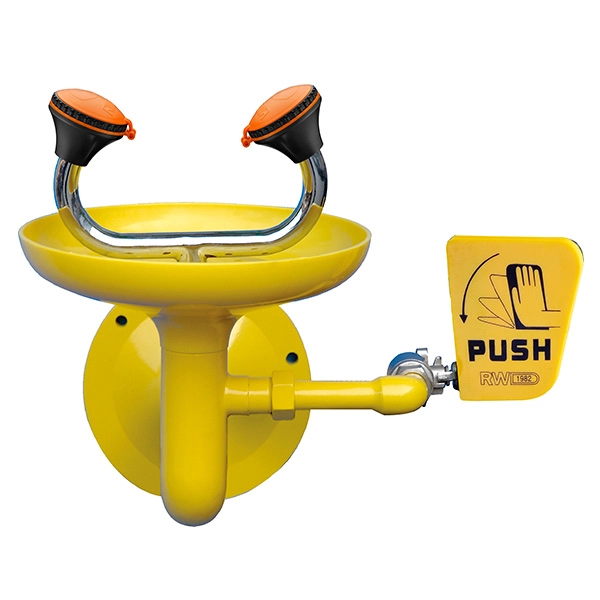

Wall Mounted Eye Wash EW-09
This wall-mounted emergency eyewash station is designed for quick and effective eye rinsing in laboratories, chemical handling areas, and industrial work zones. The push plate activation allows fast operation in emergencies, while the dual spray heads provide balanced, gentle rinsing to help flush contaminants from the eyes. Mounted on the wall, it saves floor space and keeps the eyewash accessible near hazard areas.
Wall Mounted Emergency Eyewash Station (Push Plate Activation)
Ideal for laboratories, schools and general light duty indoor use, this wall mounted eye/face wash unit executive standard is ANSIZ358.1-2014 (American Standard), Pop-off dust covers protect the twin spray head from contaminants, and are lifted off by the water jets upon operation via the push plate.
(Push Type)(Head&Cover integral)
Material: SS304/ABS
Surface treatment: high-gloss anti-oxidation yellow coating (color can be customized)
Valve: two piece stay open valve
Nominal pressure: 1.0Mpa
Working pressure: 0.2 ~0.4Mpa
Test pressure: 1.5Mpa
Ambient temperature: 0°C～40°C
Face/eye wash water flow: ≥11.4 L/min
Eyewash water flow: ≥1.5 L/min

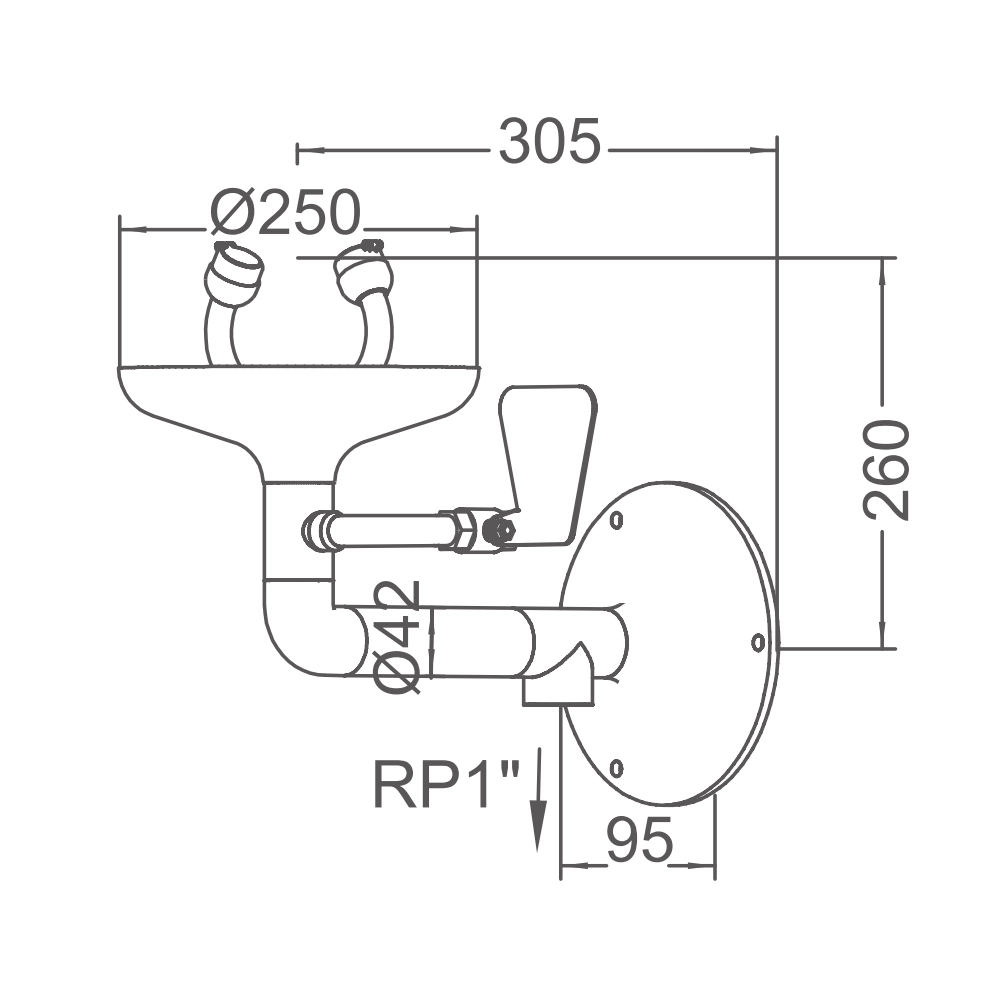

Eye wash bowl : 250mm diameter
Spray head: dual flow control valve, manually adjustable flow
Inlet size: ½ inch female thread
Drain size: 1 "inch internal thread
Spray head spacing: 170mm
Installation features: easy installation, space saving
Executive standard: ANSIZ358.1-2014 (American Standard)
Key Features:
Quick Activation: Pull-lever or push-plate design for instant use.
Durable Materials: Made from corrosion-resistant stainless steel or polyethylene.
Compliance: Meets ANSI Z358.1 and OSHA safety standards.
Easy Maintenance: Self-draining systems and tamper-proof designs.
Versatile Installation: Wall-mounted, floor-standing, or portable options.
Applications:
Chemical and research laboratories
Industrial and manufacturing facilities
Educational and school labs
Pharmaceutical and biotechnology plants
