Ventilation Chemical Lab Program

Ventilation Chemical Lab Program

(48 seats/room)

Our Routine Biological Lab Program is a complete, classroom-ready solution for middle schools, high schools, and basic teaching laboratories. It is designed to support everyday biology experiments and demonstrations, covering core topics such as microscopy, cell observation, basic microbiology, plant and animal tissue studies, simple dissection, sample preparation, and safe reagent handling.

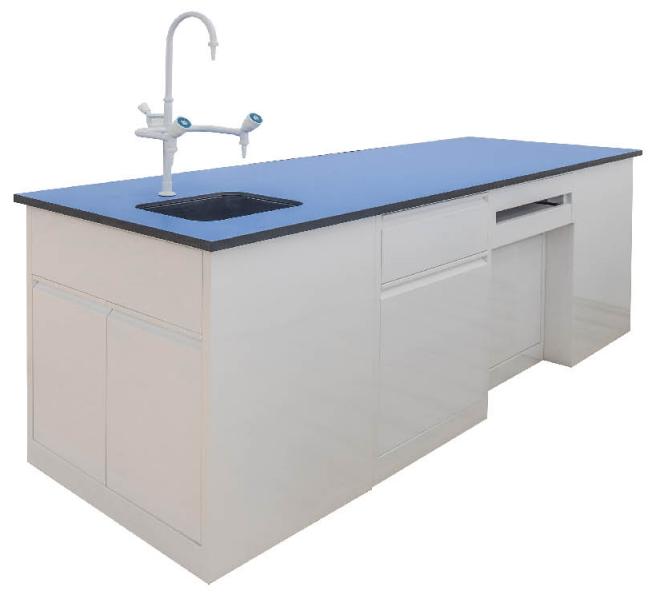

Multimedia physics teacher podium (One set)

1. All-steel structure, table size 2400*750*850mm.

2. The tabletop uses a 12.7mm thick double-sided film Solid Physiochemical/Phenolic Resin board, and the sides are added to 25.4mm.

3. Cabinet body: adopt 1.0mm high-quality cold-rolled steel plate.

Key Features:

Customizable Lab Designs: Tailored layouts to fit your classroom or lab space.

Durable Furniture: High-quality materials resistant to wear and chemicals.

Safety First: Compliant with OSHA and educational safety standards.

Cost-Effective Packages: Affordable solutions for schools and institutions.

Comprehensive Support: From planning to installation and maintenance.

***Refer to B-01 for detailed parameters

Biochemical teacher control power (One set)

The teacher's main control power supply adopts microcomputer control, chip component production, light touch operation, and digital control and digital display functions.

***Refer to B-02 for detailed parameters

Teacher lift chair(One set)

1. The seat surface/back is made of high-quality high-stretch mesh fabric; the seat cushion is filled with high-density native sponge and wrapped with a breathable mesh cloth.

2. The handrail is made of breathable mesh cloth wrapped sponge with high-quality engineering grade PP.

***Refer to B-03 for detailed parameters

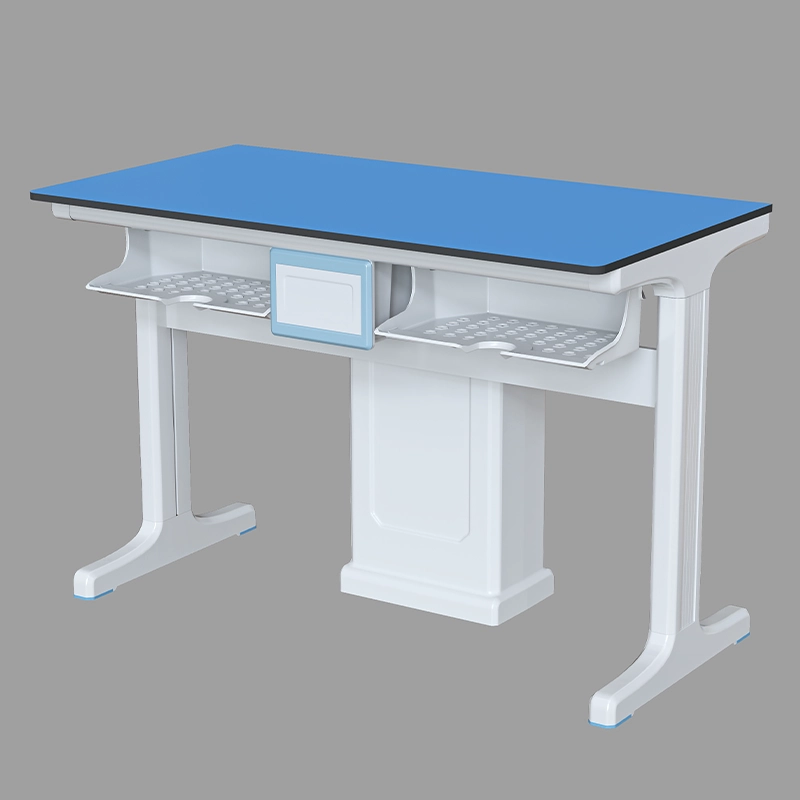

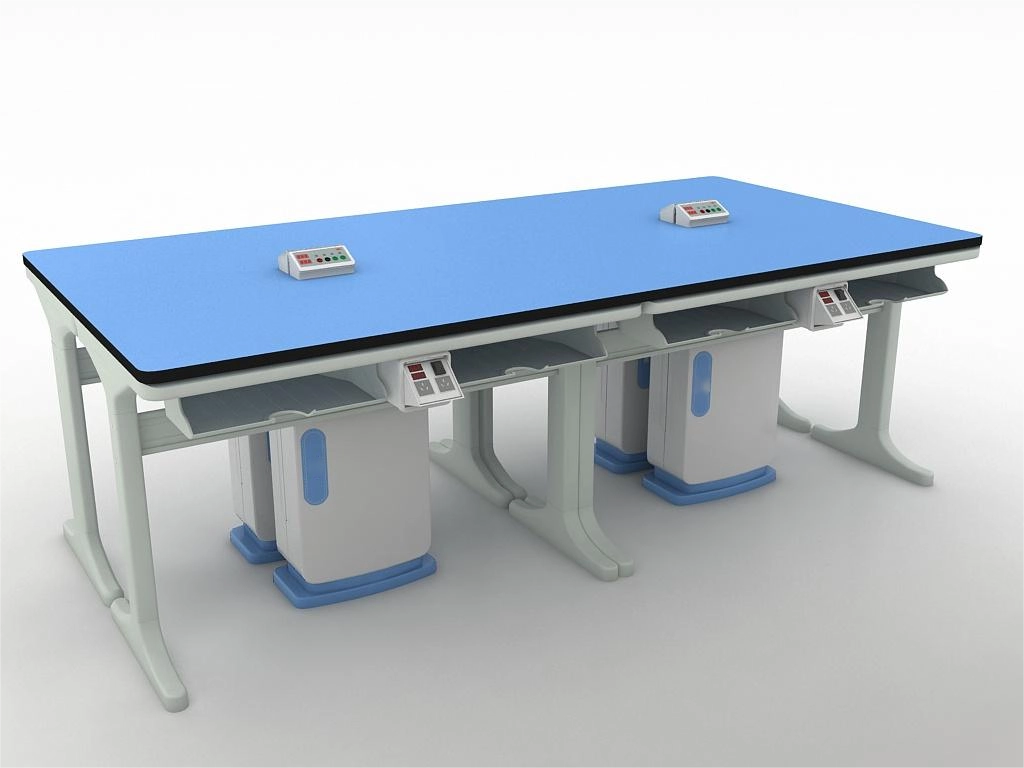

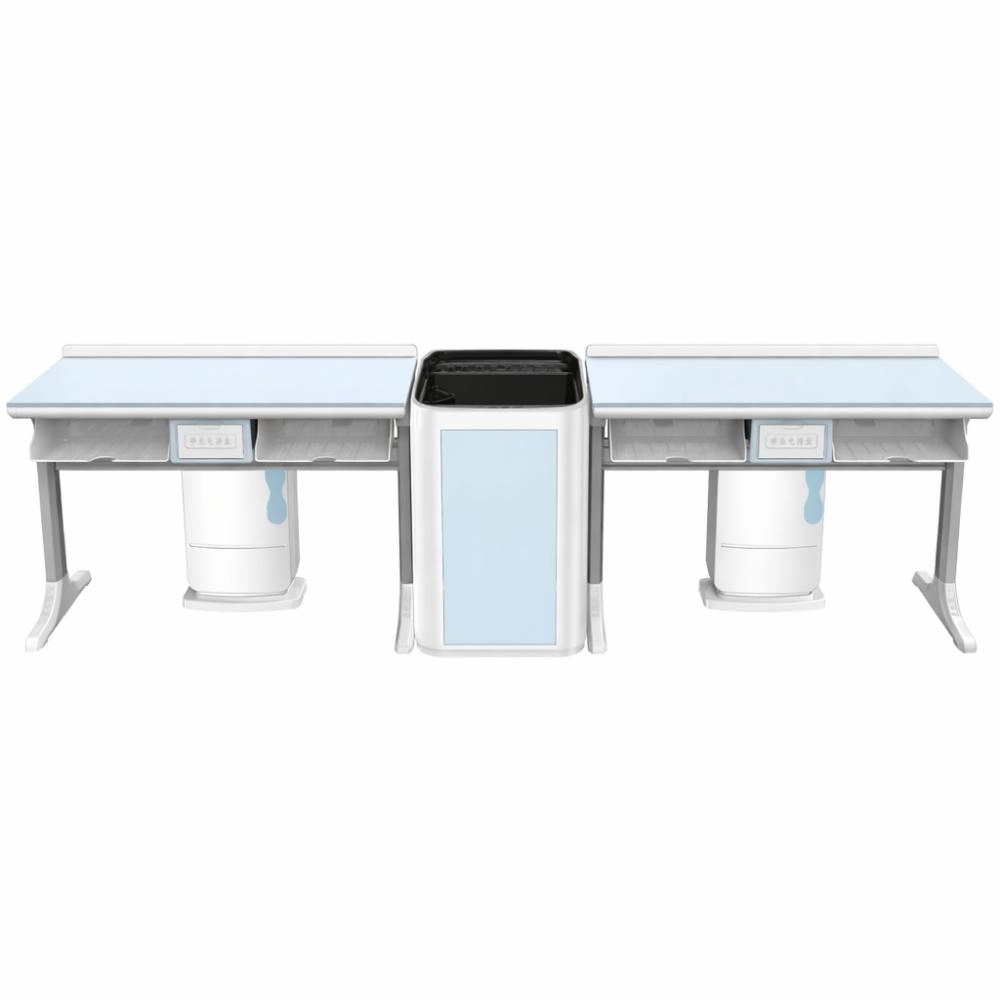

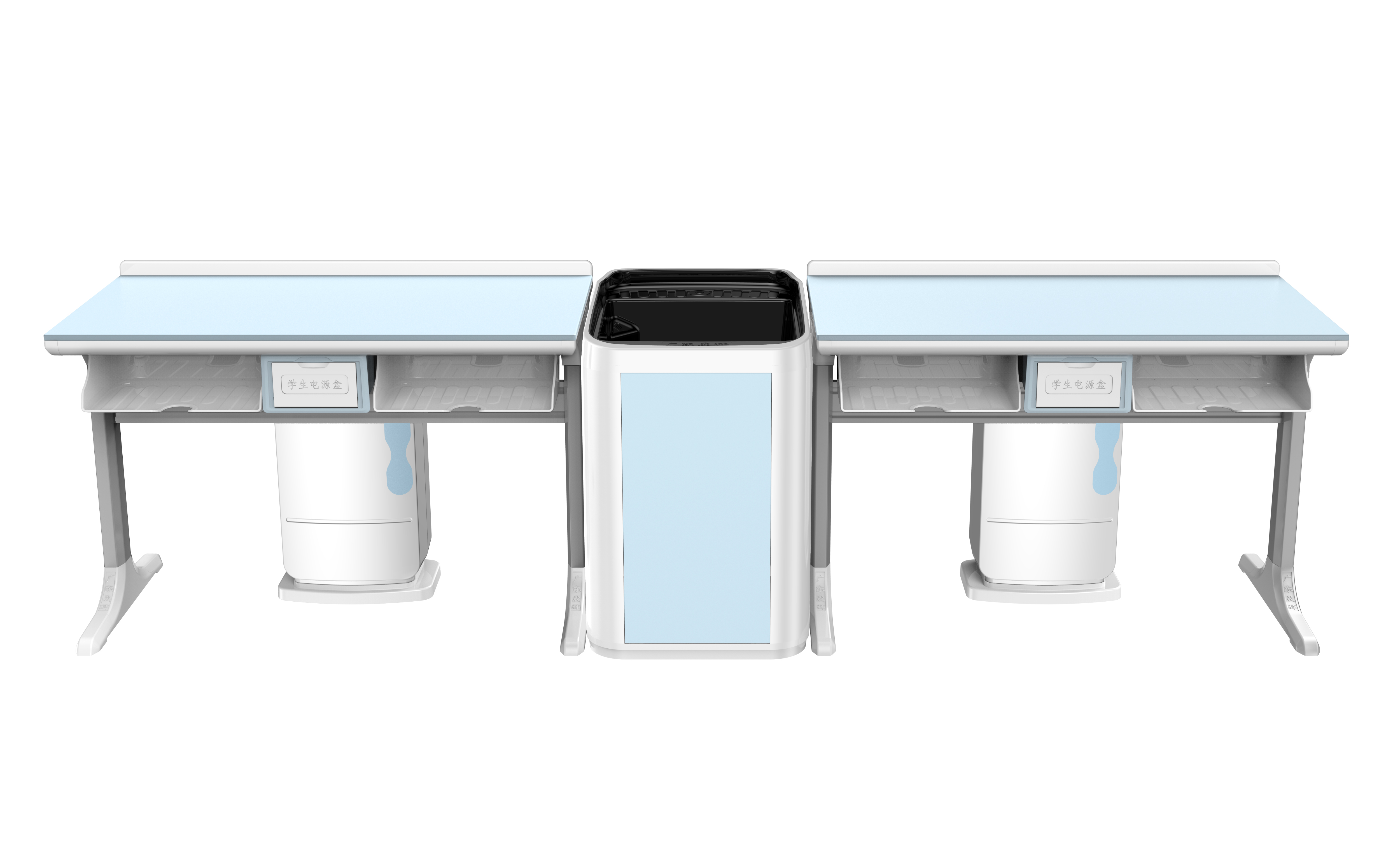

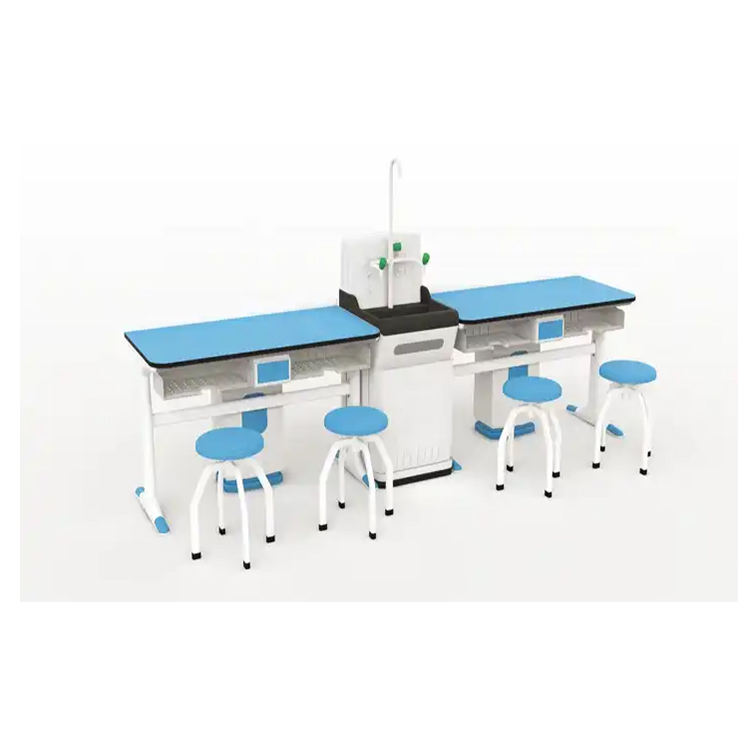

Physics student lab table(24 sets)

1. Standard size (length, depth and height): 1200*600*780Hmm

2. The tabletop uses a 12.7mm thick double-sided film Solid Physiochemical/Phenolic Resin board, and the sides are added to 25.4mm.

3. Table body material: aluminum alloy castings, aluminum profiles, mold injection parts.

***Refer to B-04 for detailed parameters.

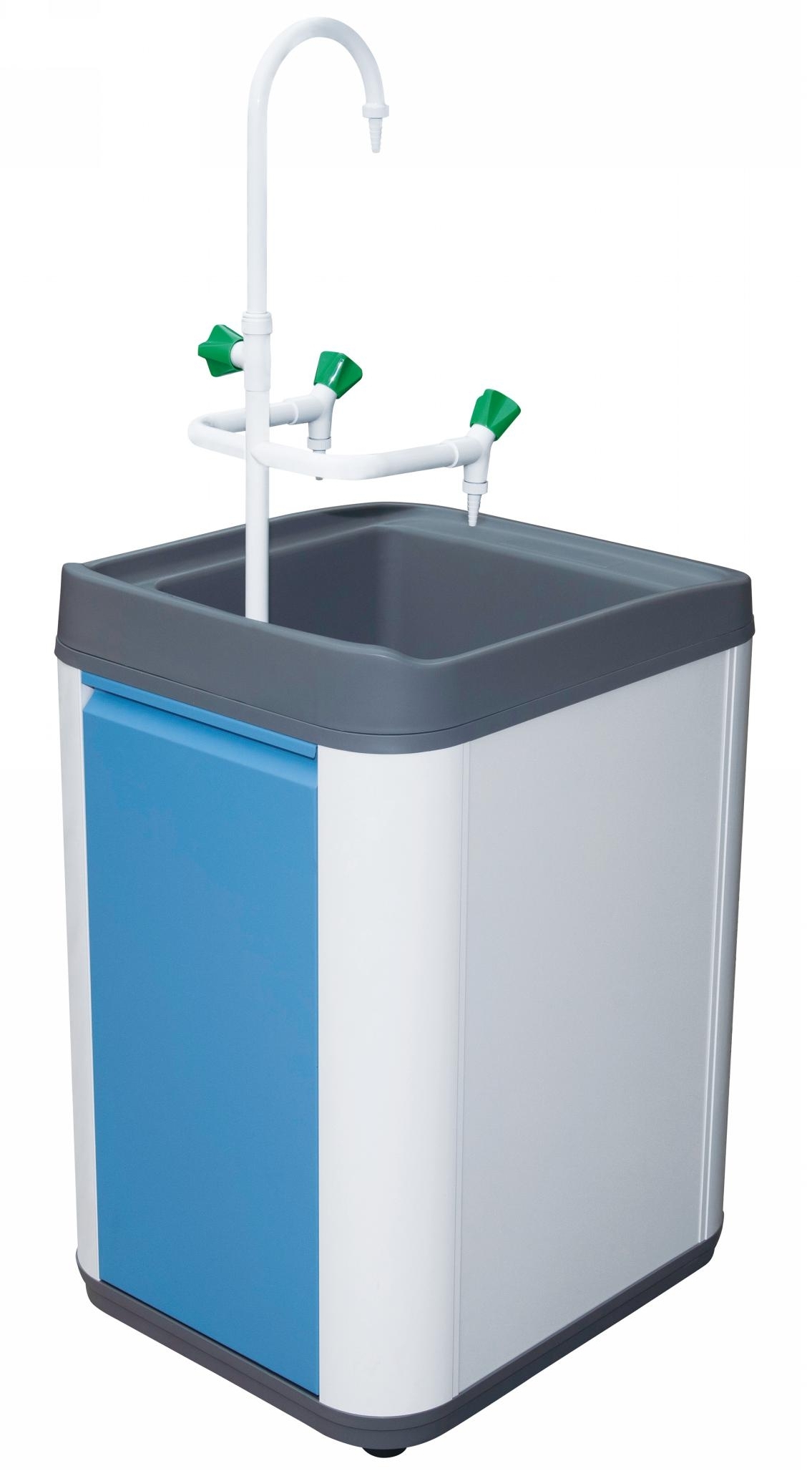

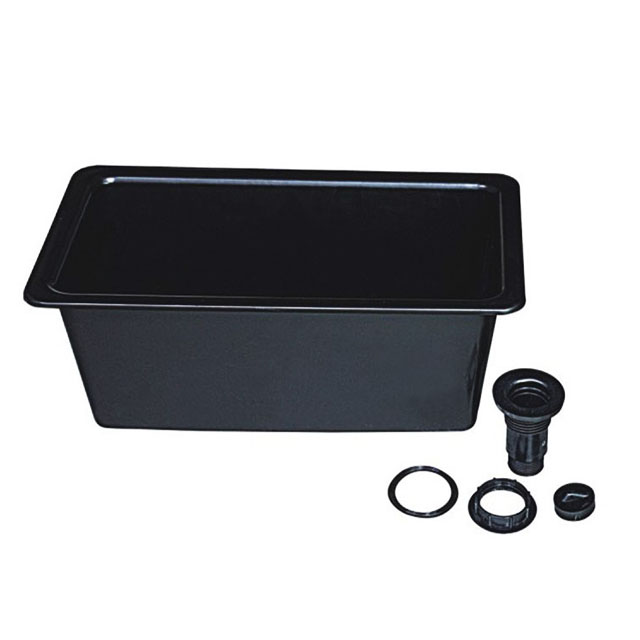

Student lab sink(12 sets)

The sink cabinet is of aluminum-steel-plastic structure, the cabinet size is 600×500×810mm, and the whole adopts a three-stage structure.

The upper and lower fixed frames are made of PP modified material

***Refer to B-05 for detailed parameters

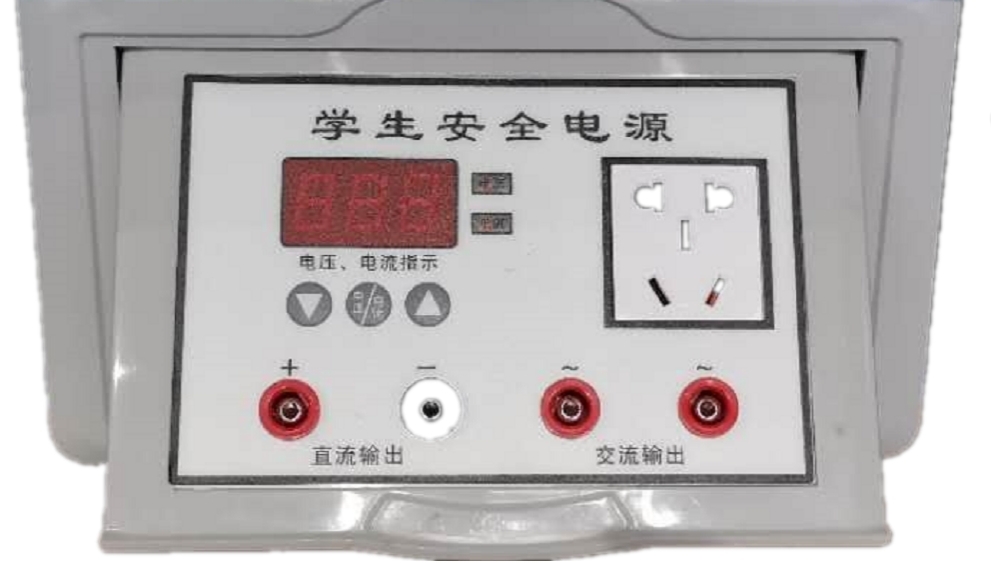

CNC Biochemical student power supply (24 sets)

The power supply separately installed in the middle of the two drawers under the table top, the work console is a flip type, and when fully opened, the work panel is at an angle of 140° with the horizontal plane.

***Refer to B-06 for detailed parameters

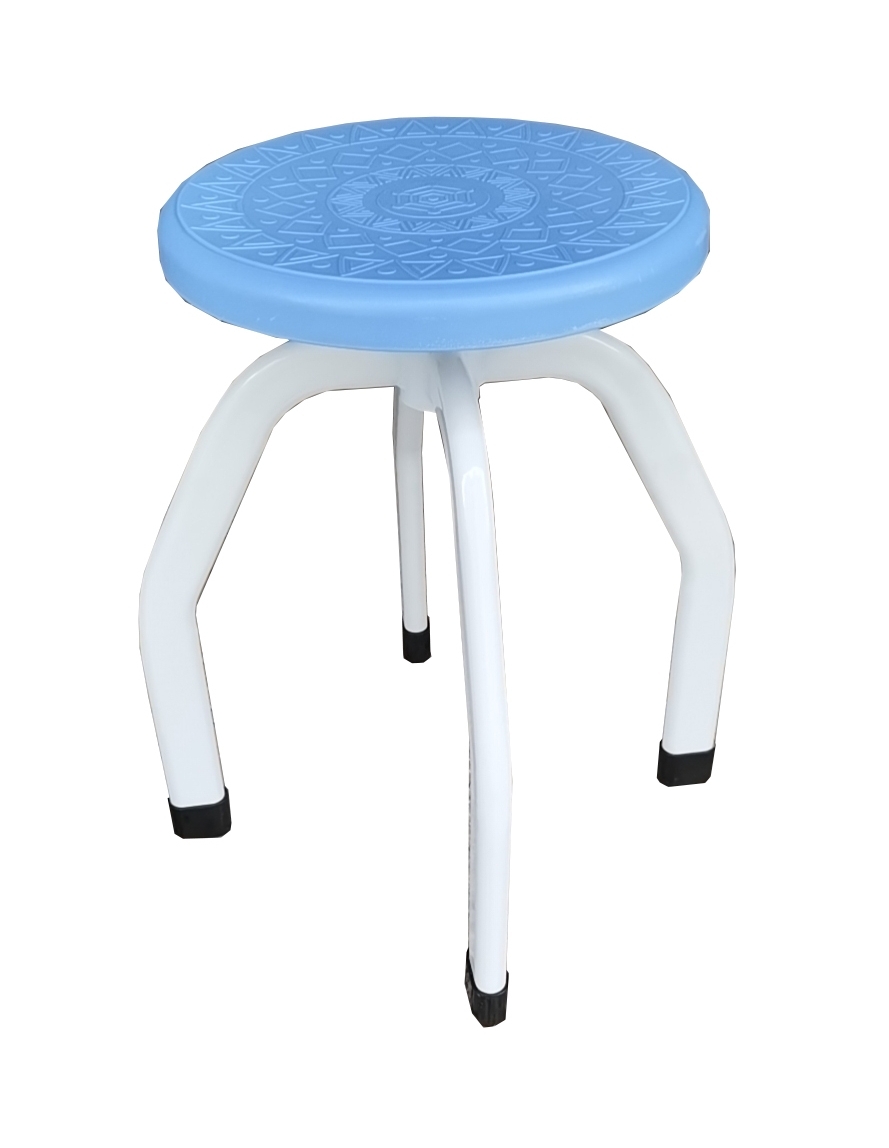

Student lab stool (48 sets)

Specification: 315*315*485 (540)

1. The stool surface and the stool foot are made of high-quality PP plastic at one time.

2. Stool surface: The stool surface is 315mm in diameter

3. Stool frame: 4 stool legs are integrally formed with 20*40*1.2mm seamless steel pipe molds.

***Refer to B-07 for detailed parameters

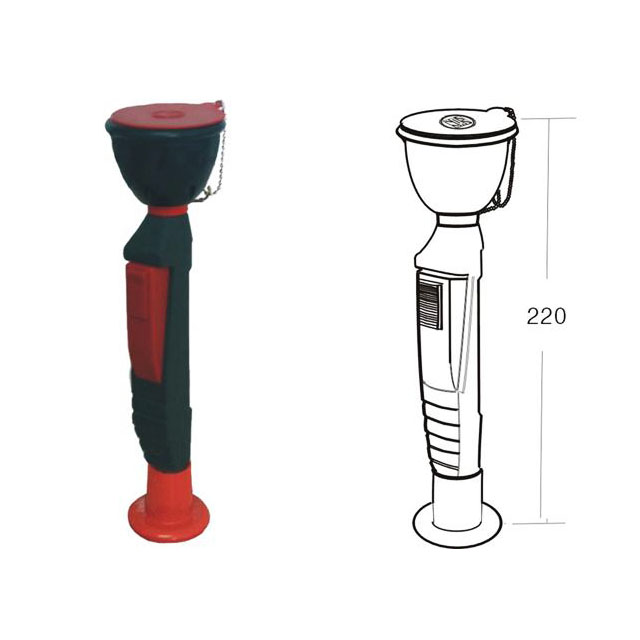

Single Eye Wash (Button Type)(1 sets)

Eyewash unit adopts a single-port bubble-type shower head design. It is installed on the table.

***Refer to C-01 for detailed parameters

Refer to C-01 for detailed parameters

The material is made of high-density PP (polypropylene), with good chemical stability, outstanding resistance to corrosion and contamination by chemical reagents, acid and alkali resistance, and corrosion resistance

***Refer to C-02 for detailed parameters

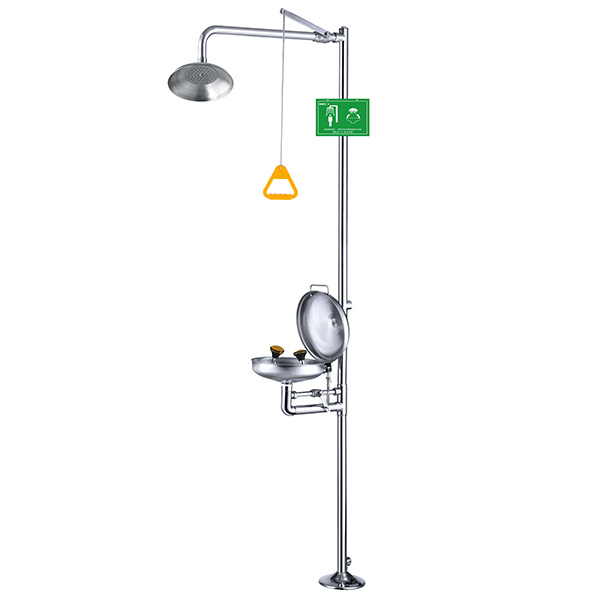

Emergency shower (Stainless Steel) (1 sets)

The material of the emergency shower eyewash device: It is made of high-quality 304 stainless steel, which effectively resists the corrosion of chemical substances. The product has high strength and firm structure.

***Refer to C-03 for detailed parameters

Student Lifting Power Supply

The relationship between the physical dimensions of the lifting power supply and the space: the ceiling power supply is 1075mm high when it is stationary, the power box is 14.5mm high, 260mm long, and 260mm wide. The height of the ground, the longest extension of the ceiling power supply is; the height is 1725mm, and the distance from the ground is 1375mm. It is in line with the height of students, and the power interface is operated with eyes head-up, making learning easier.

The external structure of the power supply uses non-radiation safe materials such as aluminum alloy, ABS, acrylic, etc., which will not cause any impact on human health.

Power supply function: 1. Double LCD screen display voltage and current, control method, 1. Student power supply has up and down keys to select and adjust the required power supply voltage, 2. When the student terminal outputs a high voltage of 220V, the teacher can monitor it in real time. 2. Power supply voltage 220V mains output, five-hole three-position socket output, low-voltage safety voltage output of the power supply, AC 0-36V, DC 1.25-36V, AC and DC switching can be freely selected and operated by the students, when the teacher locks the control, there is a teacher The controller controls the output of the student's power supply. When raising a hand to ask a question, the teacher master has a voice prompt for which table and group to ask questions. When the teacher locks the control, when the lift control, some teachers use the 315 wireless module communication to control the output of the student's safety power supply, avoiding complicated wiring installation

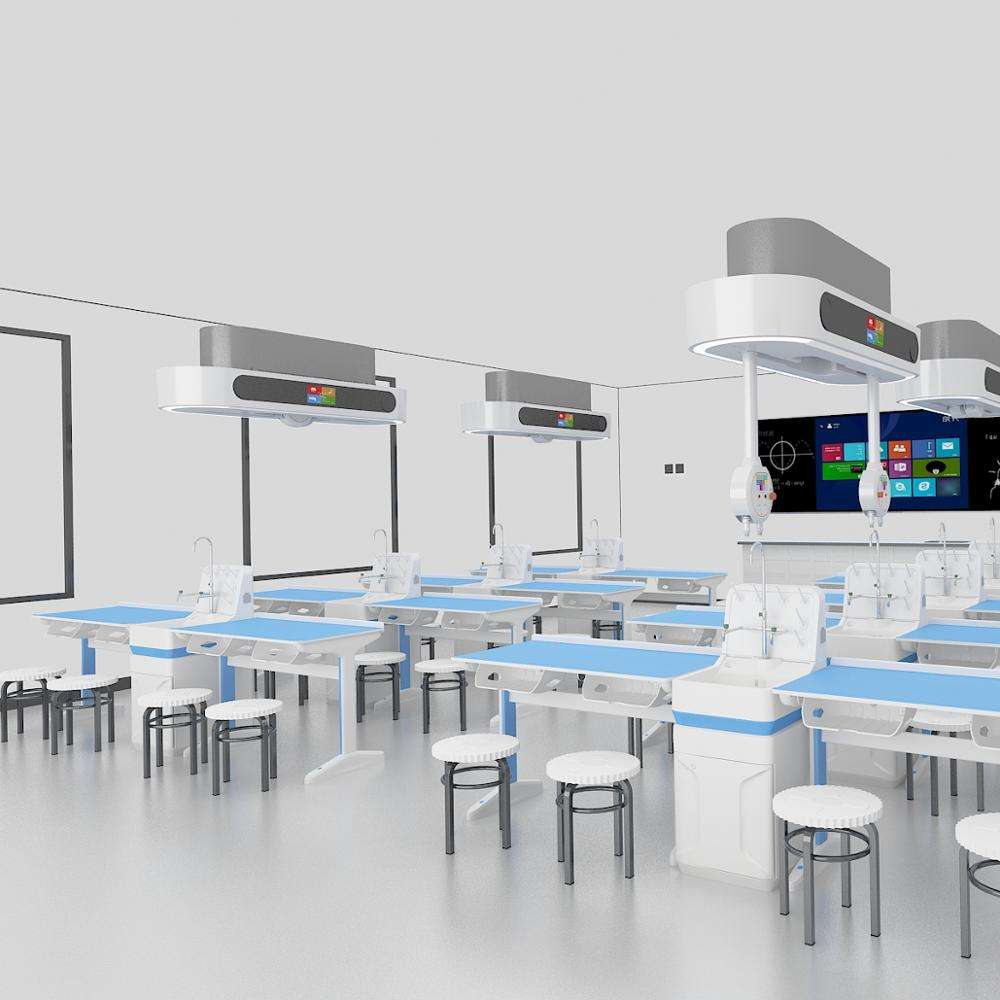

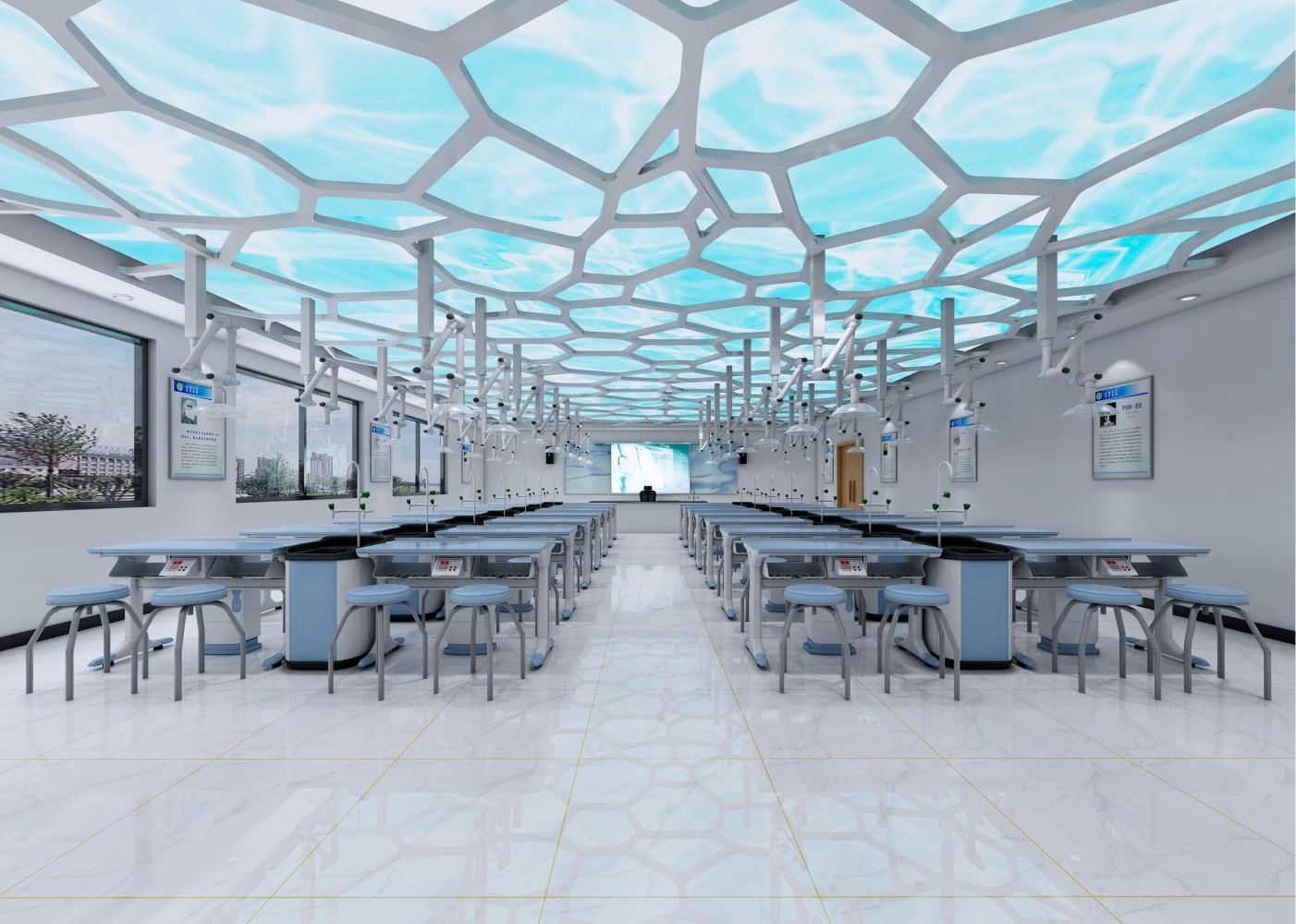

Rendering
