Toxic Storage Cabinet
MAX LAB ensure maximum safety with our toxic storage cabinet, engineered to securely store dangerous chemicals and materials. Made from high-strength, corrosion-resistant materials, this cabinet is built to withstand hazardous environments and prevent leaks or spills. Ideal for laboratories, chemical processing facilities, and industrial operations, it helps protect personnel from exposure to toxic substances while ensuring regulatory compliance. Featuring a secure locking system and proper airflow, our toxic storage cabinet is an essential solution for safe, efficient chemical containment and storage.
Toxic cabinets are used in medicine and health, national defense technology, inspection and testing, industrial and mining enterprises, metallurgy and chemical industries to store and manage toxic and dangerous chemicals, toxic and dangerous drugs, valuable drugs and scientific research specimens and other items with high safety and insurance;
*Storage substances: narcotics and drugs such as ethanol, procaine, benzocaine, ketamine, benzyl alcohol, tubocurarine, etc.
Product Details
Toxic Storage Cabinets
CLASSIFICATION
Yellow stores flammable substances
Red stores combustible substances
Blue stores weakly corrosive substances
Green stores pesticide substances
Grey stores toxic substances
White stores strong corrosive substances
SPECIFICATION
①The safety cabinet is constructed by double-wall 18 Ga (1.2-mm) steel sheet through spot welding, (38-mm) of insulating air space for fire resistance.
②Ventilation holes are set on the left and right sides to keep the air circulating in the cabinet and reduce the concentration of volatile toxic gases. You can choose to install ventilating pipes to remove toxic and harmful gases.
③Resin powder coating treatment, the surface is bright, dustproof, rustproof and moistureproof.
④The three-point linkage lock reduces friction or mechanical sparks and reduces static electricity accumulation.
⑤Cabinets feature a leakproof 2 in. (51-mm) bottom sump, dual vents with flame arresters.
⑥Galvanized steel shelves direct spills to back and bottom of a leakproof sump. They adjust on (80-mm) centers for versatile storage, the maximum load-bearing capacity of the shelf is 100kg, each shelf is 8cm apart. Additionally, they include PP trays that sit on top of galvanized steel shelves and a separate PP liner for the bottom sump to resist aggressive chemicals. Easily remove the liner for quick cleaning of drips and leaks. An all epoxy baked-on powder-coat finish, inside and out, provides increased chemical resistance.
⑦The continuous piano hinge makes the cabinet door close and open smoothly.
⑧The reflective warning labels are highly visible under fire conditions or during power outages when illuminated with a flashlight.
|
Model |
Volume |
Size(H*W*D)mm |
NO.Door |
Shelf Pcs |
|
|
TC-01 |
15L/4 Gallons |
560*430*430 |
Single |
1 |
50Kg |
|
TC-02 |
38L/10 Gallons |
640*590*600 |
Single |
1 |
50Kg |
|
TC-03 |
45L/12 Gallons |
890*590*460 |
Single |
1 |
50Kg |
|
TC-04 |
83L/22 Gallons |
1650*600*460 |
Single |
3 |
50Kg |
|
890*890*560 |
Double |
1 |
50Kg |
||
|
TC-05 |
114L/30 Gallons |
1120*1090*460 |
Double |
1 |
50Kg |
|
TC-06 |
170L/45 Gallons |
1650*1090*460 |
Double |
2 |
100Kg |
|
TC-07 |
204L/54 Gallons |
1650*600*870 |
Single |
3 |
100Kg |
|
TC-08 |
227L/60 Gallons |
1650*860*860 |
Double |
2 |
100Kg |
|
TC-09 |
340L/90 Gallons |
1650*1090*860 |
Double |
2 |
100Kg |
Key Features
-
Safe storage for toxic chemicals
Designed for the secure storage of toxic and hazardous substances commonly used in laboratories. -
Robust steel construction
Heavy-duty welded steel body for high strength, durability and long service life. -
Corrosion-resistant surface
High-quality epoxy powder coating (inside and outside) improves corrosion resistance against common laboratory chemicals. -

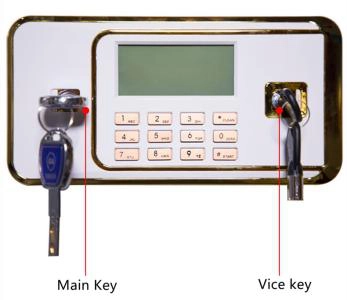

Secure locking system
Standard three-point locking mechanism with key lock to prevent unauthorized access and improve laboratory safety. -
Clear safety labeling
High-visibility “TOXIC” and hazard warning labels on the door to remind users and support safety management. -
Adjustable shelves
Chemical-resistant adjustable shelves to accommodate different container sizes and help organize bottles and cans in a neat way. -
Spill containment design
Integrated spill-containment sump at the bottom to collect accidental leaks and make cleaning easier. -
Optional ventilation port
Pre-configured ventilation opening (optional) allows connection to your lab exhaust system or ventilation kit to reduce harmful vapors. -
Modular and compatible
Cabinet can be used as a standalone unit or combined with other MAX LAB safety cabinets to build a complete chemical storage system.
Typical Applications
The MAX LAB laboratory safety cabinets is suitable for:
-
University and research laboratories
-
Pharmaceutical and biotechnology labs
-
Hospital and clinical laboratories
-
Chemical and petrochemical plants
-
Quality control and testing labs
-
Industrial R&D centers
-
Any facility that needs safe storage for toxic and hazardous chemicals
-
Why Choose MAX LAB Toxic Storage Cabinet?
-
Professional laboratory focus
MAX LAB specializes in laboratory furniture and safety equipment, providing integrated solutions from benches to safety cabinets. -
Reliable quality control
Produced in a modern factory with strict quality inspection to ensure stable performance and long-term safety. -
Faster delivery
With modular production and sufficient inventory, we can support shorter lead times compared with many competitors. -
Customizable solutions
Size, color, shelf configuration, ventilation options and locks can be customized based on your project requirements. -
One-stop laboratory service
We can provide complete laboratory layout design, furniture, storage cabinets, fume hoods and installation support as a package.
Customization & Options
To better match different laboratory environments, MAX LAB provides a wide range of custom options for toxic storage cabinets:
-
Custom sizes and internal layout
-
Additional shelves or PP-lined spill trays
-
Different door types (glass inspection window optional)
-
Different color schemes and label languages
-
Ventilation kits and duct connection accessories
-
Matching flammable, acid/alkali and corrosive storage cabinets for a unified safety system
For OEM/ODM projects, we can also provide logo printing, special colors and project-based customization.
-
