Student Lab Table

Student Lab Tables

(48 seats/room)

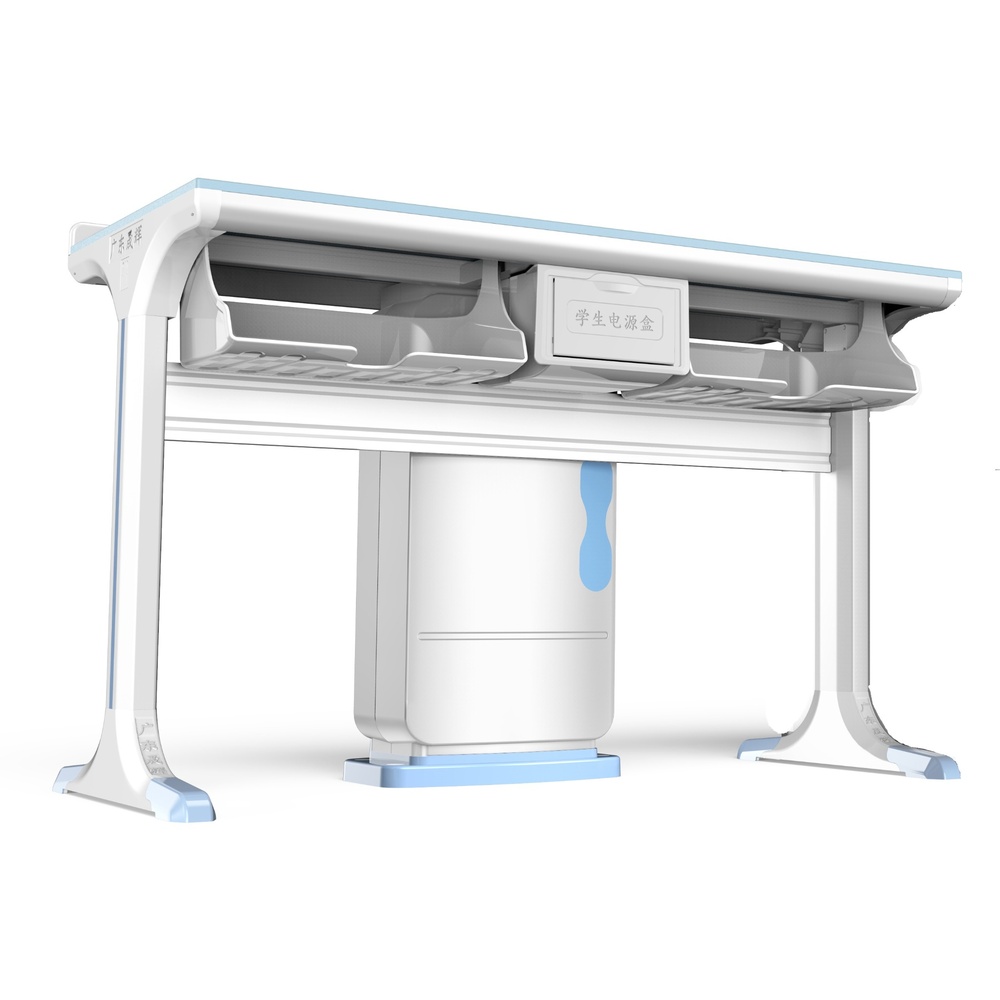

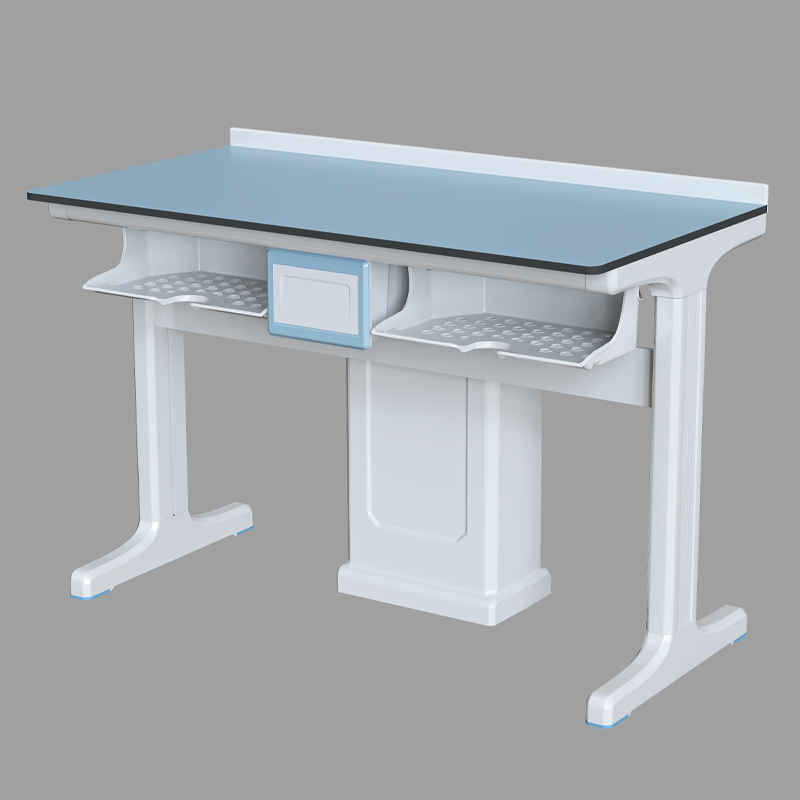

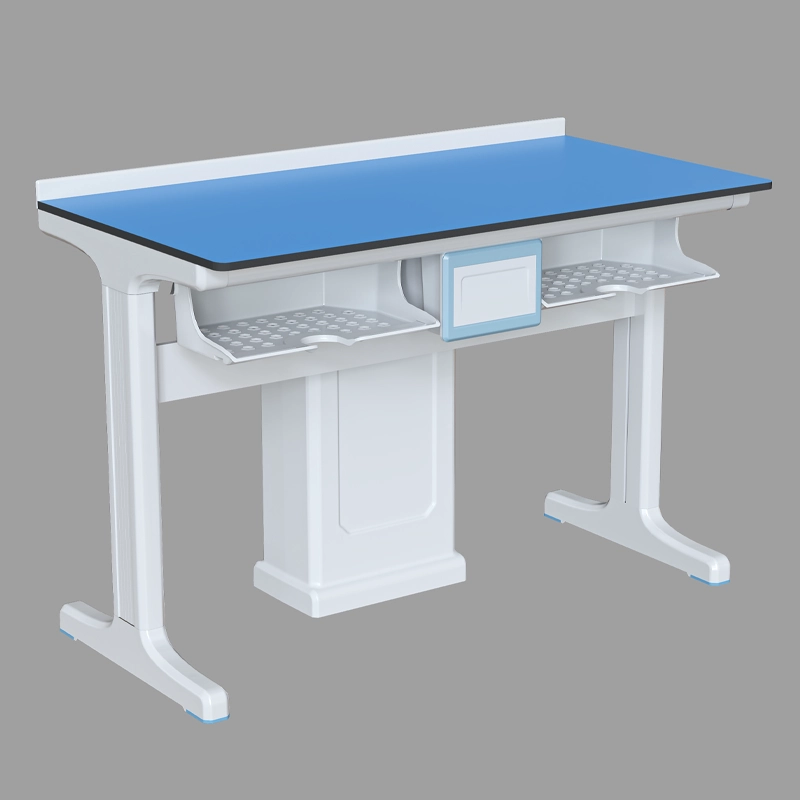

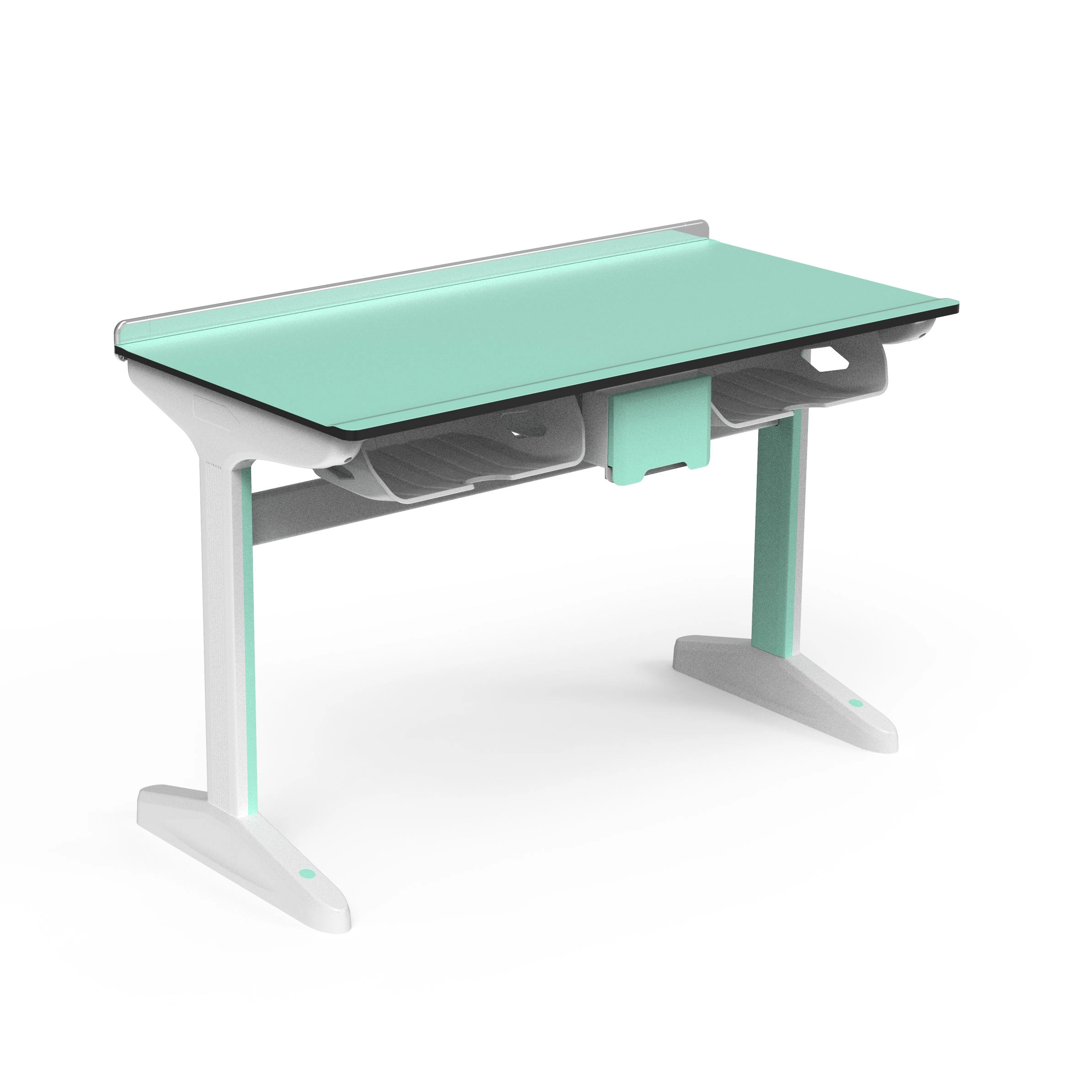

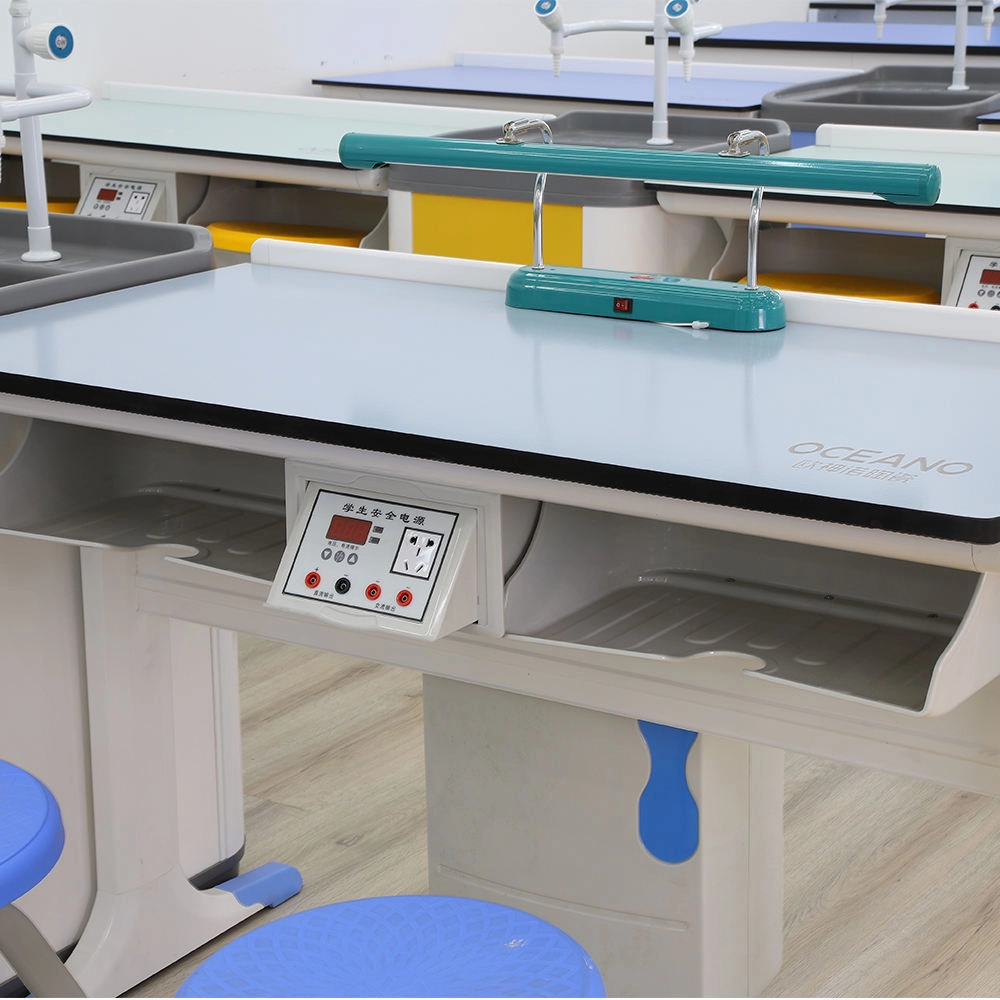

This Student Lab Table is designed for science classrooms and teaching laboratories, providing a safe, organized, and durable workstation for daily experiments. The table features an integrated student power box and built-in cable management trays, helping keep wiring neat, protected, and easy to access during lessons.

Standard size (length, depth and height): 1200*600*780Hmm

Table top material: solid physiochemical board, ceramic board, epoxy resin board

Table body material: aluminum alloy castings, aluminum profiles, mold injection parts.

Built for long-term school use, the structure is stable and easy to clean, while the workstation layout supports group learning and efficient classroom management. It is ideal for physics, chemistry, and biology labs, and can be configured with different sizes, power outlet options, and classroom layouts to match your project requirements.

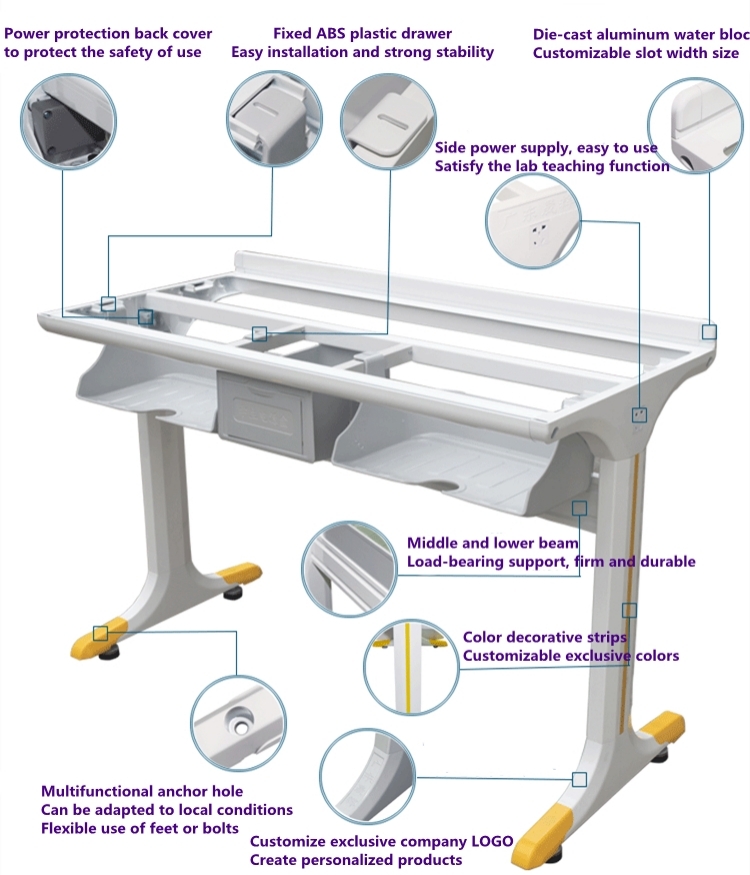

• Feature:

  Appearance: rounded corners in all areas that are easy to collide, the side pillars are designed with unique grooves, the overall product is curved, and the color matching is more beautiful.

  Structure: The schoolbag pocket and the piggyback design of the power supply box can be upgraded to a double middle and lower beam structure, and the overall table is more solid and stable.

  Material: Produced using standard Nanhai aluminum ingots, then pickled, phosphated and treated with epoxy resin outdoor powder high-temperature electrostatic spraying. The alloy content, strength, hardness, coating, and acid resistance of the aluminum products used meet the national building profile standards . The material is healthy and environmentally friendly, without formaldehyde.

  Function: The side of the table has a socket core inverted mold design, which can be buckled into the power supply/network/phone/single control switch and other functional parts. The middle beam has an original tear-and-tear groove design, and a wiring hole is reserved in the column to facilitate the wiring of the wires in the table, so that the wires are not exposed.

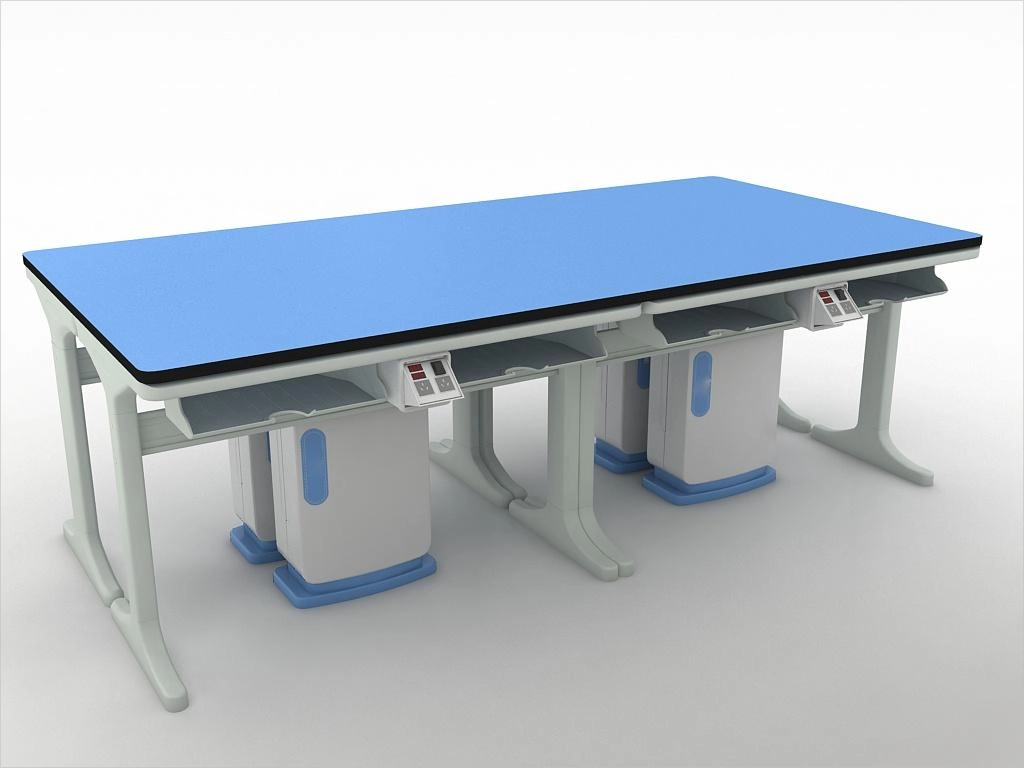

  Sink cabinet: Aluminum-steel-plastic/aluminum-wood-plastic structure, the structure is solid, stable and durable, and will not be deformed after long-term use.

  Detail:

  1. New type of magnesium-aluminum plastic structure, basically zero formaldehyde, overall 1200*600 *780mm. The students are hollowed out, ergonomically designed, simple and beautiful, and rounded corners are used in all areas that are easy to collide.

  2. The table top is made of 12.7mm thick double-sided film phenolic resin board, which is beautiful and durable. It is composed of special kraft paper, colored paper, surface paper, chemical film, etc. Due to the unique structure, it has excellent bending resistance and impact resistance, and can carry heavy objects and is not easy to bend and deform under pressure. Due to the use of double-sided physical and chemical film, it has more anti-warping characteristics, and can still be used in reverse, saving resources and more environmentally friendly.

  3. Schoolbag bucket: The overall size is 400*260*100mm, and it is made of environmentally-friendly ABS plastic engineering one-time injection molding. The bottom and face are equipped with warp and weft reinforcing ribs to prevent deformation and bending. A screw hole is injected at the center of the front end of the schoolbag bucket, and the schoolbag bucket is fixedly connected to the middle beam by screws, which can be disassembled and easily assembled. An inner concave round groove hanging stool card slot is set in the middle, which is convenient for storing and placing the experimental stool. The schoolbag pocket has been tested by a national authoritative testing organization, and the plastic parts have a hardness of Shore HD73. The schoolbag pocket has been tested to contain no phthalates, heavy metals such as lead, cadmium, chromium, mercury, polycyclic aromatic hydrocarbons and other undesirable substances.

  4. The side adopts a three-section high-strength aluminum alloy structure, the overall specification: 562*770mm, of which the size of the upper bracket is 562*143*50mm, and the size of the lower bracket is 562*133*50mm. The column adopts an inclined design, embedded in the upper and lower cast aluminum brackets 20mm, and the rear end is equipped with a reinforced support beam. The upper and lower brackets on the side are formed by 4mm thick aluminum die-casting at one time, each part is connected with special positioning pieces, and the upper and lower brackets are connected and fixed with high-strength hexagonal socket screws 8*25. The upper bracket is designed with a power insert core hole, and a special metal fixing slot is die-casted in the center of the upper bracket at one time. It is specially used with the national standard five-hole socket. The four card slots of the socket core plastic shell can be directly snapped into the upper bracket to fix it. Do not use additional screws or glue. The upper and lower brackets each have two wiring holes with a diameter of 16mm. The power core can be used for connecting wires in the column to connect to electricity. The wiring and routing are convenient to avoid the wires from being exposed. In addition, a plastic protective cover covers and protects the power core to ensure the safety of electricity use. The socket core has a national compulsory product certification test report.

  5. The column adopts a rhombus octagonal structure design, the specification is 105*50mm, and the thickness is 1.5mm. The vertical plane and the inclined plane each have four sides, the angle between the front vertical plane and the inclined plane is 19 degrees, and the angle between the side vertical plane and the inclined plane is 71 degrees. A groove is arranged in the middle of the outer facade of the column, which is more convenient and beautiful when connected with the middle beam. Increase the groove edge banding to cover the screw holes, and there is no visible screw hole on the side of the table, and protect the user from the aluminum edge. The edge banding strips are sprayed in different colors to enrich the overall color matching of the table.

  6. The front beam, the middle beam, the rear beam and the middle and lower beams are all made of high-strength extruded aluminum alloy mold profiles, and the surface of the aluminum material is treated by epoxy resin outdoor powder electrostatic spraying. The size of the middle beam is 37*28mm, and a unique aluminum tear line is designed on the aluminum material. After the middle beam is installed, an empty slot can be torn out from the aluminum material, and the power cord is placed in the slot to maximize the protection of students The electricity is safe, and the power wiring is convenient. The size of the front and rear beams is 50*41mm, and the front semi-circular arc ergonomic design is adopted, the arc angle is R30, the thickness of the mounting screw is 1.7mm, and the other thickness is 1.2mm. The rear beam is equipped with a water-retaining strip assembly chute to facilitate the installation of the water-retaining strip. The size of the water-retaining strip is 14*52mm. The size of the middle and lower beam is 150*19mm, and the upper and lower waist design is adopted to strengthen the strength of the beam.

  7. The back water retaining strip is integrally extruded by the mold, and the bayonet water retaining strips of different heights are fitted according to the table tops of different thicknesses. In addition, it is equipped with aluminum alloy water retaining block of corresponding size, which is used to fix the aluminum alloy table corners and water retaining strips on both sides. The aluminum alloy water block is formed by die-casting of aluminum alloy, and the surface is electrostatically sprayed with epoxy resin outdoor powder.

  8. Lower bracket feet: Both ends of the lower bracket feet are provided with a round hole with a diameter of 10mm, which can be fixed to the ground by a blast screw or used with an adjusting foot with a diameter of 50mm. The adjusting foot is integrally injection molded with a 12*50 national standard screw and high-quality plastic, which has strong load-bearing capacity. The side corners of the table are equipped with decorative covers with ABS foot covers in different decorative colors.

  9. The table as a whole has been tested by a national authoritative third-party inspection agency. The metal surface coating is smooth and uniform, the color is consistent, without sagging, bumps, wrinkles, flying paint and other defects, and the contact with the human body is smooth and free of burrs; the aluminum alloy profile used in the table has been tested, and the size deviation, mechanical properties and chemical composition are all in line with GB/T 5237.4-2017 "Aluminum alloy building profile" Standard requirements: The Vickers hardness of aluminum material reaches 77, the hydrochloric acid resistance test is qualified, and the solvent resistance test reaches level 4.

Multimedia physics teacher podium (One set)

1. All-steel structure, table size 2400*750*850mm.

2. The tabletop uses a 12.7mm thick double-sided film Solid Physiochemical/Phenolic Resin board, and the sides are added to 25.4mm.

3. Cabinet body: adopt 1.0mm high-quality cold-rolled steel plate.

Key Features:

Customizable Lab Designs: Tailored layouts to fit your classroom or lab space.

Durable Furniture: High-quality materials resistant to wear and chemicals.

Safety First: Compliant with OSHA and educational safety standards.

Cost-Effective Packages: Affordable solutions for schools and institutions.

Comprehensive Support: From planning to installation and maintenance.

***Refer to P-01 for detailed parameters

Physics teacher control power (One set)

The drawer-type pull-out power supply main control console needs to be integrated with the teacher's demonstration platform to realize equipment failure alarm, remote control, and other functions, password power-on management functions, and 7-inch color LCD touch screen.

***Refer to P-02 for detailed parameters

Teacher lift chair(One set)

1. The seat surface/back is made of high-quality high-stretch mesh fabric; the seat cushion is filled with high-density native sponge and wrapped with a breathable mesh cloth.

2. The handrail is made of breathable mesh cloth wrapped sponge with high-quality engineering grade PP.

***Refer to P-03 for detailed parameters

Physics student lab table(24 sets)

1. Standard size (length, depth and height): 1200*600*780Hmm

2. The tabletop uses a 12.7mm thick double-sided film Solid Physiochemical/Phenolic Resin board, and the sides are added to 25.4mm.

3. Table body material: aluminum alloy castings, aluminum profiles, mold injection parts.

***Refer to P-04 for detailed parameters.

Desktop physical electrical power supply (24 sets)

The power supply separately installed in the middle of the two drawers under the table top, the work console is a flip type, and when fully opened, the work panel is at an angle of 140° with the horizontal plane.

***Refer to P-05 for detailed parameters

Desktop physical electrical power supply (24 sets)

1. length: 1200mm

2. Using microcomputer program control and remote communication control

3. Use an aluminum alloy frame and place it on the desktop.

***Refer to P-06 for detailed parameters

Student lab stool (48 sets)

Specification: 315*315*485 (540)

1. The stool surface and the stool foot are made of high-quality PP plastic at one time.

2. Stool surface: The stool surface is 315mm in diameter

3. Stool frame: 4 stool legs are integrally formed with 20*40*1.2mm seamless steel pipe molds.

***Refer to P-07 for detailed parameters

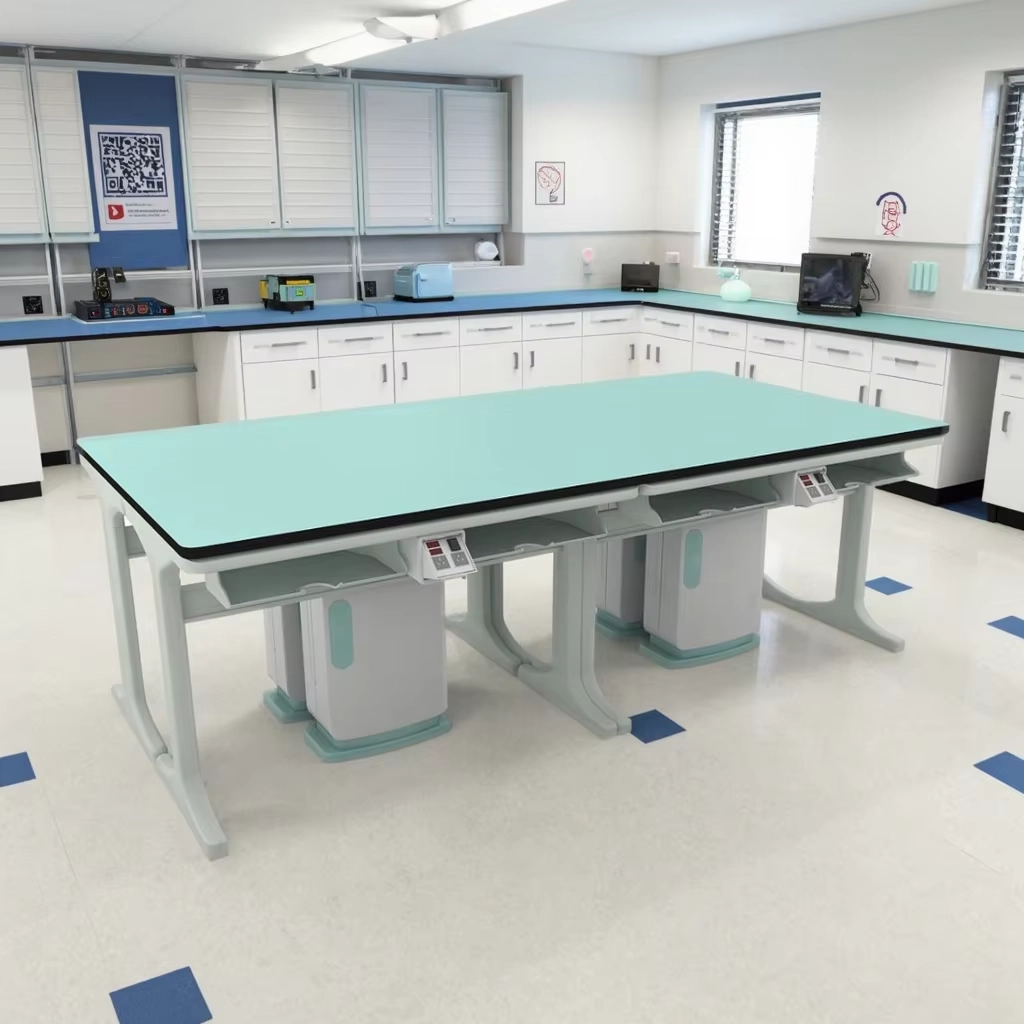

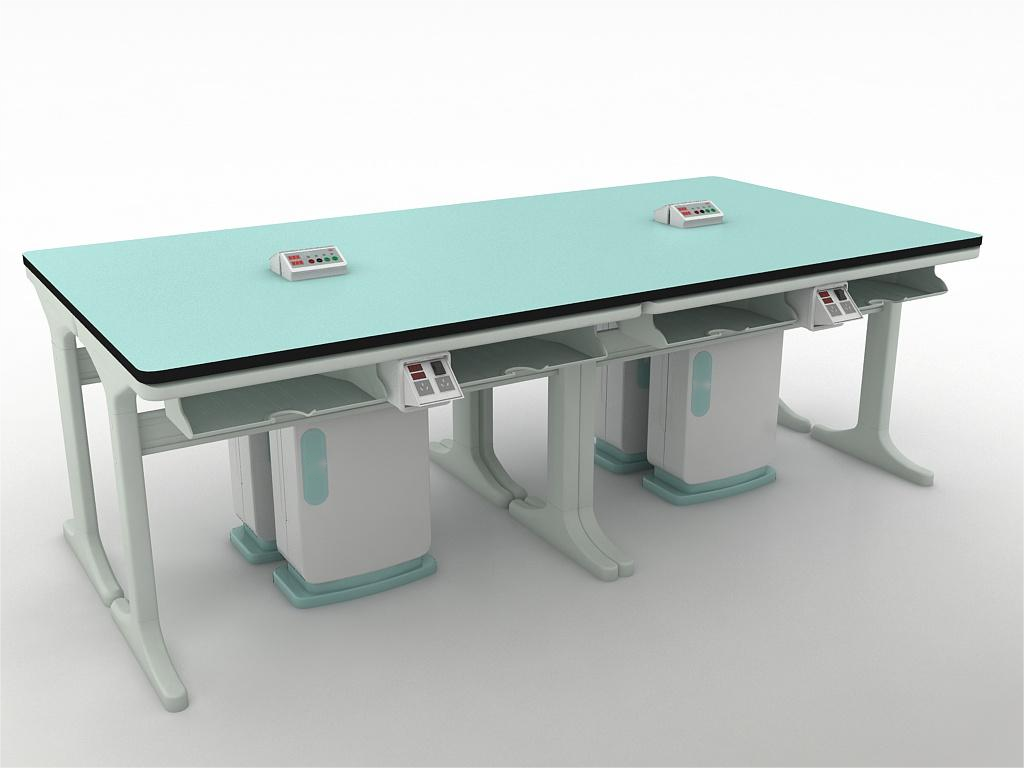

Rendering
