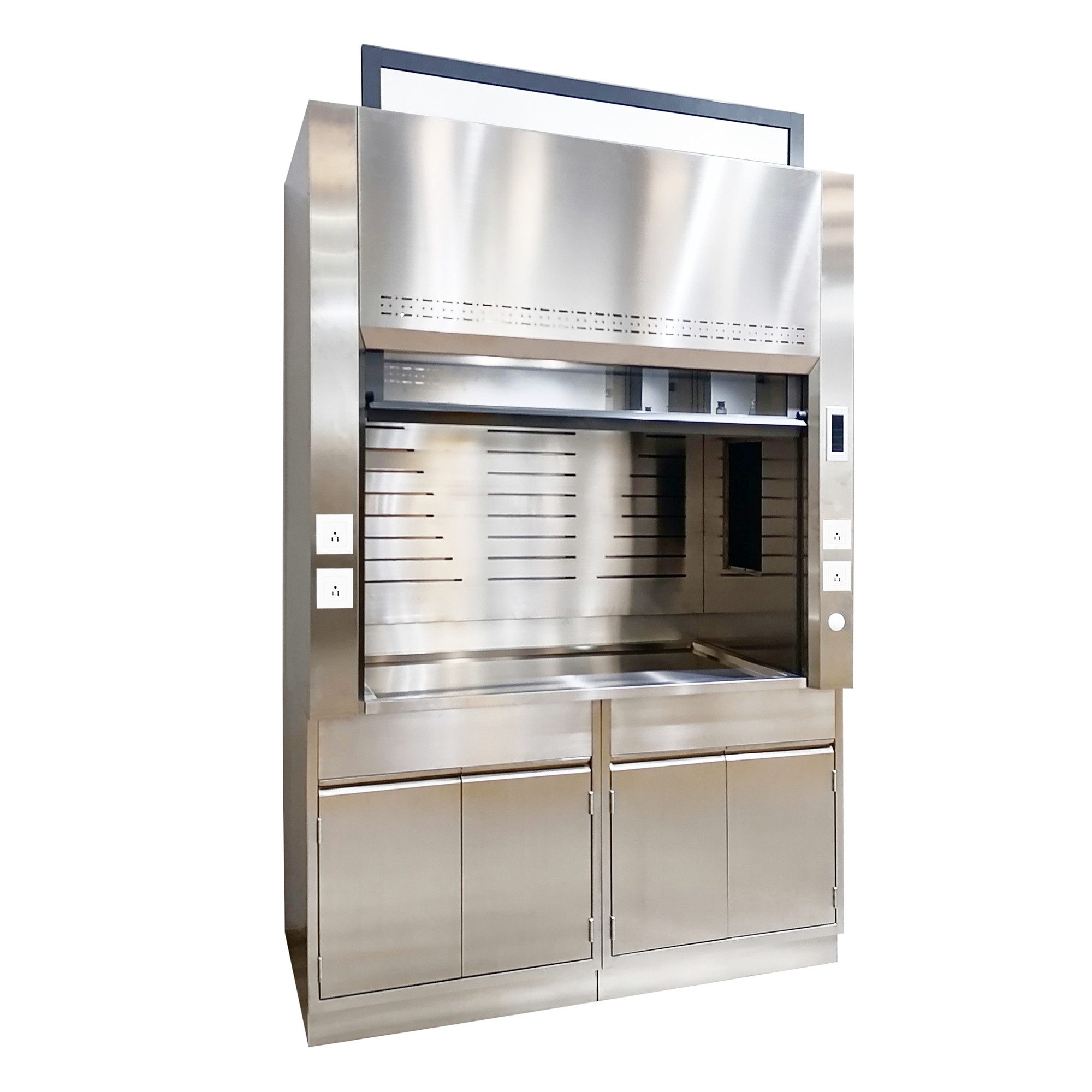

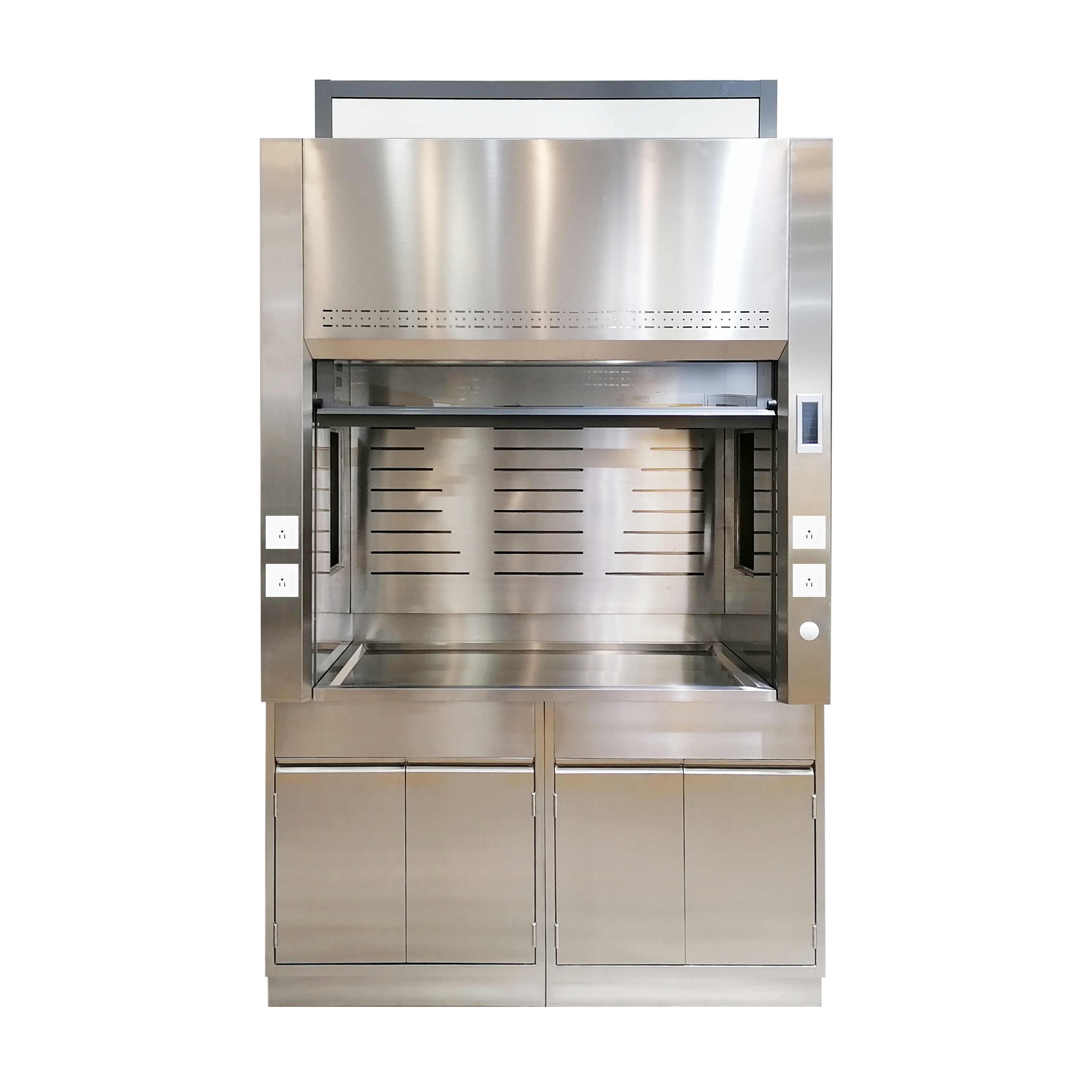

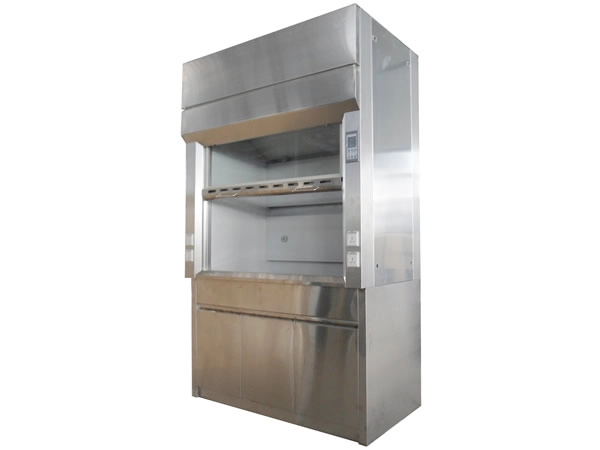

Stainless steel Fume Hood
MAX LAB Stainless Steel Fume Hoods are built for durability and performance, making them ideal for chemical, biological, and pharmaceutical laboratories. Made from high-quality 304 and 316 stainless steel, these fume hoods offer exceptional resistance to acids, alkalis, and corrosion, ensuring long-lasting use in demanding environments. Whether you need a floor-mounted, benchtop, or multi-sided fume hood, our stainless steel models are customizable to fit your lab’s specific requirements.
Stainless steel fume hoods with duct port fabricated of grade 304/316 stainless steel, They have good resistance to a wide range of chemicals and excellent moisture and heat resistance. They can be decontaminated and cleaned easily and they are ESD safe suitable for electro static sensitive applications if their body connected to building grounding.
Product Details
Stainless steel Fume Hood
Specification
1.Hood body&base cabinet:1.0mm full thickness 304/316 stainless steel sheets and the surface is smooth.
2.Standard Work Surface: 20mm thickness 304/316 Stainless Steel.
Optional: Phenolic Resin/Epoxy Resin/PP/Ceramic/Trespa/Granite/Marble.
3.Controller: Intelligent switch with digital display, multiple controls such as power on, fan, lighting, socket, sterilization, damper, etc..
4.Glass sash: Use explosion-proof 5mm tempered glass, stainless steel sash handle. It is designed by the weight balance method in the mechanical principle, and the left and right are connected by synchronous wheels.
5.Lighting: Equipped with LED 30W purification lamp, the luminosity is greater than 300LUX.
6. Fume hood liner and Baffle: Use stainless steel sheets.
7. Junction box: The junction box with circuit board and AC contactor makes wiring more convenient. Suitable for 110V-230V voltage.
8. Standard accessories:
1x bench-mounted single stainless stee water tap
1x Stainless Steel cupsink
4x Electrical Outlets

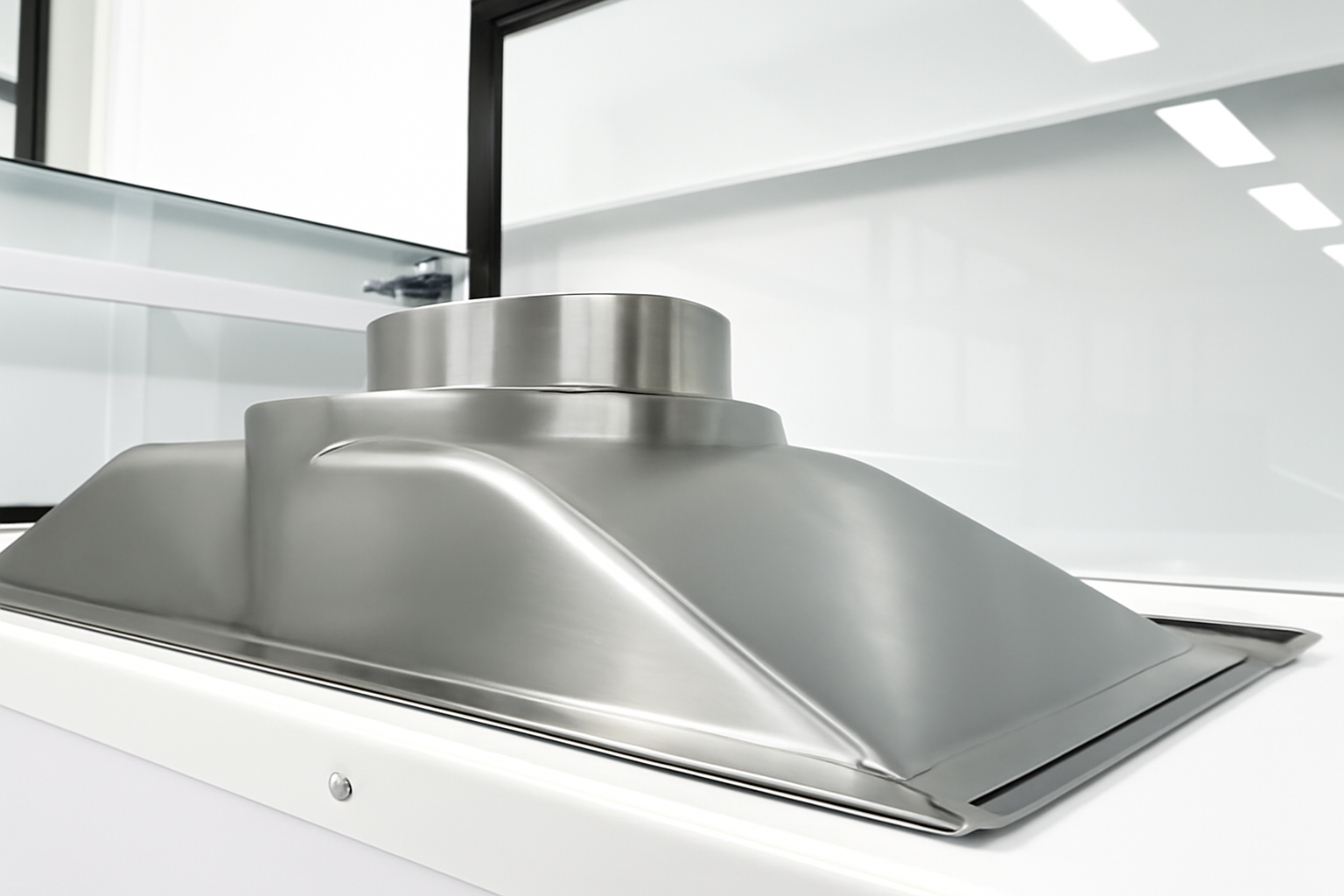

1x 250 or 315mmφ stainless steel hood.
9.Optional accessories:
Remote Controlled Fixture gas&water faucet
Explosion-proof light
Stainless steel distillation Grid Kit
Acid and flammable base cabinet
Ductwork
Exhaust Fan
Standard Dimensions
|
External Dimension (W*D*H)(mm) |
1200*850*2350 |
1500*850*2350 |
1800*850*2350 |
|
Internal Dimension (W*D*H)(mm) |
960*680*1150 |
1260*680*1150 |
1560*680*1150 |
|
Base Cabinet Dimension (W*D*H)(mm) |
1200*800*850 (Can remove) |
1500*800*850 (Can remove) |
1800*800*850 (Can remove) |
|
Exhaust air volume |
700-1300m³/h |
900-1700m³/h |
1300-2100m³/h |
|
Air Velocity |
0.3～0.8 m/s |
||

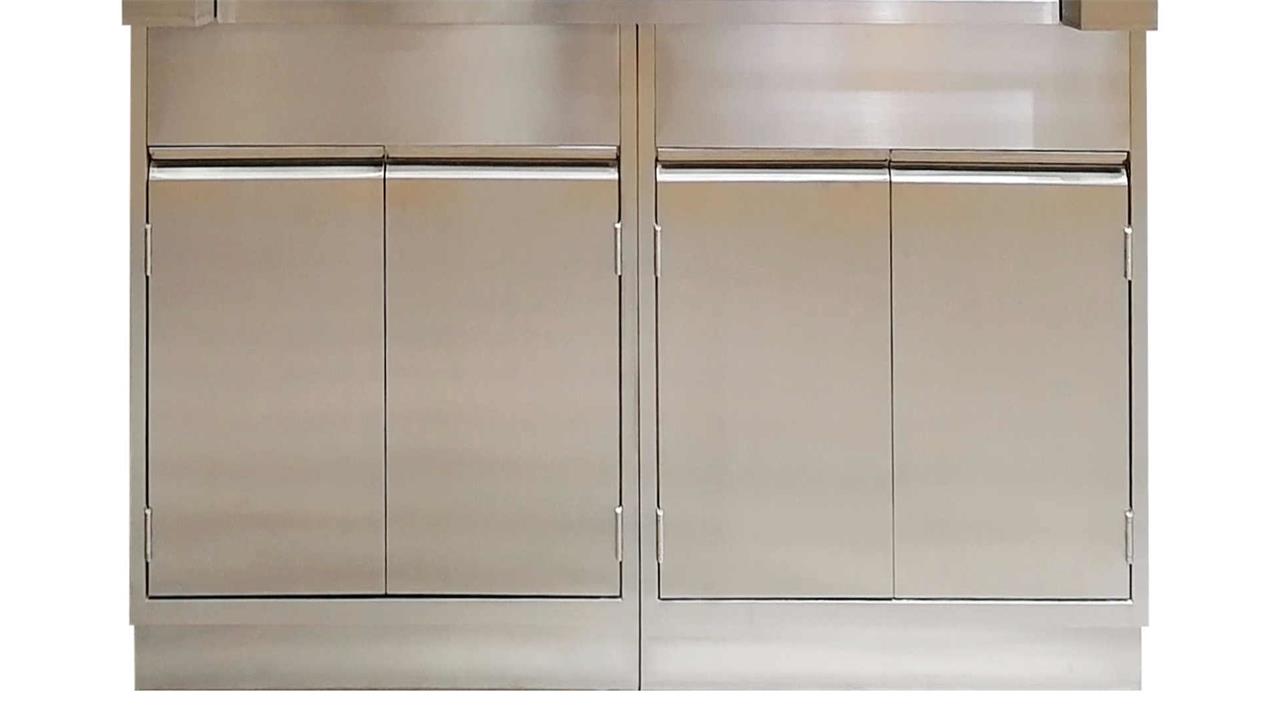

Hood body&Base cabinet:
1.0mm full thickness 304/316 stainless steel sheets and the surface is smooth.
Standard Work Surface:
20mm thickness 304/316 Stainless Steel.
Optional: Phenolic Resin/Epoxy Resin/PP/Ceramic/Trespa/Granite/Marble.
Inner:
Use stainless steel sheets.
Baffle:
Use stainless steel sheets.
Controller:
Intelligent switch with digital display, multiple controls such as power on, fan, lighting, socket, sterilization, damper, etc..
Glass sash:
Use explosion-proof 5mm tempered glass, stainless steel sash handle. It is designed by the weight balance method in the mechanical principle, and the left and right are connected by synchronous wheels.
Lighting:
Equipped with LED 30W purification lamp, the luminosity is greater than 300LUX.
Air foil:
Aerodynamic curve allows air to sweep the work surface maximizing containment. Reduces energy consumption by 7-10% compared to flat air foils.
By-pass Slots:
By-pass airflow design with variable air volume compatibility. Compensating opening that maintains a relatively constant volume exhaust through a Fume Hood regardless of sash position and that functions to limit the maximum face velocity as the sash is lowered.
Junction box:
The junction box with circuit board and AC contactor makes wiring more convenient. Suitable for 110V-230V voltage.
Service access:
Removable service access on both sides for easy installation and maintenance of circuits, gas circuits and other accessories.
Sewerage system: Using high-density PP material anti-siphon bottle trap, corrosion resistance, acid and alkali resistance and inorganic substances, with filtering and odor blocking functions.
3. Accessories
Electric Outlet: Each national standard electric outlet is available

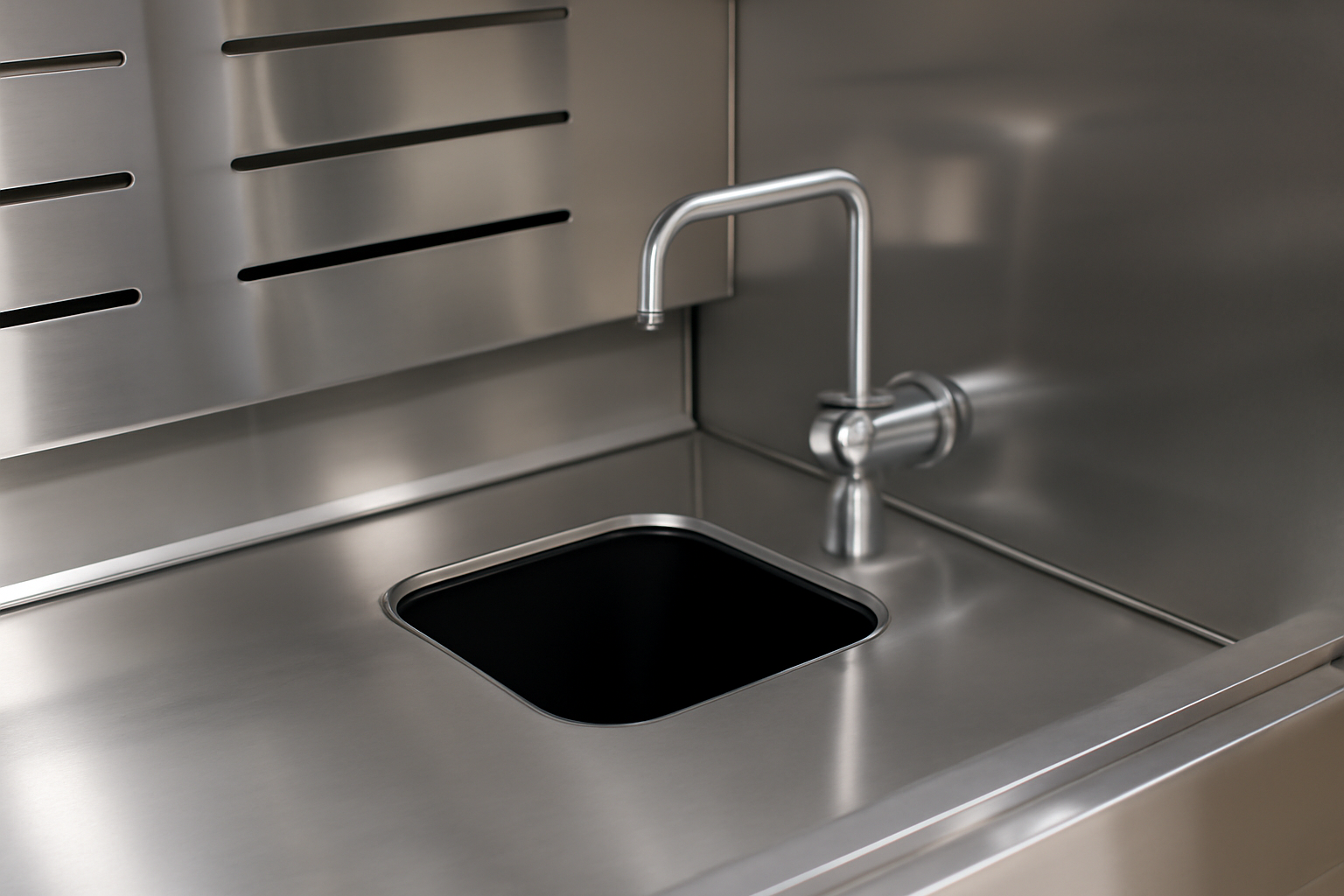

1x Stainless Steel cupsink
1x bench-mounted single stainless stee water tap
Features
• By-pass airflow design with variable air volume compatibility
• Hood entrance is framed with inward-angled members to minimize turbulence and provide smooth air movement in hood at face velocities
• Engineered Three section baffle system for proper air distribution and constant face velocity
• Double wall construction for installation of plumbing and electrical fixtures and concealed routing of piping and wiring
• Chemical-resistant fume hood liner and baffle. Baffles are removable for cleaning
• Removable service access of side panels for access to plumbing and electrical wiring
• The junction box on top of fume hood with circuit board and AC contactor makes wiring more convenient. Suitable for 110V- 230V voltage
• Stainless steel fume hoods offer resistance to a wide range of chemicals, moisture and heat resistance, and can be easily cleaned or decontaminated.

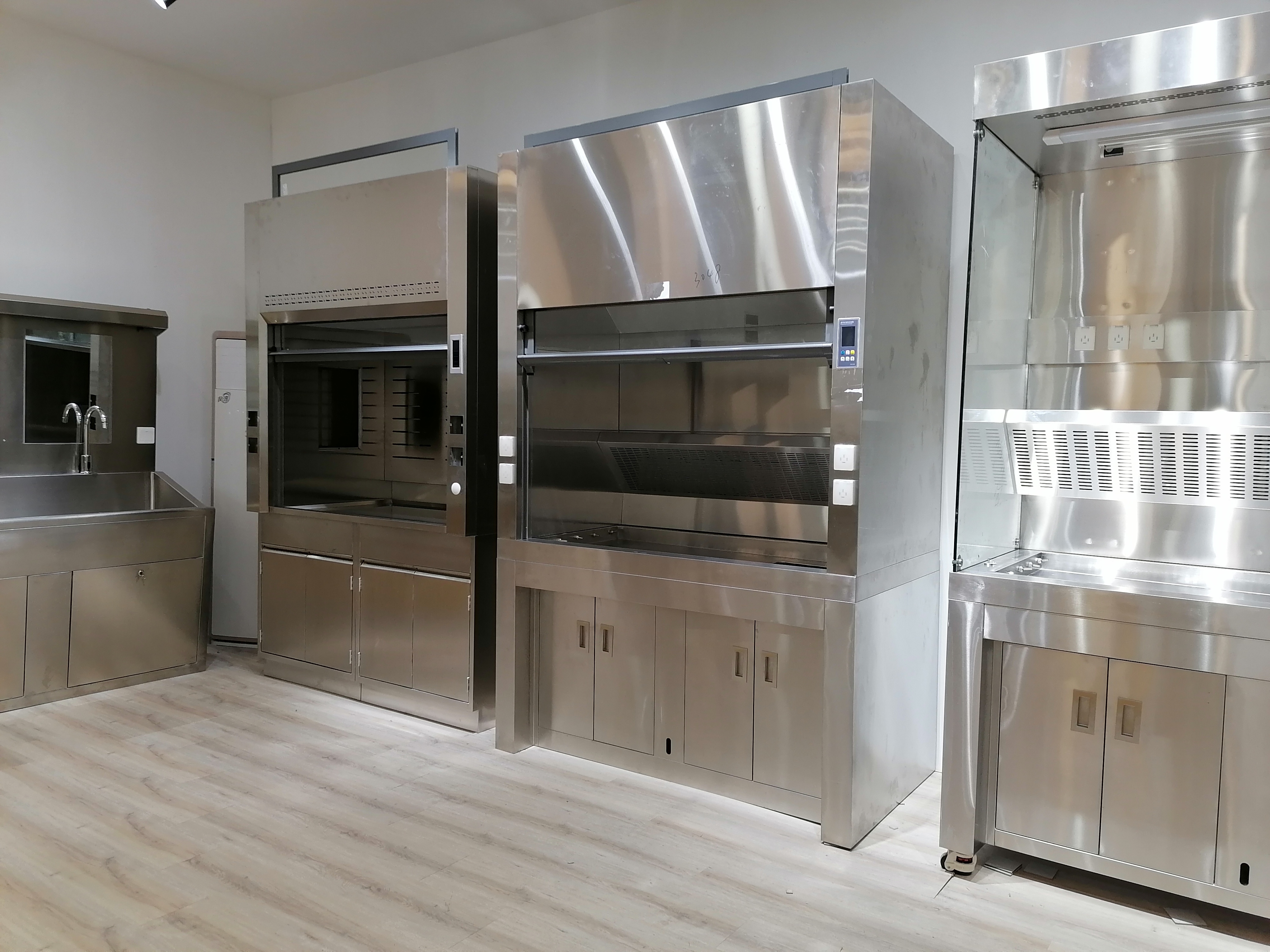

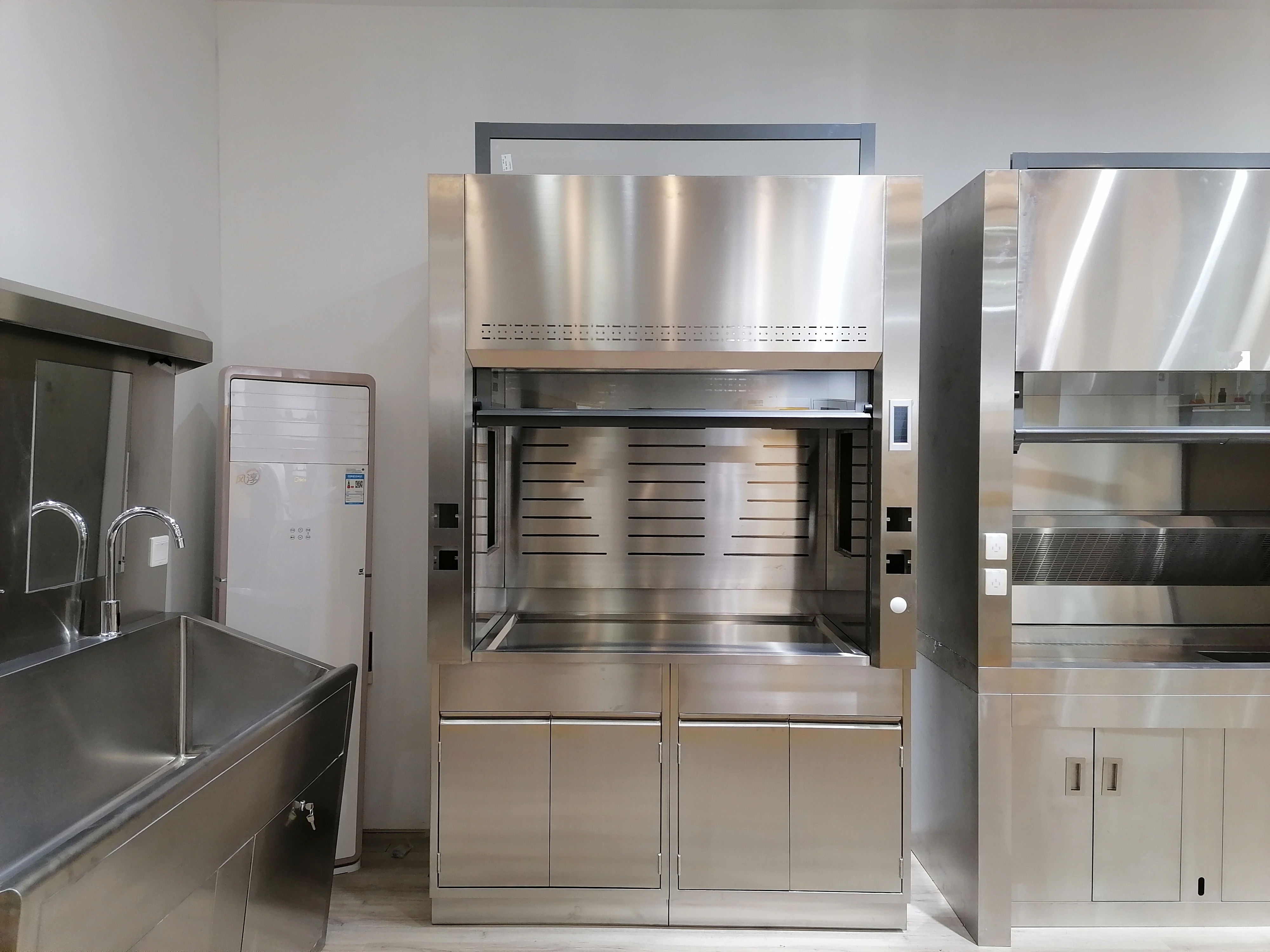

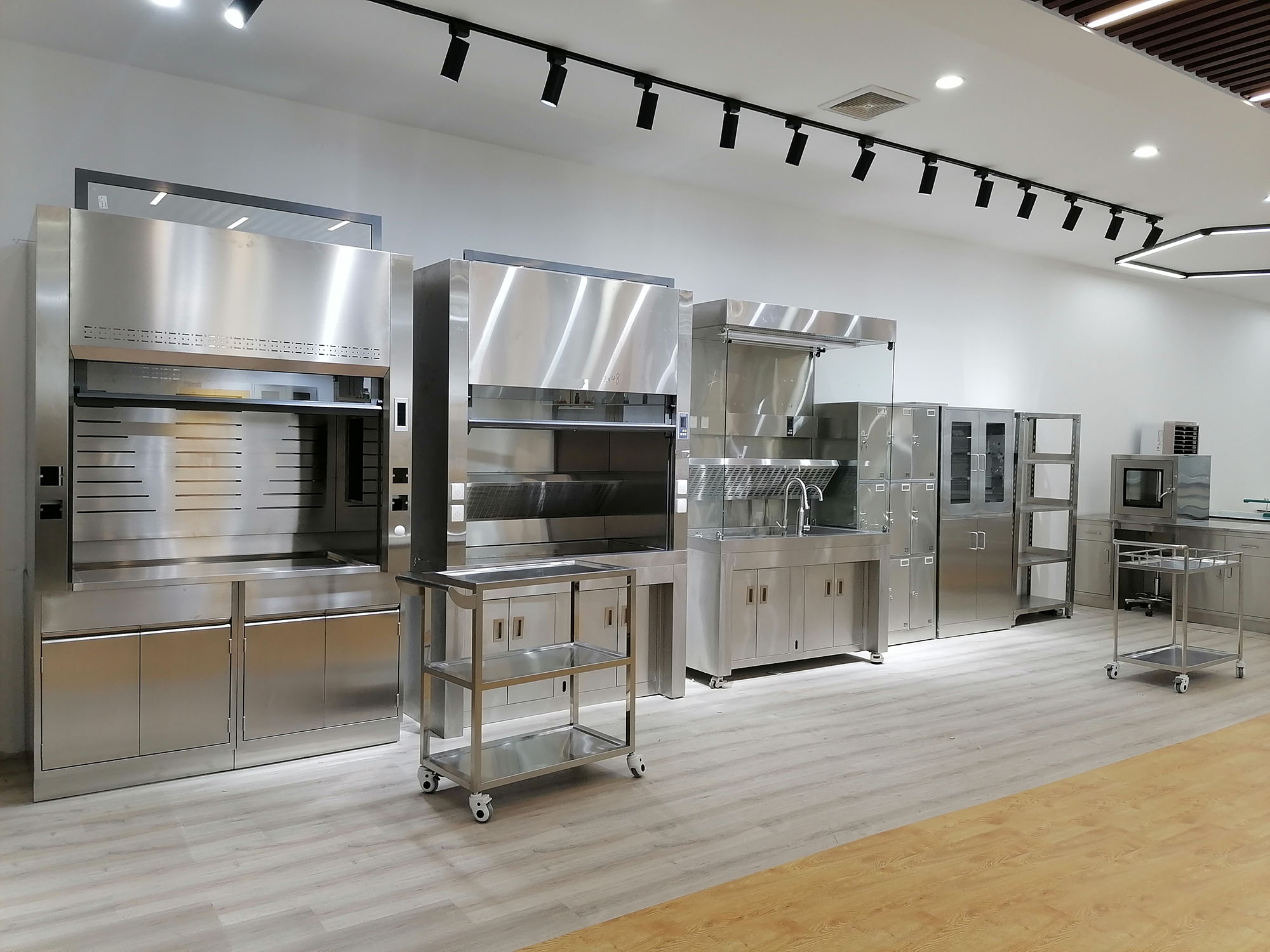

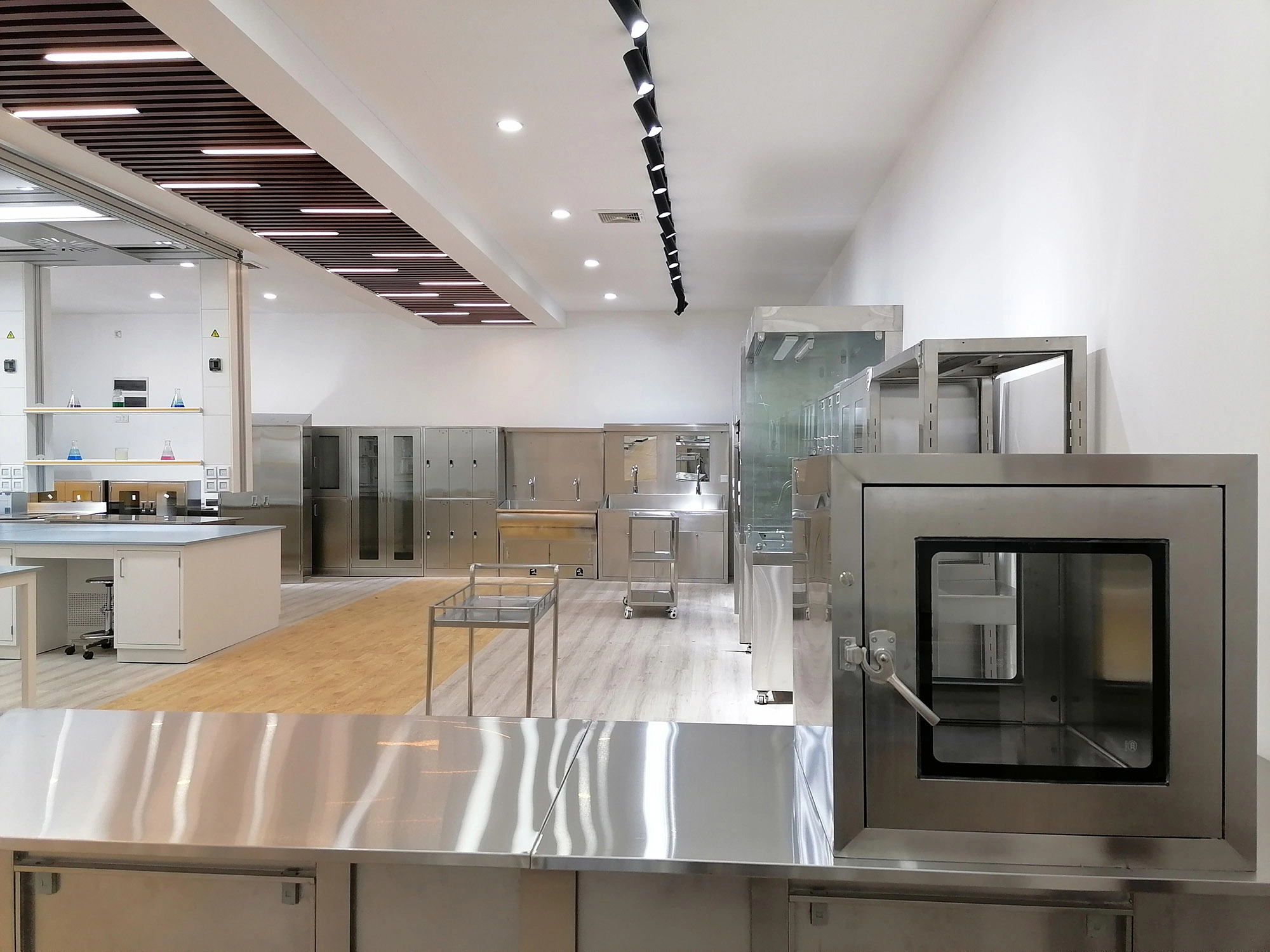

Show room
