Remote Control RC-07

The MAX LAB Remote Control Valve Assembly is a compact panel-mounted remote control unit for laboratory gas, water or vacuum lines.

The ergonomic control head is installed on the front of the workbench or fume hood, while the media lines remain safely behind the panel. Two pre-installed copper tubes (110 mm) connect directly to the valve body or supply line, making installation fast and reliable.

This design improves operator safety and keeps the front of the furniture clean and easy to use.

Brand

MAX LAB

Made

Guangzhou, China

Delivery Time

20-30 days

Material

Thickened Solid Brass/Customizable

Model

RC-07

Get a Free Quote

Lab Accessories Catalog_01.jpg

Details

Remote Control

RC-07

Gas Valve, Panel Mounted

gas faucet handle Details

Split-type remote control valve is easy for maintenance. Allows remove the valve in front of the fume hood.

SPECIFICATION

Body: Thickened Solid Brass

Coating: High gloss epoxy powder, resistant to most chemicals, UV fading&heat.

Valve Unit: Ceramic headwork, 90° turn, 500,000 life cycles, static pressure Max.20 Bar.

Knob: High grade PP, ergonomic design and resistant to chemicals

Operating Mode: Turn

Testing pressure: 17 bar/1700 Kpa

Rated pressure: 10 bar/1000 Kpa

Durable and no breakage.

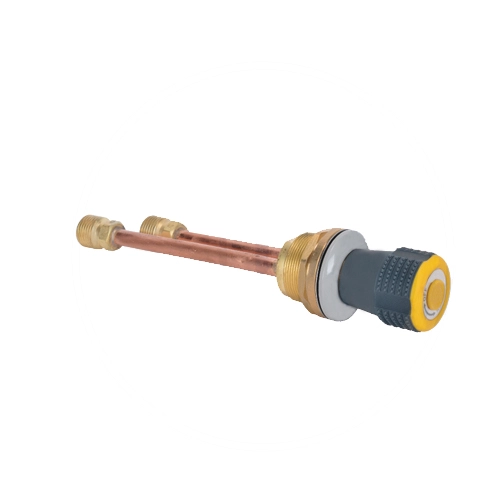

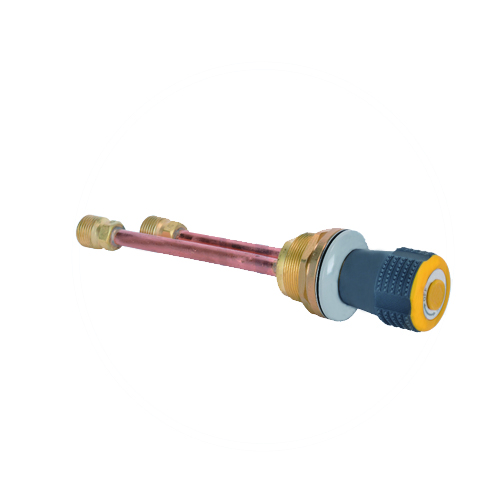

remote control valve assembly

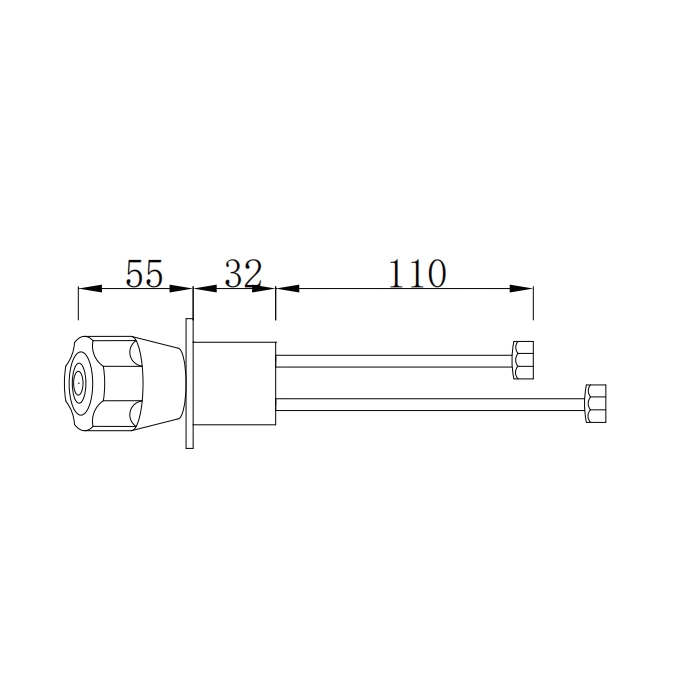

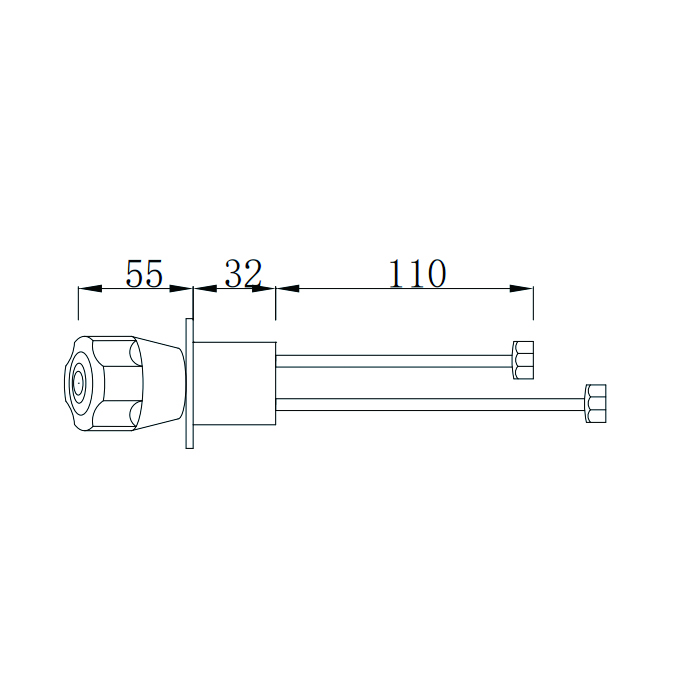

laboratory remote control gas valve

RC-07

Key Features

Safe remote operation
Control head is installed on the panel or fume hood front, while the valve body and piping are located in the service void, reducing exposure to leaks and heat.
Color-coded handles
Ergonomic knobs with international color coding for different media (e.g. gas, water, vacuum, air), helping users identify services at a glance.
Multiple media options
Available for cold water, pure water, gas, compressed air, vacuum and other lab utilities (according to model and material).
Panel-mounted design
Compact front escutcheon and handle provide a clean appearance, ideal for modern lab furniture and fume hoods.
Reliable sealing performance
Precision valve cores and high-quality sealing components ensure smooth operation and long service life.
Various outlet types
Barb, threaded and special connectors are available to match different tubing and installation requirements.
Corrosion-resistant materials
Brass, copper, engineering plastics or stainless-steel wetted parts (depending on medium and specification) provide good resistance to laboratory environments.
Easy Maintenance – Detachable design enables fast servicing without complex disassembly.

Convenient Access – Install or remove the valve right at the fume hood for maximum flexibility.

Durable & Reliable – Built to withstand lab environments with corrosion-resistant materials.

Precision Control – Ensures accurate flow regulation for safe and efficient operations.

Ideal for chemical labs, fume hood setups, and industrial applications, this valve enhances safety, convenience, and maintenance efficiency.
