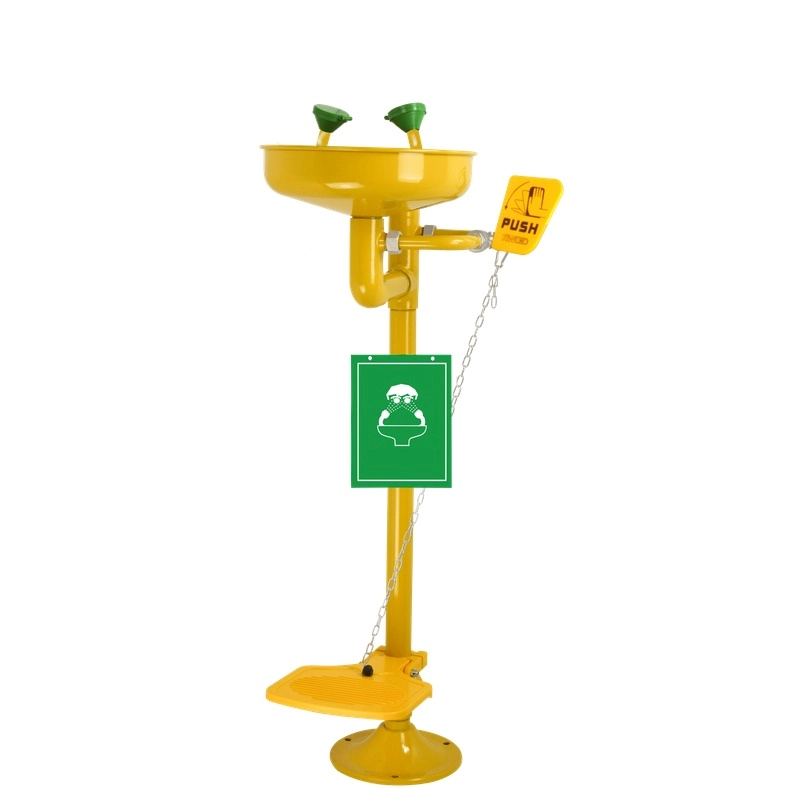

Pedestal Mount Eye Wash EW-14

Pedestal Mounted Emergency Eyewash Station (Push Plate Activation)

Ideal for laboratories, schools and general light duty indoor use, this pedestal mounted eye/face wash unit executive standard is ANSIZ358.1-2014 (American Standard), Pop-off dust covers protect the twin spray head from contaminants, and are lifted off by the water jets upon operation via the push plate.

Material: SS304

Surface treatment: fine polishing, increase product corrosion resistance or high-gloss anti-oxidation yellow coating

Valve: two piece stay open valve

Pipework diameter: 42mm

Nominal pressure: 1.0Mpa

Working pressure: 0.2 ~0.4Mpa

Test pressure: 1.5Mpa

Ambient temperature: 0°C～40°C

Face/eye wash water flow: ≥11.4 L/min

Eyewash water flow: ≥1.5 L/min

Eye wash bowl : diameter 300mm, straight edge design, concentrated water, reduce splash

Spray head: the cover and spray head are designed in one piece, not easy to lose

Inlet size: ½ inch female thread

Drain size: 1 "inch internal thread

Spray head spacing: 170mm

Inlet height: 960±5mm

Drain height: 120±5mm

Installation features: easy installation, space saving

Executive standard: ANSIZ358.1-2014 (American Standard)

Key Features:

Quick Activation: Pull-lever or push-plate design for instant use.

Durable Materials: Made from corrosion-resistant stainless steel or polyethylene.

Compliance: Meets ANSI Z358.1 and OSHA safety standards.

Easy Maintenance: Self-draining systems and tamper-proof designs.

Versatile Installation: Wall-mounted, floor-standing, or portable options.

Applications:

Chemical and research laboratories

Industrial and manufacturing facilities

Educational and school labs

Pharmaceutical and biotechnology plants
