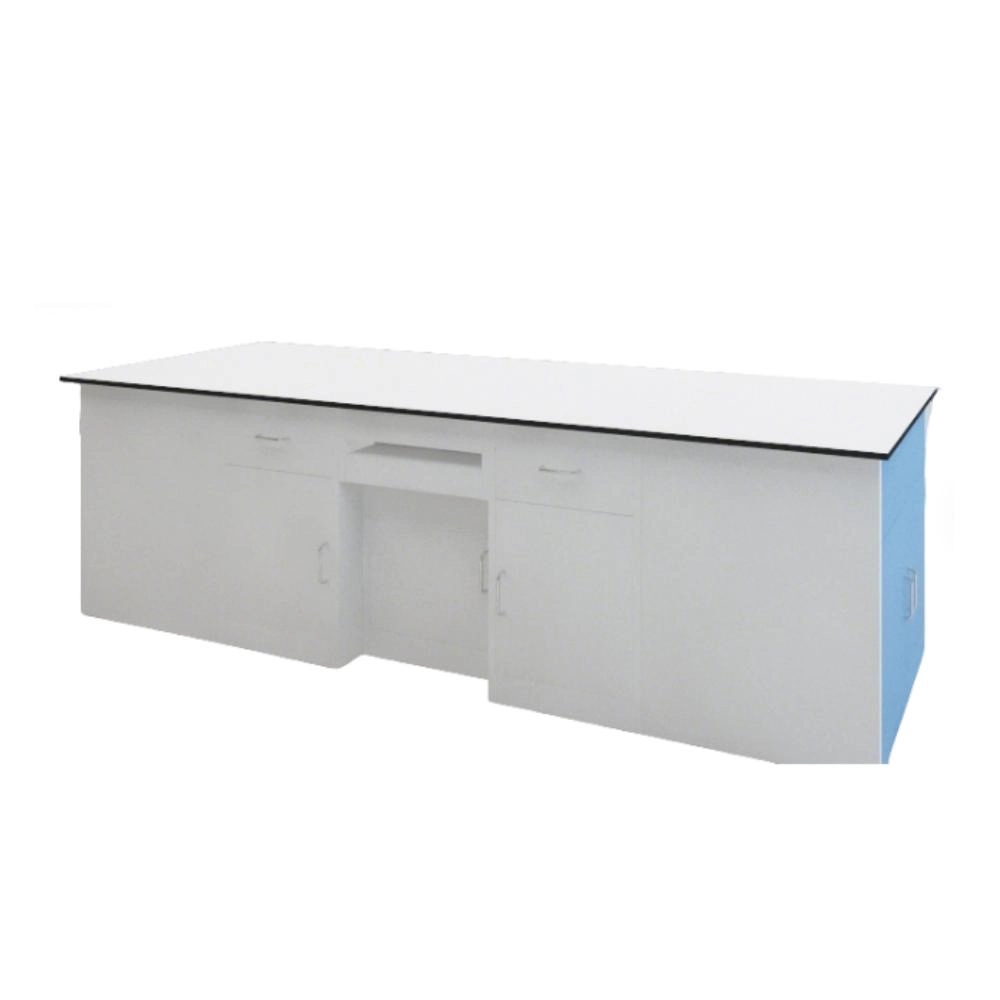

Multimedia Teacher Podium

Multimedia Teacher Podium

(48 seats/room)

A Multimedia Teacher Podium is a smart, all-in-one teaching workstation designed for modern classrooms and school laboratories. It combines a large desktop with secure, lockable storage and an optional equipment compartment to house a PC, amplifier, document camera, or AV control system. Internal cable routing keeps the teaching area tidy and reduces trip hazards, while the durable steel construction and easy-clean surface are built for daily use. Ideal for lecture halls, STEM classrooms, and science labs, this teacher podium improves front-of-class organization, equipment security, and teaching efficiency.

Key Highlights

• Integrated workstation for AV/IT teaching equipment

• Lockable cabinets & storage for secure daily use

• Cable management for a clean, professional classroom setup

• Durable metal body, easy-to-clean worktop

• Suitable for smart classrooms, STEM rooms, and laboratories

Multimedia physics teacher podium (One set)

1. All-steel structure, table size 2800*750mm.

2. The tabletop uses 12.7mm thick double-sided film phenolic resin board, and the sides are added to 25.4mm. Beautiful and durable, it is composed of special kraft paper, colored paper, surface paper, chemical film, etc. Due to the unique structure, it has excellent bending and impact resistance, and can carry heavy objects and is not easy to bend and deform under pressure. Due to the use of double-sided physical and chemical film, it has more anti-warping characteristics, and can still be used in reverse, saving resources and more environmentally friendly.

3. Cabinet body: 0.8-1.0mm high-quality cold-rolled steel plate, carbon dioxide shielded welding welding, edge grinding treatment, the surface is pickled, phosphated and epoxy resin outdoor powder electrostatic spraying, with strong acid and alkali resistance ; The whole podium is composed of 5 independent cabinets. The cabinet reserves the teacher's main control power supply, computer keyboard, sink installation and other positions; the middle three cabinets are front single-opening doors, and the two sides of the cabinets are side double-opening doors. , Optimize the space for placing items.

4. Wiring and piping: The wiring and piping space for circuits, water and air lines is reserved between the cabinet and the back panel of the podium, which is convenient for water, electricity and gas installation when installing the podium, and avoids on-site openings or exposed wires. And other issues.

5. Handle: It is integrally bent at the top of the cabinet door or the front of the drawer, the overall appearance is smooth, and the shape is unique and beautiful;

6. Anti-collision rubber pad: installed on the inside of drawers and door panels to slow down the collision and protect the cabinet;

7. Door panel and extraction surface: Double-layer steel plate is used, and a two-layer assembly design is required to ensure that both sides of the two layers are sprayed to ensure that the door panel and extraction surface have strong hardness and not easily dented;

8. Hinge: use high-quality hinges, or upgrade to high-quality 304 stainless steel molds to form a one-piece, six-hole hinge with a thickness of 1.8mm or more, of which the four holes on the outer edge are oval design, which is convenient for the up and down of the door panel during installation , Left and right adjustment, easy to adjust the door panel to fit the cabinet body; the exposed hinge pole adopts full sealing welding arc grinding treatment, the surface is beautiful and atmospheric.

9. Slide rail: three-section heavy-duty ball slide rail, strong load-bearing, good sliding performance, no noise;

10. Fixed table legs: The adjustable PP plastic adjustment legs are built in the cabinet to ensure that the height of the adjustment legs can be adjusted before and after.

***Refer to P-01 for detailed parameters

Physics teacher control power (One set)

The drawer-type pull-out power supply main control console needs to be integrated with the teacher's demonstration platform to realize equipment failure alarm, remote control, and other functions, password power-on management functions, and 7-inch color LCD touch screen.

***Refer to P-02 for detailed parameters

Teacher lift chair(One set)

1. The seat surface/back is made of high-quality high-stretch mesh fabric; the seat cushion is filled with high-density native sponge and wrapped with a breathable mesh cloth.

2. The handrail is made of breathable mesh cloth wrapped sponge with high-quality engineering grade PP.

***Refer to P-03 for detailed parameters

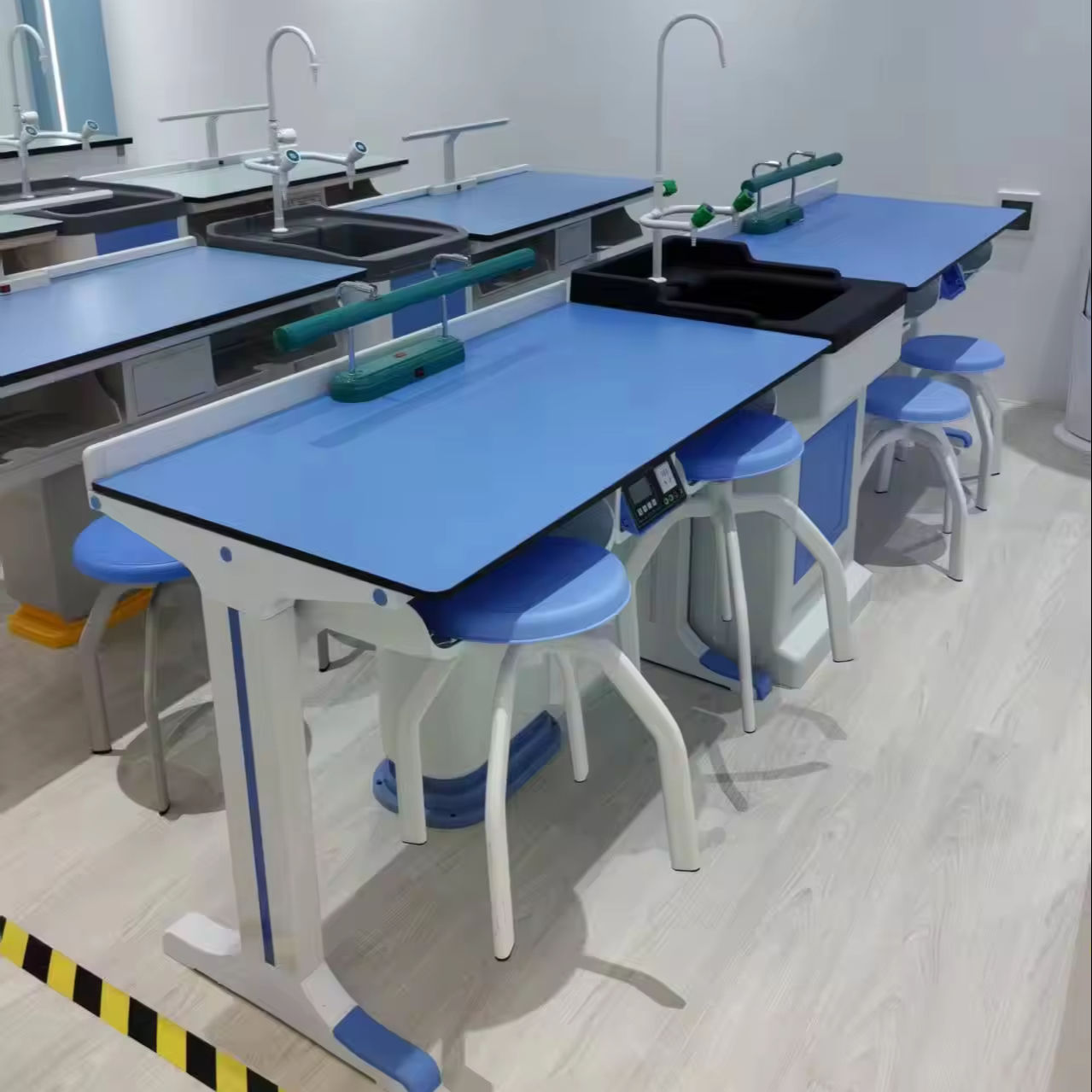

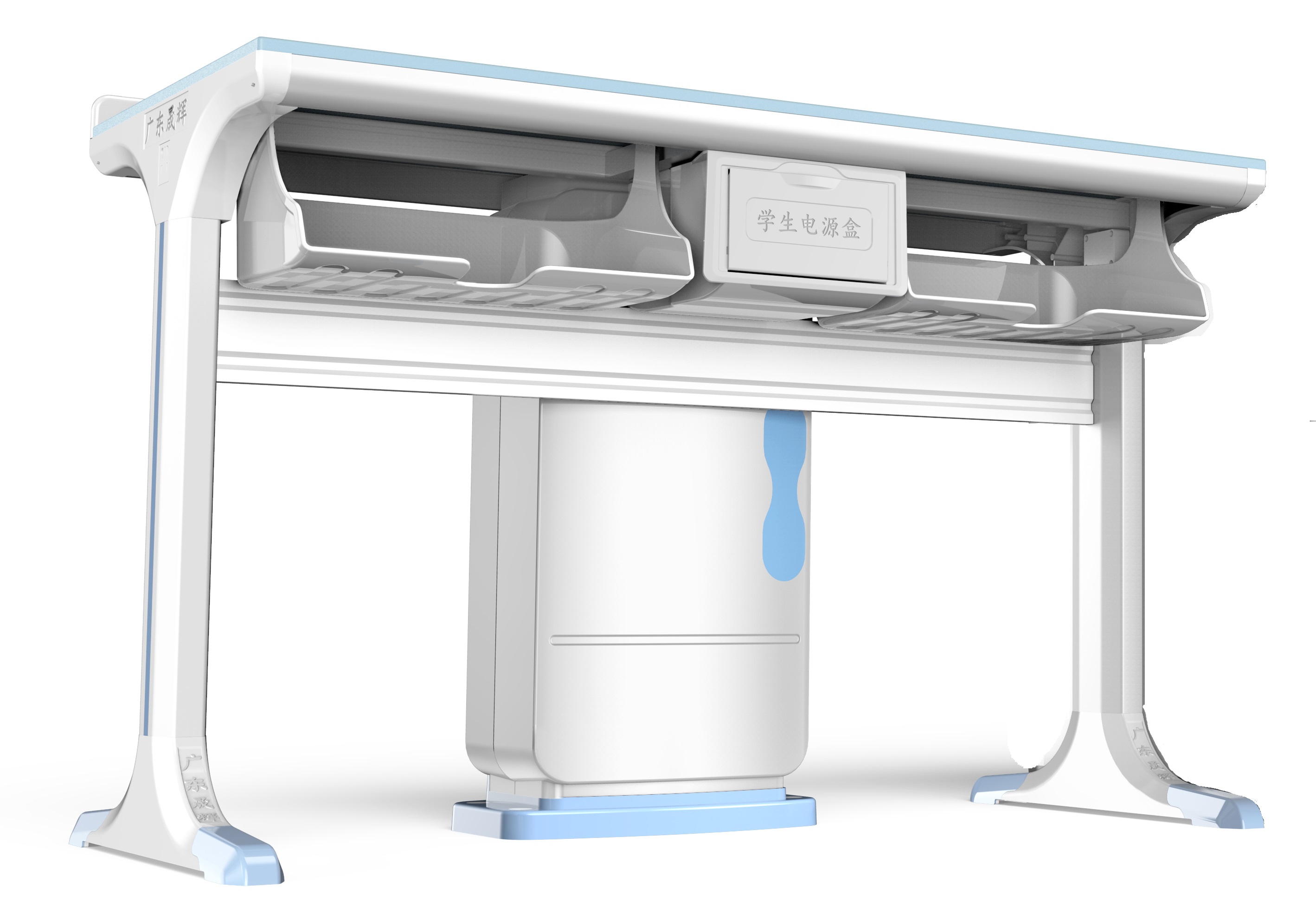

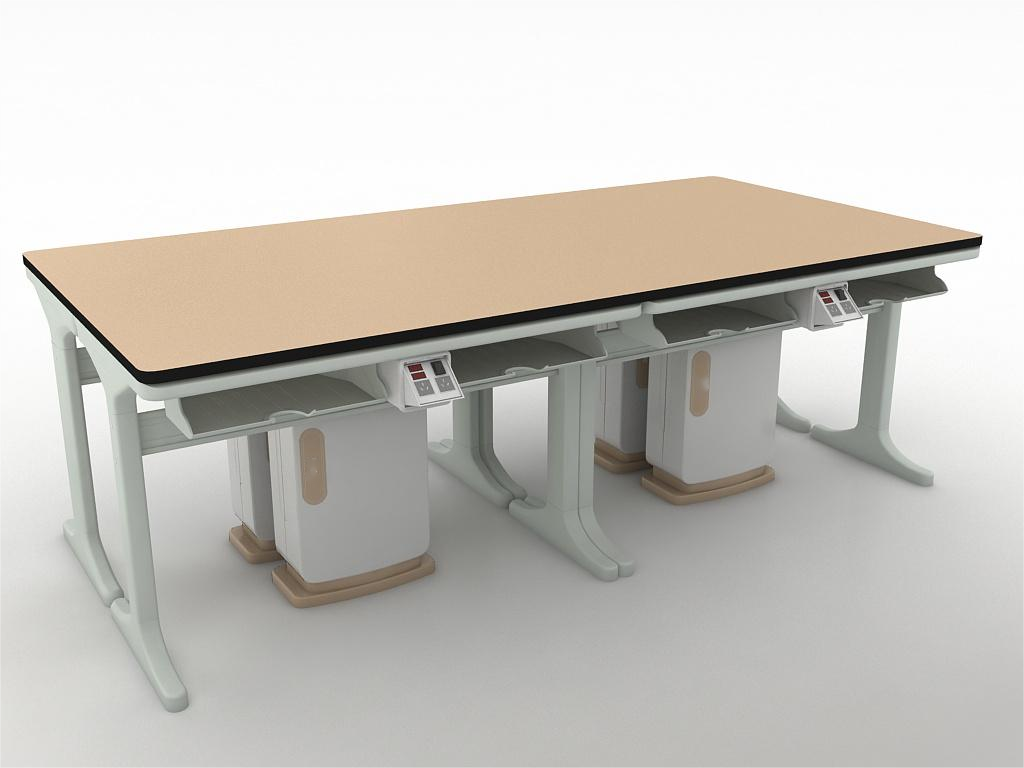

Student lab table(24 sets)

1. Standard size (length, depth and height): 1200*600*780Hmm

2. The tabletop uses a 12.7mm thick double-sided film Solid Physiochemical/Phenolic Resin board, and the sides are added to 25.4mm.

3. Table body material: aluminum alloy castings, aluminum profiles, mold injection parts.

***Refer to P-04 for detailed parameters.

Desktop physical electrical power supply (24 sets)

The power supply separately installed in the middle of the two drawers under the table top, the work console is a flip type, and when fully opened, the work panel is at an angle of 140° with the horizontal plane.

***Refer to P-05 for detailed parameters

Desktop physical electrical power supply (24 sets)

1. length: 1200mm

2. Using microcomputer program control and remote communication control

3. Use an aluminum alloy frame and place it on the desktop.

***Refer to P-06 for detailed parameters

Student lab stool (48 sets)

Specification: 315*315*485 (540)

1. The stool surface and the stool foot are made of high-quality PP plastic at one time.

2. Stool surface: The stool surface is 315mm in diameter

3. Stool frame: 4 stool legs are integrally formed with 20*40*1.2mm seamless steel pipe molds.

***Refer to P-07 for detailed parameters

Rendering
