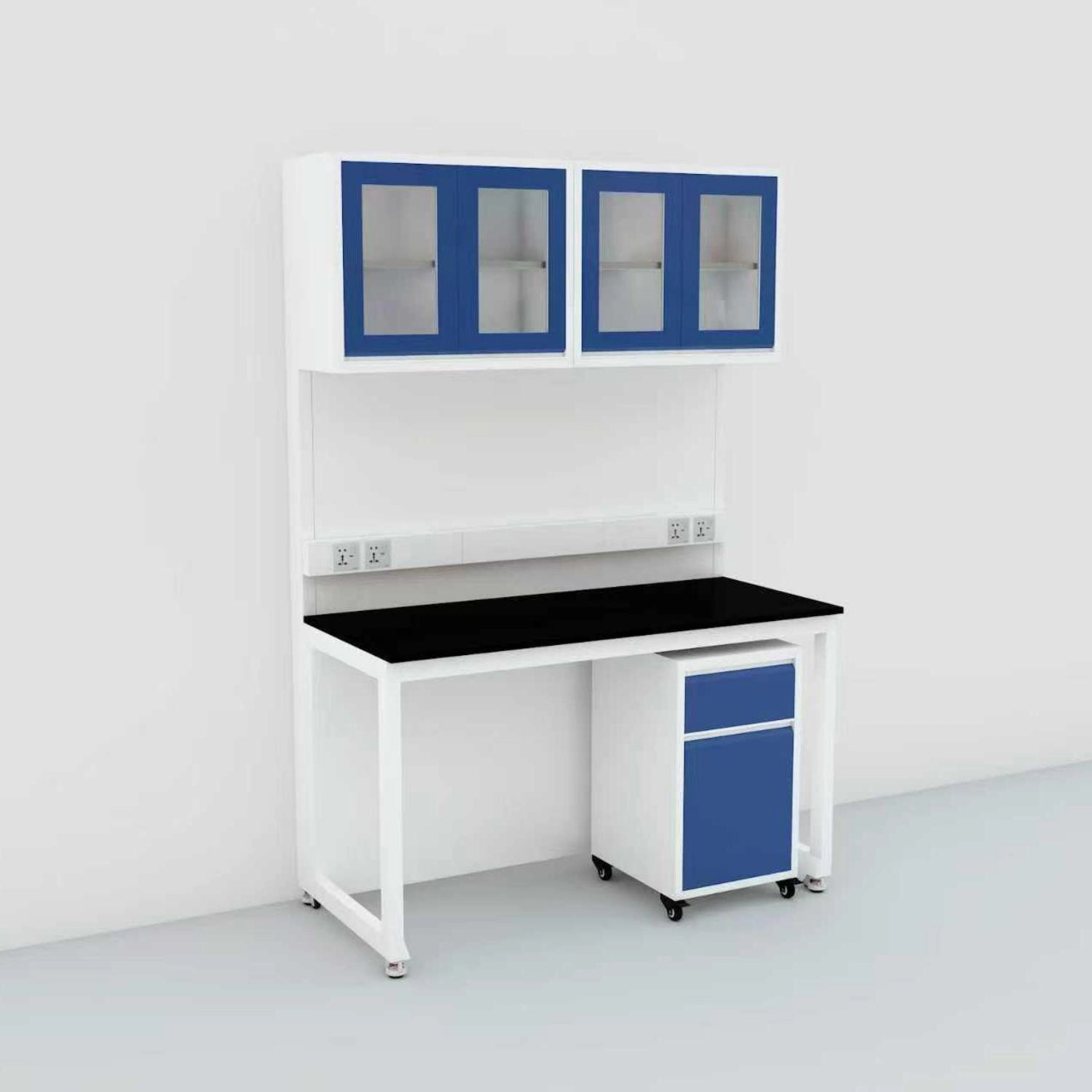

Mobile Modular Lab Bench

Mobile Modular Lab Bench

SPECIFICATION

1. Countertops

(1) Phenolic Resin countertop: 12.7mm(Edge thicken to 25.4mm)/16/19/25mm thickness

(2) Epoxy Resin countertop: 15/16/19/25mm thickness

(3) Ceramic countertop: 15/20mm thickness

(4) Trespa countertop: 13/16/20mm thickness

(5) Granite/Marble countertop: 20mm thickness

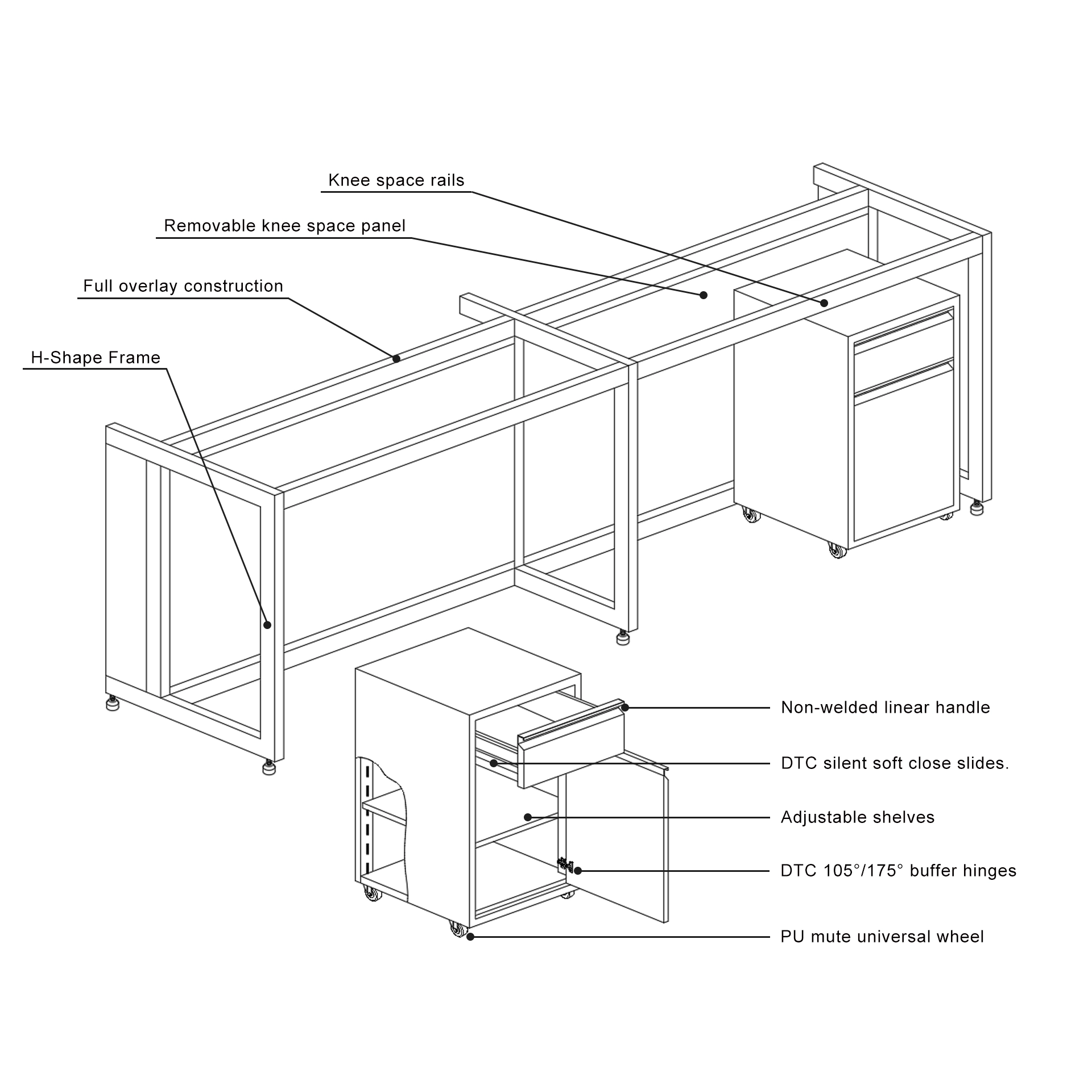

2. Frame&Accessories

(1) Frame: The entire structure is made of 40*60mm, 1.5mm thick high-quality cold-rolled square tubes. The surface undergoes grinding, polishing, rust removal, phosphating, and other processes, followed by epoxy resin electrostatic powder coating and high-temperature curing at 220°C, resulting in a smooth, corrosion-resistant finish.

(2) Handles: Non-welded linear handle/C-shaped stainless steel handle/Insertion Aluminum handle.

(3) Slides: DTC silent self-closing slides.

(4) Hinges: DTC 105°/175° self-closing hinges/Stainless steel self-closing hinges.

(5) Frame Wheels: Use high-quality adjustable FootMaster casters. Each wheel supporting up to 500kg.

(6) Cabinet wheel: High-quality PU silent universal wheel with brakes, excellent load-bearing capacity, shock absorption, and wear resistance without damaging the floor. Each wheel supporting up to 120kg.

3. Option Cabinet Unit

①Wooden Cabinet Unit:

The cabinet body is made of 15mm thick, the door panels and drawer fronts are 18mm thick high-quality, eco-friendly double-faced MDF/melamine board.The edges are sealed with 2mm thick PVC edging, ensuring firm and straight sealing. Equip PU silent universal wheel

②Steel Cabinet Unit:

The entire structure is made of high-quality cold-rolled steel sheet with a full thickness of 1.0mm. The steel surface undergoes grinding, polishing, rust removal, phosphating, and other processes, followed by epoxy resin electrostatic powder coating and high-temperature curing at 220°C, resulting in a smooth, corrosion-resistant surface with a thickness of 1.15mm to 1.2mm.The doors is double-layer structure with soundproofing material filled inside. Equip PU silent universal wheel

ADVANTAGES

1) Maximize Space

Mobile Modular Lab Bench can be arranged in a way that maximizes space. Some configurations allow for multiple setups within smaller areas. The layout can be adjusted as needed, and unlike fixed units, modular options are easily movable.

2) Provide Remote Workstations for Personnel

In today’s uncertain times, having the ability to offer remote workspaces is essential. Even if this wasn’t initially considered during the creation of a laboratory or workspace, mobile modular components make it easier to change layouts. Unlike traditional custom-built workbenches, which are difficult to remove and relocate without significant downtime or costs, modular components offer more flexibility.

3) Increase Lab Expansion Capabilities

One of the most attractive benefits of mobile modular units is the ability to expand as needed. Unlike fixed workbenches, modular options can be easily altered or rearranged to accommodate growth.

4) Ideal Laboratory Layout and Design

Modern laboratory designs require optimizing workspace, efficiency, and social distancing (especially in universities). As laboratory designs and layouts evolve over time, mobile modular units can adapt to changing workspace and personnel needs.

5) Customization and Durability

Customization and quality are crucial for flexible casework. These solutions can be used for many years and provide simple maintainability when needed.

6) Cost

Laboratory designers and architects must consider the overall situation when pricing modular units. The total cost of ownership may be significantly lower than that of fixed units. Labor required for installation is less, and any modifications to the floor plan are also easier. Typically, modular units can result in lower initial costs for larger installations and sometimes for smaller ones.

Summary:

If your laboratory or workspace needs flexibility and planning for future uncertainties, modular options are an excellent choice. The lower total cost of ownership, faster delivery cycles, and installation times make it an ideal solution for most projects.

Standard Dimensions
