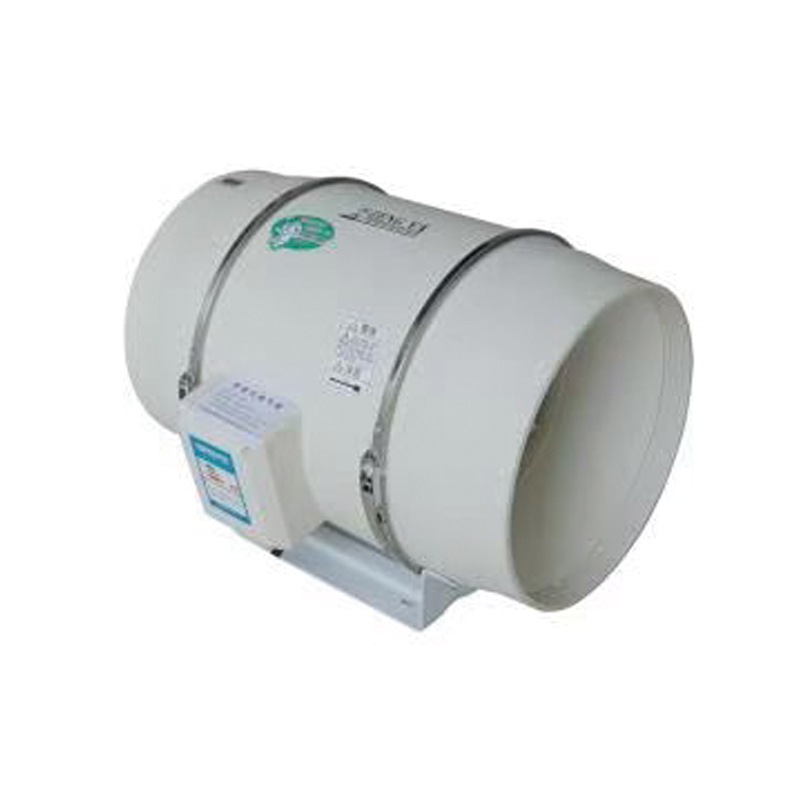

Mixed Flow Fans

Mixed Flow Fans combine the benefits of axial flow fans and centrifugal fans, bridging the gap between the two. With a higher air pressure coefficient than axial flow fans and a larger flow coefficient than centrifugal fans, these fans perform excellently in systems requiring both high air pressure and large air volume. Mixed flow fans are also easy to install, making them a popular choice for various applications, including laboratory ventilation, chemical processing, and building ventilation.

Brand

MAX LAB

Made

Guangzhou, China

Delivery Time

20-30 days

Packing

Plywood Case or Carton

Model

Optional

Get a Free Quote

MAX LAB Fume Extractors Catalog.pdf

Details

Mixed Flow Fans

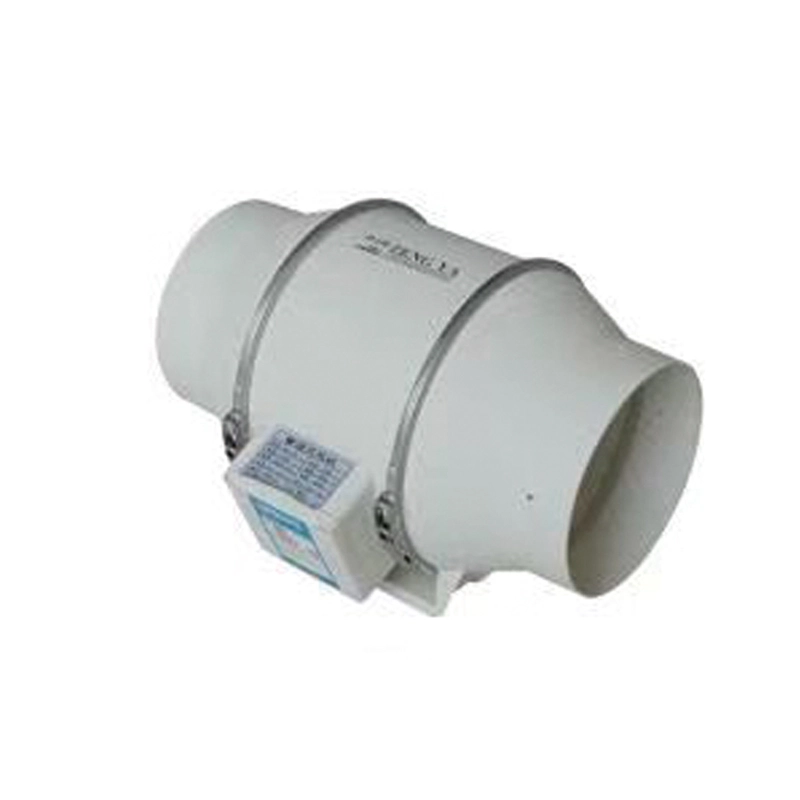

flow fans

Ducted fans

Powerful Quiet duct fans

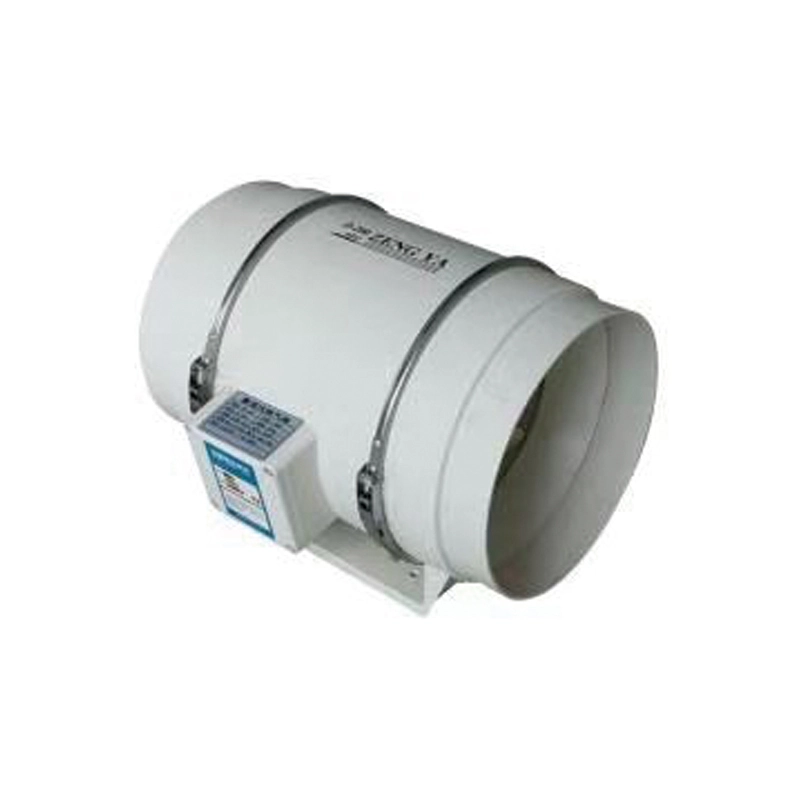

Mixed Flow Fans

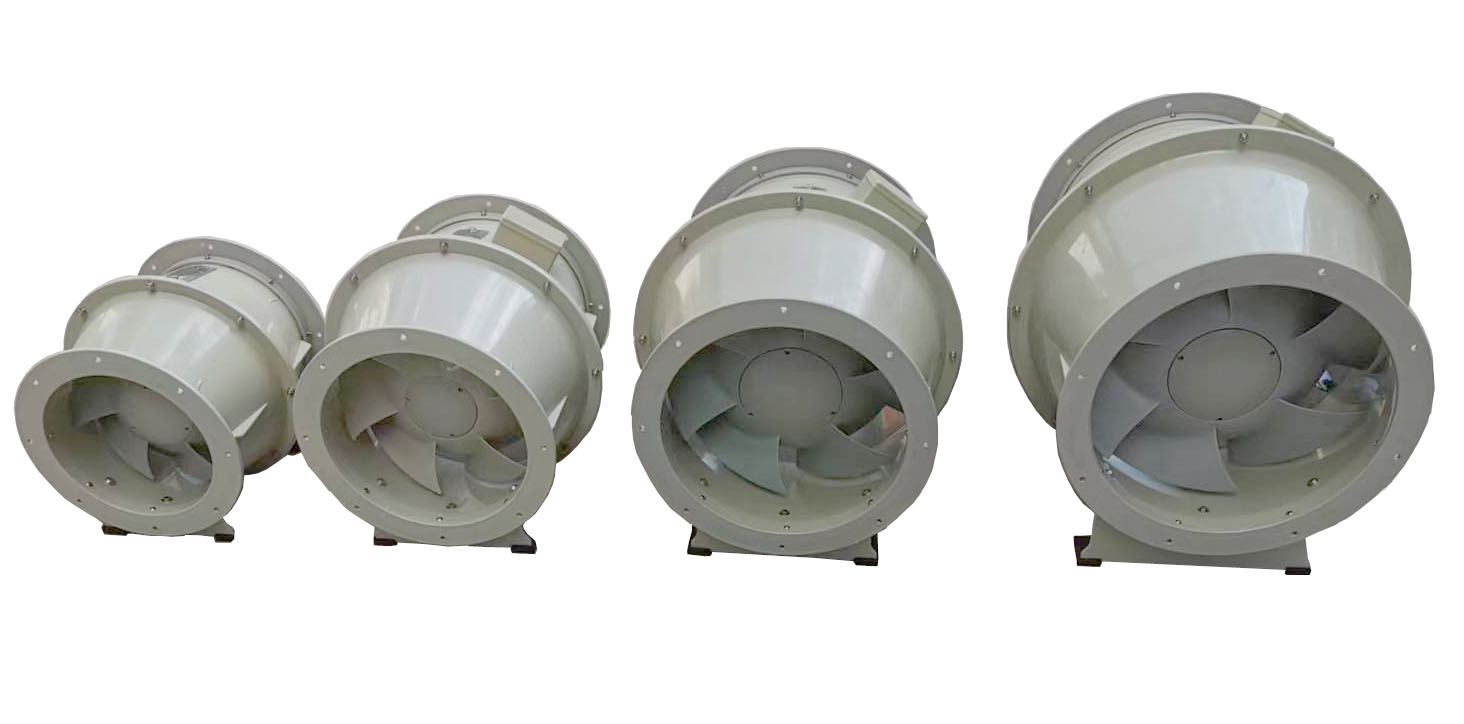

Laboratory PP diagonal flow fan

The air pressure coefficient of the mixed flow fan is higher than that of the axial flow fan, and the flow coefficient is larger than that of the centrifugal fan. It fills the gap between axial fans and centrifugal fans. At the same time, it has the characteristics of simple and convenient installation. A mixed flow fan combines the features of axial and centrifugal fans, although it looks more like a traditional axial fan.

Advantages: high pressure, large air volume, high efficiency, compact structure, low noise, small size, easy installation, etc.

Mixed Flow Fans | High-Efficiency Hybrid Ventilation System

Model (NO)	Outlet Diameter	Power (W)	RPM	Air volume (M³/H)	Static pressure (Pa)	Noise (dB) A	Phase	Voltage	Frequency (Hz)
MFF-01	100	35	2600	220	150	31	1	220V	50/60
MFF-02	150	75	2600	540	300	38	1	220V	50/60
MFF-03	200	130	2600	900	380	43	1	220V	50/60
MFF-04	250	165	1850	1064	371	50	1	220V	50/60
MFF-05	250	225	2450	1450	488	55	1	220V	50/60
MFF-06	315	350	2500	2900	630	65	1	220V	50/60
