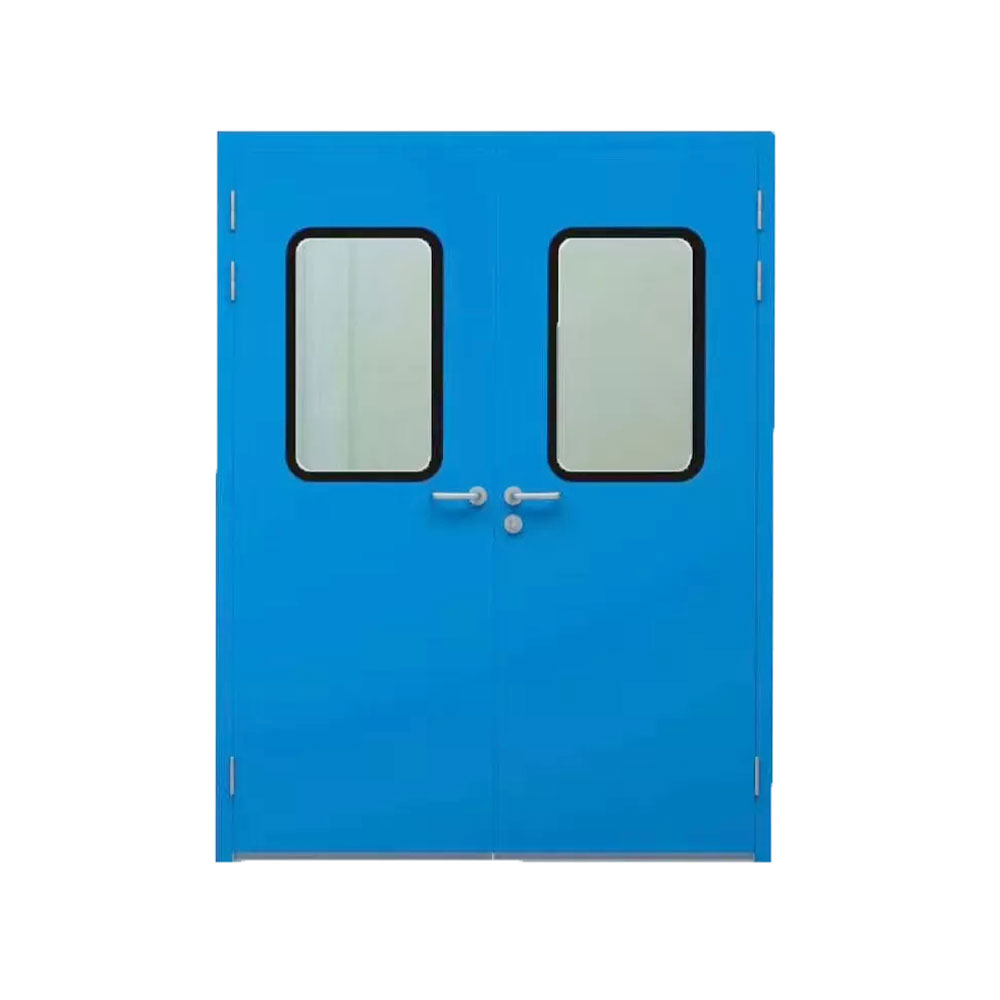

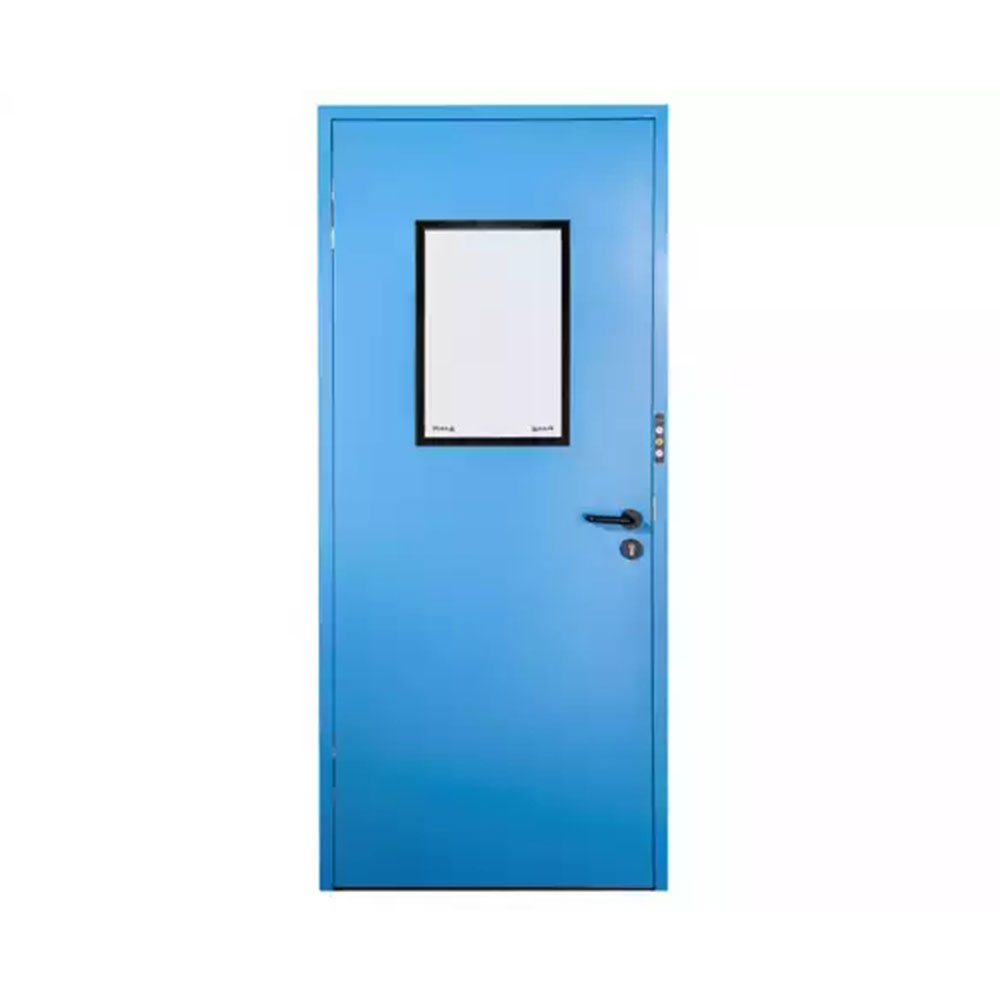

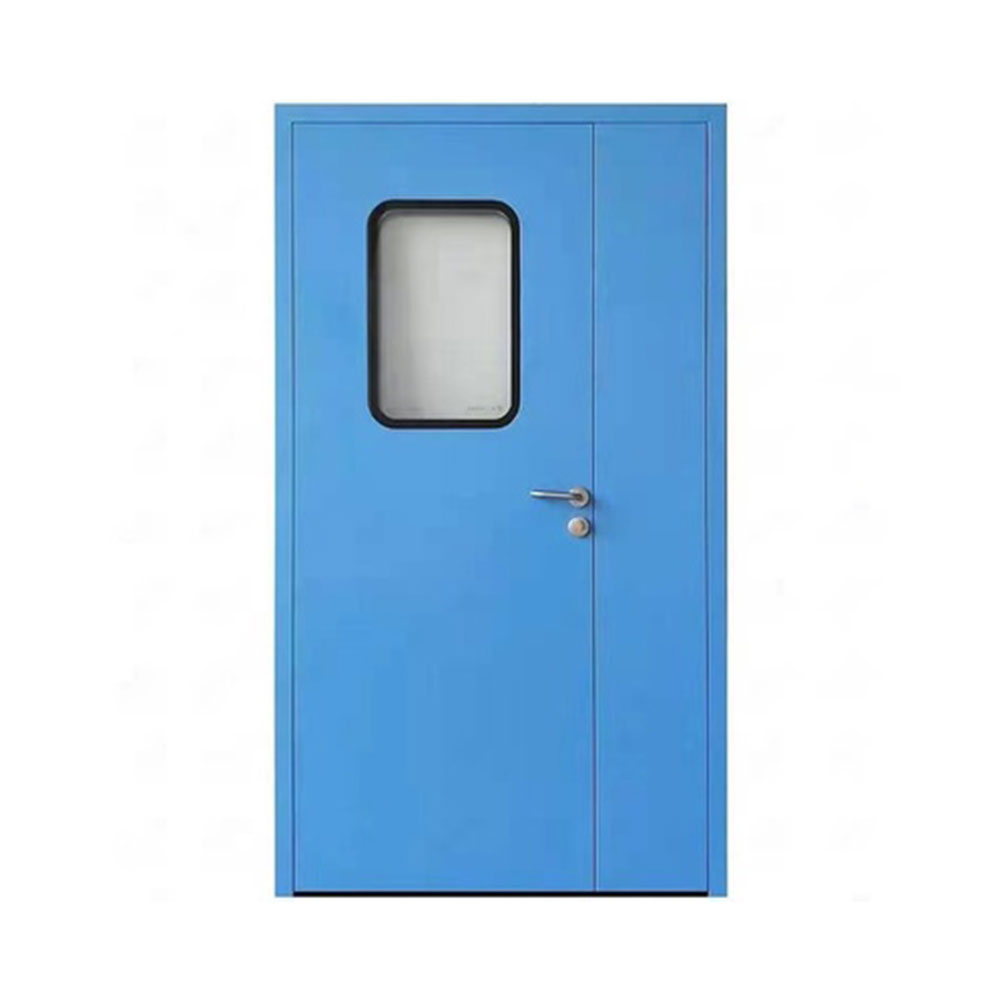

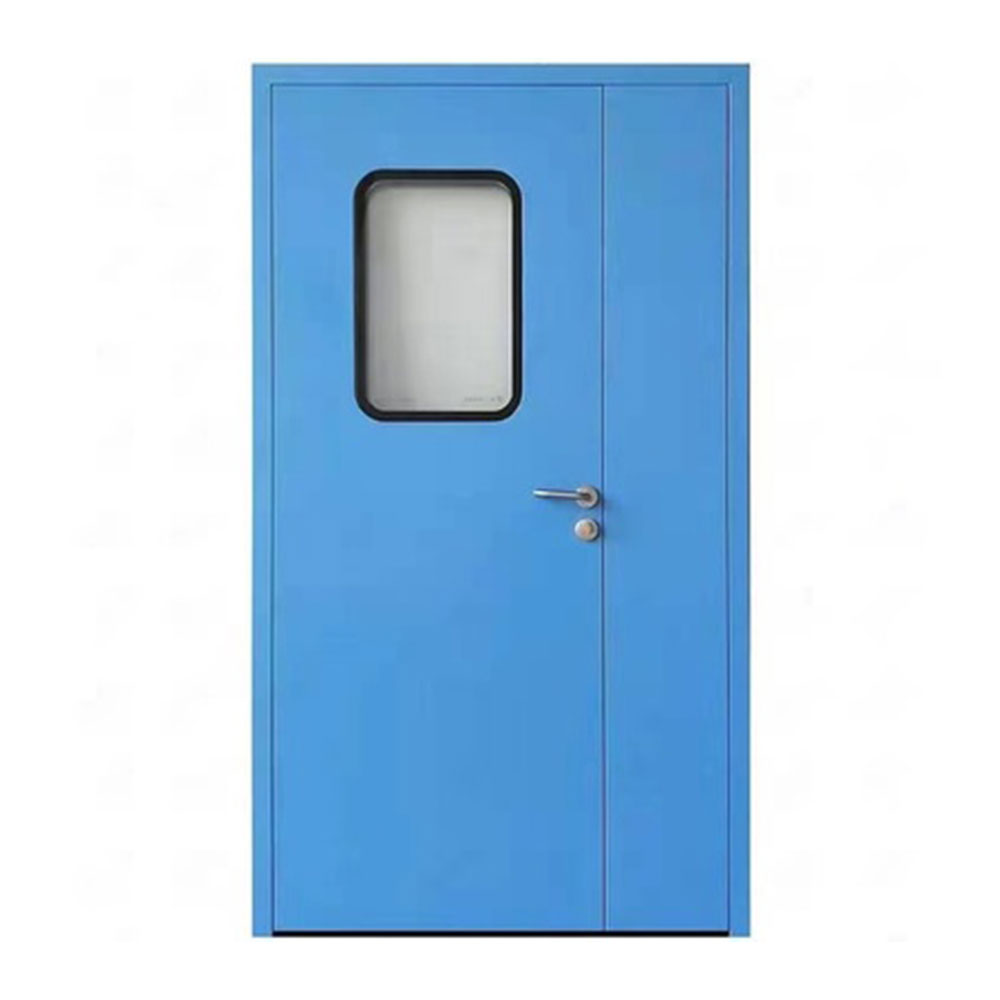

MAXLAB Durable Clean Room Doors for Safe and Contamination-Free Labs
The Clean Room Door is designed to meet the stringent requirements of cleanrooms, laboratories, and controlled environments. Built with high-quality materials and advanced sealing technology, these doors ensure airtight integrity, contamination control, and durability.
Ideal for pharmaceutical facilities, biotechnology labs, and electronics manufacturing, our cleanroom doors provide reliable performance and compliance with industry standards.
Clean doors can be used in all levels of clean rooms, purification room, dust-free room, trailer and other places where the color plate partition is needed. It has advantages of double sealing, thermal insulation, heat insulation and sound insulation.
Color plate or stainless steel plate can be used to customize different sizes of clean doors as to the customer's requirements.
Product Details
Specification
Material: cold-rolled sheet paint
Plate thickness: door frame thickness 1.2 mm; door leaf thickness 1.0 mm
Filler: paper honeycomb/aluminum honeycomb/rock wool
Lock: round fire elbow lock

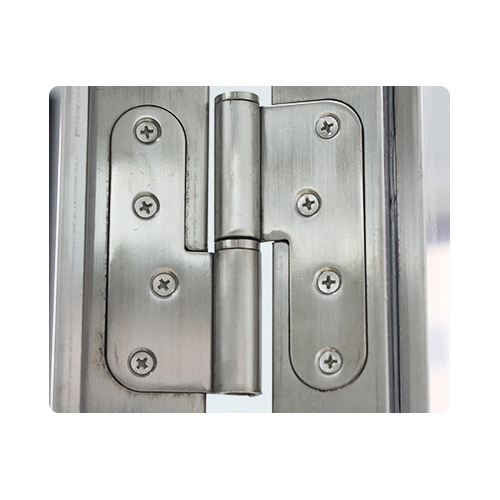

Hardware: 3 stainless steel hinges on the sides
Airtight door: the bottom is designed to automatically lift the floor sweeper.

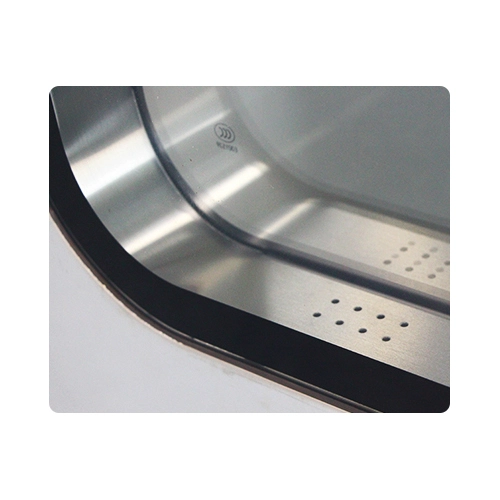

Window: Double-layer tempered glass window with stainless steel transition
Color: can be customized
Wall panel thickness: 50 mm
Surface treatment: high-temperature paint
|
Model |
PD-900 |
PD-1200 |
PD-1500 |
PD-1800 |
|
Width (mm) |
900 |
1200 (300+900) |
1500 |
1800 |
|
Height (mm) |
2100 (Customize) |
|||
|
Frame Thickness (mm) |
The Same as Wall Thickness. |
|||
|
Door Material |
Powder-Coated Steel Plate |
|||
|
View Window Material |
5 mm Thickness Tempered Glass (Right and Round Angle Optional) |
|||
|
Color |
Blue/Grey, White/Red, etc. (optional) |
|||
|
Additional Fittings |
Door Closer, Interlock Device, Access Control, etc. |
|||

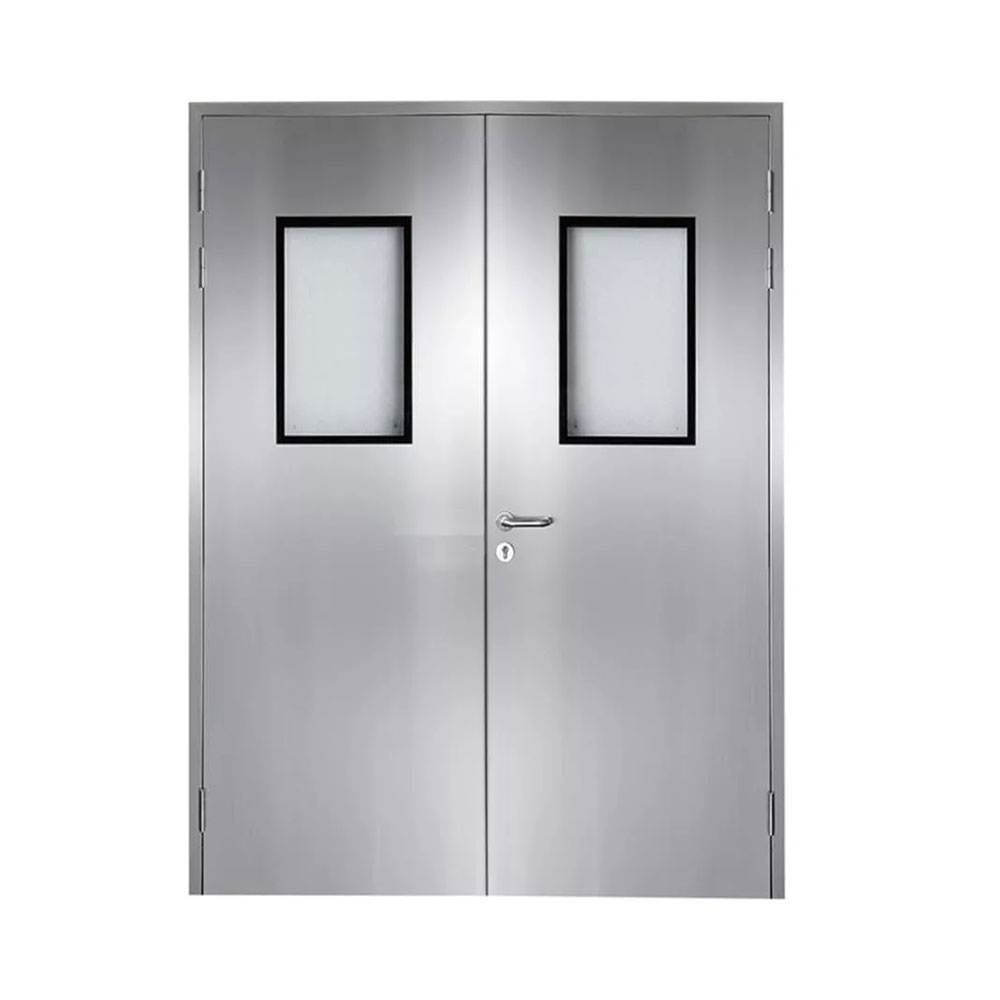

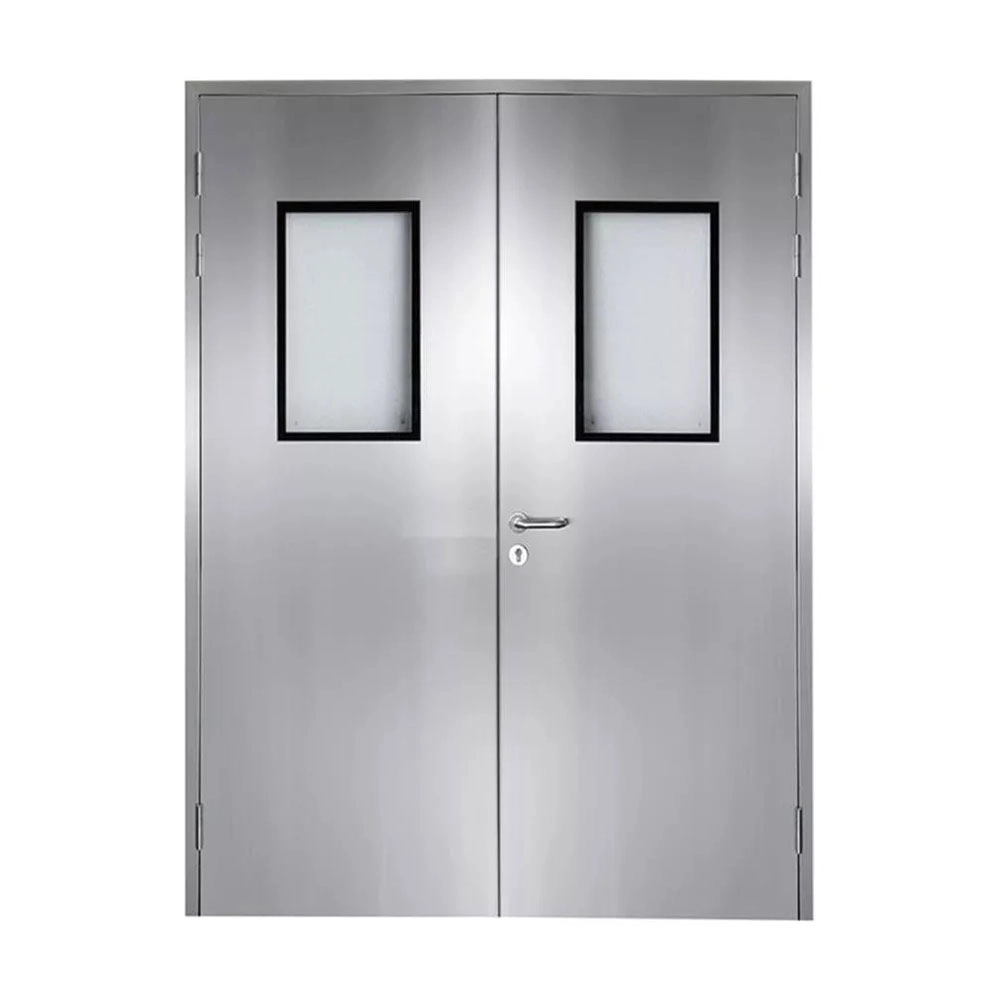

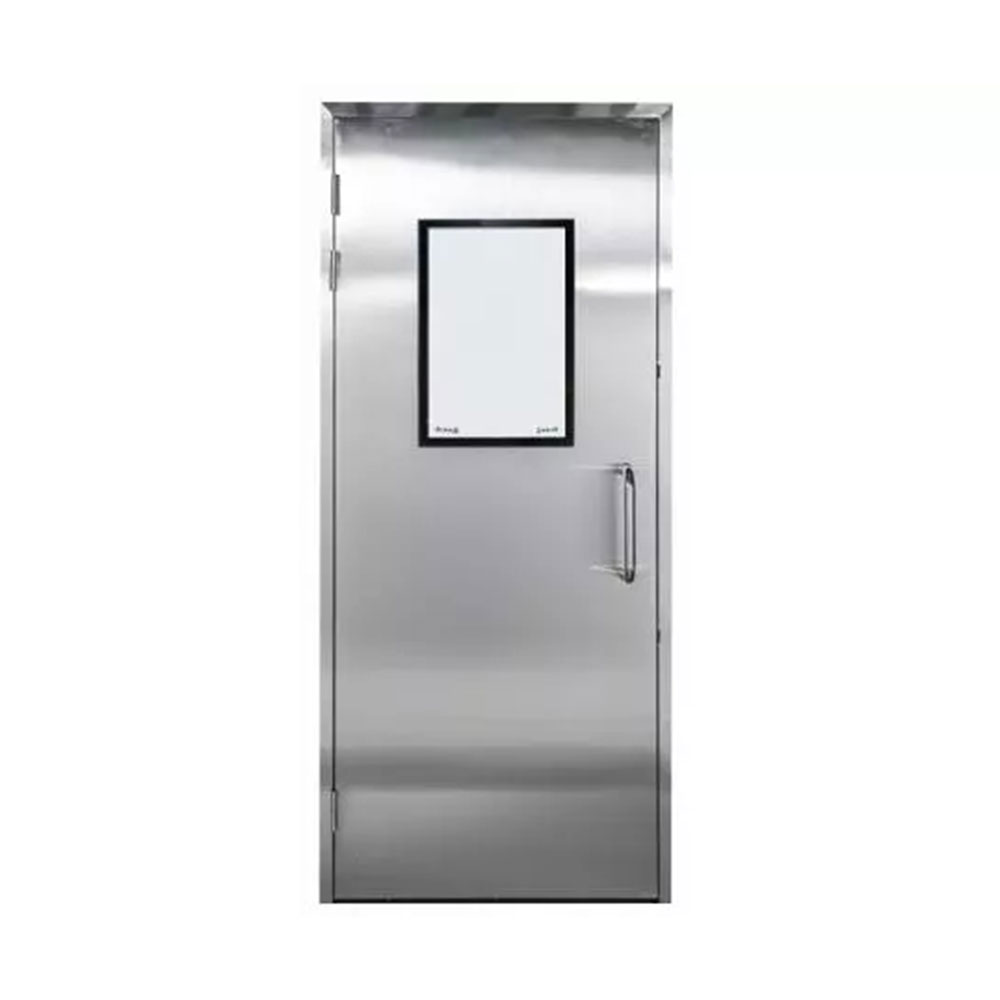

Specification

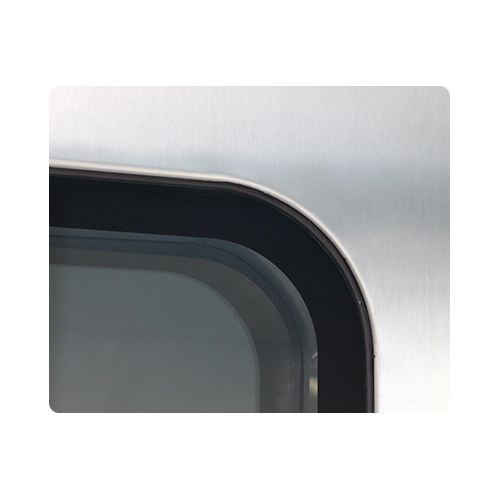

Material: 304 stainless steelPlate thickness: door frame thickness 1.2mm; door leaf thickness 1.0mm
Filler: paper honeycomb/aluminum honeycomb/rock wool

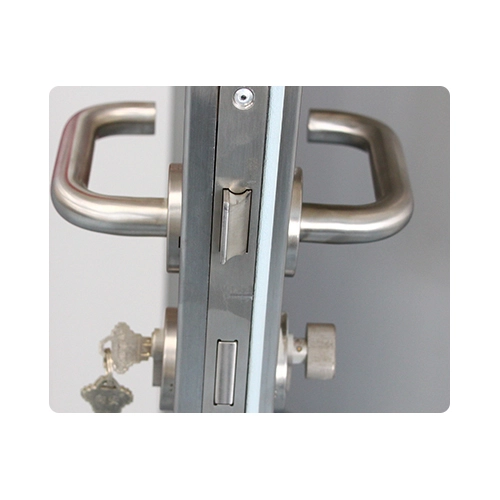

Lock: round fire elbow lock
Hardware: 3 stainless steel hinges on the sides
Airtight door: the bottom is designed to automatically lift the floor sweeper
Window: Double-layer tempered glass window with stainless steel transition
Wall panel thickness: 50 mm
|
Model |
PDS-900 |
PDS-1500 |
|
Width (mm) |
900 |
1500 |
|
Height (mm) |
2100 (Customize) |
|
|
Frame Thickness (mm) |
The Same as Wall Thickness. |
|
|
Door Material |
304 Stainless Steel |
|
|
View Window Material |
5 mm Thickness Tempered Glass (Right and Round Angle Optional) |
|
|
Color |
Blue/Grey, White/Red, etc. (optional) |
|
|
Additional Fittings |
Door Closer, Interlock Device, Access Control, etc. |
|
Key Features
Airtight Sealing: Advanced gaskets and seals to maintain cleanroom integrity.
Durable Construction: Made from stainless steel or aluminum for long-lasting performance.
Smooth Operation: Sliding or swing options with low friction for easy use.
Customizable Design: Available in various sizes, finishes, and window configurations.
Compliance: Meets ISO 14644 and GMP standards for cleanroom environments.
Applications
Pharmaceutical and biotechnology cleanrooms
Electronics manufacturing facilities
Research and development labs
Medical and healthcare environments
