Fume Hood
MAX LAB fume hood series is designed for laboratories, research institutes, factories, and schools, offering a variety of materials including stainless steel, PP (polypropylene), and full steel construction.
MAX LAB fume hoods are customizable in size and functionality, featuring options such as sinks, water/gas taps, remote-controlled valves, and energy-efficient designs. They meet CE, ISO, and GMP certifications, ensuring safety, durability, and compliance with international standards.

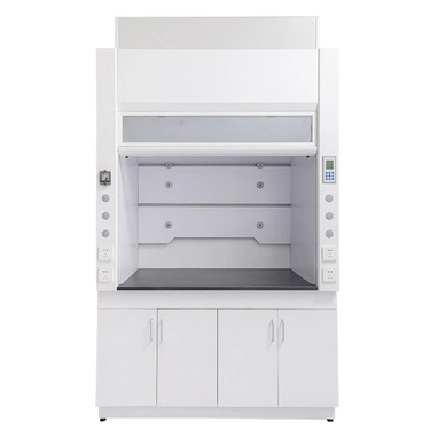

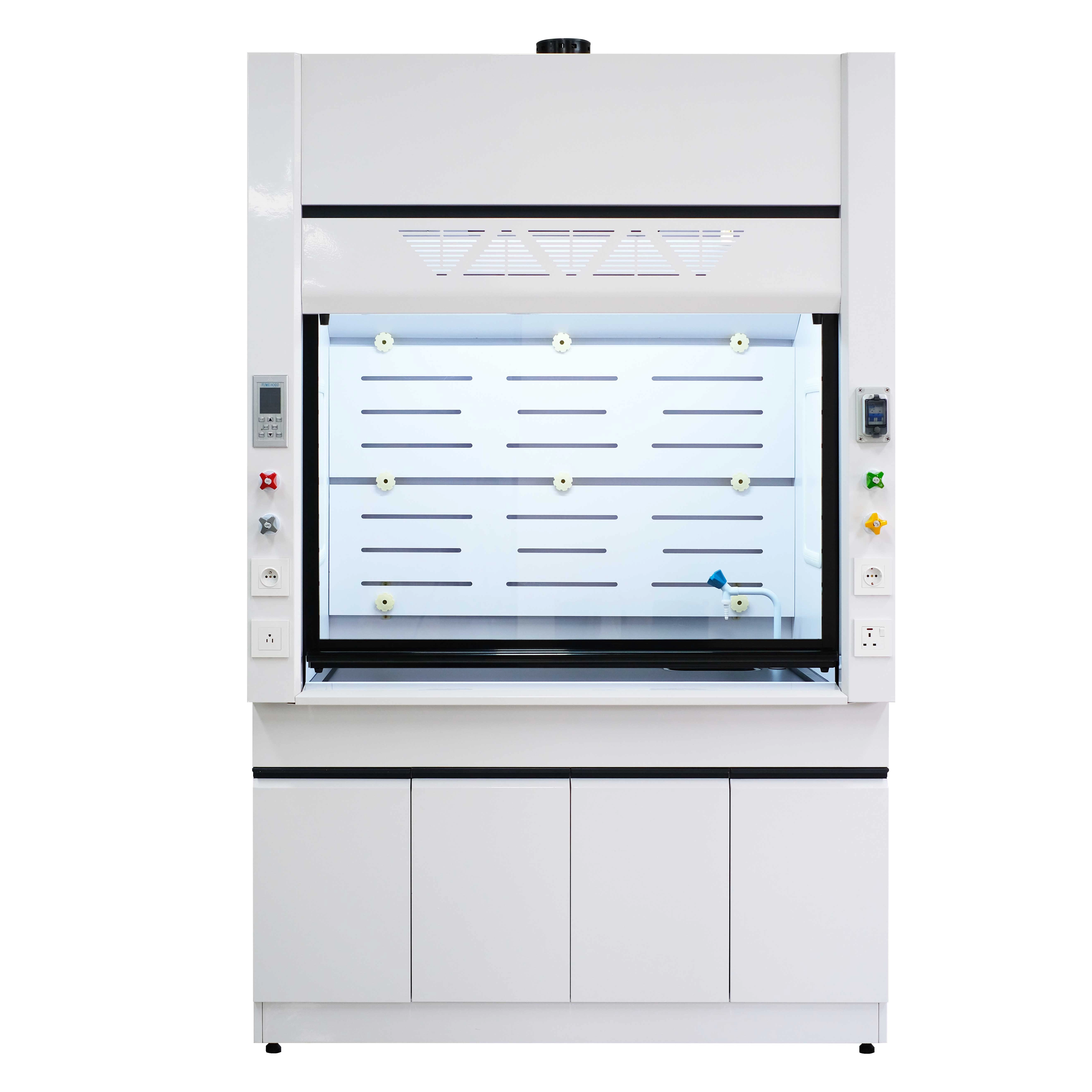

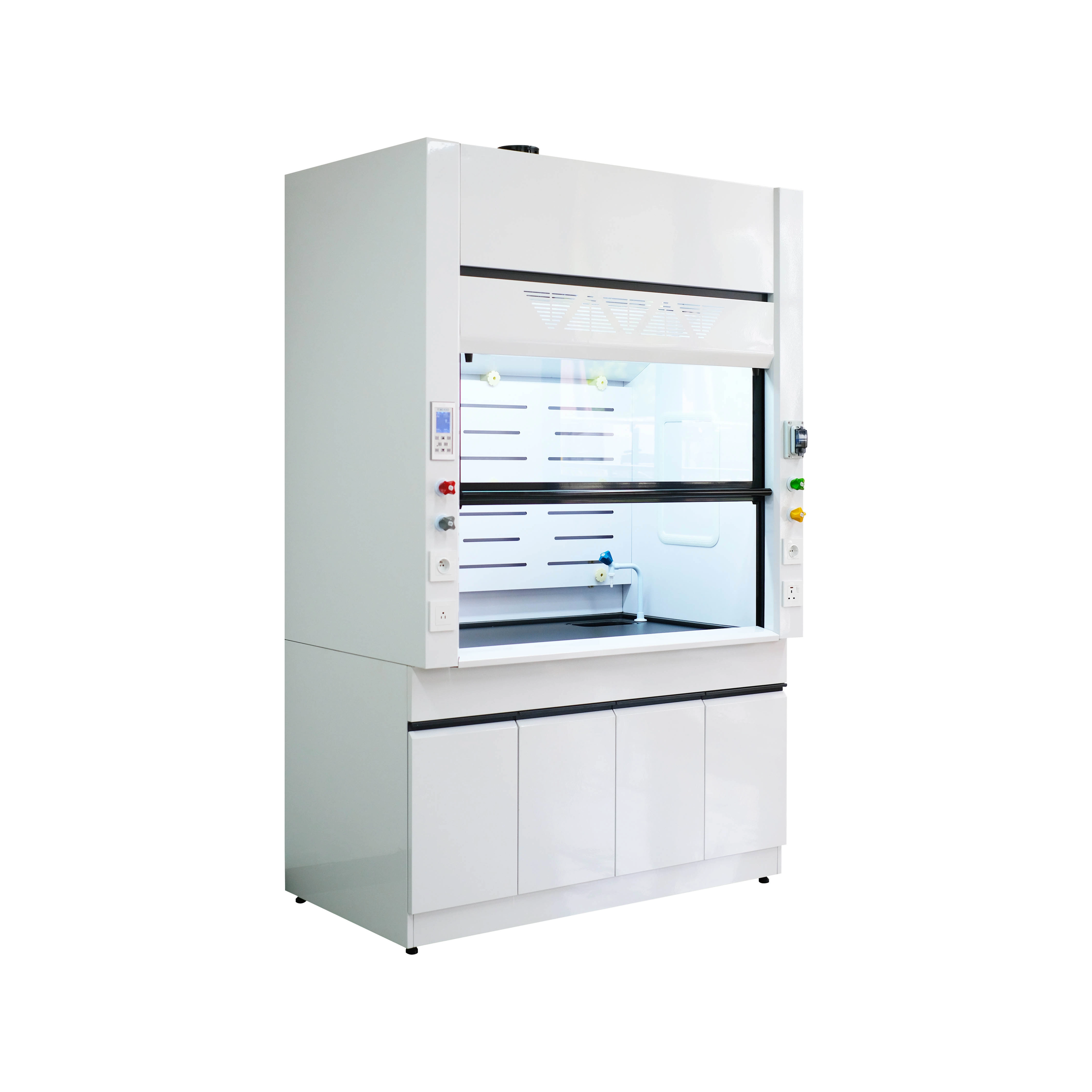

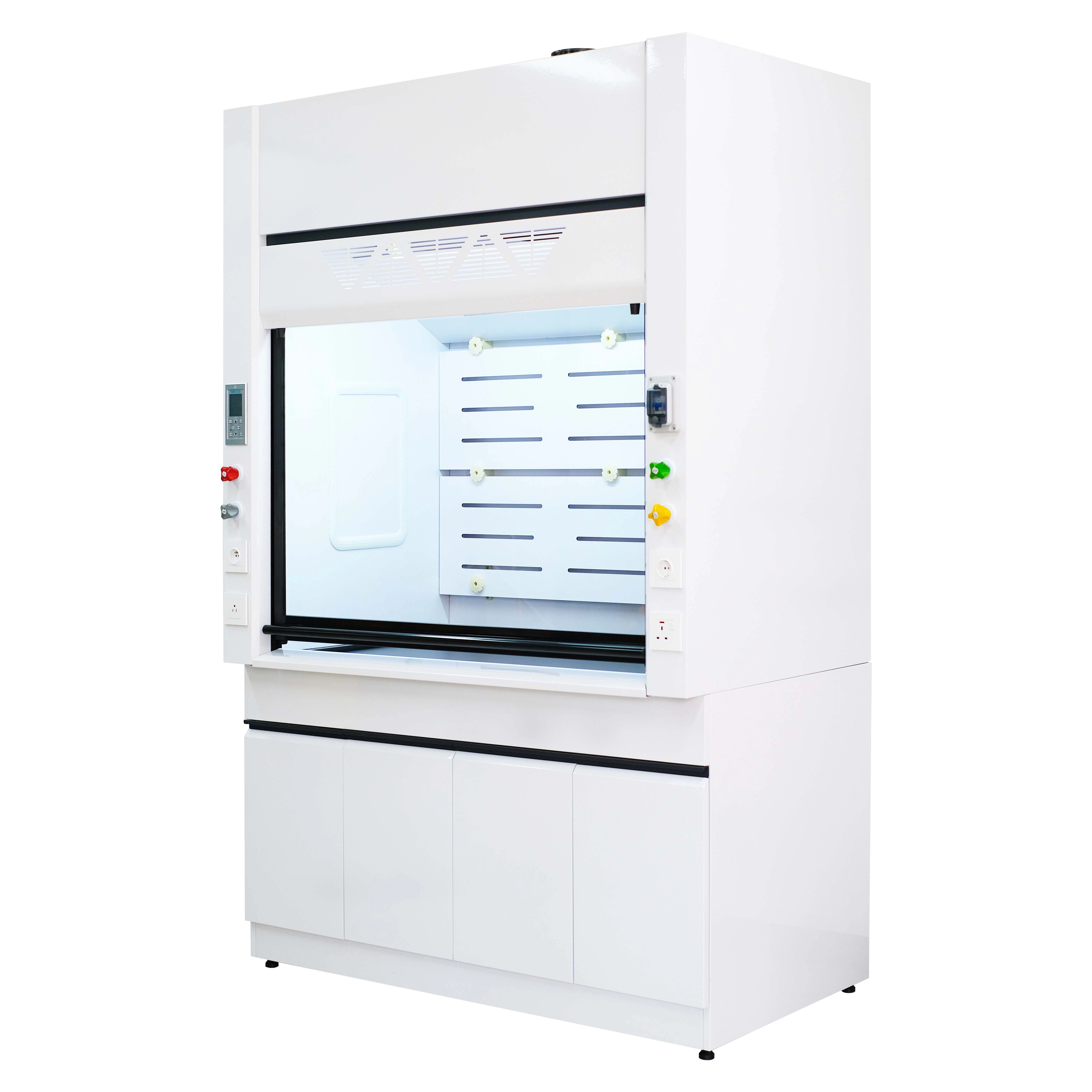

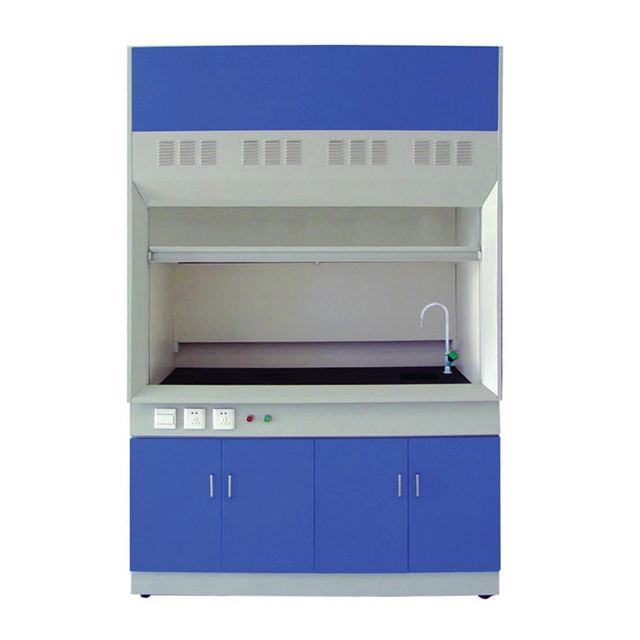

All steel fume hood is the most basic and common of all fume hoods.
All-steel fume hoods are generally applicable for common laboratory applications such as boiling, evaporation, drying, and other applications that emit noxious fumes and vapors.
Product Details

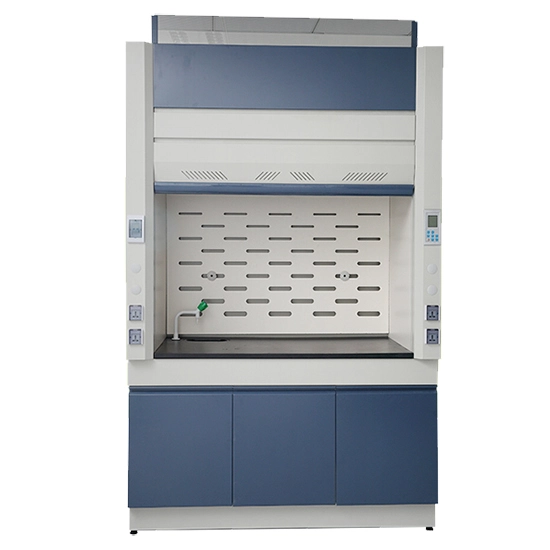

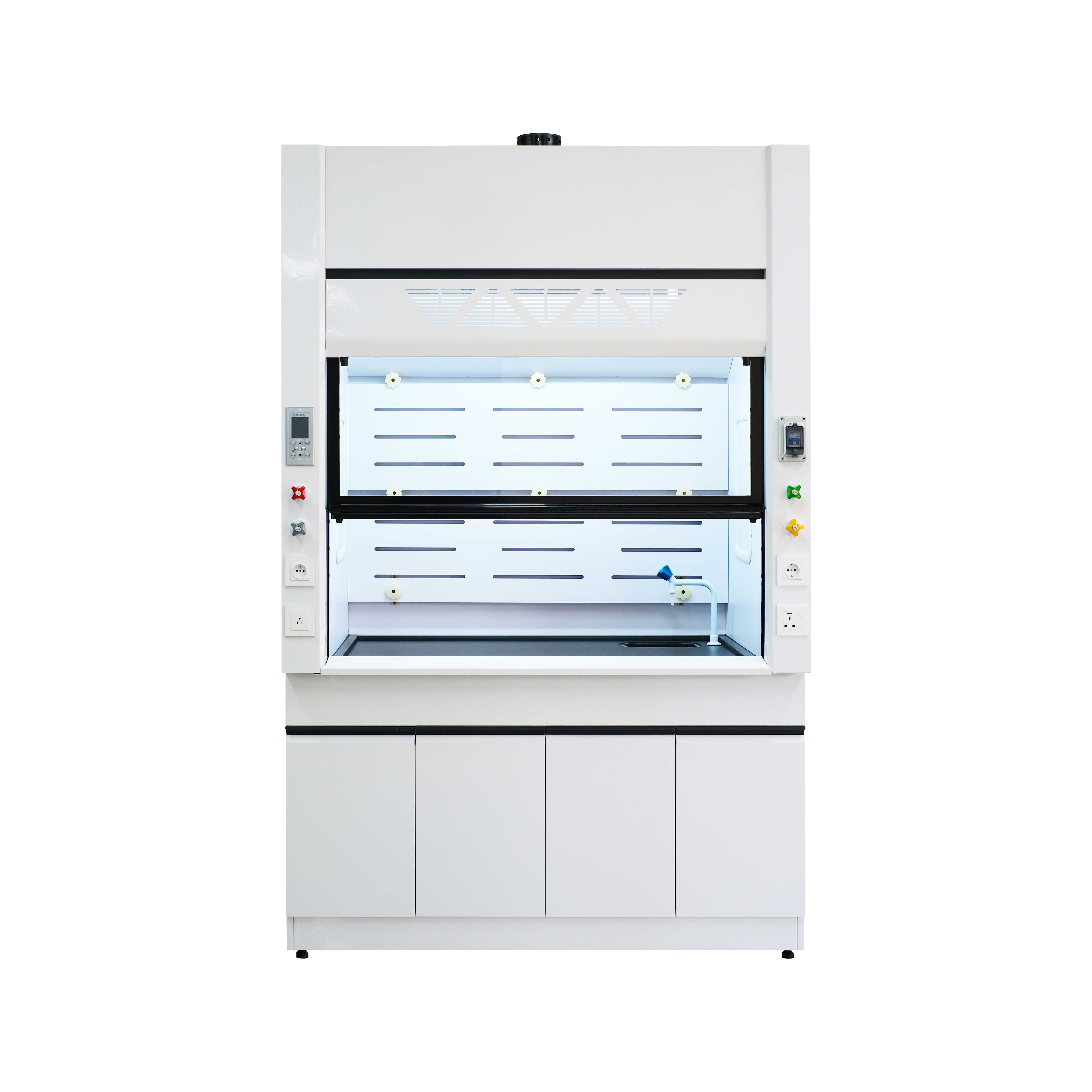

Basic Series Fume hood
Specification
1. Standard Accessories
1x bench-mounted single water tap
1x PP oval cup sink
4x Electrical Outlets
1x 250 or 315 mmφ PP hood
2. Optional Accessories
Remote Controlled Fixture Gas & Water Faucet
Explosion-proof light
Distillation Grid Kit
Acid and flammable base cabinet
Exhaust blower (three-speed adjustable)
Ductwork

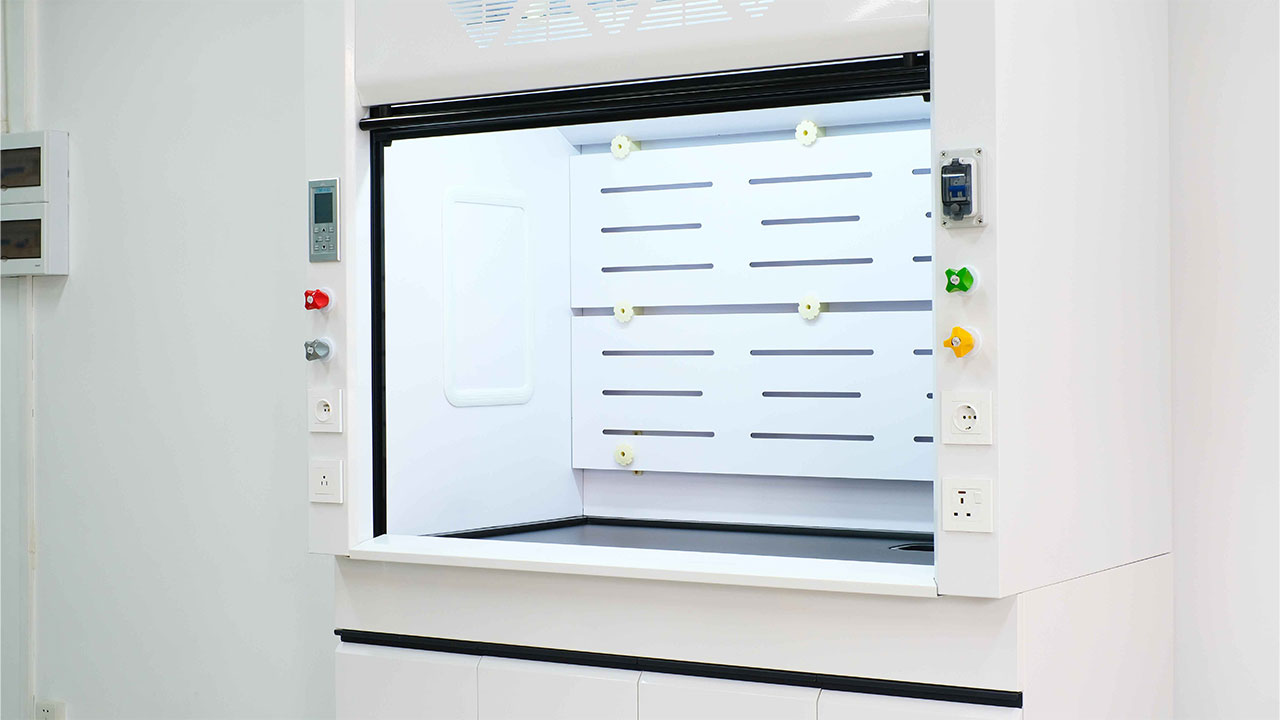

Hood body&base cabinet:
1.0mm full-thickness high-quality cold-roll steel sheet is used as a whole;The steel surface undergoes grinding, polishing, rust removal, phosphating, and other processes, followed by epoxy resin electrostatic powder coating and high-temperature curing at 220°C, resulting in a smooth, corrosion-resistant surface with a thickness of 1.15mm to 1.2mm

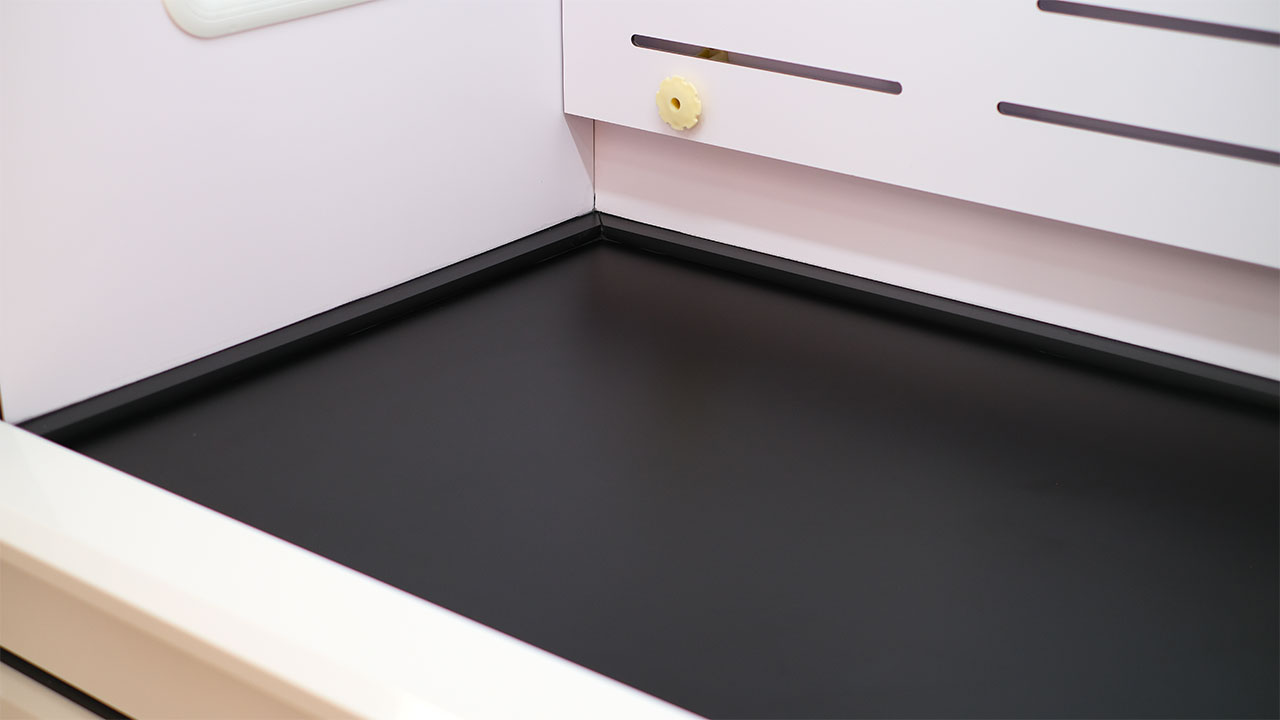

Standard Work Surface:
Phenolic Resin with water baffle.
Optional:
Epoxy Resin/PP/Stainless Steel/Ceramic/Trespa/Granite/Marble.

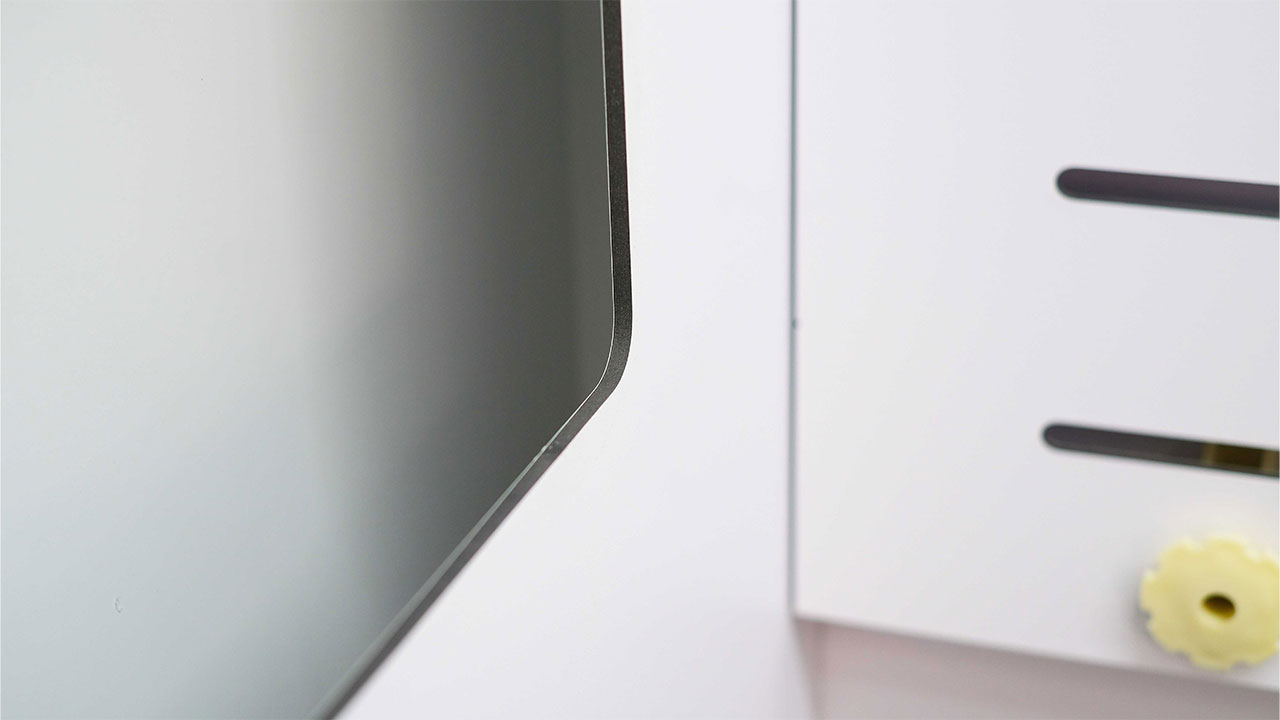

Inner:
Use 5mm Compact grade laminate, its structure has a pressure release effect on explosive.

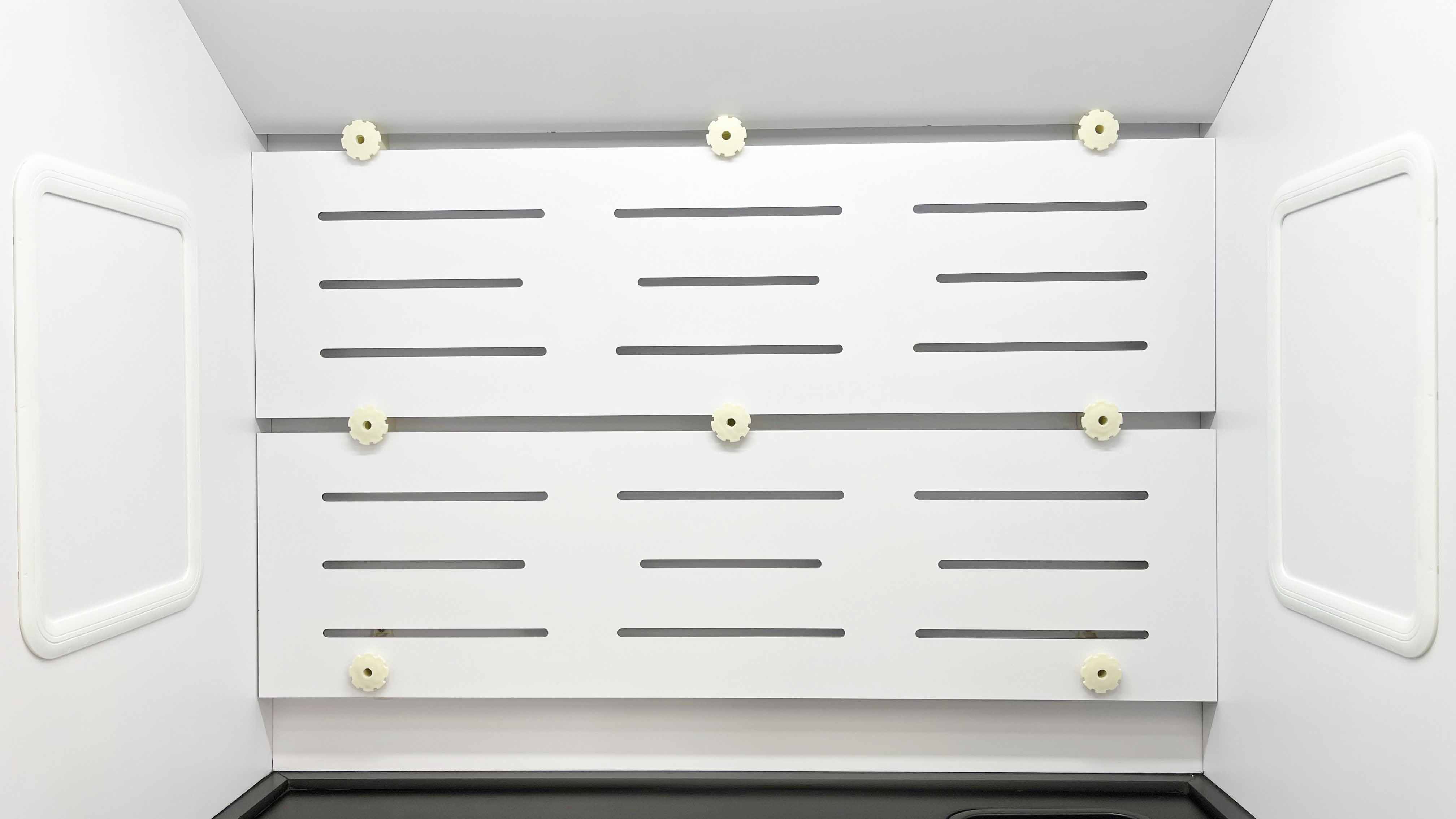

Baffle:
Use 5mm Compact grade laminate, fixed with PP material.Three-stage design, there is no blind angle of airflow in the cabinet, and all the toxic and harmful gases of different specific gravity generated during the experiment can be discharged out of the cabinet.

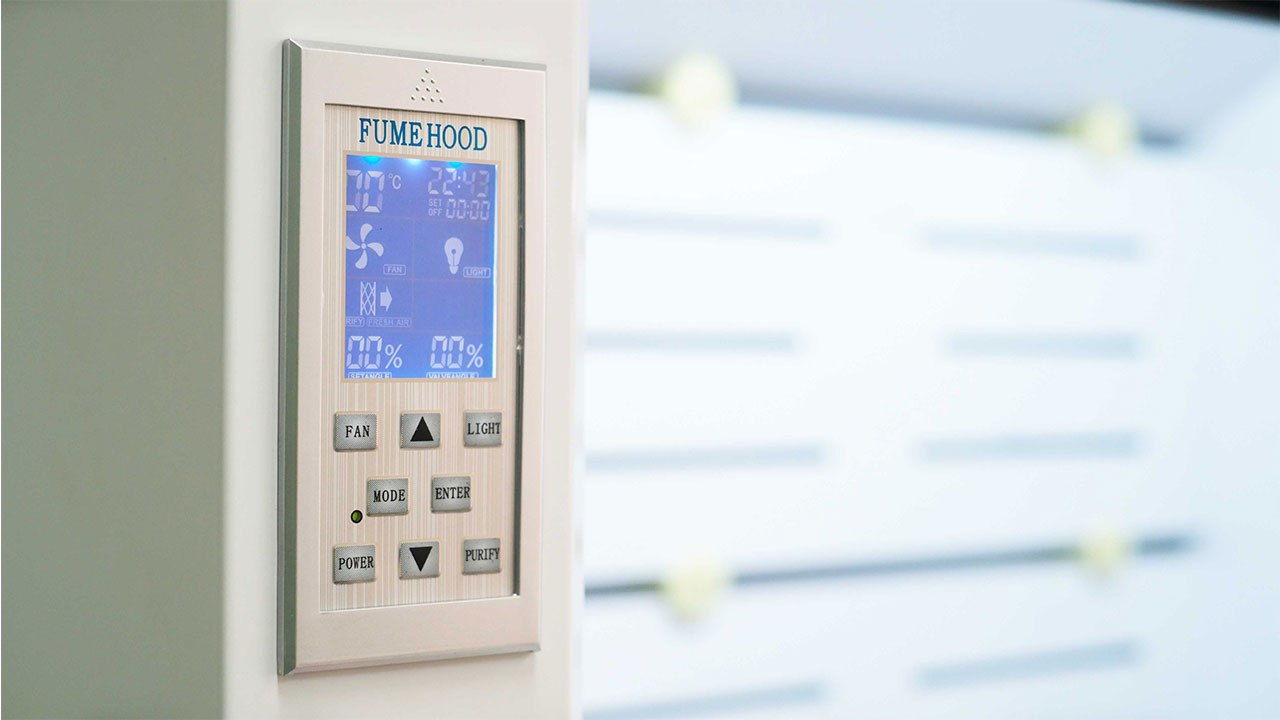

Controller:
Intelligent button or touch screen with digital display, multiple controls power on, fan, lighting, socket, sterilization, damper, etc.

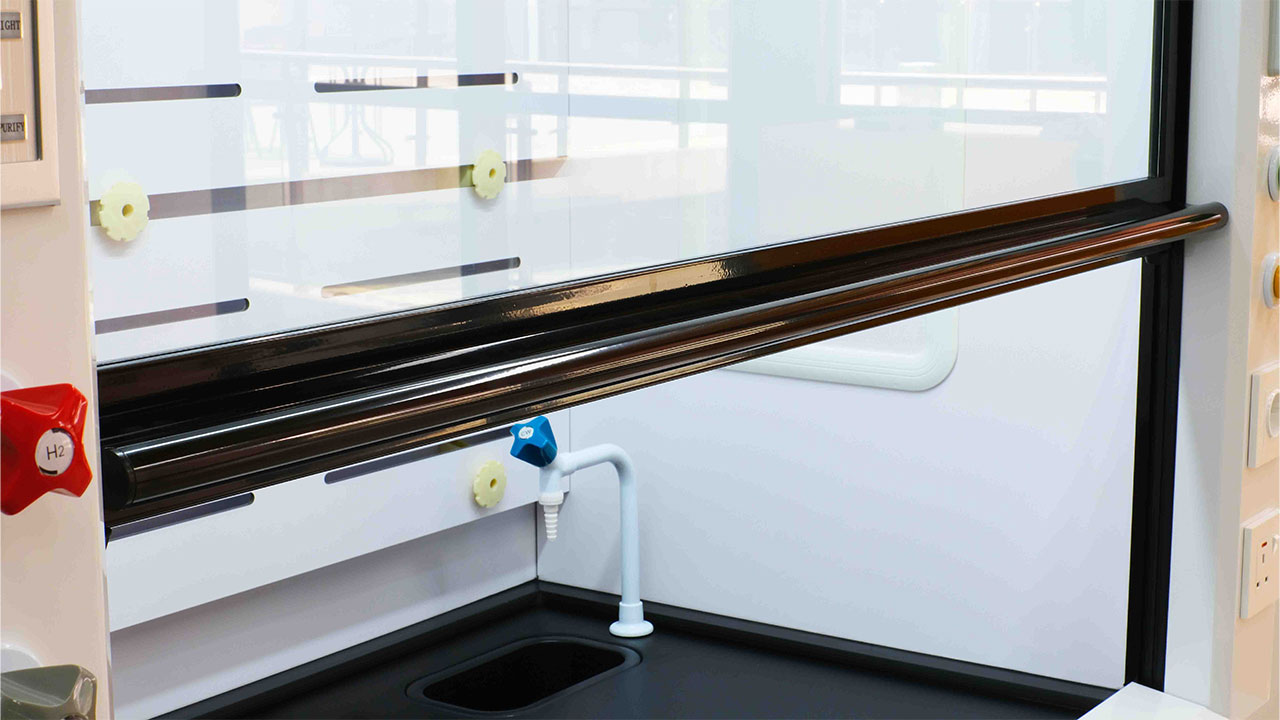

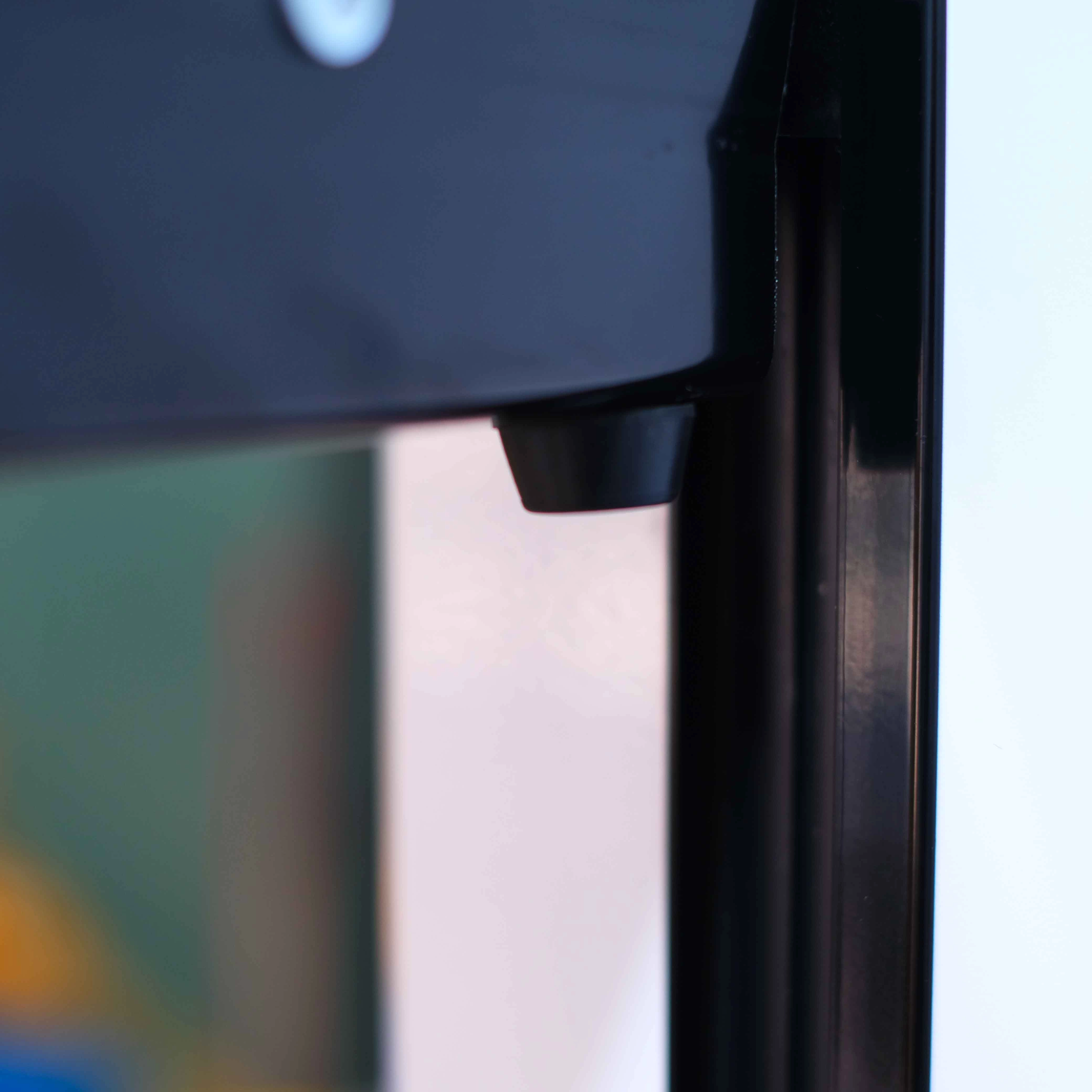

Glass sash:

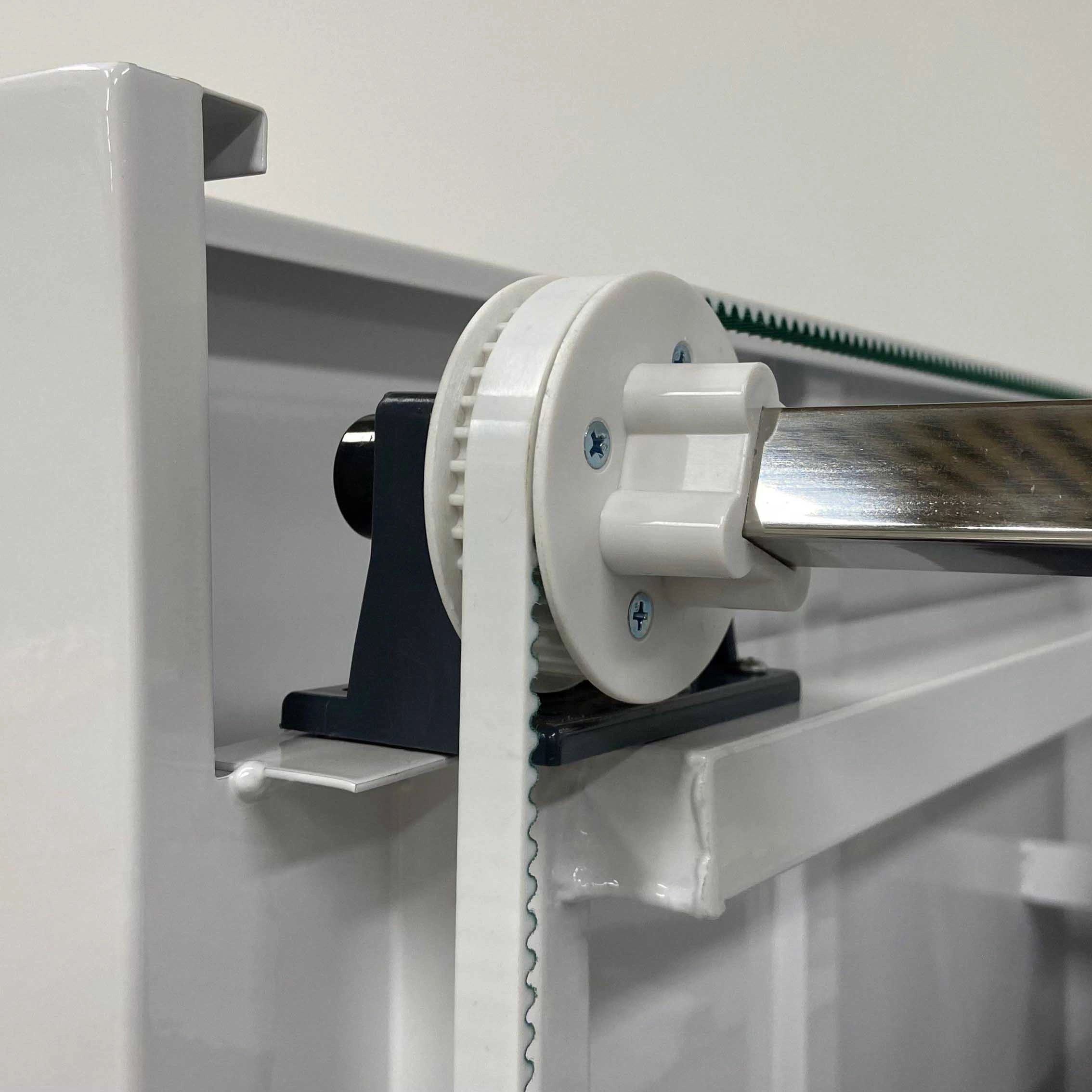

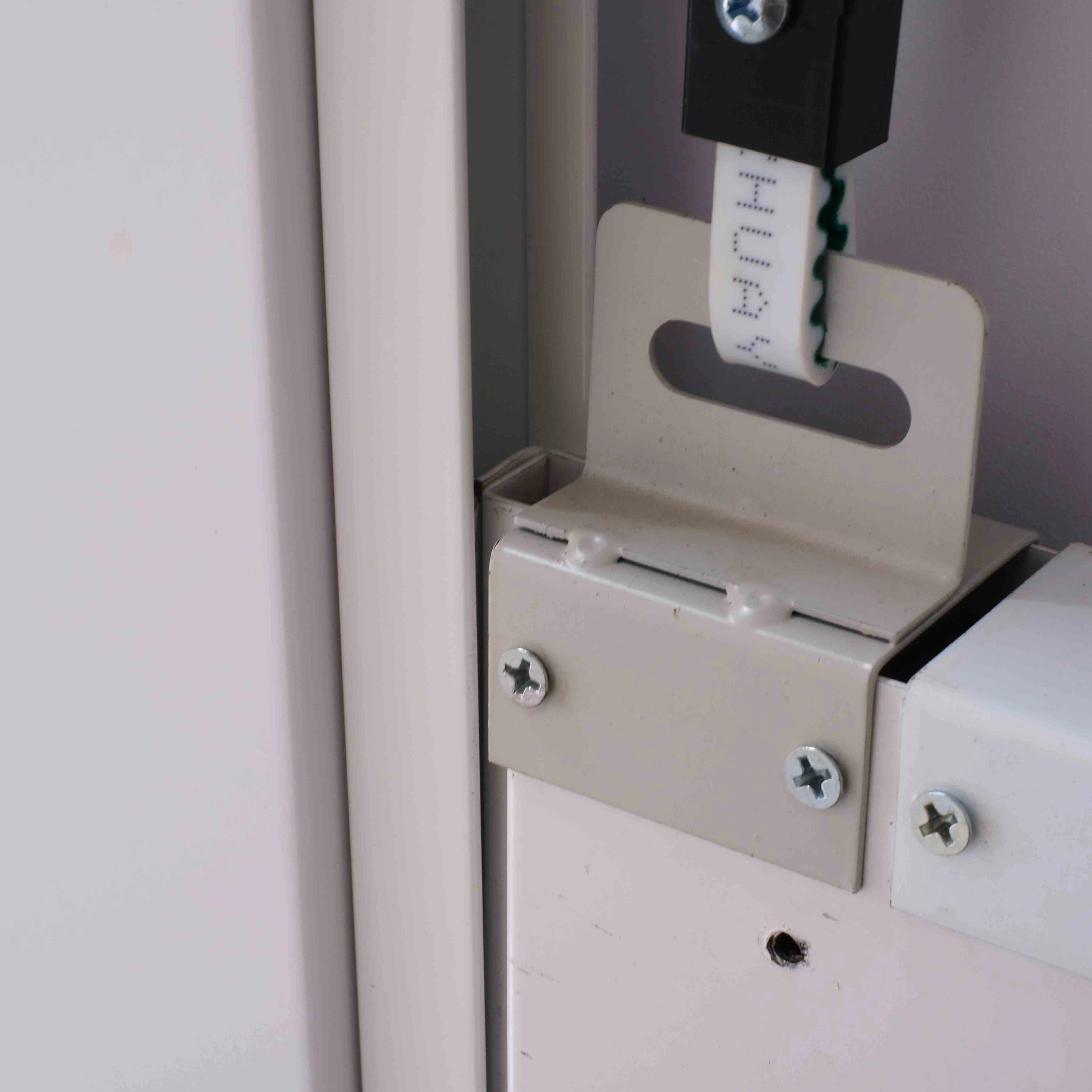

Use explosion-proof 5mm tempered glass, aluminum alloy sash handle. It is designed by the weight balance method in the mechanical principle, and the left and right are connected by synchronous wheels.
Sash handle:
Aluminum alloy Material, beautiful style, smooth feel.

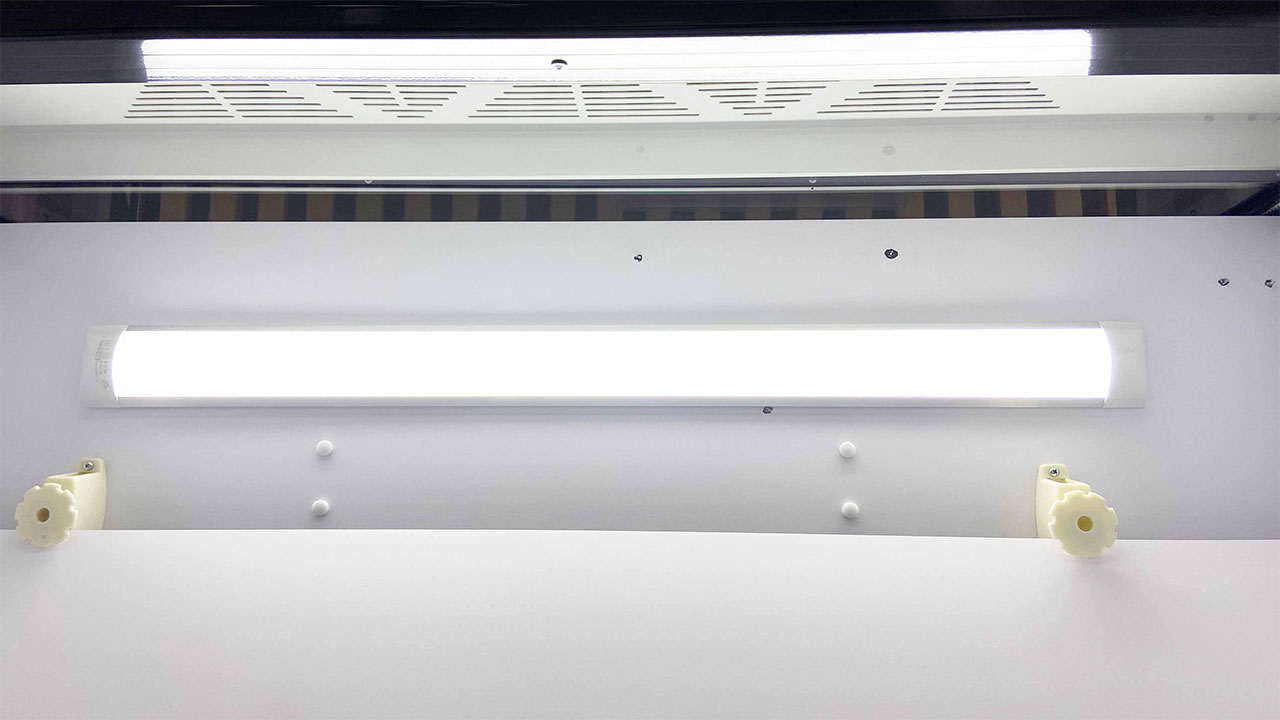

Lighting:
Equipped with LED 30W purification lamp, the luminosity is greater than 300LUX (Optional explosion proof and UV lamps).

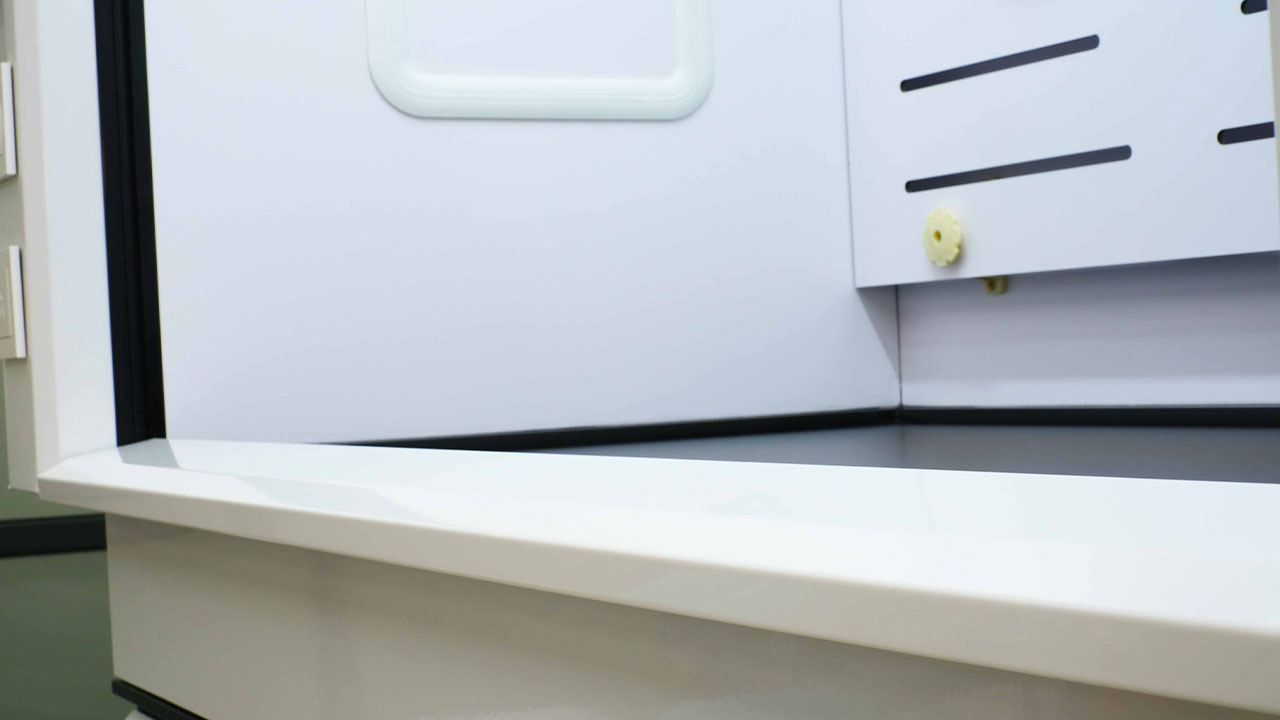

Air foil:
Aerodynamic curve allows air to sweep the work surface maximizing containment. Reduces energy consumption by 7-10% compared to flat air foils.

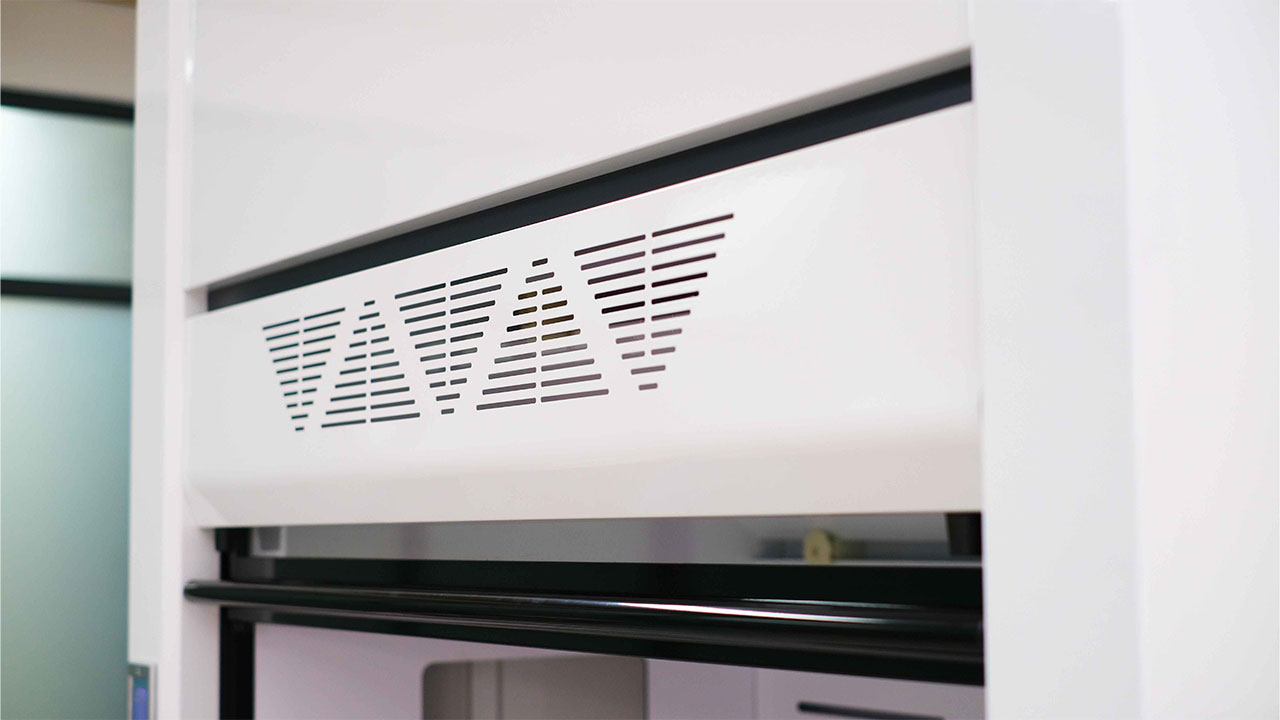

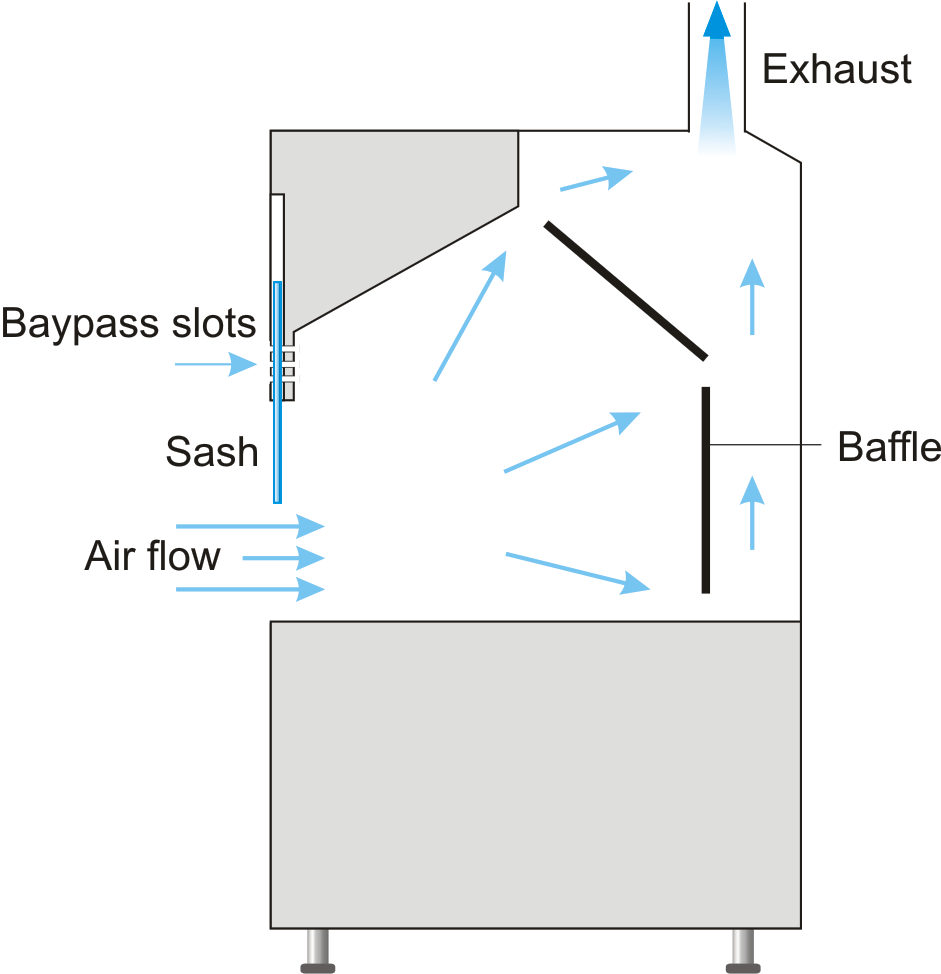

By-pass Slots:
By-pass airflow design with variable air volume compatibility. Compensating opening that maintains a relatively constant volume exhaust through a Fume Hood regardless of sash position and that functions to limit the maximum face velocity as the sash is lowered.

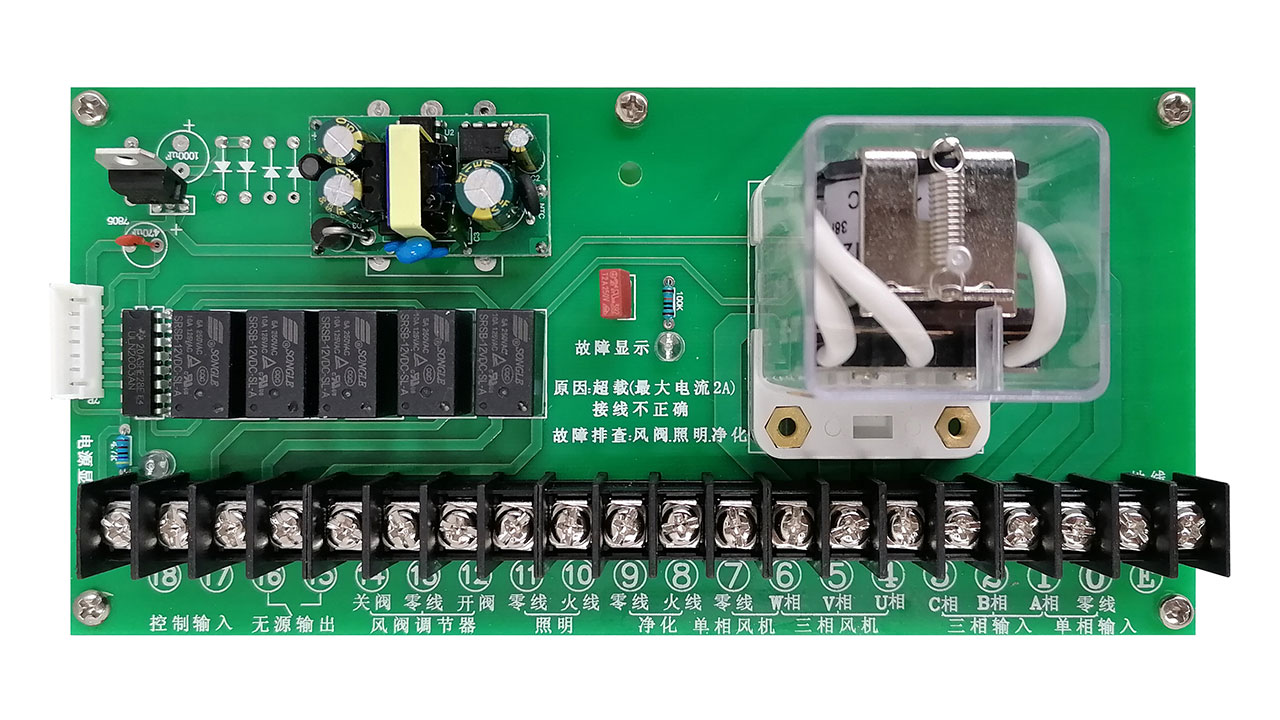

Junction box:
The junction box with circuit board and AC contactor makes wiring more convenient. Suitable for 110V-230V voltage.
Service access:
Removable service access on both sides for easy installation and maintenance of circuits, gas circuits and other accessories.
Service access: Removable service access on both sides for easy installation and maintenance of circuits, gas circuits and other accessories.
3. Accessories
Exhaust hood: Used PP material and one-piece molded, which is acid and alkali resistant. The top outlet pipe diameter is Ф250 or 315mm, and the height of the outlet connection pipe is more than 50mm, which is convenient for the connection of the air duct sleeve, which can obtain good gas collection uniformity and low pressure loss.
Exhaust hood: Used PP material and one-piece molded, and the top outlet pipe diameter is Ф250/315 mm.
Standard Dimensions
|
Model |
FH-120 |
FH-150 |
FH-180 |
|
External Dimension (W*D*H) (mm) |
1200*850*2350 |
1500*850*2350 |
1800*850*2350 |
|
Internal Dimension (W*D*H) (mm) |
960*680*1150 |
1260*680*1150 |
1560*680*1150 |
|
Base Cabinet Dimension (W*D*H) (mm) |
1200*800*850 (can remove) |
1500*800*850 (can remove) |
1800*800*850 (can remove) |
|
Exhaust air volume |
700-1300 m³/h |
900-1700 m³/h |
1300-2100 m³/h |
|
Air Velocity |
|
0.3～0.8 m/s |
|
Features
• Bypass airflow design with variable air volume compatibility.
• The hood entrance is framed with inward-angled members to minimize turbulence and provide smooth air movement in the hood at face velocities.
• Engineered three-section baffle system for proper air distribution and constant face velocity.
• Double-wall construction for installation of plumbing and electrical fixtures and concealed routing of piping and wiring.
• Chemical-resistant fume hood liner and baffle. Baffles are removable for cleaning.
• Removable service access of side panels for access to plumbing and electrical wiring.
• Removable service access of base cabinet for access to connection of water pipes.
• The junction box on top of the fume hood with the circuit board and AC contactor makes wiring more convenient. Suitable for 110V-230V voltage.
