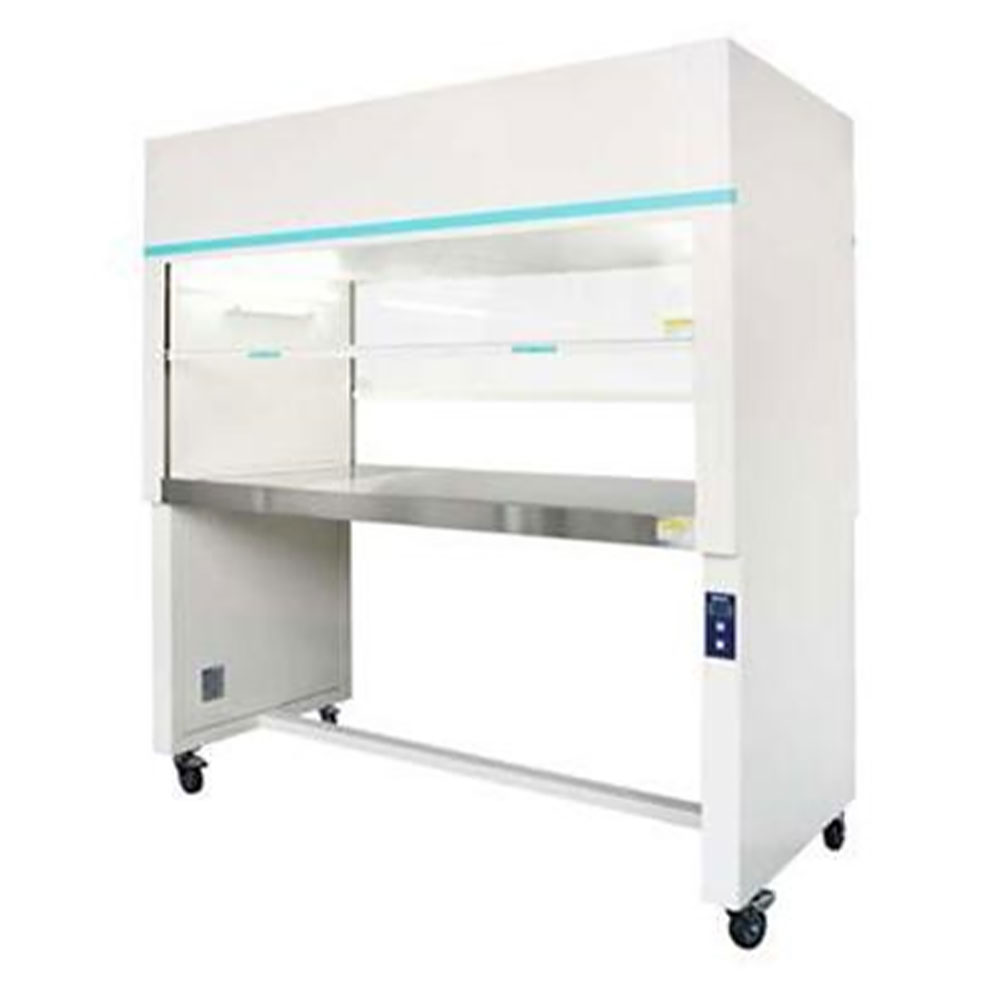

Laminar Flow Cabinet (Vertical Ventilation) | Lab Solutions – MAXLAB
Laminar Flow Cabinet (Vertical Ventilation) is designed to provide a clean, particle-free workspace for sensitive procedures in laboratories, research facilities, and industrial settings. Utilizing vertical laminar airflow, this cabinet ensures a sterile environment by directing HEPA-filtered air downward over the work area. Ideal for applications requiring contamination control, this cabinet is perfect for tissue culture, electronics assembly, and pharmaceutical preparation.
A laminar flow cabinet keeps a controlled work surface for applications requiring a sterile workspace, whereas contaminant access is being prevented by a constant filtered airflow across the surface.
Max's laminar flow cabinet is a product of robust engineering combined with strategic ergonomic design. It provides long-term reliability and ultimate user comfort, making it ideal for use in electronics assembly, plant tissue culture, culture media preparation, and other non-hazardous applications that need a sterile environment.
Key Benefits
• Sash window for patented technology
• HEPA filter (ISO Class 5 work zone)
• Microprocessor control system
• Antimicrobial powder coating
• Stable and self-compensating airflow
• Illumination and sterilization system interlocking
• With fixed sash and sliding sash options (for vertical models)

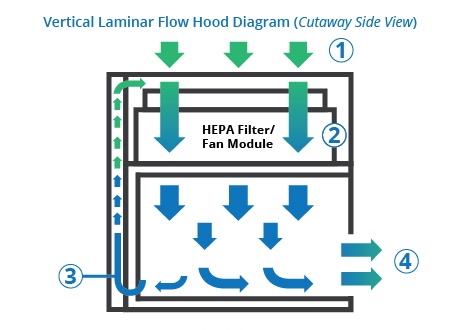

Working Principle
The air is pressed into the static pressure box through the top primary air filter and low-noise centrifugal fan and then filtered again by the HEAP on the top and blown evenly to the bottom of the work area, forming a vertical air curtain with a high level of cleanliness, removing the original natural air in the work area and removing dust particles and biological particles to form a sterile, high-clean working environment. The air velocity can be adjusted in three gears to ensure that the air velocity in the working area is always in a safe state.
Common Applications
· Microbiological and Biological Labs
· Pharmaceutical Labs
· Forensic or Clinical Labs
· Working with Large Equipment
***Typically used for applications that require sterile conditions where the contaminants are heavier (e.g., biological or pharmaceutical).

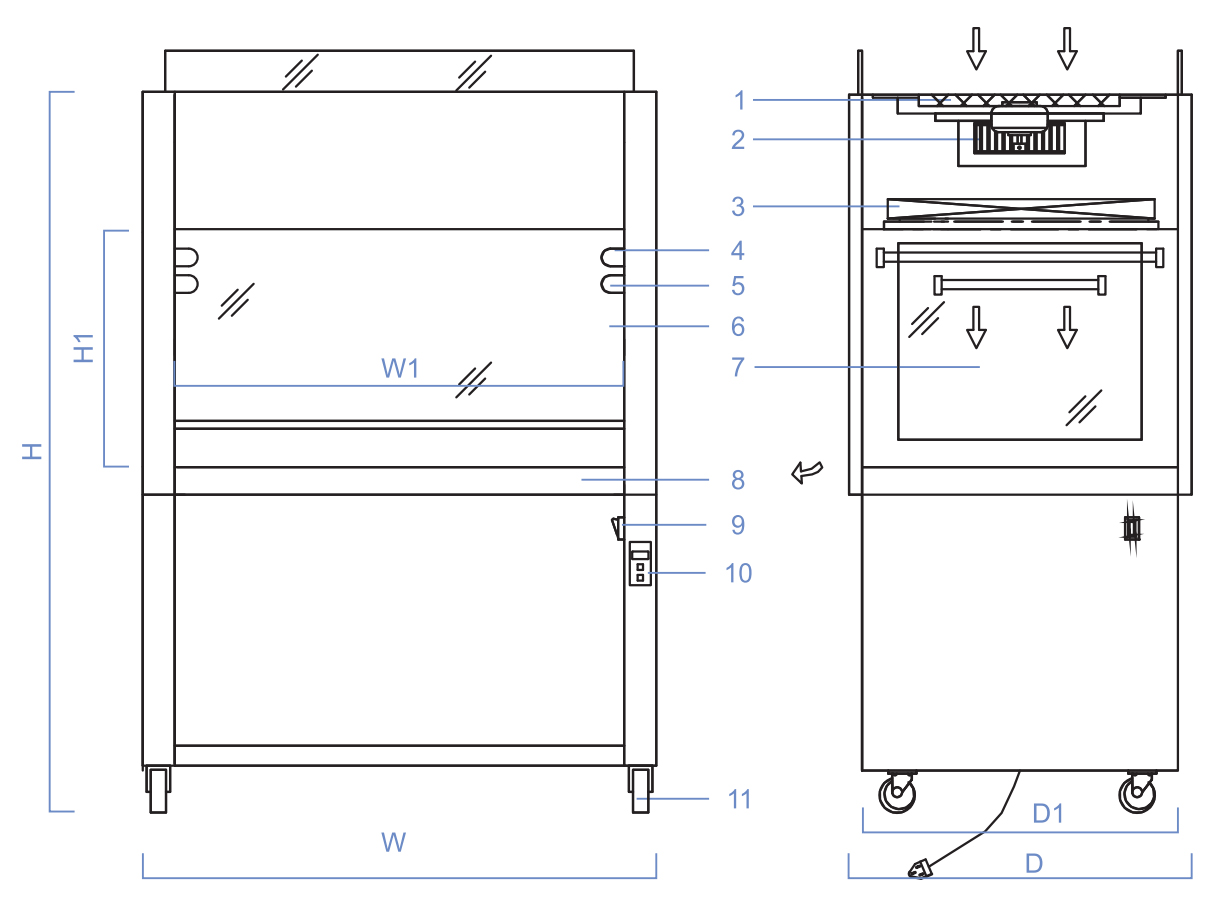

Product Details
1. Pre-filter
2. Fan Unit
3. HEPA Filter
4. Light
5. UV lamp
6. Sash window
7. Side glass
8. SUS Worktop
9. Spare Electrical Outlet
10. Controller
11. Universal Wheel
Specification
1. Digital display controller with soft key button: air velocity can be adjusted in 3 levels, and the display shows fan, lighting, and UV operating status. 1.
2. UV lamp reservation can be set on and off, with real-time display of fan, UV lamp, and filter cumulative running time.
3. The worktop adopts one-piece high-quality stainless steel, which is corrosion-resistant and easy to clean.
4. The external body is made of high-quality cold-rolled steel sheet and electrostatic powder coated with ivory white. It has strong anti-corrosion ability and can effectively inhibit bacterial growth on the surface of the cabinet.
5. Randomly positioned sliding door system using patented technology.
6. Universal caster with braking device, high-quality casters, flexible movement, and convenient and reliable fixation.
7. The user-friendly first-filter quick-change and cleaning design makes customers more convenient.
8. Illumination and sterilization system interlocking function. With the spare outlet design, power-off protection can be used safely and conveniently.
9. Single person single side, single person double side, double person single side, and double person double side are the four models to choose from.
10. Each product is factory tested for product performance in accordance with industry standards and meets all safety requirements for medical device equipment.
|
Model |
MAX-1F |
MAX-2F |
MAX-1FD |
MAX-2FD |
|
Cleanliness |
100 class @ ≥0.5 μm (G federal 209E) |
|||
|
No.of Colony |
≤0.5cfu/Dish*0.5h | |||
|
Air Velocity |
≥0.3 m/s (adjustable, three-level |
|||
|
Noise |
≤62 dB(A) |
|||
|
Vibration Half Peak Value |
≤0.5μm (x.y.z direction) |
|||
|
Illuminance |
≥300 LX |
|||
|
Power Supply |
AC Single Phase 110-220V/50-60Hz |
|||
|
Rated Power |
250W |
500W |
250W |
500W |
|
Weight |
130 kg |
170 kg |
130 kg |
170 kg |
|
Size & No.of HEPA Filter |
820x600x50x① |
610x610x50x② |
820x600x50x① |
610x610x50x② |
|
Light |
7W*① |
7W*② |
7W*① |
7W*② |
|
UV lamp (option) |
8W*① |
8W*② |
8W*① |
8W*② |
|
Mode of Operation |
One person double-sided |
Two-person double-sided |
One person on one side |
Two people on one side |
|
External Dimension (mm) |
1010x750x1600 |
1500x750x1600 (59.1"x29.5"x63.0") |
1010x730x1600 |
1500x730x1600 |
|
Working Dimension (mm) |
870x690x520 (34.3"x27.2"x20.5") |
1360x690x520 |
870x690x520 |
1360x690x520 |
|
Construction |
Worktop: All-in-one Stainless Steel. External cabinet: high-grade steel and lacquered in ivory. |
|||

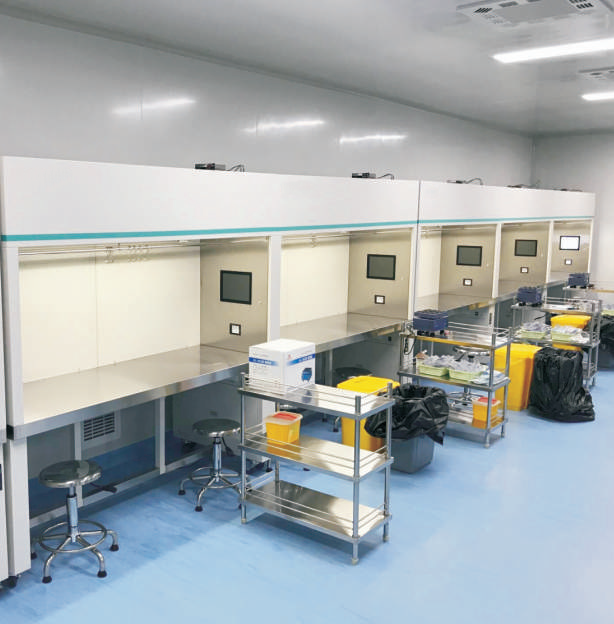

Case

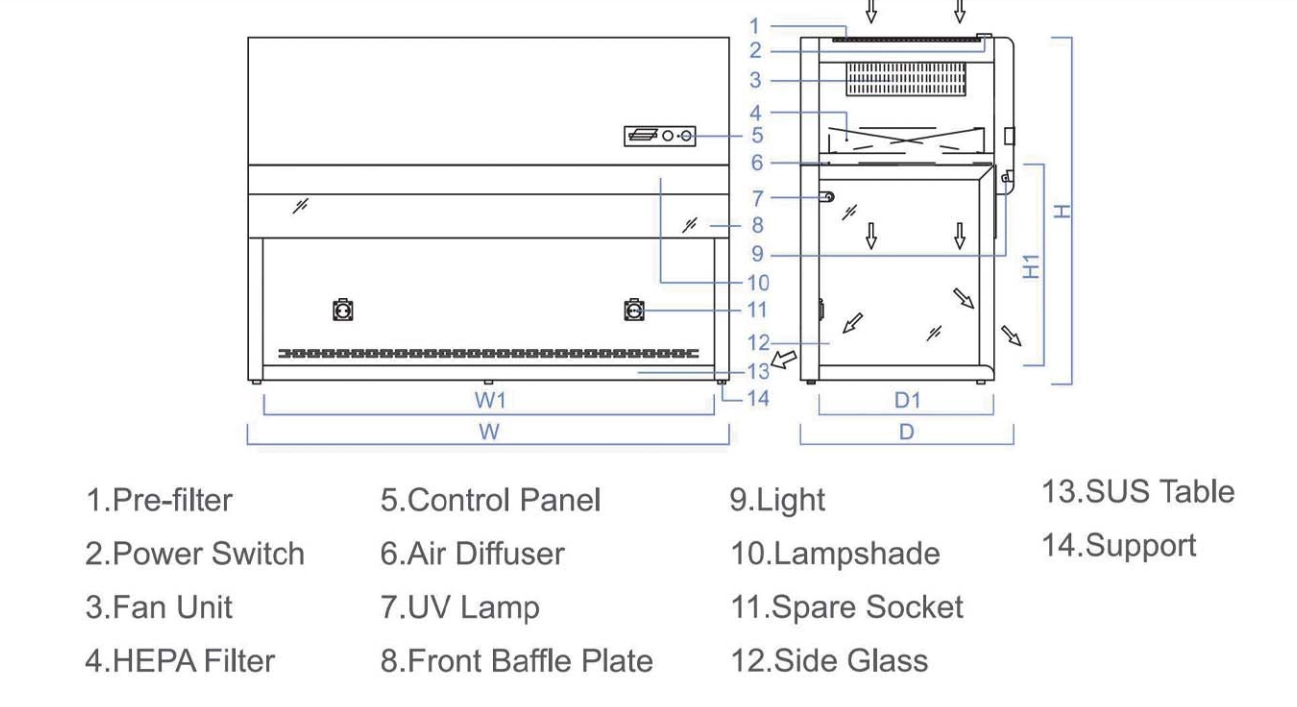

Vertical Ventilation
|
Model |
MAX-V650 |
MAX-V1320 |
MAX-V650-U |
MAX-V1320-U |
|
Cleanliness |
100 class at ≥0.5 μm (G federal 209E) |
|||
|
Air Velocity |
≥0.3 m/s (59.1 fpm) (adjustable) |
|||
|
Noise |
≤62 dB(A) |
≤65 dB(A) |
≤62 dB(A) |
≤65 dB(A) |
|
Illuminance |
≥300 LX |
≥500 LX |
≥300 LX |
≥500 LX |
|
Power Supply |
AC Single Phase 110-220V/50-60Hz |
|||
|
Weight |
60 kg |
90 kg |
60 kg |
90 kg |
|
Rated power |
250W |
|
|
|
|
Light |
7W*① |
13.6W*① |
7W*① |
13.6W*① |
|
UV lamp (option) |
- |
8W*① |
30W*① |
|
|
Working Dimension (mm) |
615*495*500 |
1240x490x550 |
615x495*500 |
1240x490x550 |
|
External Dimension (mm) |
650x535x835 |
1320x585x950 |
650x535x835 |
1320x585x950 |
|
Size & No. of |
610x450x50x① (24.0''x17.7''x2.0''x①) |
1210x450x69x① |
610x450x50x① |
1210x450x69x① |
|
No. of Colony |
≤0.5 cfu/dish*0.5 h | |||
|
Construction |
Worktop: All-in-one Stainless Steel. External cabinet: high-grade steel and lacquered in ivory. | |||
|
Mode of Operation |
Single people/single side | |||
Why Choose Our Laminar Flow Cabinet (Vertical Ventilation)?
Versatile Design: Suitable for a wide range of applications in various industries.
User-Friendly: Ergonomic design and easy-to-use controls enhance user experience.
Durable and Reliable: Constructed from high-quality materials for long-lasting performance.
