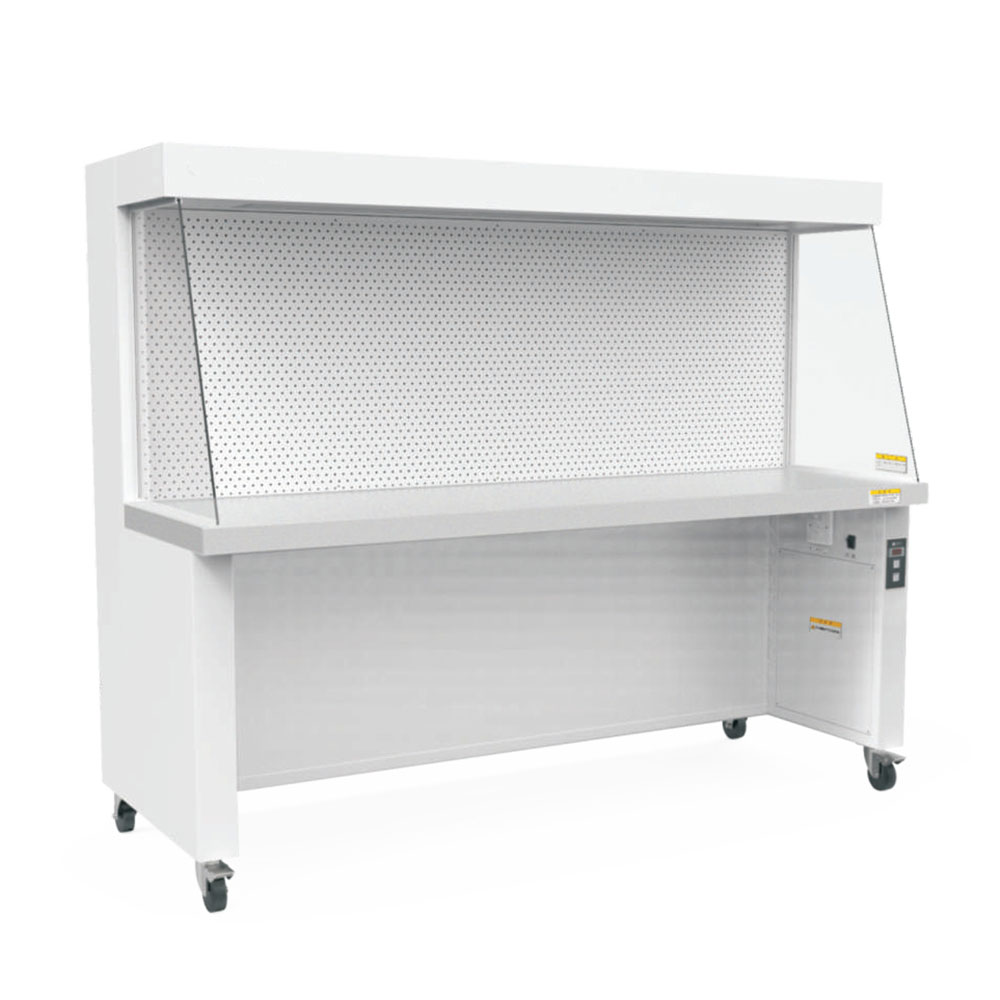

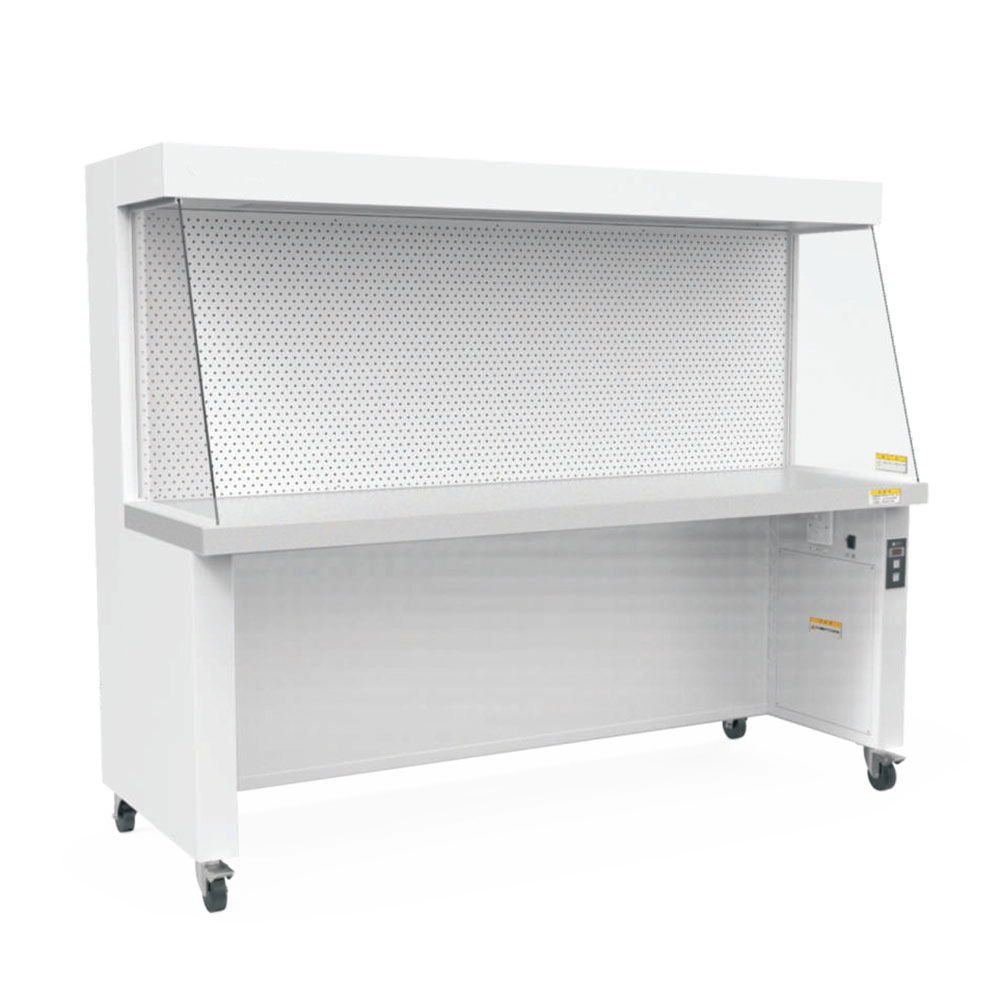

Laminar Flow Cabinet (Horizontal Ventilation)
Laminar Flow Cabinet (Horizontal Ventilation) is designed to provide a clean, particle-free workspace for a variety of sensitive applications in laboratories, research facilities, and industrial settings. Utilizing horizontal laminar airflow, this cabinet ensures a sterile environment by directing HEPA-filtered air horizontally across the work area. Ideal for tasks requiring contamination control, this cabinet is perfect for microbiology, electronics assembly, and pharmaceutical preparation.
A laminar flow cabinet keeps a controlled work surface for applications requiring a sterile workspace, whereas contaminant access is being prevented by a constant filtered airflow across the surface.
Max's laminar flow cabinet is a product of robust engineering combined with strategic ergonomic design. It provides long-term reliability and ultimate user comfort, making it ideal for use in electronics assembly, plant tissue culture, culture media preparation, and other non-hazardous applications that need a sterile environment.
Key Benefits
• Sash window for patented technology
• HEPA filter (ISO Class 5 work zone)
• Microprocessor control system
• Antimicrobial powder coating
• Stable and self-compensating airflow
• Illumination and sterilization system interlocking
• With fixed sash and sliding sash options (for vertical models)
Working Principle

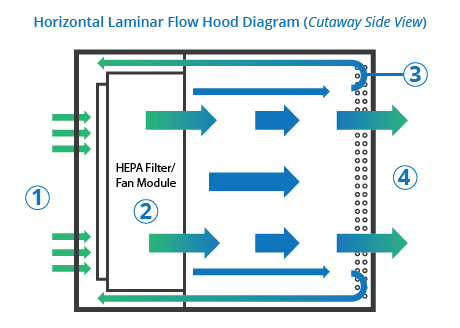

The air is pressed into the static pressure box through the bottom primary air filter and low-noise centrifugal fan, and then filtered again by the HEAP on the back side, and blown evenly to the bottom of the work area, forming a horizontal air curtain with a high level of cleanliness, removing the original natural air in the work area, remove dust particles and biological particles to form a sterile, high-clean working environment. The air velocity can be adjusted in three gears to ensure that the air velocity in the working area is always in a safe state.
Common Applications
· Electronics and Semiconductor Labs
· Chemistry and Research Labs
· Material Science Labs
· Pharmaceuticals Labs
***Effective for working with small- to medium-sized materials, especially where the focus is on preventing dust, airborne contaminants, or particles rather than microbial contamination.
Risk of Contamination: In vertical flow, contamination is pushed away from the work area, while in horizontal flow, contaminants are pushed directly away from the operator.

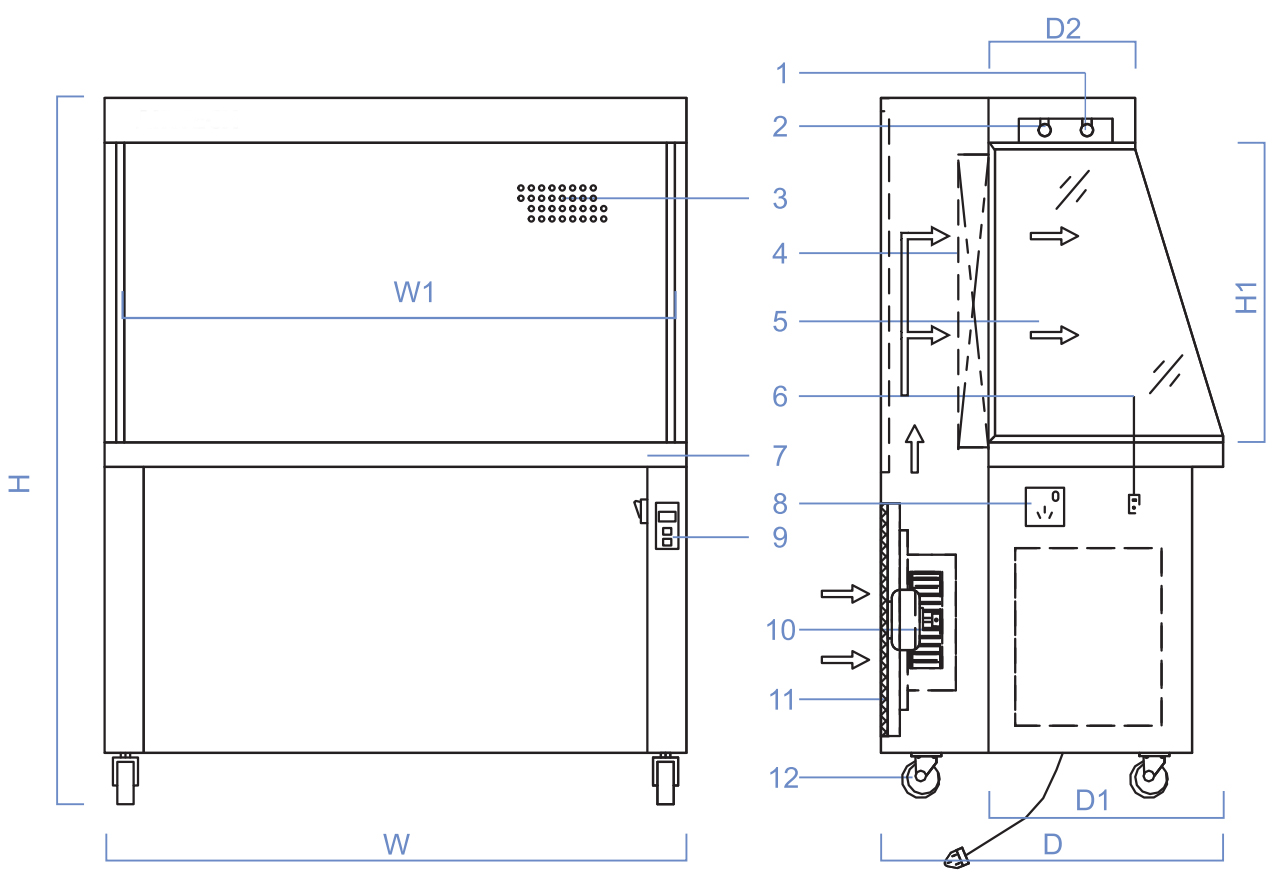

Product Details
-
1. Light
2. UV Lamp
3. Air Diffuser
4. HEPA Filter
5. Side Glass
6. Power Switch
7. SUS Table
8. Spare Electrical Outlet
9. Controller
10. Fan Unit
11. Pre-filter
12. Universal Wheel
Specification
1. Digital display controller with soft key button, air velocity can be adjusted in 3 level and display fan, lighting and UV operating status.
2. UV lamp reservation can be set on and off, real-time display fan, UV lamp, filter cumulative running time.
3. The front-end is tilted design, each side is tempered glass.
4. Worktop adopts one-piece high-quality stainless steel, which is corrosion-resistant and easy to clean.
5. The outer box body is made of high-quality cold-rolled steel sheet and electrostatic powder coated with ivory white. It has strong anti-corrosion ability and can effectively inhibit bacterial growth on the surface of the cabinet.
6. Streamline shape decrease interference of airflow.
7. Universal caster with braking device, high-quality casters, flexible movement, convenient and reliable fixation.
8. Humanized pre-filters design make customers more convenient to change and clean.
9. Interlocking lighting and sterilization systems, with spare sockets design, Short circuit protection, safe and convenient to use.
10. Every clean bench is tested individually in according with international standard at factory for safety and performance.
11. Air inlet from top and horizontal laminar flow type for PIVAS center is optional.
|
Model |
MAX-1B |
MAX-1C |
MAX-1BU |
MAX-1CU |
|
|
Cleanliness |
100 class @ ≥0.5 μm (G federal 209E) |
||||
|
No. of Colony |
- |
≤0.5 cfu/dish*0.5 h |
|||
|
Air Velocity |
≥0.3 m/s (adjustable, three levels) |
||||
|
Noise |
≤62 dB(A) |
||||
|
Vibration Half Speak Value |
≤0.5 μm (x.y.z direction) |
||||
|
≥300 LX |
|||||
|
Power Supply |
AC Single Phase 110-220V/50-60Hz |
||||
|
Rated Power |
250W |
500W |
250W |
500W |
|
|
Weight |
100 kg |
160 kg |
100 kg |
160 kg |
|
|
Size & No. of HEPA Filter |
820x600x50x① (32.3''x23.6''x2.0''x①) |
610x610x50x② (24.0''x24.0''x2.0''x②) |
820x600x50x① (32.3''x23.6''x2.0''x①) |
610x610x50x② (24.0''x24.0''x2.0''x②) |
|
|
Light |
18W*① |
36W*① |
18W*① |
36W*① |
|
|
UV lamp (Option) |
- |
18W*① |
36W*① |
||
|
Mode of Operation |
Single/single side |
Double/single-sided |
Single/single side |
Double/single side |
|
|
External Dimension (mm) |
900x700x1450 (35.4''x27.6''x57.1'') |
1760x700x1450 (69.3''x27.6''x57.1'') |
900x700x1450 (35.4''x27.6''x57.1'') |
1760x700x1450 (69.3''x27.6''x57.1'') |
|
|
Working Dimension (mm) |
820x480(300)x600 (32.3''x18.9''x23.6'') |
1680x480(300)x600 (66.1''x18.9''x23.6'') |
820x480(300)x600 (32.3''x18.9''x23.6'') |
1680x480(300)x600 (66.1''x18.9''x23.6'') |
|
|
Construction |
Worktop: All-in-one Stainless Steel. External cabinet: high-grade steel and lacquered in ivory. |
||||

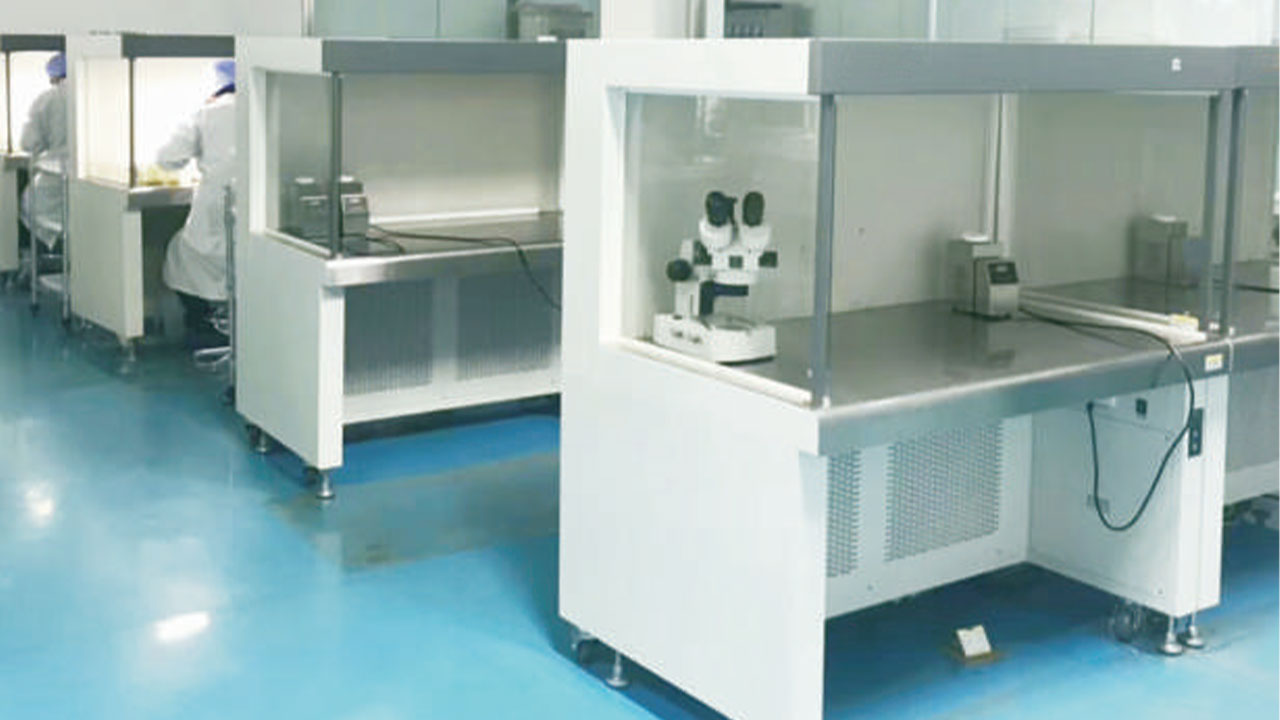

Case

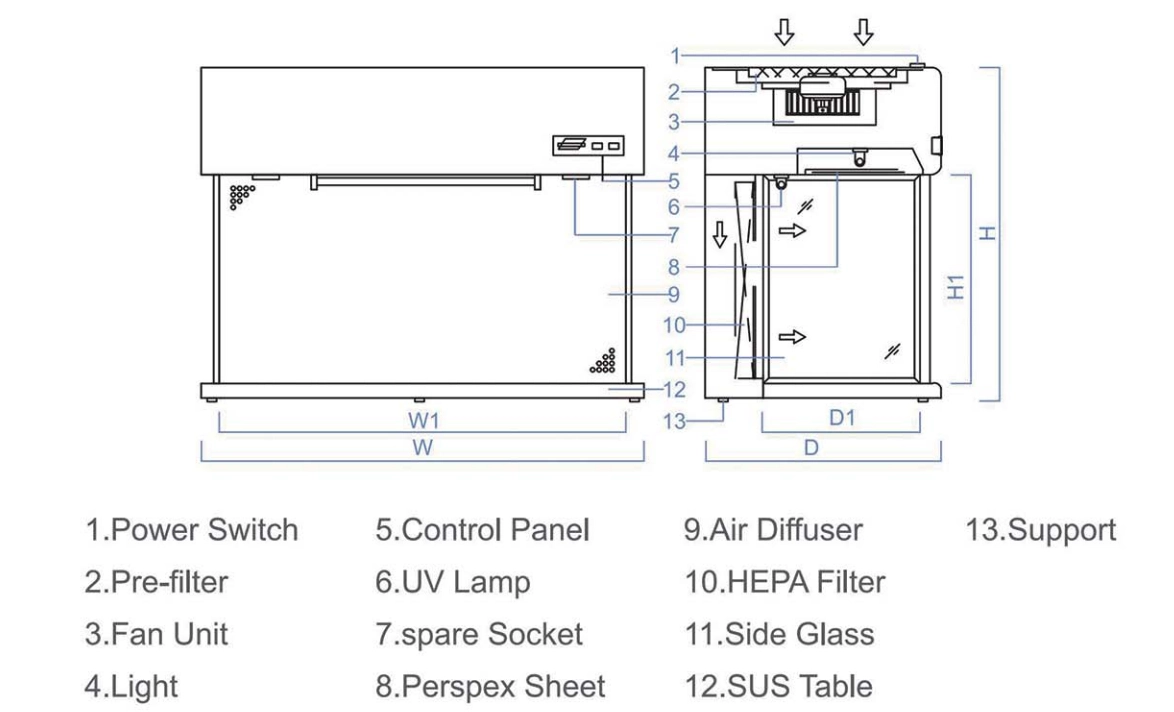

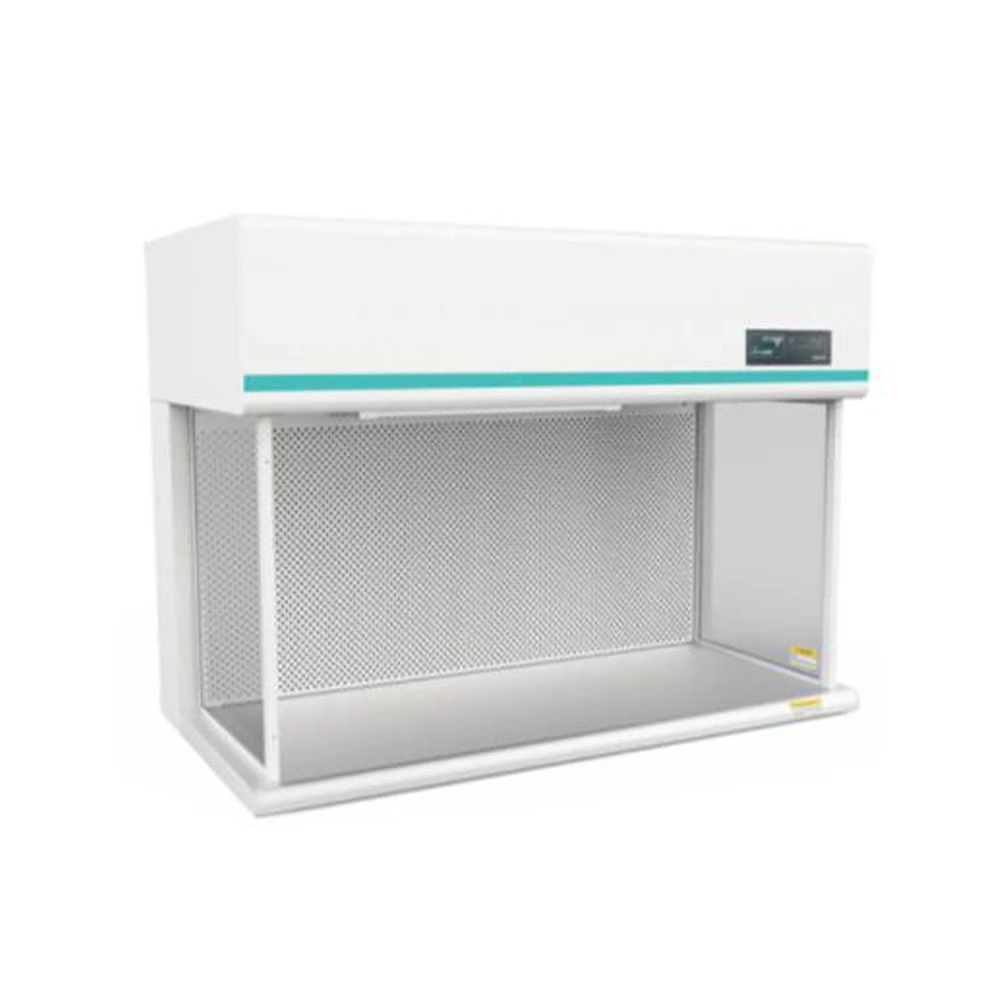

Horizontal Ventilation
|
Model |
MAX-H650 |
MAX-H1220 |
MAX-H650-U |
MAX-H1220-U |
|
Cleanliness |
100 class @ ≥0.5 μm (G federal 209E) |
|||
|
Air Velocity |
≥0.3 m/s (59.1 fpm) (adjustable) |
|||
|
Noise |
≤62 dB(A) |
≤65 dB(A) |
≤62 dB(A) |
≤65 dB(A) |
|
≥300 LX |
≥500 LX |
≥300 LX |
≥500 LX |
|
|
Power Supply |
AC Single Phase 110-220V/50-60Hz |
|||
|
Weight |
55 kg |
85 kg |
55 kg |
85 kg |
|
Rated Power |
250W |
|||
|
Light |
7W*① |
10W*① |
7W*① |
10W*① |
|
UV Lamp |
- |
8W*① |
18W*① |
|
|
Working Dimension (mm) |
615x400*535 (24.2''x15.7''x21.1'') |
1120x490x575 (44.1'x19.3''x22.6'') |
615x400*535 (24.2''x15.7''x21.1'') |
1120x490x575 (44.1'x19.3''x22.6'') |
|
External Dimension (mm) |
650x680x625 (25.6''x26.8'x24.6'') |
1220x650x920 (48.0'x25.6''x36.2'') |
650x680x625 (25.6''x26.8'x24.6'') |
1220x650x920 (48.0'x25.6''x36.2'') |
|
Size & No. of HEPA Filter |
610x490x50x① (24.0''x19.3''x2.0''x①) |
1100x495x69x① (43.3''x19.5''x2.7''x①) |
610x490x50x① (24.0''x19.3''x2.0''x①) |
1100x495x69x① (43.3''x19.5''x2.7''x①) |
|
No. of Colony |
- |
≤0.5 cfu/dish*0.5 h |
||
|
Construction |
Worktop: All-in-one Stainless Steel. External cabinet: high-grade steel and lacquered in ivory. |
|||
|
Mode of Operation |
Single people/single side |
|||
