Lab Sink Cabinet

Lab Sink Cabinet

(C-Frame / Floor Mounted / H-Frame Series)Washing Solution

Product Overview

The Lab Sink Cabinet is the core equipment of the laboratory washing area, integrating washing, sink, drainage and storage in one unit.
According to different laboratory layouts, it is available in C-frame open frame, fully enclosed floor-mounted cabinet and H-frame high-strength frame, and can be used as the washing unit at the end of an island bench or as a stand-alone wall bench.

• Application: university labs, research institutes, pharmaceutical plants, testing centers, hospital laboratories, etc.

Structure Series

2.1 C-Frame Lab Sink Base Cabinet

• C-frame steel frame structure with sink and worktop above and open space below for services.

• Easy for future addition and maintenance of plumbing, electrics and waste lines.

• Ideal for laboratories that need frequent modifications or upgrades of service lines.

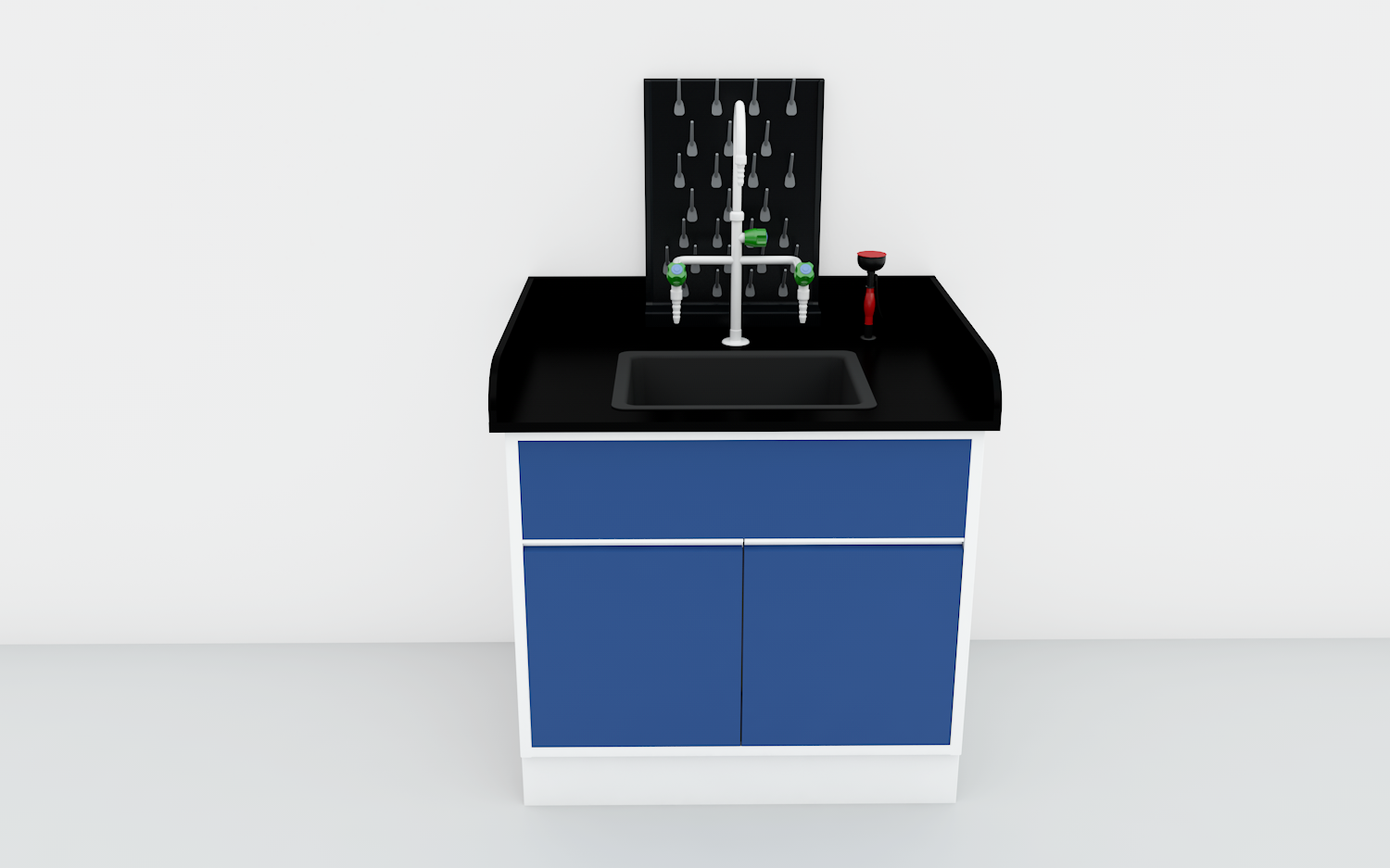

2.2 Floor Mounted Laboratory Washing Bench

• Fully enclosed base cabinet design with plinth, stable and neat in appearance.

• Doors/drawers provide storage space for detergents, bottles and waste containers.

• Helps keep the laboratory clean and organized; suitable for teaching and general labs.

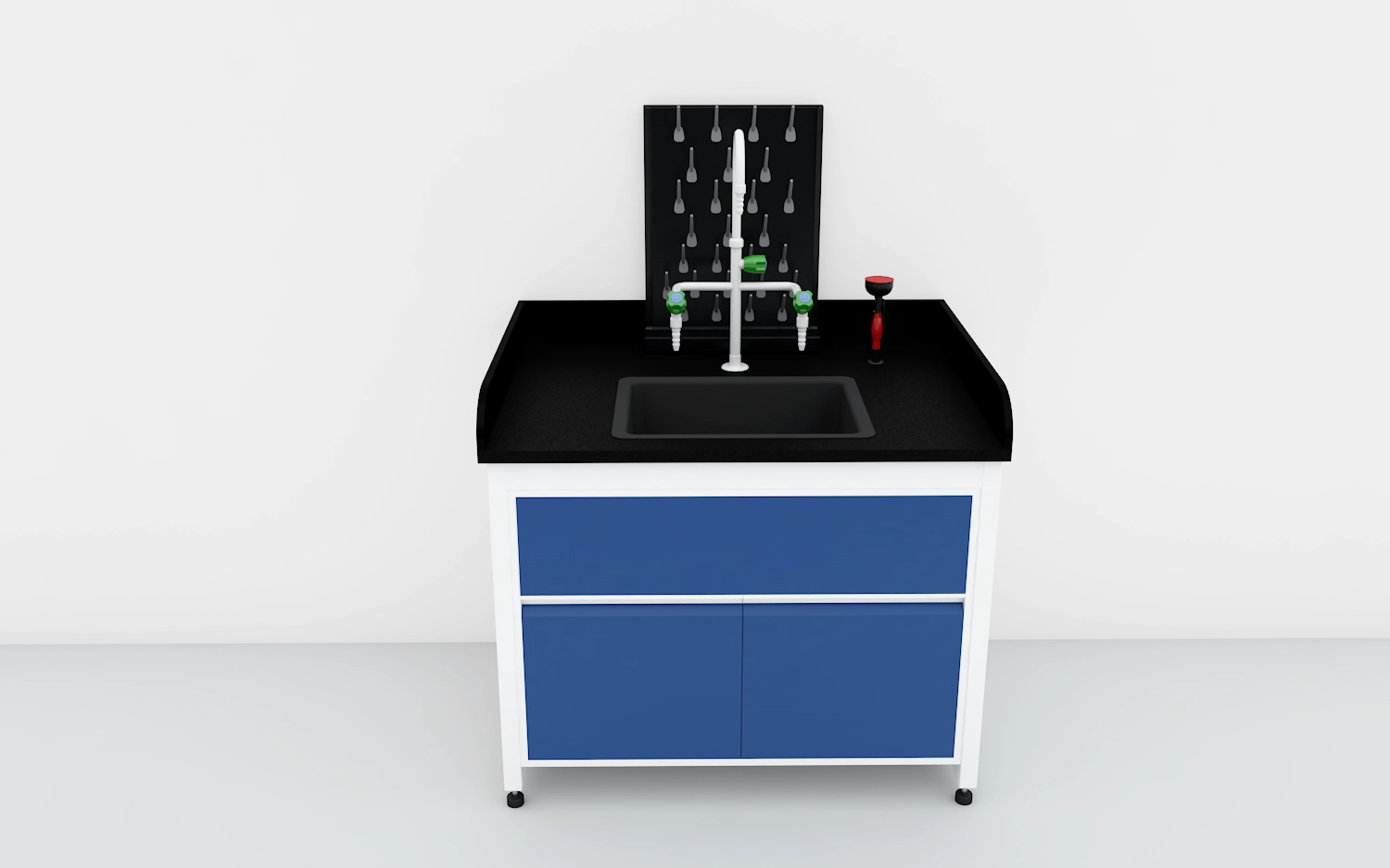

2.3 H-Frame Laboratory Sink Unit

• H-frame high-strength frame supporting the worktop and sink, with optional shelves or mobile cabinets underneath.

• High load-bearing capacity; can be combined with drying racks and pegboards.

• Suitable for professional laboratories with higher requirements on stability and load capacity.

Materials & Finishing

3.1 Cabinet / Frame

• High-quality cold-rolled steel, formed by bending and welding.

• Surface finished with epoxy resin or epoxy-polyester powder coating, cured at high temperature.

• Excellent abrasion and corrosion resistance, easy to clean and not easily deformed.

•

3.2 Worktop Options

• Epoxy Resin Top: highly resistant to strong acids and alkalis and high temperature, ideal for chemical labs.

• Phenolic Resin Top: scratch-resistant with good chemical resistance, suitable for general labs.

• Front edge with safety profile to reduce spills and improve user comfort.

•

3.3 Sink & Accessories

• Lab-grade PP / composite resin sink, acid- and alkali-resistant and stain-resistant.

• Fitted with single or double outlet laboratory faucets and optional eye wash.

• Rear side can be equipped with drying rack and pegboard to form a complete washing system.

•

• Features & Advantages

  • Efficient Washing: Proper sink size and faucet height make glassware and instruments easy to clean.

  • Safe & Corrosion-Resistant: All materials are suitable for lab environments, providing resistance to acids, alkalis, moisture and rust.

  • Modular Combination: C-type, floor-mounted and H-type units can be combined freely with island benches, wall benches, reagent cabinets, etc.

  • Easy Maintenance: Service space and access panels are reserved for simple maintenance of water, electrical and waste systems.

  • Clean Appearance: Cabinet colors can be customized to match the overall lab scheme (standard blue/white or gray/white) to enhance the lab image.

  •

  • Standard Sizes & Customization

    • Typical lengths: 900 / 1200 / 1500 / 1800 mm (or customized according to project requirements)

    • Depth: 600 / 750 mm

    • Height: 800–900 mm (including worktop)

    The above are common reference sizes. Non-standard sizes can be custom-designed based on lab layout, equipment dimensions and ergonomics.

    Customizable Options:

    • Cabinet dimensions, colors and door configurations (swing doors / drawers / combinations).

    • Number and position of sinks (single / double / left or right offset).

    • Faucet types, eye wash, drying rack, power outlets, lighting and other accessories.

    • Interfaces reserved for fume hoods, island benches and integrated water/drainage systems.

    •

    • Typical Applications

      • Chemical analysis labs: cleaning and drying reagents bottles and glassware.

      • Teaching labs: centralized washing area for student experiments.

      • Hospital and biological labs: sample pre-treatment and daily washing.

      • Pharmaceutical and food testing labs: regular cleaning and waste liquid discharge.
