H-Frame Lab Bench

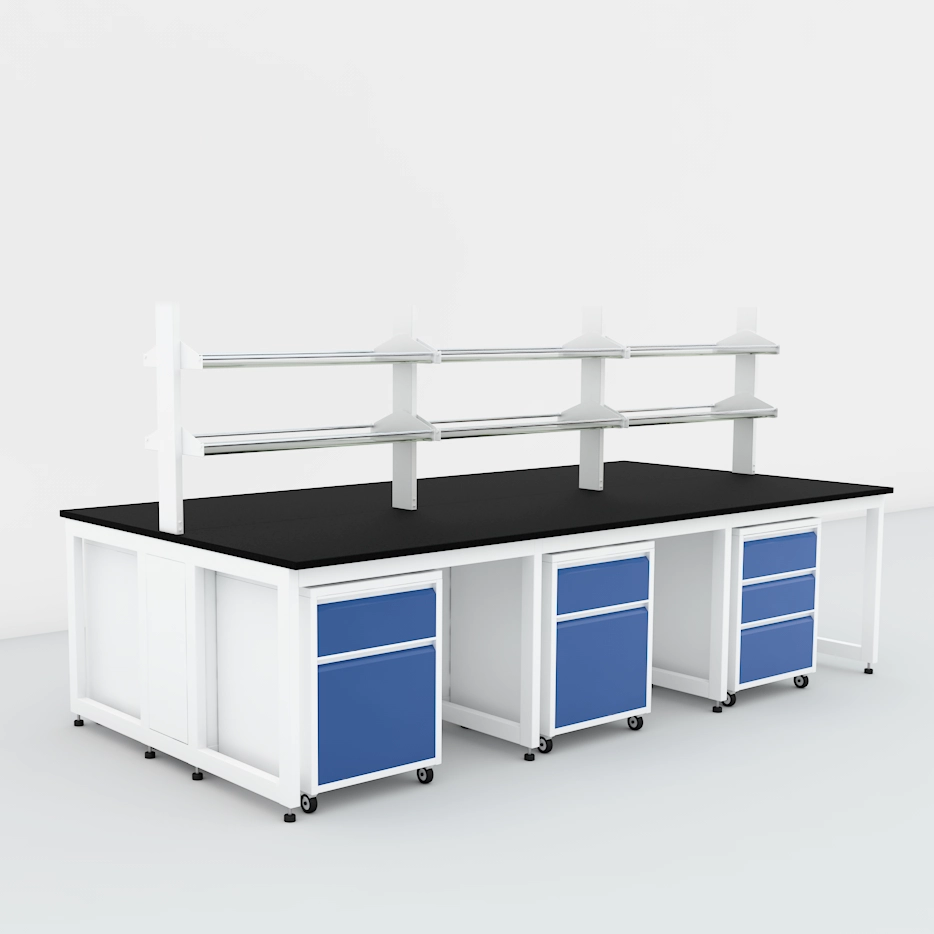

H-Frame Lab Bench combines exceptional durability, stability, and mobility, making it the perfect solution for dynamic laboratory environments. Featuring a robust H-frame design, this bench offers superior support for heavy equipment and tools, ensuring a reliable workspace. Made from high-quality steel or corrosion-resistant materials, it guarantees long-lasting performance. The movable design, equipped with lockable casters, allows for easy reconfiguration of your lab layout, providing flexibility in space planning. The spacious under-bench area maximizes storage and ensures easy access to utilities, while customizable options help you organize your workspace efficiently. Ideal for research institutions, educational labs, and industrial applications, the H-Frame Lab Bench offers a versatile, organized, and high-performing solution for all your laboratory needs.
The Floor Mounted Lab Bench is supported by cabinet units, and the cabinet units are fixed by knee space rails. This structure provides excellent load-bearing performance, allowing the bench to support up to 350 kg/m², making it suitable for large precision instruments&equipment in the laboratory.
The cabinet units are in direct contact with the floor, preventing dust from entering the bottom of the workbench, making it the preferred choice for dust-free laboratories.
Remarks: The Floor Mounted Lab Bench is only suitable for all-steel cabinet units. If wooden cabinet units are used, direct contact with the floor may cause moisture absorption, leading to expansion and deformation.
Product Details
Cabinet
The entire structure is made of high-quality cold-rolled steel sheet with a full thickness of 1.0mm. The steel surface undergoes grinding, polishing, rust removal, phosphating, and other processes, followed by epoxy resin electrostatic powder coating and high-temperature curing at 220°C, resulting in a smooth, corrosion-resistant surface with a thickness of 1.15mm to 1.2mm.The doors is double-layer structure with soundproofing material filled inside.
H-Frame/Modular Lab Bench
The H-Frame/Modular Lab Bench is supported by a solid H-Frame steel frame, connecting the upper and lower cabinet units and the countertop. Optional mobile cabinet, no cabinet and suspended cabinet structure.
Higher load-bearing capacity than C-Frame Lab Bench structure.
Compared to Floor Mounted Lab Bench, which install cabinets unit on the ground and are difficult to rearrange after installation, H-Frame Lab Bench allow lab personnel to easily reconfigure or customize lab layouts, and can be recreated using cabinet modular unit for a variety of layout.
SPECIFICATION
1. Countertops
(1) Phenolic Resin countertop: 12.7mm(Edge thicken to 25.4mm)/16/19/25mm thickness
(2) Epoxy Resin countertop: 15/16/19/25mm thickness
(3) Ceramic countertop: 15/20mm thickness
(4) Trespa countertop: 13/16/20mm thickness
(5) Granite/Marble countertop: 20mm thickness
2. Frame&Accessories
(1) Frame: The entire structure is made of 40*60mm, 1.5mm thick high-quality cold-rolled square tubes. The surface undergoes grinding, polishing, rust removal, phosphating, and other processes, followed by epoxy resin electrostatic powder coating and high-temperature curing at 220°C, resulting in a smooth, corrosion-resistant finish.
(2) Handles: Non-welded linear handle/C-shaped stainless steel handle/Insertion Aluminum handle.
(3) Slides: DTC silent self-closing slides.
(4) Hinges: Hinges: DTC 105°/175° self-closing hinges/Stainless steel self-closing hinges.
(5) Feet: Use laboratory-specific adjustable feet with an adjustment range of ≥35mm, strong bearing capacity, the balance of the lab bench can be adjusted.

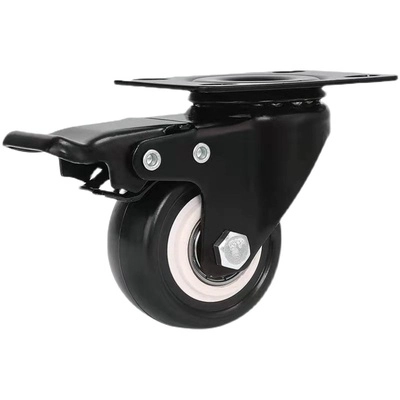

(6) Cabinet wheels: High-quality PU silent universal wheel with brakes, excellent load-bearing capacity, shock absorption, and wear resistance without damaging the floor. Each wheel supporting up to 120kg.
3. Option Cabinet Unit
①Wooden Cabinet Unit:
The cabinet body is made of 15mm thick, the door panels and drawer fronts are 18mm thick high-quality, eco-friendly double-faced MDF/melamine board.The edges are sealed with 2mm thick PVC edging, ensuring firm and straight sealing.
(Can equipped with wheels)
②Steel Cabinet Unit:
The entire structure is made of high-quality cold-rolled steel sheet with a full thickness of 1.0mm. The steel surface undergoes grinding, polishing, rust removal, phosphating, and other processes, followed by epoxy resin electrostatic powder coating and high-temperature curing at 220°C, resulting in a smooth, corrosion-resistant surface with a thickness of 1.15mm to 1.2mm.The doors is double-layer structure with soundproofing material filled inside.(Can equipped with wheels)
ADVANTAGES
· A new structural design that represents the modern lab trend.
· Higher load-bearing capacity compared to C-Frame lab bench structure, supporting up to 300kg/m².
· Provides more knee and legroom.
· Flexible configuration: Unlike floor-mounted lab bench, where cabinet units are fixed to the ground and difficult to rearrange after installation, H-Frame lab bench allow lab personnel to easily reconfigure or customize the laboratory layout.
· Space-saving: In today’s increasingly compact laboratory environments, flexible modular units can be combined or separated to fit your space. You are no longer restricted by traditional fixed workstations. If your laboratory expands, additional modules can be ordered to accommodate your new layout.
Standard Dimensions
|
Product |
Dimensions (Length*Depth*Height) |
|

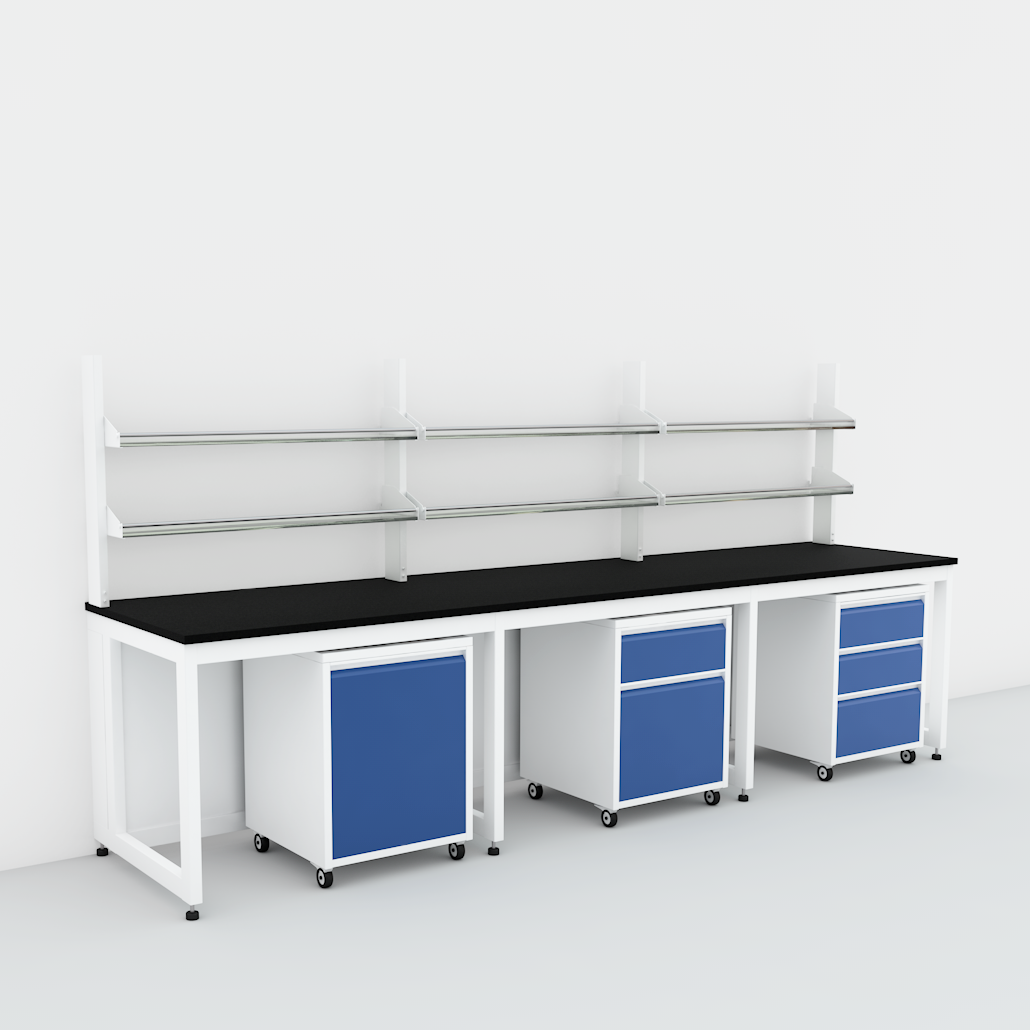

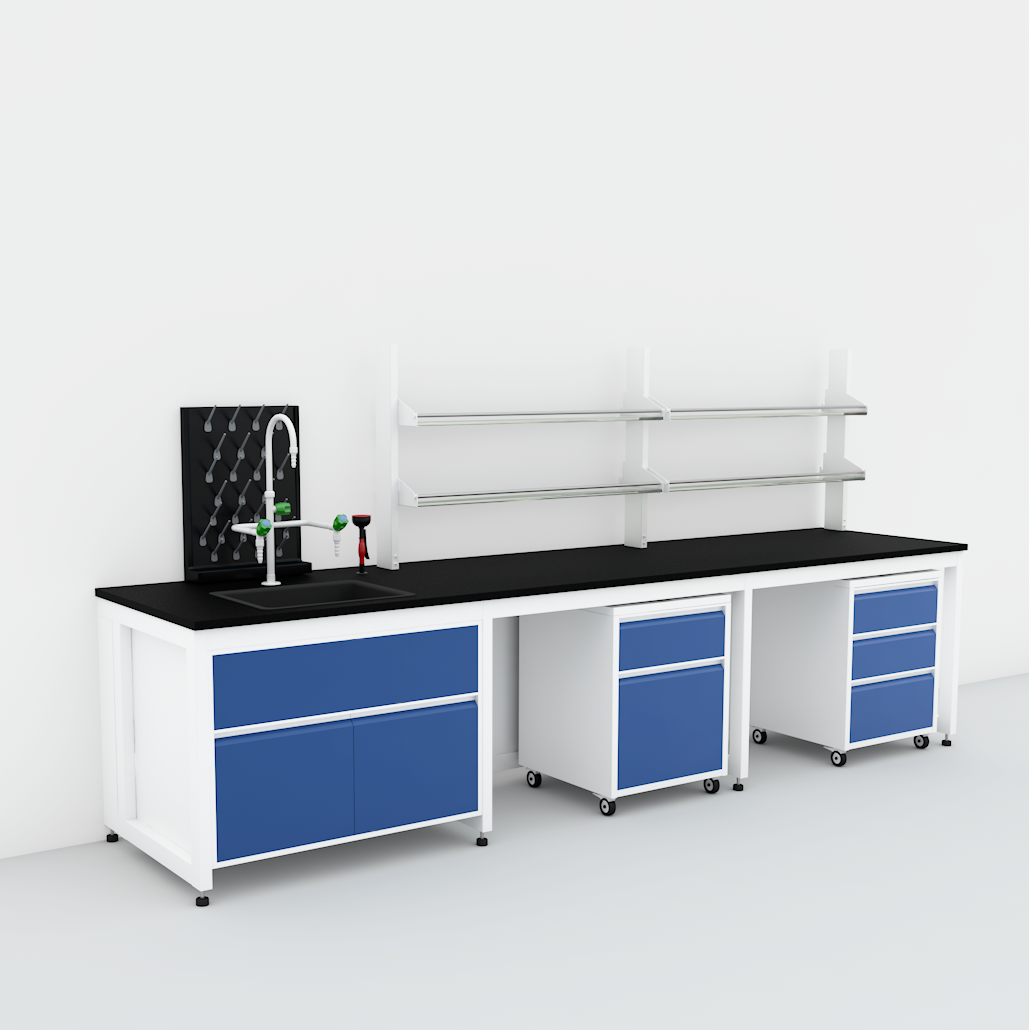

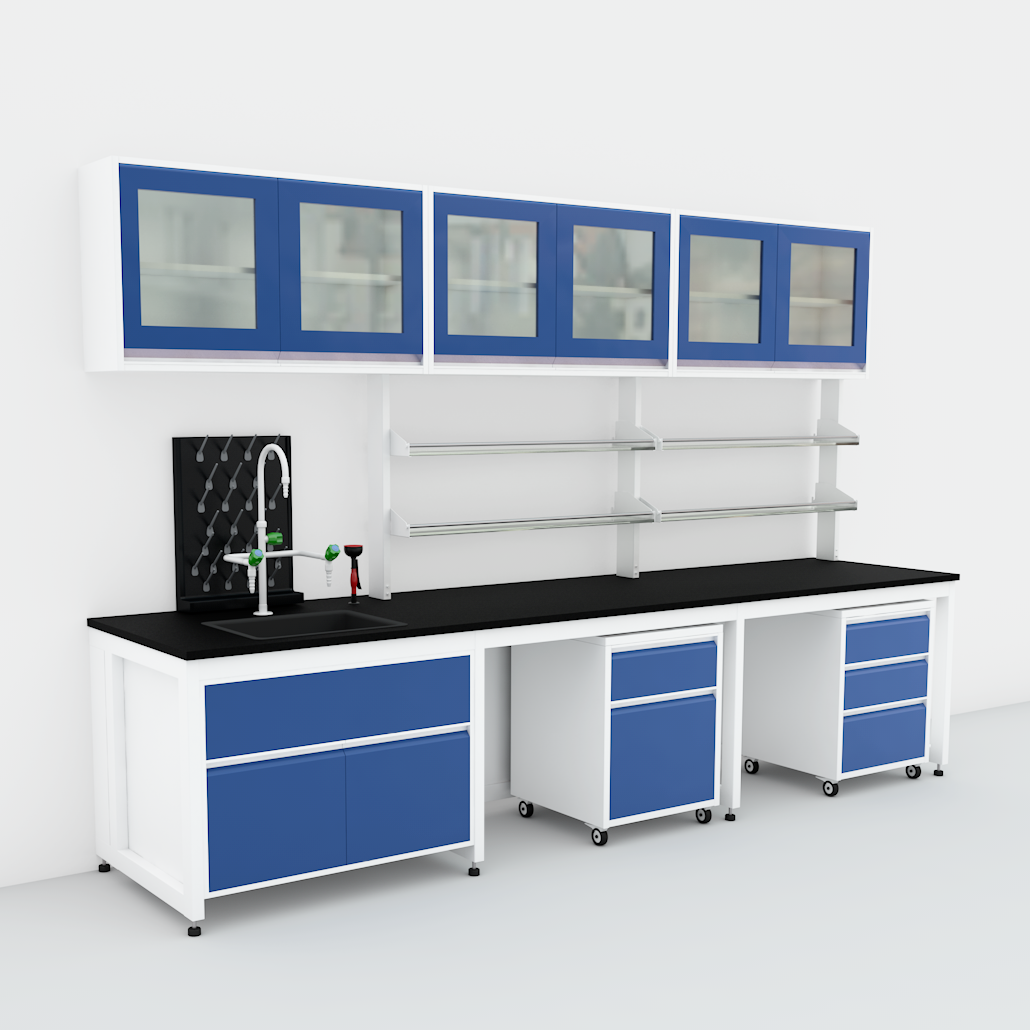

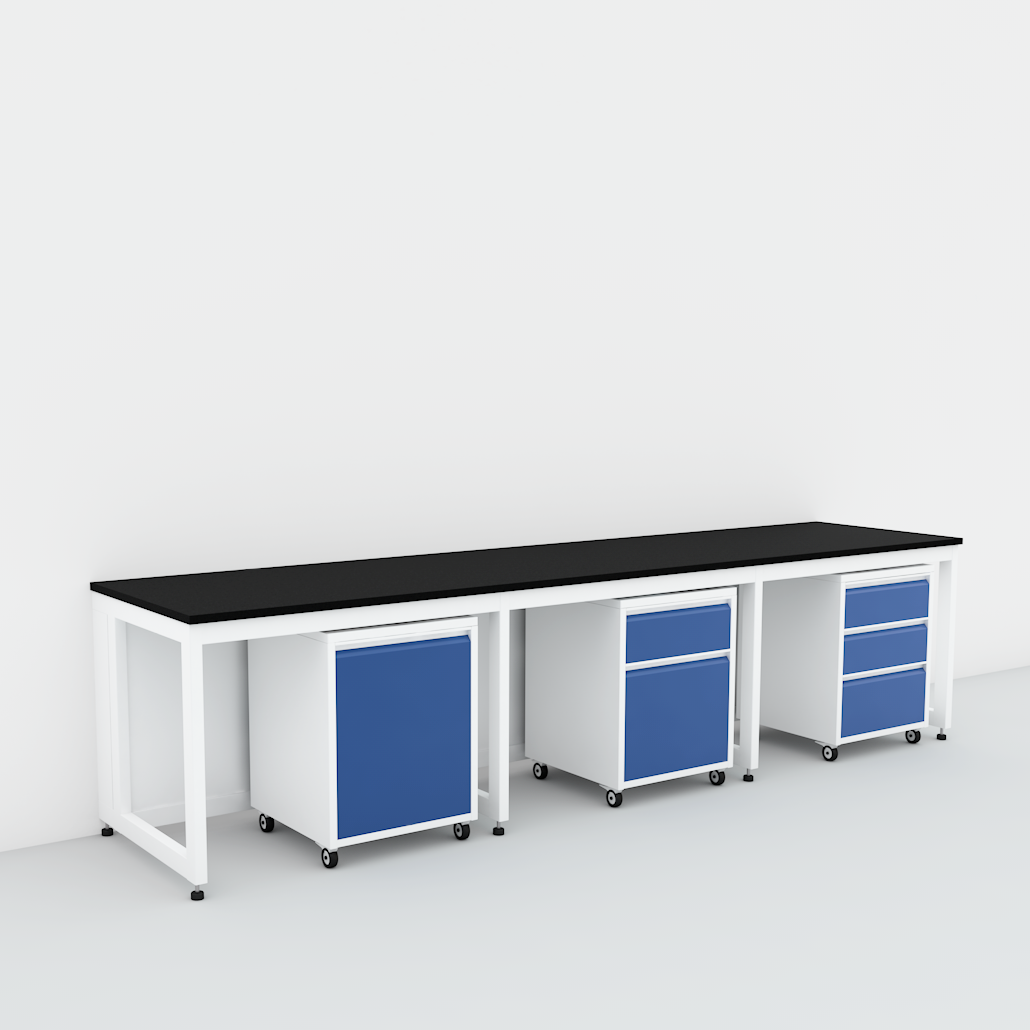

H-Frame Wall Bench |
1000*750*850mm/Customize 3.28x2.46'x2.78'/Customize |
|

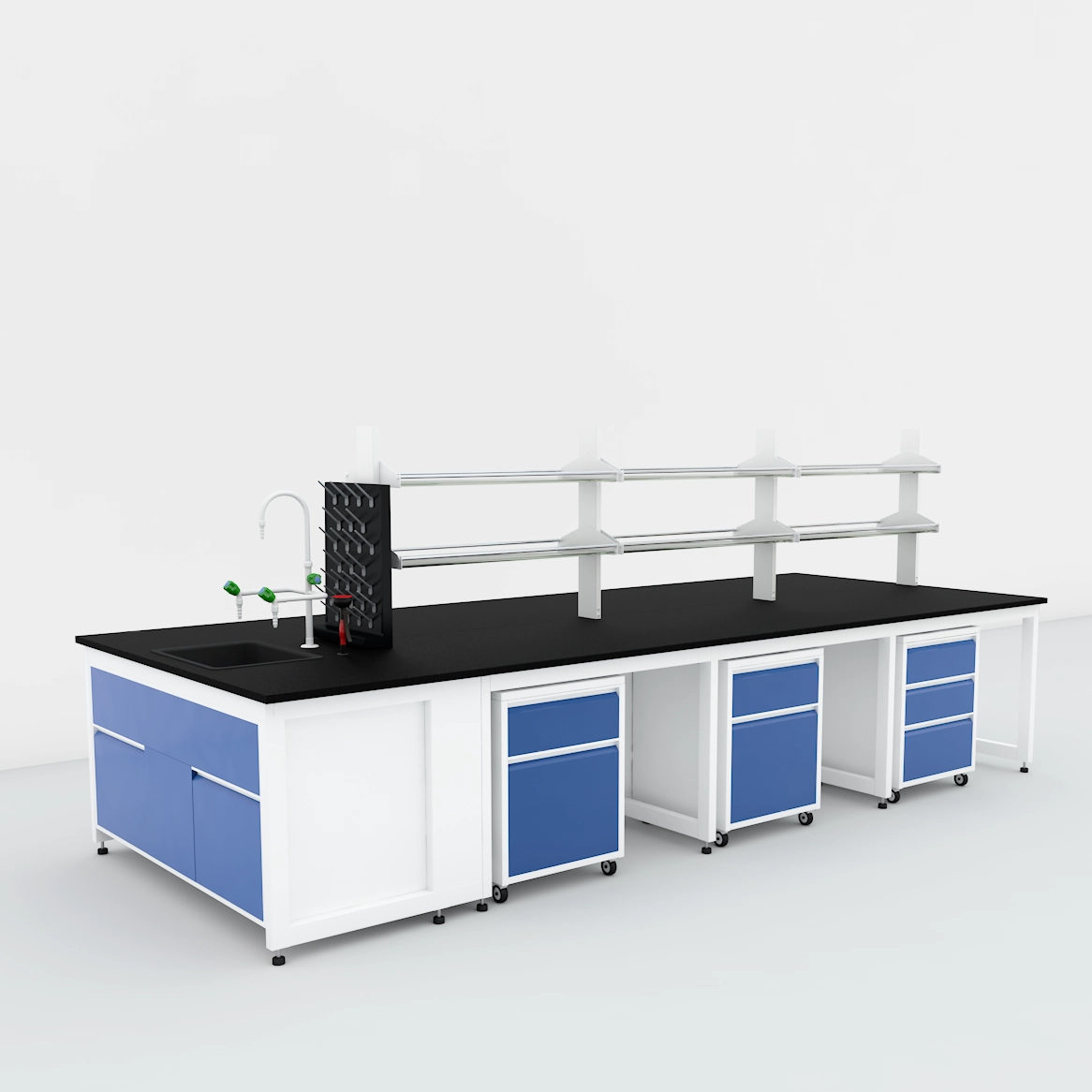

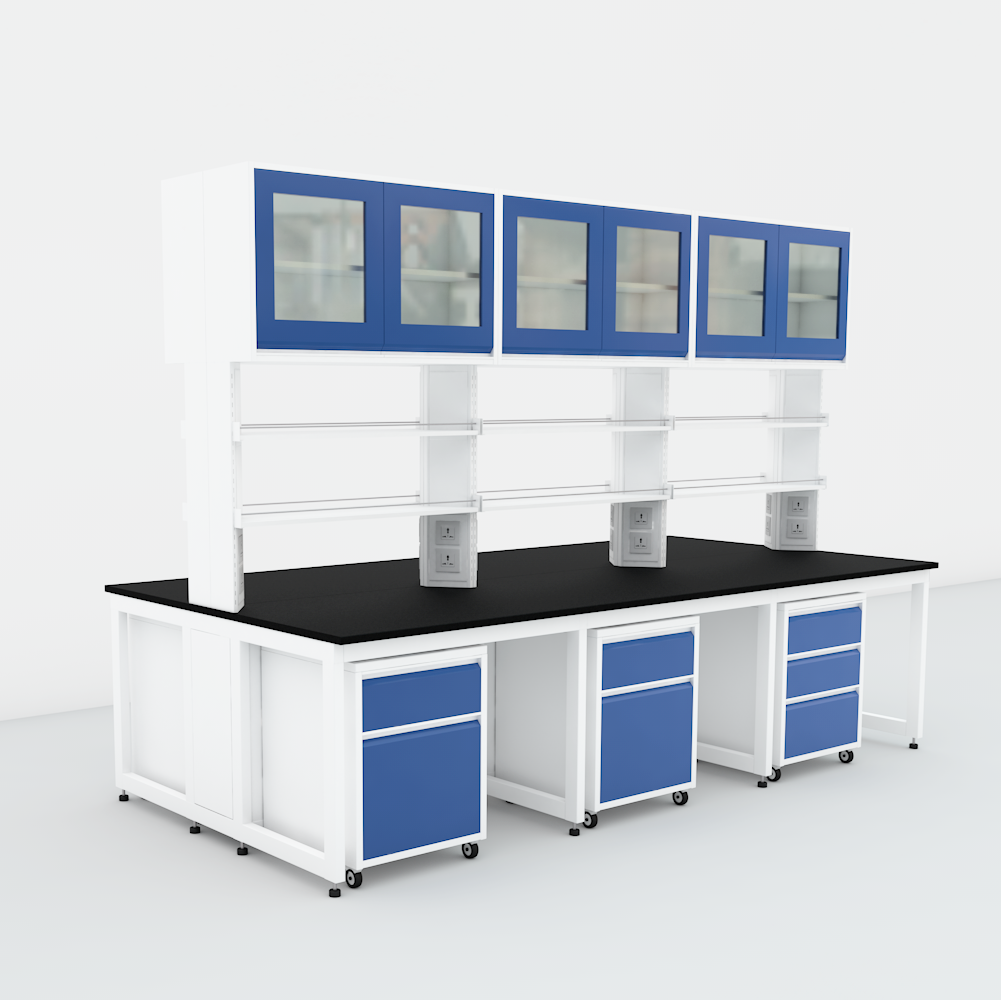

H-Frame Island Bench |
1000*1500*850mm/Customize 3.28x4.92'x2.78'/Customize) |
|
H-Frame Corner Bench |
1000*1000*850mm/Customize 3.28x3.28'x3.28'/Customize |

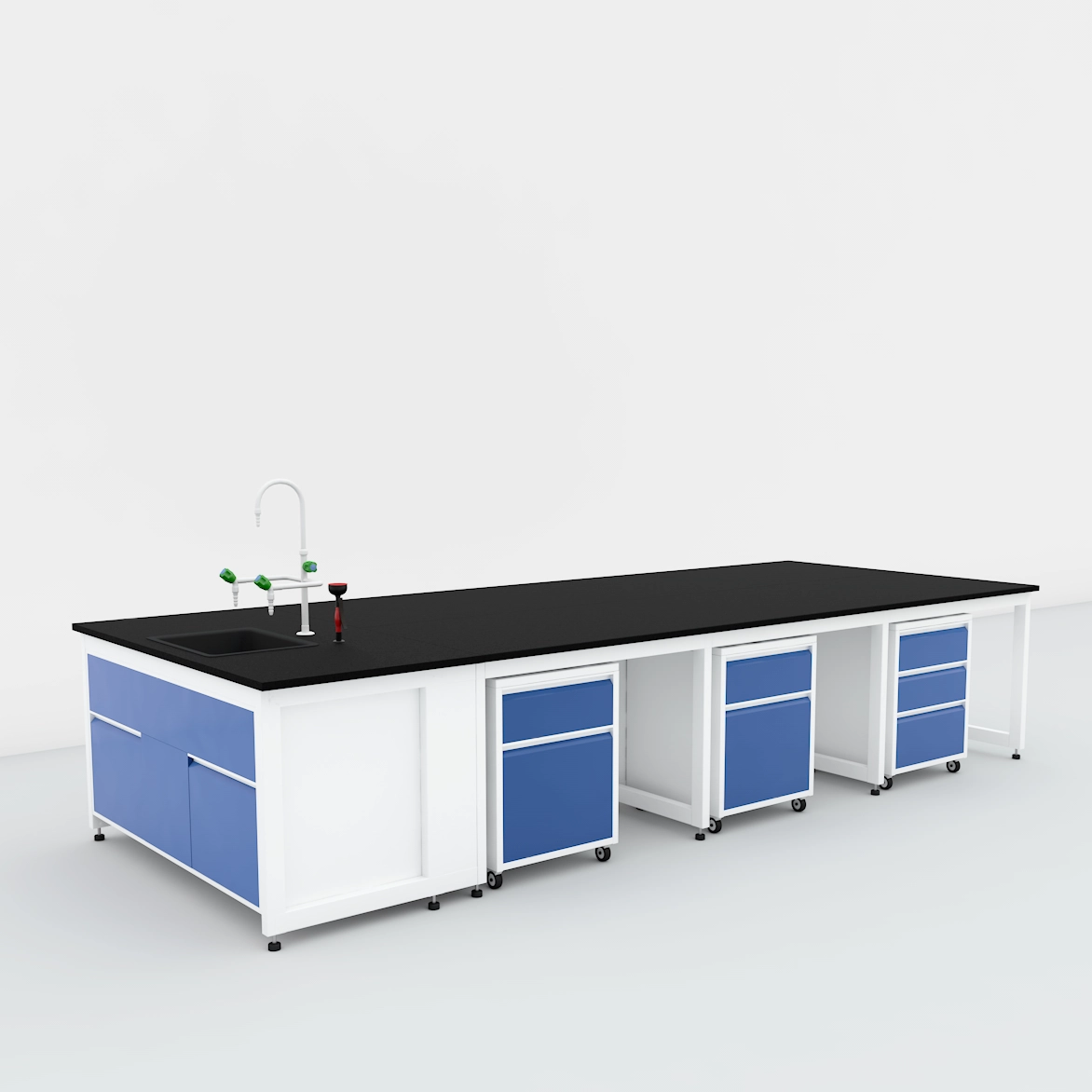

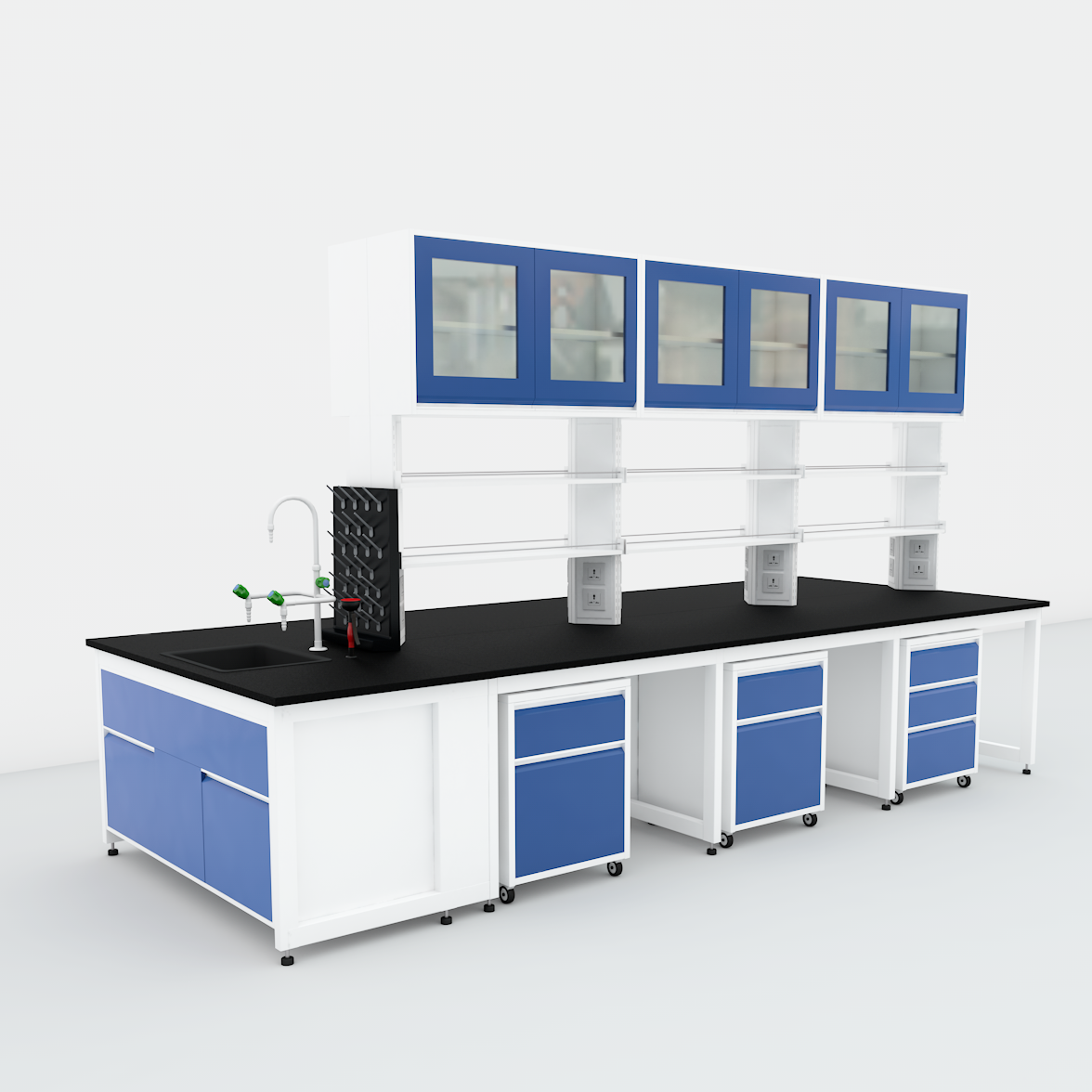

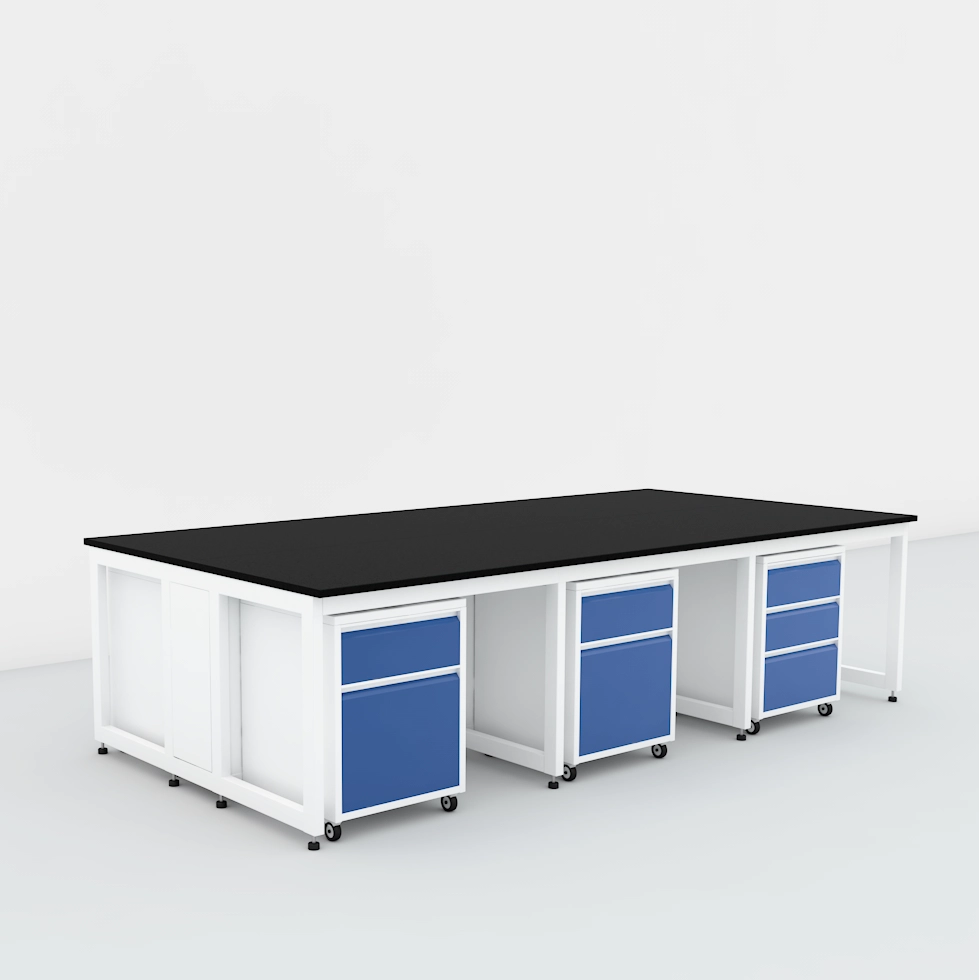

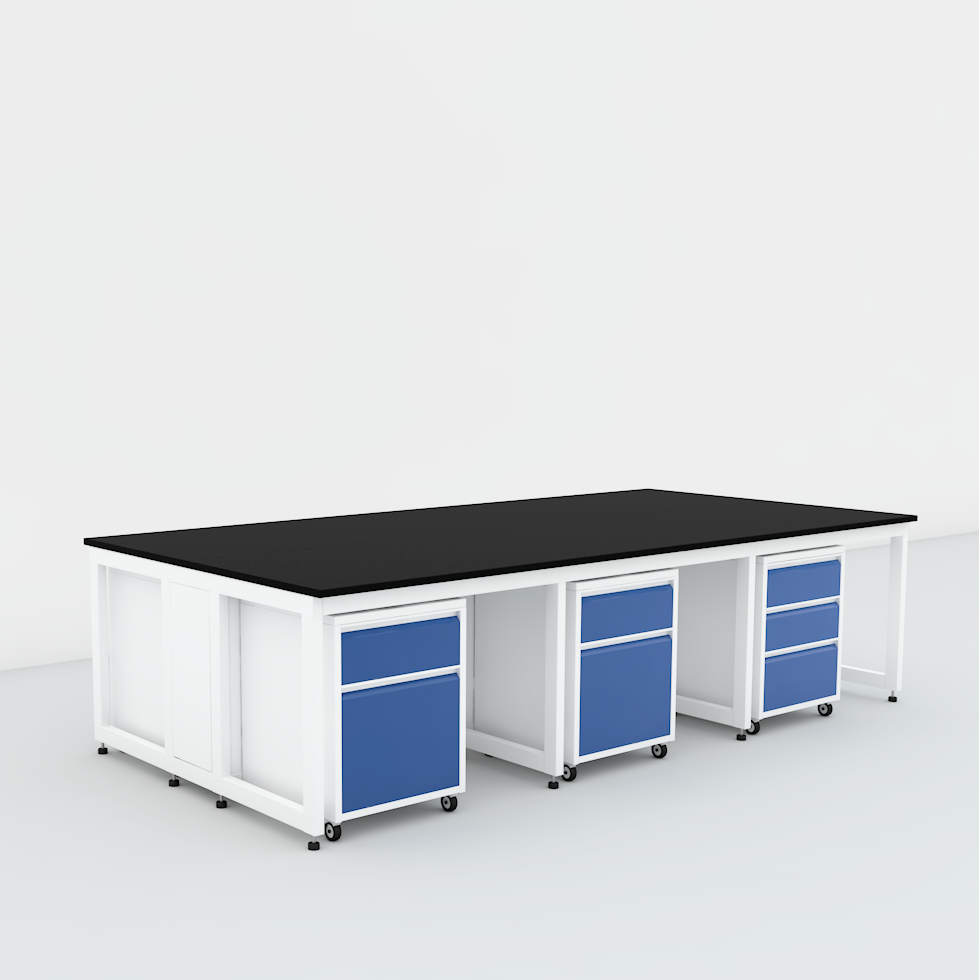

H-Frame Island Bench

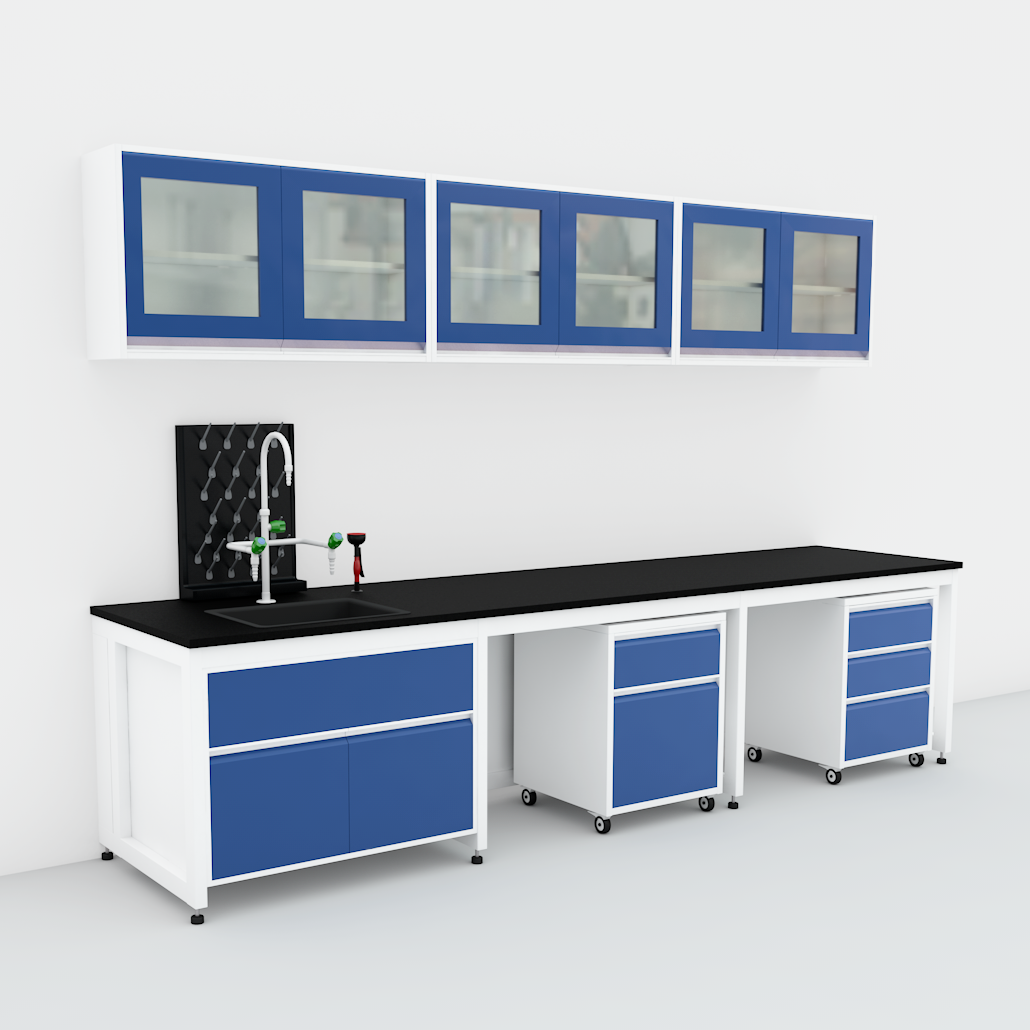

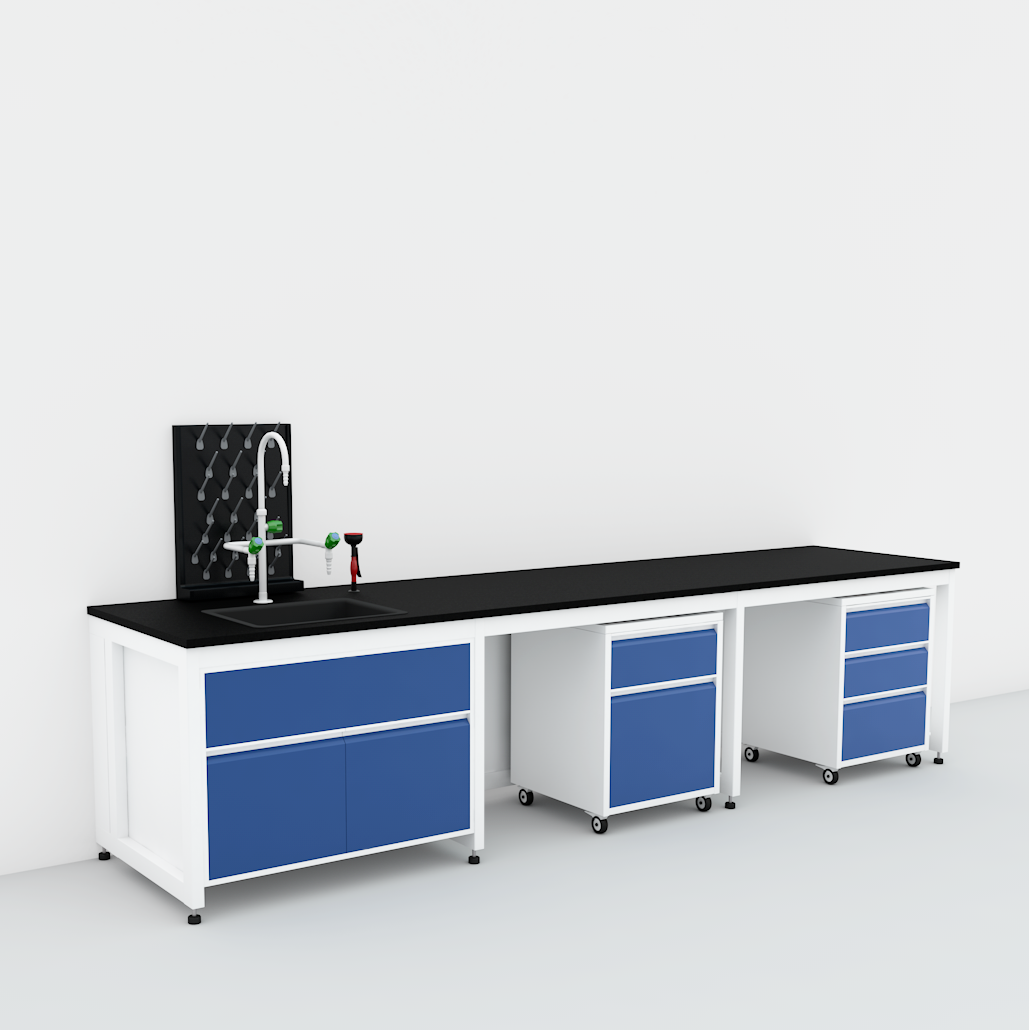

H-Frame Wall Bench
