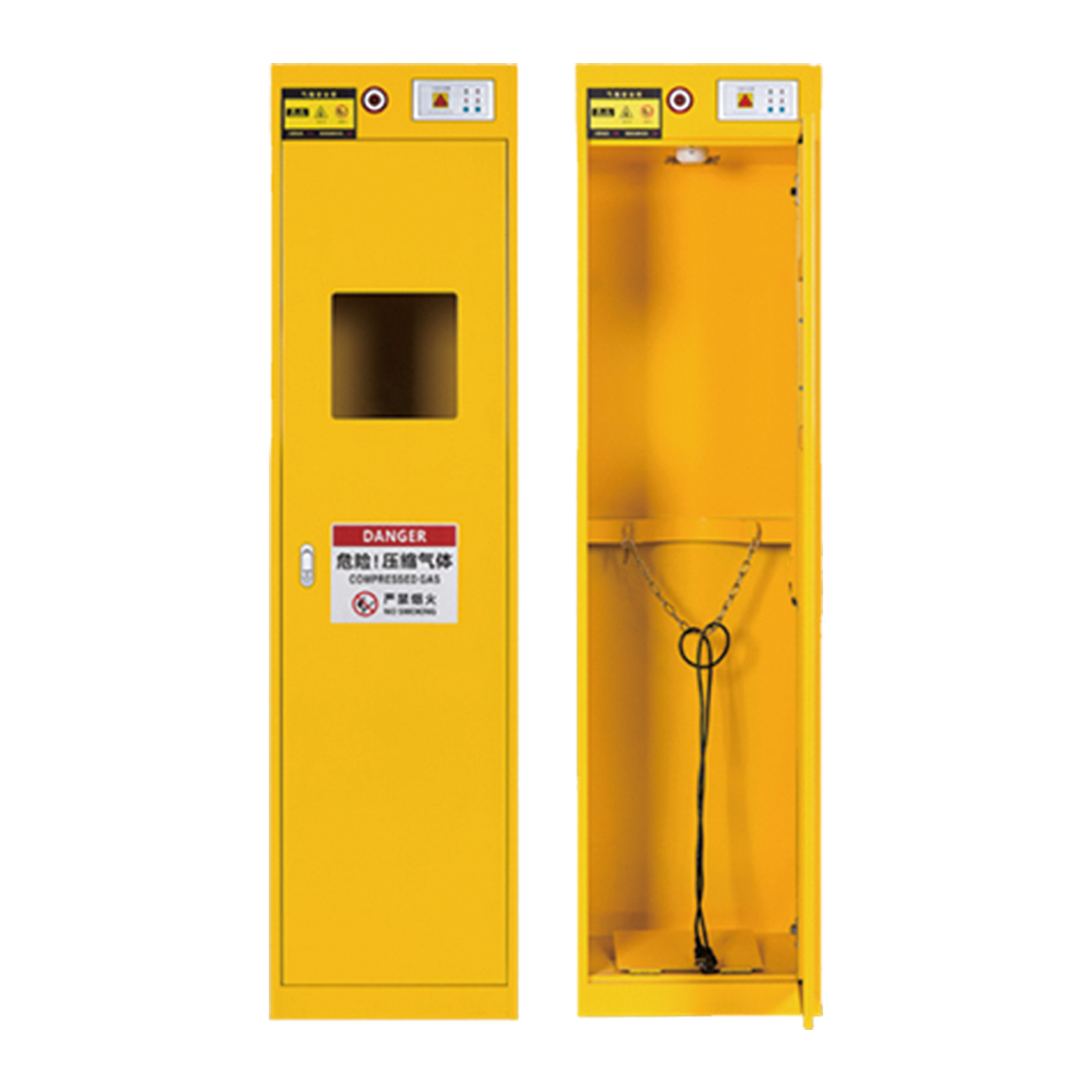

Gas Cylinder Cabinet（Single Cylinder Cabinet）
The MAX LAB Gas Cylinder Cabinet is designed for the safe and organized storage of compressed gas cylinders in laboratories, universities, hospitals and industrial facilities.
Constructed from heavy-duty steel with ventilation openings or exhaust ports, the cabinet helps reduce the risks associated with gas leaks, cylinder tipping and unauthorized access.
By storing cylinders in a dedicated, clearly labeled cabinet, you can improve safety, housekeeping and compliance with common gas storage guidelines.
Depending on the model, MAX LAB gas cylinder cabinets can store 1–4 cylinders (or more), suitable for standard laboratory gas bottles and industrial gas cylinders.
Laboratory Gas Cylinder Cabinets are designed to provide secure storage for hazardous gas cylinders, ensuring safety and compliance in laboratory and industrial environments. Constructed with durable, fire-resistant materials, these cabinets feature ventilation systems, leak detection, and sturdy construction to prevent accidents and protect personnel. Ideal for storing flammable, toxic, or corrosive gases, they are a must-have for labs prioritizing safety and organization. Choose our gas cylinder cabinets for reliable, compliant, and efficient gas storage solutions.
Product Details
Gas Cylinder Cabinets
SPECIFICATION
|
Model |
GCC-01 |
GCC-11 |
GCC-02 |
GCC-12 |
GCC-03 |
GCC-13 |
|
Cylinder number |
1 |
2 |
3 |
|||
|
Size (mm) |
500*450*1900 |
900*450*1900 |
1200*450*1900 |
|||
|
Color |
Grey/yellow |
|||||
|
Material |
Full thickness 1.0mm high-quality cold-rolled steel sheet |
|||||
|
Surface |
Epoxy resin electrostatic powder coating |
|||||
**GCC-11/GCC-12/GCC-13 equip alarm device.
The use of inert gases (e.g. nitrogen, oxygen, helium, neon and argon) is very common in laboratory or industrial environments. However, these gases do not usually trigger conventional gas alarm systems, so staff need to be reminded to take extra precautions when handling inert gases to ensure a safe working environment. Whether you are a laboratory researcher or an industrial operator, it is vital that you are aware of these safety practices.
In work environments involving flammable gases such as methane, propane, propylene, butane, butylene, acetylene, ethanol and hydrogen, safety is a top priority, and MAX LAB's gas cylinder cabinets have multi-functional gas alarms that detect a wide range of flammable gases and provide an alert to ensure that action is taken in the event of a gas leak or exceeded concentration. Whether it's a chemical plant, laboratory or other industrial location, this alarm device is a critical tool for keeping people safe and equipment up and running. With real-time monitoring and alarm capabilities, you can effectively prevent potentially dangerous situations.
DETECTION ALARM SYSTEM
Real-time detection of gas leakage in the cabinet
When the gas leak reaches a predetermined value
The fan automatically starts within 5 seconds of the alarm, releasing the combustible gas to the set value.
When the leaked gas reaches the set value of the chip, it will automatically alarm (Red flashing alarm + 85db sound alarm)
CONTROLLER
Power on
After the power is turned on, the controller will conduct a self-check, at this time all the indicators are on, the alarm window is on, the fan and the alarm are turned on, this process will last for 5 seconds, and it will enter the working state after the end. The system will detect the sensor, and the monitoring will be invalid during detection.
Monitor Mode Status
After the power is turned on, tap "Monitor", the buzzer will beep once, and the monitoring light will indicate. If the system is powered on within a few seconds, the system will automatically test for 10 seconds. At this time, the alarm will be exhausted or the button will be invalid, and the test will be performed for 10 seconds. After the test, the system enters the normal monitoring state. When receiving the signal of leaking smoke gas, it outputs the control signal to alarm and exhaust.
Timed Mode Status
Touch the "Time Control" button, the buzzer will beep once, the "Exhaust" light will be on, and the controller will automatically start to enter the timing exhaust. The exhaust time is 5 minutes, the stop exhaust time is 20 minutes, and the cycle is cycled.
Monitor Mode Status
When the alarm occurs, it is necessary to check the gas leakage. Only press the "Monitor" button to stop the alarm. After the gas environment is restored, turn on the monitoring again. After the sensor detects the alarm gas, the sensor needs a certain recovery time, and the alarm may still be generated if it is turned on again immediately. At this time, please cancel the monitoring and turn it on after half an hour. If necessary, please re-power the sensor to warm up the sensor.
Sensitivity adjustment
Due to differences in environment and requirements, sensitivity adjustment is supported. During self-test, press the "Time Control" button at the same time, and enter the sensitivity setting after hearing "Di Di Di Di". "Time Control" button to adjust the sensitivity, "Monitor" button to confirm and exit. The system supports 8-level sensitivity adjustment. The blinking and steady light of the four indicators correspond to a state respectively. The sensitivity is the highest when only one indicator light is flashing, and the lowest when the four indicator lights are always on.
FEATURE
COLOR
Application range
Gas cylinder cabinets are safety protection cabinets for storing various types of dangerous gases, and are also a category of industrial safety cabinets. At present, in many factories, in the production workshop, or in the daily production process, different types of gases, such as methane, gas, hydrogen, oxygen, inert gas, etc., are used, which are dangerous flammable and explosive gases. It is necessary to use a professionally produced storage container that meets safety standards, that is, a gas cylinder with an alarm function.
Why Choose MAX LAB Gas Cylinder Cabinets?
Safety Certified – Independently tested to international standards
Durable Construction – Long-lasting steel with corrosion-resistant finish
Custom Solutions – Available in various sizes and configurations
Easy Installation – Ships pre-assembled with mounting hardware
Competitive Pricing – Direct manufacturer pricing with volume discounts
