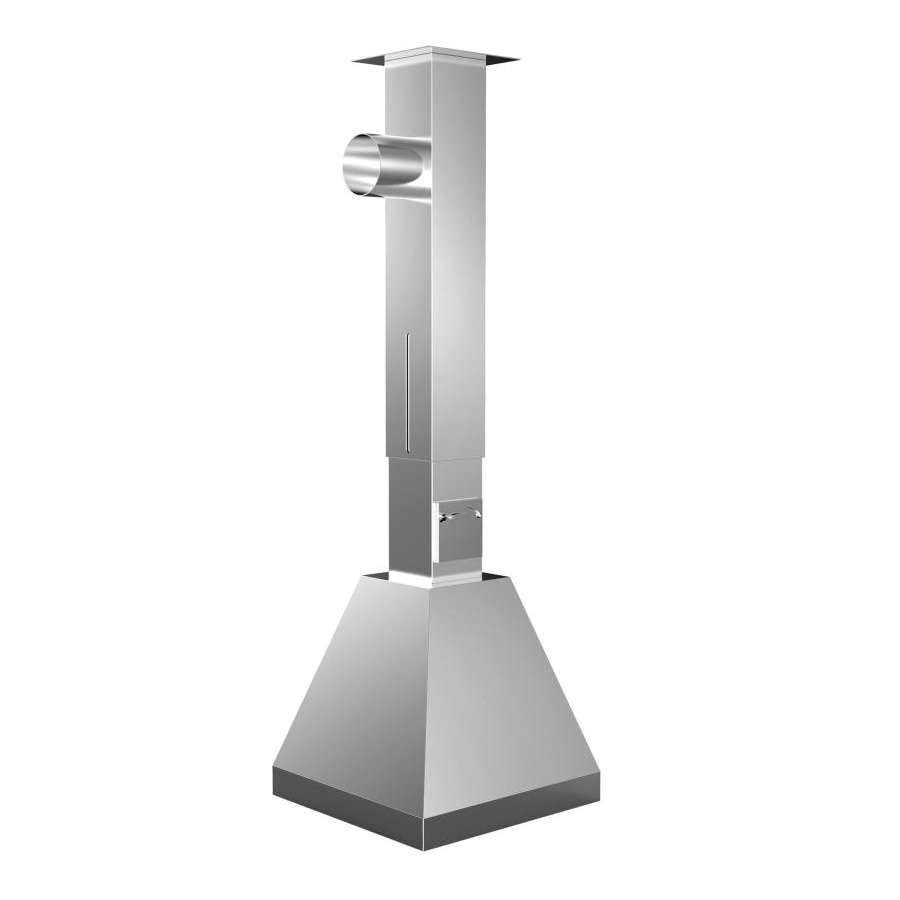

Fume Extractor FE-16

The Atomic Absorption Spectrometer Extractor (AAS Exhaust Hood) is designed for atomic absorption spectrometers and other high-temperature analytical instruments that require localized ventilation. It efficiently captures and exhausts the hot, polluted fumes, heat, and harmful gases generated during instrument operation, helping maintain a safer and cleaner laboratory environment.

This extractor is widely used with Atomic Absorption Spectrophotometers (AAS), and can also be applied to gas chromatography (GC) and other precision equipment where hot exhaust or chemical vapors must be discharged outdoors.

All parts that come into direct contact with fumes are made of AISI 304L / high-grade 304 stainless steel, providing excellent resistance to high temperature, acid, alkali, and corrosion.

Brand

MAX LAB

Made

Guangzhou, China

Delivery Time

20-30 days

Material

Steel-Glass/Aluminum-Glass/All Steel Rhombus/Stainless Steel/PP

Model

FE-16

Get a Free Quote

MAX LAB Fume Extractors Catalog.pdf

Details

Atomic Absorption Spectrometer Extractors

AAS exhaust system is developed especially to take care of polluted air fumes at high temperature above atomic absorption unit. All parts that are in direct contact with fumes are made of stainless steel AISI 304L.

The telescopic system makes it possible to adjust the distance between the hood and the AAS flame.

SPECIFICATION

Usage: It is the ventilation equipment to release the gas from the process of spectrophotometer, gas chromatography and other equipments absorbed by the atomic to the outdoor.

Material: 1mm and 1.5mm high grade 304 stainless steel, resistant to high heat, acid, alkali and corrosion.

Activity range:the height is adjustable within 200mm and can be fixed.

Damper: to manually adjust air flow with a knob.

Installation: easy to dismantle, assemble and clean.

Appearance: elegant, size can be customized.

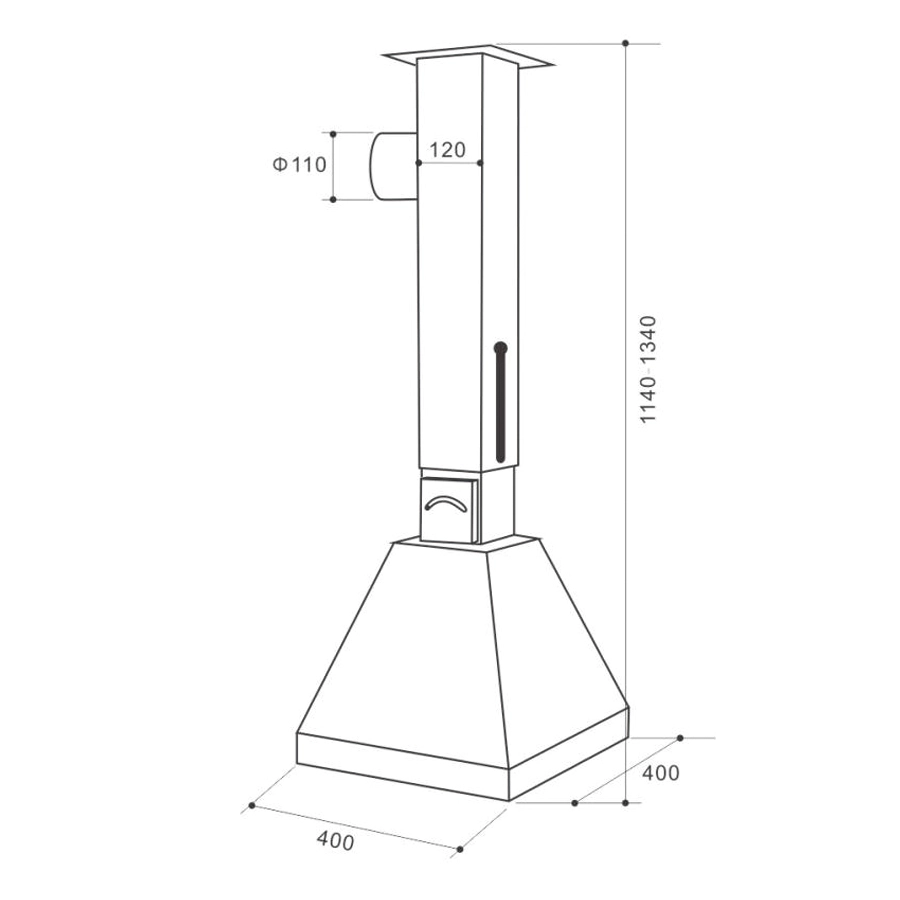

FE-16
