Lab Bench

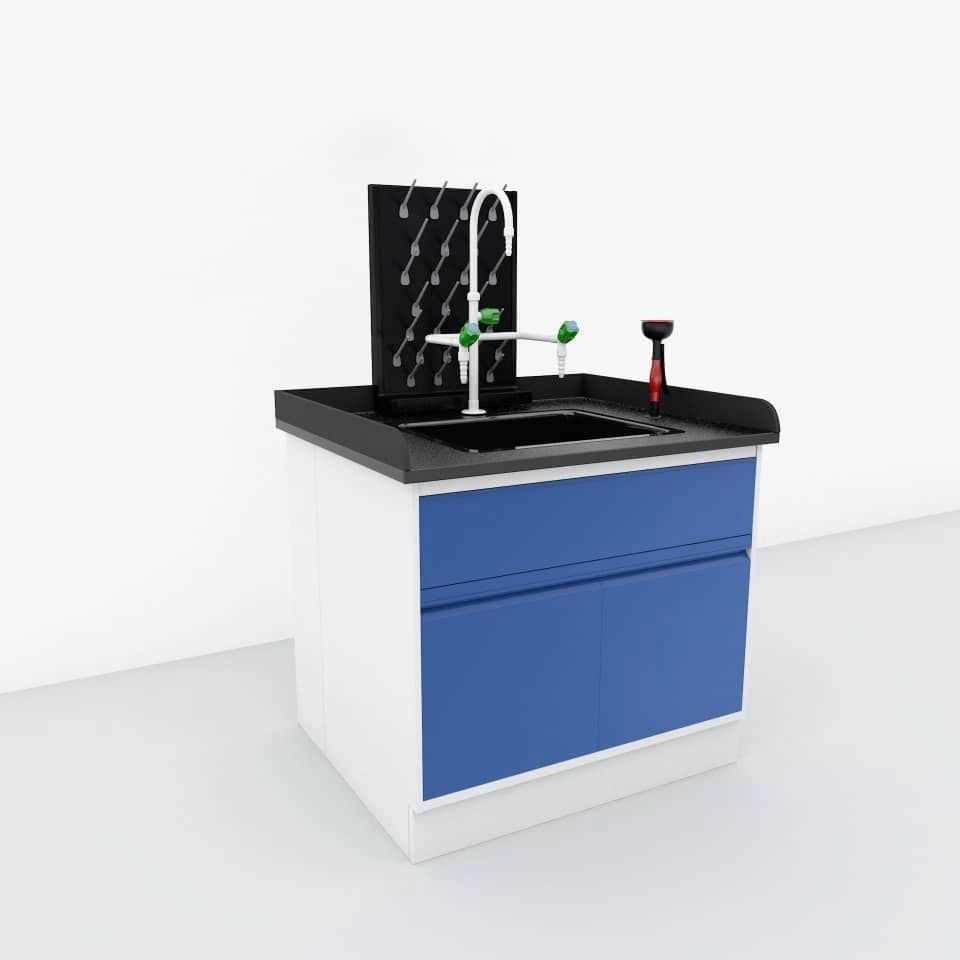

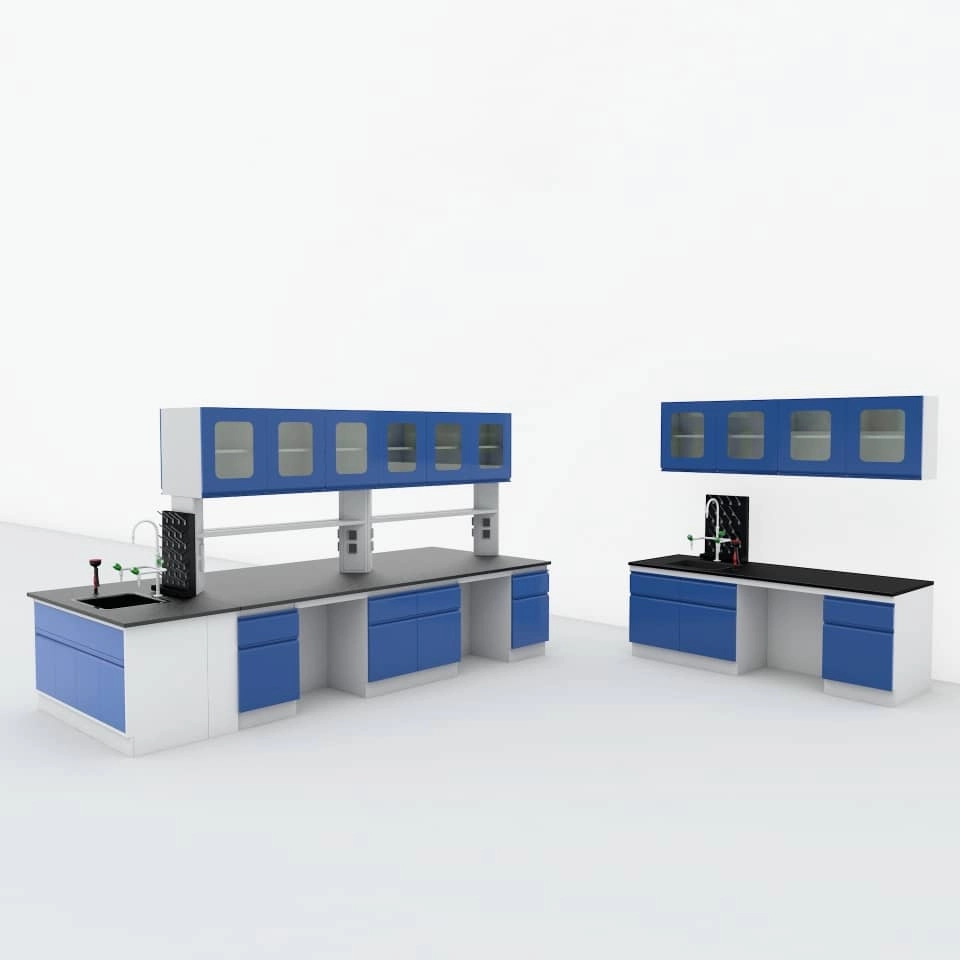

Our Floor Mounted Lab Bench is an essential, high-efficiency workspace for laboratories, made from high-quality steel-wood or corrosion-resistant stainless steel materials to ensure exceptional durability and stability. The unique floor-mounted design effectively reduces vibration, optimizes space usage, and provides a safe and tidy laboratory environment.
Customizable storage solutions help organize lab equipment efficiently, while the easy-to-clean surface maintains laboratory hygiene. It is widely suitable for research institutions, educational laboratories, and the chemical and pharmaceutical industries.

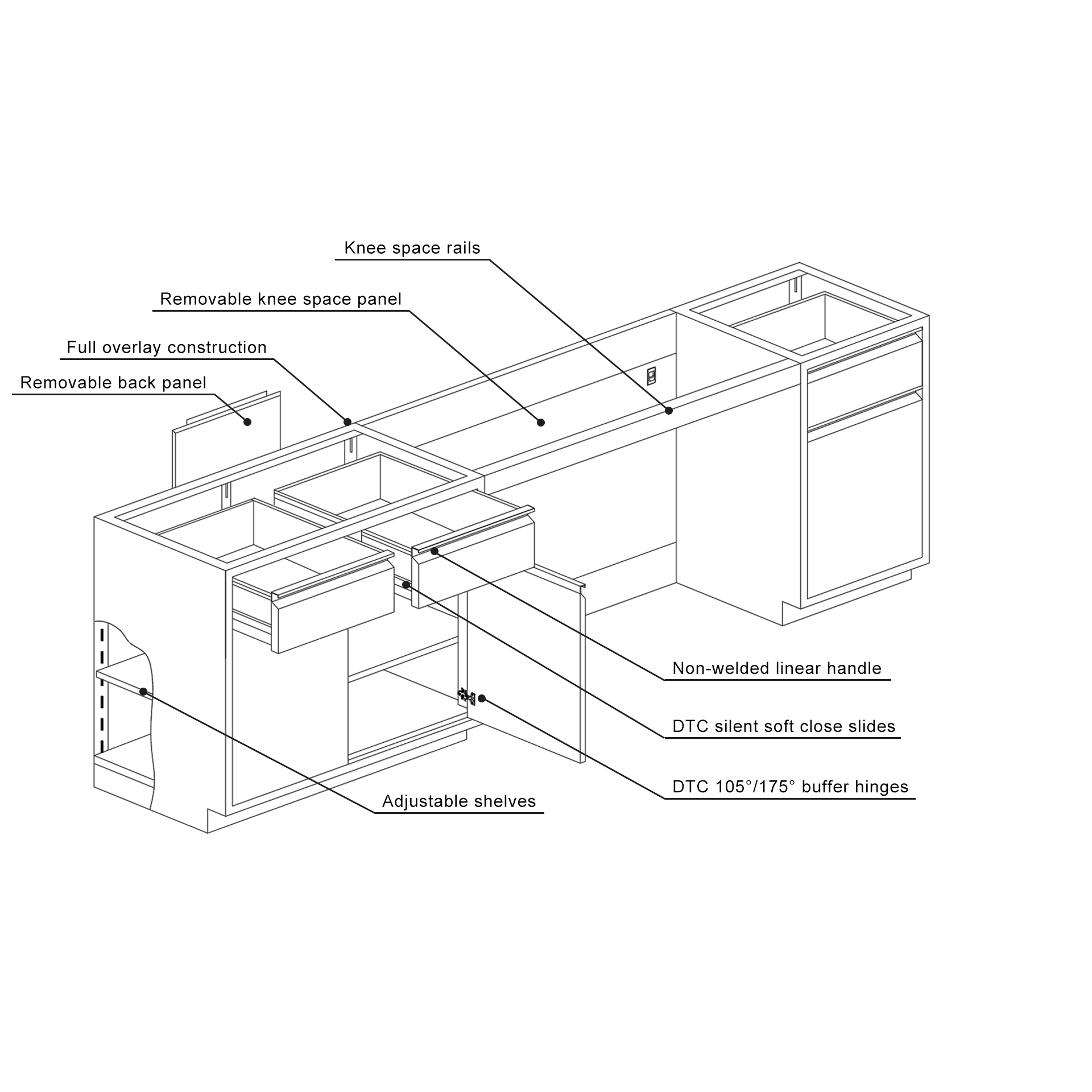

The Floor Mounted Lab Bench is supported by cabinet units, and the cabinet units are fixed by knee space rails. This structure provides excellent load-bearing performance, allowing the bench to support up to 350 kg/m², making it suitable for large precision instruments&equipment in the laboratory.
The cabinet units are in direct contact with the floor, preventing dust from entering the bottom of the workbench, making it the preferred choice for dust-free laboratories.
Remarks: The Floor Mounted Lab Bench is only suitable for all-steel cabinet units. If wooden cabinet units are used, direct contact with the floor may cause moisture absorption, leading to expansion and deformation.

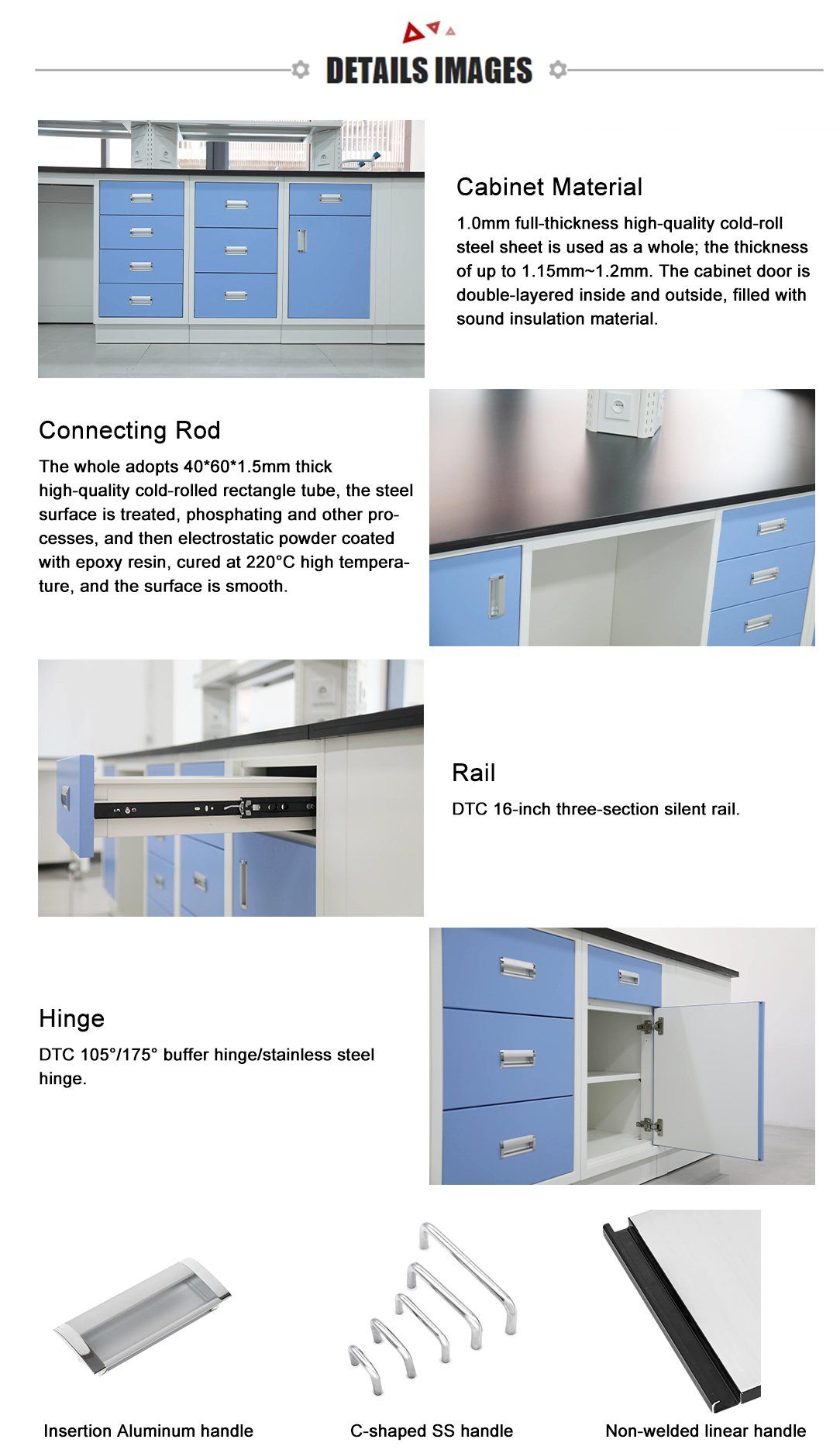

Product Details
Cabinet

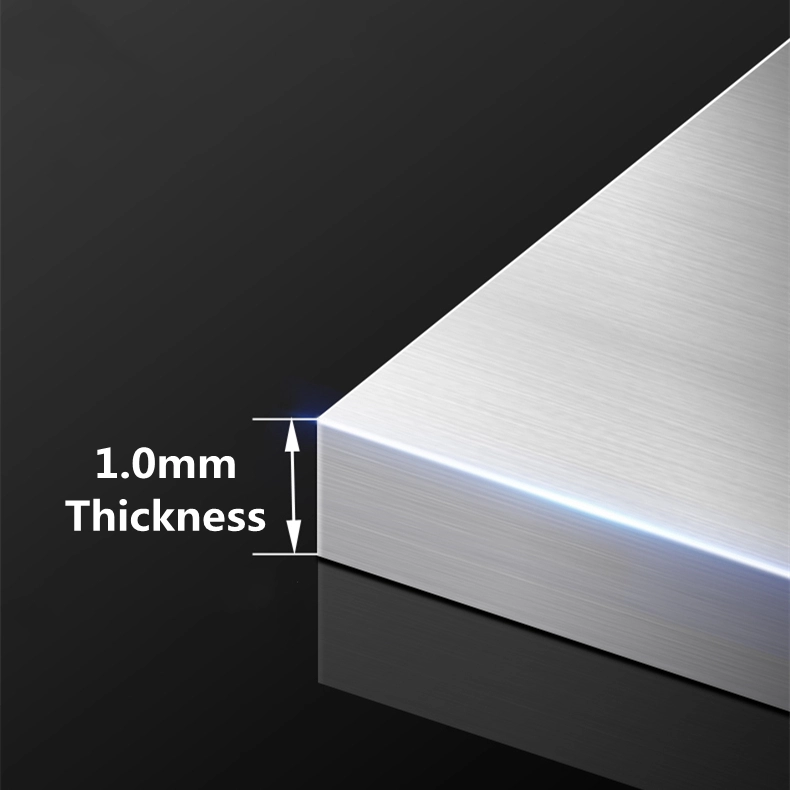

The entire structure is made of high-quality cold-rolled steel sheet with a full thickness of 1.0mm. The steel surface undergoes grinding, polishing, rust removal, phosphating, and other processes, followed by epoxy resin electrostatic powder coating and high-temperature curing at 220°C, resulting in a smooth, corrosion-resistant surface with a thickness of 1.15mm to 1.2mm.The doors is double-layer structure with soundproofing material filled inside.
Specification
1. Countertops
(1) Phenolic Resin countertop: 12.7 mm (edge thickened to 25.4 mm)/16/19/25 mm thickness
(2) Epoxy Resin countertop: 15/16/19/25 mm thickness
(3) Ceramic countertop: 15/20 mm thickness
(4) Trespa countertop: 13/16/20 mm thickness
(5) Granite/Marble countertop: 20 mm thickness
2. Cabinet & Accessories
(1) Cabinet: The entire structure is made of high-quality cold-rolled steel sheet with a full thickness of 1.0 mm. The steel surface undergoes grinding, polishing, rust removal, phosphating, and other processes, followed by epoxy resin electrostatic powder coating and high-temperature curing at 220°C, resulting in a smooth, corrosion-resistant surface with a thickness of 1.15 mm to 1.2 mm.The door is a double-layer structure with soundproofing material filled inside.

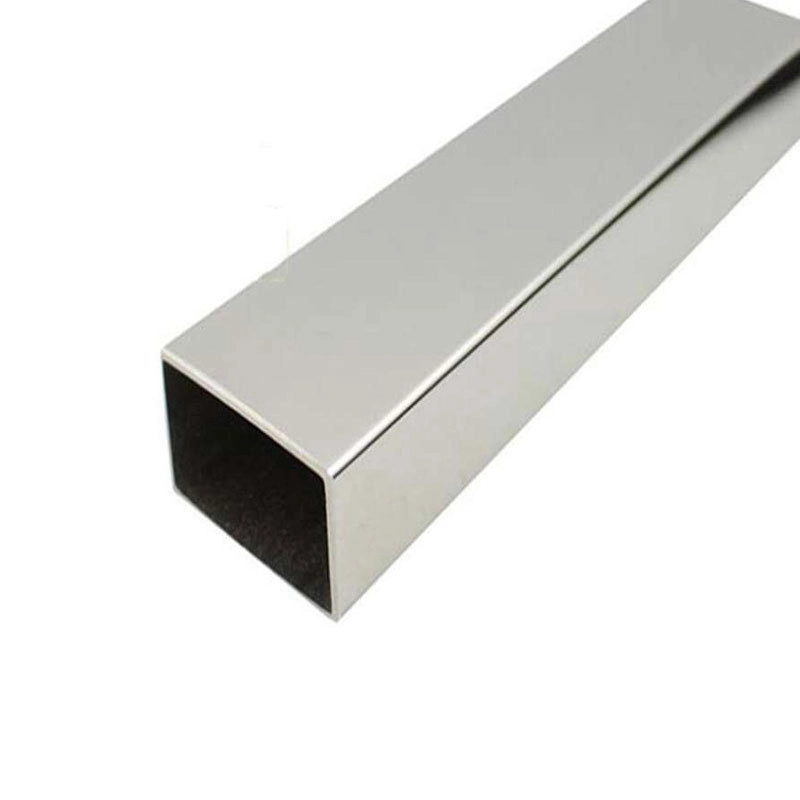

(2) Knee space rails: Made of high-quality cold-rolled steel sheet with 30*60*1.0 mm.

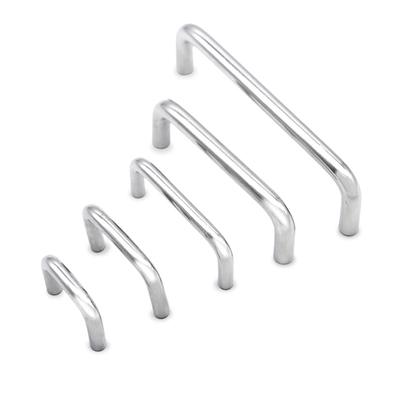

(3) Handle: Non-welded linear handle/C-shaped stainless steel handle/Insertion aluminum handle.

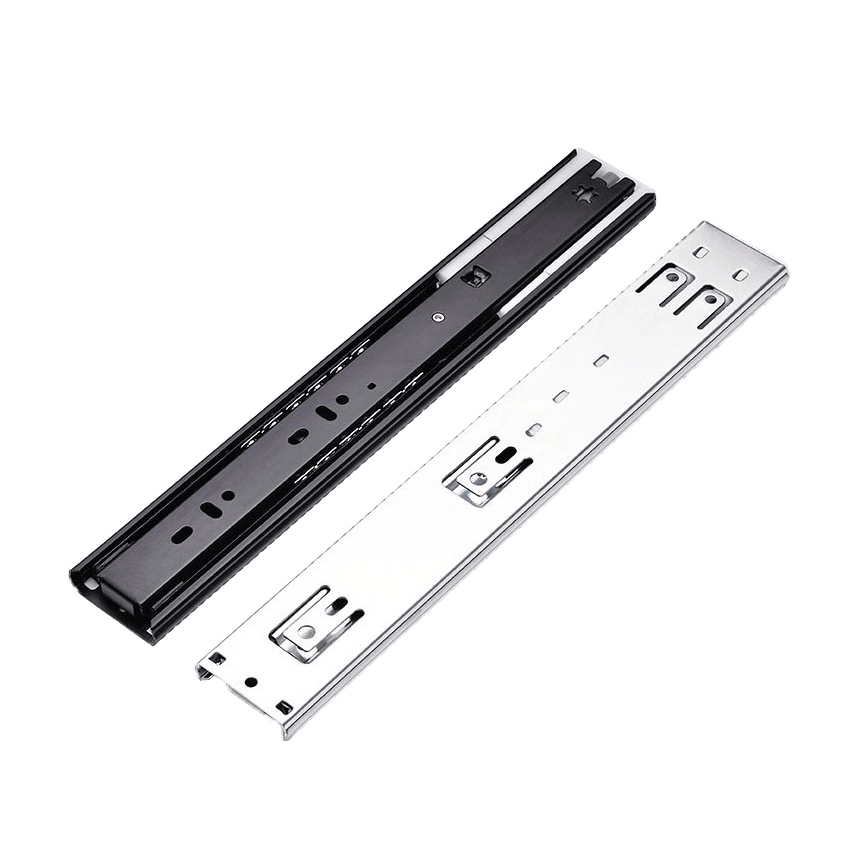

(4) Slides: DTC silent self-closing slides.

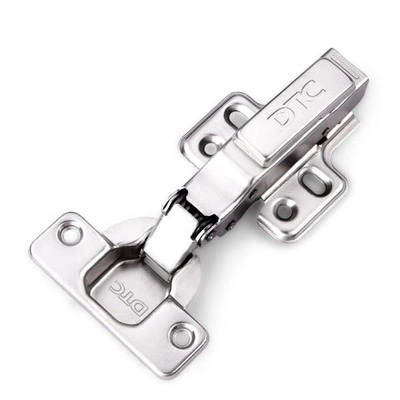

(5) Hinges: DTC 105°/175° self-closing hinges/stainless steel self-closing hinges.
(6) Feet: Use laboratory-specific adjustable feet with an adjustment range of ≥35 mm and strong bearing capacity; the balance of the lab bench can be adjusted.
Advantages
· Dignified appearance
· Durable
· High cost performance
· More storage space
· Easy to install
· Good load-bearing performance and excellent stability. Bearing up to 350 kg/m²
Standard Dimensions
|
Product |
Dimensions (Length*Depth*Height) |
|
Floor Mounted Wall Bench |
1000*750*850 mm/Customize 3.28x2.46'x2.78'/Customize |
|
Floor Mounted Island Bench |
1000*1500*850 mm/Customize 3.28x4.92'x2.78'/Customize) |
|

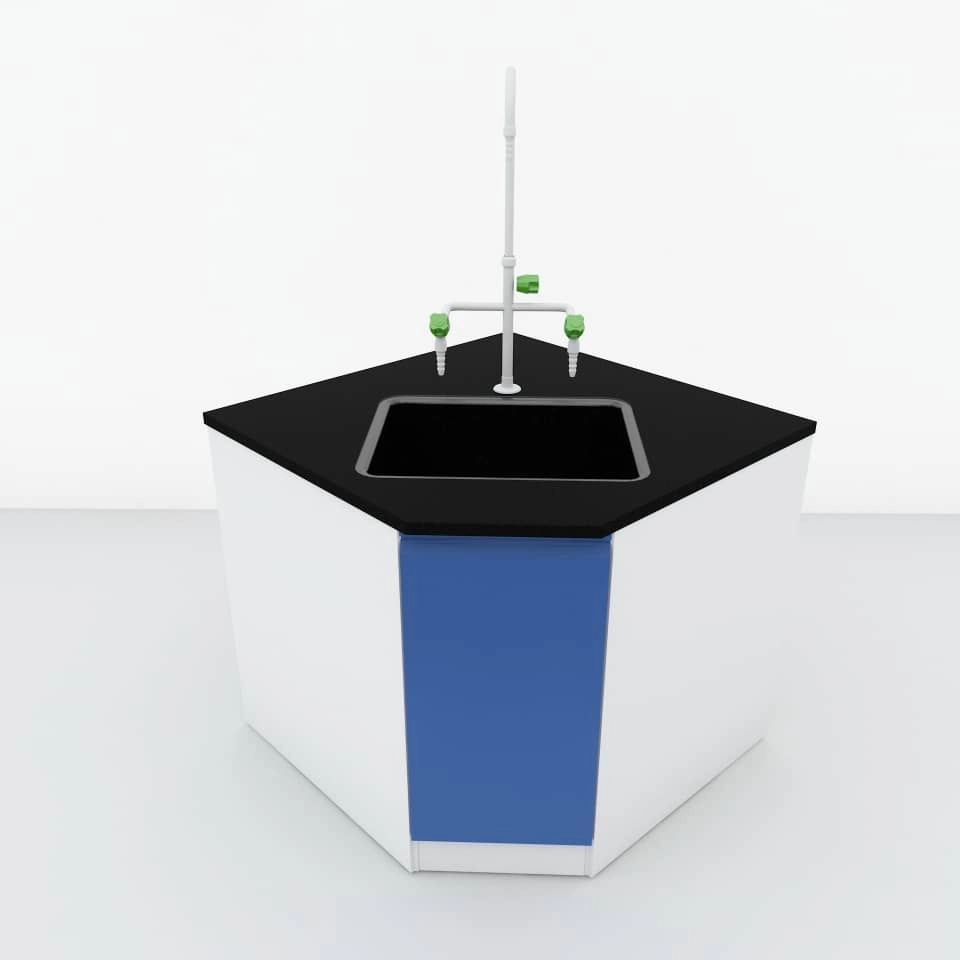

Floor Mounted Corner Bench |
1000*1000*850 mm/Customize 3.28'x3.28'x3.28'/Customize |
Product Type

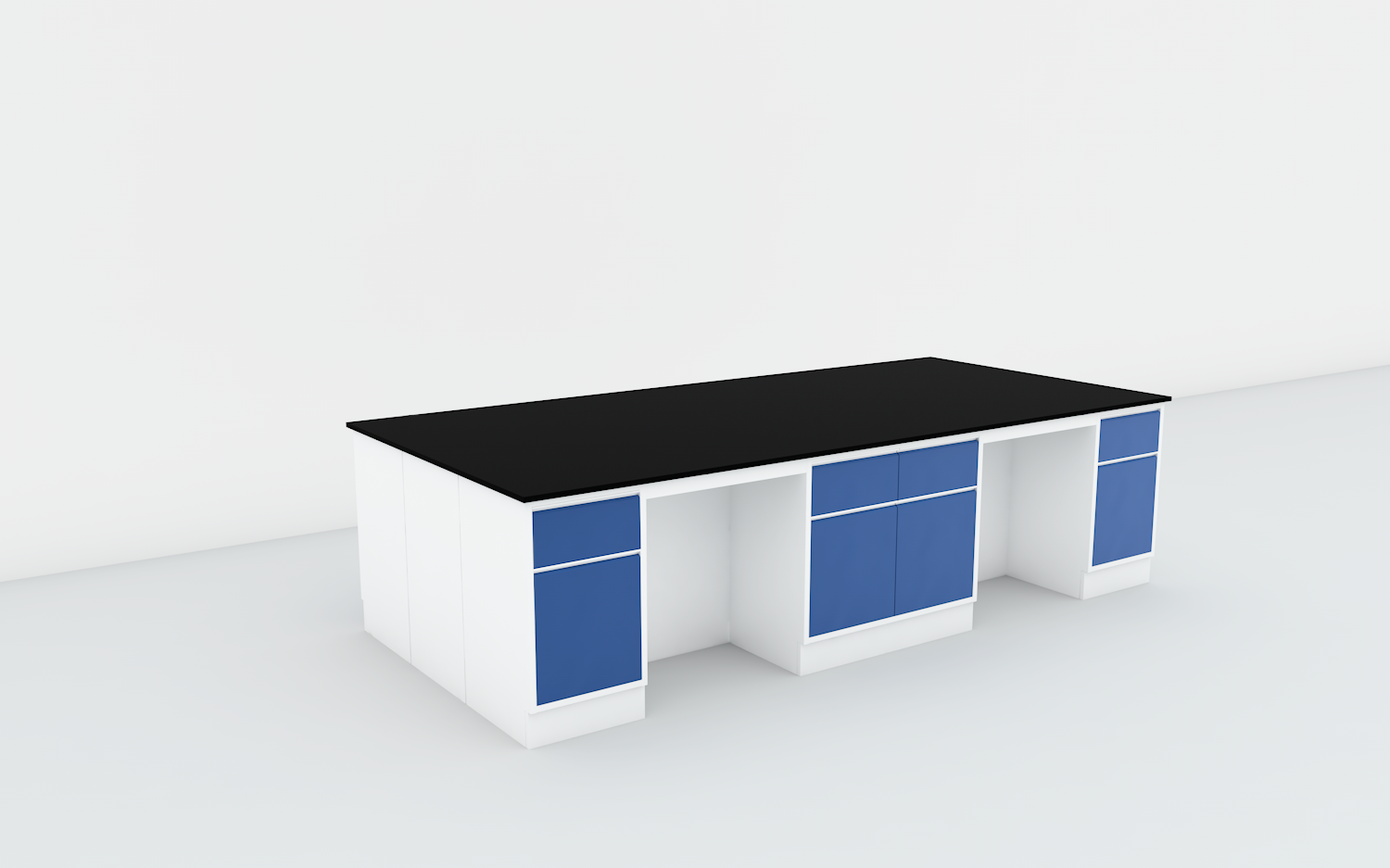

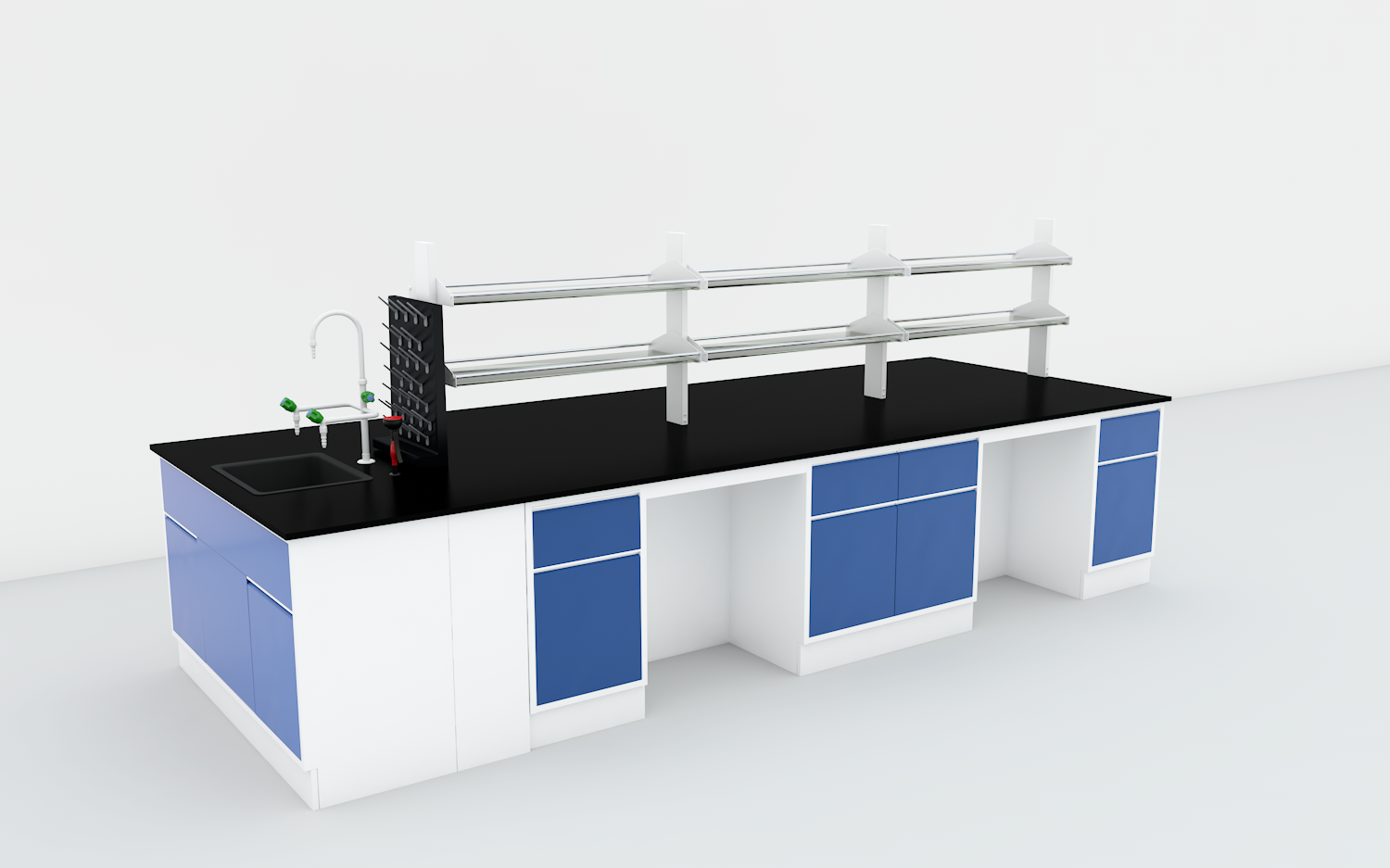

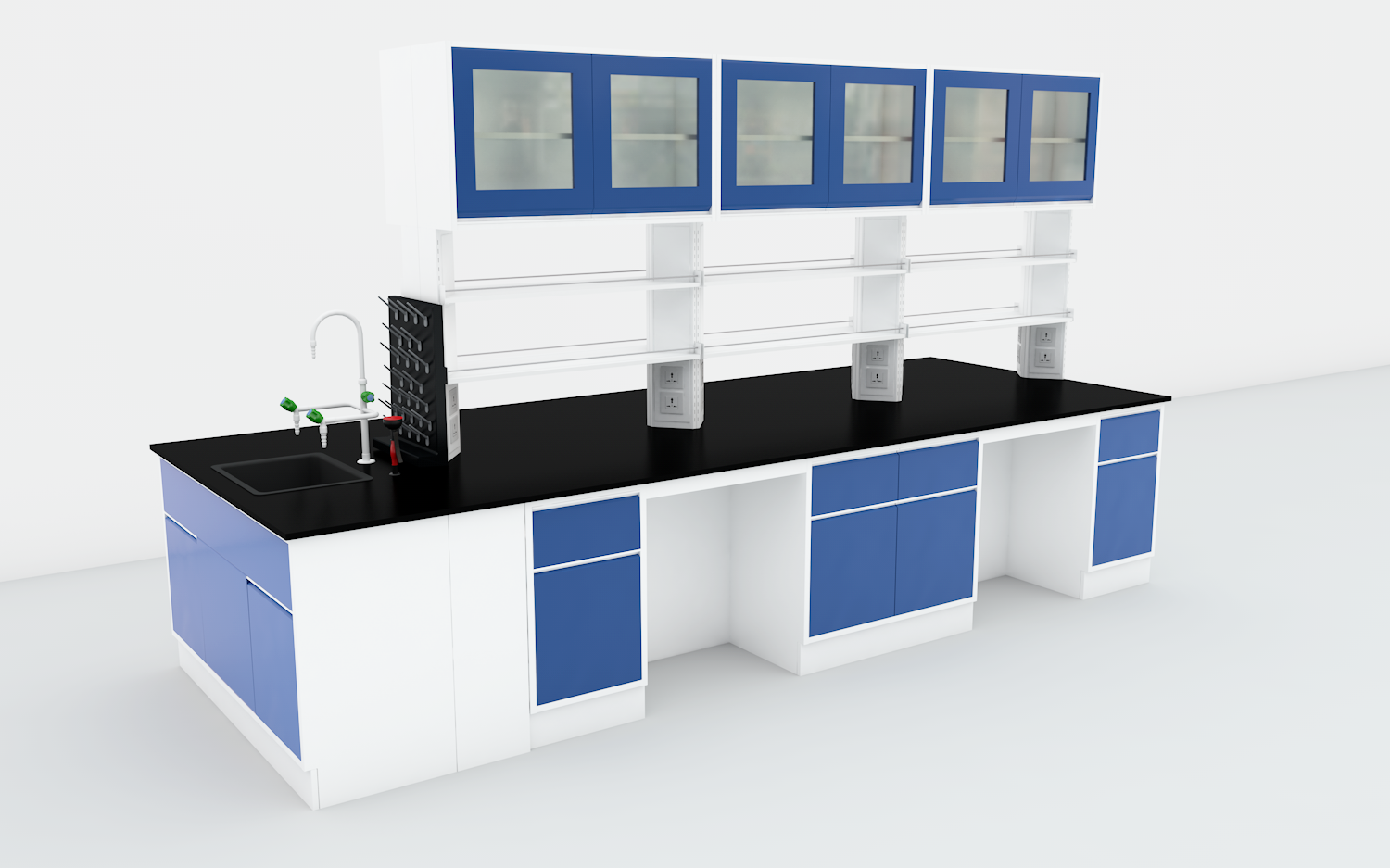

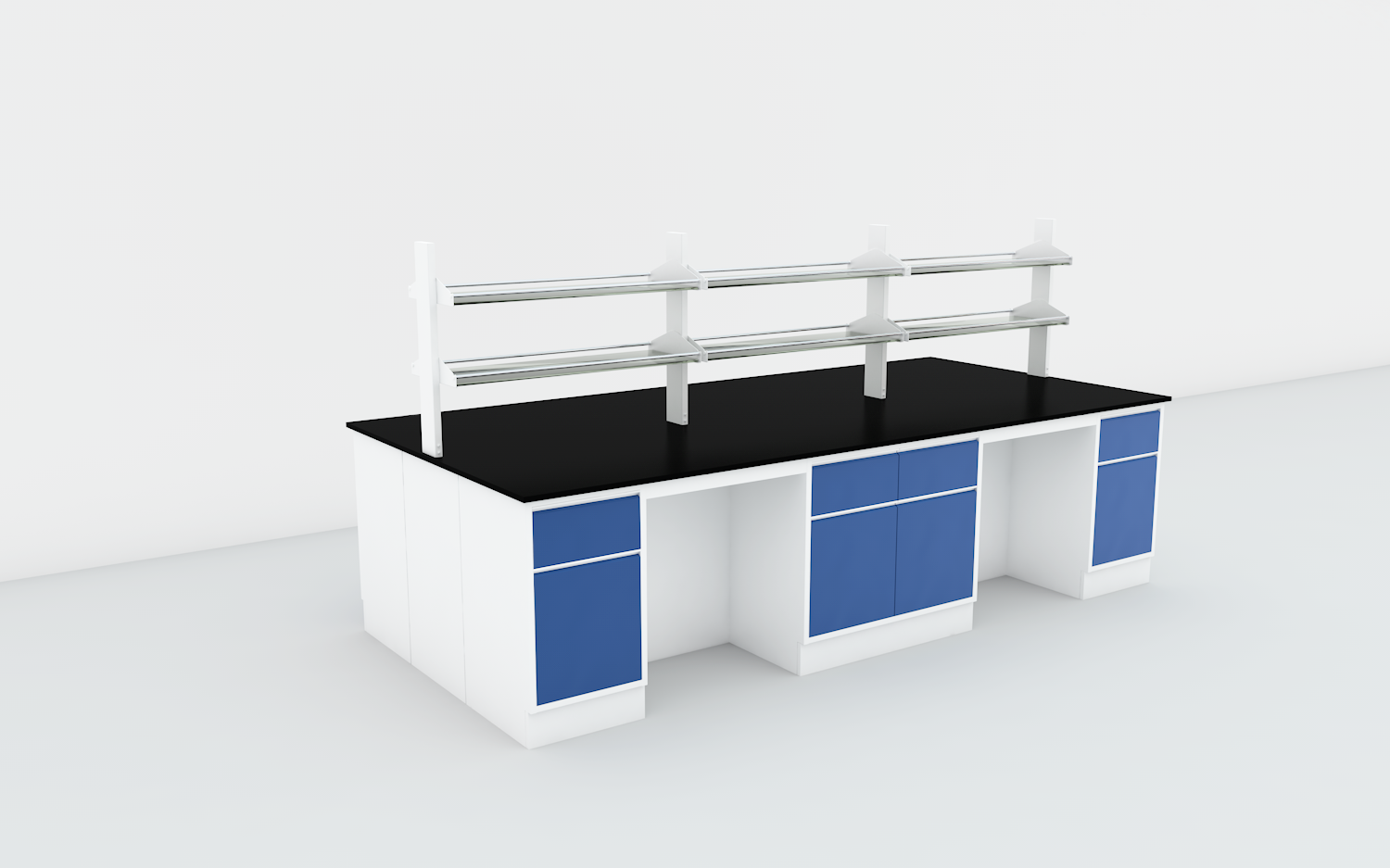

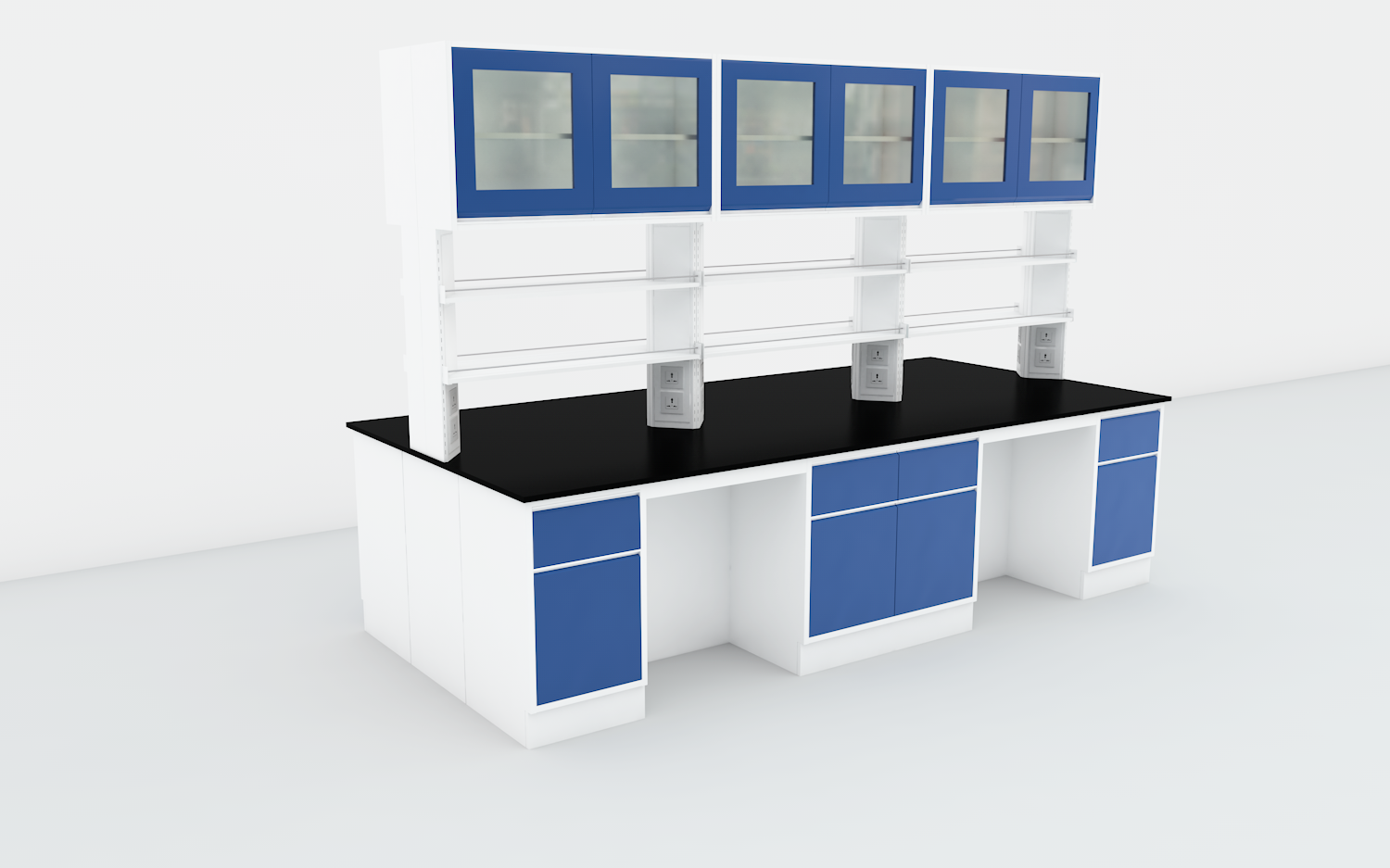

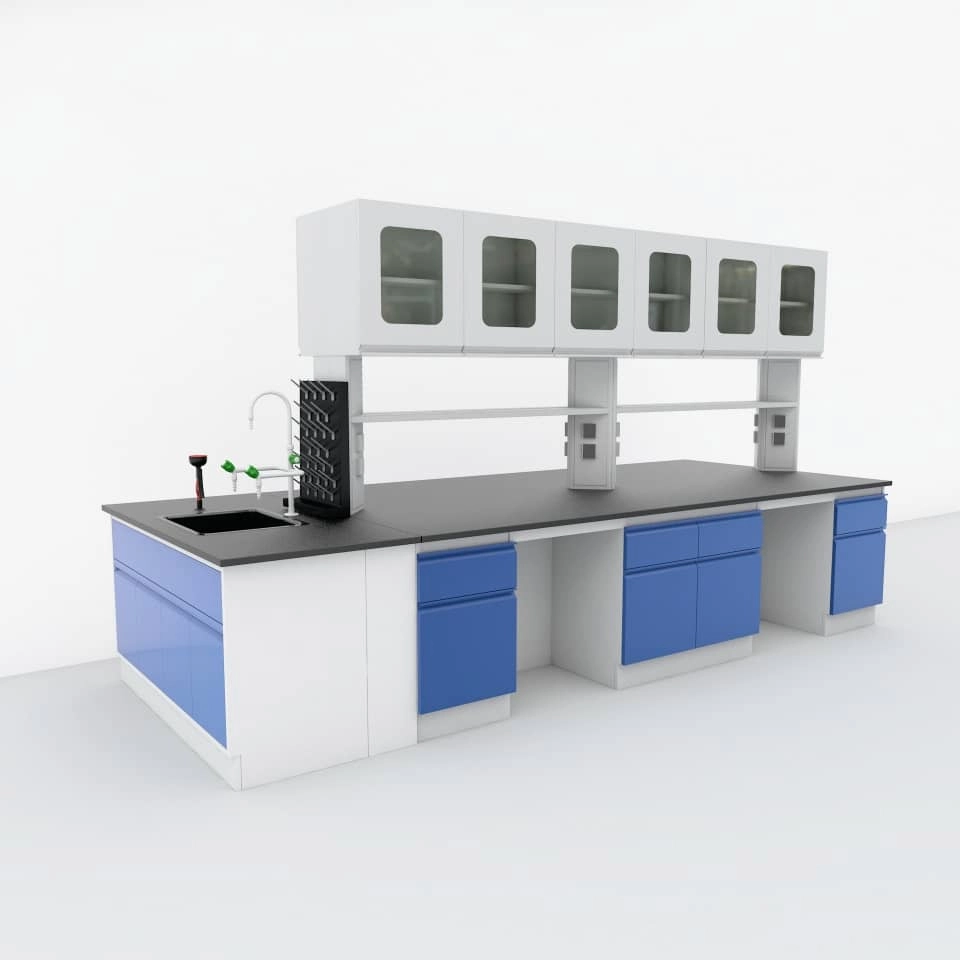

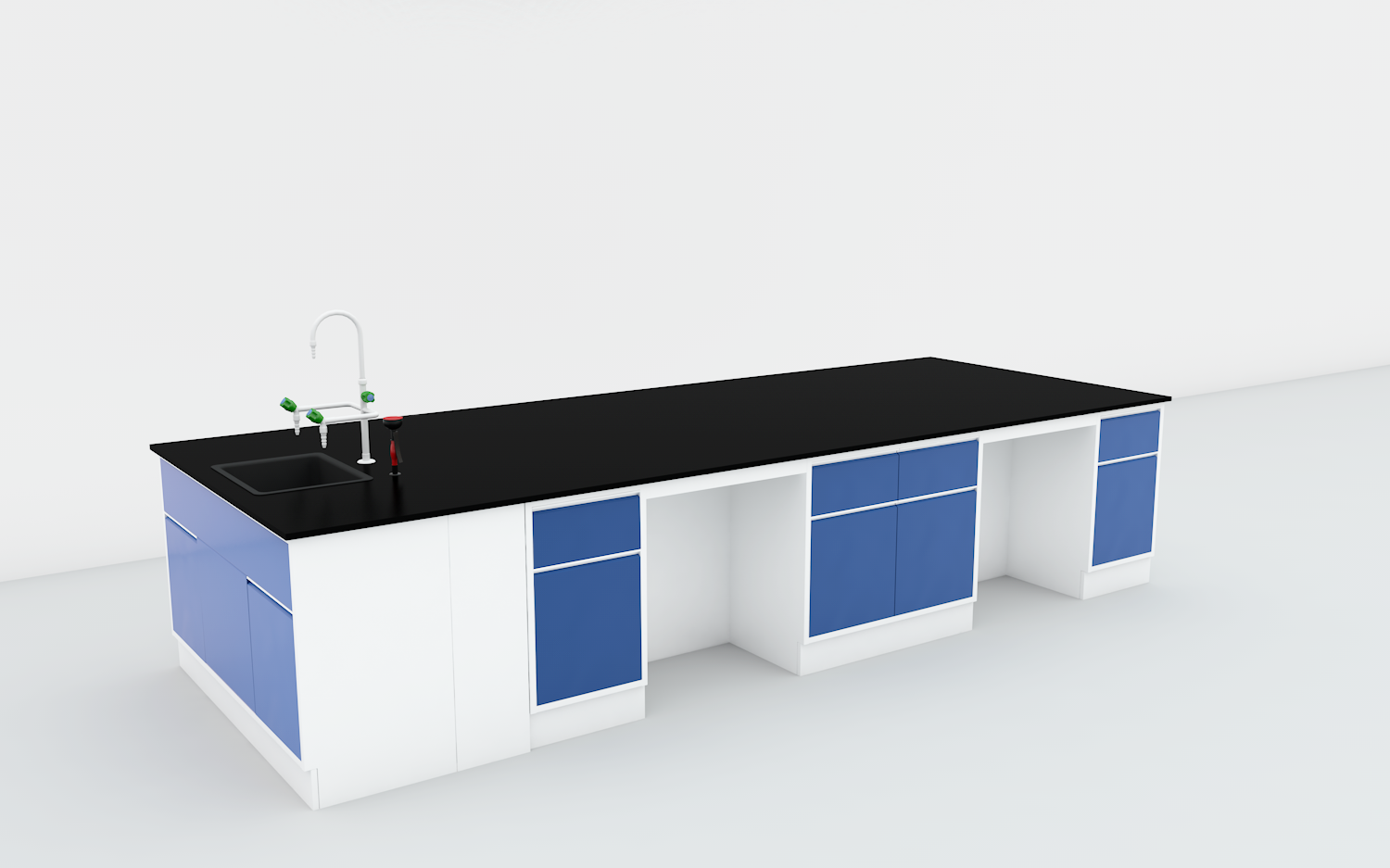

Floor Mounted Island Bench

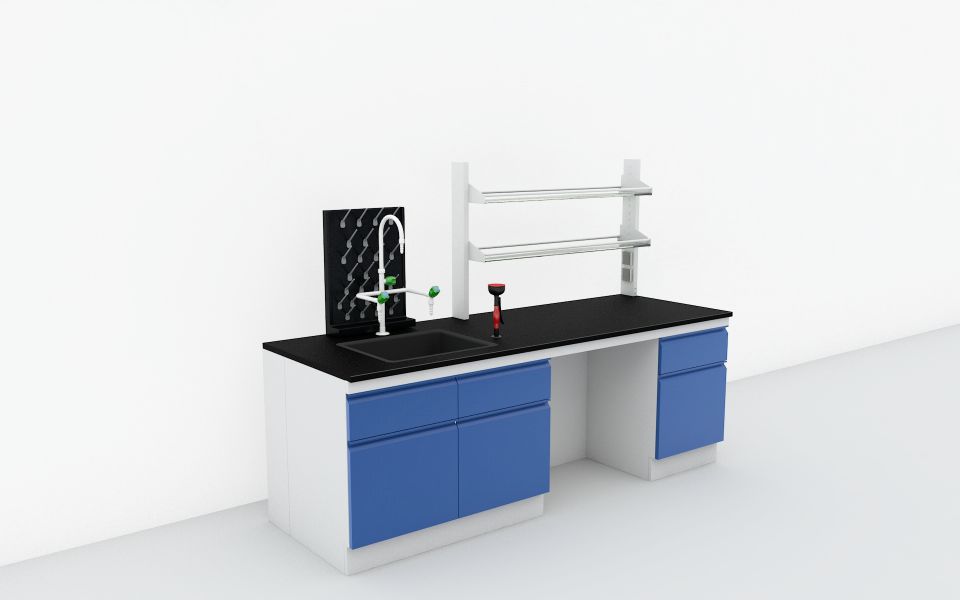

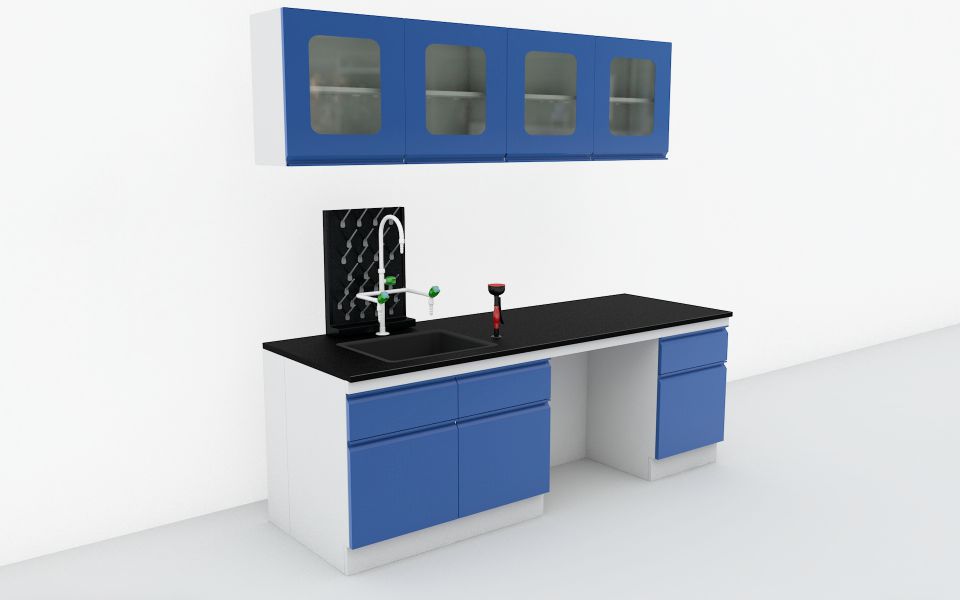

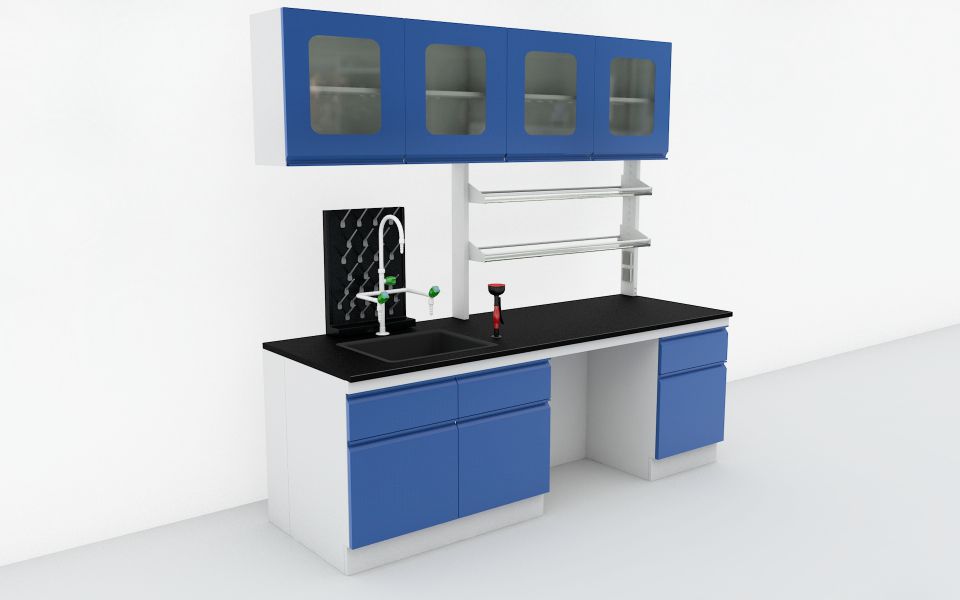

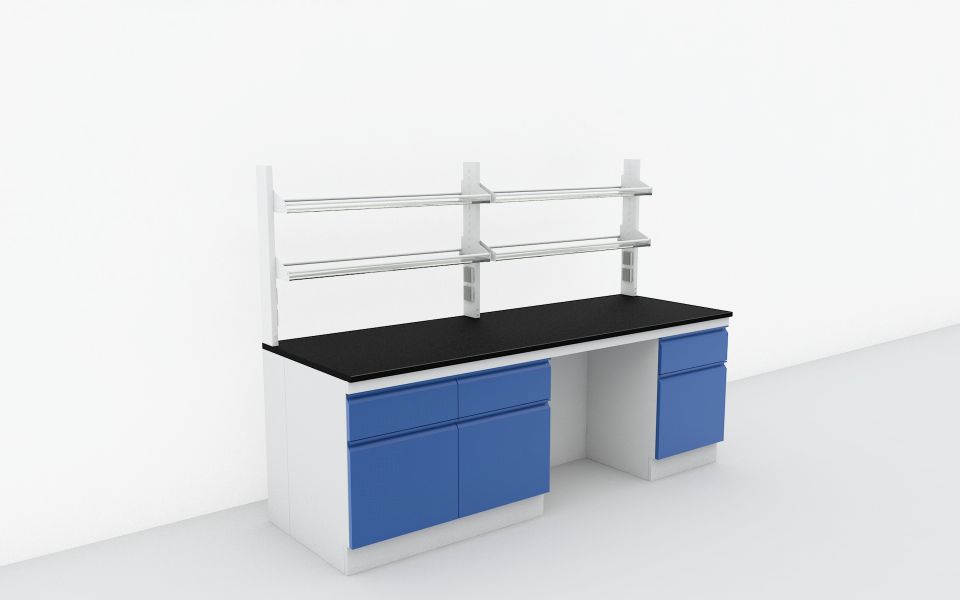

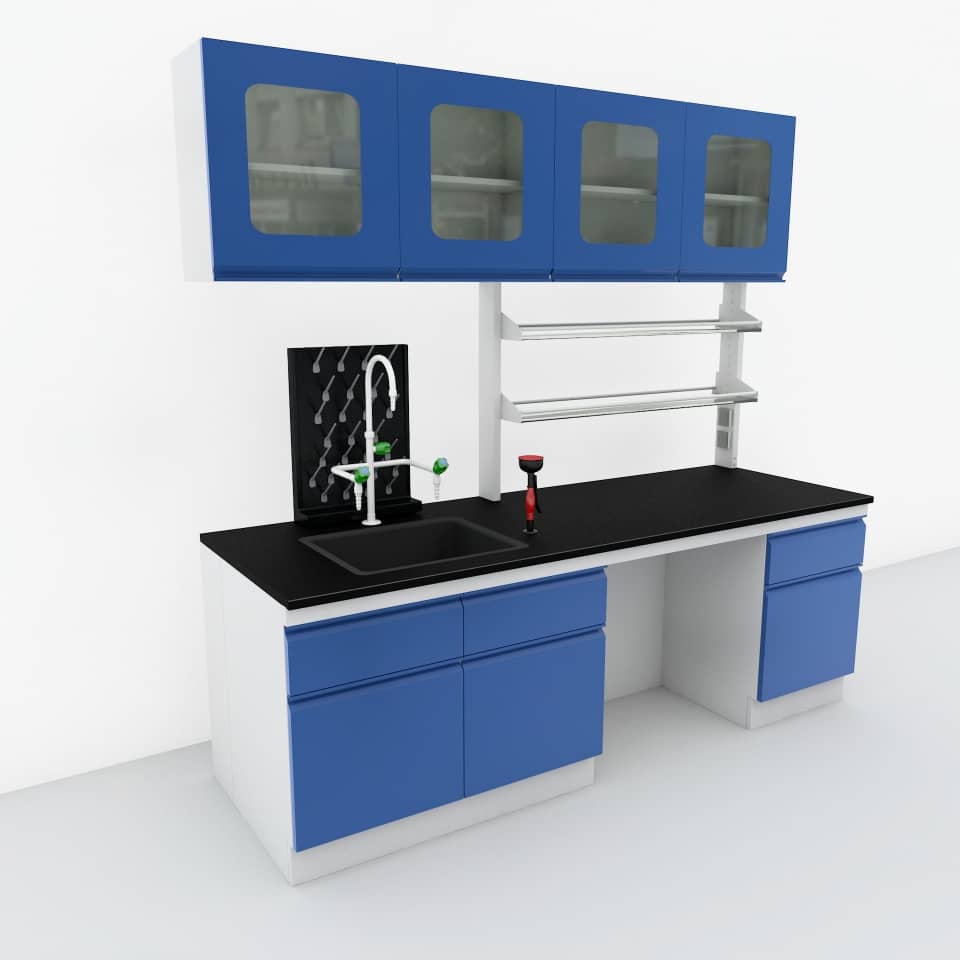

Floor Mounted Wall Bench
