Flammable Storage Cabinet
Safety Cabinets store flammable liquids, corrosives, pesticides and other hazardous materials. All fire-resistant safety cabinets by meet fire codes and regulations for safety storage.
To help protect your people and facility from a potential fire, safety cabinets are engineered to safely contain flammable fuels, solvents, and chemicals. Safety cabinets can not only help everyone store chemicals reasonably, save chemical supplies, but also save human resources, and avoid fires caused by chemicals with the greatest strength.

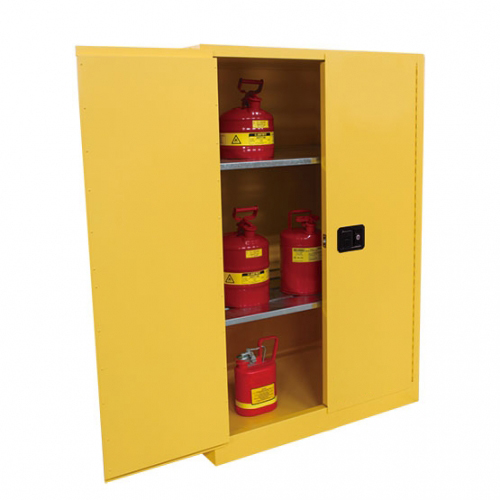

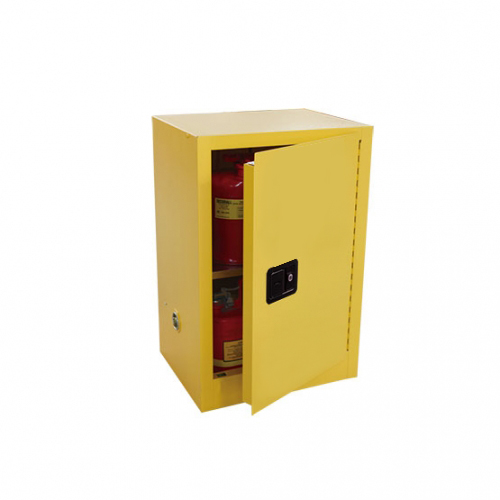

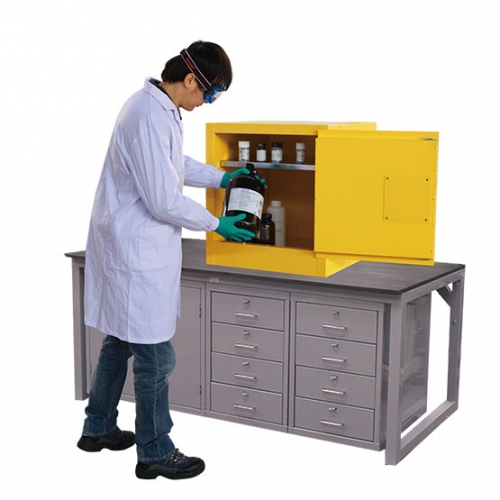

The Lab Flammable Storage Cabinet is designed to safely store flammable and combustible liquids in laboratories, universities and industrial testing facilities. Constructed from high-quality steel with double-wall insulation, it helps protect personnel and equipment in case of fire. The cabinet features self-closing doors, a three-point locking system and adjustable galvanized shelves with leak-proof spill trays to contain accidental leaks. Built-in flame arrestor vents allow connection to ventilation systems, while clear “Flammable – Keep Fire Away” labels ensure quick identification and safety compliance. This cabinet helps your lab meet OSHA and NFPA recommendations for safe flammable liquid storage.
Product Details
Fire and explosion vent
Flammable Storage Cabinets
Flammable cabinet protect workers, reduce fire risks, and improve productivity by storing flammable fuels and chemicals in code-compliant safety cabinets.

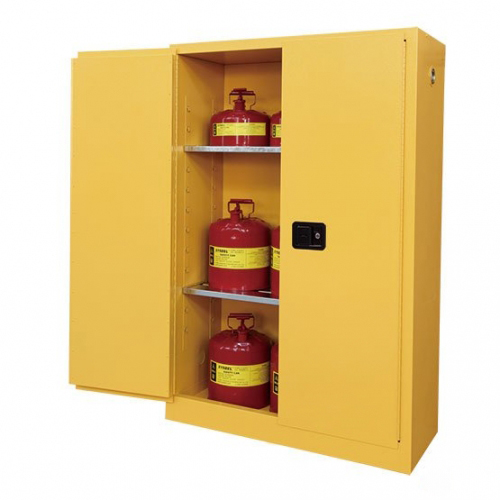

*Storage substances: alcohol, glue, gasoline, kerosene, crude oil, ethanol, benzene, thinner, wiper water, methanol (wood alcohol or wood spirit), etc.
CLASSIFICATION
Yellow stores flammable substances
Red stores combustible substances
Blue stores weakly corrosive substances
Green stores pesticide substances
Grey stores toxic substances
White stores strong corrosive substances
SPECIFICATION
(Yellow/Red/Blue/Green Cabinet, Grey and White cabinet is not included)
①The safety cabinet is constructed by double-wall 18 Ga (1.2-mm) steel sheet through spot welding, (38-mm) of insulating air space for fire resistance.
②Ventilation devices are set on the left and right sides to effectively reduce the concentration of volatile substances and prevent fire.
③Resin powder coating treatment, the surface is bright, dustproof, rustproof and moistureproof.
④The three-point linkage lock reduces friction or mechanical sparks and reduces static electricity accumulation.
⑤Cabinets feature a leakproof 2 in. (51-mm) bottom sump, dual vents with flame arresters.
⑥Galvanized steel shelves direct spills to back and bottom of a leakproof sump. They adjust on (80-mm) centers for versatile storage, the maximum load-bearing capacity of the shelf is 100kg, each shelf is 8cm apart.
⑦The continuous piano hinge makes the cabinet door close and open smoothly.
⑧The reflective warning labels are highly visible under fire conditions or during power outages when illuminated with a flashlight.
|
Model |
Volume |
Size(H*W*D)mm |
NO.Door |
Shelf Pcs |
|
|

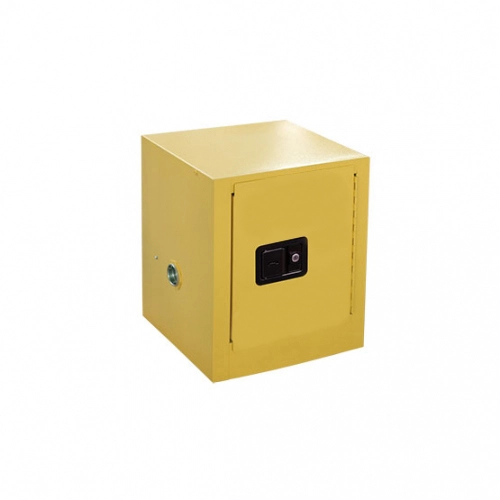

SC-01 |
15L/4 Gallons |
560*430*430 |
Single |
1 |
50Kg |
|

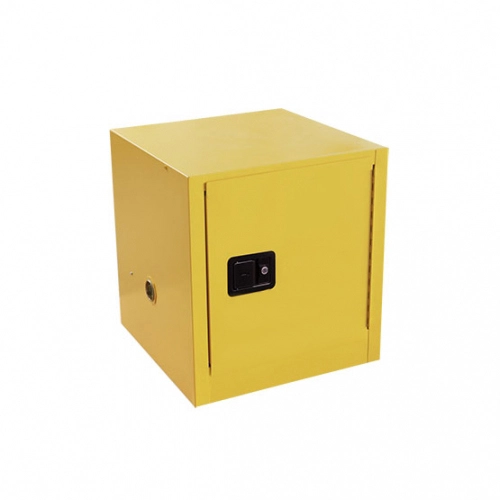

SC-02 |

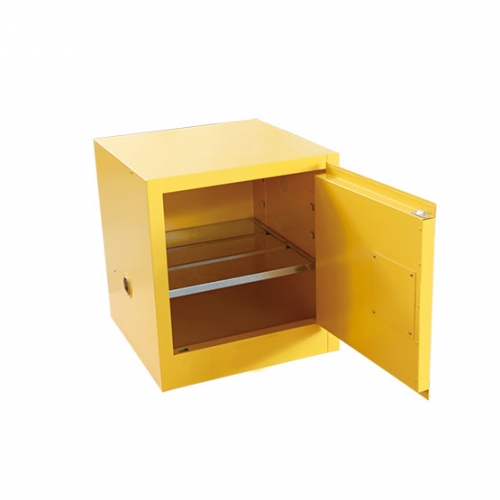

38L/10 Gallons |
640*590*600 |
Single |
1 |
50Kg |
|

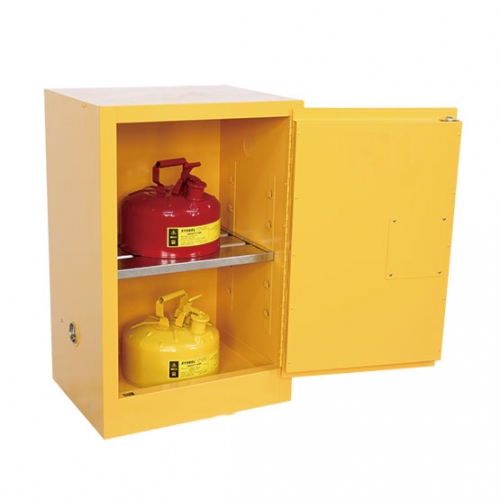

SC-03 |
45L/12 Gallons |
890*590*460 |
Single |
1 |
50Kg |
|

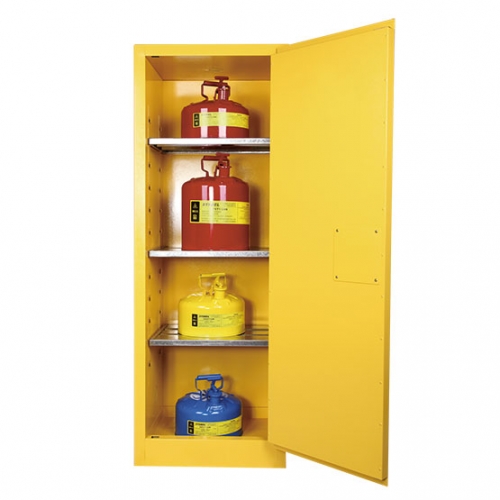

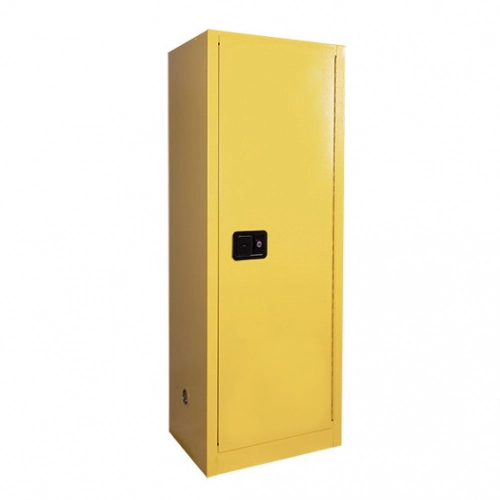

SC-04 |
83L/22 Gallons |
1650*600*460 |
Single |
3 |
50Kg |
|
890*890*560 |
Double |
1 |
50Kg |
||
|

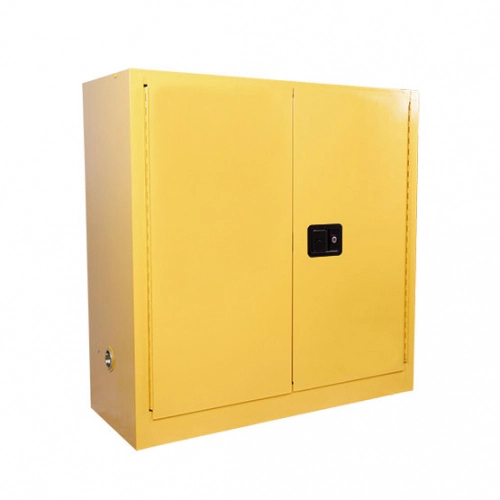

SC-05 |
114L/30 Gallons |
1120*1090*460 |
Double |
1 |
50Kg |
|

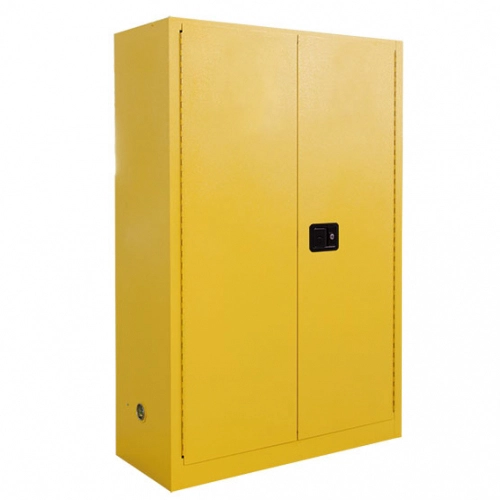

SC-06 |
170L/45 Gallons |
1650*1090*460 |
Double |
2 |
100Kg |
|

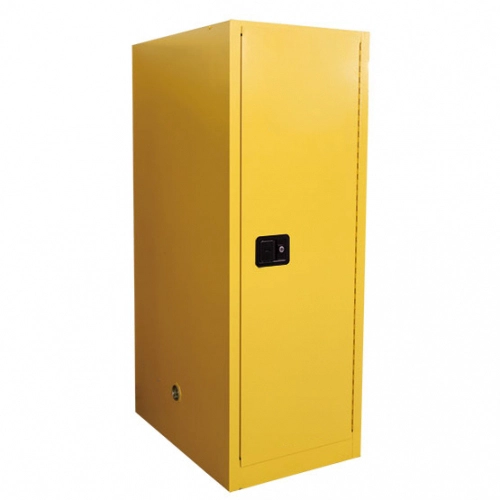

SC-07 |
204L/54 Gallons |
1650*600*870 |
Single |
3 |
100Kg |
|

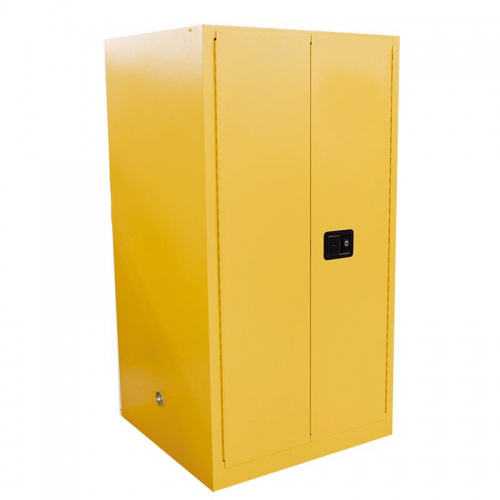

SC-08 |
227L/60 Gallons |
1650*860*860 |
Double |
2 |
100Kg |
|
SC-09 |
340L/90 Gallons |
1650*1090*860 |
Double |
2 |
100Kg |
|
Yellow√ Red√ Blue√ Green√ |
|||||
Model
SC-09

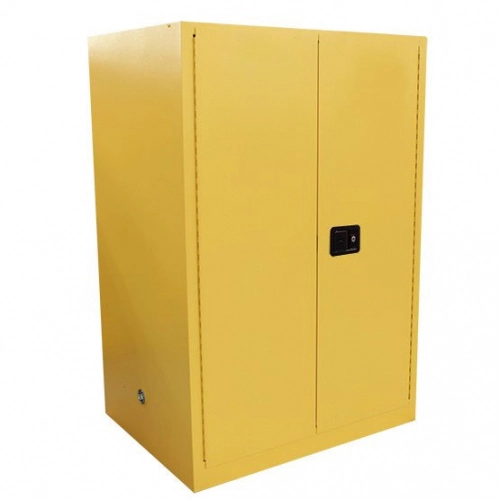

Flammable Storage Cabinet(90Gal 340L)
