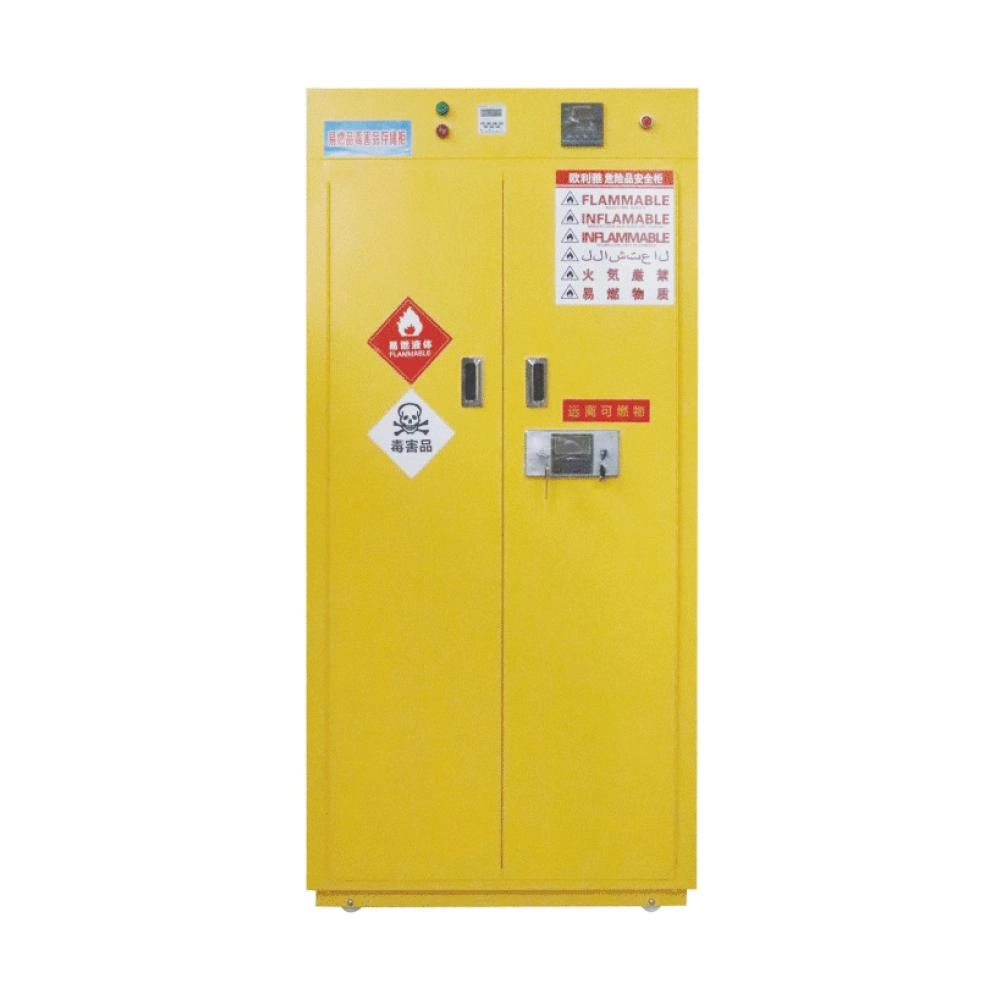

Flammable&Poison Storage Cabinet

Flammable & Poison Storage Cabinets

SPECIFICATION

1. External construction: The cabinet is made of 1.2mm high-quality cold-rolled steel sheet, and the base is made of 2.0mm cold-rolled steel sheet. After pickling and phosphating, it is electrostatically sprayed and cured at high temperature. There are four Φ60mm moving wheels at the bottom of the cabinet, which is convenient for the storage cabinet to move.

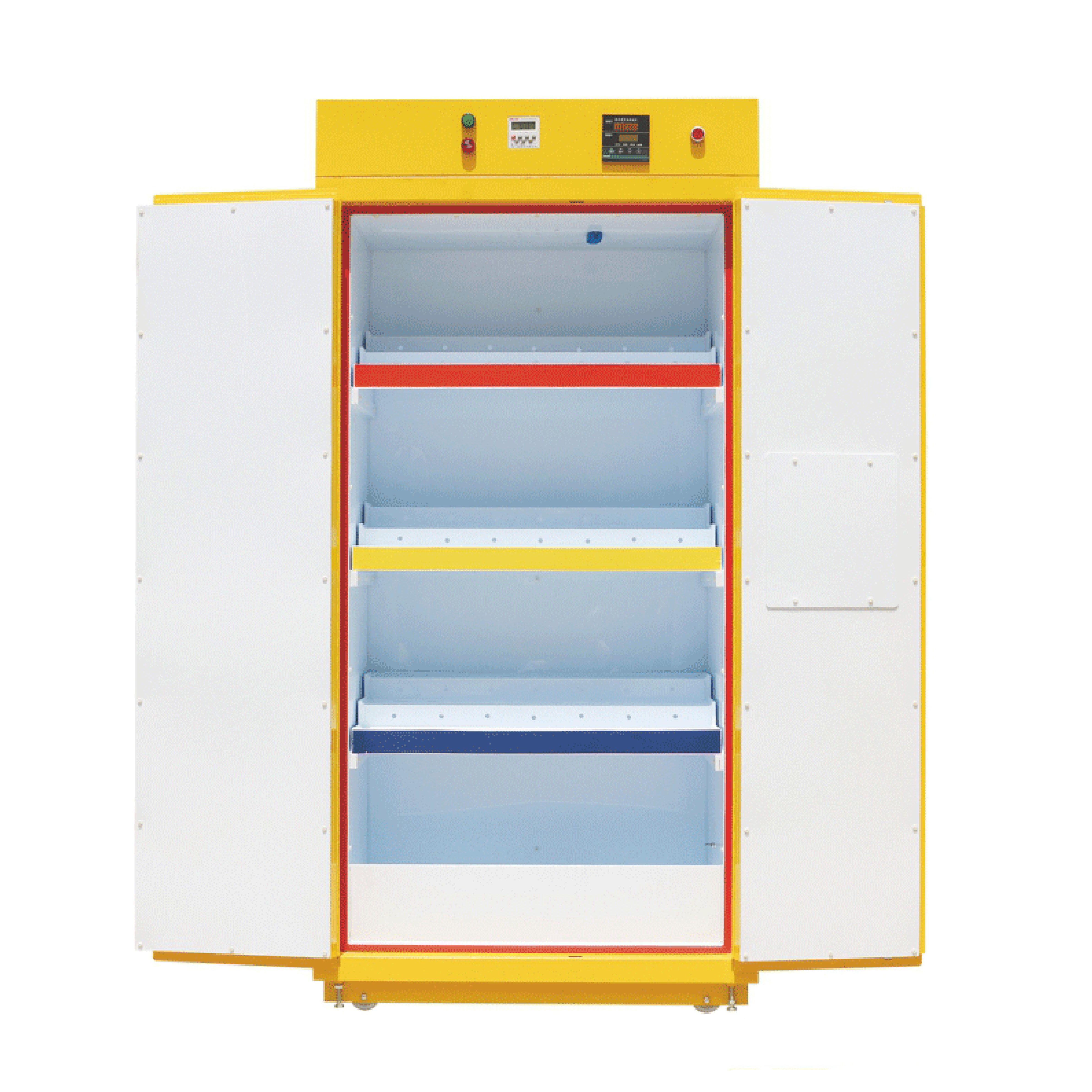

2. Internal construction: The inner tank of the cabinet (upper, lower, left and right lining boards) are all made of pp sheet; the interior is equipped with a three-layer stepped pp movable shelf, and the board has a 5MM ventilation hole. The bottom layer of the inside of the cabinet is left with a leaking canal that can store no less than 120mm thick yellow sand, which is used for burying flammable items.

3. Hinge: Continuous smooth piano hinge, 180°opening. A fireproof expansion seal is installed between the cabinet door and the cabinet, and the cabinet is filled with special fireproof materials with thermal insulation effect.

4. Door locks: mechanical locks, anti-theft locks and LCD electronic code locks, to meet the requirements of double double lock management.

5. Air exhaust: There is a Φ110mm air outlet on the top of the cabinet, and an AC220V, 50HZ, 0.18A axial flow fan is built in the air outlet on the top of the cabinet, the maximum air volume is 300m/h, the speed is 2550 rpm/min, and the ambient temperature is (-10~+70) °C. There is an adjustable air inlet on the right side of the bottom of the cabinet, and the stainless steel adjustable air valve of corrosion-resistant material is set to open before the fan is turned on.

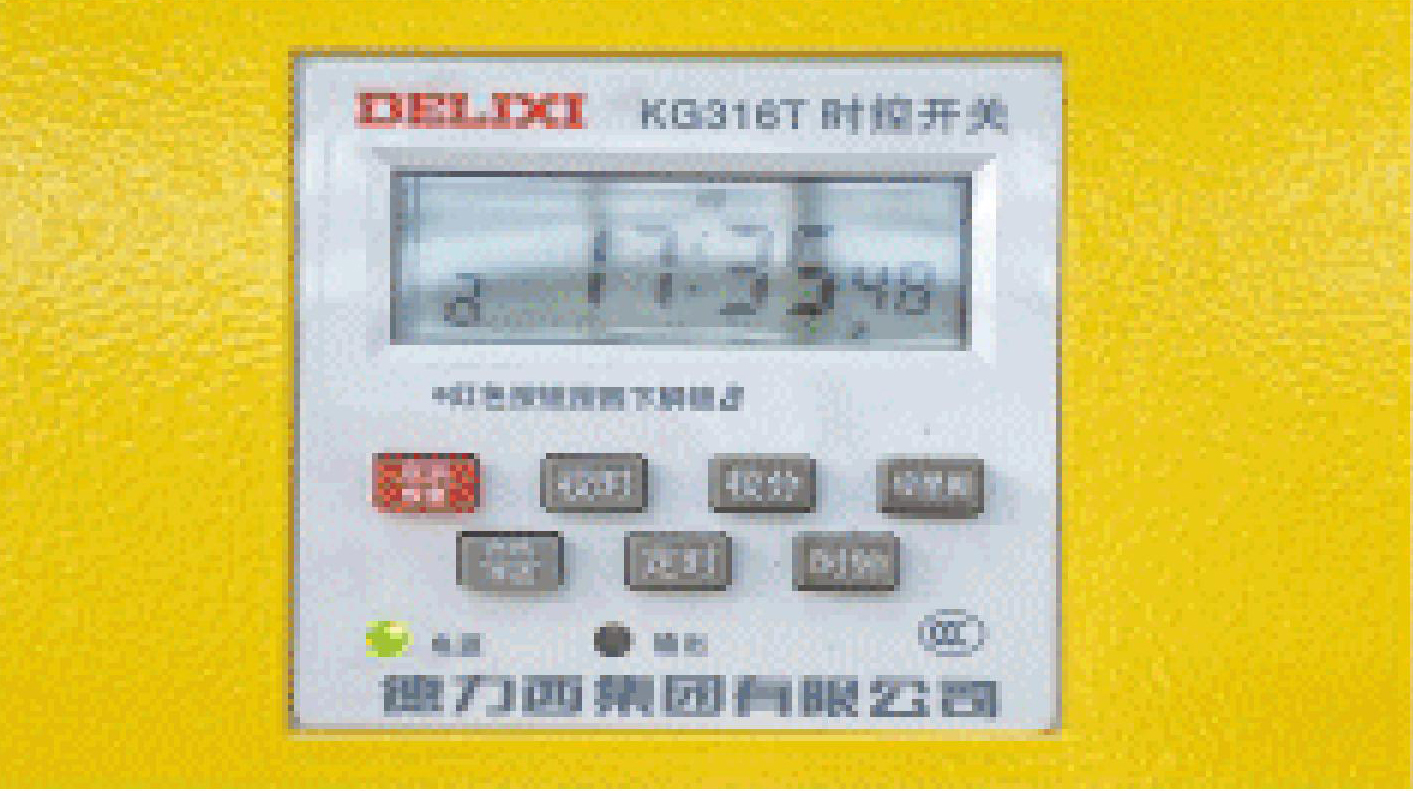

6. Time controller: Multiple time periods can be set for exhaust ventilation.

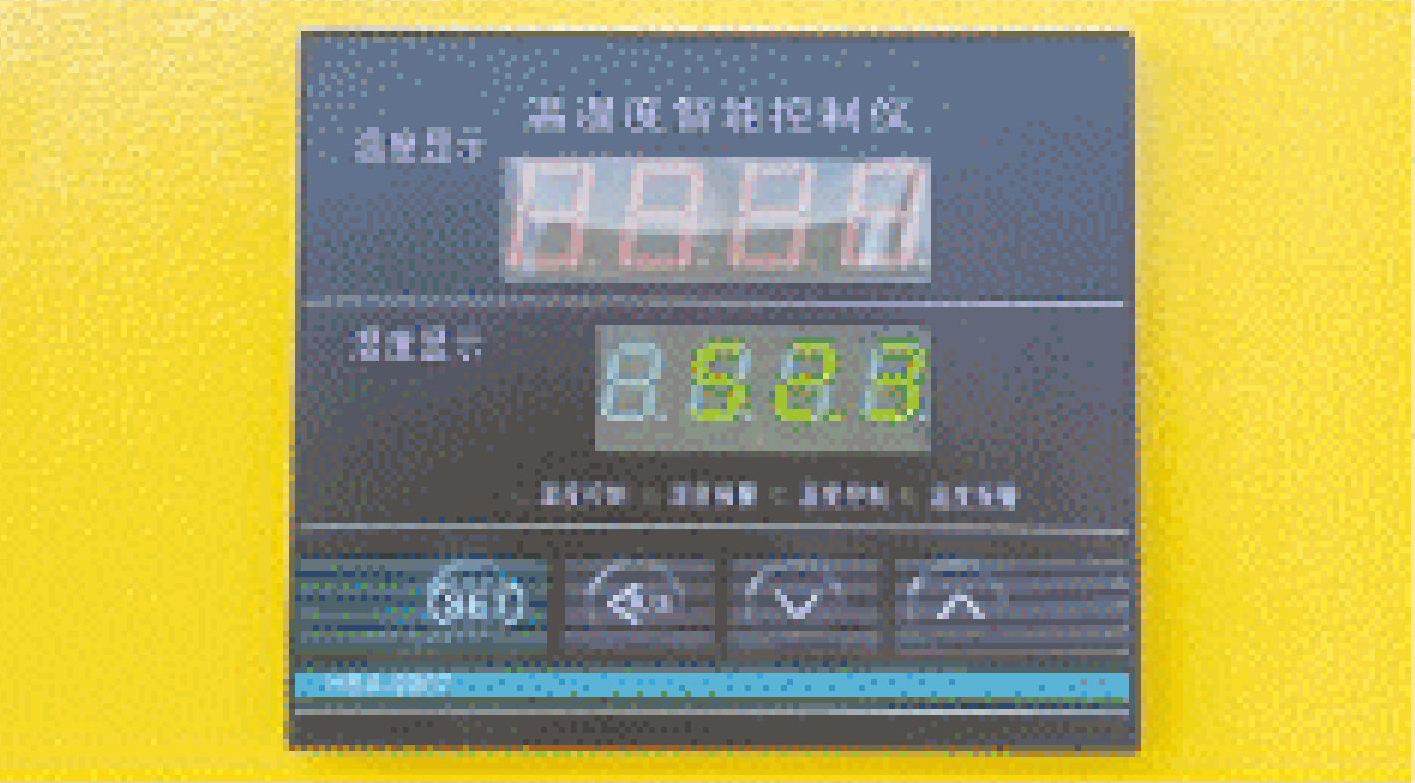

7. Temperature and humidity controller: The controller monitors and controls the temperature and humidity in the cabinet in real time, and the controller displays the set and measured values. Power supply AC220V±10% 50HZ, temperature control 0~99.9°C (user setting), humidity control 0~99.9%RH (user setting).

8. Alarm automatic exhaust: When the temperature and humidity exceed the set value, the sound and light alarm will alert and the automatic exhaust device will be activated to reduce the temperature and humidity inside the storage cabinet in time until the alarm state is lifted.

Common Features of MAX LAB Safety Cabinets

• • Heavy-duty steel construction
    Robust welded steel body provides long service life and structural stability.

  • Durable epoxy powder coating
    Inside and outside surfaces are coated with chemical-resistant powder paint for easy cleaning and improved corrosion resistance.

  • Spill containment sump
    Integrated leak-proof sump at the bottom to capture spills and leaks, helping protect floors and the environment.

  • Adjustable shelves
    Steel shelves with chemical-resistant coating; height-adjustable to suit different bottle and container sizes.

  • Secure locking system
    Doors equipped with a strong three-point locking mechanism and key lock to restrict unauthorized access.

  • Ventilation-ready design
    Standard vent ports (with caps) allow connection to an exhaust system or filtration unit where required.

  • High-visibility safety labels
    Clear hazard labels (“FLAMMABLE”, “POISON” or customized text and pictograms) help users identify cabinet type at a glance.

  • Multiple sizes and capacities
    Available in different widths and heights to match small labs and large chemical stores.

• •

Flammable Storage Cabinets

The MAX LAB Flammable Storage Cabinet is designed for the safe storage of flammable and combustible liquids, such as solvents, alcohols and other low flash point chemicals commonly used in laboratories and workshops.

Key Features – Flammable Storage Cabinet

• Fire-resistant construction
  Double-wall steel structure with an air gap (typical safety design, depending on model) to provide improved fire protection.

• Self-closing / manual doors (optional)
  Available with self-closing doors (according to local code requirements) or manual closing doors for general use.

• High-contrast color and labels
  Typically supplied in high-visibility colors with “FLAMMABLE – KEEP FIRE AWAY” or similar labels to enhance safety awareness.

• Grounding connection (optional)
  Grounding lug can be provided to reduce static electricity when required by application.

•

Typical Applications – Flammable Storage

• Storage of flammable solvents in analytical and research labs

• Paints, thinners and coating materials in workshops

• Flammable cleaning agents and maintenance chemicals

• Small containers of fuels and combustible liquids

•

• Poison Storage Cabinets

  The MAX LAB Poison Storage Cabinet is designed for the safe storage of toxic and poisonous chemicals, helping to reduce the risk of accidental exposure and misuse.

•

•

  Key Features – Poison Storage Cabinet

  • Clearly designated for toxic chemicals
    Marked with “POISON” and hazard pictograms for easy identification and management.

  • Secure locking and restricted access
    Strong locking system helps prevent unauthorized use, especially in educational or clinical environments.

  • Adjustable shelves for organized storage
    Allows safe, orderly storage of toxic reagents, pesticides, toxic solutions and similar substances.

  • Ventilation options
    Vent ports allow connection to exhaust systems or filtration modules to reduce vapors where necessary.

  •

  • Typical Applications – Poison Storage

    • Storage of toxic reagents in teaching and research laboratories

    • Poisonous substances in hospital, clinical and pharmaceutical labs

    • Toxic additives, pesticides or specialty chemicals in industrial facilities

    • Any location that needs controlled access to toxic substances

    •

    • Why Choose MAX LAB Flammable & Poison Storage Cabinets?

      • Professional laboratory focus
        MAX LAB specializes in laboratory furniture and safety cabinets, offering integrated solutions from benches to storage and ventilation.

      • Improved safety and organization
        Dedicated cabinets for different hazard classes help reduce storage risks and make chemical management more systematic.

      • Support for compliance
        Cabinet design follows commonly used safety practices and helps users meet local regulations for hazardous chemical storage (final compliance depends on specific model and local code).

      • Flexible sizes and configurations
        Multiple capacities and layouts allow you to choose cabinets that match your available space and storage needs.

      • One-stop laboratory solution
        We can supply flammable, poison, corrosive, toxic and drum safety cabinets, together with lab benches, fume hoods and accessories.

      •

      • Customization Options

        MAX LAB can provide customized flammable and poison cabinets for project and OEM/ODM needs:

        • Custom dimensions (height, width, depth)

        • Different door types (single/double, glass window optional for poison cabinets)

        • Custom colors and label languages (English, local language or multi-language)

        • Extra shelves or internal partitions

        • Integrated ventilation kits and duct accessories

        • Matching base or wheels (if allowed by local regulations)

        • Custom branding and logo printing
