ESD Workbenches | Anti-Static Workstations for Laboratories – MAXLAB

MAX LAB's ESD Workbenches provide a controlled static-safe workspace for electronics manufacturing, PCB assembly, and precision laboratory applications. Our workstations are engineered to protect sensitive components from electrostatic damage while improving workflow efficiency.

Brand

MAX LAB

Made

Guangzhou, China

Packing

Plywood Case or Carton

Delivery Time

20-30 days

Dimension

Customizable

Color

Customizable

Model

EWB-01/EWB-02/EWB-03/EWB-04/EWB-05/EWB-06

Get a Free Quote

Get the Product Catalog

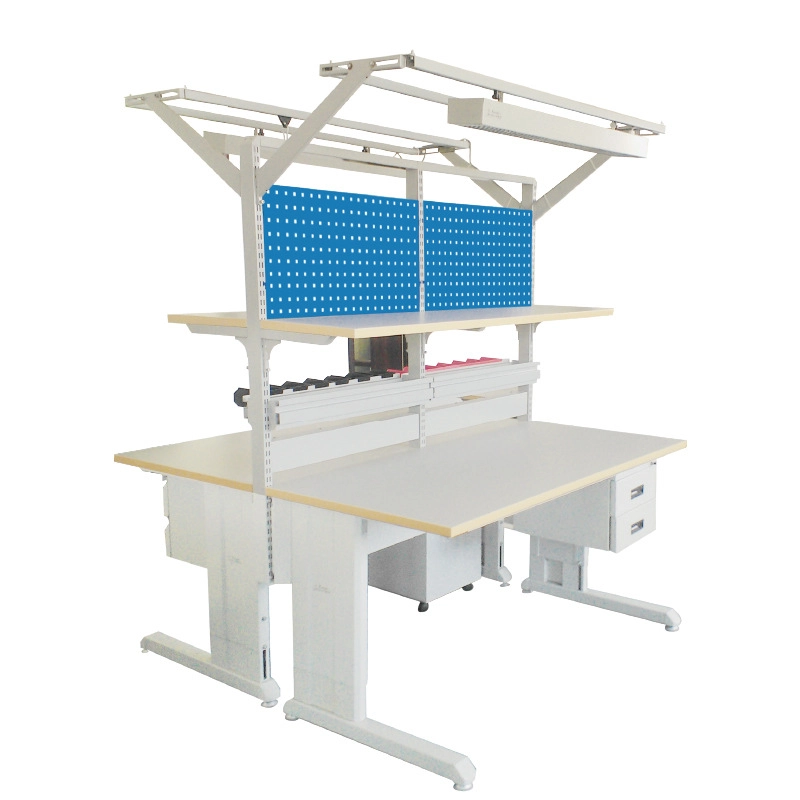

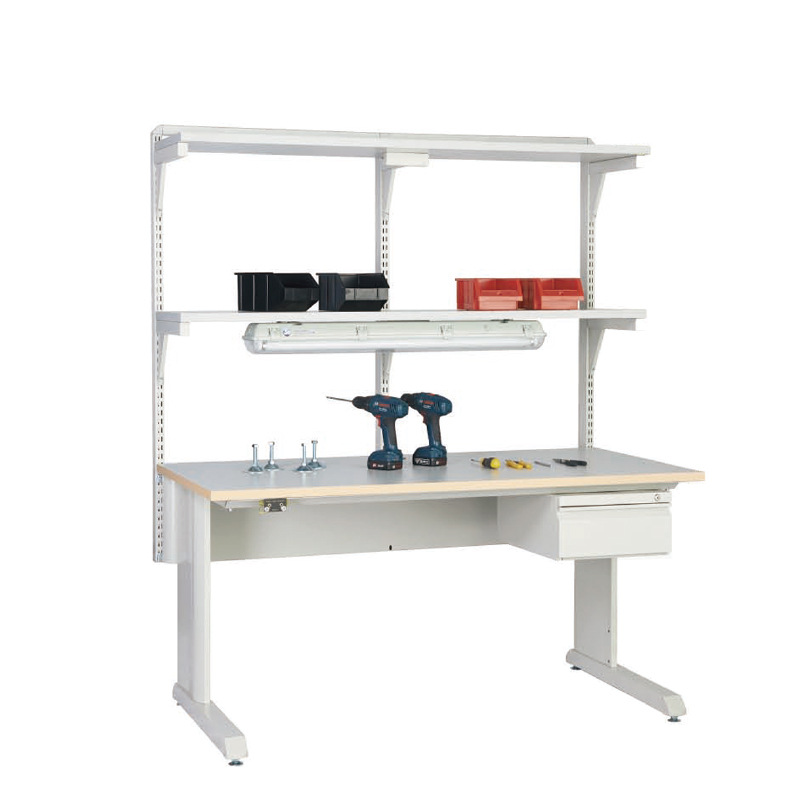

ESD Workbenches | Anti-Static Workstations for Laboratories – MAXLAB

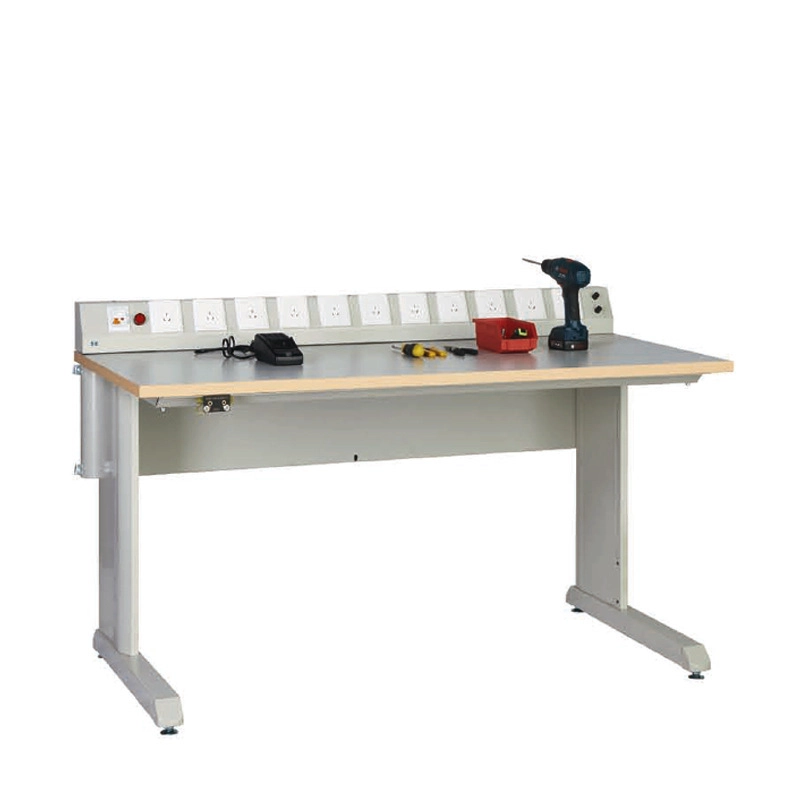

ESD workbench is a kind of workbench with an anti-static function. It is mainly suitable for the electronic industry, the pharmaceutical and chemical industry, and places with strict requirements on static electricity. By using an anti-static workbench, it can ensure the electrostatic sensitivity of components and the safety of explosion experiments.

Get a Quote

Product Details

The support adopts the optimized design of the steel structure, and is made of high-quality cold-rolled steel sheet, 1.2mm thickened steel pipe, and the cross-sectional size of the steel pipe is 40*40mm, which is sturdy and durable. The steel surface is pickled, phosphated, and sprayed with high-quality anti-static powder and high-voltage electrostatic, which is smooth and beautiful. The workbench adopts a combined design, which is easy to disassemble and sturdy and durable.

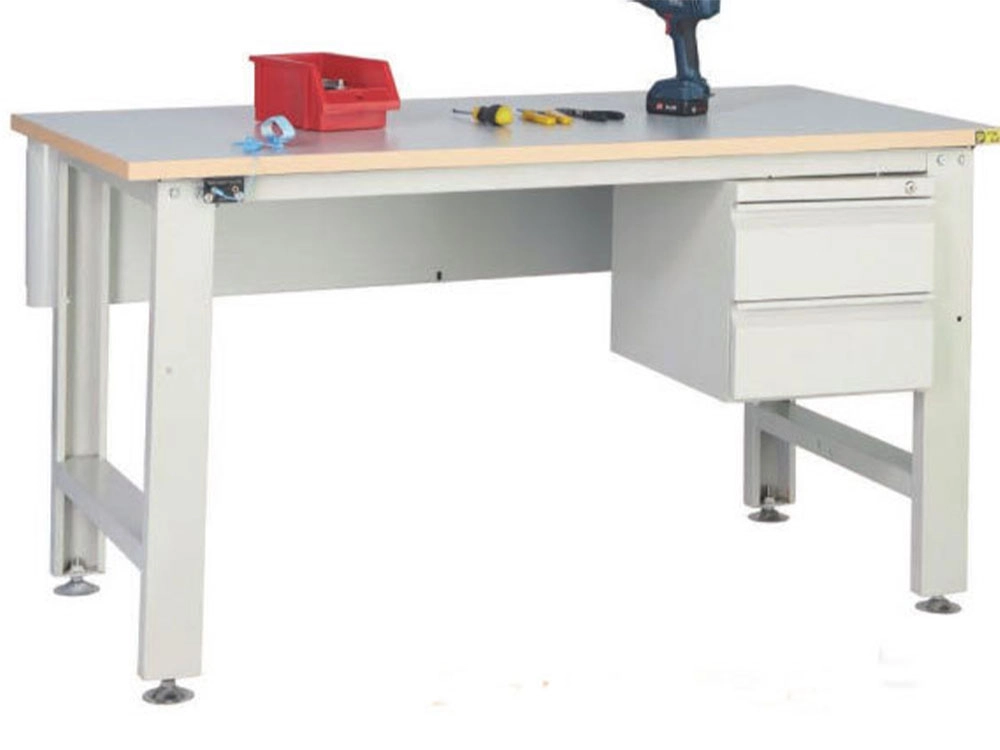

According to the user's load-bearing requirements, table legs of different shapes can be selected. The workbench adopts wear-resistant and non-slip tire rubber feet, which will not damage the floor even if it slides, and the height of the adjustable feet can be adjusted more than 5 cm.

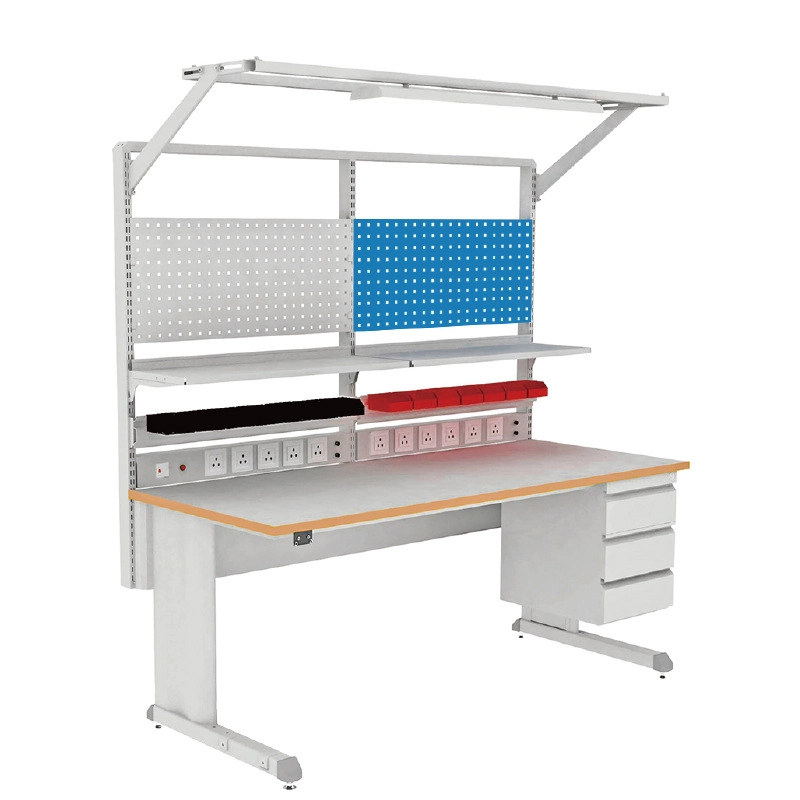

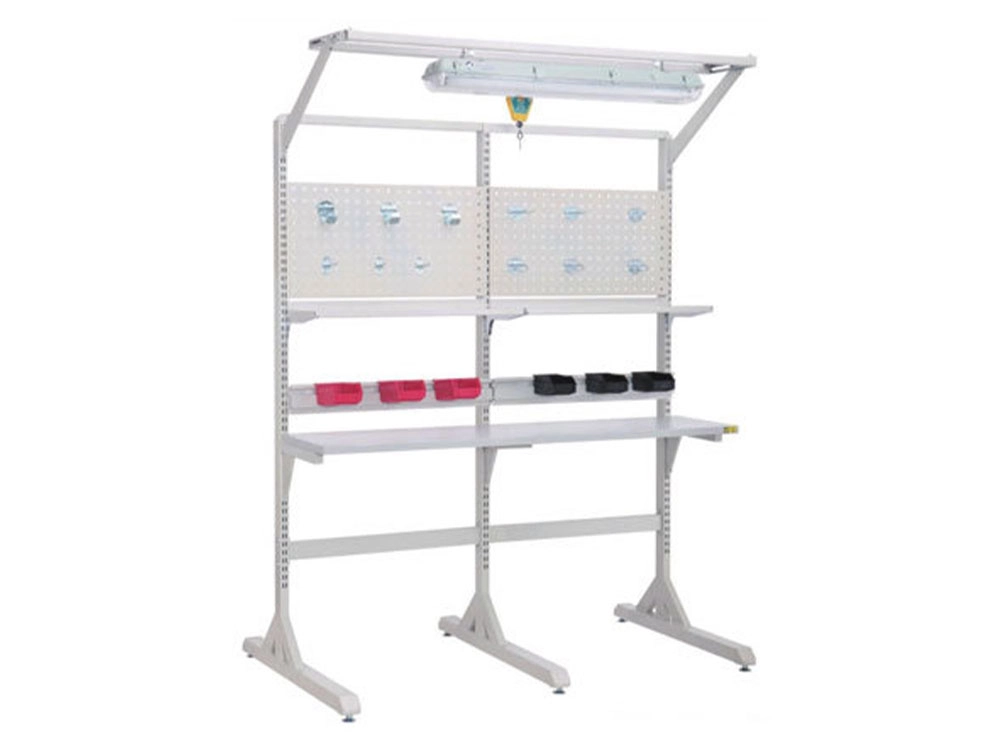

Standardized design, the combination of ESD workbench can be flexibly adjusted according to different requirements and different working environments, and it is interchangeable. The table can be equipped with lighting racks, hangers, shelves, square hole panel, louvre panel, electrical appliances Boxes, parts boxes, hanging bars, etc. And equipped bench electrical bar and lighting system, easy to use (can be customized according to customer requirements).

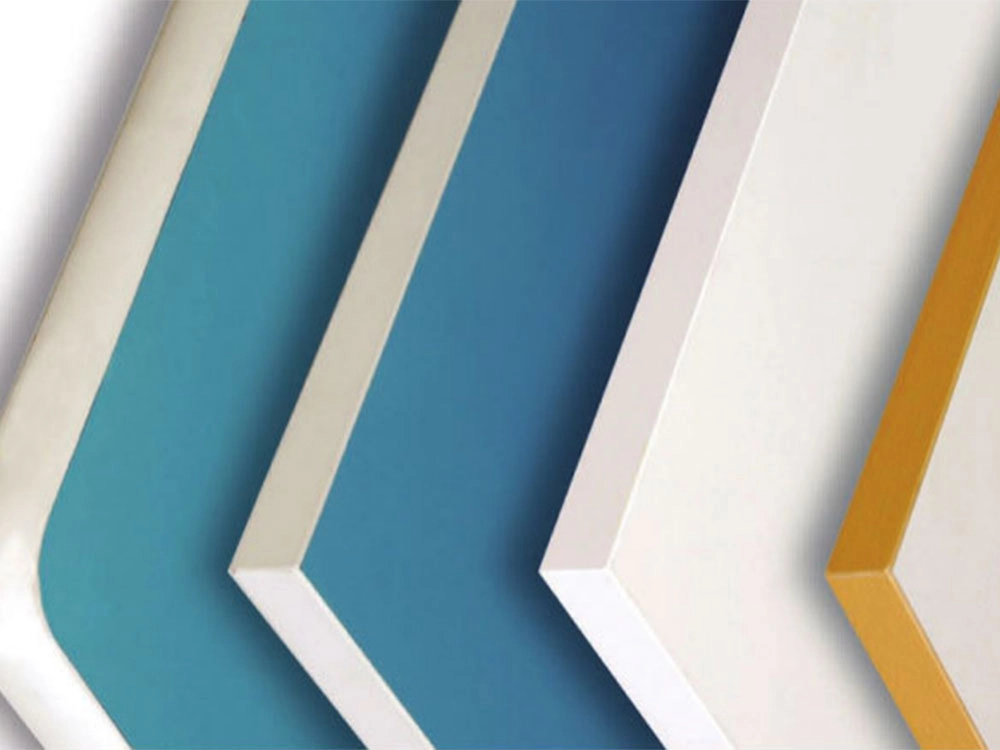

The desktop can choose different materials and substrates of different thicknesses. The substrate veneer can be selected: polymer composite material, anti-static, fireproof board, stainless steel, cold-rolled steel plate, etc. It has the characteristics of double-sided overall anti-static, fireproof, wear-resistant and so on.

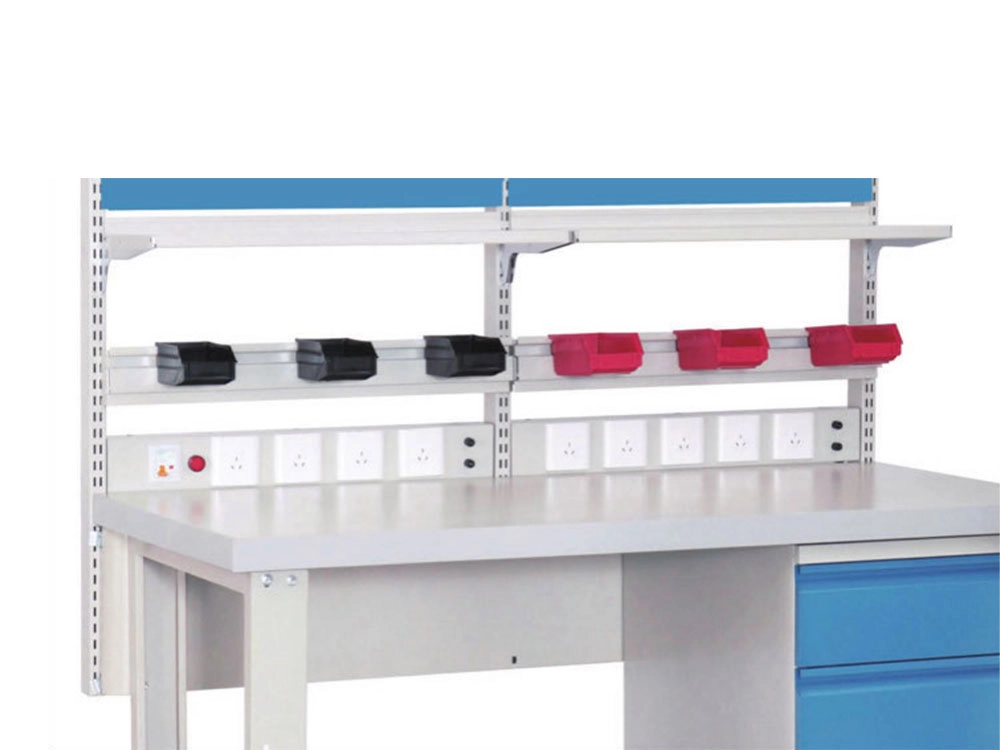

electronic-bench-Socket-and-Tool-Cabinets

The installation hole for the power socket is reserved, which is easy to use and has no obstacles. Various types of tool cabinets can be selected under the table to meet the requirements of users for loading items.

Frame

The legs and tie rods are made of 2.0 mm thick Baosteel first-grade cold-rolled steel, which is formed by shearing, punching, bending, and welding. The surface is degreased and phosphated and then electrostatically sprayed. The color is off-white.

Countertop

Composite countertop (standard configuration)

The surface is veneered with 3MM thick molecular composite material, 50mm high pressure molded fiberboard, and the four sides are sealed with 5mmPvc to further protect the table edge from being damaged. Shock absorption, noise reduction, knock resistance, impact resistance, weak acid and alkali resistance, oil resistance.

Steel sheet countertop

The surface is covered with steel sheet, the base material is 50mm high pressure formed fiberboard, and the four sides are sealed with 5mm PVC. Acid and alkali resistance, impact resistance, can be painted.

heavy duty work bench soild wood countertop

Solid wood countertop

High-density solid wood material makes it good impact resistance and large bearing capacity, which is suitable for machining. High bearing capacity, impact resistance, hard texture, knock resistance.

Stainless steel countertop

The surface and surrounding sides are made of stainless steel, and the internal base material is made of 50mm high pressure formed fiberboard. Acid and alkali resistance, corrosion resistance, rust resistance, high strength.

Rod connecting piece

The structure is firm and durable, ensuring load-bearing, easy and fast installation.

Anti-slip rubber pad

Disc anti-oxidation adjustment foot pad, strong high pressure resistance, adjustable at least three centimeters, easy to solve the phenomenon of uneven ground shaking.

Reserved sockets

Reserved cable holes and power socket mounting holes for table legs are easy to use and barrier-free.

Hanging cabinet (optional)

The load-bearing hanging drawer is made of 1.5mm high-quality cold-rolled steel plate, high-quality silent load-bearing guide rail, and the exterior is assembled with aluminum alloy handles as a whole with all rivets fixed and assembled, and a single drawer can bear more than 80KG.

Specification

Anti-static Principles

1. Anti-static workbench surfaces are typically made of a composite of anti-static melamine high-pressure decorative laminate (commonly known as anti-static fireproof board) and wood. The wood is typically particleboard, embedded with a conductive material such as a steel column and then grounded via a grounding wire. This allows static charges on the surface of the workbench to be smoothly discharged to the ground via the grounding wire.
2. Some anti-static workbenches are made of stainless steel. In these cases, an anti-static mat is placed on the surface of the workbench, connected to the ground via a grounding wire to achieve the desired static discharge effect.
3. An anti-static workbench provides the user with the added functionality of a standard workbench, specifically, the ability to discharge static electricity.
Application: Anti-static workbenches can be used in static-sensitive areas such as microelectronics, optics, aerospace, and aviation.

Model	*Dimensions (LWH)*
EWB-01	1500750800 mm 1800750800 mm 2100750800 mm
EWB-02
EWB-03
EWB-04
EWB-05
EWB-06	1500/1800/21001500800 mm

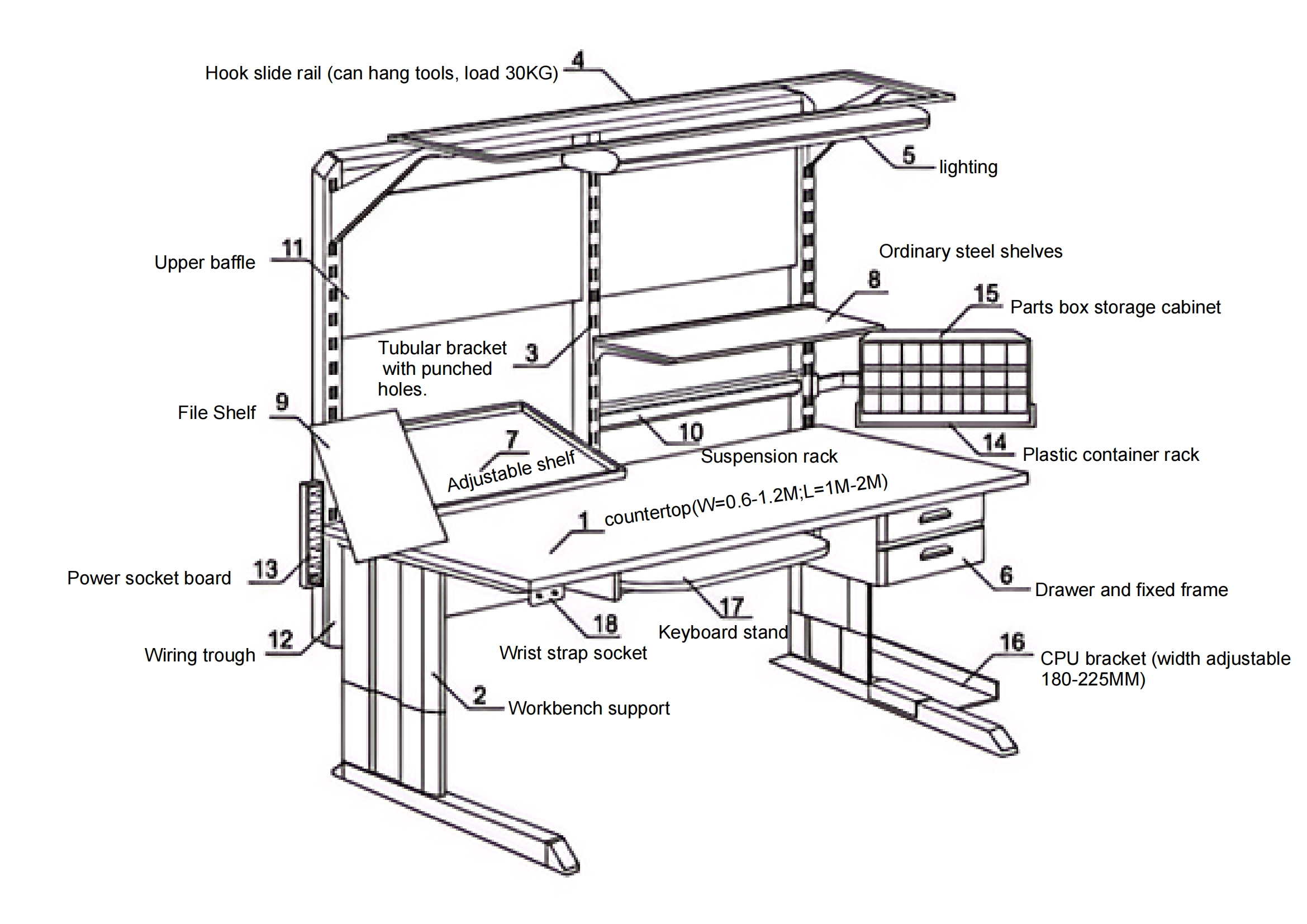

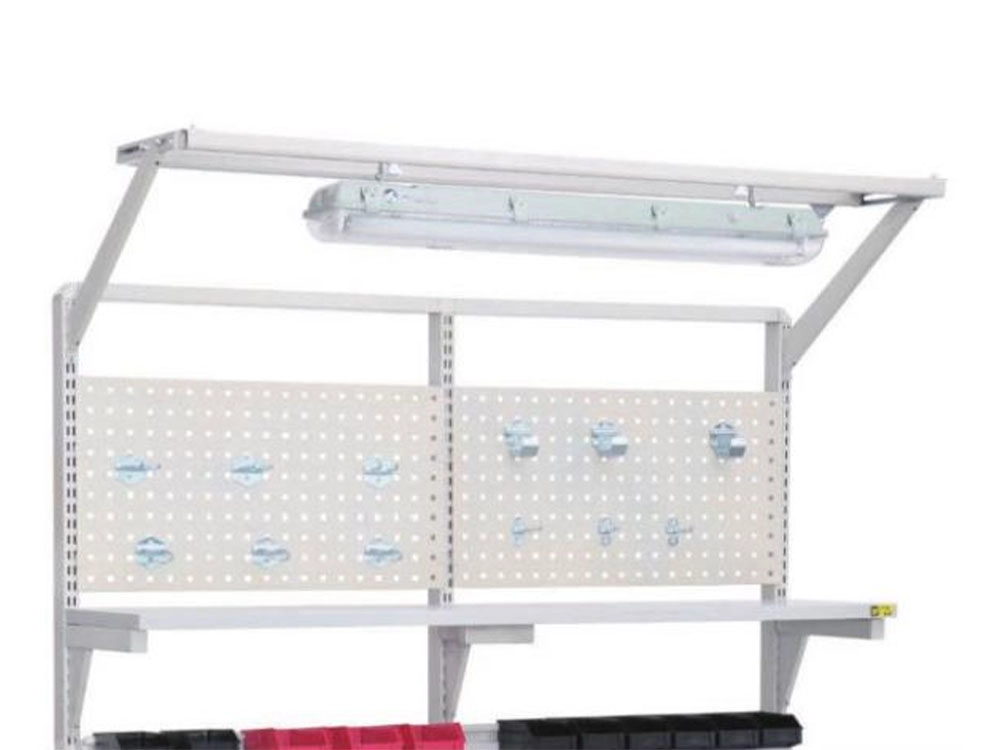

Comprehensive Multi-functional ESD Workbench

1. Tabletop (W=0.6-12M; L=1M-2M)
2. Table Support (Adjustable)
3. Tubular bracket with punched holes
4. Hook Slide Rail (hung, carries 30 kg)
5. Light Fitting
6. Drawers and Racks (10 KG)
7. Adjustable Shelf (load 100 kg, tilt 0-25°)
8. Ordinary Steel Shelf (carries 50 kg)
9. File Shelf (carries 5 kg)
10. Suspension Bracket
11. Top Baffle
12. Wiring Slot
13. Power Socket Board (2500W, 10A)
14. Plastic Container Shelf (carries 15 kg)
15. Parts Box Storage Cabinet
16. Bracket (Width 180-225 mm)
17. Keyboard Rack
18. ESD Wrist Socket

Product Features

1. Super heavy structure, bears 1000 kg
2. The countertop is resistant to impact, weak acid and alkali, and wear and tear and can be directly opened.
3. The frame is fully folded and assembled, which is convenient for transportation, saves time and cost, and is easy and firm to install.
4. The high-quality cold-rolled steel sheet is phosphated, electrostatically powder sprayed, and subjected to other processes; the surface is smooth, flat, more durable, and environmentally friendly.

Product dimensions (length * width * height):

1200*750*800 mm
1500*750*800 mm
1800*750*800 mm
2100*750*800 mm

Key Features & Benefits

Full ESD Protection System
Integrated grounding points for proper static dissipation
ESD-safe laminate or stainless steel options
Enhanced Workstation Design
Modular configuration with adjustable shelving
Cable management system for organized workspace
Optional overhead lighting with ESD-safe fixtures
Durable Construction
Heavy-duty steel frame with powder-coated finish
Chemical-resistant work surfaces
Reinforced load-bearing capacity (up to 300kg)
Customizable Options
Multiple size configurations (single/multi-user)
Add-on accessories: monitor arms, tool holders
Mobile or stationary base options
Work Surface Options: ESD laminate, stainless steel, or phenolic resin

Ideal Applications

Electronics manufacturing & repair
PCB assembly and testing
Microelectronics and semiconductor work
Medical device assembly
Telecommunications equipment maintenance
Aerospace component handling

Model

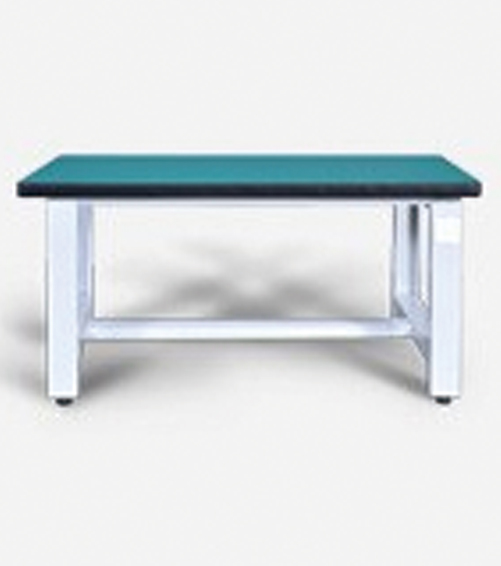

heavy duty work bench with storage Single bench

Single bench

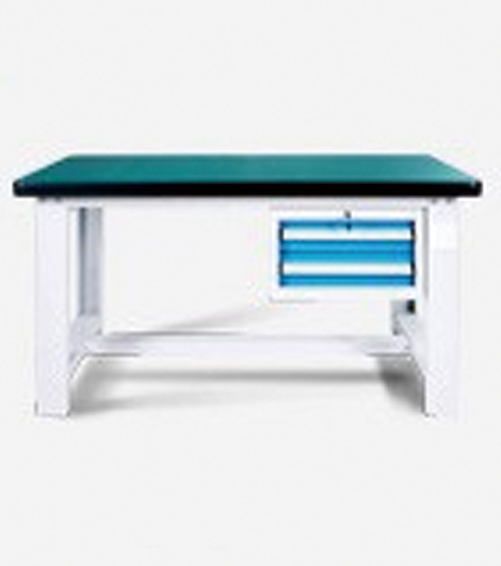

Hanging two drawers

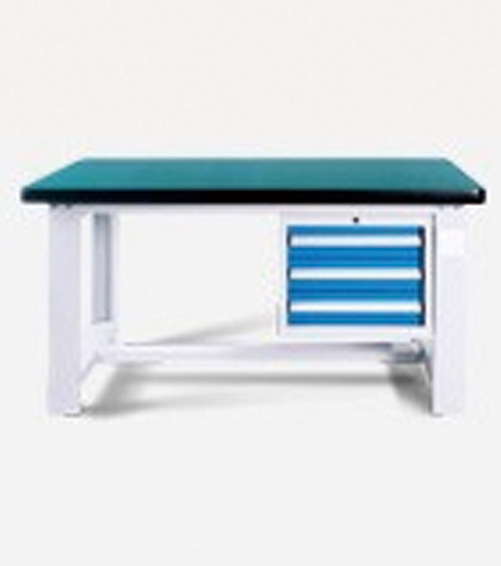

Hanging three drawers

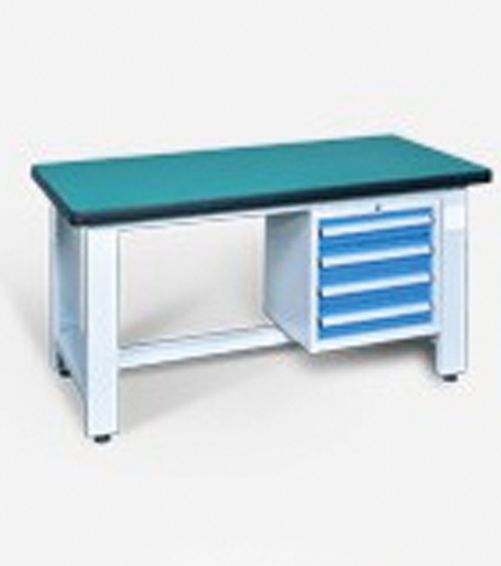

Hanging four drawers

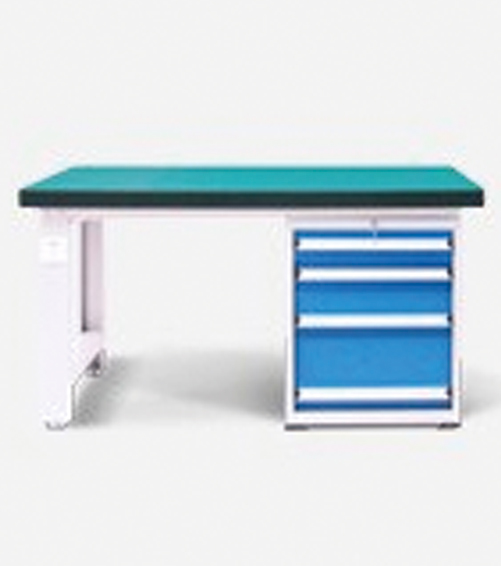

Floor mounted four drawers

Floor-mounted four drawers

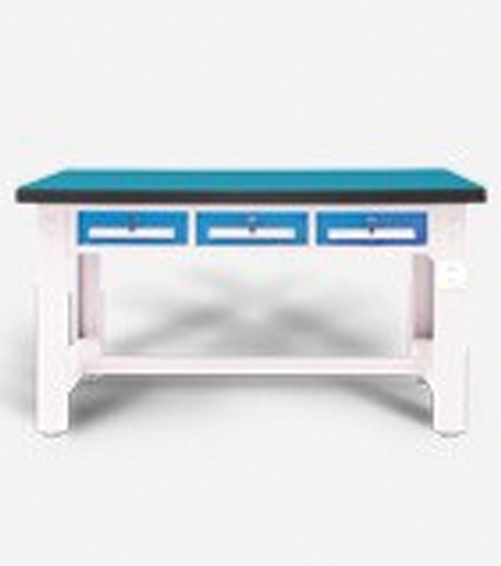

Hanging flat three drawers

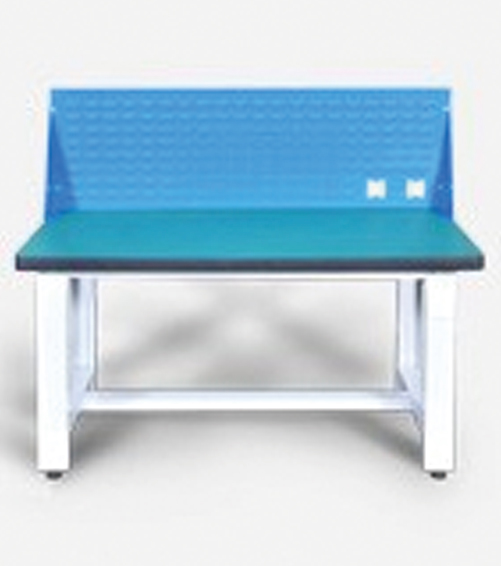

Single bench single back board

Single bench + single backboard

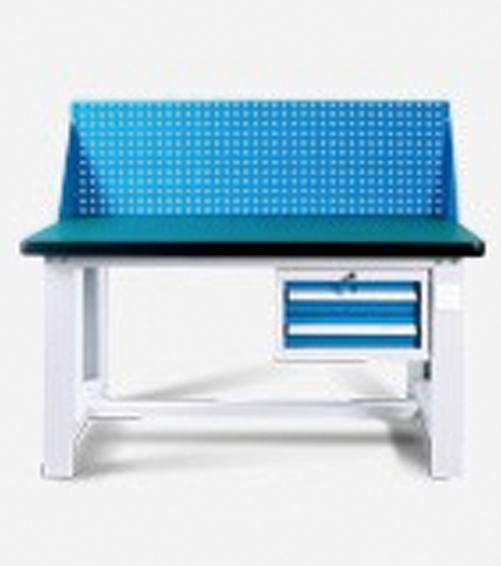

Hanging two drawers single back board

Hanging two drawers and a single backboard

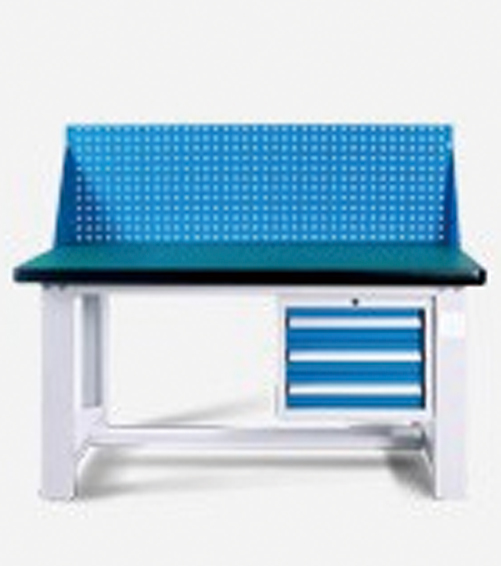

Hanging three drawers single back board

Hanging three drawers + single back board sounds, words

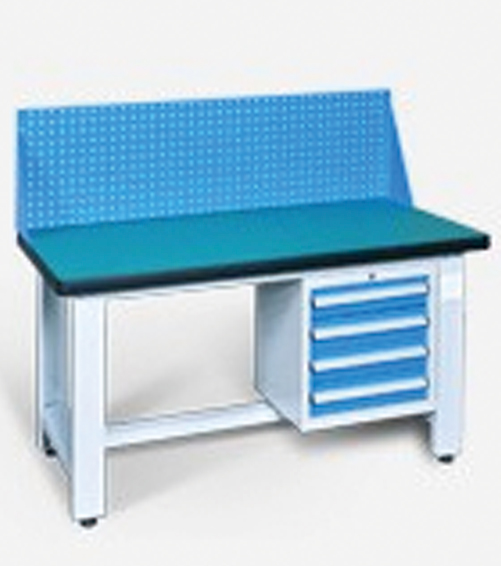

Hanging four drawers single back board

Hanging four drawers + single backboard

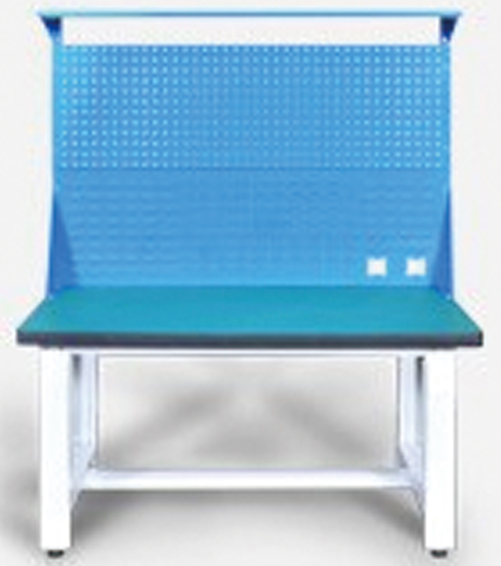

Single bench double back board

Single bench + double backboard

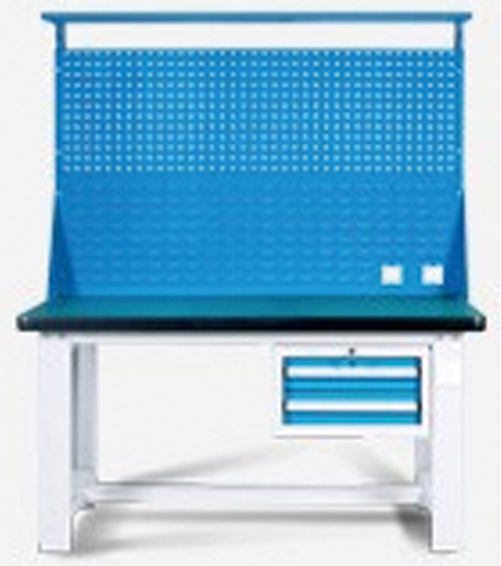

Hanging two drawers double back board

Hanging two drawers + double double backboard

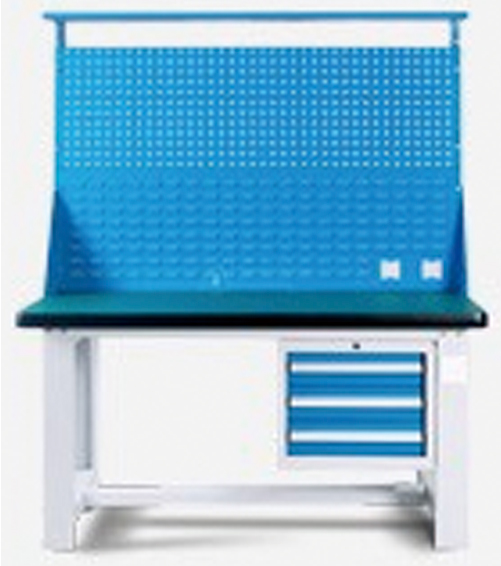

Hanging three drawers double back board

Hanging three drawers + double backboard

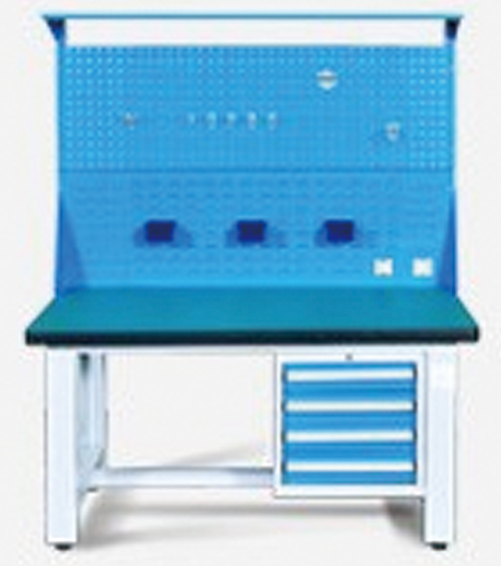

Hanging four drawers double back board

Hanging four drawers + double backboard

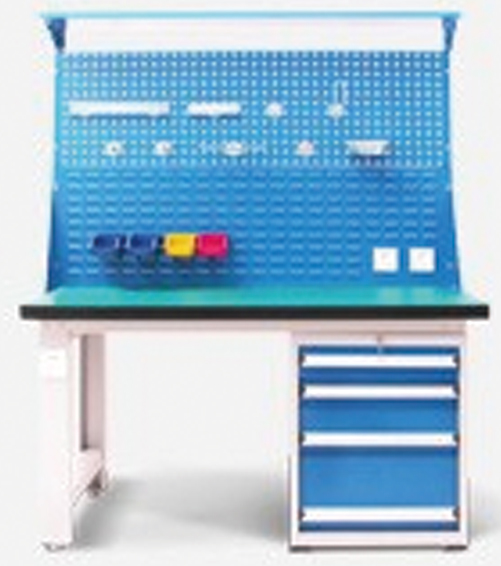

Floor mounted four drawers double back board

Floor-mounted four drawers + double backboard

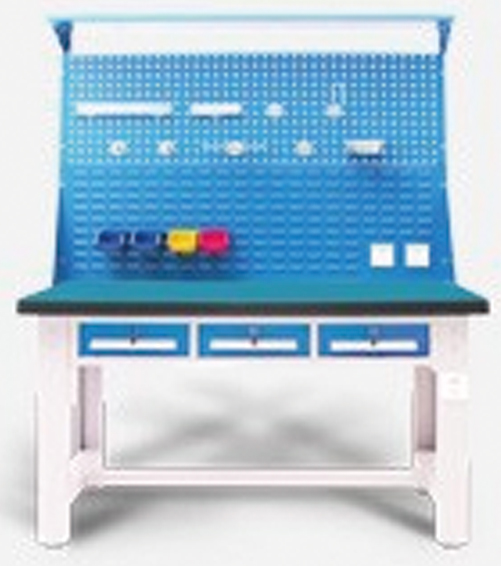

Hanging flat three drawers double back board

Hanging flat three drawers + double backboard

Why MAX LAB ESD Workbenches?

Certified ESD Protection—Meets ANSI/ESD S20.20 standards
Superior Build Quality—Industrial-grade materials for long-term use
Custom Solutions—Tailored to your specific ESD requirements
Competitive Pricing—Direct manufacturer pricing
