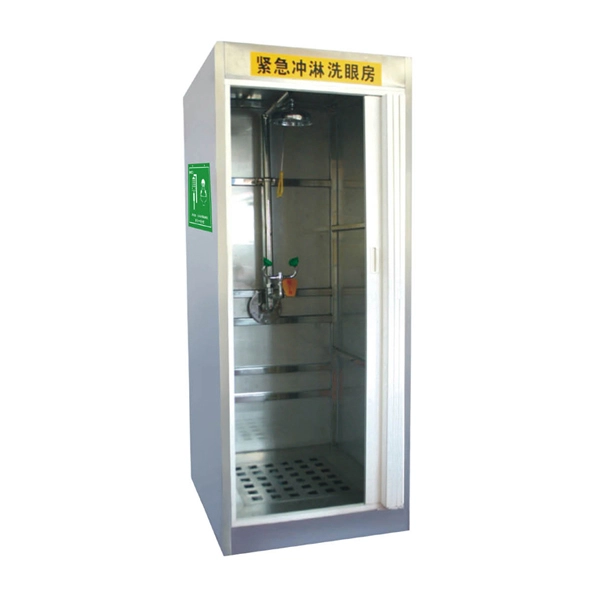

Emergency Eyewash Shower Room EW-33

Laboratory Emergency Shower Room

A combination emergency shower and eyewash station is cut out to flush harmful contaminants and pathogens out of the eyes and body in any environment, yet saves a lot of space. This combo merges a shower head and eyewash into one unit for a superior washdown and more even spray pattern.

Material: Stainless Steel 304

Surface finishing: glossy epoxy coated

Assembling feature: the“Union”allows easier pipe connection and disconnection

Usage: drenching body and rinsing faces / eyes can be operated separately or simultaneously

Shower&eye wash switch: SS304 ball valve

Shower head: spinning-formed with curled rim, diameter 255 mm

Pipe diameter: 42 mm

Nominal pressure: 1.0 Mpa

Working pressure: 0.2~0.4 Mpa

Testing pressure: 1.5 Mpa

Temperature requirement on working environment: 5°C~40°C

Flow rate of body shower: ≥76 L/min

Flow rate of eye/face wash: ≥11.4 L/min

Flow rate of eye wash: ≥1.5 L/min

Eyewash bowl features: 300 mm in diameter, vertical bowl-wall design, allows better water collecting and anti-splashing

Dust cover feature: integrated with the spray head (not connected by chain)

Spray head feature: patented design, each spray head equips with one water - flow control valve

Inlet thread: Rp1",female

Outlet thread: Rp1" ,female

Inlet height (from above the floor): 1555mm±5mm

Outlet height (from above the floor): 120mm±5mm

Distance between spray heads: 170 mm

Water pattern coverage: at the height of 1524 mm above floor, the water pattern covers a circular area of at least 510 mm in diameter.

Executive standard: ANSIZ358.1-2014 (American Standard)
