Ductless Filter hazardous Chemical Cabinet

Ductless Filter hazardous Chemical Cabinets

SPECIFICATION

1.

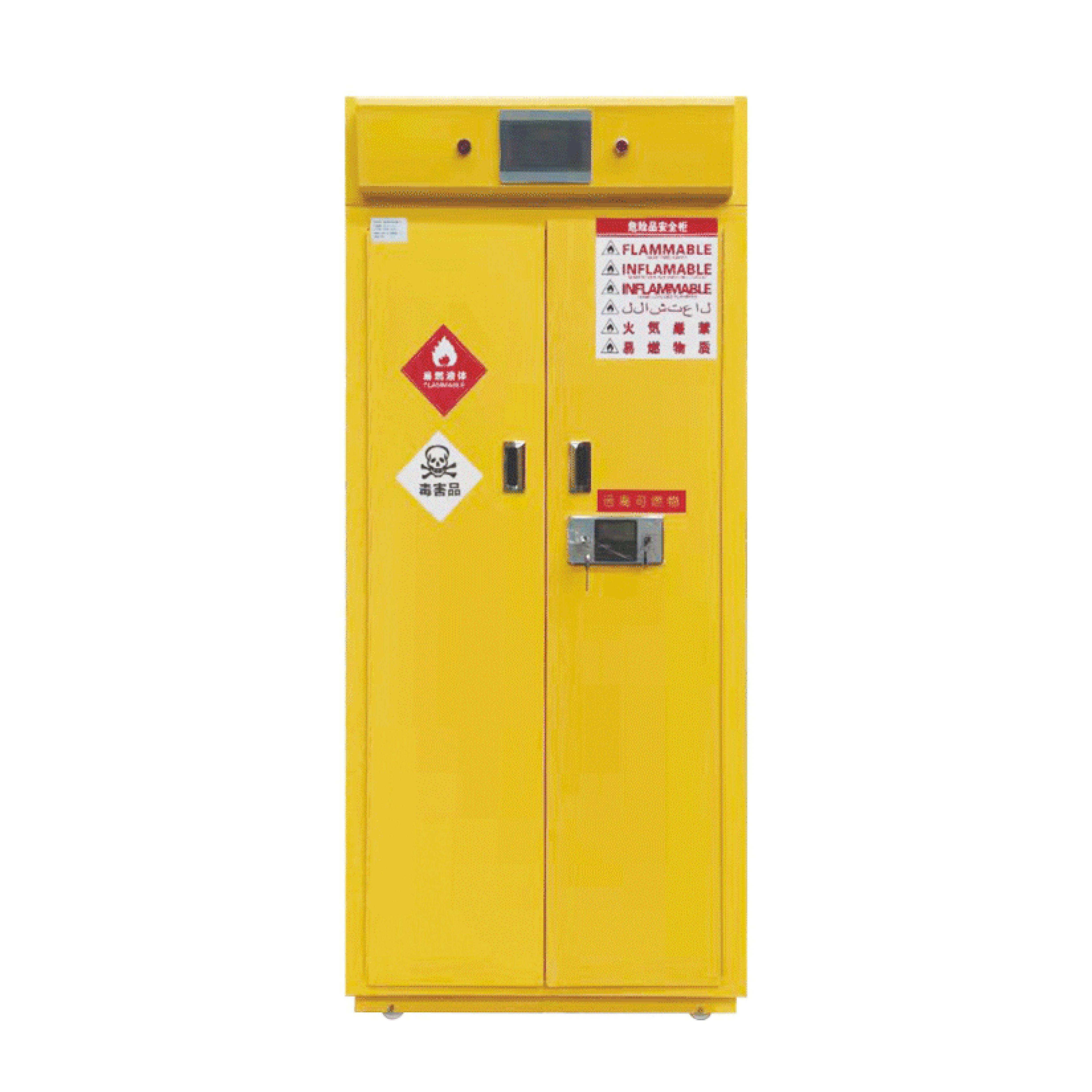

External construction:

External construction: The cabinet is made of 1.2mm high-quality cold-rolled steel sheet, and the base is made of 2.0mm cold-rolled steel sheet. After pickling and phosphating, it is electrostatically sprayed and cured at high temperature. There are four Φ60mm moving wheels at the bottom of the cabinet, which is convenient for the storage cabinet to move.

2.

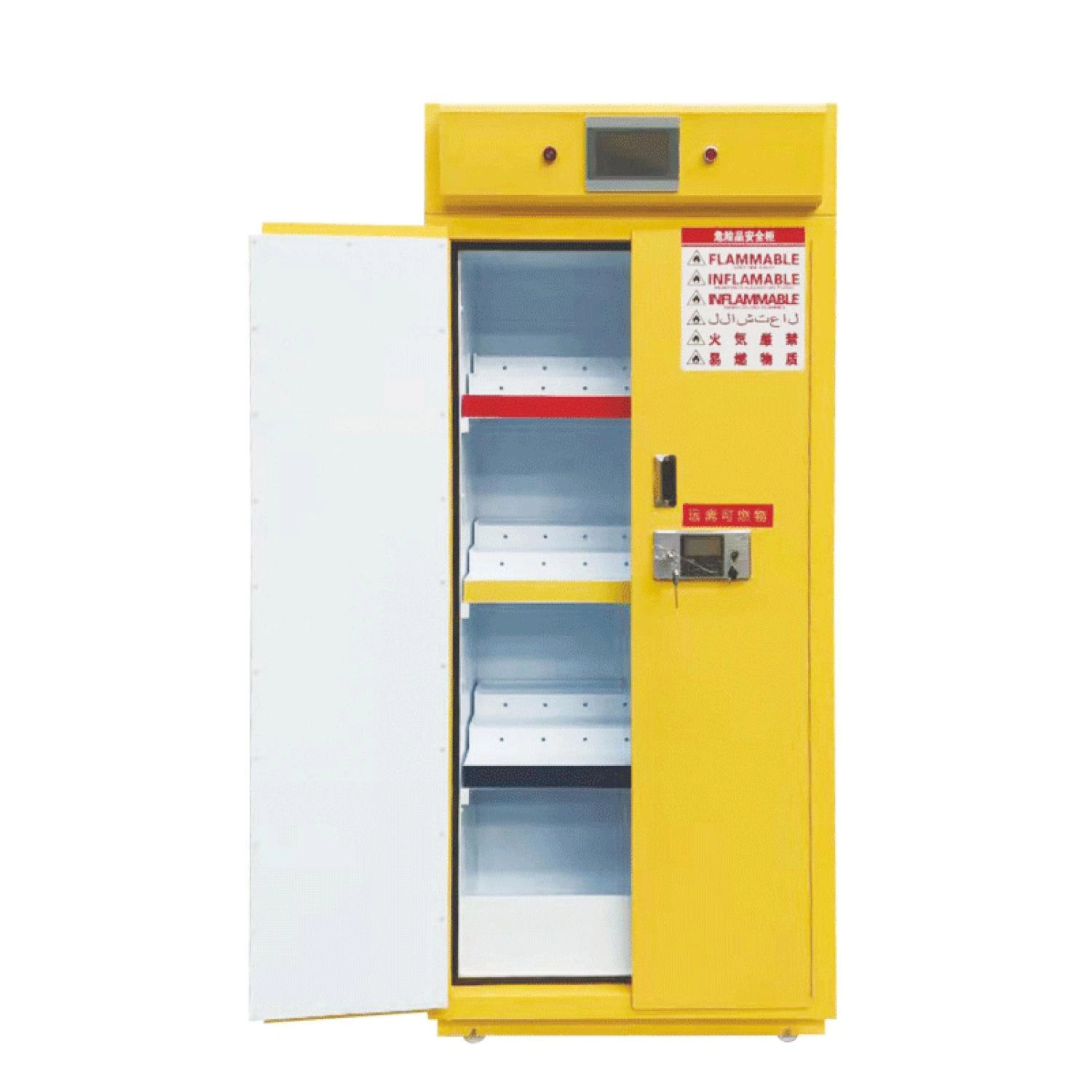

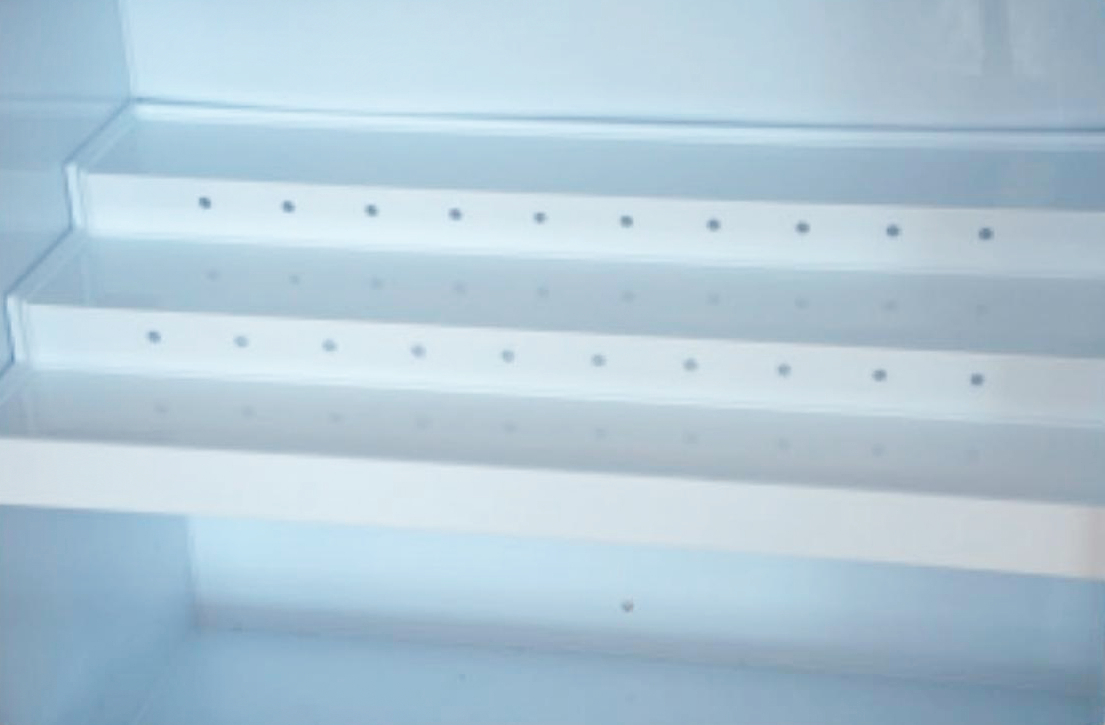

Internal construction:

The inner tank of the cabinet (upper, lower, left and right lining boards) are all made of pp sheet; the interior is equipped with a three-layer stepped pp movable shelf, and the board has a 5MM ventilation hole. The bottom layer of the inside of the cabinet is left with a leaking canal that can store no less than 120mm thick yellow sand, which is used for burying flammable items.

3.

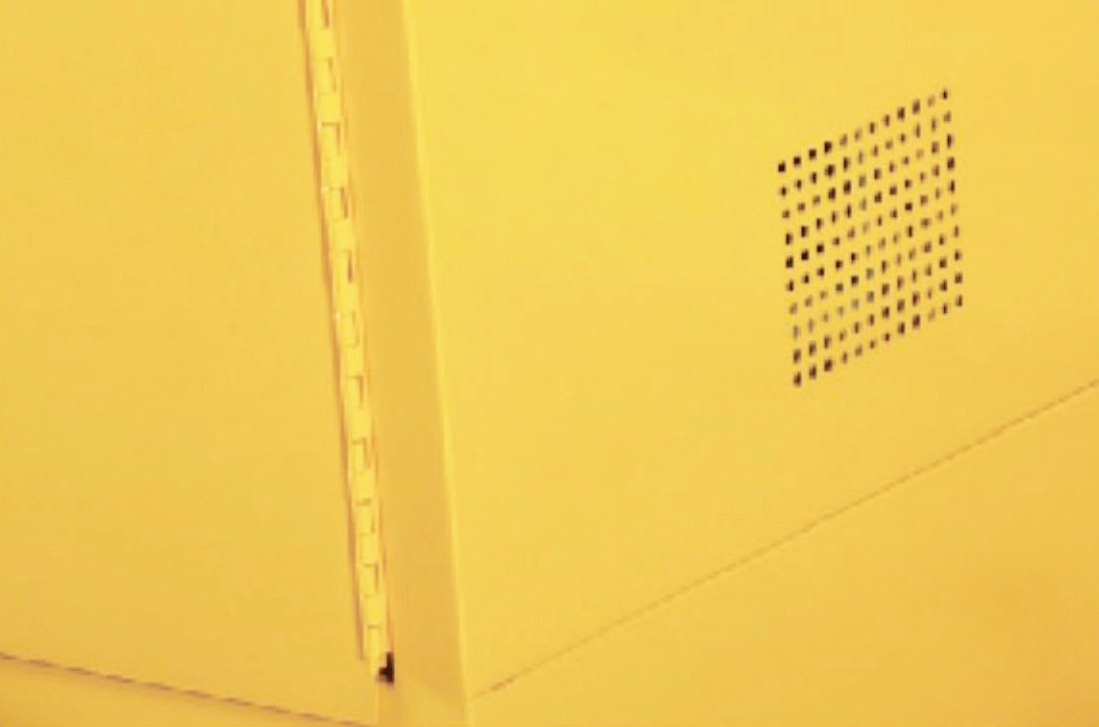

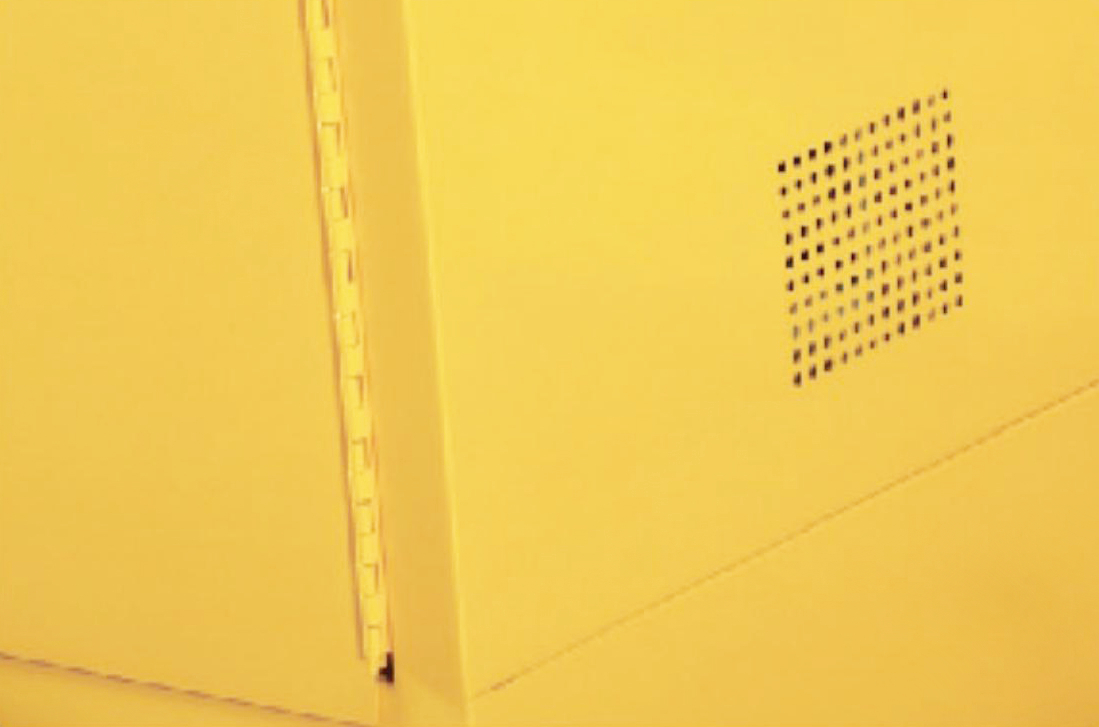

Hinge:

Continuous smooth piano hinge, 180° opening. A fireproof expansion seal is installed between the cabinet door and the cabinet, and the cabinet is filled with special fireproof materials with thermal insulation effect.

4.

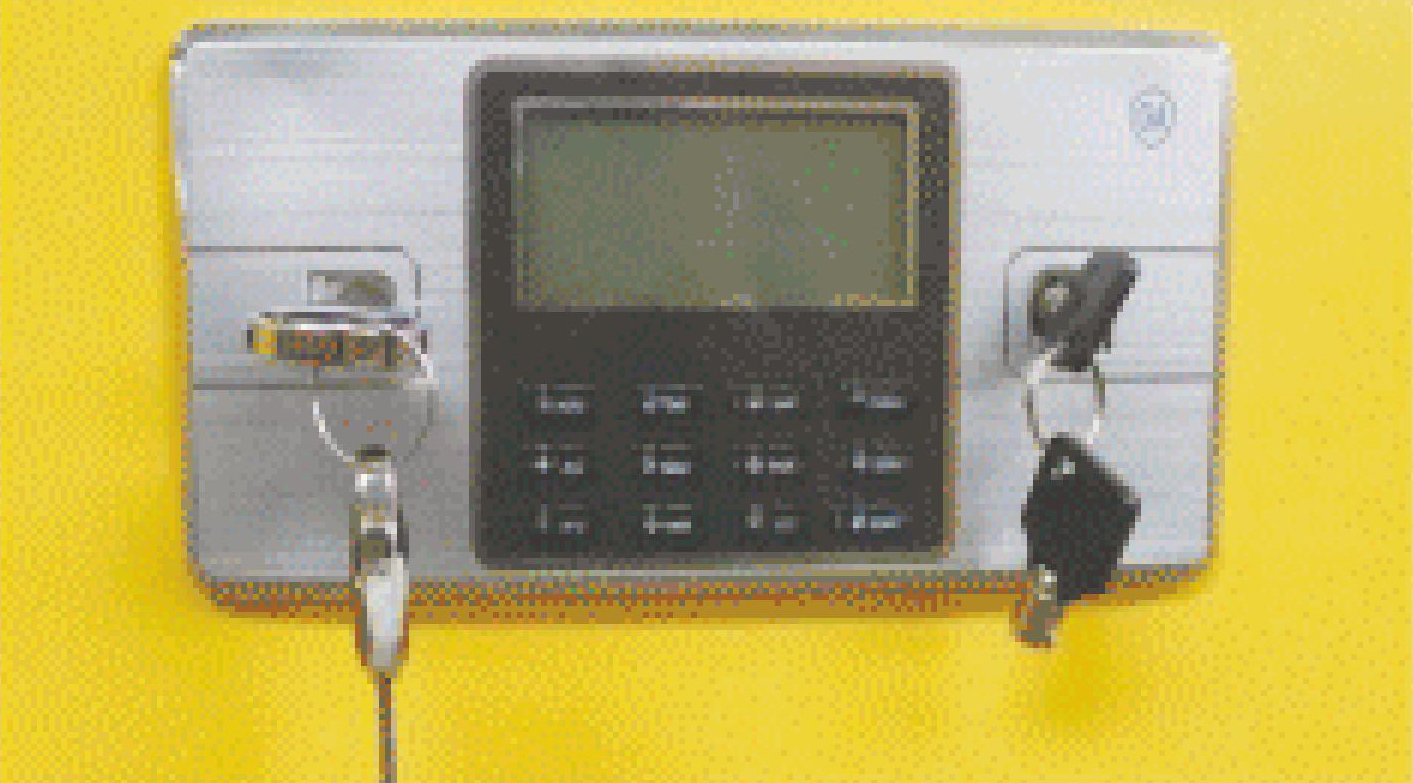

Door locks:

mechanical locks, anti-theft locks and LCD electronic code locks, to meet the requirements of double double lock management.

5.

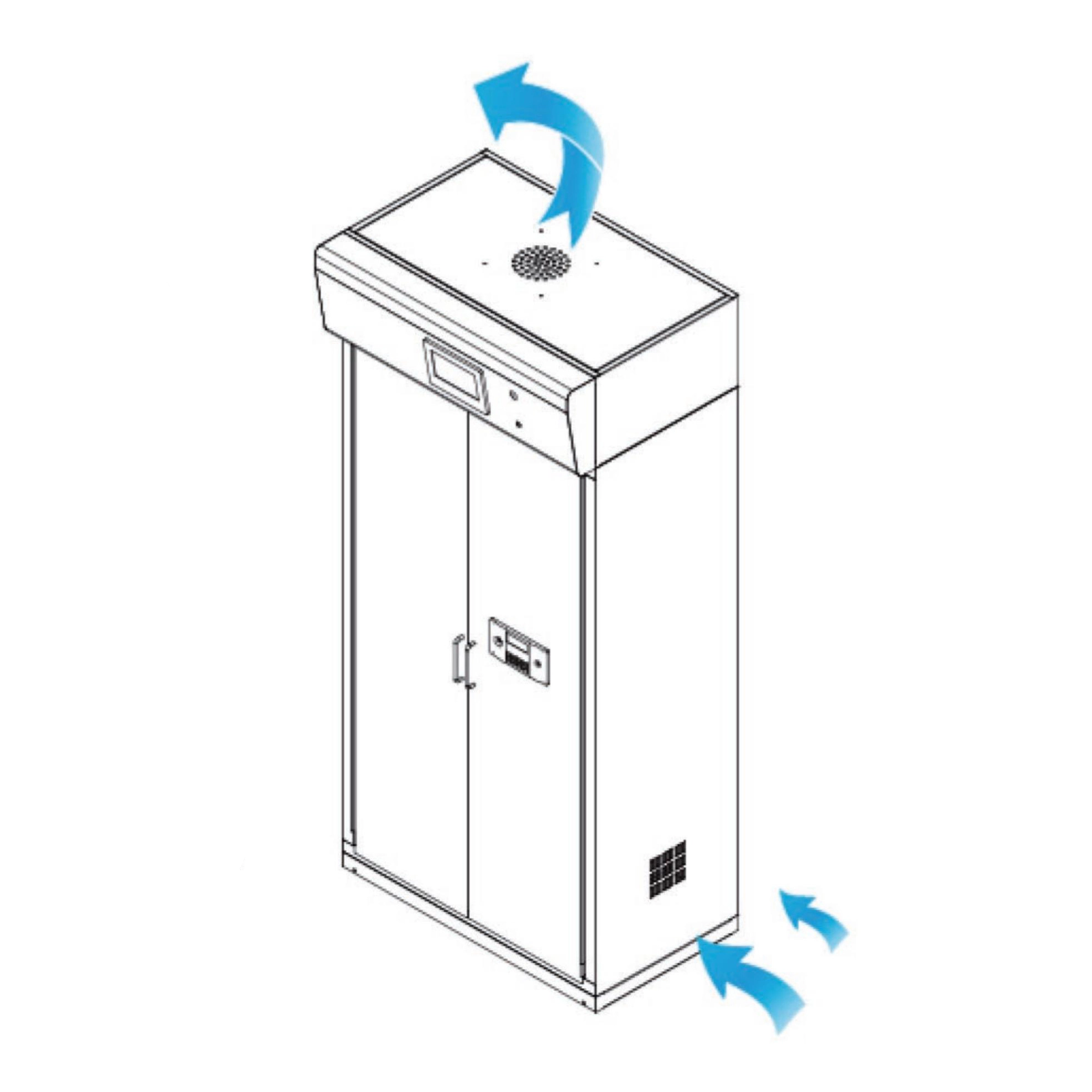

Air exhaust:

There is a Φ110mm air outlet on the top of the cabinet, and an AC220V, 50HZ, 0.18A axial flow fan is built in the air outlet on the top of the cabinet, the maximum air volume is 300m3/h, the speed is 2550 rpm/min, and the ambient temperature is (-10~+70)°C. There is an adjustable air inlet on the right side of the bottom of the cabinet, and the stainless steel adjustable air valve of corrosion-resistant material is set to open before the fan is turned on.

6.

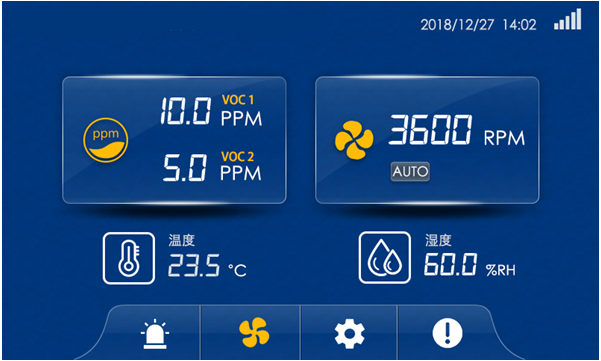

Controller:

7-inch LCD touch screen display temperature, humidity, VOC value, real-time monitoring. At the same time, multiple time periods can be set for exhaust ventilation. You can check the temperature, humidity, and VOC values inside the storage cabinet in the past 30 days.

7.

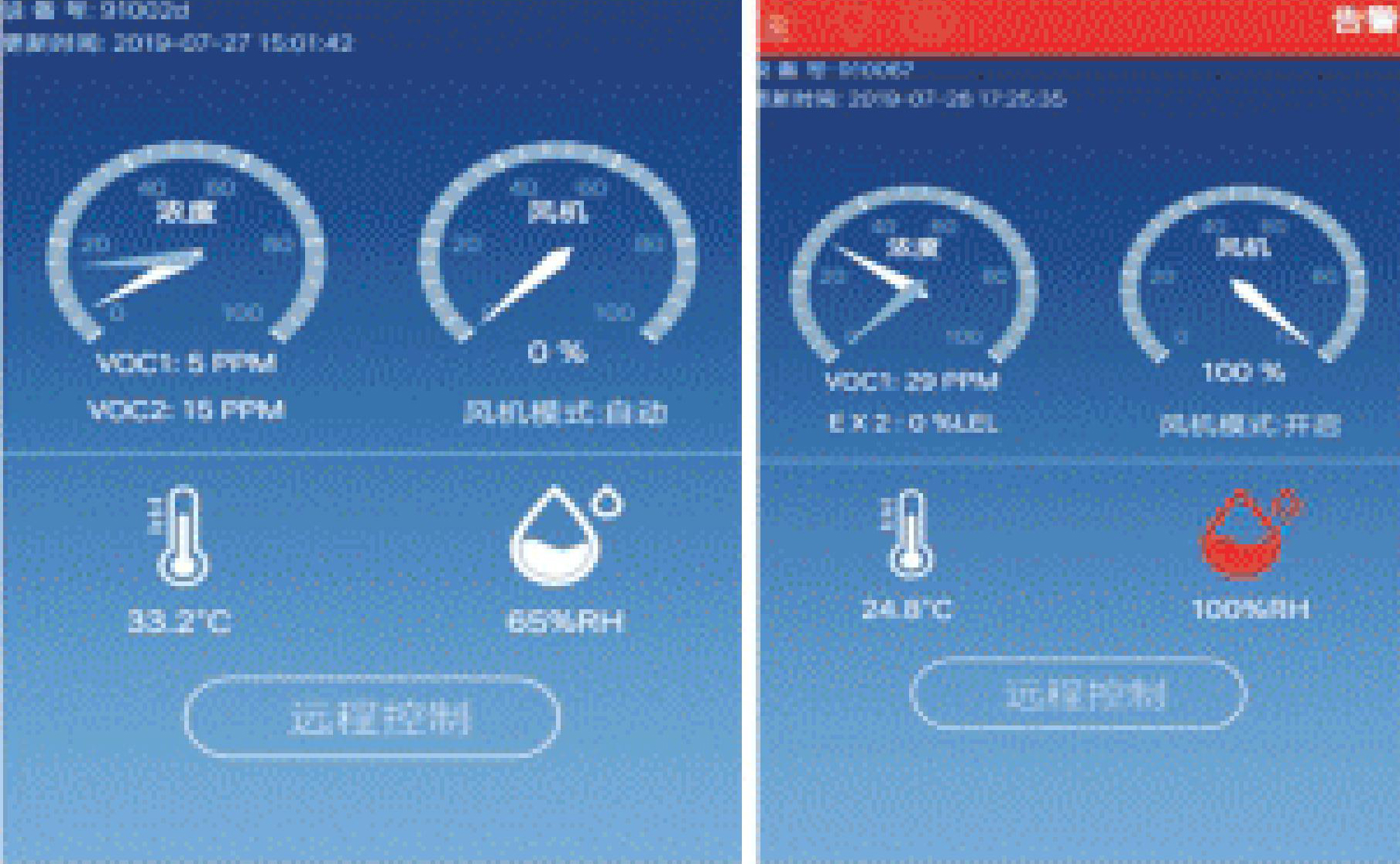

Remote control:

Support online viewing of temperature, humidity, VOC concentration and other values inside the storage cabinet through mobile phone and computer, and can be controlled remotely.

8.

Alarm automatic exhaust:

When the temperature, humidity and VOC concentration exceed the set value, the sound and light alarm will give an alarm and the automatic exhaust device will be activated to reduce the temperature, humidity and VOC concentration inside the storage cabinet in time. The alarm prompt information will be continuously sent to the laboratory management personnel and users (the number of users is not limited) within minutes, until the complete report status is lifted.

9.

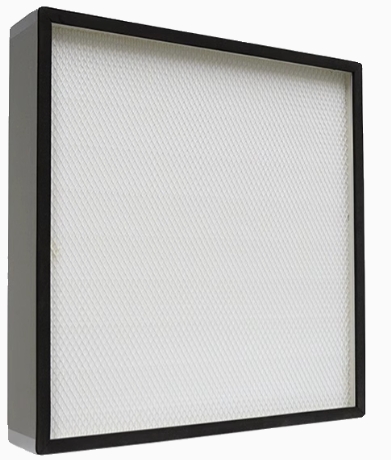

Filtration system:

The top has a built-in HEPA filter. For particles larger than 0.3um, the filtration rate reaches 99.995%. Ensure the occupational health of experimental personnel and reduce the environmental hazards caused by the efflux of harmful gases.

10. Optional filter type

Pre-Filter*1 (Standard)

Activated Carbon Filter*1 (Standard)

HEPA H14: HEPA filter (Optional)
