Combustible Storage Cabinet
Safeguard your workspace with our reliable combustible storage cabinet, designed to securely store combustible materials and ensure compliance with safety regulations. Built with durable, fire-resistant materials, this cabinet provides essential protection against fire hazards. Perfect for industrial settings, workshops, and laboratories, it helps you safely store combustible chemicals and materials, minimizing the risk of accidents. Easy to access and built to last, our combustible storage cabinet offers a practical solution for safe, organized storage while enhancing workplace safety.
Safety Cabinets store flammable liquids, corrosives, pesticides and other hazardous materials. All fire-resistant safety cabinets by meet fire codes and regulations for safety storage.
To help protect your people and facility from a potential fire, safety cabinets are engineered to safely contain flammable fuels, solvents, and chemicals. Safety cabinets can not only help everyone store chemicals reasonably, save chemical supplies, but also save human resources, and avoid fires caused by chemicals with the greatest strength
Product Details
Fire and explosion vent

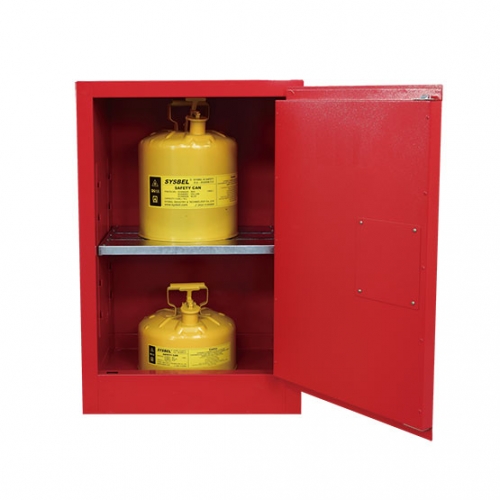

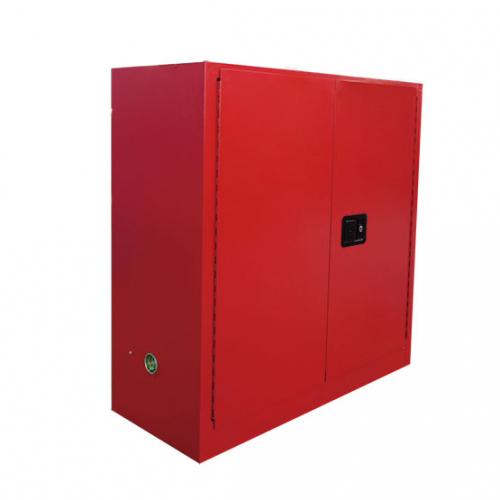

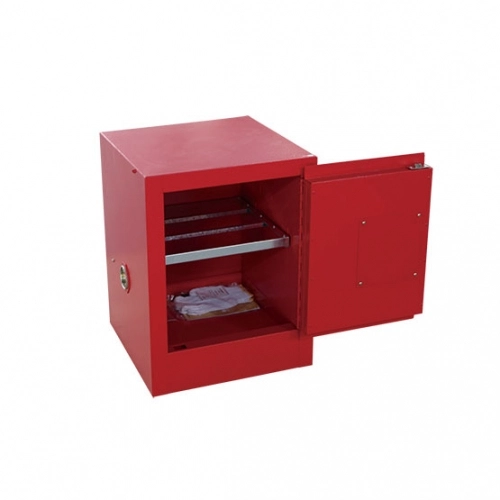

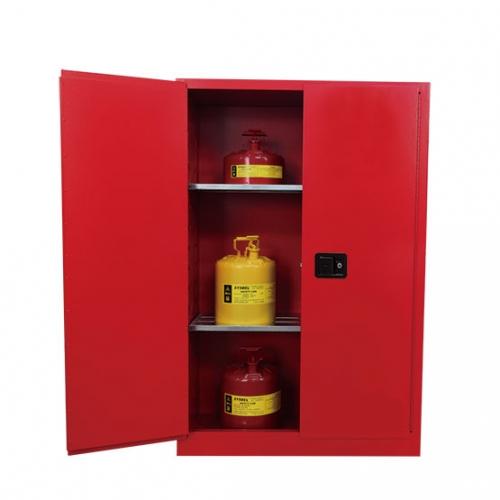

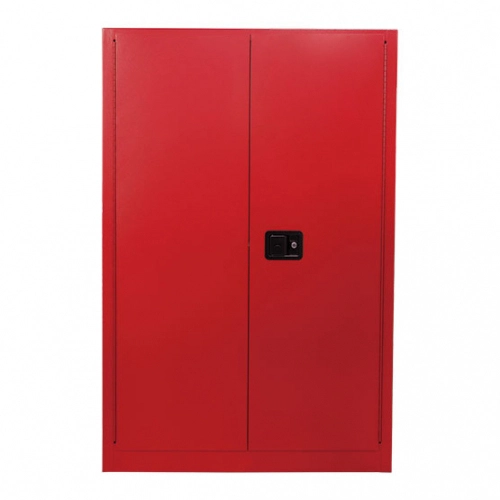

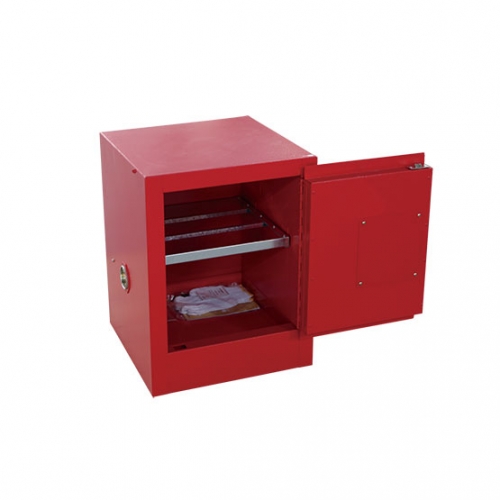

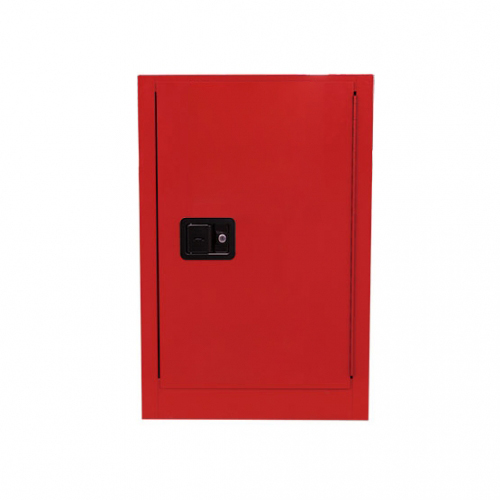

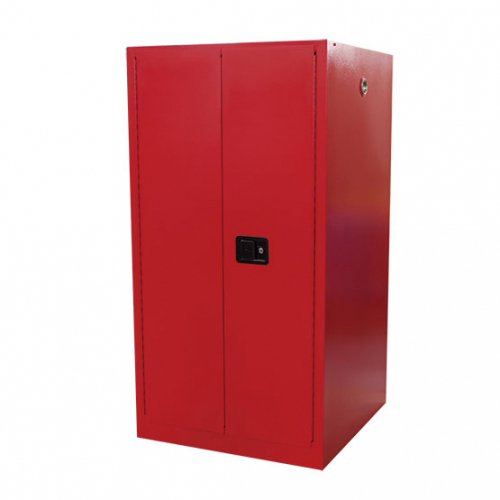

Combustible Storage Cabinets

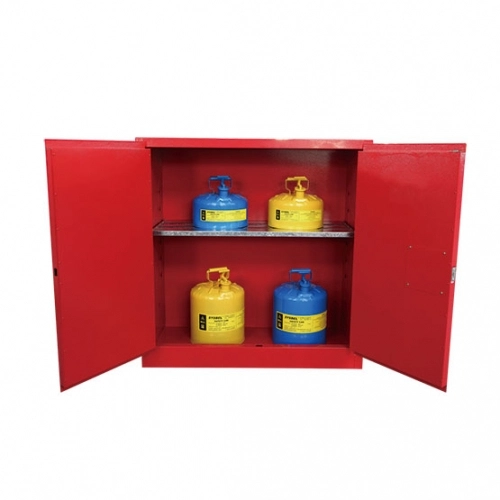

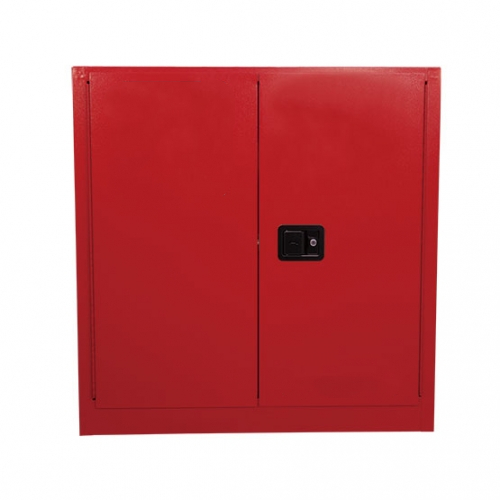

The red cabinet represents the professional storage of combustible liquids chemicals, easily separate and identify Class III combustibles using red safety cabinets.
*Storage substances: aerosols, inks, paints, coatings, dyes and other combustibles liquids and chemicals
CLASSIFICATION
Yellow stores flammable substances
Red stores combustible substances
Blue stores weakly corrosive substances
Green stores pesticide substances
Grey stores toxic substances
White stores strong corrosive substances
SPECIFICATION
(Yellow/Red/Blue/Green Cabinet, Grey and White cabinet is not included)
①The safety cabinet is constructed by double-wall 18 Ga (1.2-mm) steel sheet through spot welding, (38-mm) of insulating air space for fire resistance.
②Ventilation devices are set on the left and right sides to effectively reduce the concentration of volatile substances and prevent fire.
③Resin powder coating treatment, the surface is bright, dustproof, rustproof and moistureproof.

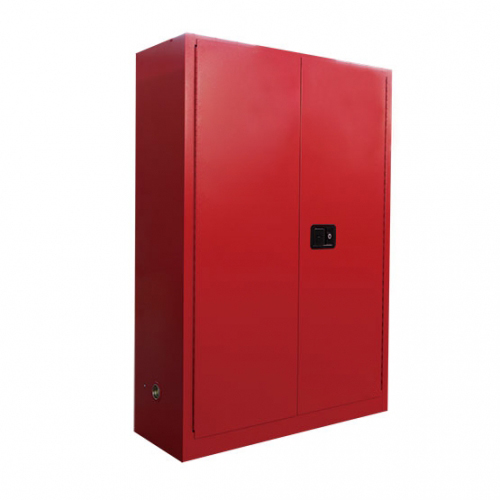

④The three-point linkage lock reduces friction or mechanical sparks and reduces static electricity accumulation.
⑤Cabinets feature a leakproof 2 in. (51-mm) bottom sump, dual vents with flame arresters.
⑥Galvanized steel shelves direct spills to back and bottom of a leakproof sump. They adjust on (80-mm) centers for versatile storage, the maximum load-bearing capacity of the shelf is 100kg, each shelf is 8cm apart.
⑦The continuous piano hinge makes the cabinet door close and open smoothly.
⑧The reflective warning labels are highly visible under fire conditions or during power outages when illuminated with a flashlight.
|
Model |
Volume |
Size(H*W*D)mm |
NO.Door |
Shelf Pcs |
|
|

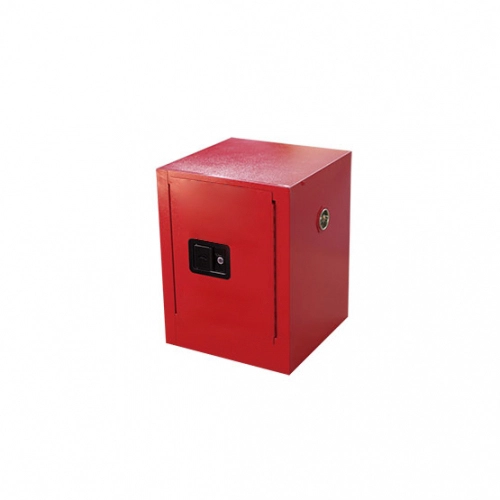

SC-01 |
15L/4 Gallons |
560*430*430 |
Single |
1 |
50Kg |
|
SC-02 |
38L/10 Gallons |
640*590*600 |
Single |
1 |
50Kg |
|

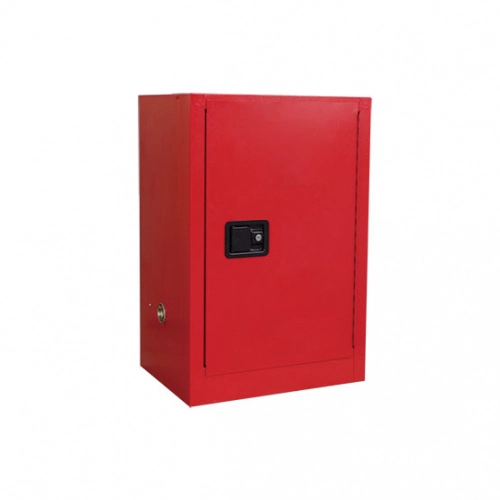

SC-03 |
45L/12 Gallons |
890*590*460 |
Single |
1 |
50Kg |
|
SC-04 |
83L/22 Gallons |
1650*600*460 |
Single |
3 |
50Kg |
|
890*890*560 |
Double |
1 |
50Kg |
||
|
SC-05 |
114L/30 Gallons |
1120*1090*460 |
Double |
1 |
50Kg |
|
SC-06 |
170L/45 Gallons |
1650*1090*460 |
Double |
2 |
100Kg |
|
SC-07 |
204L/54 Gallons |
1650*600*870 |
Single |
3 |
100Kg |
|

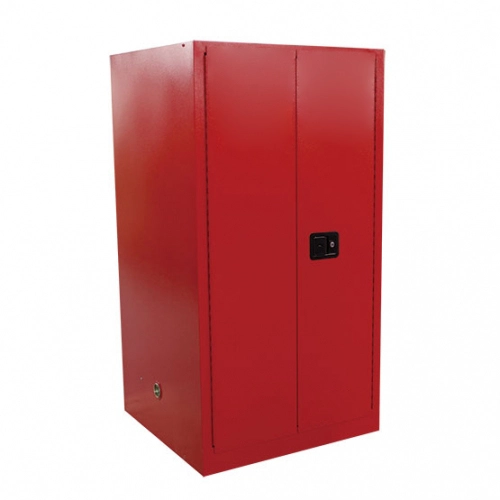

SC-08 |
227L/60 Gallons |
1650*860*860 |
Double |
2 |
100Kg |
|

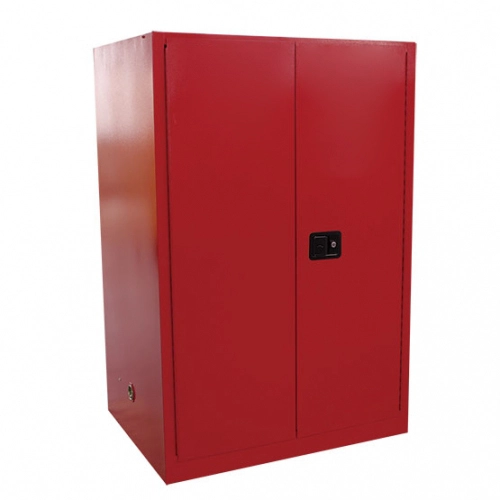

SC-09 |
340L/90 Gallons |
1650*1090*860 |
Double |
2 |
100Kg |
|
Yellow√ Red√ Blue√ Green√ |
|||||
