Class II Type A2 Biological Safety Cabinet for Laboratories – MAXLAB
The Class II A2 Biological Safety Cabinet is designed to provide superior biosafety and contamination control for laboratories, research facilities, and clinical settings. With 70% air recirculation and 30% air exhaust, this cabinet ensures a safe and efficient work environment while protecting both the user and the samples.
Equipped with advanced features like a HEPA filtration system, motorized front window, and ergonomic design, this cabinet is a must-have for safe and reliable biological research.
The Class II A2 Biological Safety Cabinet is designed to provide superior biosafety and contamination control for laboratories, research facilities, and clinical settings. With 70% air recirculation and 30% air exhaust, this cabinet ensures a safe and efficient work environment while protecting both the user and the samples.
Equipped with advanced features like a HEPA filtration system, motorized front window, and ergonomic design, this cabinet is a must-have for safe and reliable biological research.
Parameters
Key Features
| Motorized Front Window | Easy-to-use motorized control for adjusting the front window height. |
| Time Reserve Function | Ensures continuous operation even during power interruptions. |
| ULPA Filter Life and UV Life Indicator | Monitors filter and UV lamp lifespan for optimal performance. |
| Automatic Air Speed Adjustment | Adjusts air speed automatically in case of filter blockage. |
| Memory Function | Retains settings during power failures for uninterrupted workflow. |
| Audio and Visual Alarms | Alerts for abnormal airflow velocity, filter replacement, and unsafe window height. |
| Negative Pressure Work Area | Ensures maximum safety by surrounding the work area with negative pressure. |
| Remote Control | Allows easy operation of all cabinet functions. |
| Interlock Function | Ensures safety by interlocking the UV lamp, front window, blower, and LED lamp. |
| Foot Switch | Adjusts front window height during experiments to avoid airflow turbulence. |

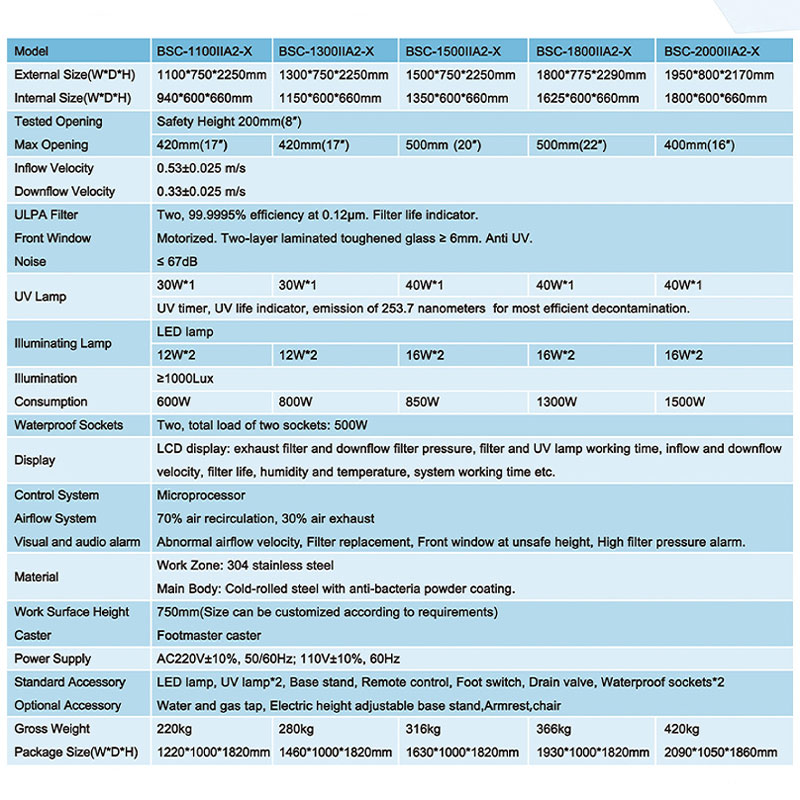

Technical Specifications
| External Size (WDH) | 11007502250 mm to 19508002170 mm (depending on model) |
| Internal Size (WDH) | 940600660 mm to 1800600660 mm (depending on model) |
| Inflow Velocity | 0.53±0.025 m/s |
| Downflow Velocity | 0.33±0.025 m/s |
| ULPA Filter | Two filters with 99.9995% efficiency at 0.12 μm |
| Front Window | Two-layer laminated toughened glass ≥ 6 mm, anti-UV |
| Noise Level | ≤ 67 dB |
| UV Lamp | 30W or 40W with UV timer and life indicator |
| Illuminating Lamp | LED lamp with ≥1000 lux illumination |
| Power Consumption | 600W to 1500W (depending on model) |
| Display | LCD display for filter pressure, airflow velocity, humidity, temperature, and more |
| Material | 304 stainless steel work zone, cold-rolled steel main body with anti-bacteria coating |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
Applications
Laboratories: Ideal for handling sensitive biological materials.
Research Facilities: Ensures contamination control and biosafety compliance.
Clinical Settings: Provides a sterile environment for medical research and sample handling.
Advantage
1. Motorized front window.
2. Timereserve function.
3. ULPA filter life and UV life indicator.
4. Automatic airspeed adjustable with filter block.
5. With memory function in case of power failure.
6. Audio and visual alarm (abnormal airflow velocity; filter replacement; front window at unsafe height; high filter pressure alarm).
7. Work area surrounded by negative pressure: it can ensure maximum safety in the work area.
8. Audio and visual alarm (filter replacement, window overheight, abnormal airflow velocity, etc.).
9. Remote control: All functions can be realized with it, making the operation much easier and more convenient.
10. Interlock function: UV lamp and front window; UV lamp and blower; LED lamp; blower and front window.
11. Foot switch: Adjust the front window height by foot during the experiment to avoid airflow turbulence caused by arm movement.
Why Choose Our Class II A2 Biological Safety Cabinet?
Advanced Filtration: HEPA filters ensure a sterile work environment.
User-Friendly Design: Motorized controls, remote operation, and ergonomic features.
Compliance: Meets stringent biosafety standards for safe and reliable operation.
