C-Frame Lab Bench | Durable Laboratory Workbench Solutions – MAXLAB
Our C-Frame Lab Bench offers a versatile, robust solution for laboratory workspaces. Designed with a durable C-frame structure, this bench provides superior stability and strength, allowing it to withstand heavy equipment and rigorous use. Made from high-quality steel or corrosion-resistant materials, it ensures long-lasting performance in demanding environments.
The open-frame design allows for easy access to utilities and maximizes under-bench storage, while its customizable layout supports efficient organization of lab tools and materials.Perfect for research institutions, educational labs, and industrial applications, the C-Frame Lab Bench is built to support a wide range of scientific tasks in a safe, clean, and organized environment.
The C-Frame Lab Bench is supported by an independent steel frame, connecting the upper and lower cabinet units and the countertop. Simple structure, flexible and changeable, can be combined freely.

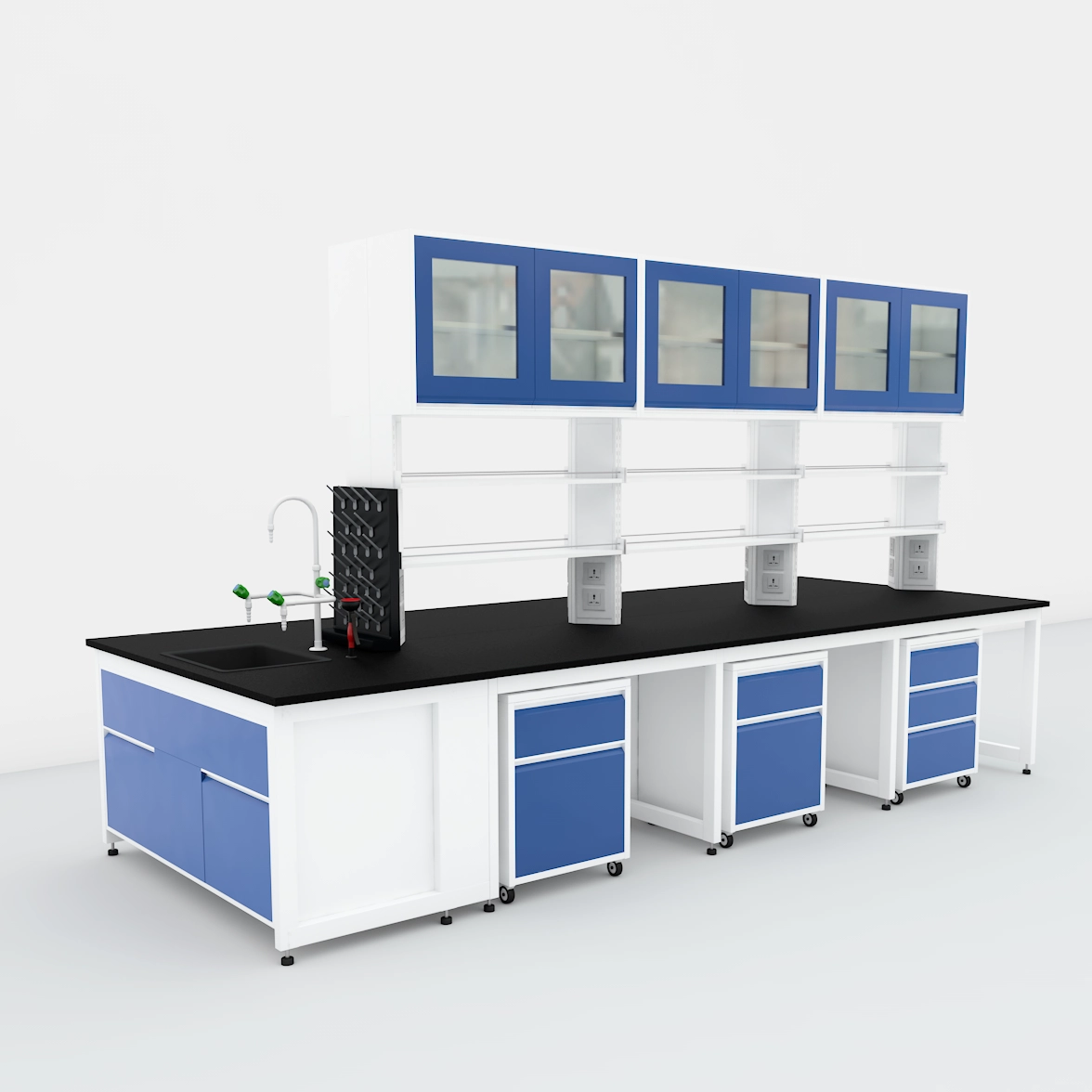

The C-Frame structure can be selected without a cabinet, with a suspended cabinet, or with a mobile cabinet structure; it has good moisture resistance and is easy to install and disassemble. After installation, the upper and lower cabinet units can be moved, added, or removed according to laboratory needs without affecting other parts of the bench system. With the primary shock absorption function, the load-bearing capacity can reach more than 250 kg/m².
Specification
1. Countertops
(1) Phenolic Resin countertop: 12.7 mm (edge thickened to 25.4 mm)/16/19/25 mm thickness
(2) Epoxy Resin countertop: 15/16/19/25 mm thickness
(3) Ceramic countertop: 15/20 mm thickness
(4) Trespa countertop: 13/16/20 mm thickness
(5) Granite/Marble countertop: 20 mm thickness

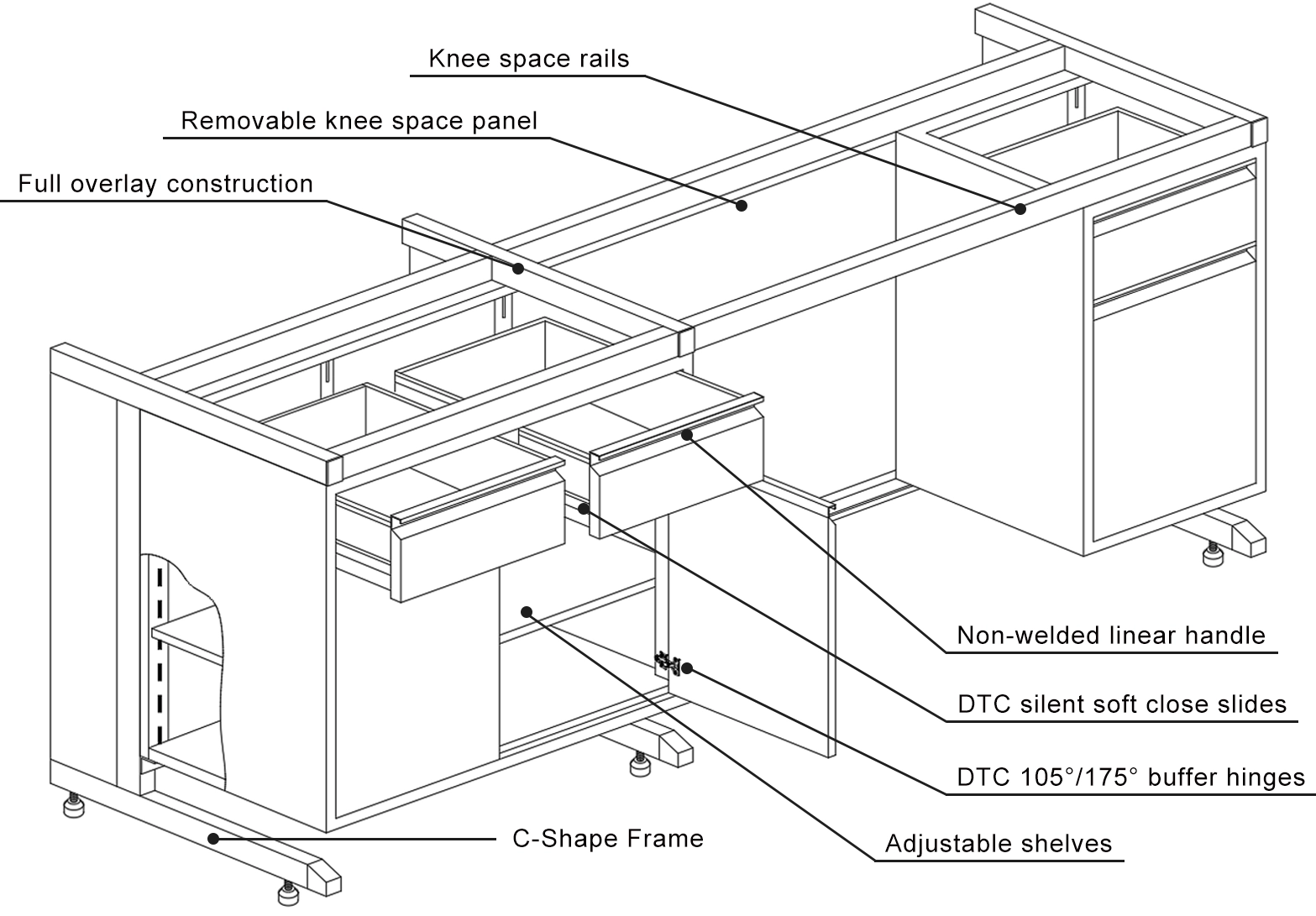

2. Frame & Accessories
(1) Frame: The entire structure is made of 40*60 mm, 1.5 mm thick, high-quality cold-rolled square tubes. The surface undergoes grinding, polishing, rust removal, phosphating, and other processes, followed by epoxy resin electrostatic powder coating and high-temperature curing at 220°C, resulting in a smooth, corrosion-resistant finish.
(2) Handles: Non-welded linear handle/C-shaped stainless steel handle/Insertion aluminum handle.
(3) Slides: DTC silent self-closing slides.
(4) Hinges: DTC 105°/175° self-closing hinges/stainless steel self-closing hinges.
(5) Feet: Use laboratory-specific adjustable feet with an adjustment range of ≥35 mm and strong bearing capacity; the balance of the lab bench can be adjusted.
3. Option Cabinet Units
①Wooden Cabinet Units:
The cabinet body is made of 15mm thick, the door panels and drawer fronts are 18mm thick high-quality, eco-friendly double-faced MDF/melamine board. The edges are sealed with 2 mm thick PVC edging, ensuring firm and straight sealing.
② Steel Cabinet Units:
The entire structure is made of high-quality cold-rolled steel sheet with a full thickness of 1.0 mm. The steel surface undergoes grinding, polishing, rust removal, phosphating, and other processes, followed by epoxy resin electrostatic powder coating and high-temperature curing at 220°C, resulting in a smooth, corrosion-resistant surface with a thickness of 1.15 mm to 1.2 mm. The door is a double-layer structure with soundproofing material filled inside.
Advantages
- Modern design and unique structure.
- Simple and flexible design, allowing for free combinations.
- No cabinet, suspended cabinet, and mobile cabinet structure can be selected.
- Easy to clean, with sufficient space between the cabinets and the floor.
- Provides more knee and legroom.
- Excellent moisture resistance.
- Highly stable, capable of supporting over 250 kg/m².
- Cabinet units can be moved, added, or removed as needed without affecting the rest of the workstation system.
- The C-frame lab bench not only has a unique design and structure, but also its production process is very particular. The high-quality rectangle steel is further processed, and the anti-corrosion performance is improved after the other steel has undergone professional chemical rust removal treatment. In addition, the cabinet body of the entire lab bench is mainly through the three-in-one connection structure, which ensures the good load-bearing performance of the test bench during use and increases the practical performance.
Standard Dimensions
|
Product |
Dimensions (Length*Depth*Height) |
|

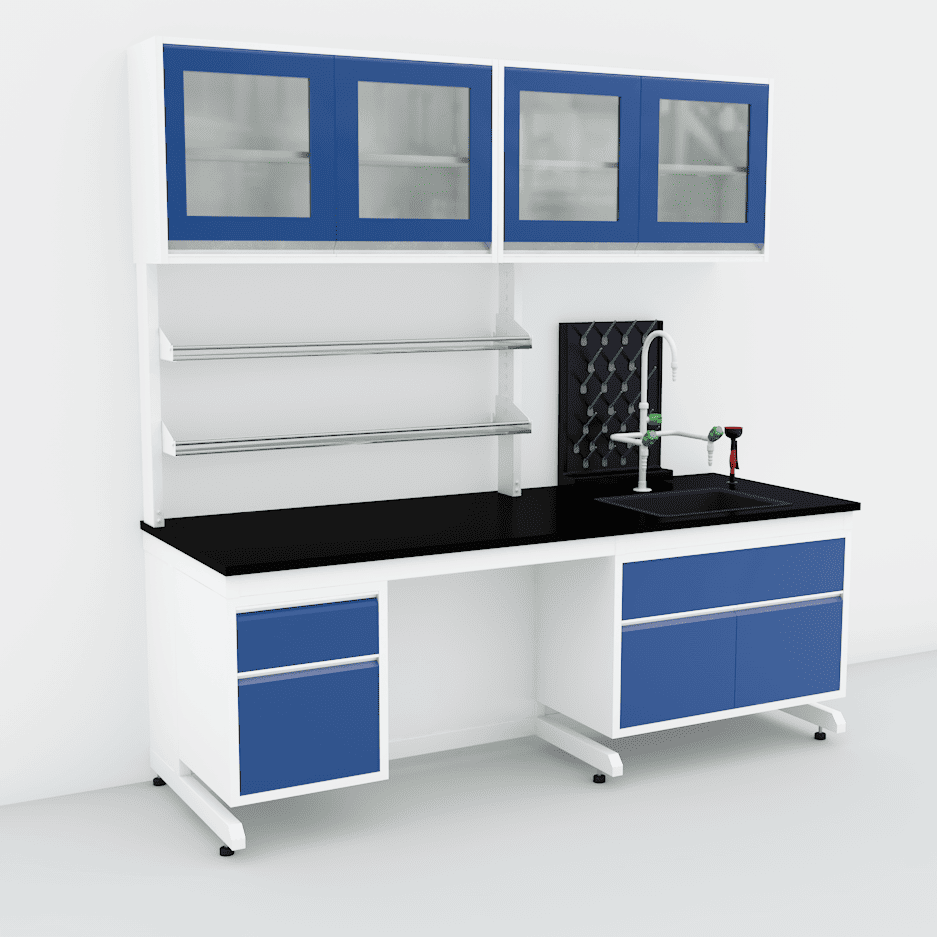

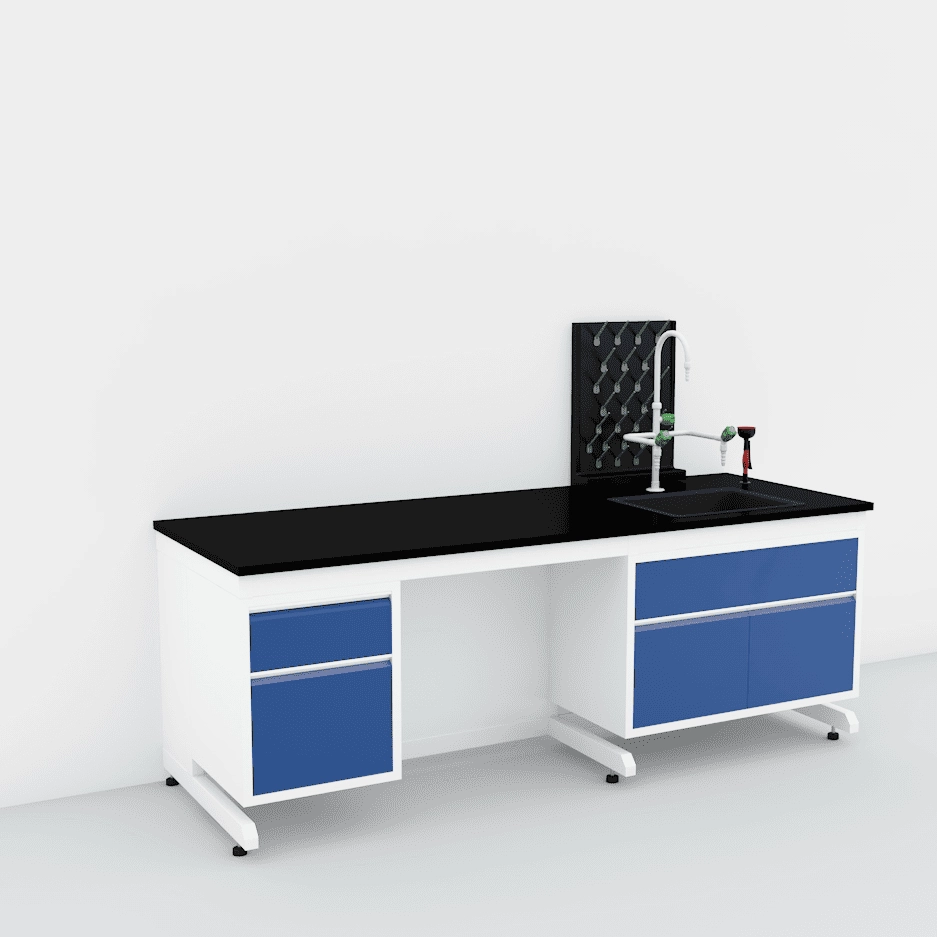

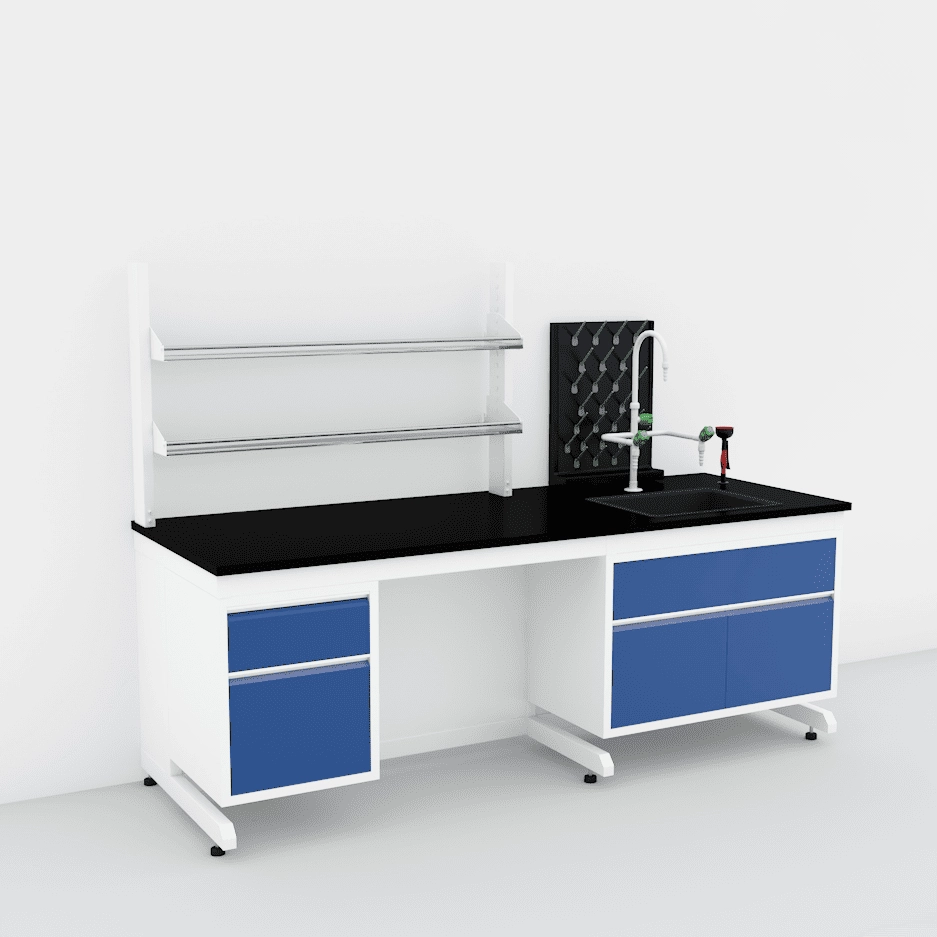

C-Frame Wall Bench |
1000*750*850 mm/Customize 3.28x2.46'x2.78'/Customize |
|

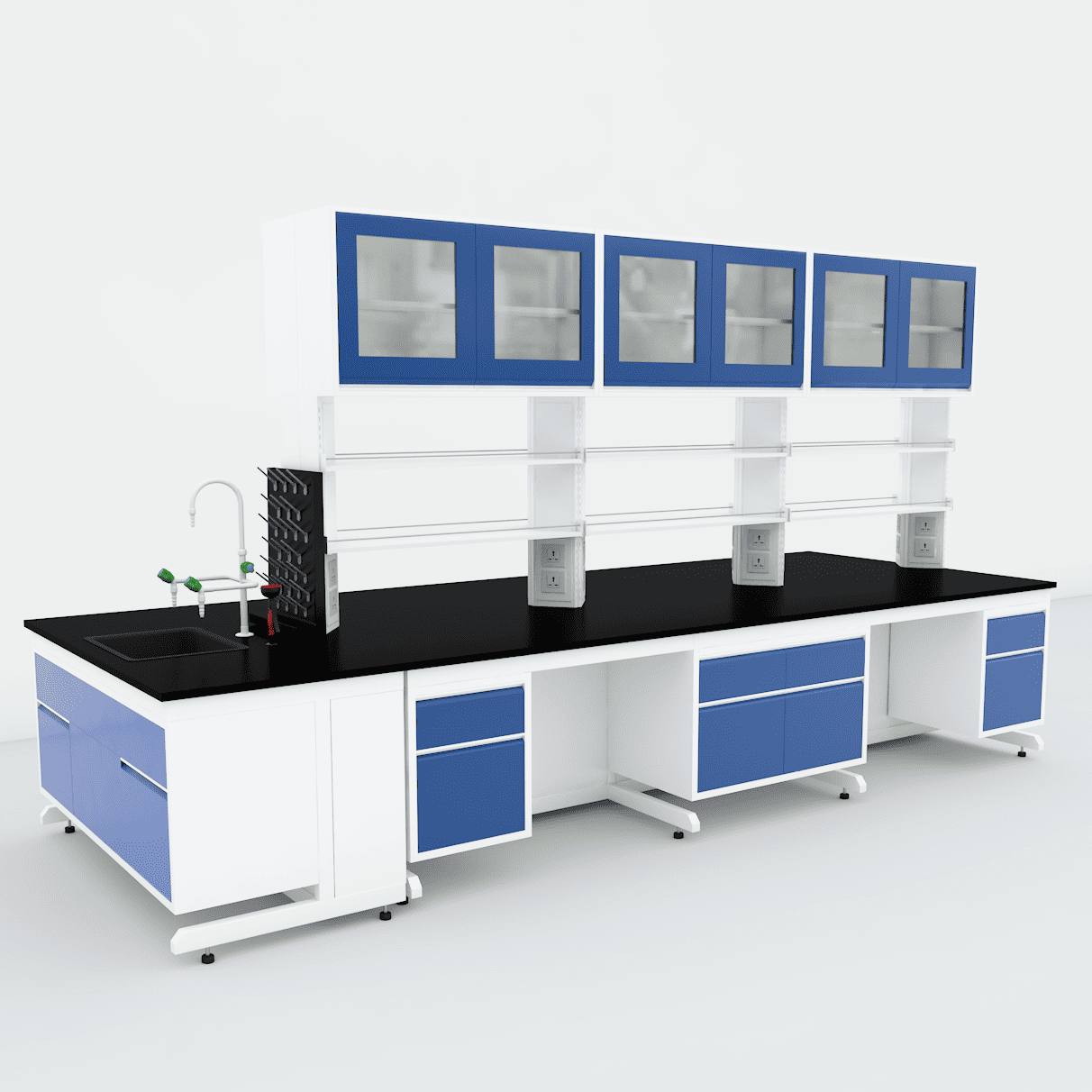

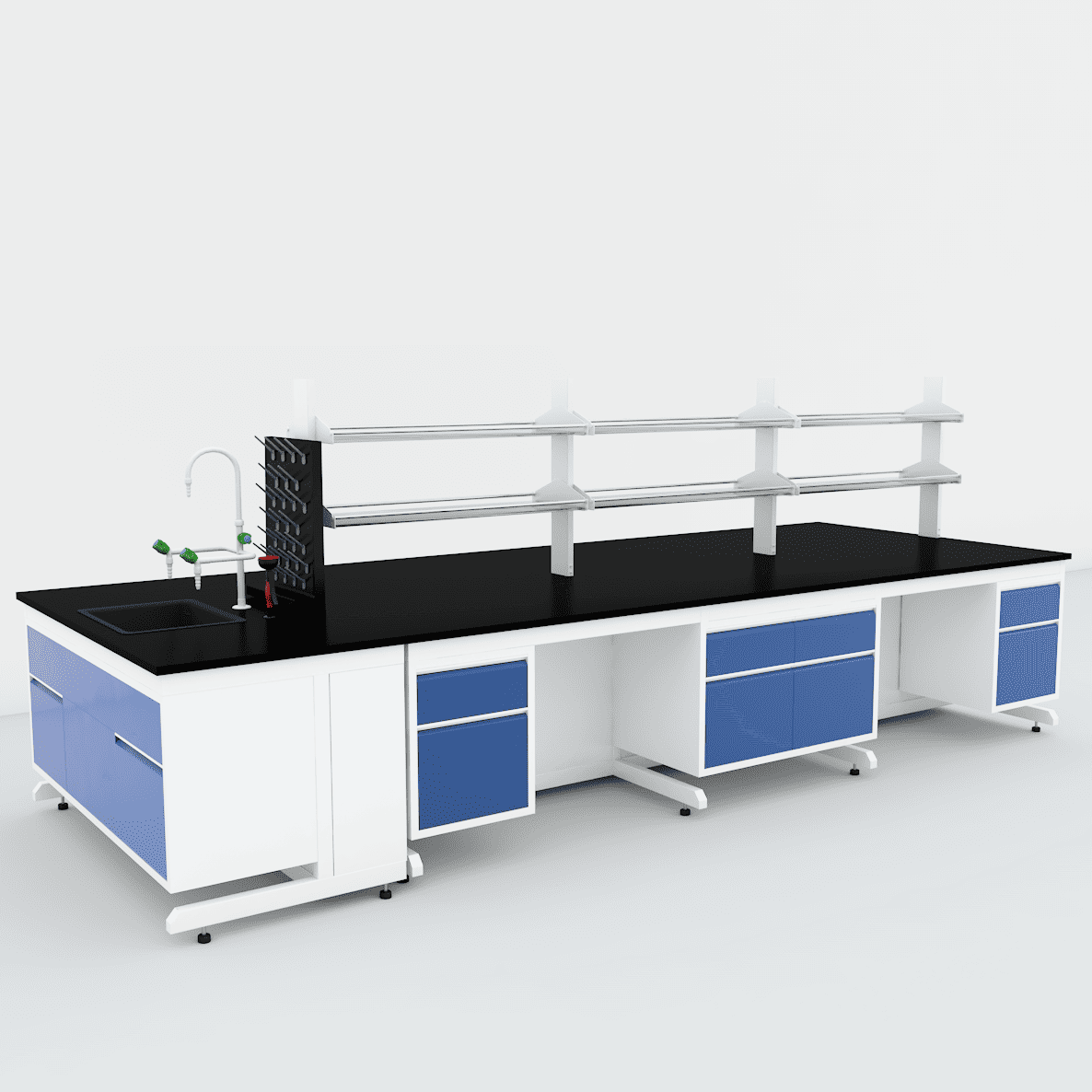

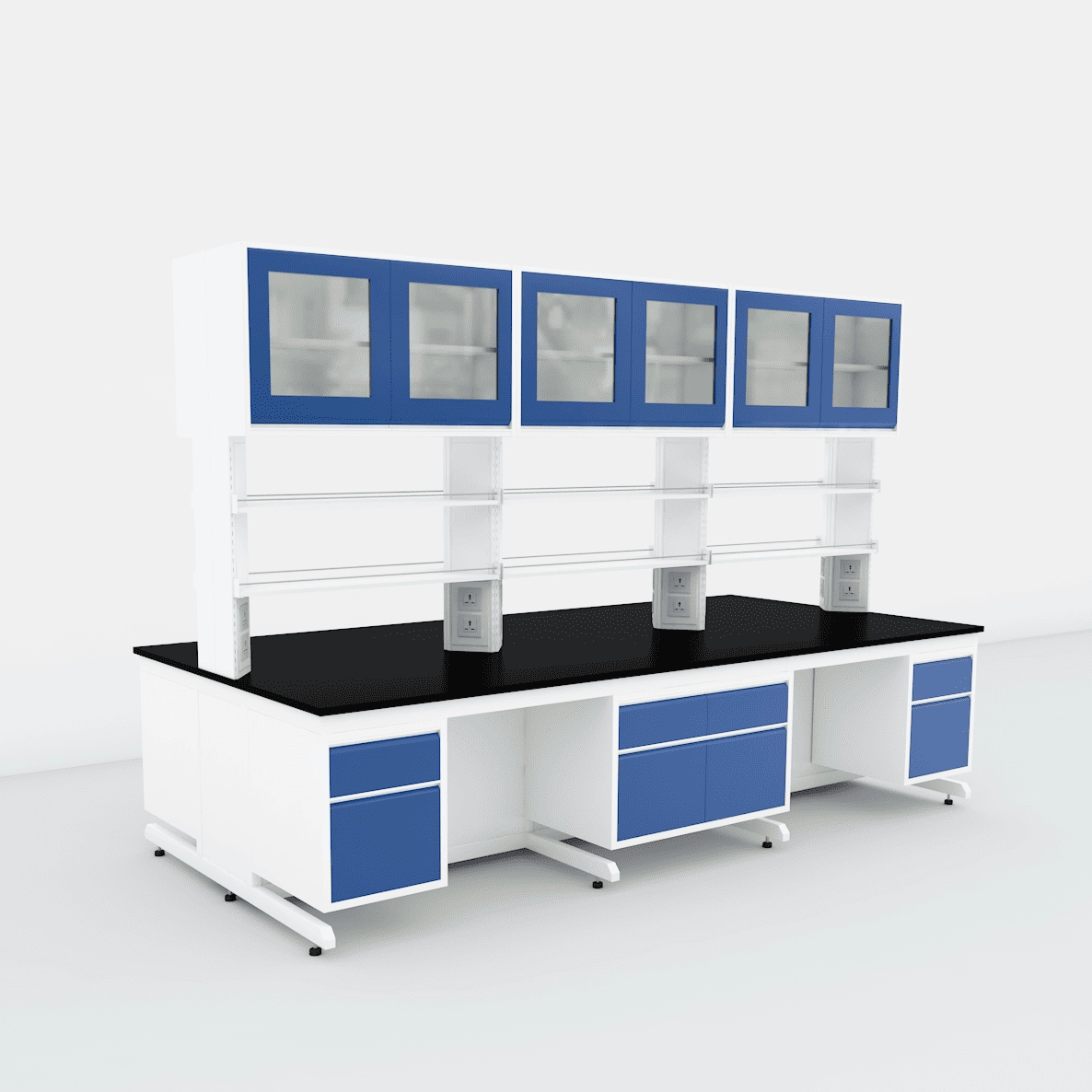

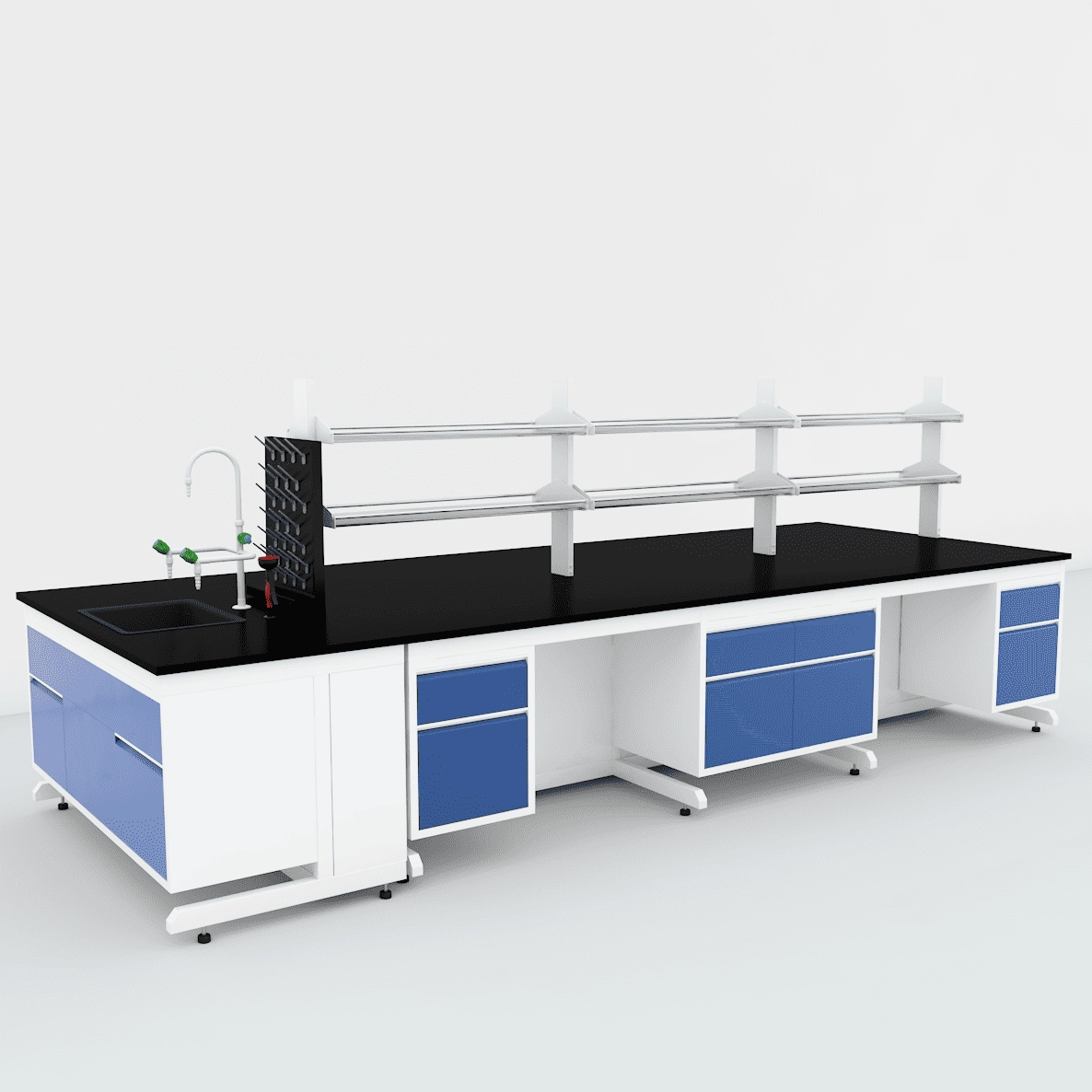

C-Frame Island Bench |
1000*1500*850 mm/Customize 3.28x4.92'x2.78'/Customize) |
|
C-Frame Corner Bench |
1000*1000*850mm/Customize 3.28'x3.28'x3.28'/Customize |
Product Type

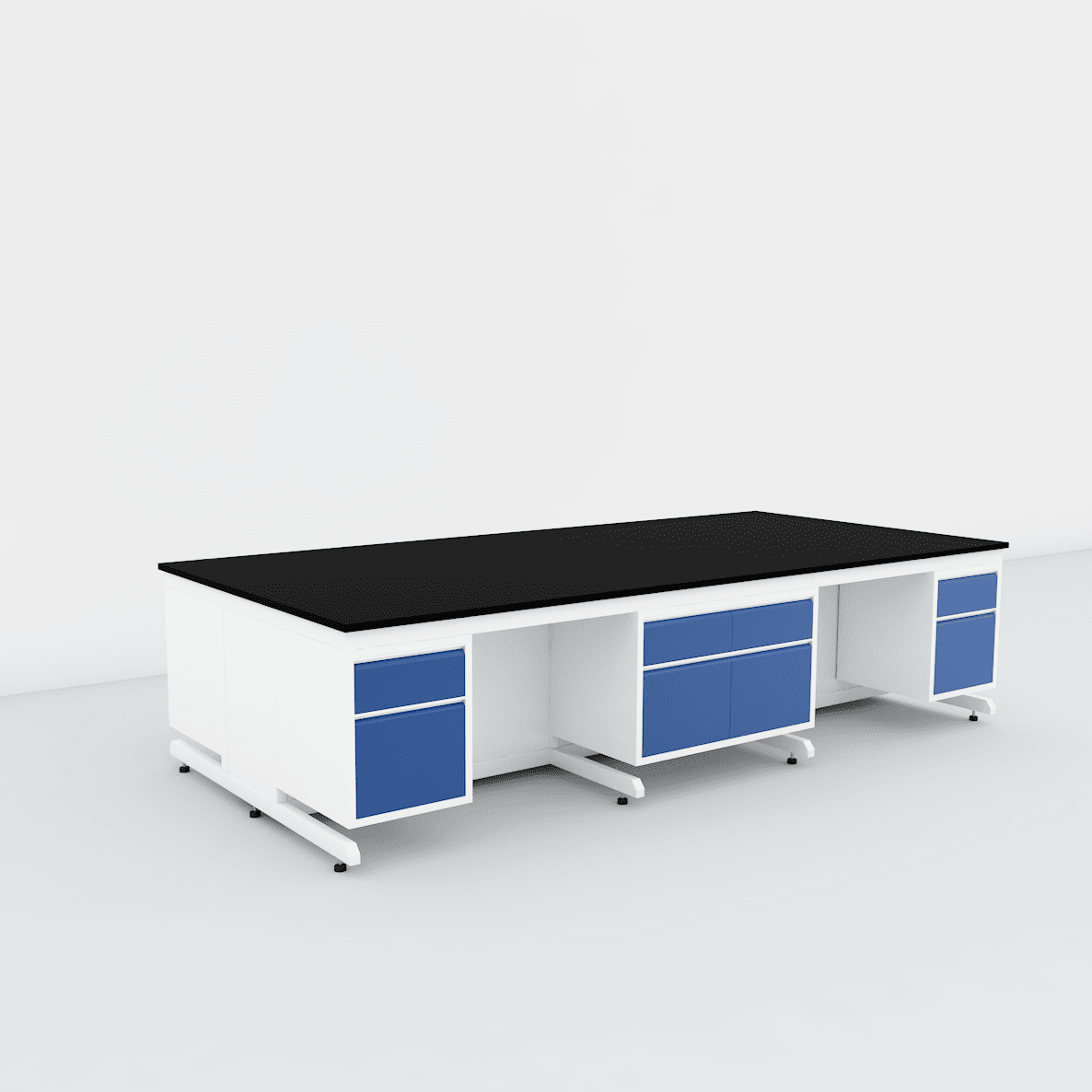

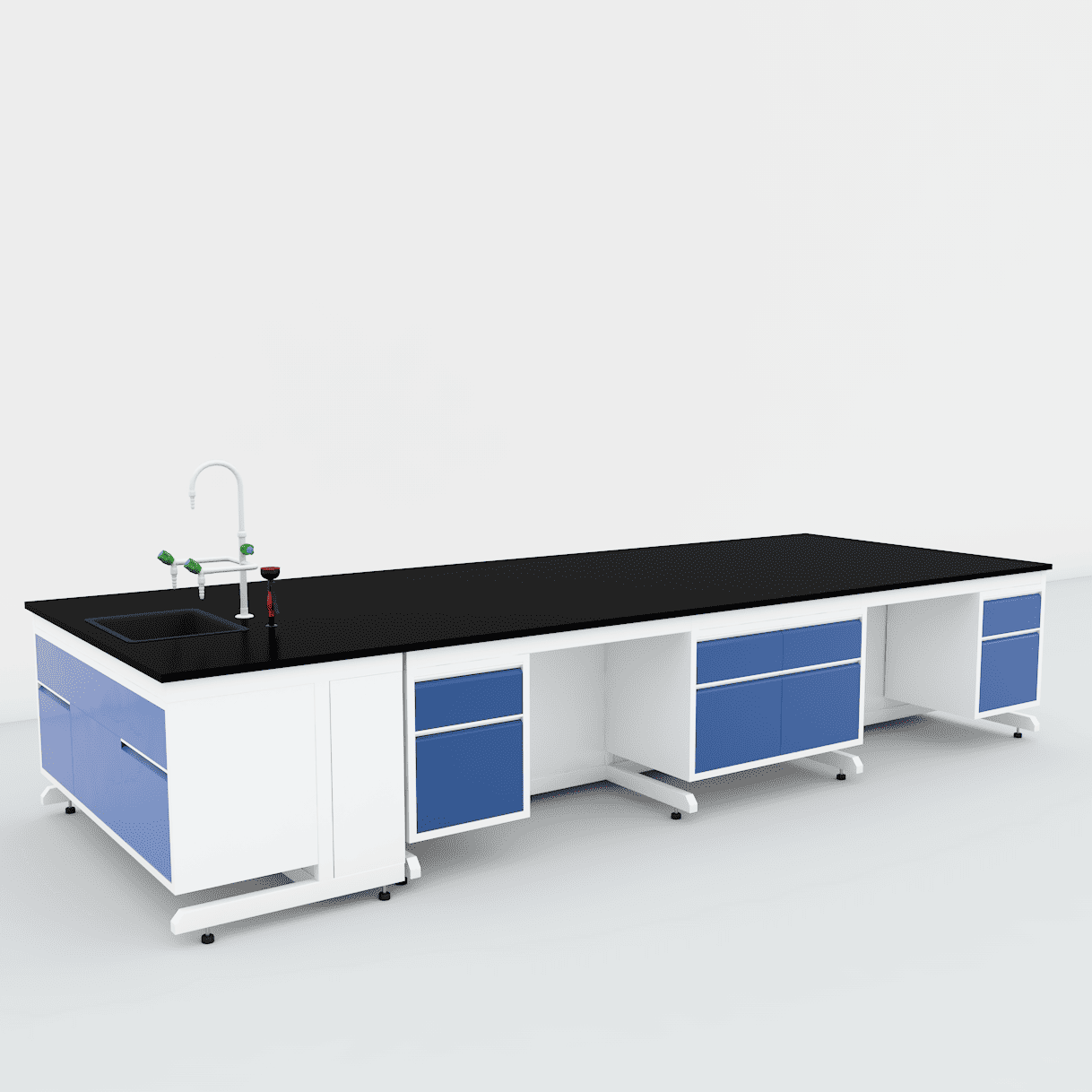

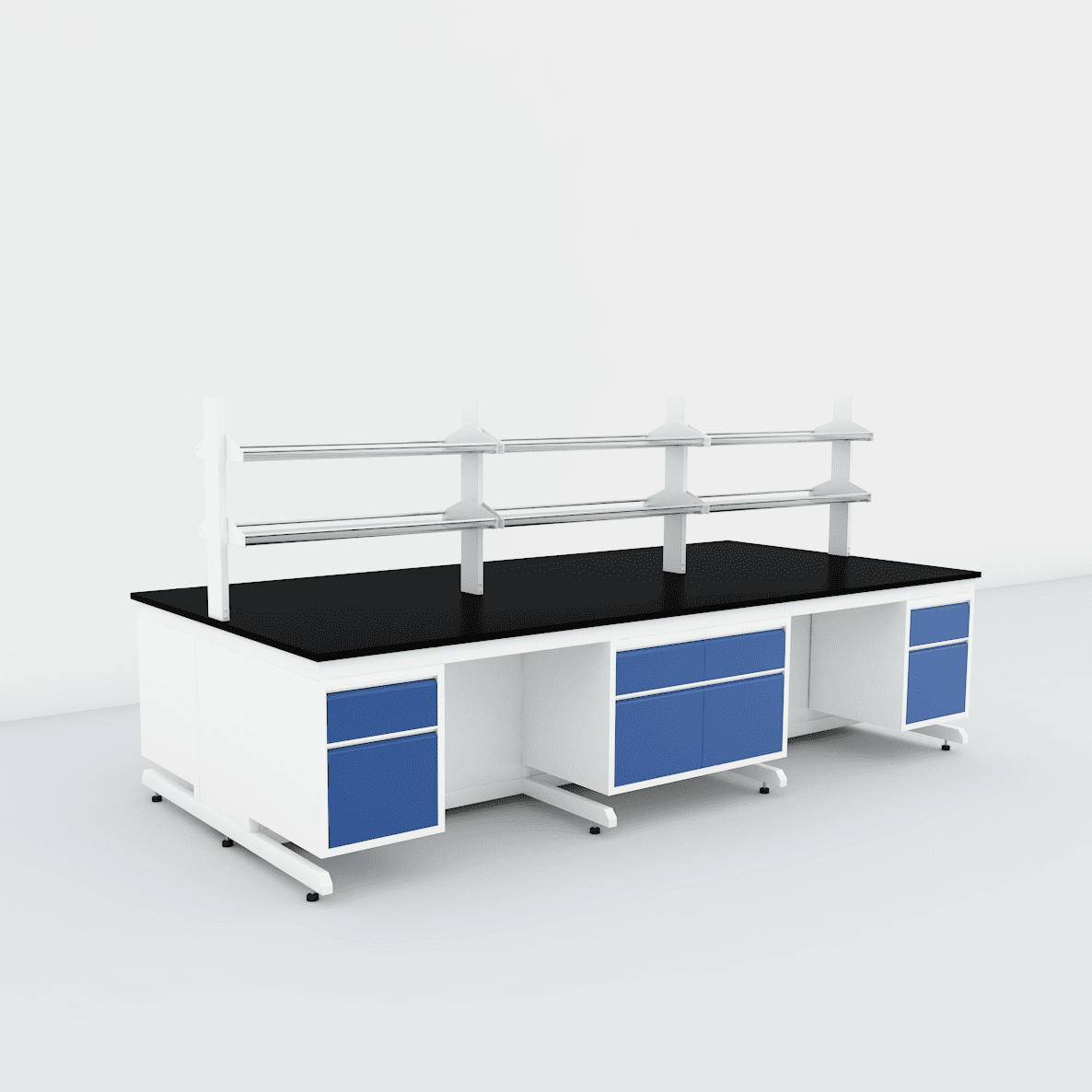

C-Frame Island Bench

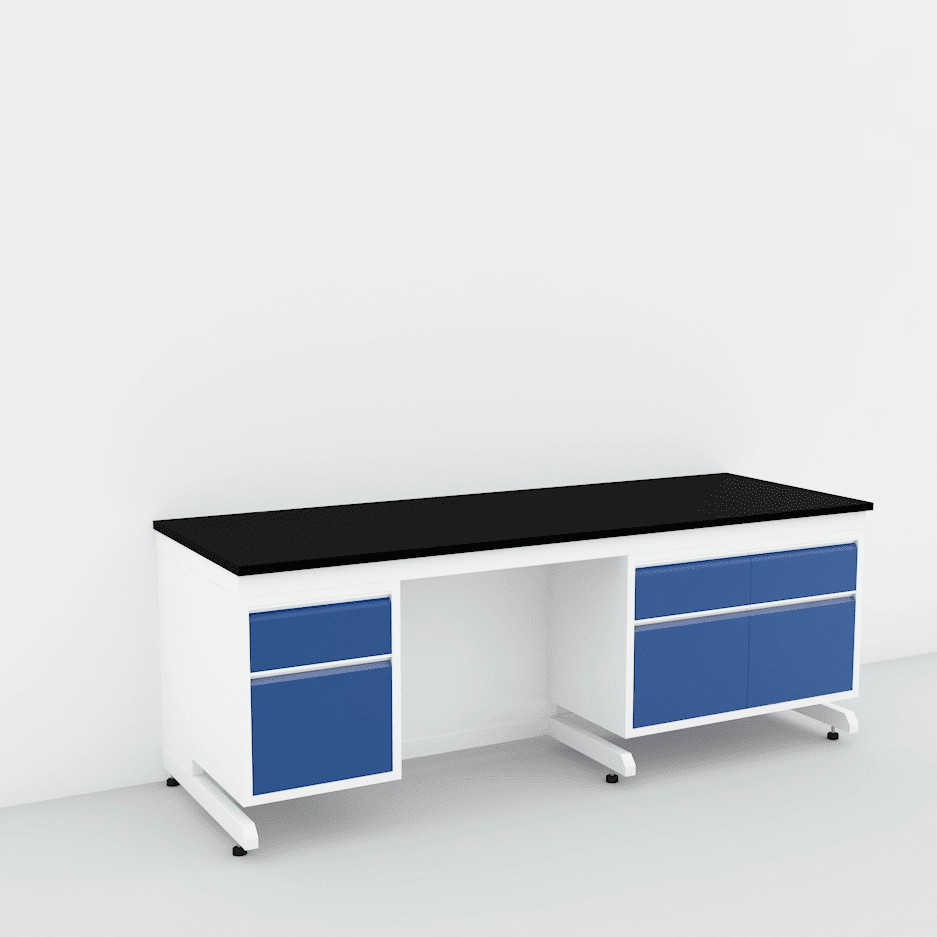

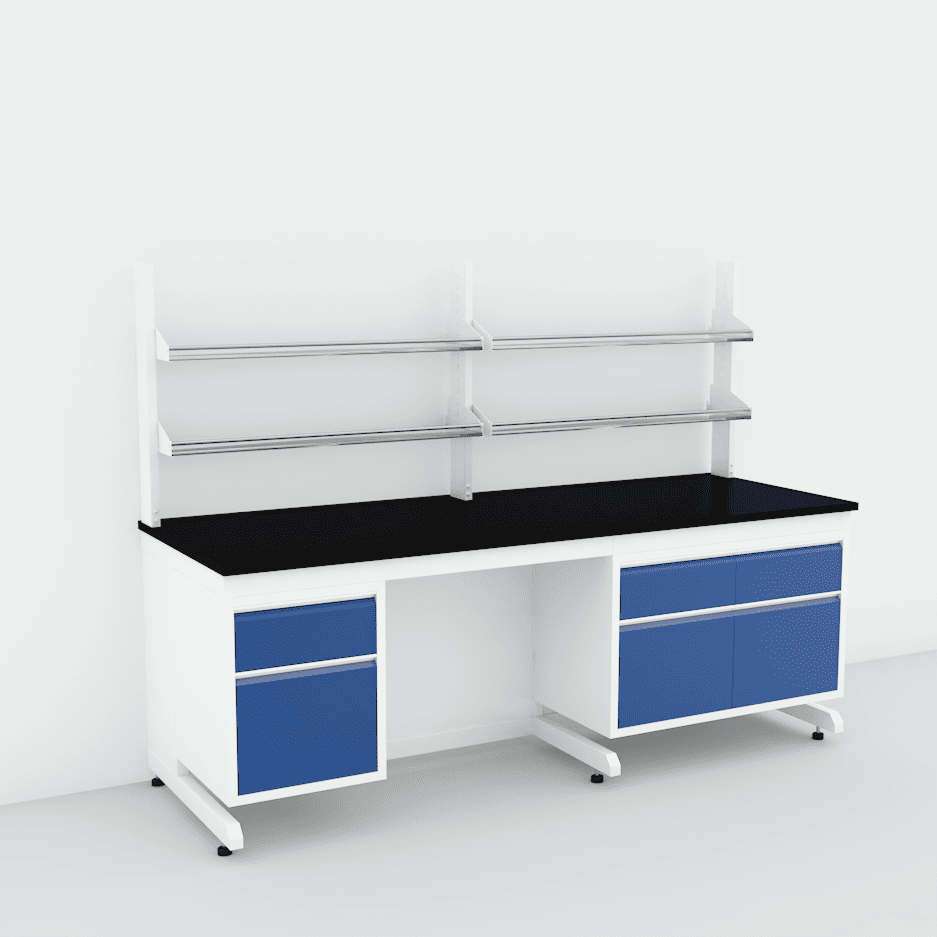

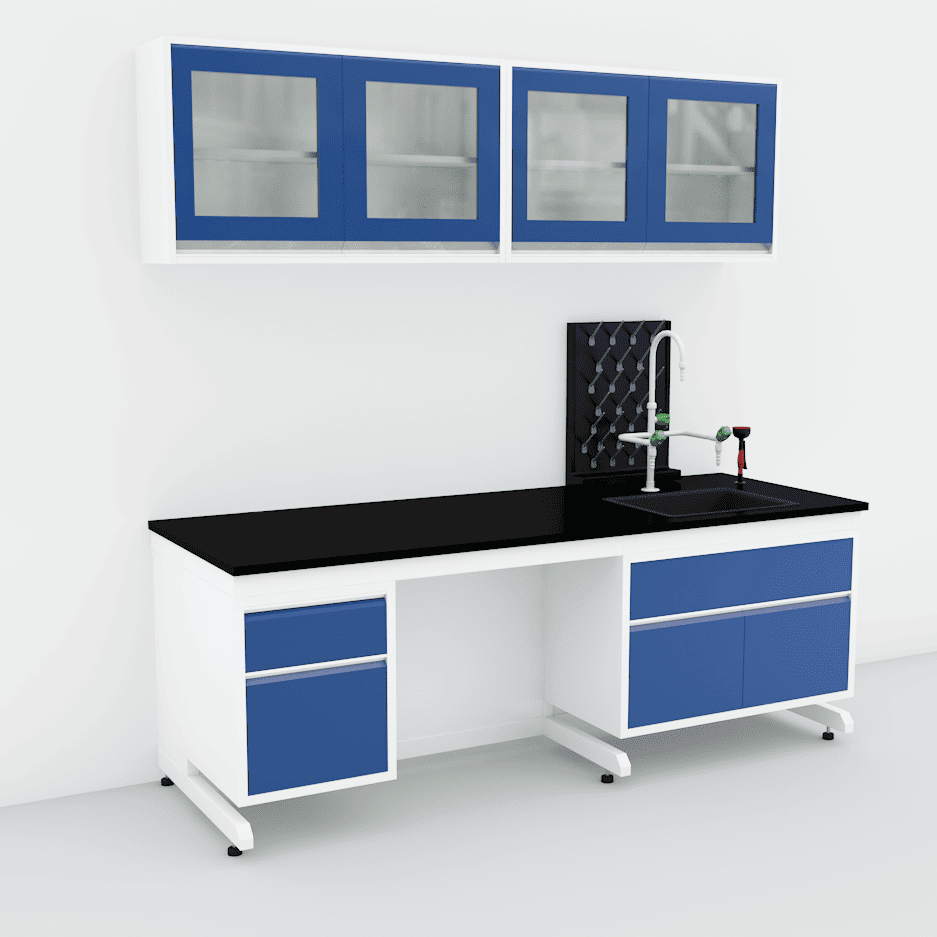

C-Frame Wall Bench
