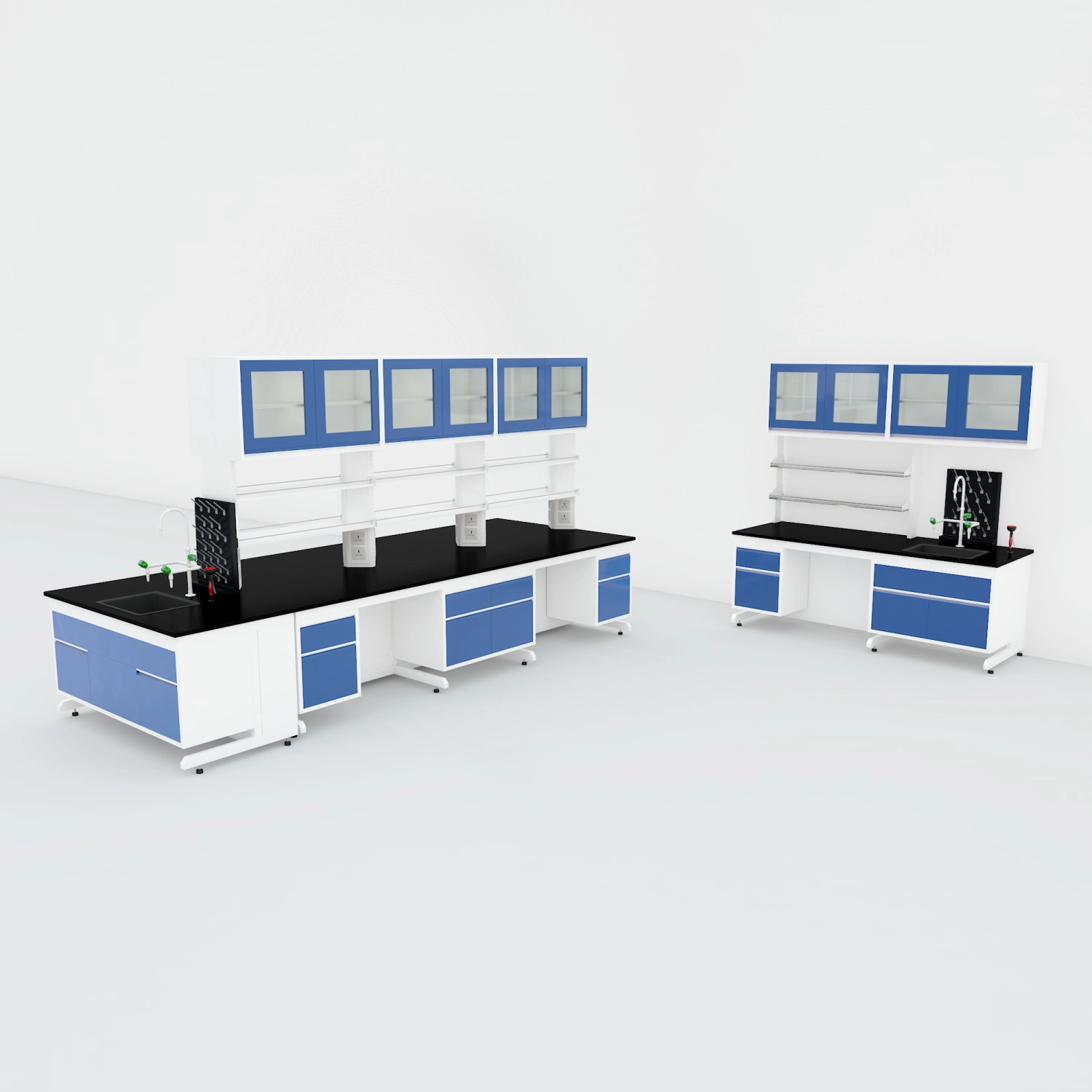

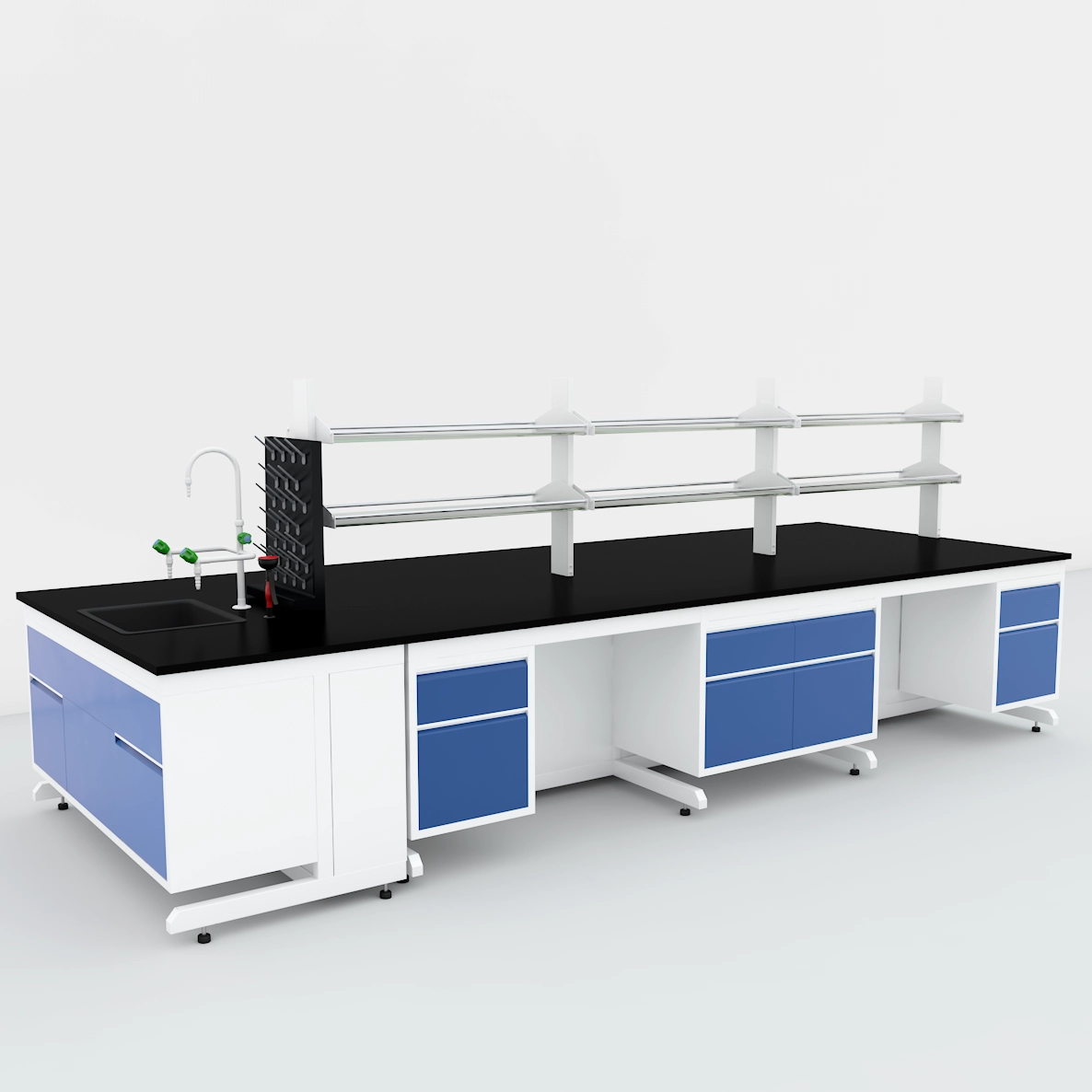

C-Frame Lab Bench
Our C-Frame Lab Bench offers a versatile, robust solution for laboratory workspaces. Designed with a durable C-frame structure, this bench provides superior stability and strength, allowing it to withstand heavy equipment and rigorous use. Made from high-quality steel or corrosion-resistant materials, it ensures long-lasting performance in demanding environments. The open-frame design allows for easy access to utilities and maximizes under-bench storage, while its customizable layout supports efficient organization of lab tools and materials. Perfect for research institutions, educational labs, and industrial applications, the C-Frame Lab Bench is built to support a wide range of scientific tasks in a safe, clean, and organized environment.

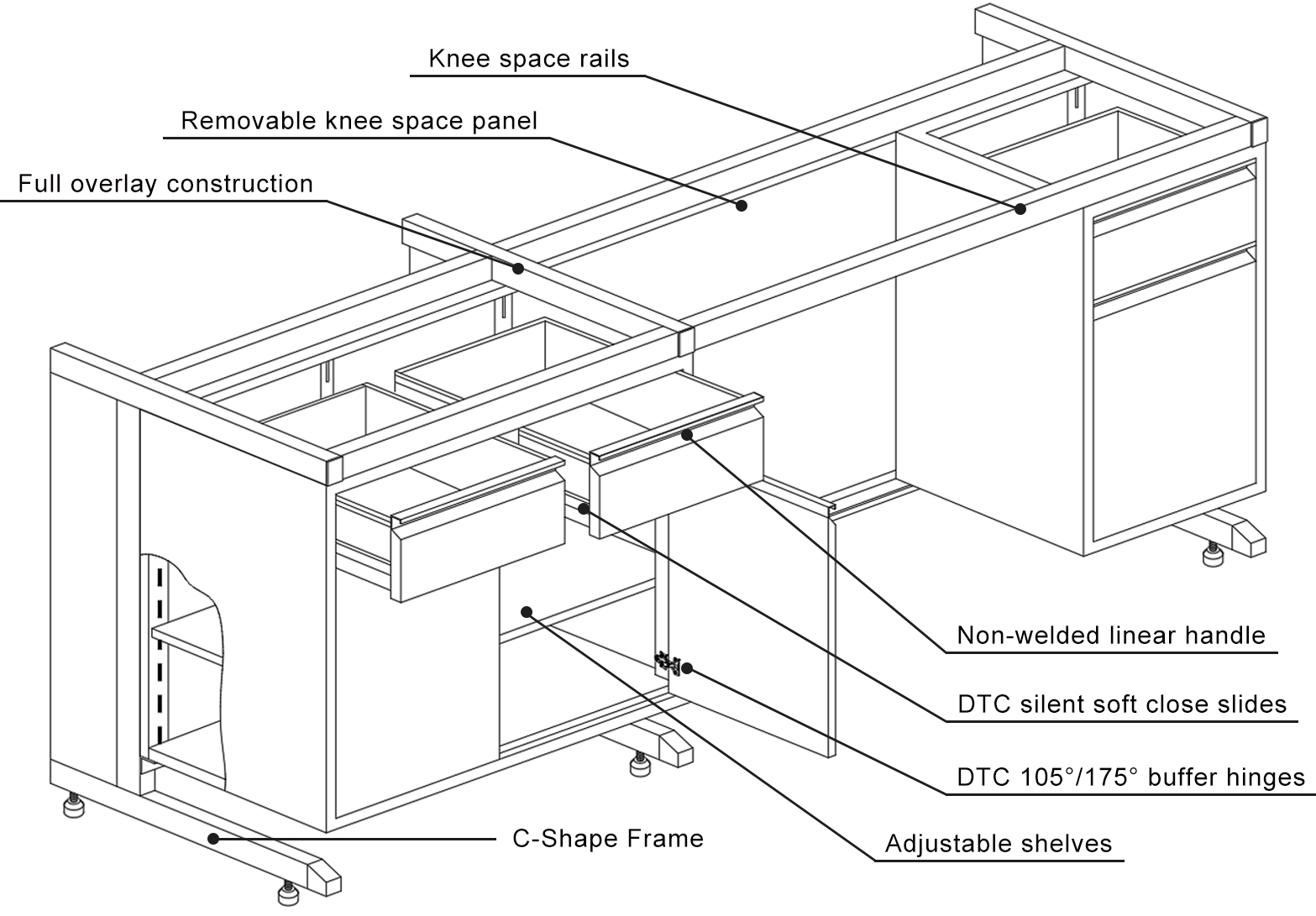

The C-Frame Lab Bench is supported by an independent steel frame, connecting the upper and lower cabinet units and the countertop. Simple structure, flexible and changeable, can be combined freely.
The C-Frame structure can be selected without cabinet, suspended cabinet and mobile cabinet structure, good moisture resistance, easy installation and disassembly. After installation, the upper and lower cabinet units can be moved, added or removed according to laboratory needs without affecting other parts of the bench system. With primary shock absorption function, the load-bearing capacity can reach more than 250KG/m².
Product Details
Cabinet
The entire structure is made of high-quality cold-rolled steel sheet with a full thickness of 1.0mm. The steel surface undergoes grinding, polishing, rust removal, phosphating, and other processes, followed by epoxy resin electrostatic powder coating and high-temperature curing at 220°C, resulting in a smooth, corrosion-resistant surface with a thickness of 1.15mm to 1.2mm.The doors is double-layer structure with soundproofing material filled inside.
C-Frame Lab Bench
SPECIFICATION
1. Countertops
(1) Phenolic Resin countertop: 12.7mm(Edge thicken to 25.4mm)/16/19/25mm thickness
(2) Epoxy Resin countertop: 15/16/19/25mm thickness
(3) Ceramic countertop: 15/20mm thickness
(4) Trespa countertop: 13/16/20mm thickness
(5) Granite/Marble countertop: 20mm thickness
2. Frame&Accessories
(1) Frame: The entire structure is made of 40*60mm, 1.5mm thick high-quality cold-rolled square tubes. The surface undergoes grinding, polishing, rust removal, phosphating, and other processes, followed by epoxy resin electrostatic powder coating and high-temperature curing at 220°C, resulting in a smooth, corrosion-resistant finish.
(2) Handles: Non-welded linear handle/C-shaped stainless steel handle/Insertion Aluminum handle.
(3) Slides: DTC silent self-closing slides.
(4) Hinges: DTC 105°/175° self-closing hinges/Stainless steel self-closing hinges.
(5) Feet: Use laboratory-specific adjustable feet with an adjustment range of ≥35mm, strong bearing capacity, the balance of the lab bench can be adjusted.
3. Option Cabinet Units
①Wooden Cabinet Units:
The cabinet body is made of 15mm thick, the door panels and drawer fronts are 18mm thick high-quality, eco-friendly double-faced MDF/melamine board.The edges are sealed with 2mm thick PVC edging, ensuring firm and straight sealing.
②Steel Cabinet Units:
The entire structure is made of high-quality cold-rolled steel sheet with a full thickness of 1.0mm. The steel surface undergoes grinding, polishing, rust removal, phosphating, and other processes, followed by epoxy resin electrostatic powder coating and high-temperature curing at 220°C, resulting in a smooth, corrosion-resistant surface with a thickness of 1.15mm to 1.2mm.The doors is double-layer structure with soundproofing material filled inside.
Standard Dimensions
|
Product |
Dimensions (Length*Depth*Height) |
|
C-Frame Wall Bench |
1000*750*850mm/Customize 3.28x2.46'x2.78'/Customize |
|
C-Frame Island Bench |
1000*1500*850mm/Customize 3.28x4.92'x2.78'/Customize) |
|
C-Frame Corner Bench |
1000*1000*850mm/Customize 3.28x3.28'x3.28'/Customize |

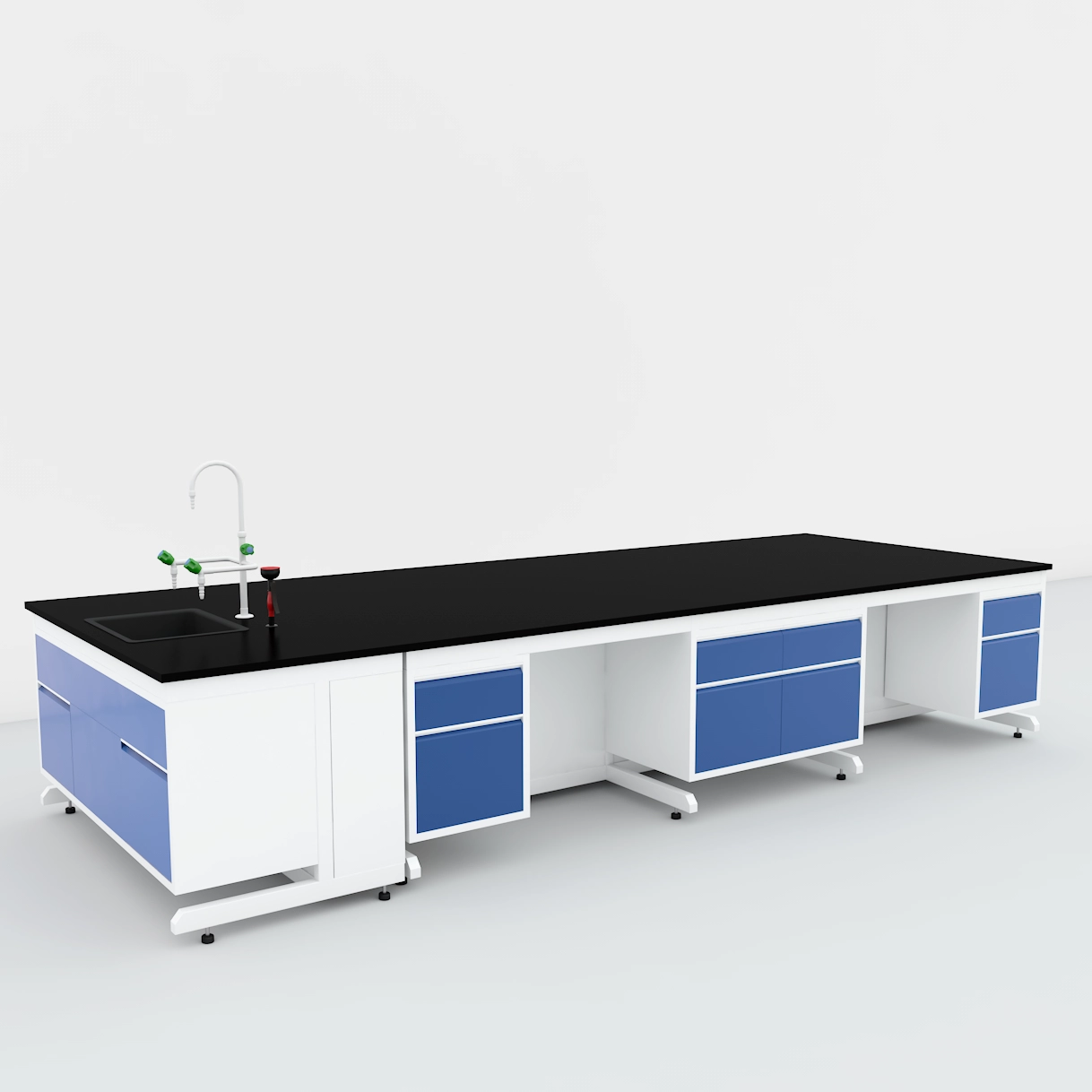

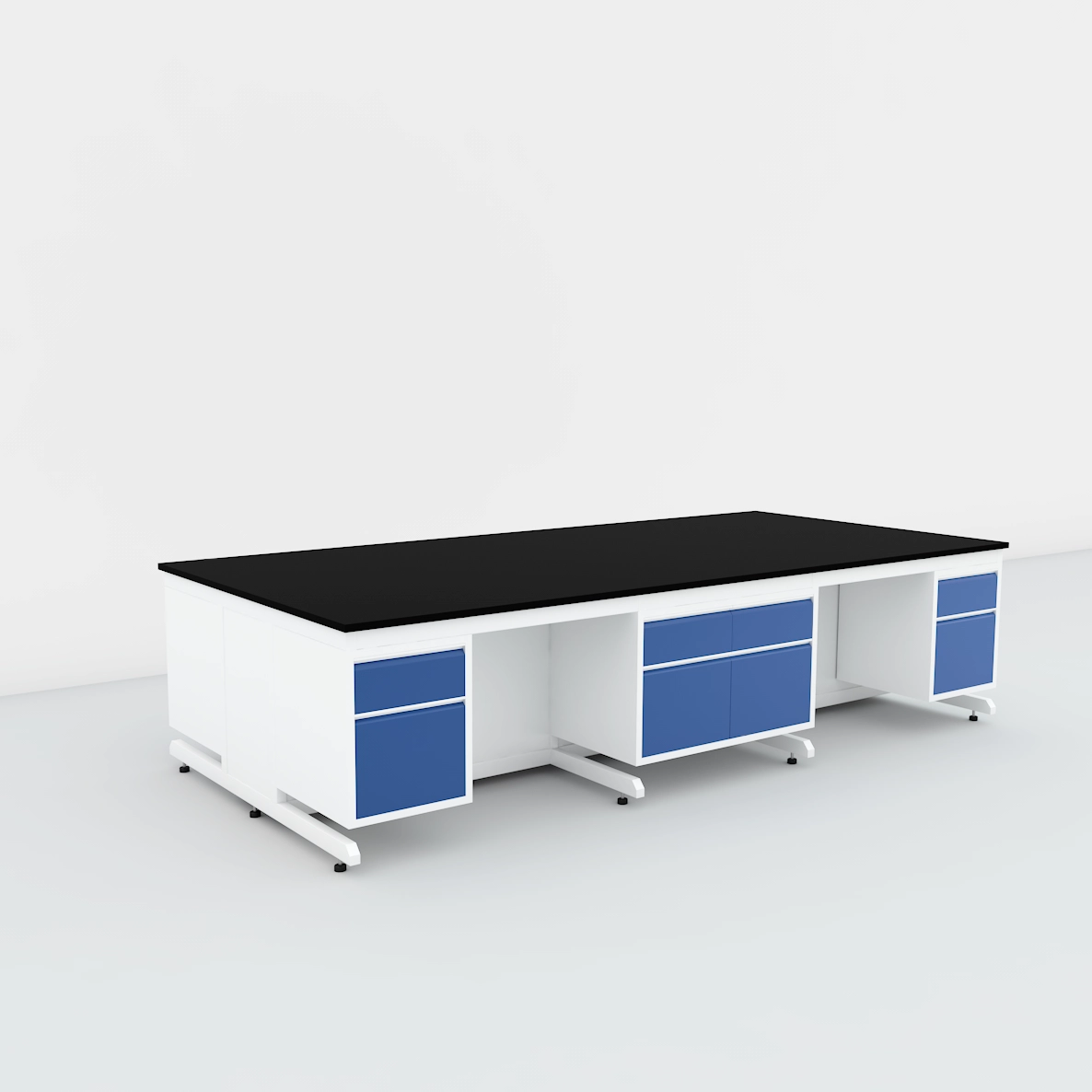

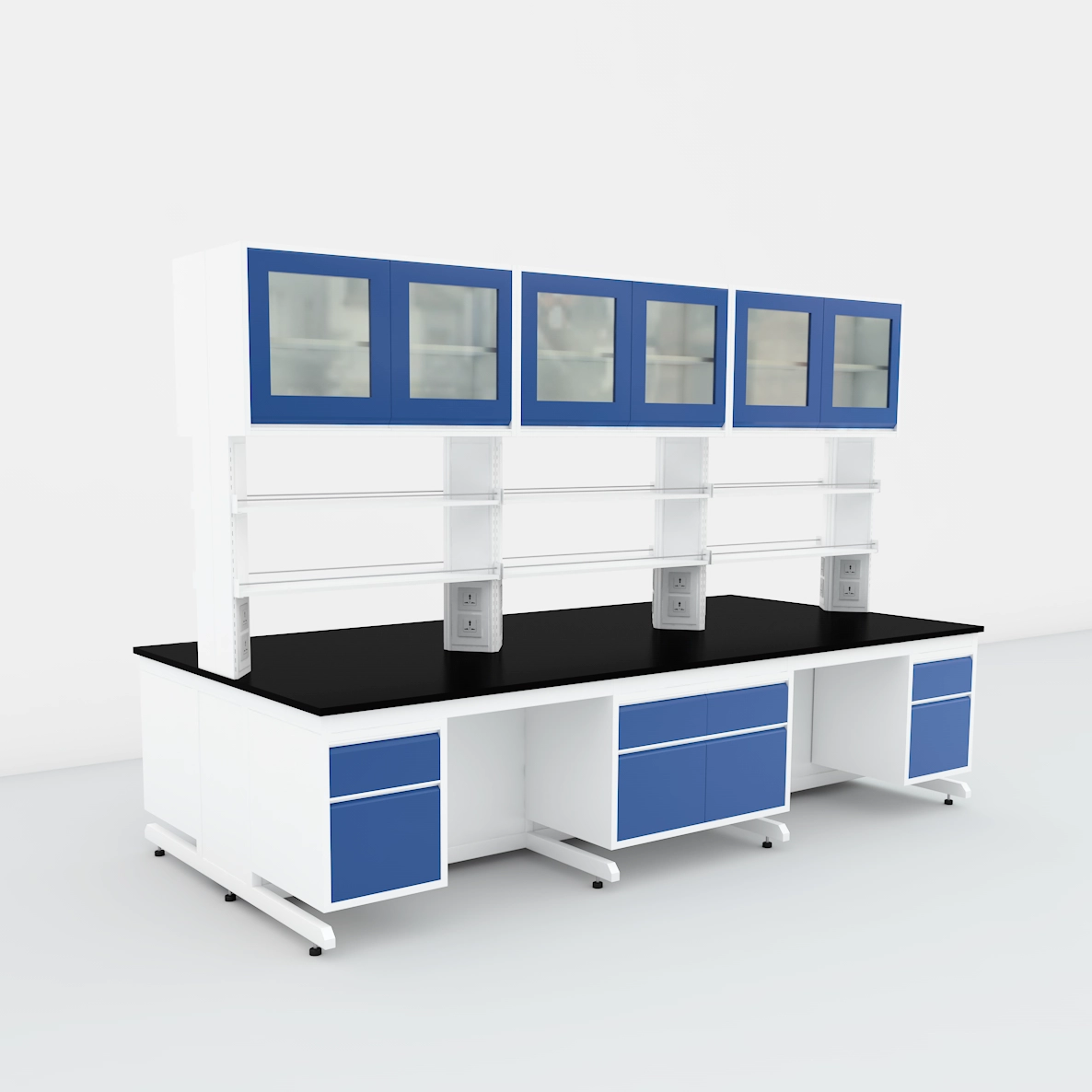

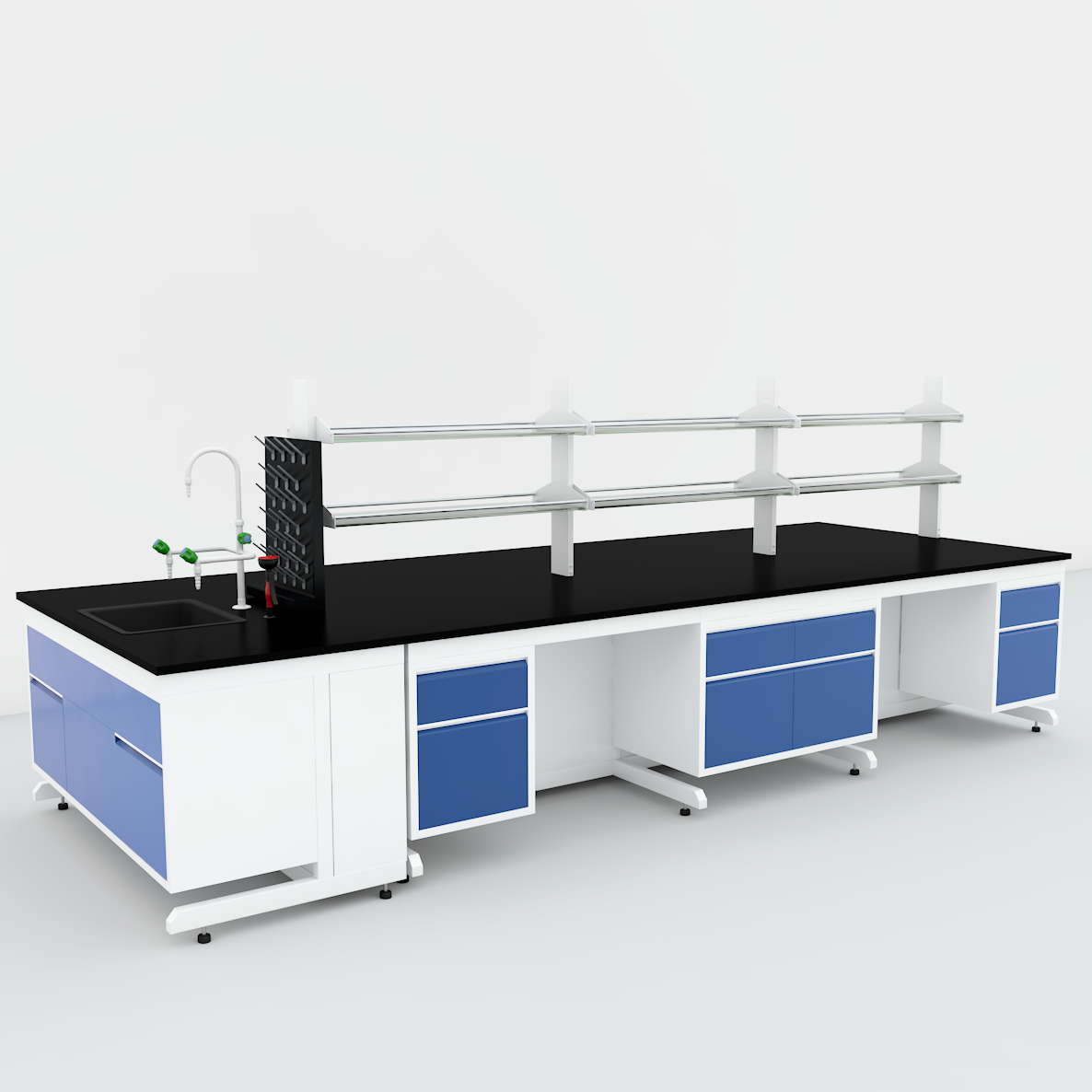

C-Frame Island Bench

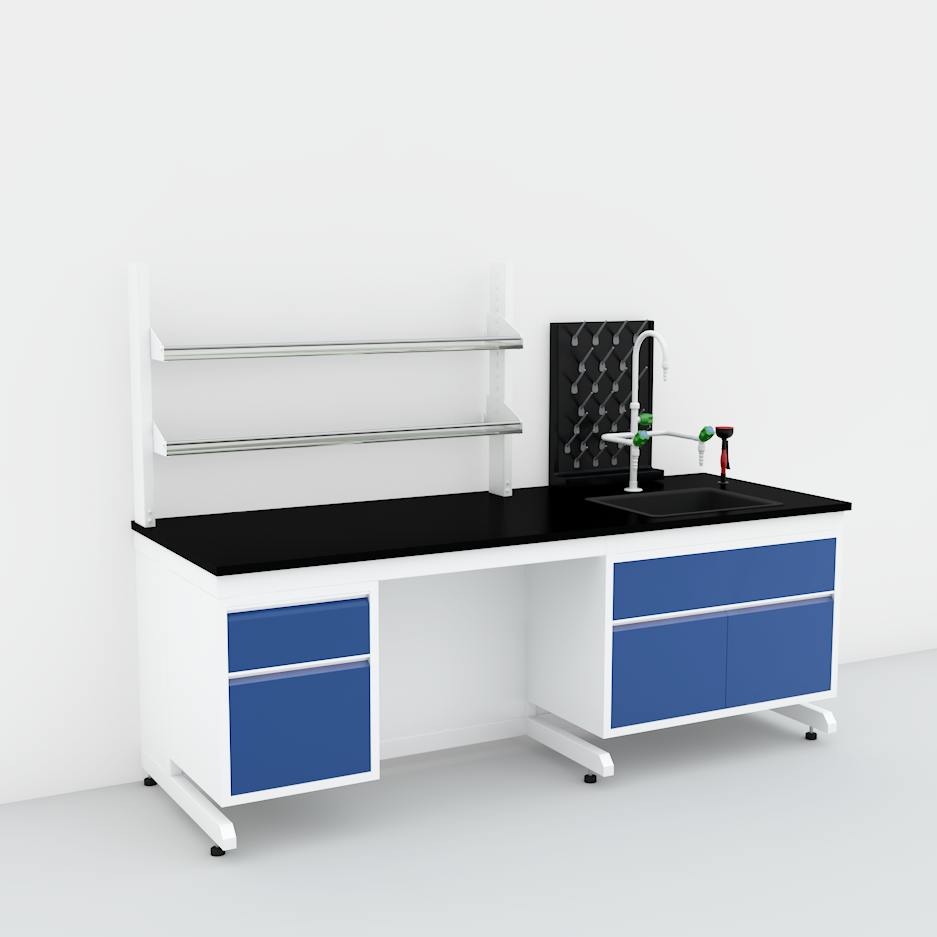

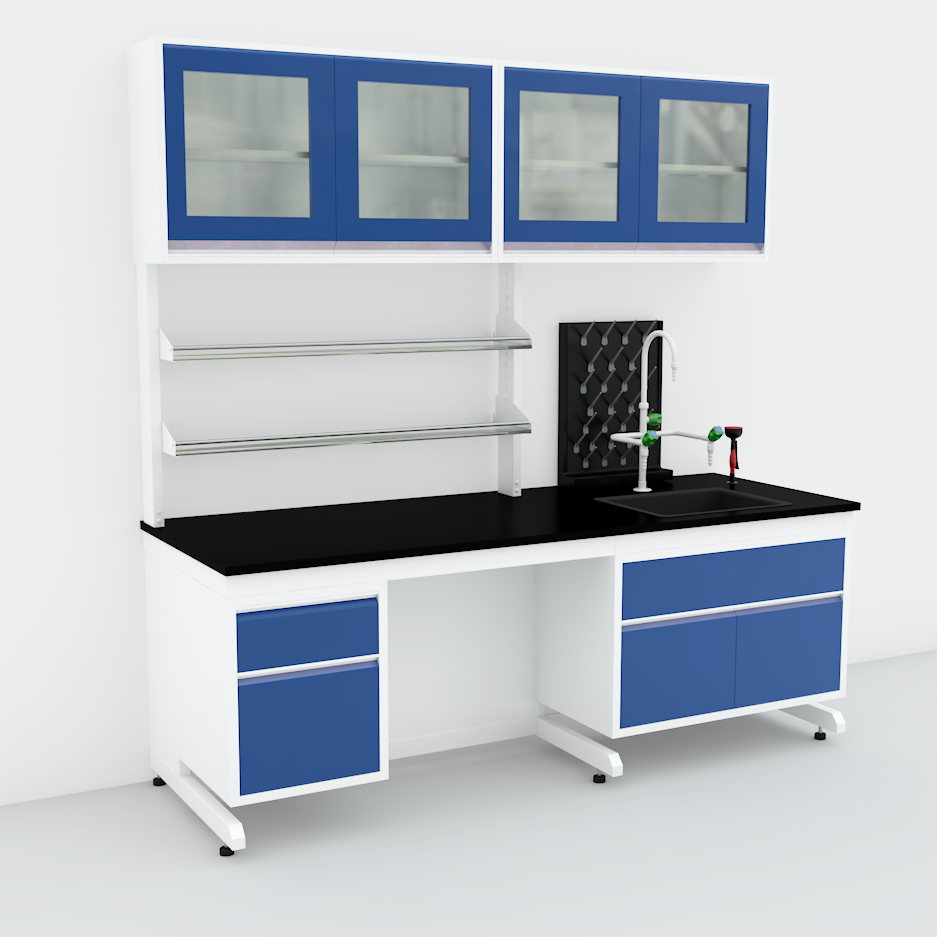

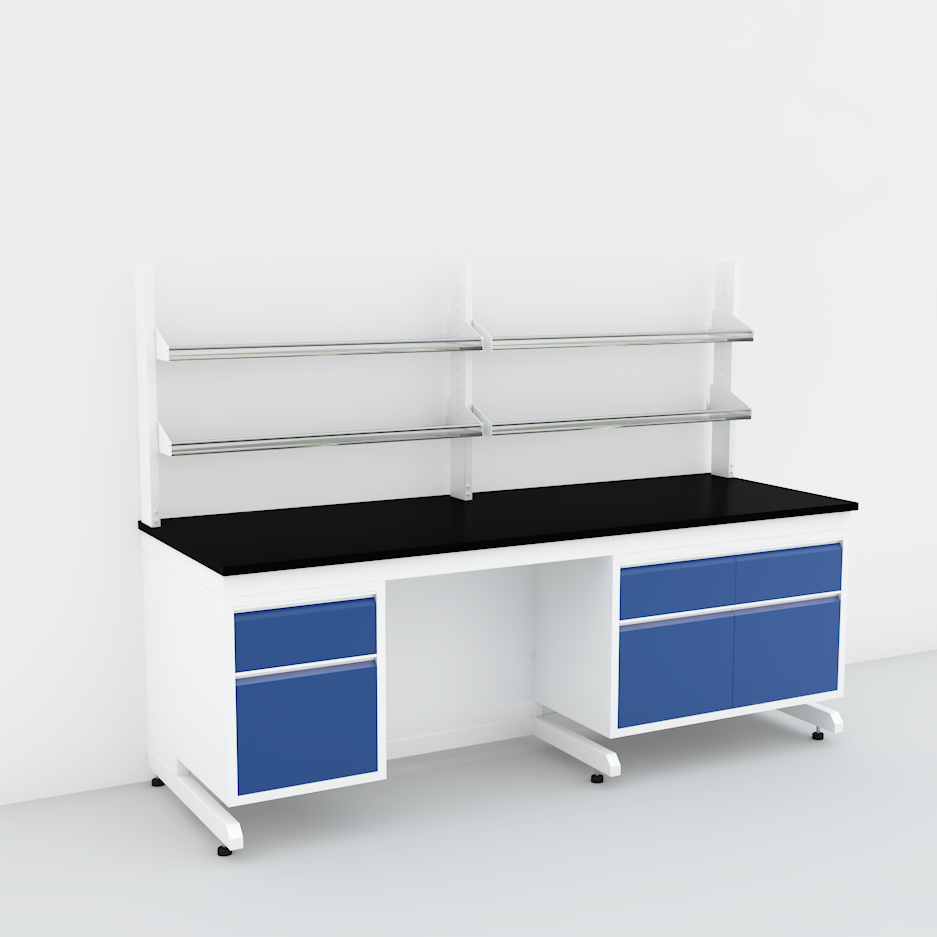

C-Frame Wall Bench

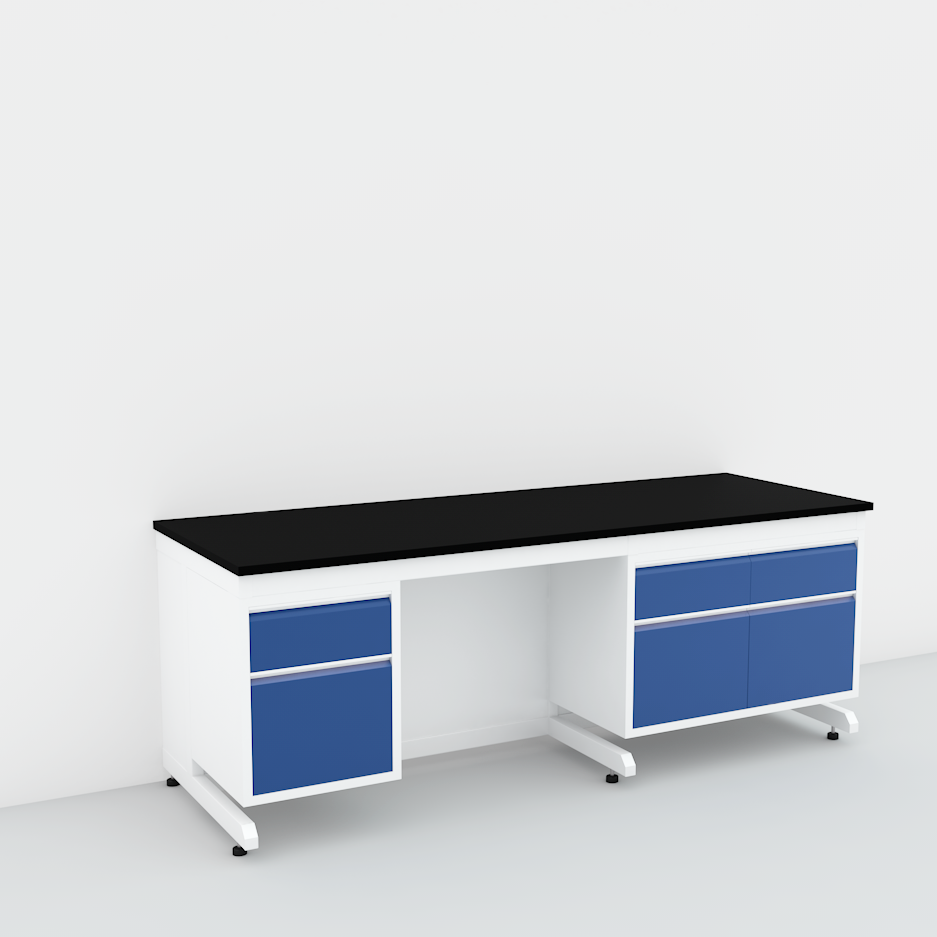

LB-CF-07
