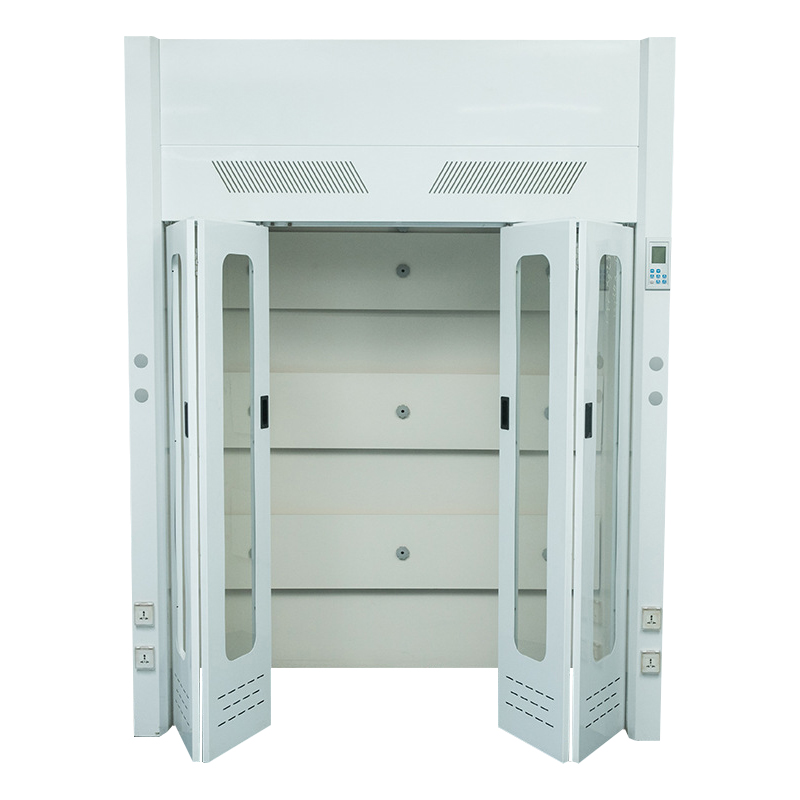

Walk-In Fume hood
MAX LAB Walk-In Fume Hoods are specifically designed for laboratories, research facilities, and industrial environments. Ideal for labs handling larger equipment like reactors and autoclaves, Suitable Scale-up, Kilo labs, Pilot plants, Floor mounted workspace. Their large interior allows for the accommodation of larger equipment or large-scale experiments, offering flexibility for various processes. With features that support high-intensity experiments and acid-base reactions, Walk-In Fume Hoods are the perfect solution for demanding laboratory tasks.

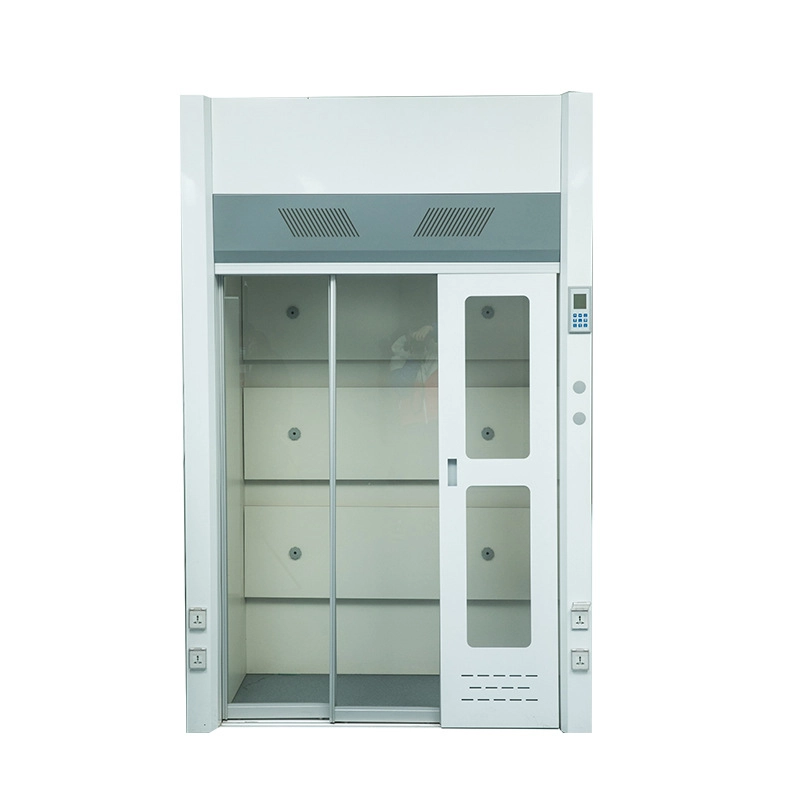

Large apparatus or complex set-ups may require the use of a Fume Hood specifically designed to meet these requirements. The Walk-In Fume Hood has two vertical rising sashes that allow you to roll in large equipment or portable work stations.
Product Details
Walk-In Fume hood
Specification
1.Hood body: 1.0mm full-thickness high-quality cold-roll steel sheet is used as a whole;The steel surface undergoes grinding, polishing, rust removal, phosphating, and other processes, followed by epoxy resin electrostatic powder coating and high-temperature curing at 220°C, resulting in a smooth, corrosion-resistant surface with a thickness of 1.15mm to 1.2mm
2.Controller: Intelligent switch with digital display, multiple controls such as power on, fan, lighting, socket, sterilization, damper, etc..
3.Glass sash: Use explosion-proof 5mm tempered glass, aluminum alloy sash handle. It is designed by the weight balance method in the mechanical principle, and the left and right are connected by synchronous wheels.
4.Lighting: Equipped with LED 30W purification lamp, the luminosity is greater than 300LUX.
5. Fume hood liner liner and Baffle: Use 5mm Compact grade laminate, baffle fixed with PP material
6. Junction box: The junction box with circuit board and AC contactor makes wiring more convenient. Suitable for 110V-230V voltage.
7. Standard accessories:
4x Electrical Outlets
1x 250 or 315mmφ PP hood
8.Optional accessories:
PP oval cupsink
Remote Controlled Fixture gas&water faucet
Explosion-proof light
Distillation Grid Kit
Ductwork
Exhaust Fan
Standard Dimensions
|
External Dimension (W*D*H)(mm) |
1200*850*2350 |
1500*850*2350 |
1800*850*2350 |
|
Internal Dimension (W*D*H)(mm) |
960*680*2000 |
1260*680*2000 |
1560*680*2000 |
|
Exhaust air volume |
700-1300m³/h |
900-1700m³/h |
1300-2100m³/h |
|
Air Velocity |
0.3～0.7 m/s |
||
Hood body
1.0mm full-thickness high-quality cold-roll steel sheet is used as a whole;The steel surface undergoes grinding, polishing, rust removal, phosphating, and other processes, followed by epoxy resin electrostatic powder coating and high-temperature curing at 220°C, resulting in a smooth, corrosion-resistant surface.
Inner:
Use 5mm Compact grade laminate, its structure has a pressure release effect on explosive.
Baffle:
Use 5mm Compact grade laminate, fixed with PP material.Three-stage design, there is no blind angle of airflow in the cabinet, and all the toxic and harmful gases of different specific gravity generated during the experiment can be discharged out of the cabinet.
Controller:
Intelligent button or touch screen with digital display, multiple controls power on, fan, lighting, socket, sterilization, damper, etc.
Glass sash:
Use explosion-proof 5mm tempered glass, aluminum alloy sash handle. It is designed by the weight balance method in the mechanical principle, and the left and right are connected by synchronous wheels.
Sash handle:
Aluminum alloy Material, beautiful style, smooth feel.
Lighting:
Equipped with LED 30W purification lamp, the luminosity is greater than 300LUX (Optional explosion proof and UV lamps).
Air foil:
Aerodynamic curve allows air to sweep the work surface maximizing containment. Reduces energy consumption by 7-10% compared to flat air foils.
By-pass Slots:
By-pass airflow design with variable air volume compatibility. Compensating opening that maintains a relatively constant volume exhaust through a Fume Hood regardless of sash position and that functions to limit the maximum face velocity as the sash is lowered.
Junction box:
The junction box with circuit board and AC contactor makes wiring more convenient. Suitable for 110V-230V voltage.
Service access:
Removable service access on both sides for easy installation and maintenance of circuits, gas circuits and other accessories.
Sewerage system: Using high-density PP material anti-siphon bottle trap, corrosion resistance, acid and alkali resistance and inorganic substances, with filtering and odor blocking functions.
3. Accessories
Electric Outlet: Each national standard electric outlet is available
Features
• By-pass airflow design with variable air volume compatibility
• Hood entrance is framed with inward-angled members to minimize turbulence and provide smooth air movement in hood at face velocities
• Engineered Three section baffle system for proper air distribution and constant face velocity
• Double wall construction for installation of plumbing and electrical fixtures and concealed routing of piping and wiring
• Chemical-resistant fume hood liner and baffle. Baffles are removable for cleaning
• Removable service access of side panels for access to plumbing and electrical wiring
• The junction box on top of fume hood with circuit board and AC contactor makes wiring more convenient. Suitable for 110V- 230V voltage
