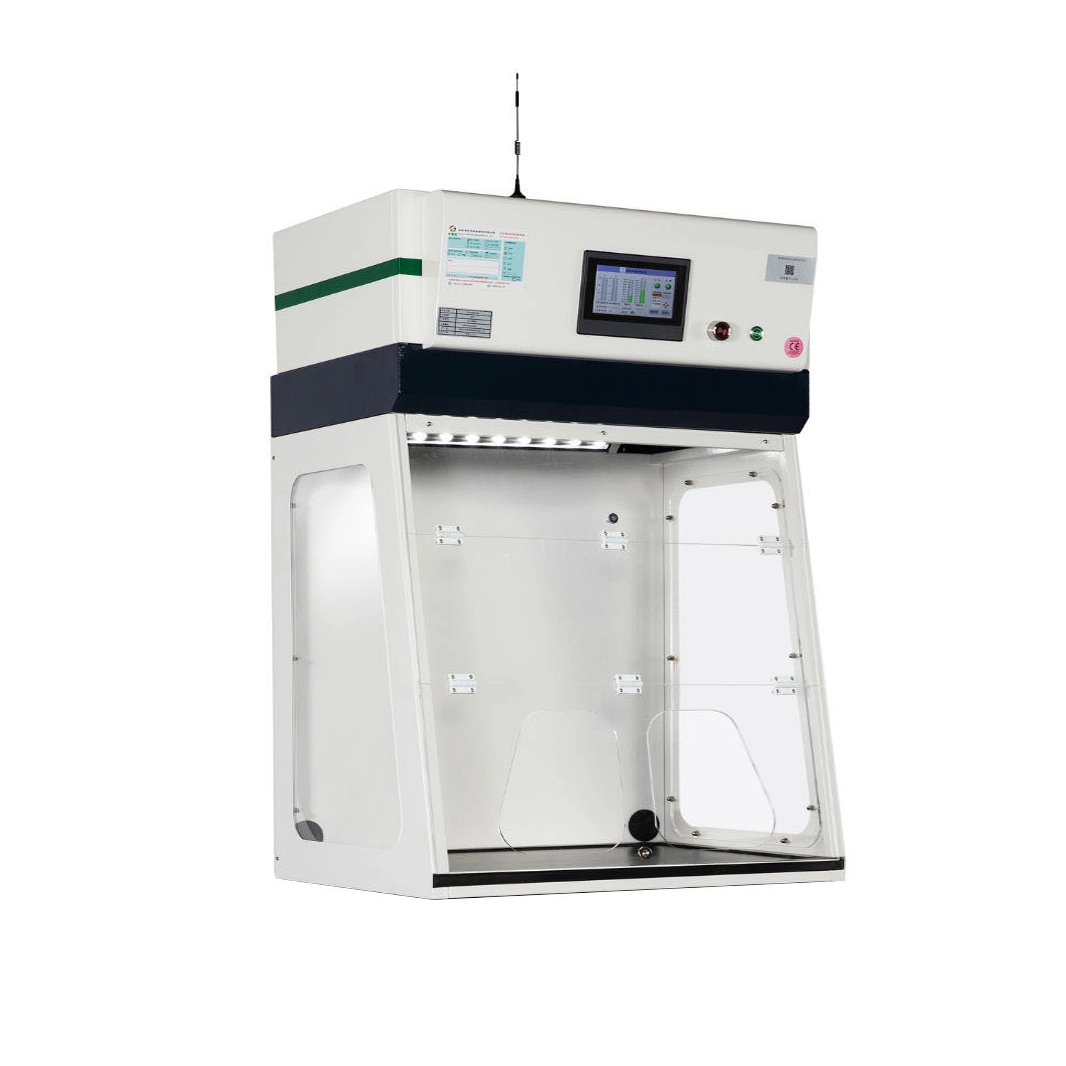

Benchtop Ductless Fume Hood
Protect your workspace with the MAX LAB Benchtop Ductless Fume Hood, designed for safe and efficient chemical fume extraction without the need for external ducting. Ideal for sitting tasks and smaller equipment. Placing it on the benchtop helps save valuable lab space. Featuring an advanced carbon filtration system, it effectively removes hazardous vapors, ensuring clean air in laboratories, research facilities, and industrial settings. Easy to install and energy-efficient.

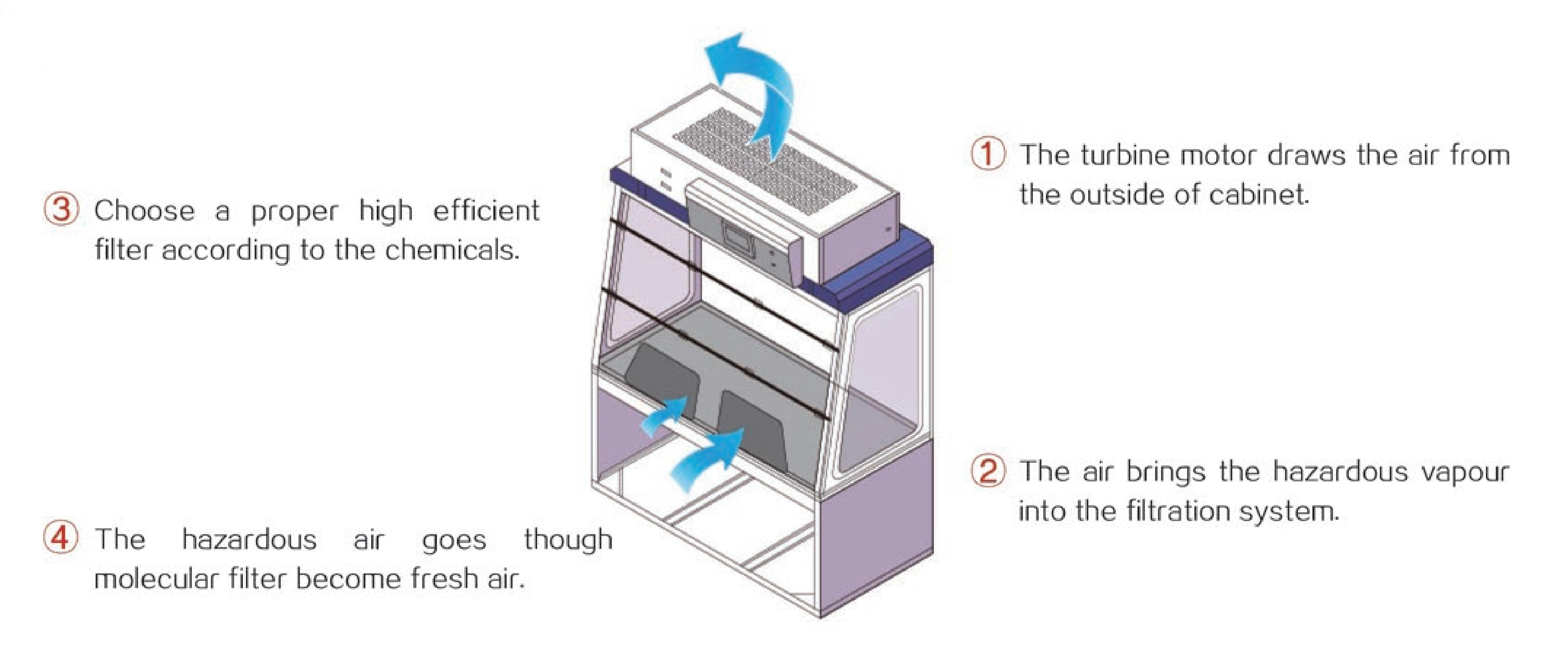

Ductless Fume Hood is a viable alternative to conventional fume hoods. This type of fume hood utilizes carbon or HEPA filtration to protect laboratory personnel from toxic chemical fumes, odors, and particles. Known for its plug-and-play feature and mobility, Ductless Fume Hood guarantees a hassle-free installation and no lab work interruption.
MaxLab Ductless Fume Hood Series is in accordance with NFX 15 211:2009 (certified to ANSI Z 9.5-201), ASHRAE 110:1995 standard.
Product Details
Benchtop Ductless Fume Hood
Specification
*1. Hood body&base cabinet: Use galvanized steel sheets ≥1.2mm, electrostatically sprayed with epoxy resin, and covered with durable anti-chemical lead-free coating to maintain high finish and minimize the impact of corrosion and moisture.
*2. Front sash and side sash: Use ≥6mm acrylic sheets, which has excellent weather resistance, excellent chemical resistance, not easy to age, colorless and transparent, transparent throughout, visual comfort, and beautiful appearance.
*3. Seven-inch LCD touch screen display, high-definition display resolution 1024*600, perfect visual system.
*4. Real-time temperature and humidity environment monitoring system, display temperature and humidity, set alarm parameters, and ensure the safety of product use.
*5. Fan monitoring: fan system failure alarm, online adjustable fan speed, to ensure the required air volume for different chemical operations.
*6. Filter saturation alarm system: The product is equipped with double-layer filters and dual VOC probes. One probe monitors the indoor air quality, and one probe monitors the filter saturation status. The filter sets the saturation alarm value. If the concentration exceeds the set value for a long time, the filter needs to be replaced.
*7. PSC fan imported from the United States, 24 volts, stable performance, ultra-quiet, no spark static.
*8. The high-efficiency filtration system, according to the particle size, selects the arrangement and distribution, follows the ASTM standard, effectively targets acidic gases and organic gases, and has strong adsorption capacity. The high-efficiency HEPA filter is used for particles, and the filtration efficiency is 99.995% for particles larger than 0.3um.
*9. The power of LED lighting lamp is equivalent to 25W fluorescent lamp, which does not generate heat, safety does not affect the temperature of the experimental environment, energy saving, environmental protection and long life.
*10. 12.7mm thickness phenolic resin worktop that gold standard for scientific, medical, and industrial labs due to their unmatched durability, chemical resistance, and ease of maintenance.
*11. With the function of process monitoring, customers can view the operating status of the equipment in real time through the mobile client, and can remotely set operating parameters. When the device alarms, the alarm information can be pushed through the client.
MODEL
Standard Dimensions
|
Model |

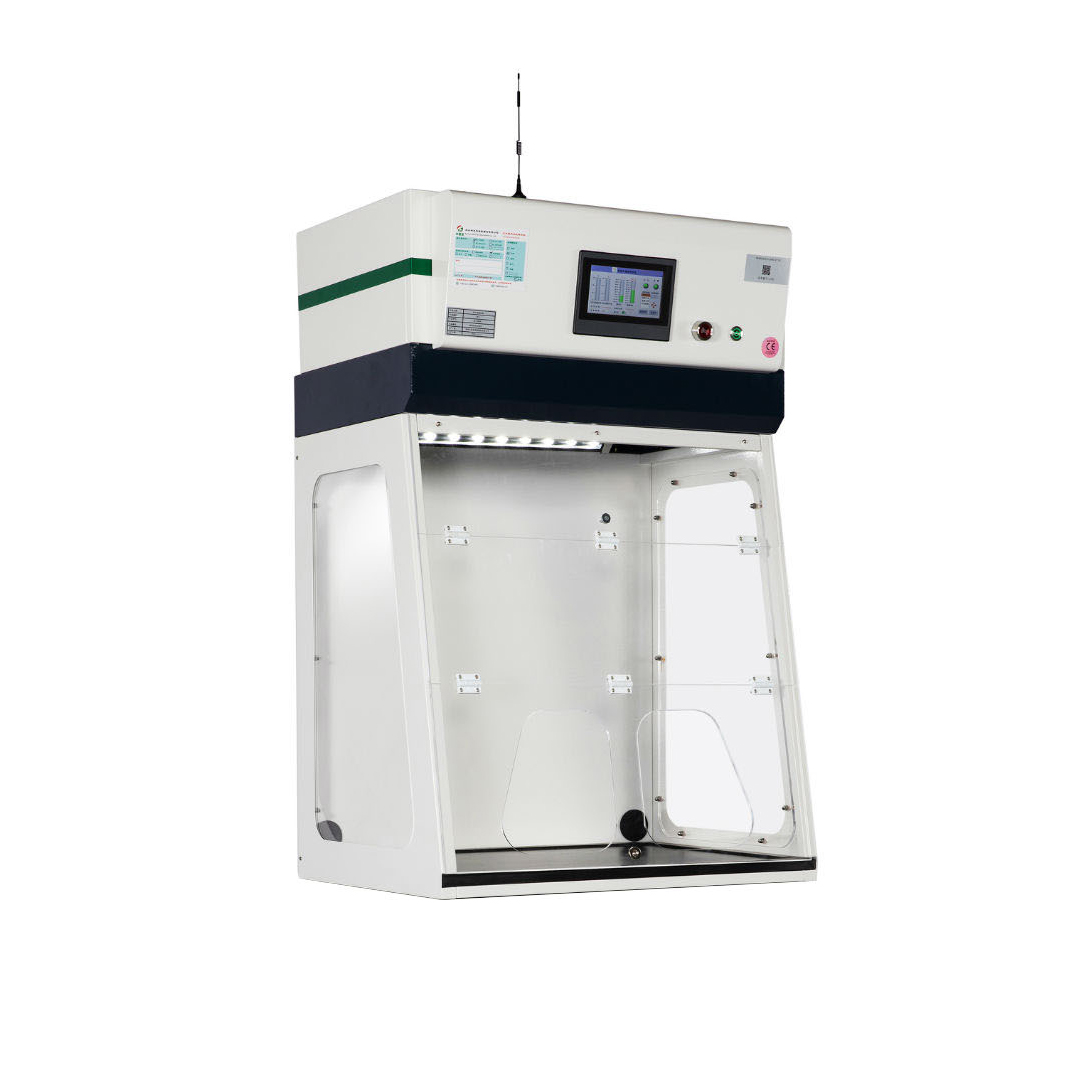

BDFH-800 |

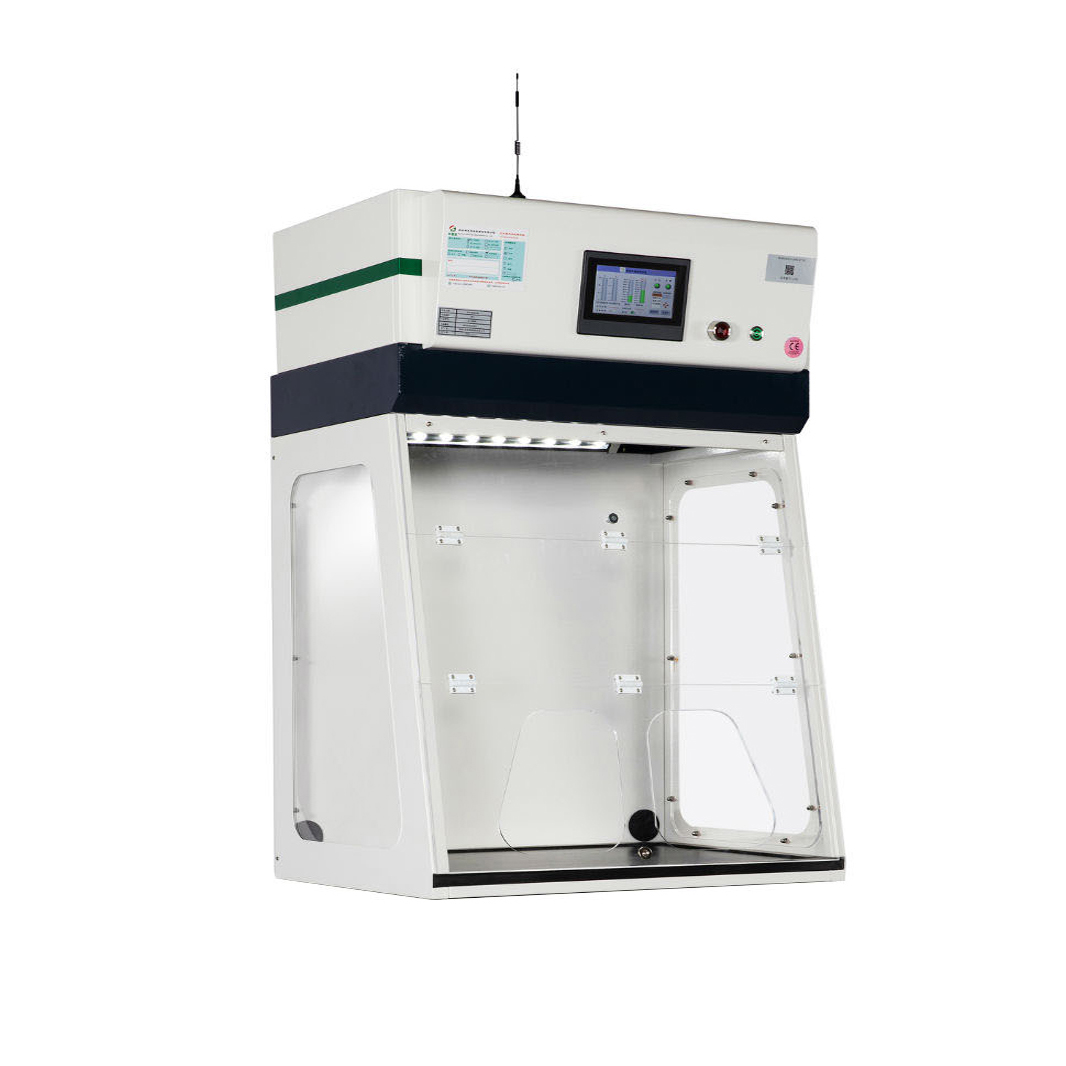

BDFH-1000 |

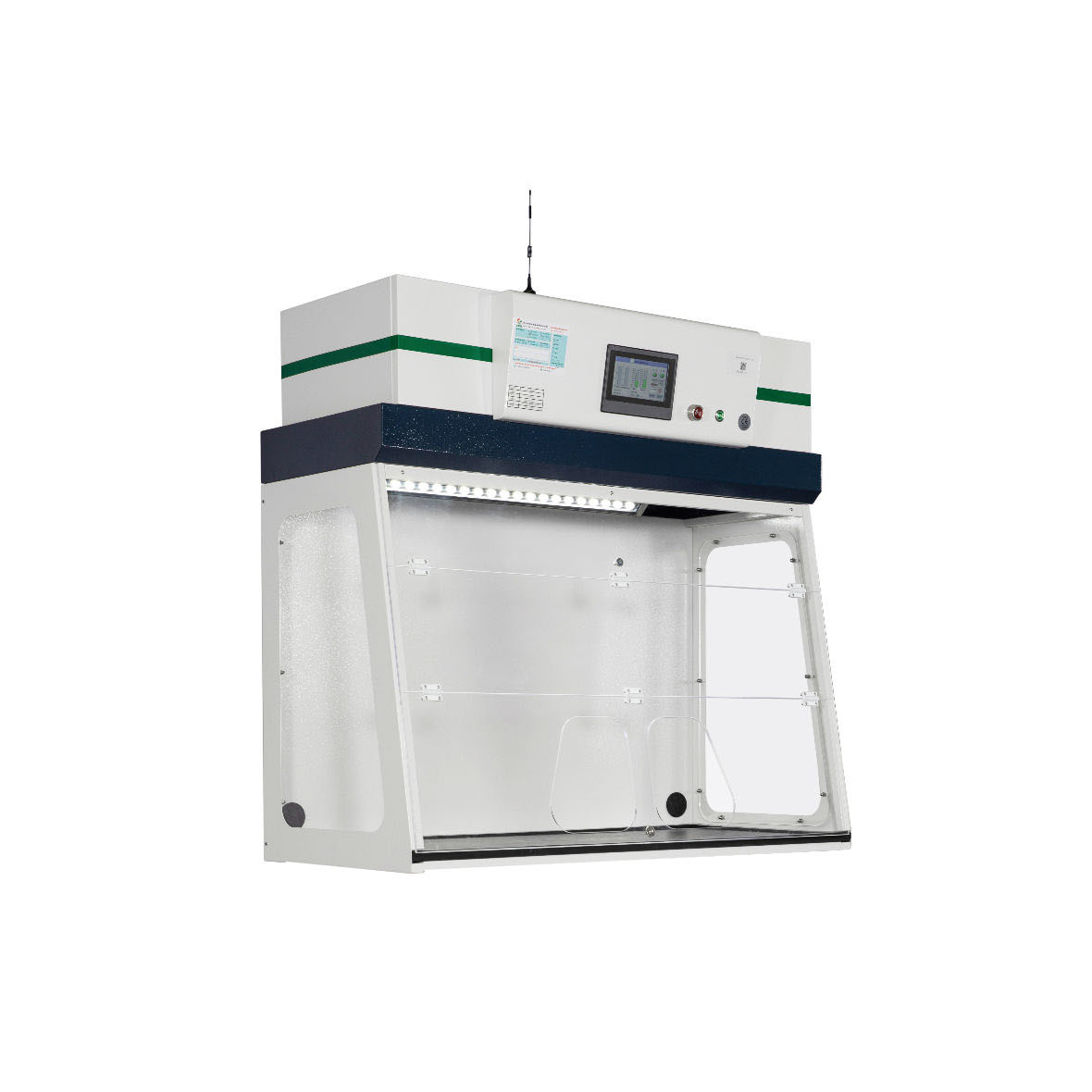

BDFH-1275 |

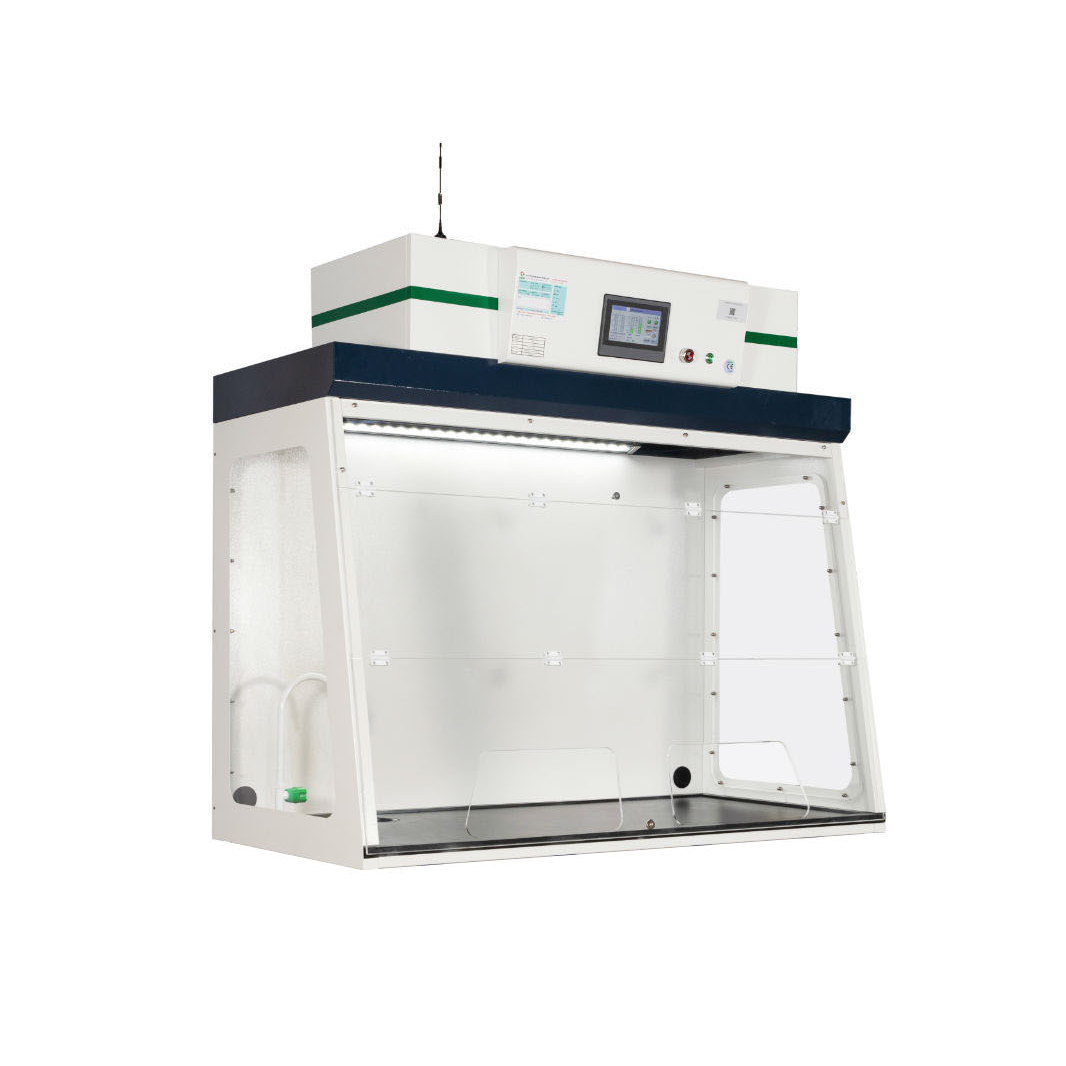

BDFH-1600 |
|
External Dimension (W*D*H)mm |
800*620*1245 |
1000*620*1245 |
1275*620*1245 |
1600*620*1245 |
|
Internal Dimension (W*D*H)mm |
781*570*934 |
981*570*934 |
1256*570*934 |
1581*570*934 |
|
Air Velocity |
0.4-0.6m/s |
|||
|
Air Handling Capacity |
230m³/h |
690m³/h |
||
|
Voltage |
110V-240V |
|||
|
Frequency |
50-60HZ |
|||
|
Maximum Current |
2A |
|||
|
Power |
42W |
110W |
||
|
Noise |
40-52dB |
|||
|
Molecular Filter Size/Number |
700*390*21mm |
900*390*21mm |
||
|
2 |
2 |
2 |
2 |
|
|
Pre-Filter Size/Number |
700*390*50mm |
900*390*50mm |
||
|
1 |
1 |
1 |
1 |
|
|
Number of Fan |
1 |
1 |
3 |
3 |
|
Standard Configuration |
Phenolic Resin Countertop: 1 Block Lighting: LED Lighting 1 Display: Seven-Inch LCD Touch Screen Control System: 1 Set Filter Saturation Alarm System: 1 Set Temperature And Humidity Alarm System: 1 Set Power Cord: 1 |
|||
|
Optional Accessories |
Anemometer Epoxy Resin/Ceramic/Stainless Steel Countertop |
|||
|
Optional Filter Type |
Pre-Filter*1 (Standard) SFGL OG: Organic Activated Carbon Filter*1 (Standard) SFGL AG: Inorganic Activated Carbon Filter*1 (Standard) SFGL FO: Formaldehyde Activated Carbon Filter (Optional) SFGL AM: Ammonia Activated Carbon Filter (Optional) HEPA H14: HEPA filter (Optional) |
|||
Why choose Max Ductless Fume Hood:
1. Security:
- control concentration and filtration efficiency in accordance with the European Union CE international standard.
- one-piece filter system, effective filtering poisonous and harmful gases.
- provide double protection operation for personnel and lab environment.
2. Easy installation:
- delivered cabinet has complete assembly.
- no need to connect external pipe, can be moved flexibly, you can place it on any floor conveniently.
- no need to configure air compensating system.
3. The energy conservation and environmental protection:
- no exhausted air flow outdoor, saving the energy consumption of air conditioning.
- no pollution emissions, protect the environment.
- low power consumption, do not use high power components.
4.Cost savings:
- no causing extra pipe installation cost.
- no need exhausted air and air compensating system installation.
- very low running cost.
5.Filter level / filter efficiency:
-HEPA: ≥99.995%, @0.3μm/ULPA: ≥99.999%, @0.12μm
