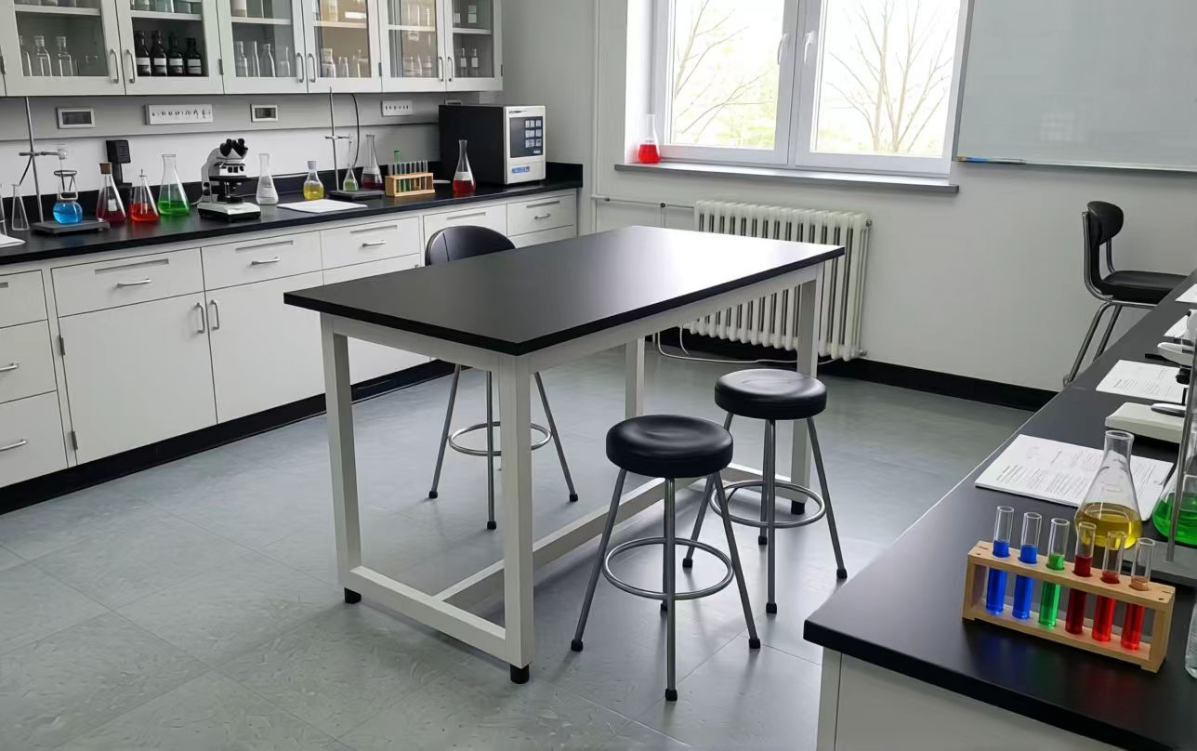

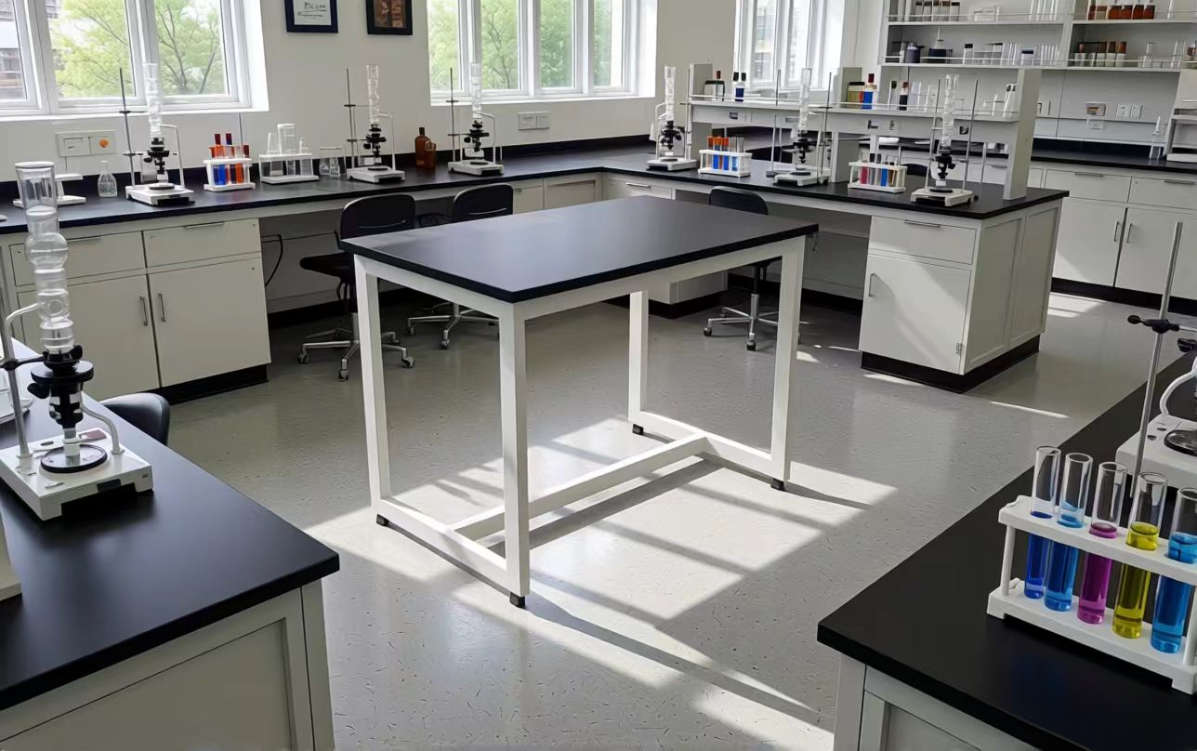

Basic H-Frame Lab Bench

Basic H-Frame Lab Benches

SPECIFICATION

1. Countertops

(1) Phenolic Resin countertop: 12.7mm(Edge thicken to 25.4mm)/16/19/25mm thickness

(2) Epoxy Resin countertop: 15/16/19/25mm thickness

(3) Ceramic countertop: 15/20mm thickness

(4) Trespa countertop: 13/16/20mm thickness

(5) Granite/Marble countertop: 20mm thickness

2. Frame&Accessories

(1) Frame: The entire structure is made of 40*60mm, 1.5mm thick high-quality cold-rolled square tubes. The surface undergoes grinding, polishing, rust removal, phosphating, and other processes, followed by epoxy resin electrostatic powder coating and high-temperature curing at 220°C, resulting in a smooth, corrosion-resistant finish.

(2) Handles: Non-welded linear handle/C-shaped stainless steel handle/Insertion Aluminum handle.

(3) Slides: DTC silent self-closing slides.

(4) Hinges: Hinges: DTC 105°/175° self-closing hinges/Stainless steel self-closing hinges.

(5) Feet: Use laboratory-specific adjustable feet with an adjustment range of ≥35mm, strong bearing capacity, the balance of the lab bench can be adjusted.

(6) Cabinet wheels: High-quality PU silent universal wheel with brakes, excellent load-bearing capacity, shock absorption, and wear resistance without damaging the floor. Each wheel supporting up to 120kg.

Structural System

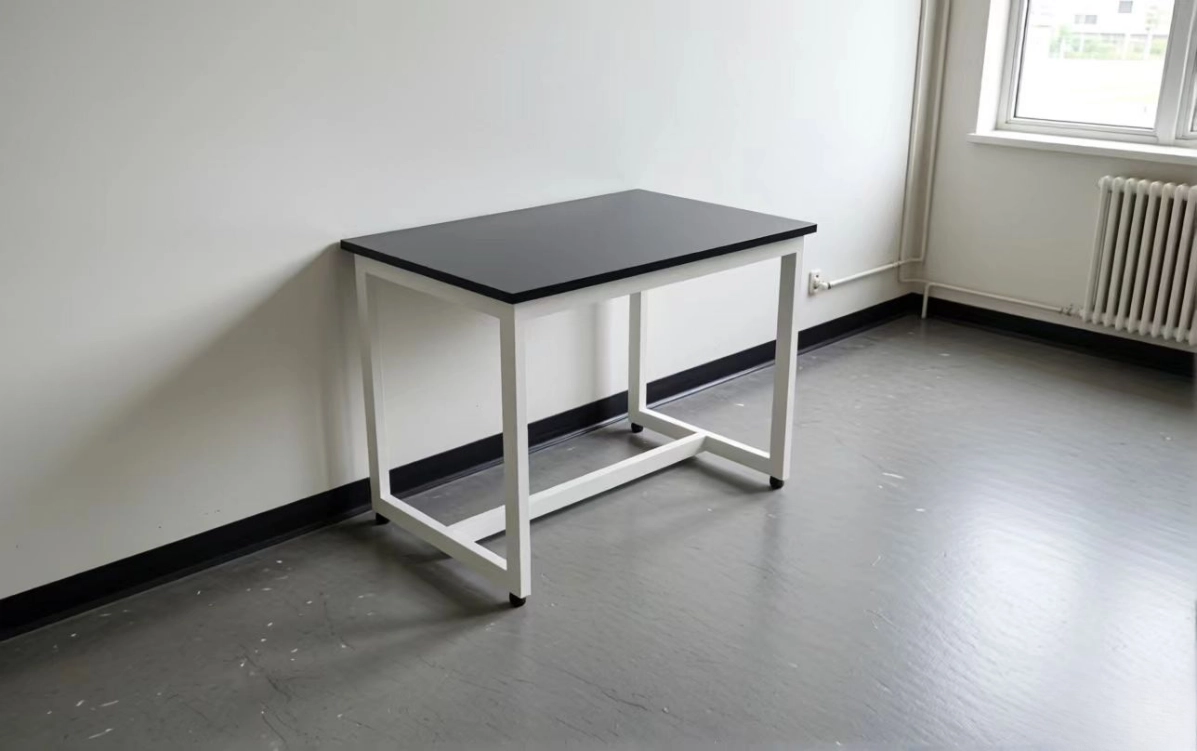

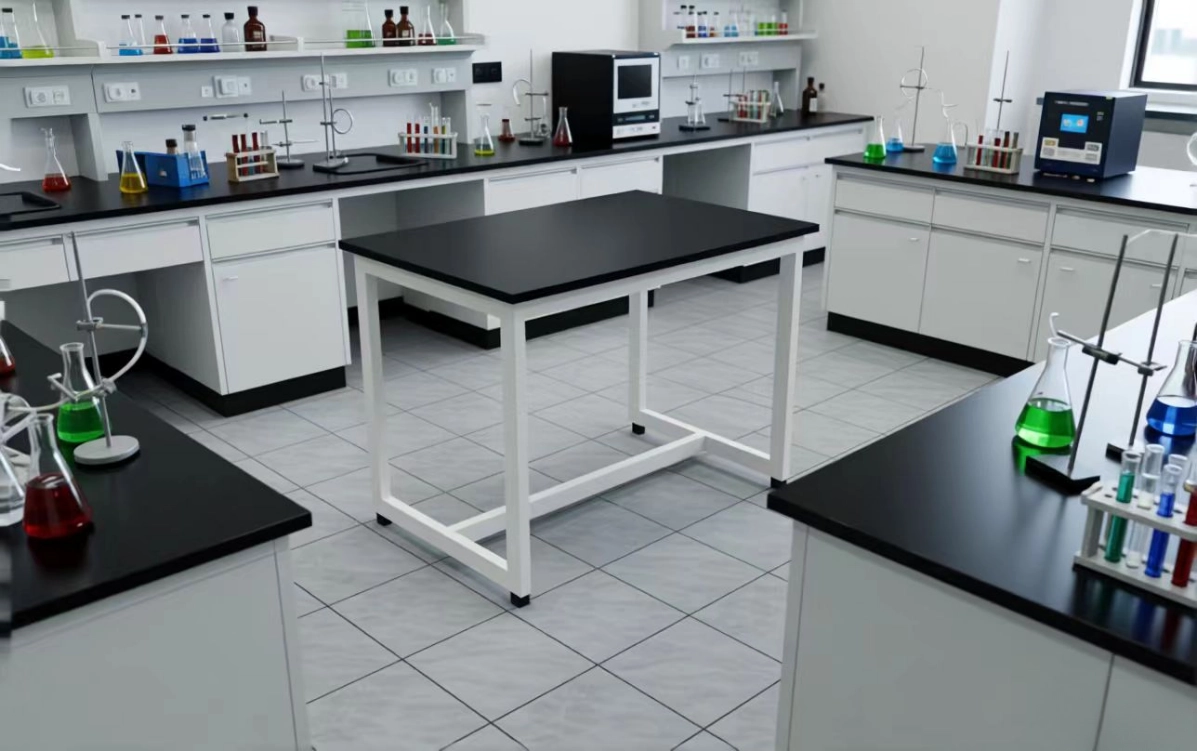

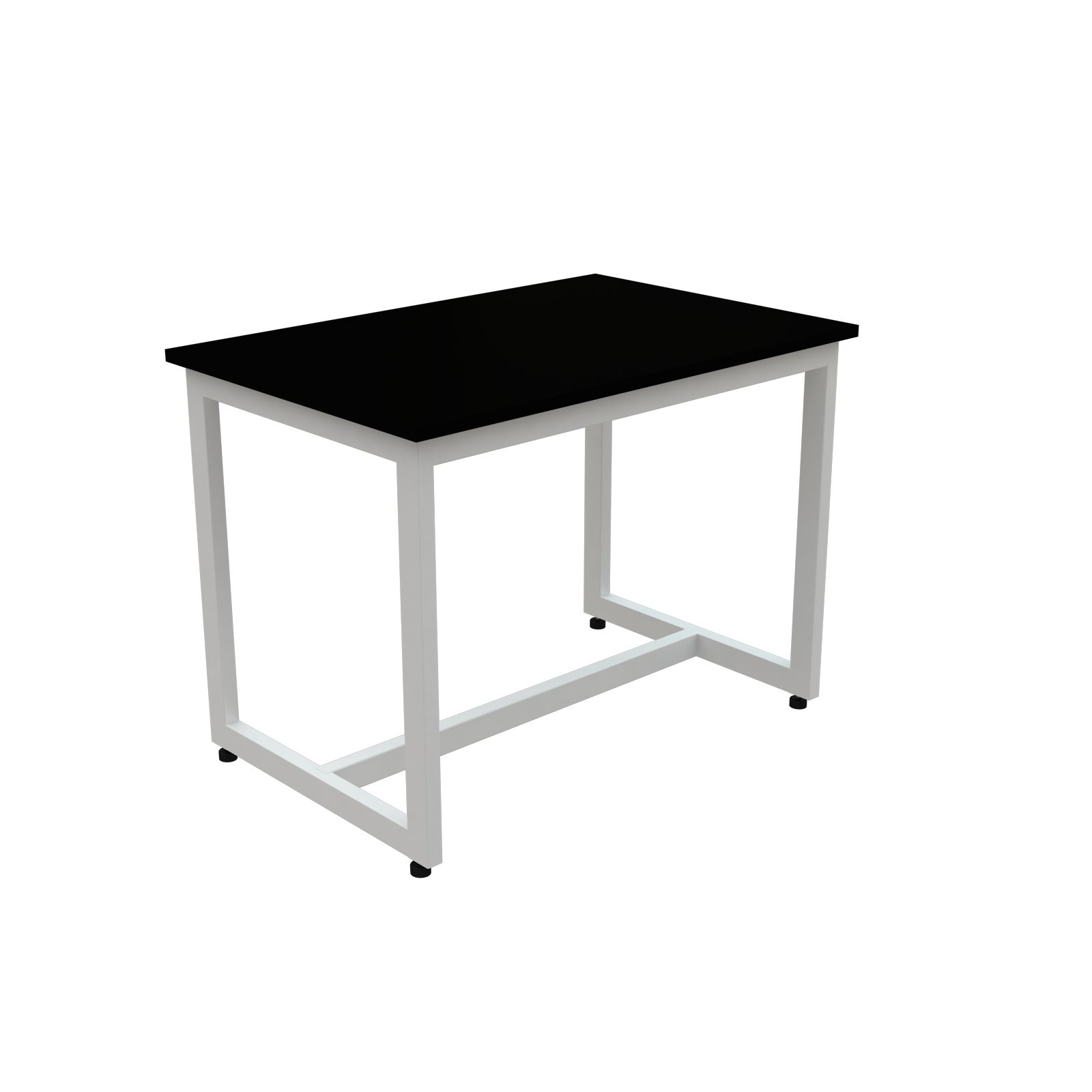

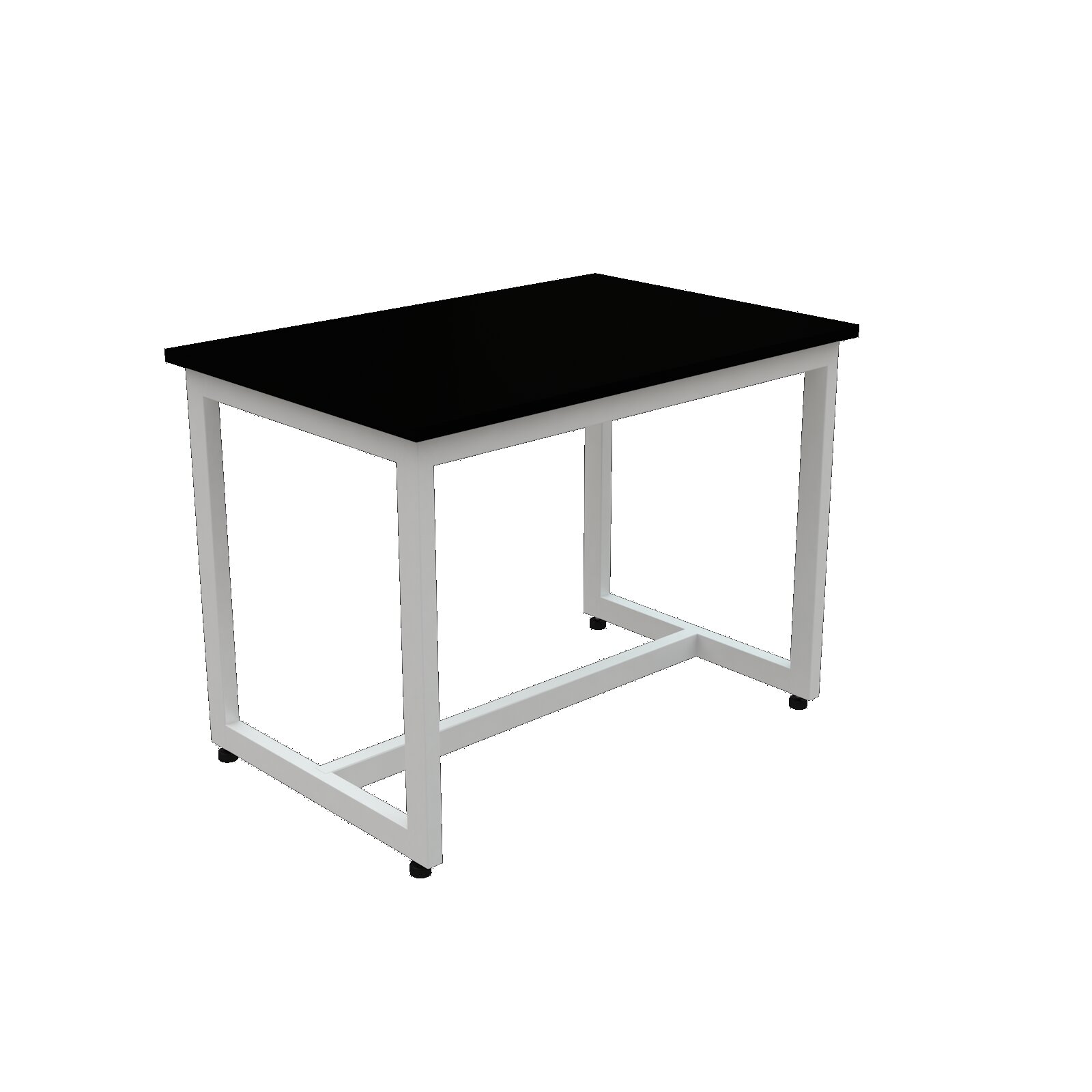

H-Frame Steel Construction

• Main Structure: 40×60mm high-quality cold-rolled square steel tube

• Steel Thickness: 1.5mm

• Structural Form: Open H-frame design

• Load Capacity: Up to 300kg/㎡

The H-frame geometry improves vertical load distribution and torsional stability compared to traditional C-frame structures. The reinforced crossbeam configuration enhances rigidity while preserving open workspace beneath the bench.

Surface Treatment Process

To ensure long-term corrosion resistance and durability, the frame undergoes a complete industrial finishing process:

1. Surface grinding and polishing

2. Rust removal

3. Phosphating treatment

4. Epoxy electrostatic powder coating

5. High-temperature curing at 220°C

This multi-stage process produces:

• Smooth, uniform surface finish

• Strong adhesion

• Chemical and moisture resistance

• Long service life in laboratory environments

• Steel Cabinet Unit

  • Material: 1.0mm high-quality cold-rolled steel sheet

  • Surface Treatment: Same epoxy powder coating process as frame

  • Finished Thickness: 1.15–1.2mm

  • Door Structure: Double-layer construction with internal soundproofing material

  • Optional: Heavy-duty casters

  Advantages:

  • Higher durability

  • Enhanced corrosion resistance

  • Suitable for demanding environments

  • Designed for durability, smooth operation, and ergonomic comfort.

  • Ergonomics & Workspace Efficiency

    • Open-frame design provides increased knee clearance

    • Improved operator comfort for extended use

    • Easy under-bench cleaning access

    • Compatible with overhead shelving and service carriers

    The separation between frame and storage allows technicians to reposition cabinets without dismantling the entire workstation.

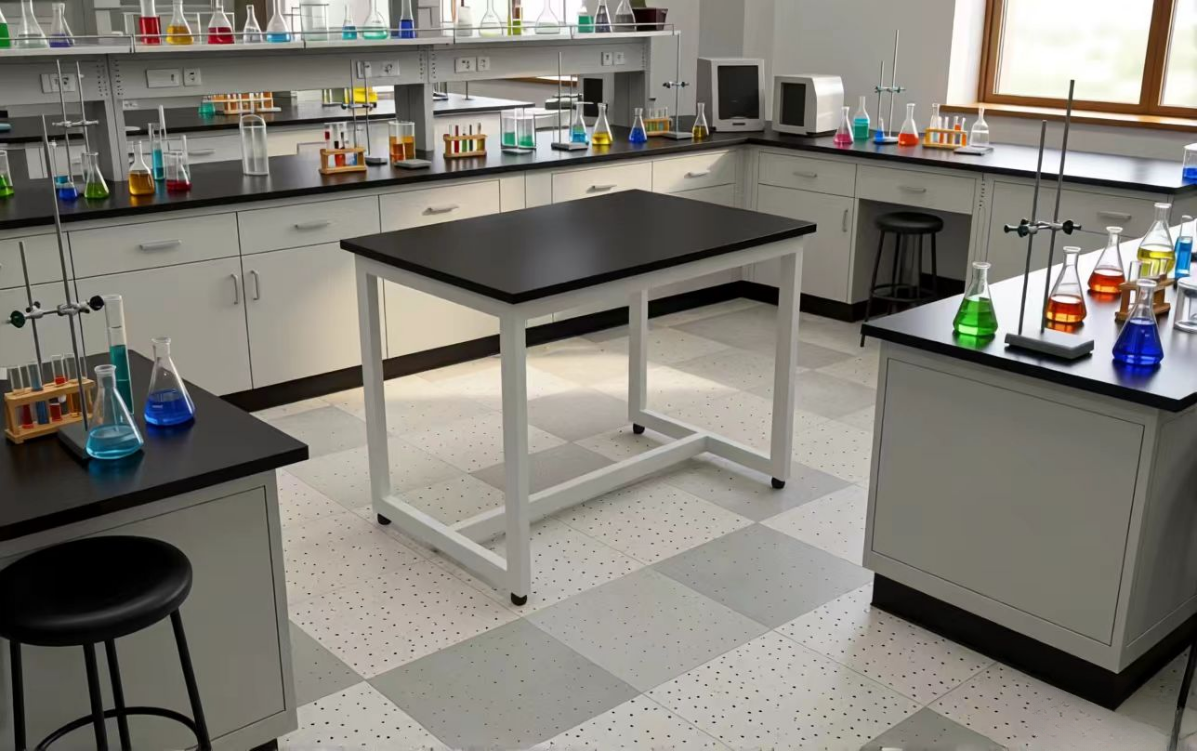

    Modularity & Expansion Capability

    The Basic H-Frame Lab Bench is designed for scalable laboratory development:

    • Modular combination and separation

    • Easy addition of new units during expansion

    • Reconfigurable layout without structural demolition

    • Suitable for phased laboratory construction projects

    This makes it particularly advantageous in research facilities, educational institutions, and growing industrial laboratories.

    Standard Dimensions

    Product	Dimensions  (Length*Depth*Height)
    H-Frame Wall Bench	1000*750*850mm/Customize 3.28x2.46'x2.78'/Customize
    H-Frame Island Bench	1000*1500*850mm/Customize 3.28x4.92'x2.78'/Customize)
    H-Frame Corner Bench	1000*1000*850mm/Customize 3.28x3.28'x3.28'/Customize

    Application Areas

    • Customization & OEM Services

      As a professional laboratory furniture manufacturer, we offer:

      ✔ Custom Dimensions
      ✔ Utility Integration (Sink, Gas, Electrical)
      ✔ Color Customization
      ✔ Bulk Project Supply
      ✔ CAD Drawing Support
      ✔ Project-Based Layout Design

      Minimum Order Quantity: Flexible
      Production Lead Time: 15–25 Days
      Warranty: 5 Years Structural Warranty

      👉 Contact us for project consultation.

      Frequently Asked Questions (FAQ)

      1. How much weight can the H-Frame lab bench support?

      It supports up to 300kg per square meter, suitable for heavy laboratory instruments.

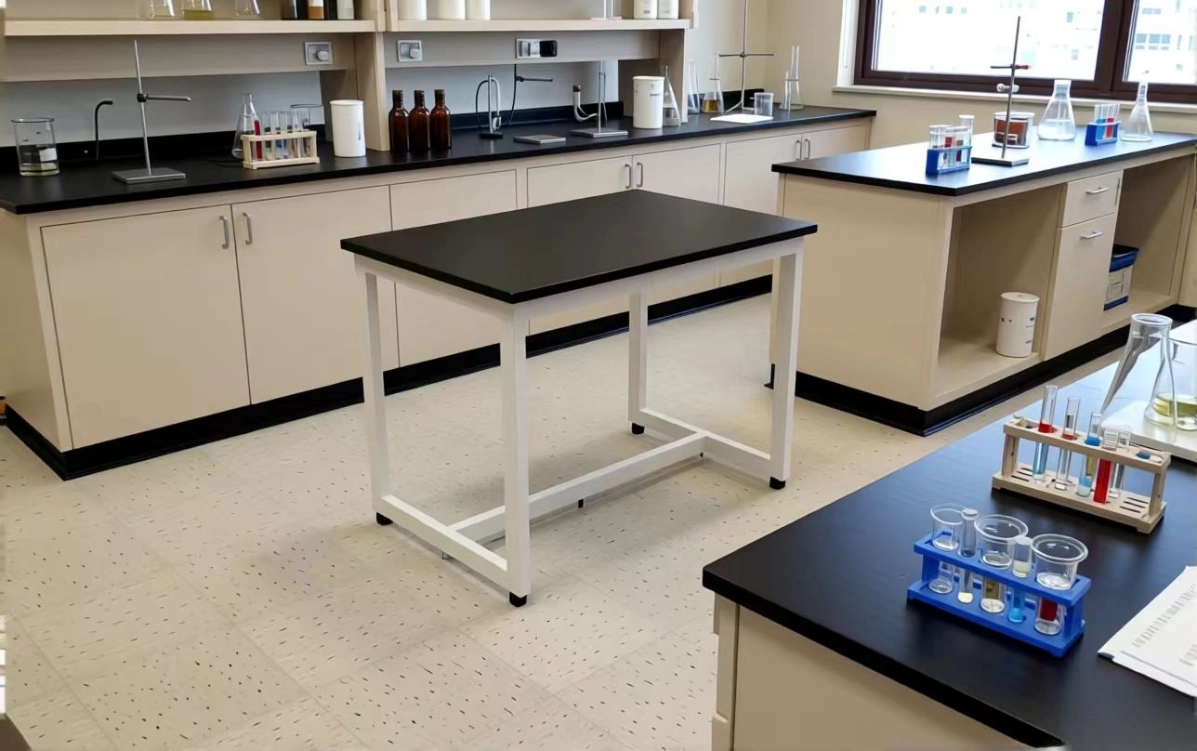

      2. Is the lab bench resistant to strong chemicals?

      Yes. Epoxy resin and phenolic countertops provide excellent chemical resistance.

      3. Can the cabinet units be moved?

      Yes. Optional heavy-duty PU swivel casters allow easy repositioning.

      4. Do you provide custom sizes?

      Yes. We manufacture according to project requirements and layout drawings.

      5. What is the difference between H-frame and C-frame lab benches?

      H-frame offers higher structural stability and better load-bearing capacity.

      Packaging & Shipping

      • Knock-Down Packing

      • Protective Foam & Carton Packaging

      • Wooden Crate Available for Export

      • International Shipping Supported

      • University research laboratories

      • Pharmaceutical R&D facilities

      • Chemical analysis laboratories

      • Biological research labs

      • Industrial quality control labs

      • Third-party testing institutions

      Get a Quote for Your Laboratory Project

      Looking for a reliable H-Frame Lab Bench manufacturer?

      Send us your lab layout or project requirements today.
      Our engineering team will provide a customized quotation and technical drawing within 24 hours.
