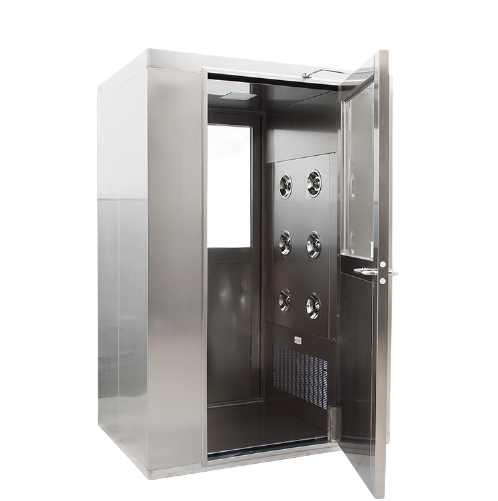

Air Shower

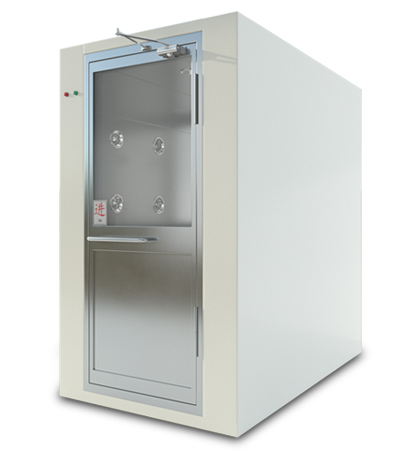

Air Shower for Cleanroom – Automatic Decontamination at Entry

Air Showers are self-contained chambers installed strategically at entrances to cleanrooms and other controlled environments. They minimize particulate matter entering or exiting the clean space to mitigate the risk for cross-contamination.

Air Showers have become an integral component of the modern cleanroom because their benefits more than pay for the small amount of space they occupy.

Using objects: Personal air shower/Cargo shower room series;

Airflow: Single-side/Double-side/Top/other combinations;

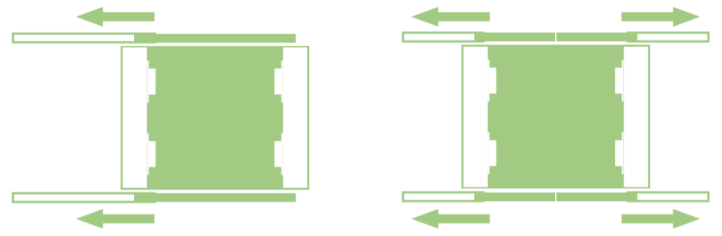

Air shower doors: Manual doors/automatic doors etc.

Blowing method: Single person single airflow/Single person double airflow/Single person triple airflow/Double person double airflow/Double person triple airflow/Multiple person Double blow/Multiple people three blow.

Air Shower Construction:

①: All Stainless steel (304/316)

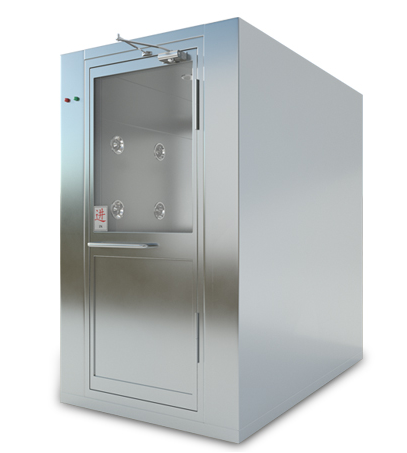

②: Stainless steel internal and cold-rolled steel external.

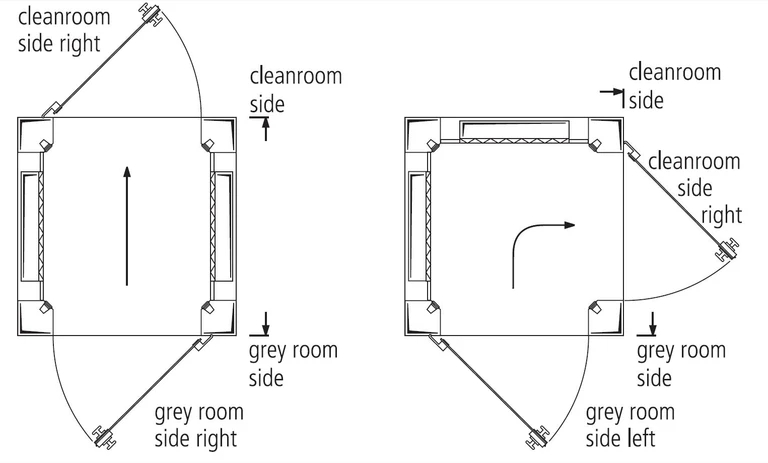

OPTIONAL EAS EXIT DIRECTIONS

*Turn Left or Turn Right as per client’s specifications

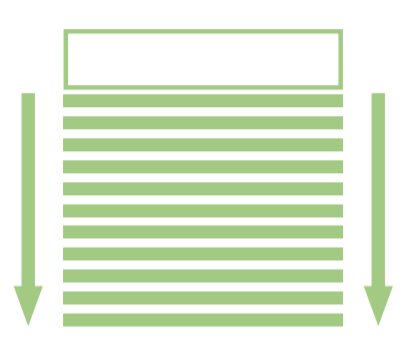

OPTIONAL EAS SHUTTER DOORS

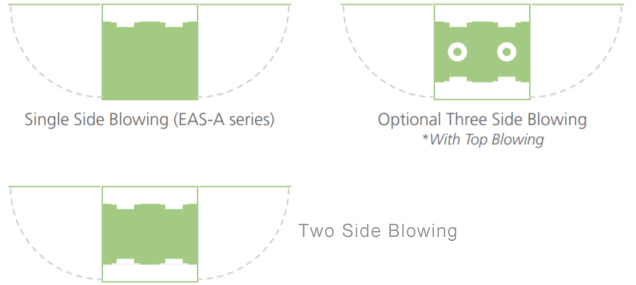

BLOWING TYPE

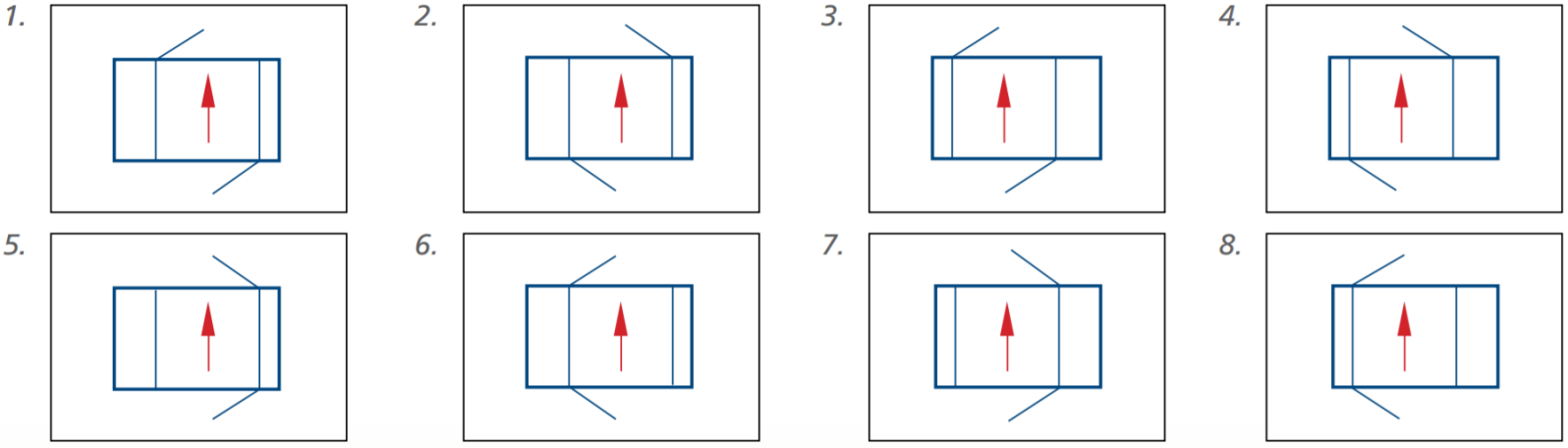

MODEL EAS, DOOR DIRECTION

(Factory Configured. Choose One When Ordering.)

FEATURES

[Note]: The air shower is usually used in one direction.

1. Modular design, easy to transport and install

3. The double doors of the automatic blowing shower system are electronically interlocked.

4. The stainless steel nozzle can be rotated 360°, and the wind speed can reach more than 18m/s.

5. The air shower duration is adjustable from 10 to 99 seconds, and the shower duration is displayed.

6. Adopt primary and high-efficiency two-stage filtration system.

Using EVA sealing material, the sealing performance is excellent.

SPECIFICATION
