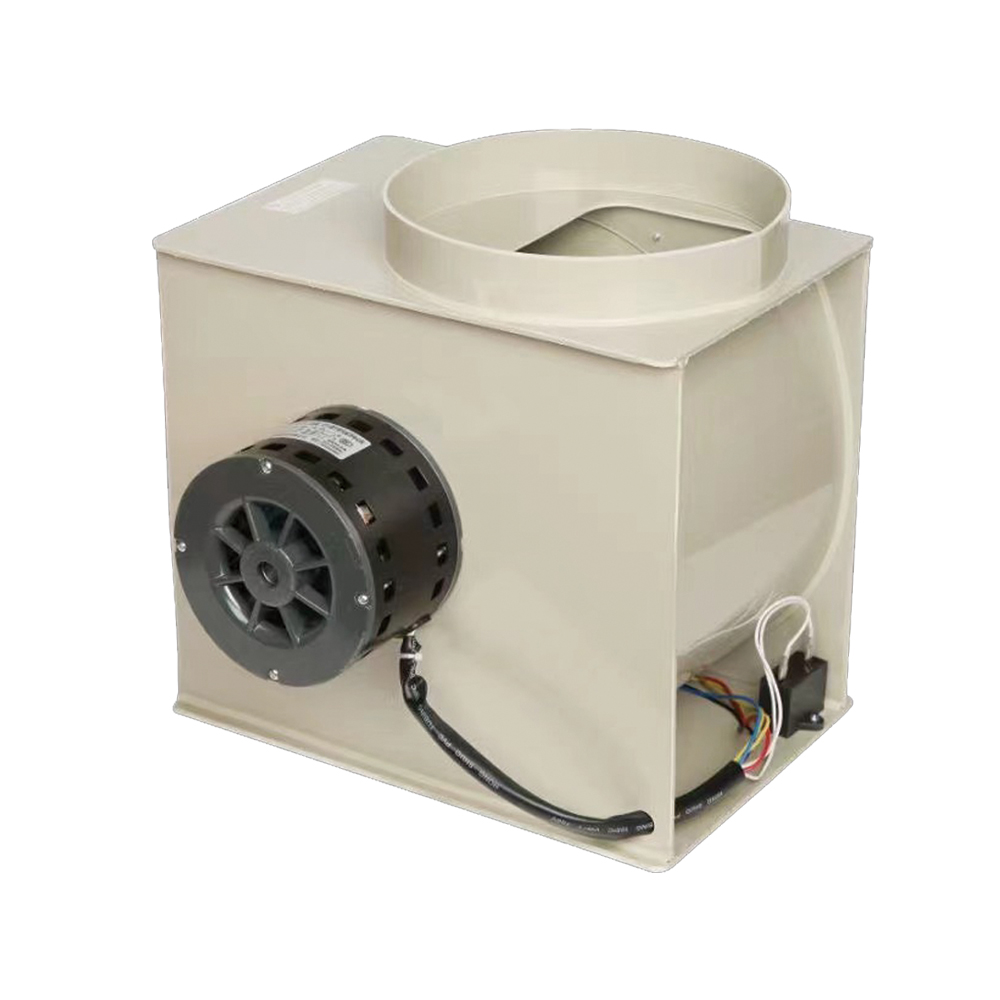

PP Centrifugal Anti-Corrosion Fans (Indoor)
The PP indoor centrifugal fan is based on the principle of a metal fan and is manufactured using high-quality PP. The fan shell is made of high-quality PP board and welded by hot air, and the fan blades are made of patented high-pressure injection molding. It can be widely used in chemicals, laboratories, ventilation equipment, metallurgy, electroplating, textiles, instruments, scientific research units to extract toxic or corrosive gases in the temperature range of -8 degrees to +80 degrees.
PP Centrifugal Anti-Corrosion Fans (Indoor)
The PP indoor centrifugal fan is based on the principle of a metal fan and is manufactured using high-quality PP. The fan shell is made of high-quality PP board and welded by hot air, and the fan blades are made of patented high-pressure injection molding. It can be widely used in chemicals, laboratories, ventilation equipment, metallurgy, electroplating, textiles, instruments, scientific research units to extract toxic or corrosive gases in the temperature range of -8 degrees to +80 degrees.
SPECIFICATION
Please note: Suitable for weak acid&alkali / low humidity environment. These PP fan has three speeds, used in the ventilation system to adjust the air volume.
Power (KW) | RPM | Air volume (M³/H) | Static pressure (Max vacuum rate) | Noise (dB) A | Phase | Voltage | Frequency (Hz) |
0.3 | 1450 | 2000-2500 | 30-28 | 60 | 1 | 220V | 50/60 |
FEATURE
Insulation, small specific gravity, clean, beautiful, and has a certain mechanical strength. The fan is an indoor fan, and the air outlet can be specially manufactured at any angle according to user needs. The fan is directly driven by a motor. In order to protect the drive shaft or motor from corrosion, a variety of protective measures are adopted.
PP Material
Using high-quality PP material, non-toxic olefin material centrifugal fan, healthy and environmentally friendly.

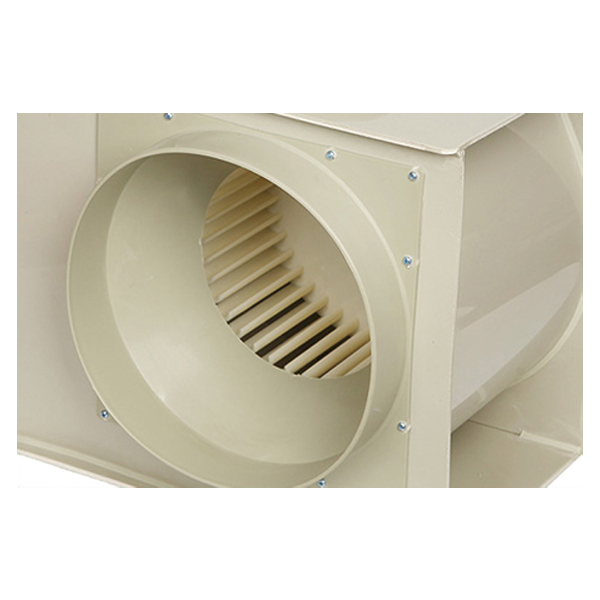

Fan Design
Diagonal flow pressurized blade, good performance, low energy consumption and low noise. The blade is made of superior ABS material, which can prevent deformation under stress.

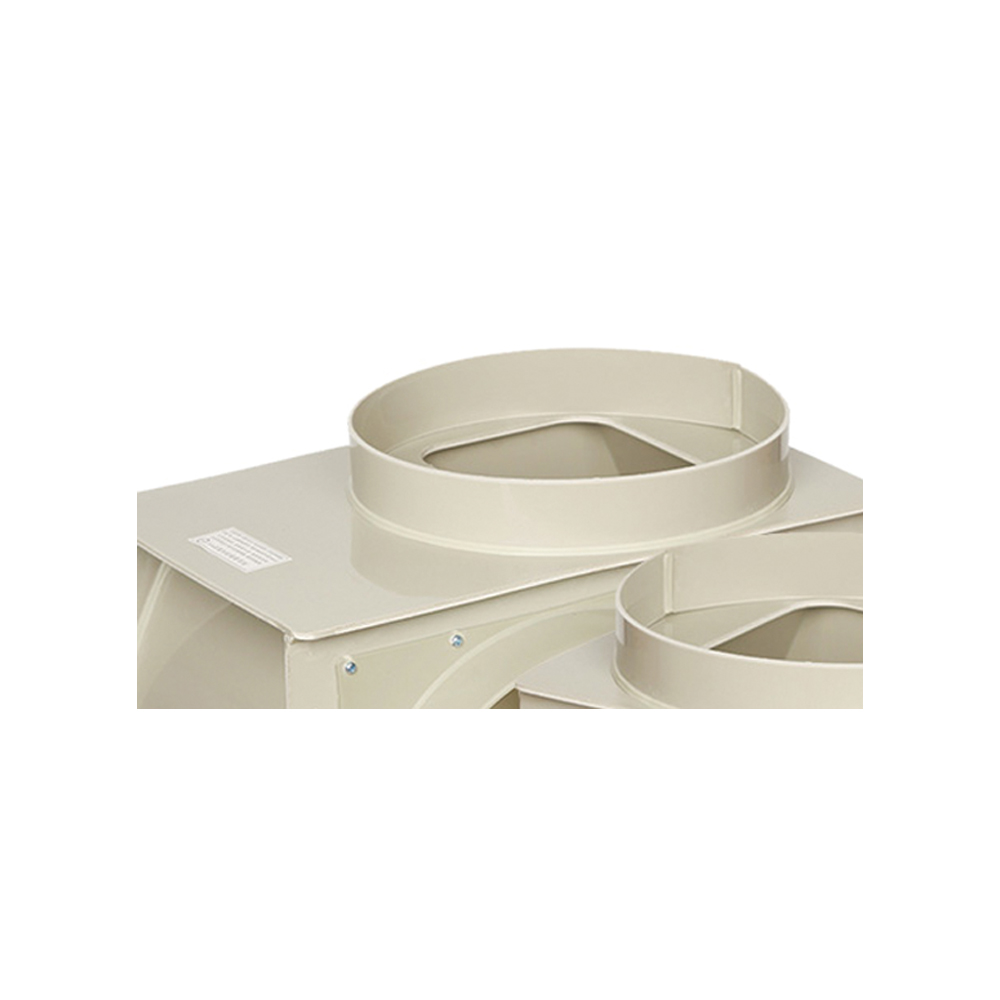

Enlarged Air Outlet
Enhance efficiency, reduce energy consumption, and reduce noise. When working, it is fully enclosed in a stationary isolation sleeve to solve mechanical rotation pollution leakage and achieve zero oil leakage.

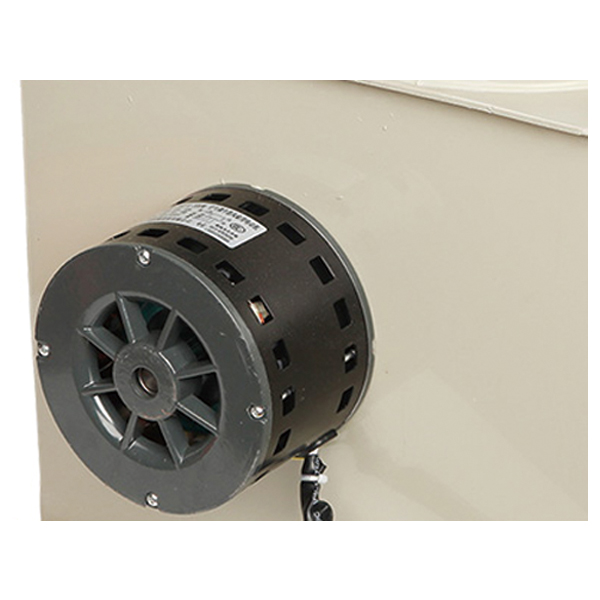

Double Ball Shaft Motor
Large air volume, fast speed, low heat consumption

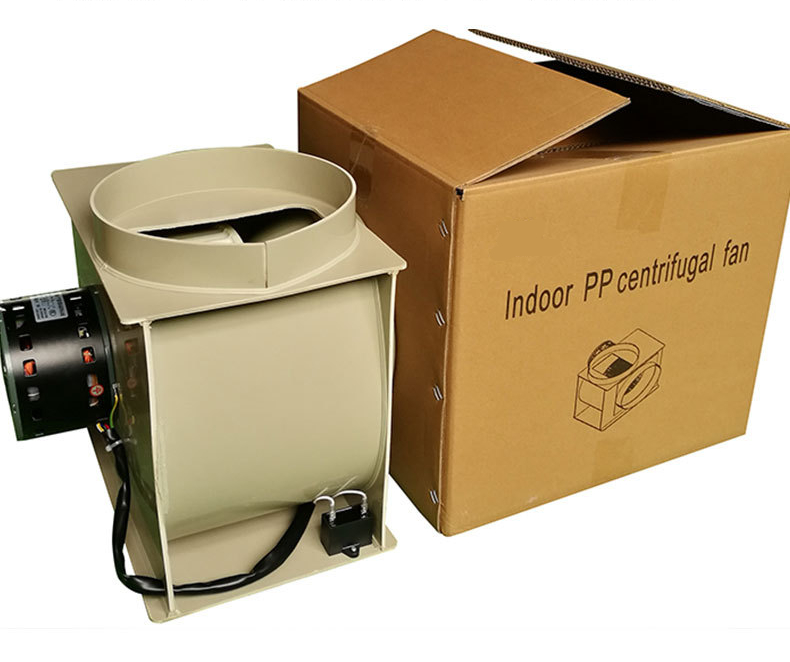

PACKING
