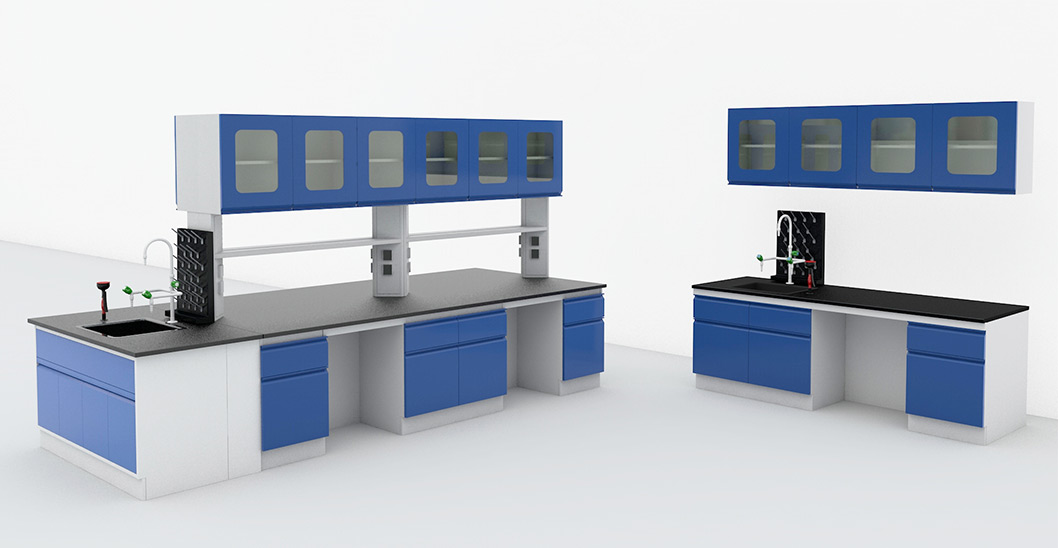

Floor Mounted Lab Bench

The Floor Mounted Lab Bench is cabinet units support countertop, and the cabinet units are fixed by connecting rods.

This kind of structure has good load-bearing performance, and the load-bearing capacity can reach 500KG/m², which can meet the use requirements of large-scale precision instruments&equipment in the laboratory.

Cabinet unit is in direct contact with the ground to prevent dust from entering the bottom of the workbench, which is the first choice for dust-free laboratories.

Remarks: The Floor Mounted Lab Bench is only suitable for all-steel cabinet units. If use wooden cabinet units, it will be expanded and deformed when it touches the damp ground.


REQUEST A QUOTE

The Floor Mounted Lab Bench is cabinet units support countertop, and the cabinet units are fixed by connecting rods.

This kind of structure has good load-bearing performance, and the load-bearing capacity can reach 500KG/m², which can meet the use requirements of large-scale precision instruments&equipment in the laboratory.

Cabinet unit is in direct contact with the ground to prevent dust from entering the bottom of the workbench, which is the first choice for dust-free laboratories.

Remarks: The Floor Mounted Lab Bench is only suitable for all-steel cabinet units. If use wooden cabinet units, it will be expanded and deformed when it touches the damp ground.




SPECIFICATION

1. Countertops

(1) Phenolic Resin countertop: 12.7mm (Edge banding and Thicken to 25.4mm)/16mm thickness

(2) Epoxy Resin countertop: 16/19/20/25mm thickness

(3) Ceramic countertop: 20mm thickness

(4) Trespa countertop: 13/16/19/20/25mm thickness

(5) Granite/Marble countertop: 20mm thickness

2. Cabinet&Accessories

(1) Cabinet: 1.0mm full-thickness high-quality cold-roll steel sheet is used as a whole; the steel surface is treated, phosphating and other processes, and then electrostatic powder sprayed with epoxy resin, cured at 220°C high temperature. and the surface is smooth, with a thickness of up to 1.15mm~1.2mm. The cabinet door is double-layered inside and outside, filled with sound insulation material.

(2) Connecting rod: The whole adopts 40*60*1.5mm thick high-quality cold-rolled rectangle tube, the steel surface is treated, phosphating and other processes, and then electrostatic powder sprayed with epoxy resin, cured at 220°C high temperature, and the surface is smooth.

(3) Handle: Non-welded linear handle/C-shaped handle/Insertion Aluminum alloy handle.

(4) Rail: DTC 16-inch three-section silent rail.

(5) Hinge: DTC 105°/175° buffer hinge/stainless steel hinge.

(6) Footing: Use laboratory-specific adjustable feet with an adjustment range of ≥35mm, strong bearing capacity, the balance of the Lab bench can be adjusted.


ADVANTAGES

· Dignified appearance

· Durable

· High cost performance

· More storage space

· Easy to install

· Good load-bearing performance and excellent stability. Bearing up to 500KG/m²


Standard Dimensions

Product Name

Dimensions (L*W*H)

Floor Mounted Wall Bench

L*750*850mm/Customize

Floor Mounted Island Bench

L*1500*850mm/Customize

Floor Mounted Corner Bench

1000*1000*850mm/Customize


Floor Mounted Island Bench

LB-FM-01

LB-FM-01

LB-FM-02

LB-FM-02

LB-FM-03

LB-FM-03

LB-FM-04

LB-FM-04

LB-FM-05

LB-FM-05

LB-FM-06

LB-FM-06

Floor Mounted Wall Bench

LB-FM-07

LB-FM-07

LB-FM-08

LB-FM-08

LB-FM-09

LB-FM-09

LB-FM-10

LB-FM-10

LB-FM-11

LB-FM-11

LB-FM-12

LB-FM-12

Floor Mounted Corner Bench
