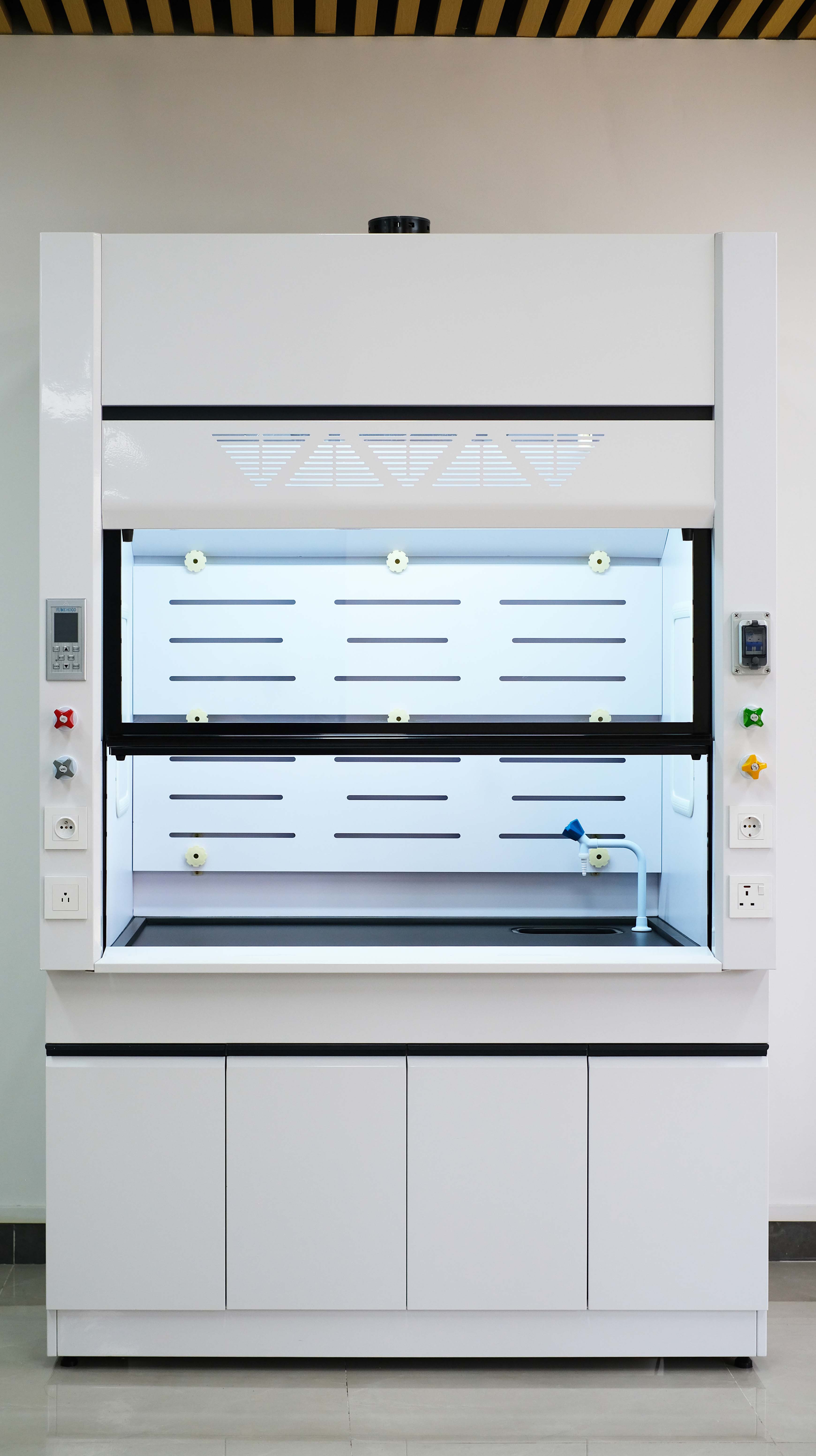

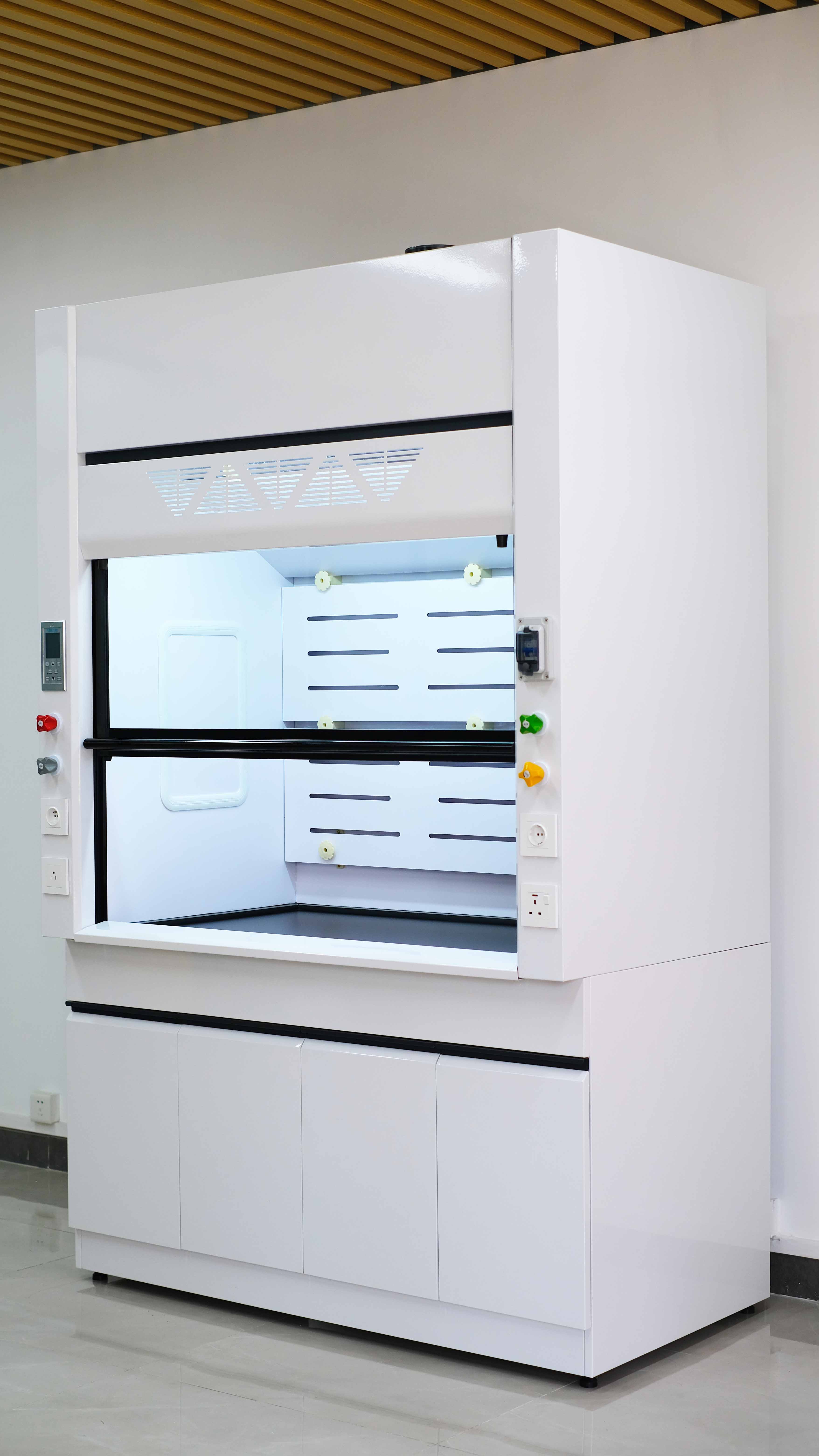

Basic Series Fume hood

All steel fume hood is the most basic and common of all fume hoods. All steel fume hood is generally applicable for common laboratory applications such as boiling, evaporation, drying, and other applications that emit noxious fumes and vapors.

REQUEST A QUOTE


SPECIFICATION

1.Hood body&base cabinet: 1.0mm full-thickness high-quality cold-roll steel sheet is used as a whole; the steel surface is treated, phosphating and other processes, and then electrostatic powder sprayed with epoxy resin, cured at 220°C high temperature. and the surface is smooth, with a thickness of up to 1.15mm~1.2mm.

2.Standard Work Surface: Phenolic Resin. Optional: Epoxy Resin/PP/Stainless Steel/Ceramic/Trespa/Granite/Marble. 3.Controller: Intelligent switch with digital display, multiple controls such as power on, fan, lighting, socket, sterilization, damper, etc. 4.Glass sash: Use explosion-proof 5mm tempered glass, aluminum alloy sash handle. It is designed by the weight balance method in the mechanical principle, and the left and right are connected by synchronous wheels. 5.Lighting: Equipped with LED 30W purification lamp, the luminosity is greater than 300LUX, 6. Fume hood liner liner and Baffle: Use 5mm Compact grade laminate, baffle fixed with PP material 7. Junction box: The junction box with circuit board and AC contactor makes wiring more convenient. Suitable for 110V-230V voltage. 8. Standard accessories: 1x bench-mounted single water tap 1x PP oval cupsink 4x Electrical Outlets 1x 250 or 315mmφ PP hood. 9.Optional accessories: Remote Controlled Fixture gas&water faucet Explosion-proof light Distillation Grid Kit Acid and flammable base cabinet Ductwork

Exhaust blower



Model

FH-120

FH-150

FH-180

External Dimension

(W*D*H)(mm)

1200*850*2350

1500*850*2350

1800*850*2350

Internal Dimension

(W*D*H)(mm)

960*680*1150

1260*680*1150

1560*680*1150

Base Cabinet Dimension

(W*D*H)(mm)

1200*800*850

(Can remove)

1500*800*850

(Can remove)

1800*800*850

(Can remove)

Exhaust air volume

700-1300m³/h

900-1700m³/h

1300-2100m³/h

Air Velocity

0.3~0.8 m/s


PRODUCT DISPLAY

Product Detial

Cabinet Material

Cabinet Material

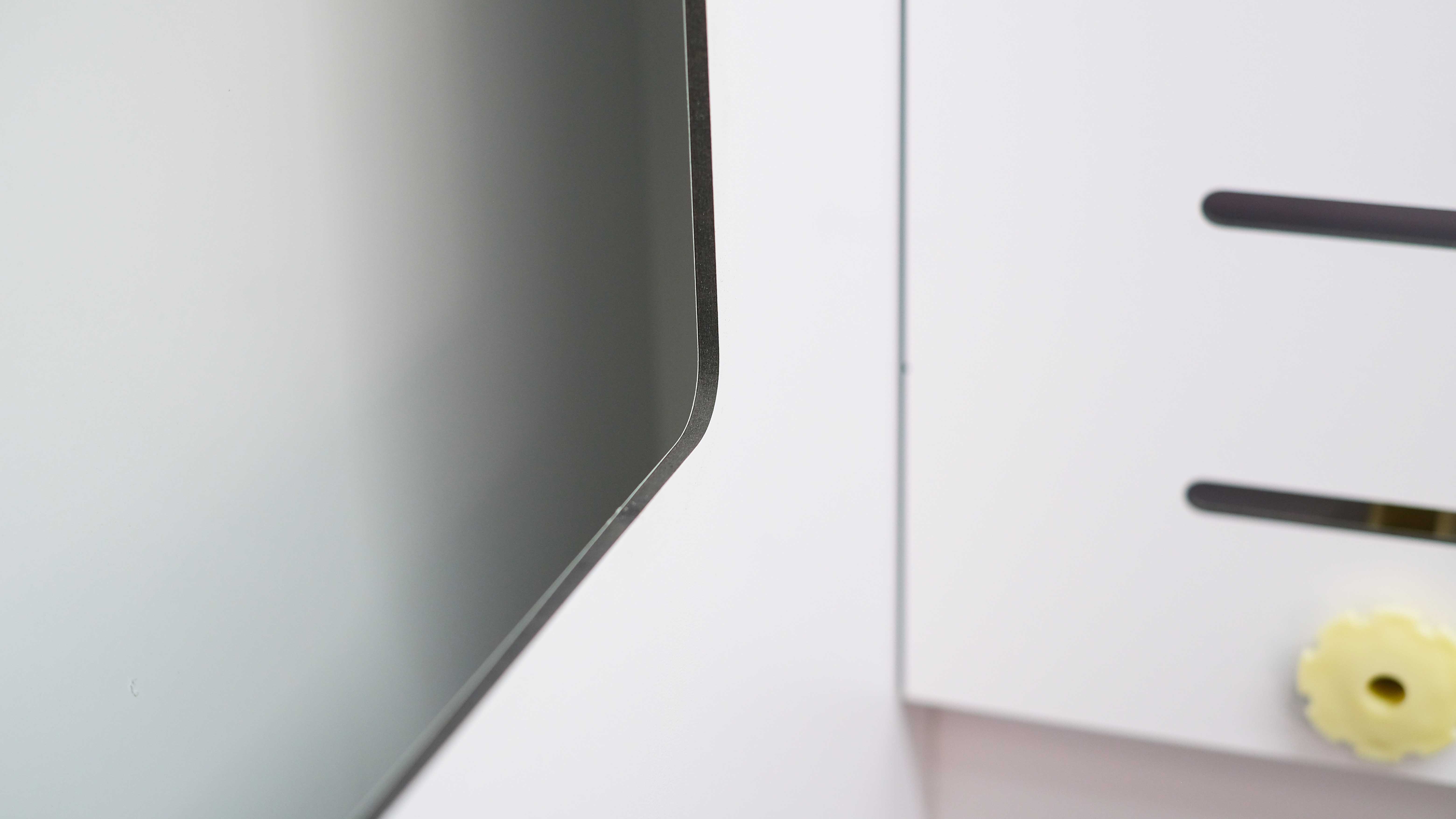

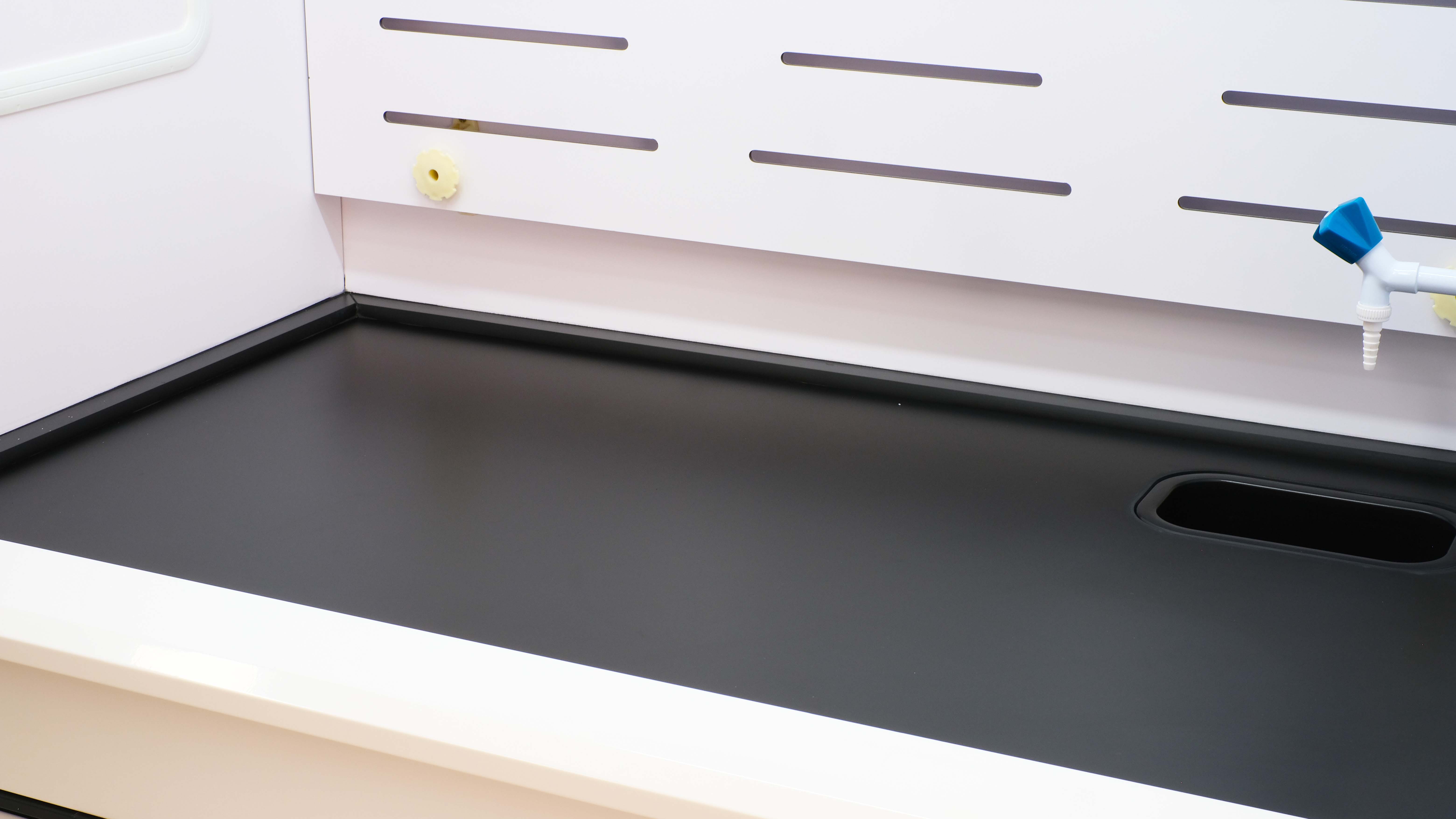

Standard Work Surface

Standard Work Surface

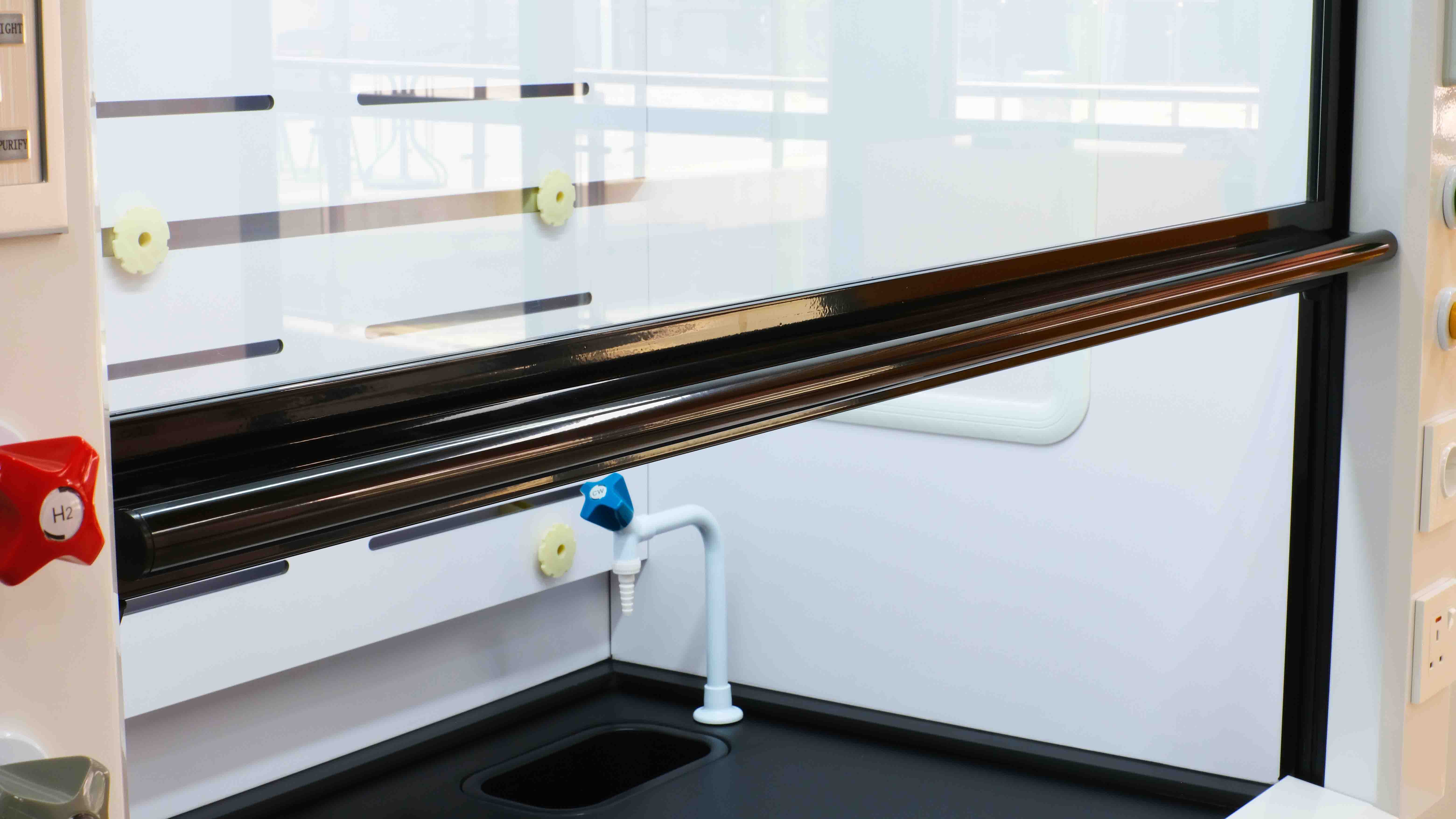

Glass sash

Glass sash

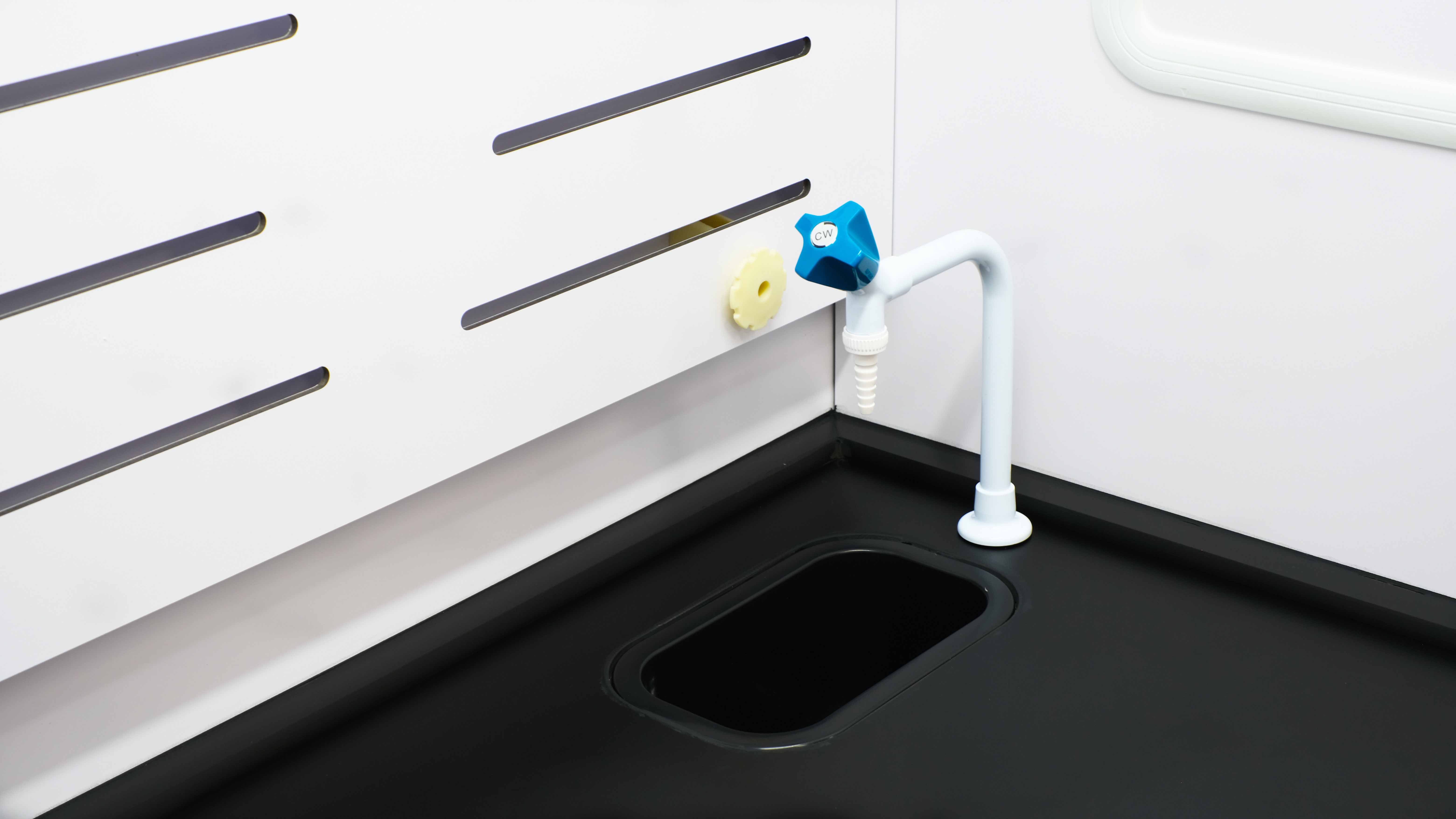

Water Faucet&Sink

Water Faucet&Sink

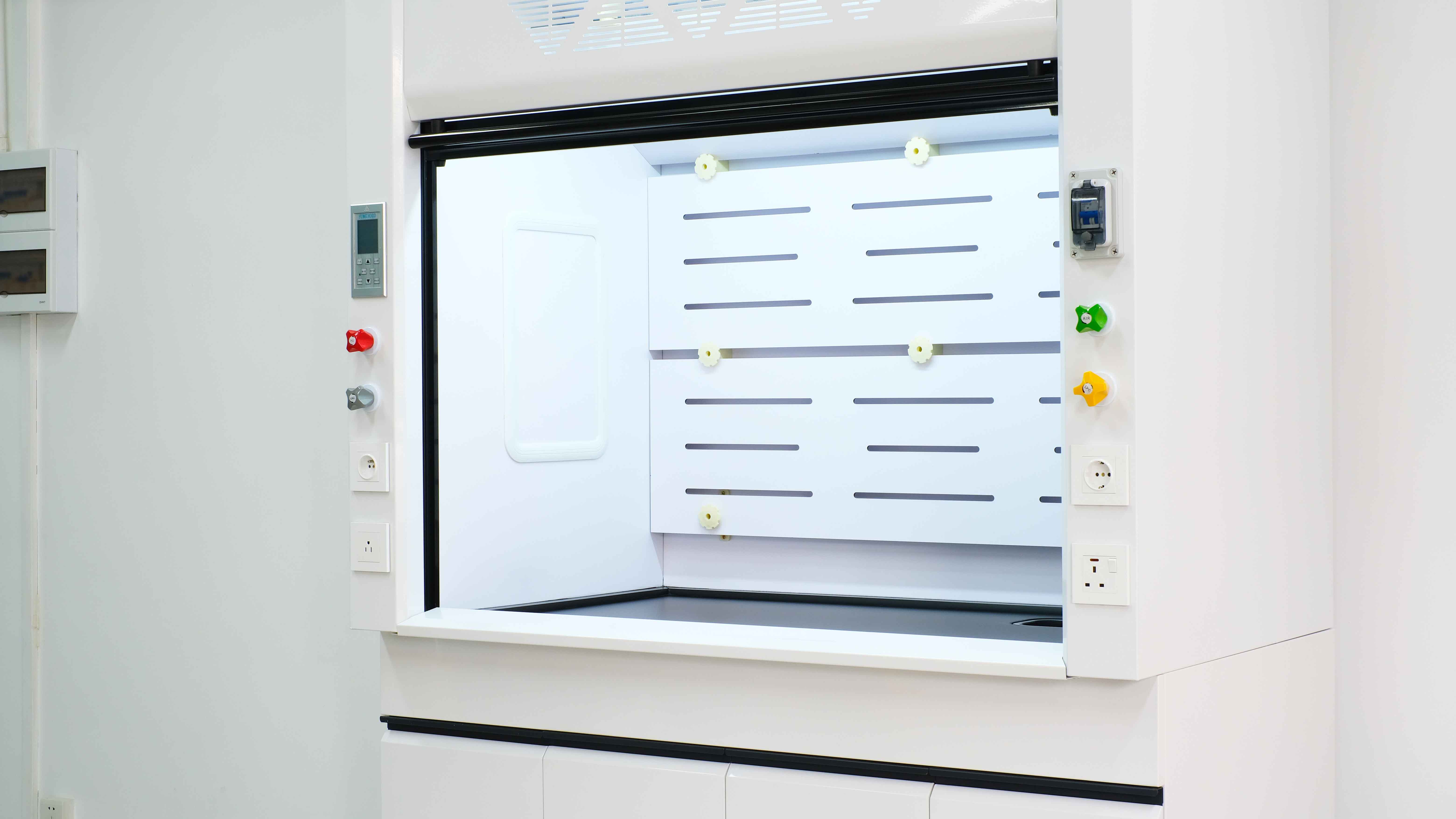

Inner

Inner

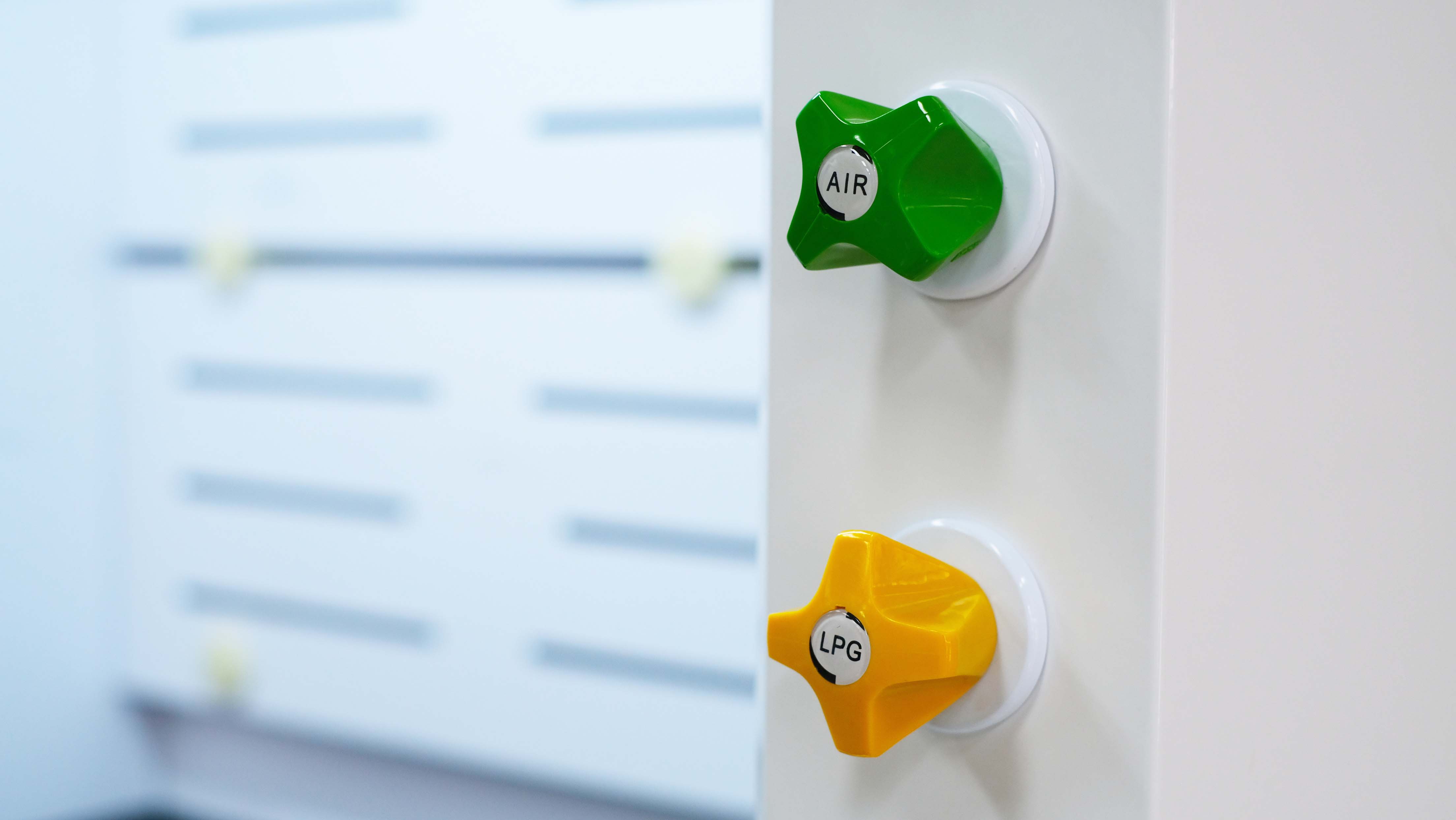

Remote control system

Remote control system

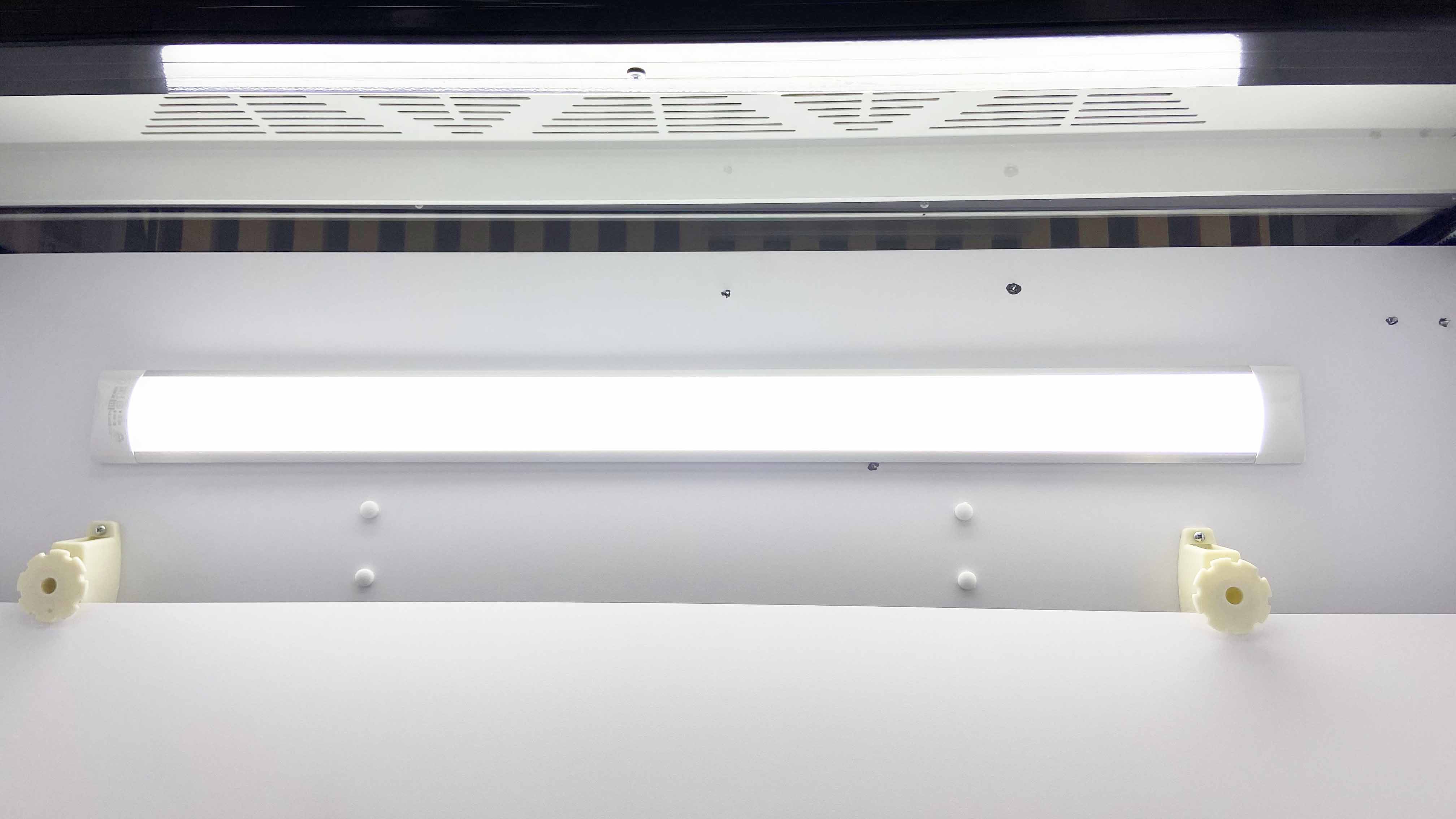

Light

Light

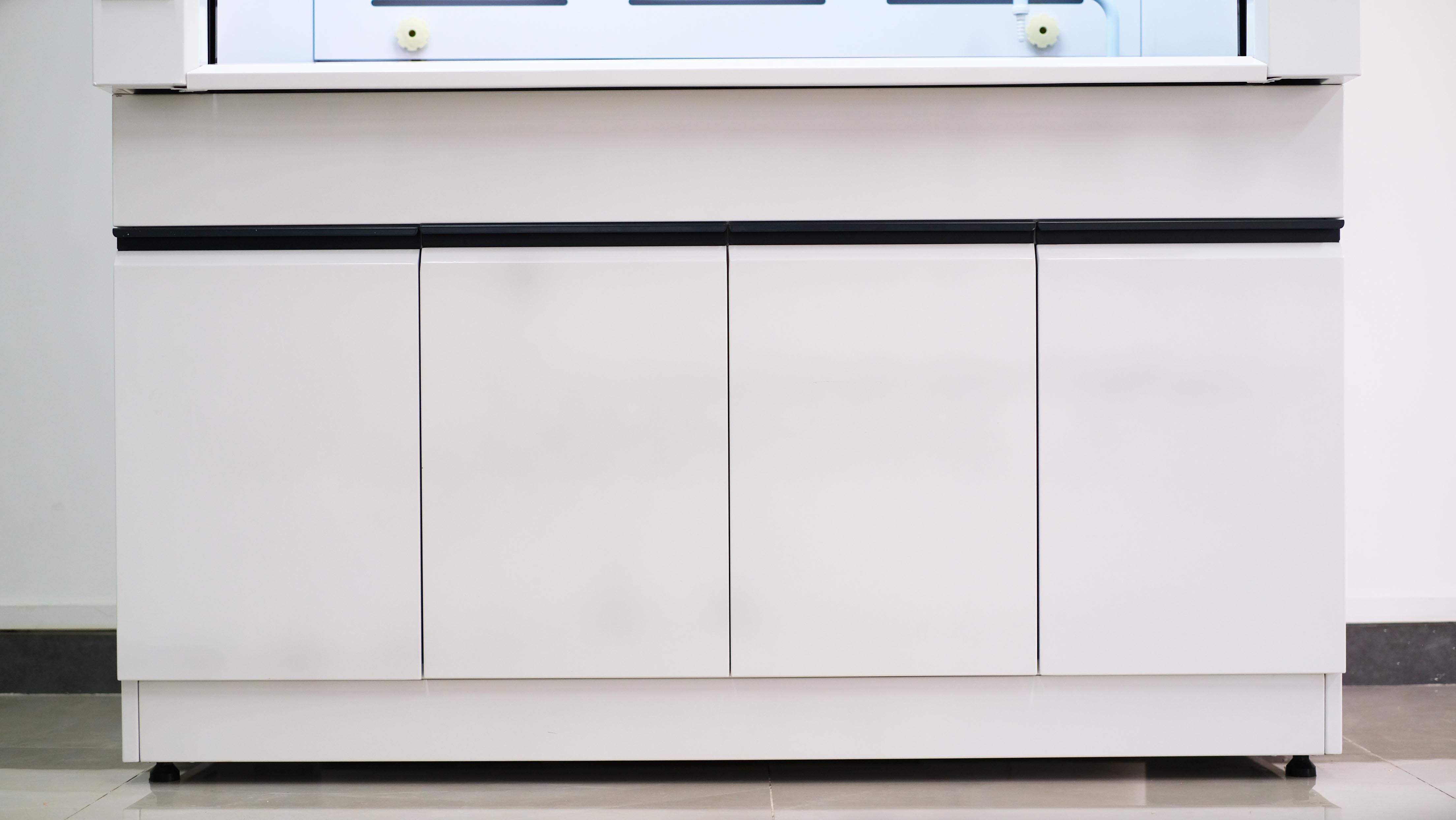

Base Cabinet

Base Cabinet

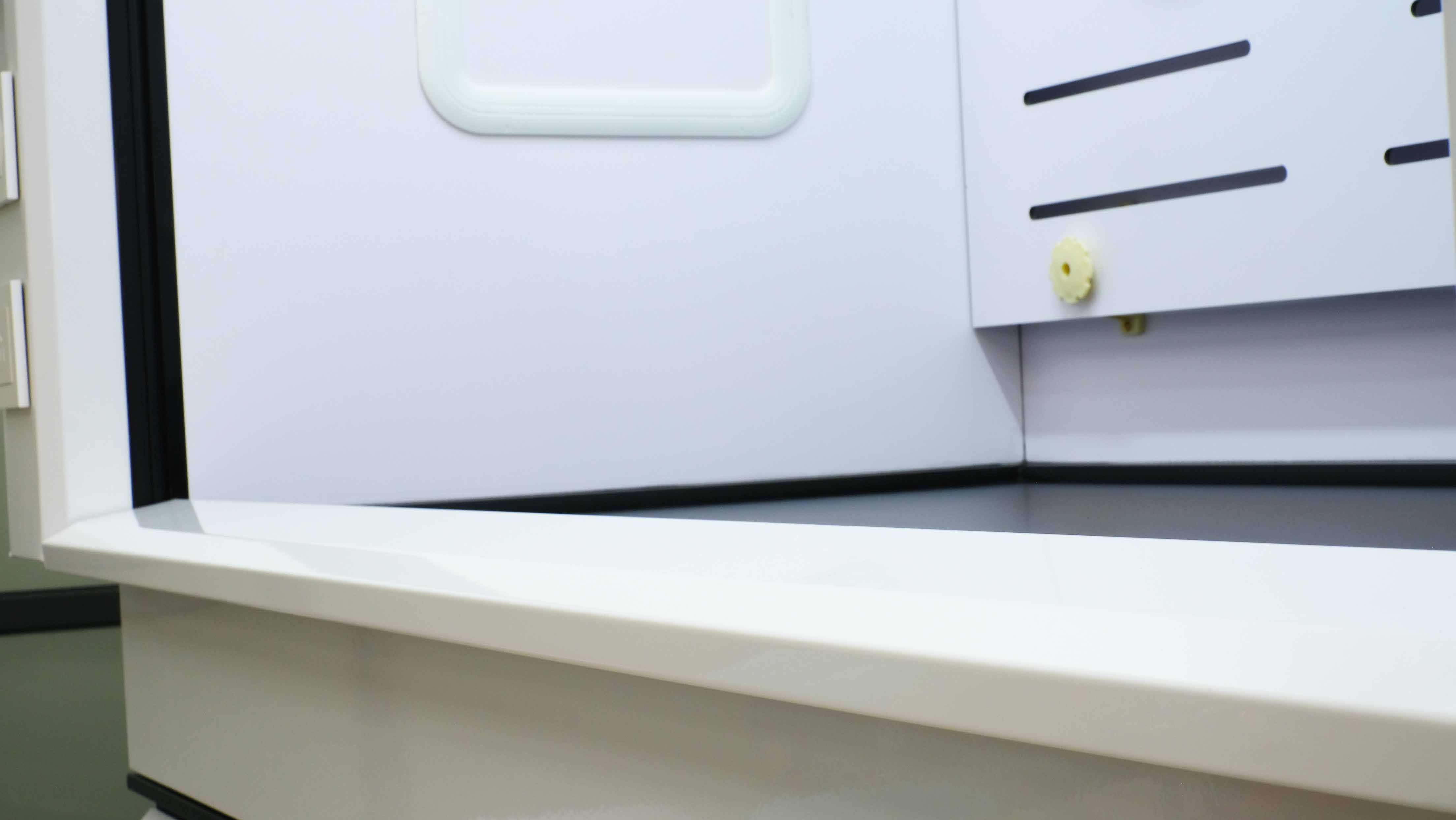

Air foil

Air foil

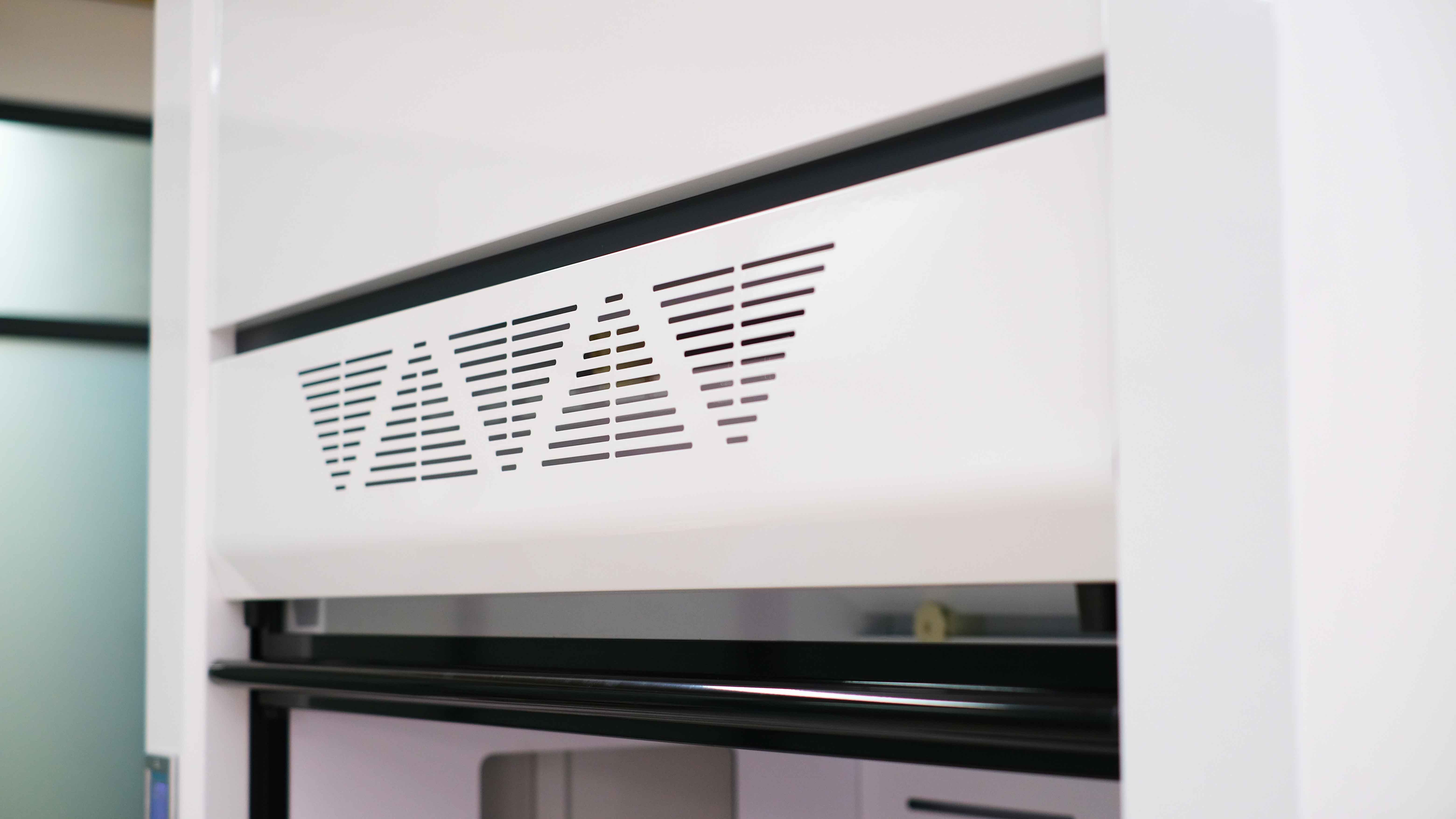

By-pass Hole

By-pass Hole

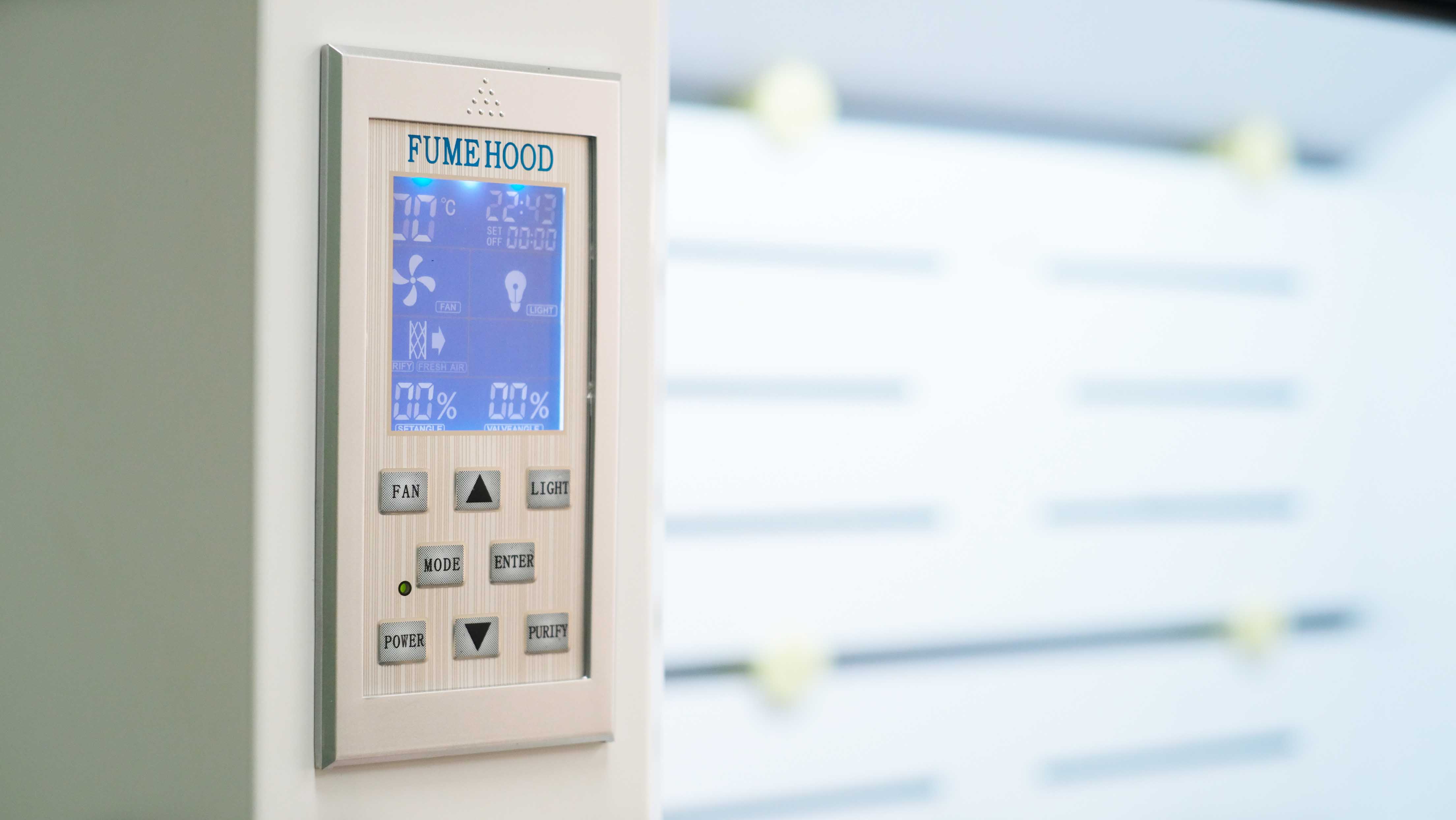

Controller

Controller
