45L/12 Gallons

Safety Cabinets store flammable liquids, corrosives, pesticides and other hazardous materials. All fire-resistant safety cabinets by meet fire codes and regulations for safety storage.

To help protect your people and facility from a potential fire, safety cabinets are engineered to safely contain flammable fuels, solvents, and chemicals. Safety cabinets can not only help everyone store chemicals reasonably, save chemical supplies, but also save human resources, and avoid fires caused by chemicals with the greatest strength.

REQUEST A QUOTE

SAFETY CABINETS

Safety Cabinets store flammable liquids, corrosives, pesticides and other hazardous materials. All fire-resistant safety cabinets by meet fire codes and regulations for safety storage.

To help protect your people and facility from a potential fire, safety cabinets are engineered to safely contain flammable fuels, solvents, and chemicals. Safety cabinets can not only help everyone store chemicals reasonably, save chemical supplies, but also save human resources, and avoid fires caused by chemicals with the greatest strength.


CLASSIFICATION

Flammable Safety Cabinet Catalog_00-01.jpg

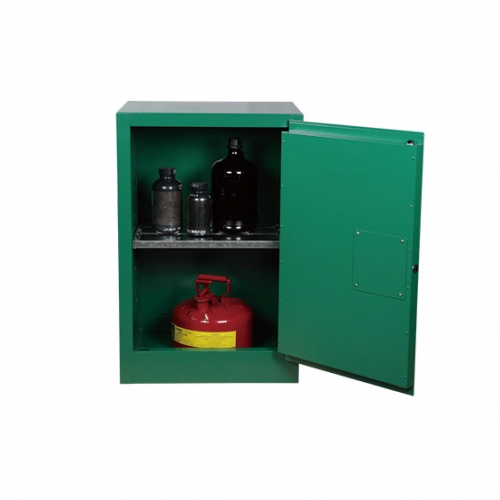

Pesticide Storage Cabinet

The green cabinet represents the professional storage of pesticide.

*Storage substances: pesticide storage cabinets offer safe, secure storage of pesticides, herbicides, fertilizers, flammables and other turf chemicals.

45L/12 Gallons


SPECIFICATION

(Yellow/Red/Blue/Green Cabinet, Grey and White cabinet is not included)

①The safety cabinet is constructed by double-wall 18 Ga (1.2-mm) steel sheet through spot welding, (38-mm) of insulating air space for fire resistance.

②Ventilation devices are set on the left and right sides to effectively reduce the concentration of volatile substances and prevent fire.

③Resin powder coating treatment, the surface is bright, dustproof, rustproof and moistureproof.

④The three-point linkage lock reduces friction or mechanical sparks and reduces static electricity accumulation.

⑤Cabinets feature a leakproof 2 in. (51-mm) bottom sump, dual vents with flame arresters.

⑥Galvanized steel shelves direct spills to back and bottom of a leakproof sump. They adjust on (80-mm) centers for versatile storage, the maximum load-bearing capacity of the shelf is 100kg, each shelf is 8cm apart.

⑦The continuous piano hinge makes the cabinet door close and open smoothly.

⑧The reflective warning labels are highly visible under fire conditions or during power outages when illuminated with a flashlight.


Model

Volume

Size(H*W*D)mm

NO.Door

Shelf Pcs

Shelf bearing

SC-01

15L/Gallons

560*430*430

Single

1

50Kg

SC-02

38L/10 Gallons

640*590*600

Single

1

50Kg

SC-03

45L/12 Gallons

890*590*460

Single

1

50Kg

SC-04

83L/22 Gallons

1650*600*460

Single

3

50Kg

890*890*560

Double

1

50Kg

SC-05

114L/30 Gallons

1120*1090*460

Double

1

50Kg

SC-06

170L/45 Gallons

1650*1090*460

Double

2

100Kg

SC-07

204L/54 Gallons

1650*600*870

Single

3

100Kg

SC-08

227L/60 Gallons

1650*860*860

Double

2

100Kg

SC-09

340L/90 Gallons

1650*1090*860

Double

2

100Kg

Yellow     Red√     Blue    Green


PRODUCT DETIALS



        Fire and explosion vent                    Isolation fireproof cotton                  Anti-static design of

                                                                                                                                three-point linkage lock




  Integrated strong safety door                       Adjustable shelf                                Reflective label




          Anti-static device                                Door Closer(Optional)            Secure padlock configuration(Optional)
