China Case Study: Modular Laboratory Furniture Manufacturing for Chemical & Research Labs (Factory Project Photos)

Project Overview

This case study showcases a complete modular laboratory furniture system manufactured and installed by our factory for a modern teaching & research laboratory. The client required a clean, durable, and easy-to-maintain workspace with enough utilities for daily experiments, including power distribution, water supply/drainage, and ventilation support.

The final layout combines island benches, wall benches, corner bench units, sink stations, reagent shelving, and lab fume hoods, creating a practical workflow from preparation → wet work → storage → ventilation operations.

Scope of Supply

We provided a full set of laboratory casework and accessories, including:

• Lab Island work benches (multi-user workstation, integrated drawers/cabinets)

• Lab Wall benches (service-friendly, plug-and-play utility panels)

• Lab Wet bench / sink station (deep sink, chemical-resistant faucet set, drainage)

• Lab Corner bench system (L-shape layout to maximize room utilization)

• Reagent shelving & service panel (socket outlets, switches, optional gas/water points)

• Laboratory fume hoods (for chemical handling and ventilation operations)

• Lab Storage cabinets (wall cabinets, tall cabinets for instruments & consumables)

Materials & Configuration (Customizable)

To meet long-term durability and daily cleaning needs, this project uses a robust modular structure and chemical-resistant surfaces.

• Bench structure: heavy-duty steel frame / integrated base cabinet design

• Worktop options: epoxy resin / phenolic resin / ceramic / stainless steel (custom)

• Cabinet options: steel / steel-wood / PP (for high corrosion environments)

• Standard accessories: reagent rack, pegboard, water taps, cup sink, socket outlets, adjustable feet

• Color matching: cabinet doors and frames can be customized for different lab zones

Why This Layout Works

A good lab is not only “beautiful” — it must be safe, efficient, and easy to maintain. This project was designed around four core goals:

1. Efficient workflow
   Island benches support teamwork and sample prep, while wall benches keep frequently used tools and power points within reach.

2. Wet work separated & controlled
   Dedicated sink stations keep cleaning and rinsing away from dry instrument areas.

3. Utility-ready workstations
   Integrated socket panels and service rails reduce cable clutter and help users keep benches tidy.

4. Ventilation support for safer operations
   Multiple fume hoods provide controlled airflow for chemical tasks and reduce exposure risk.

Key Highlights (Factory Quality Details)

• Precision fabrication: consistent dimensions for fast on-site installation

• Stable structure: reinforced frames and balanced load-bearing design

• Clean finish: smooth edges and easy-to-wipe surfaces

• Export-ready: standardized packing to protect worktops, cabinets, and hardware during shipping

• OEM/ODM support: drawings + product list + materials recommendations for your lab type

Photo Gallery

Central island sink bench with pegboard drying rack and dual water taps for wet processing，laboratory island bench with sink and water taps.

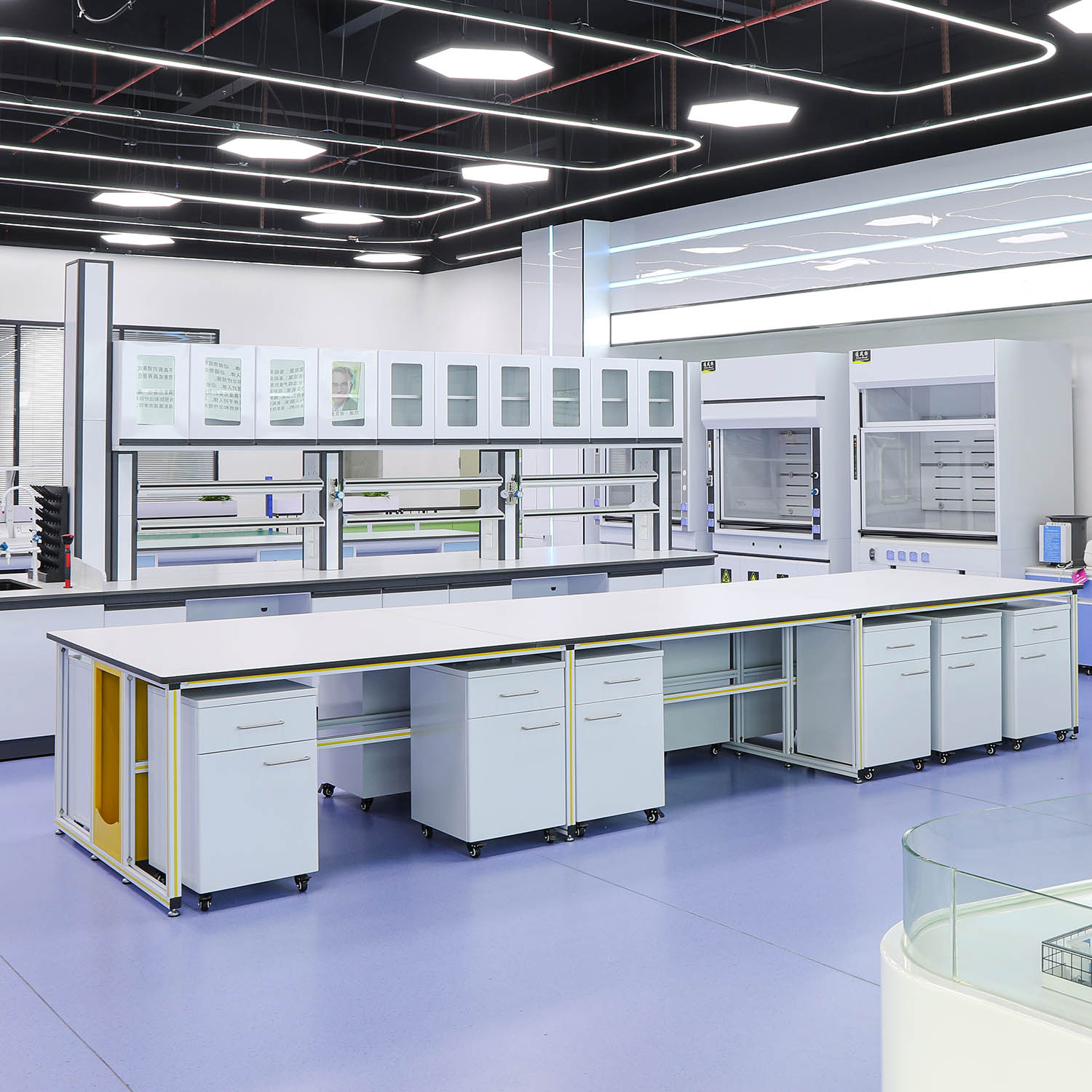

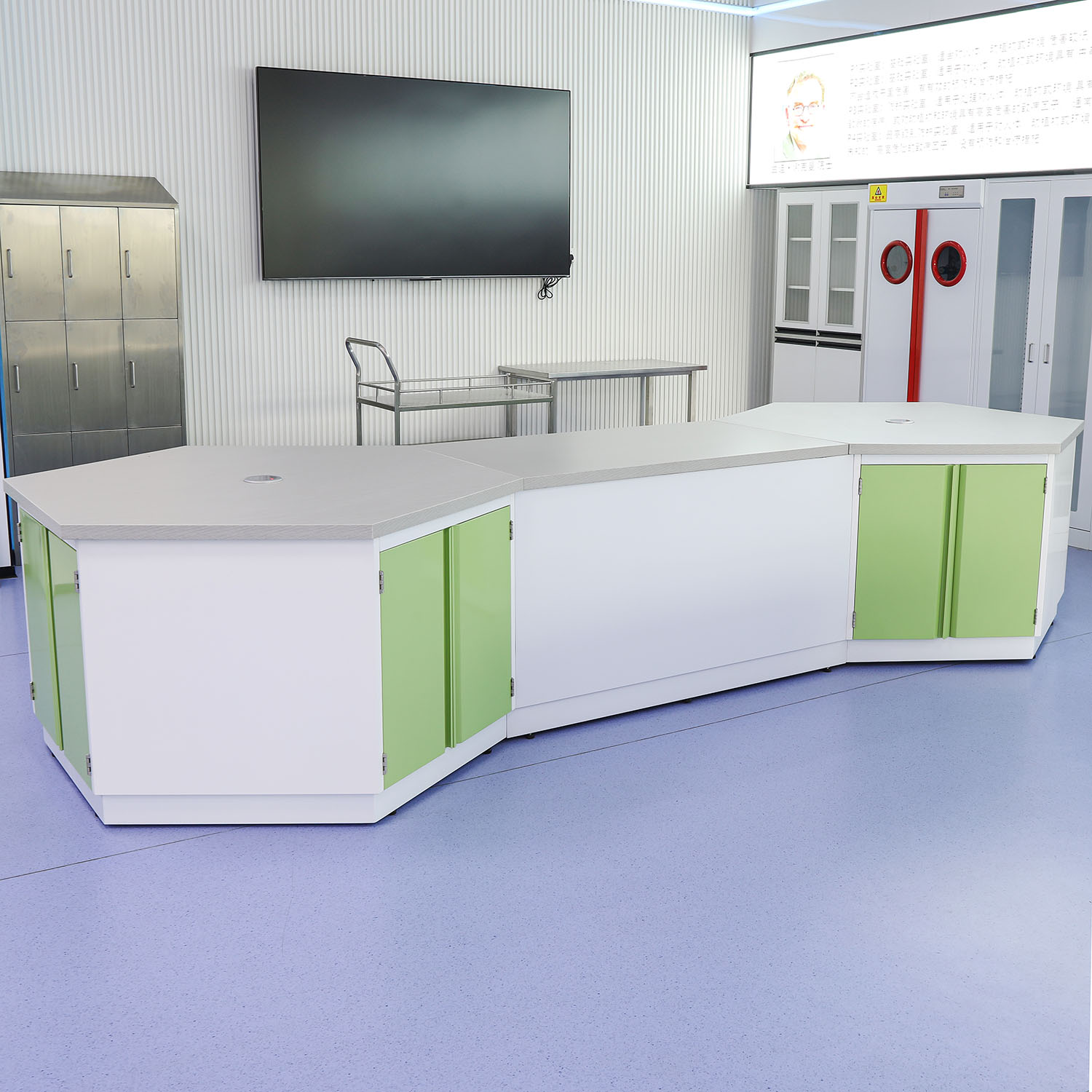

Modular lab furniture workstation

Wall bench with reagent shelf, perforated back panel and multi-outlet power distribution for daily experiments.
wall laboratory bench with reagent shelf and power outlets

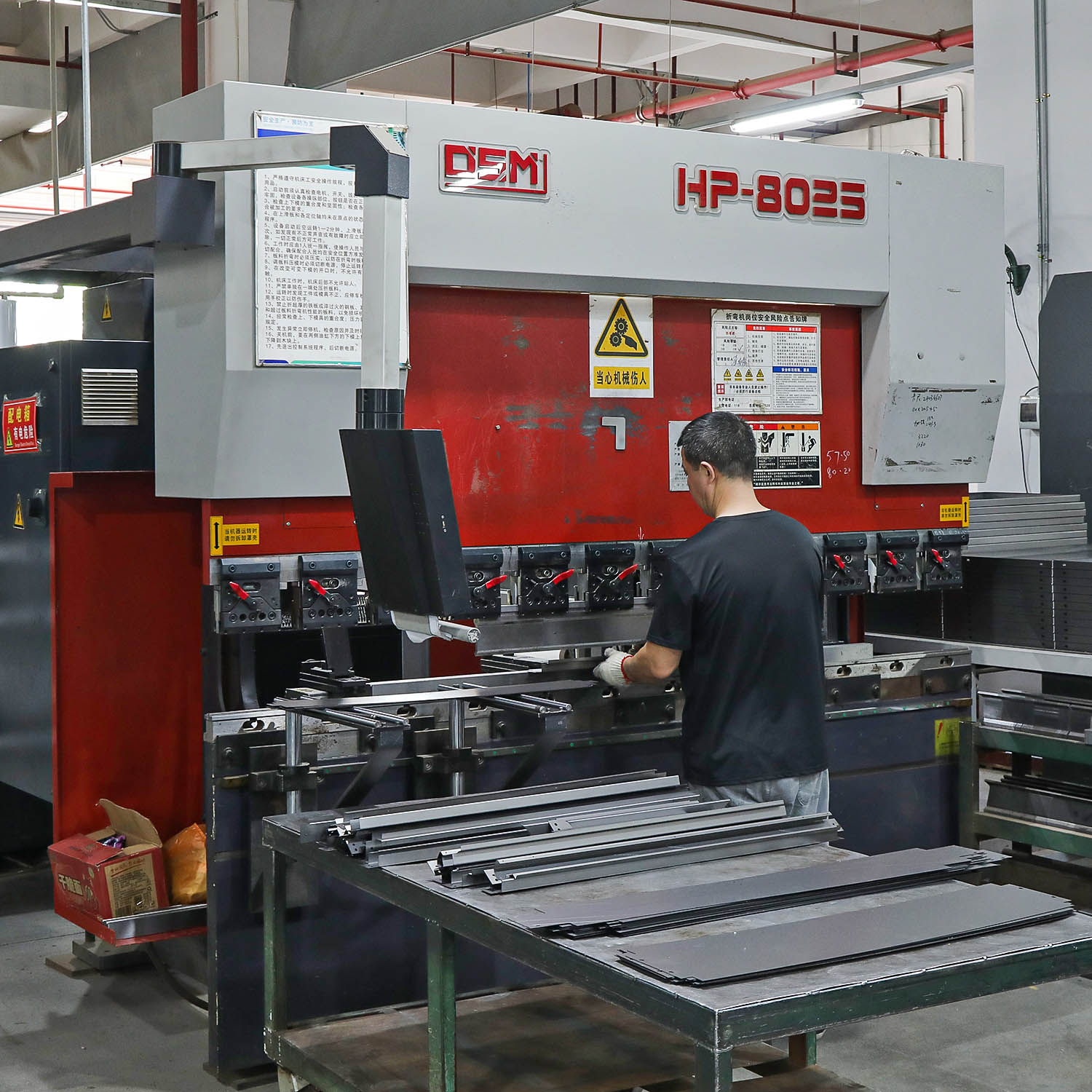

laboratory casework manufacturer

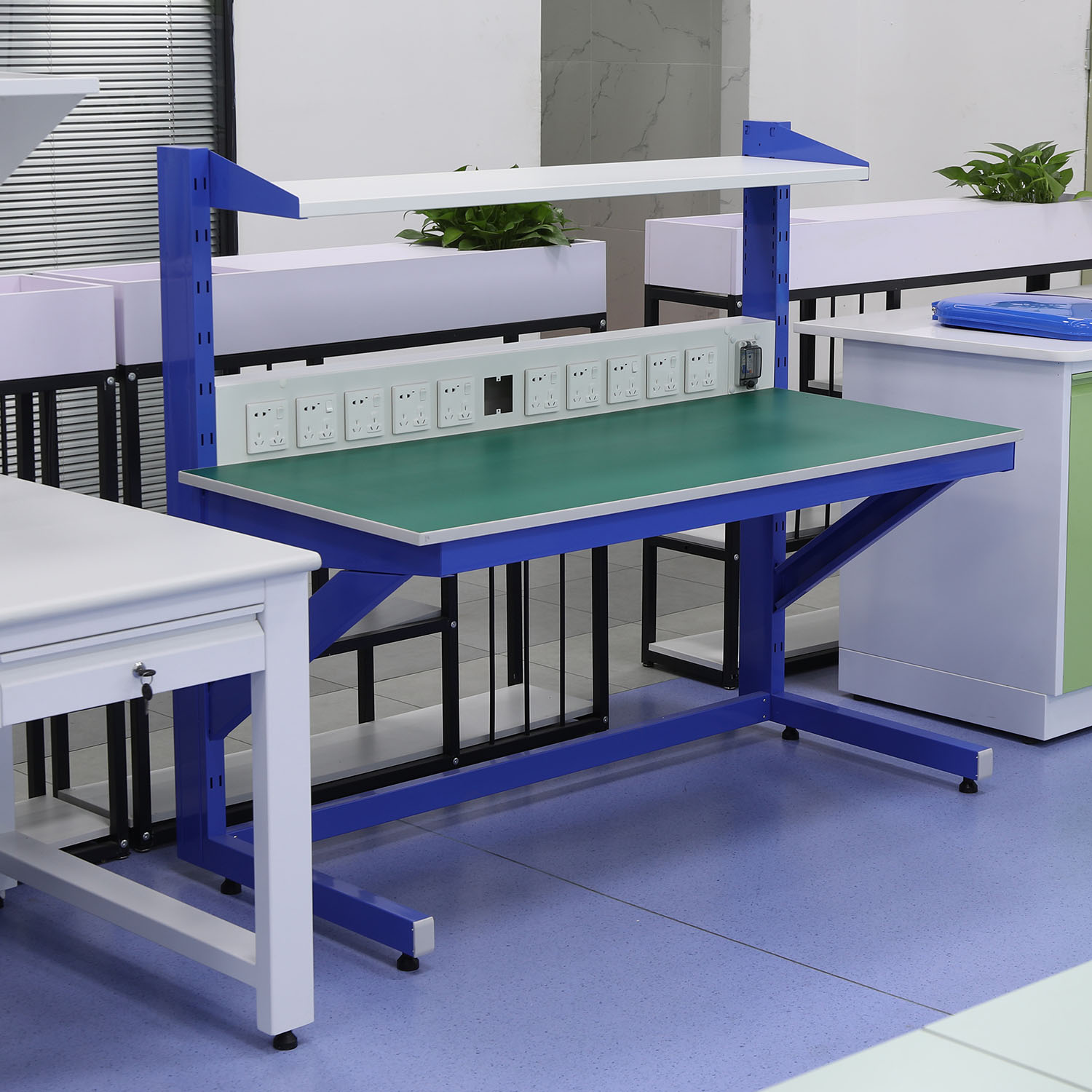

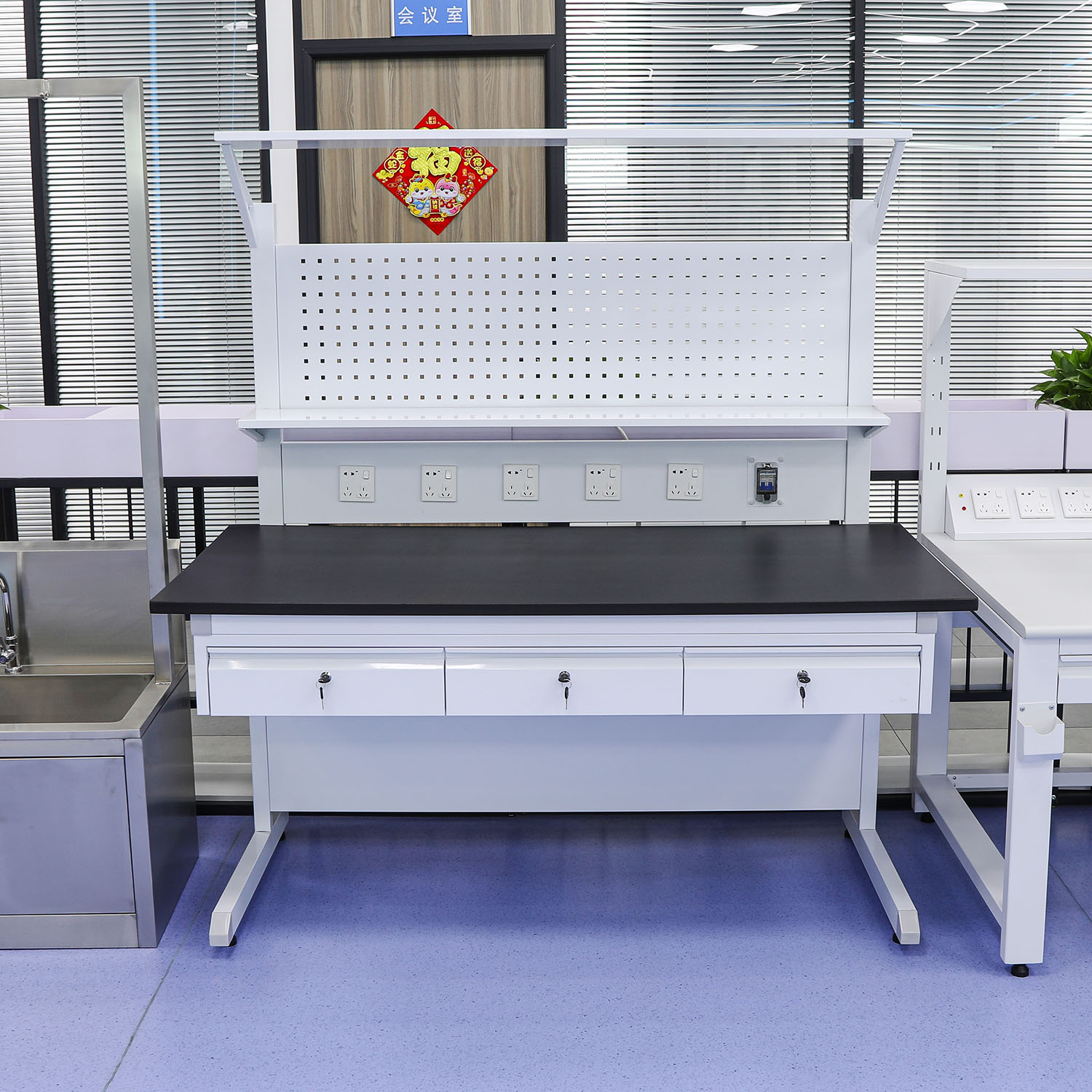

Instrument bench designed for stable support, with long service panel and flexible shelving.

heavy duty laboratory workbench with power outlets

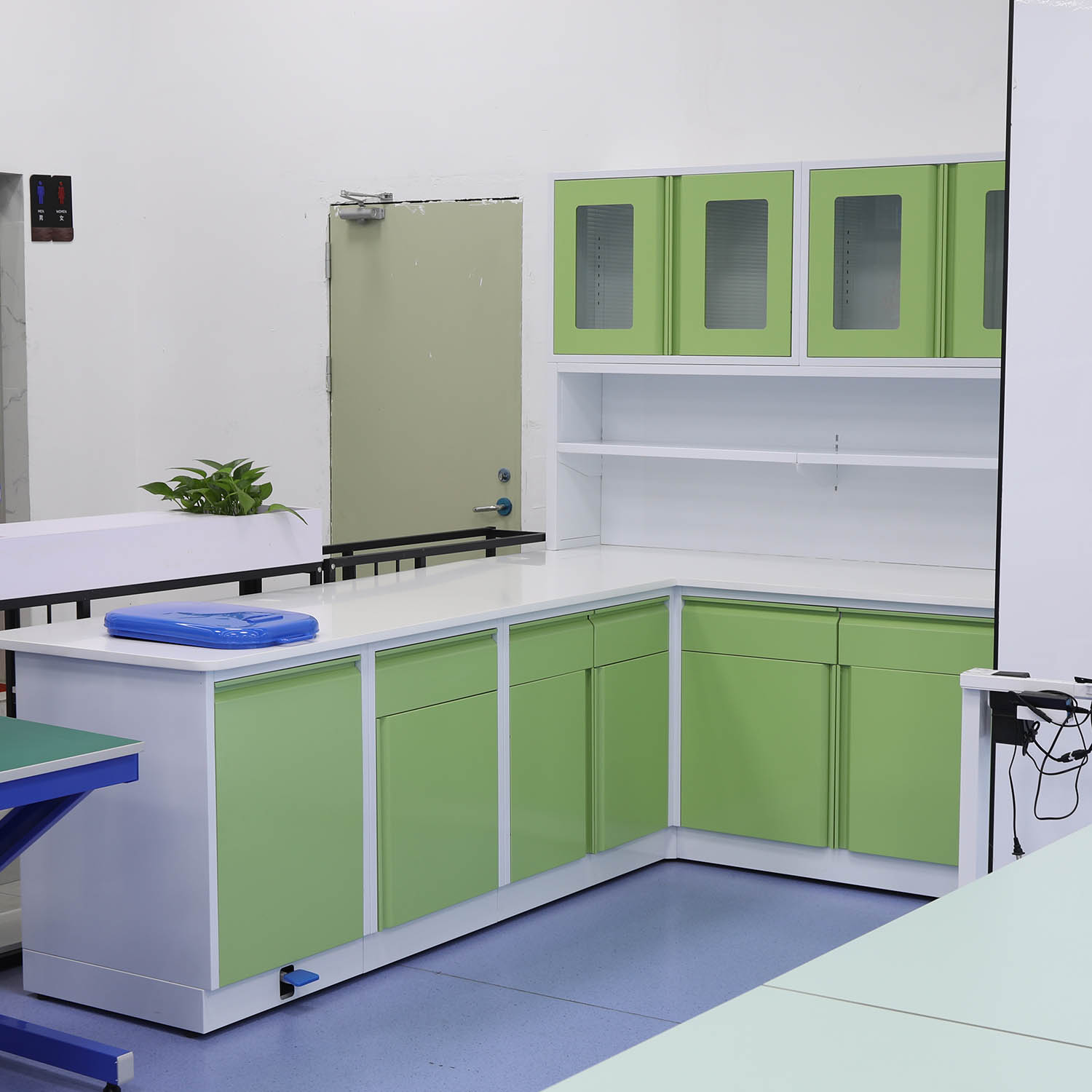

Corner bench configuration maximizes space utilization and improves workflow continuity.
L shape laboratory bench with storage cabinets, modular laboratory furniture system

Stainless steel sink station with faucet set and storage cabinet for easy cleaning and maintenance.
stainless steel laboratory sink cabinet, lab wet bench furniture

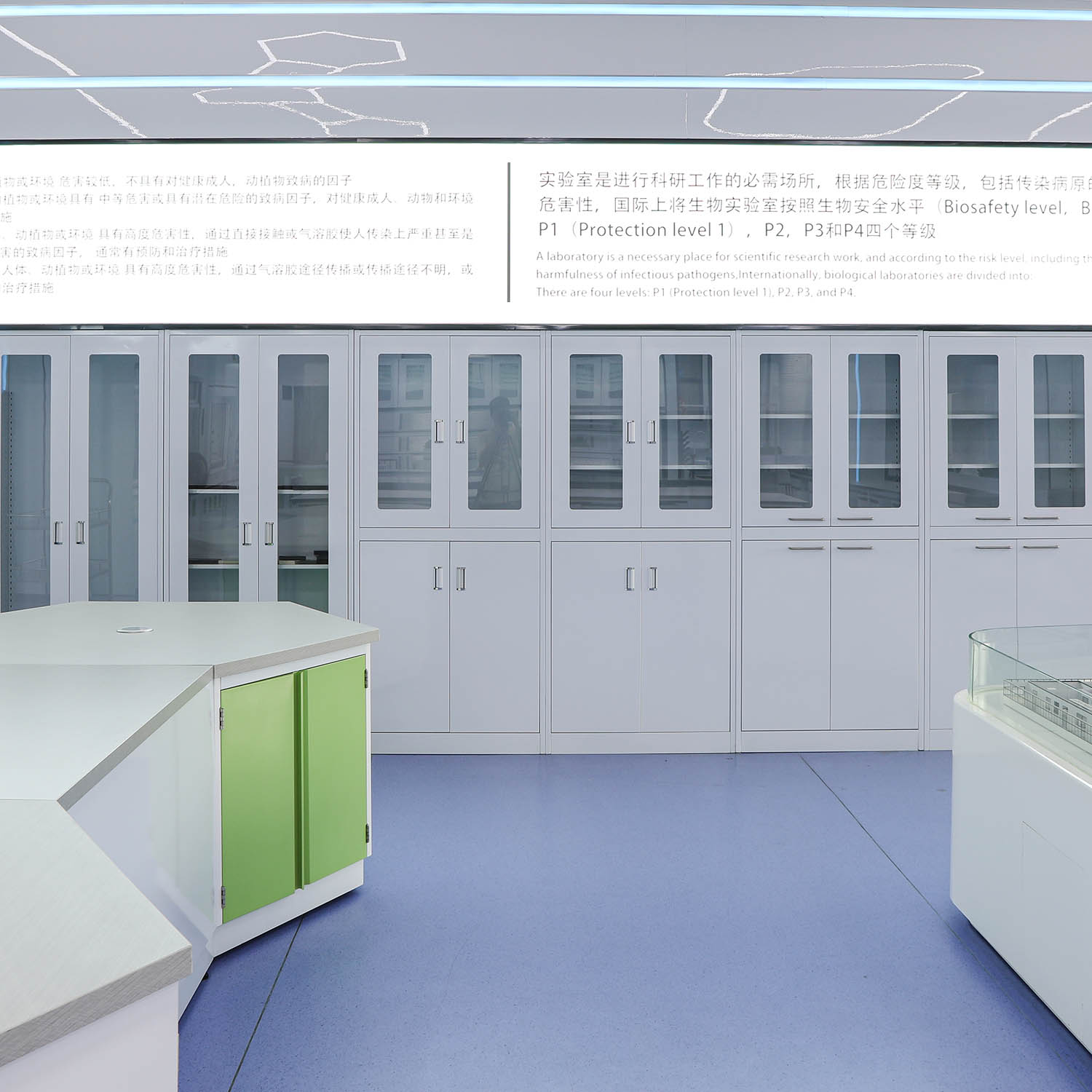

Laboratory storage cabinet line for instruments, consumables, and document organization.
laboratory storage cabinets and tall cabinets

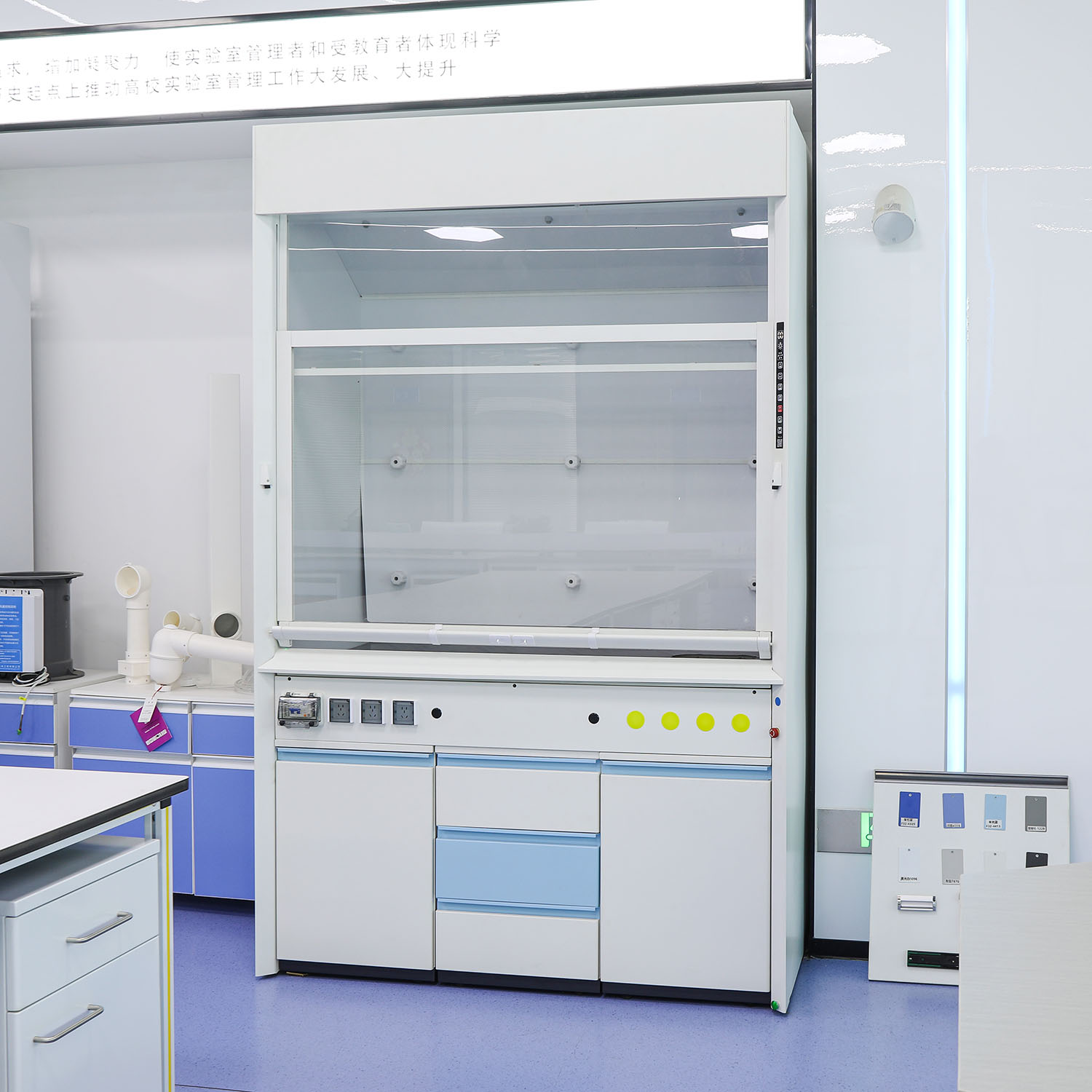

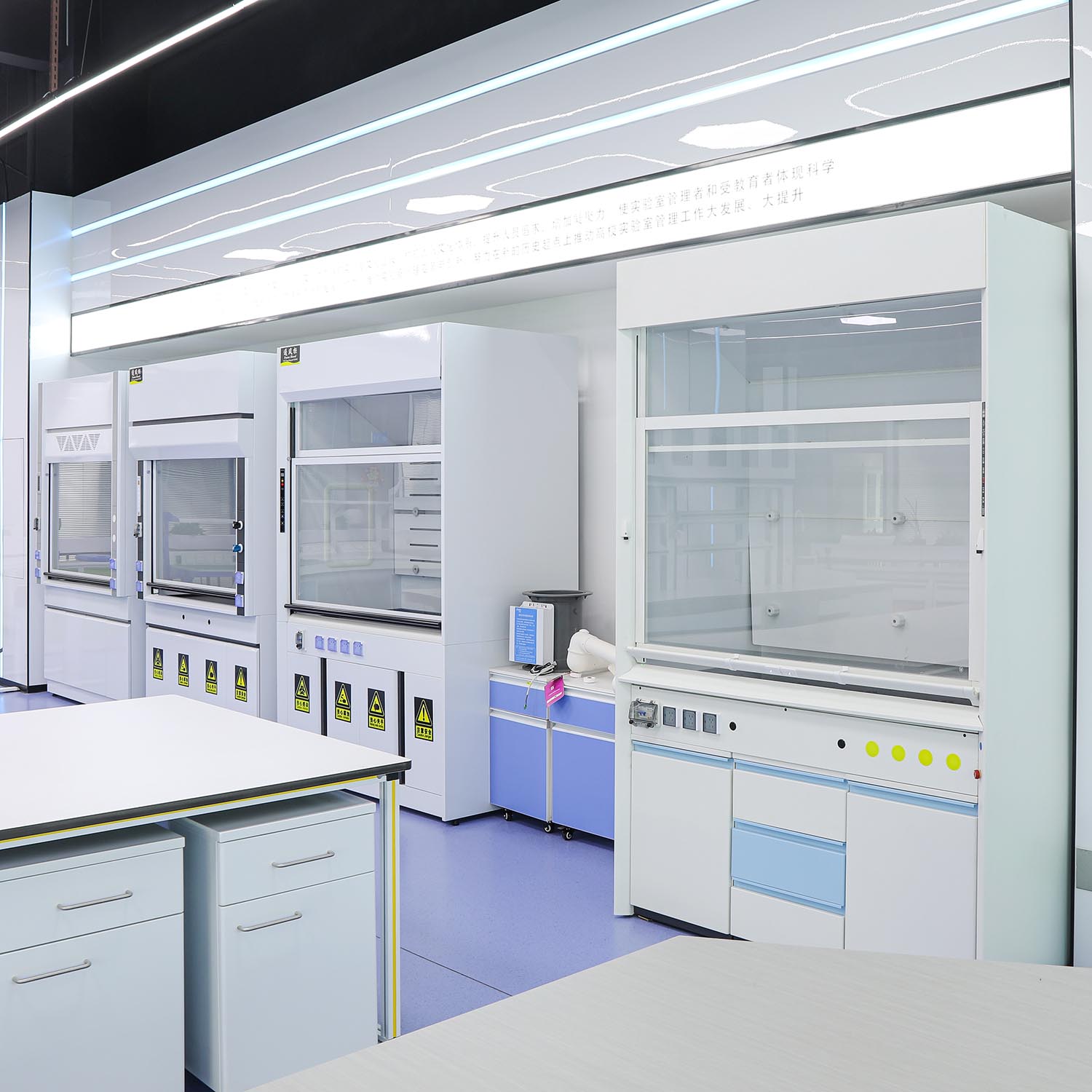

Full-size fume hood workstation for chemical operations, with integrated cabinet base and utility panel. Laboratory fume hood with base cabinets

Chemical lab ventilation workstation

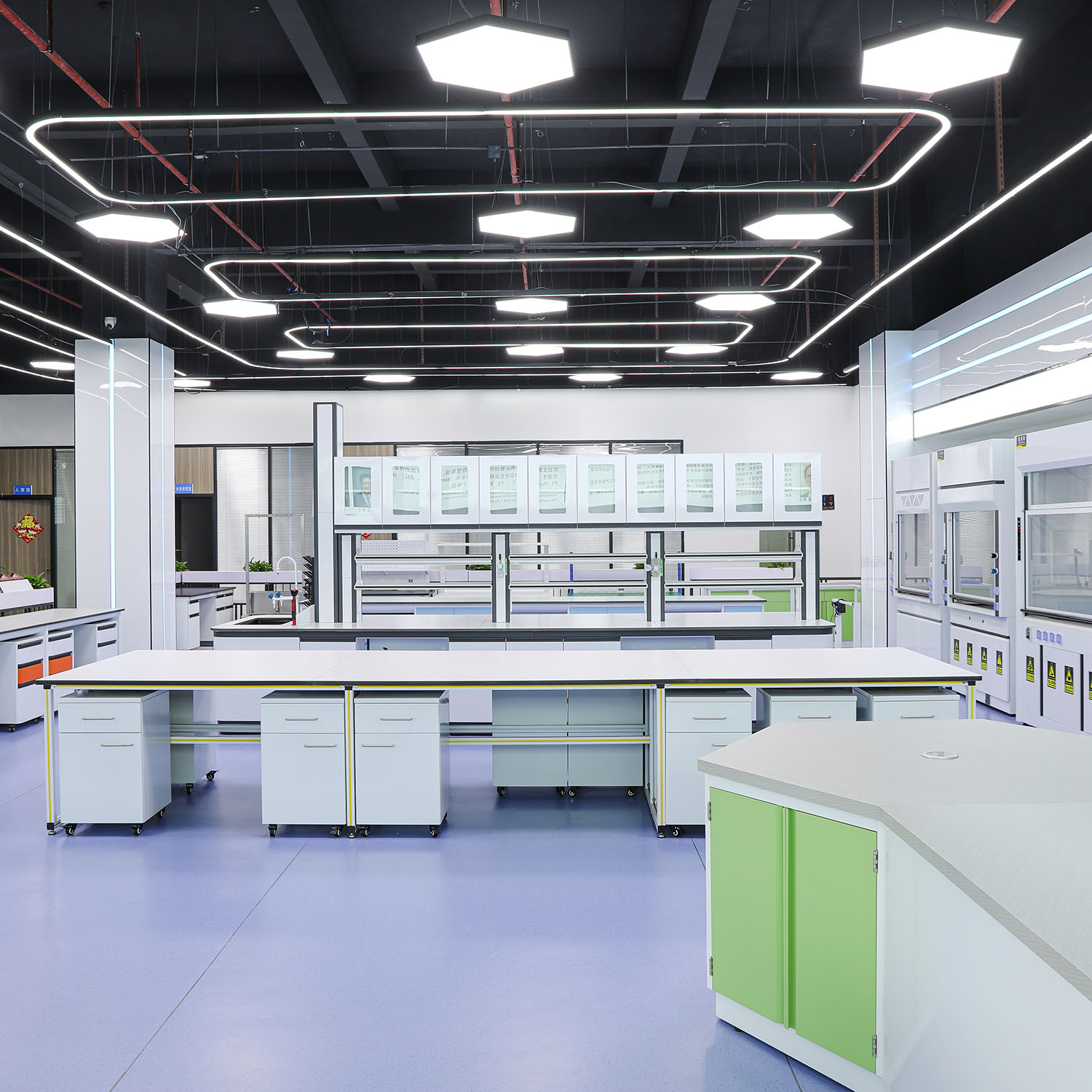

Complete lab layout combining island benches, wall benches, storage cabinets and fume hoods.

Complete laboratory furniture layout with island benches and fume hoods

Get a Similar Lab Furniture Solution

If you are planning a new laboratory or upgrading an existing one, we can provide a complete solution from layout support to manufacturing.

Send us:

• room size / sketch or CAD

• number of workstations

• required utilities (water, gas, electric)

• lab type (chemical, biology, school, testing, pharma)

We will reply with 2D layout suggestions + product list + quotation.
