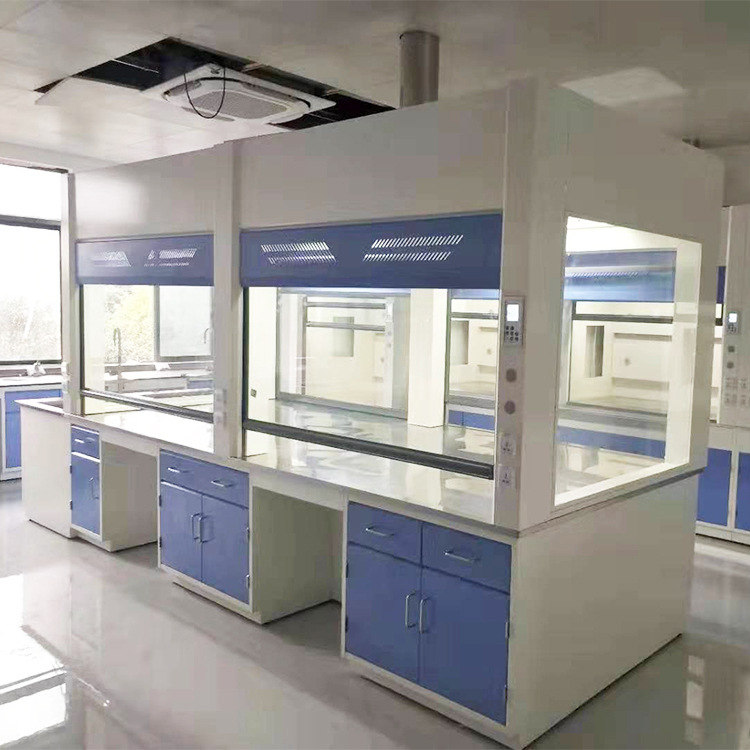

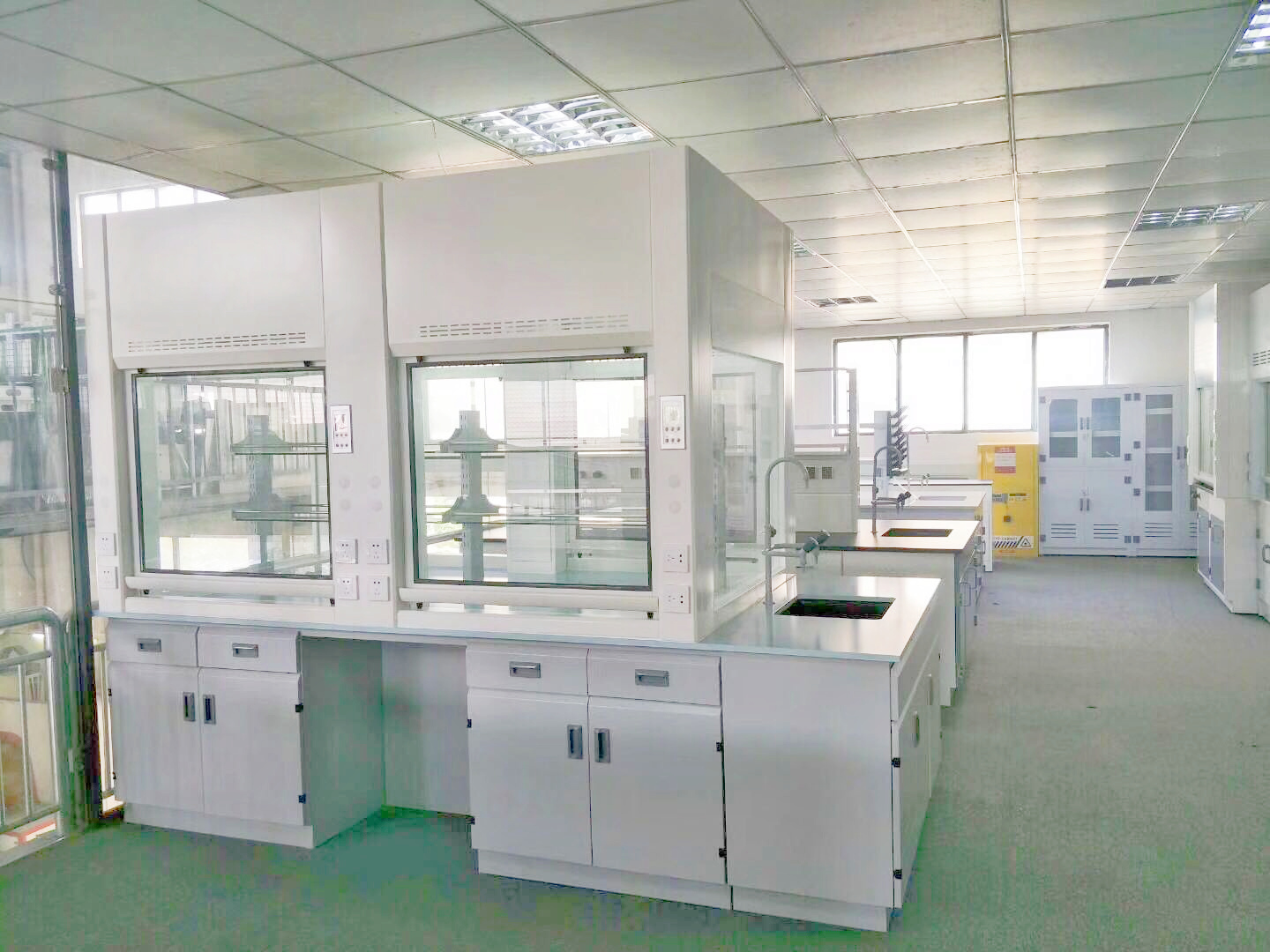

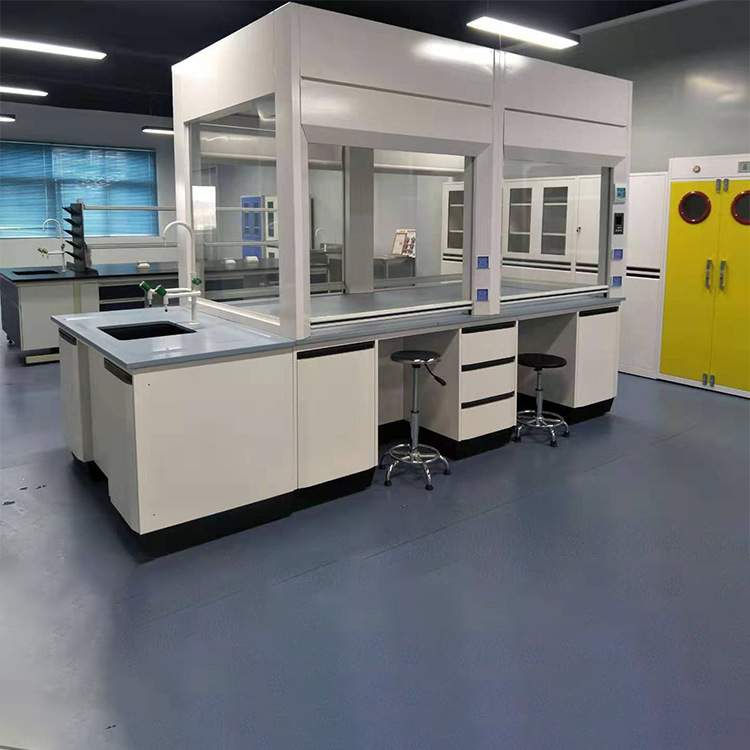

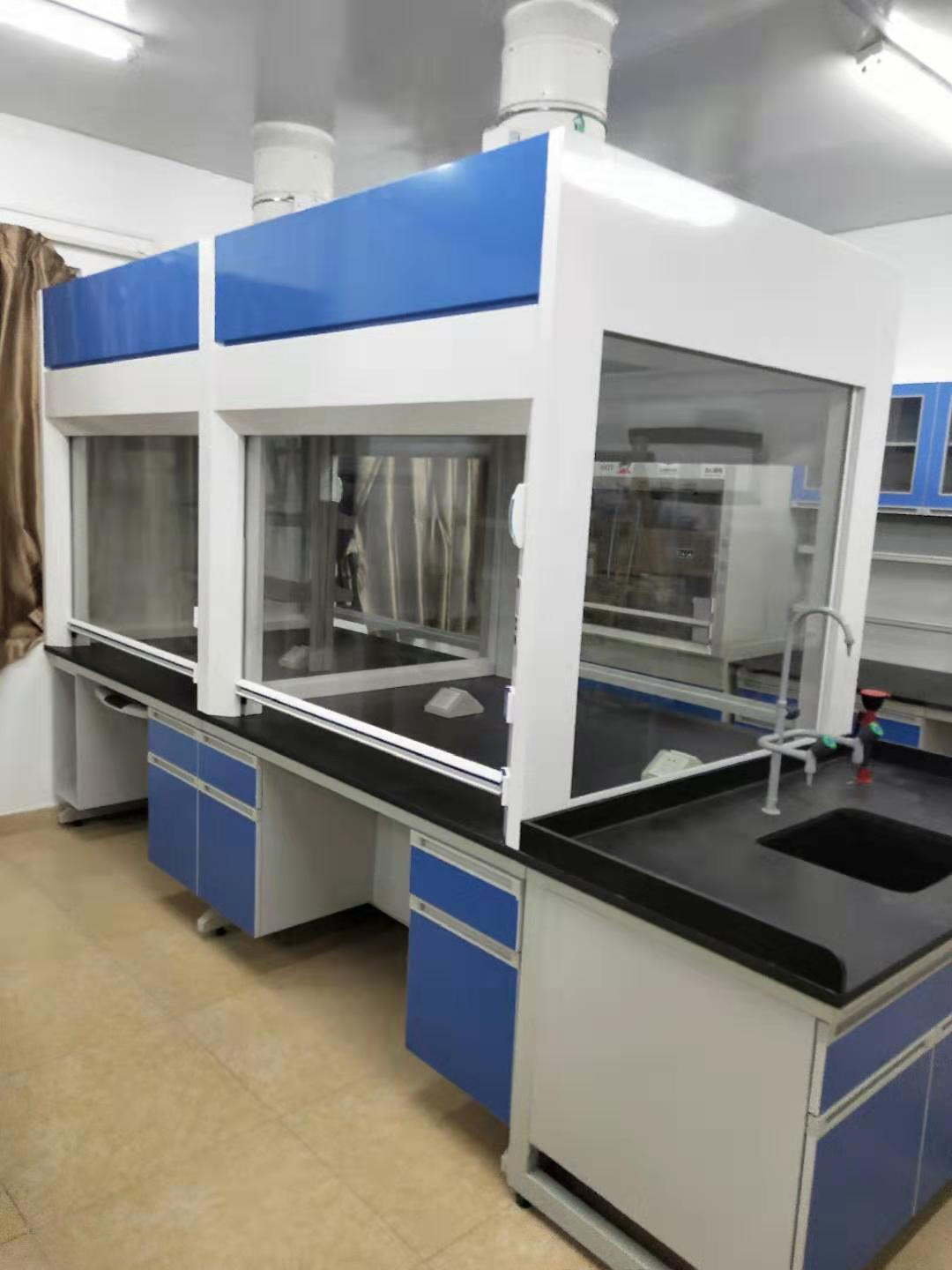

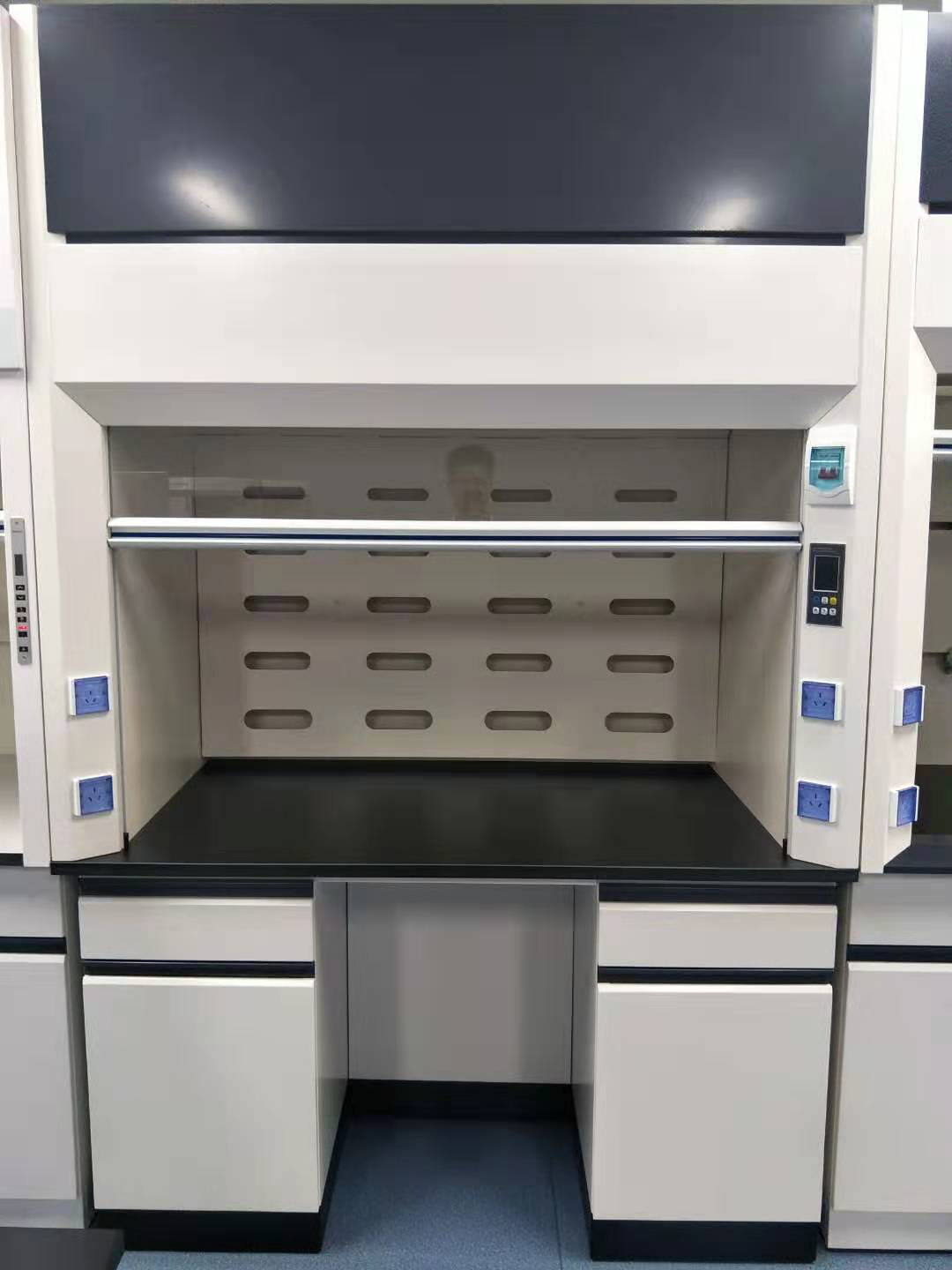

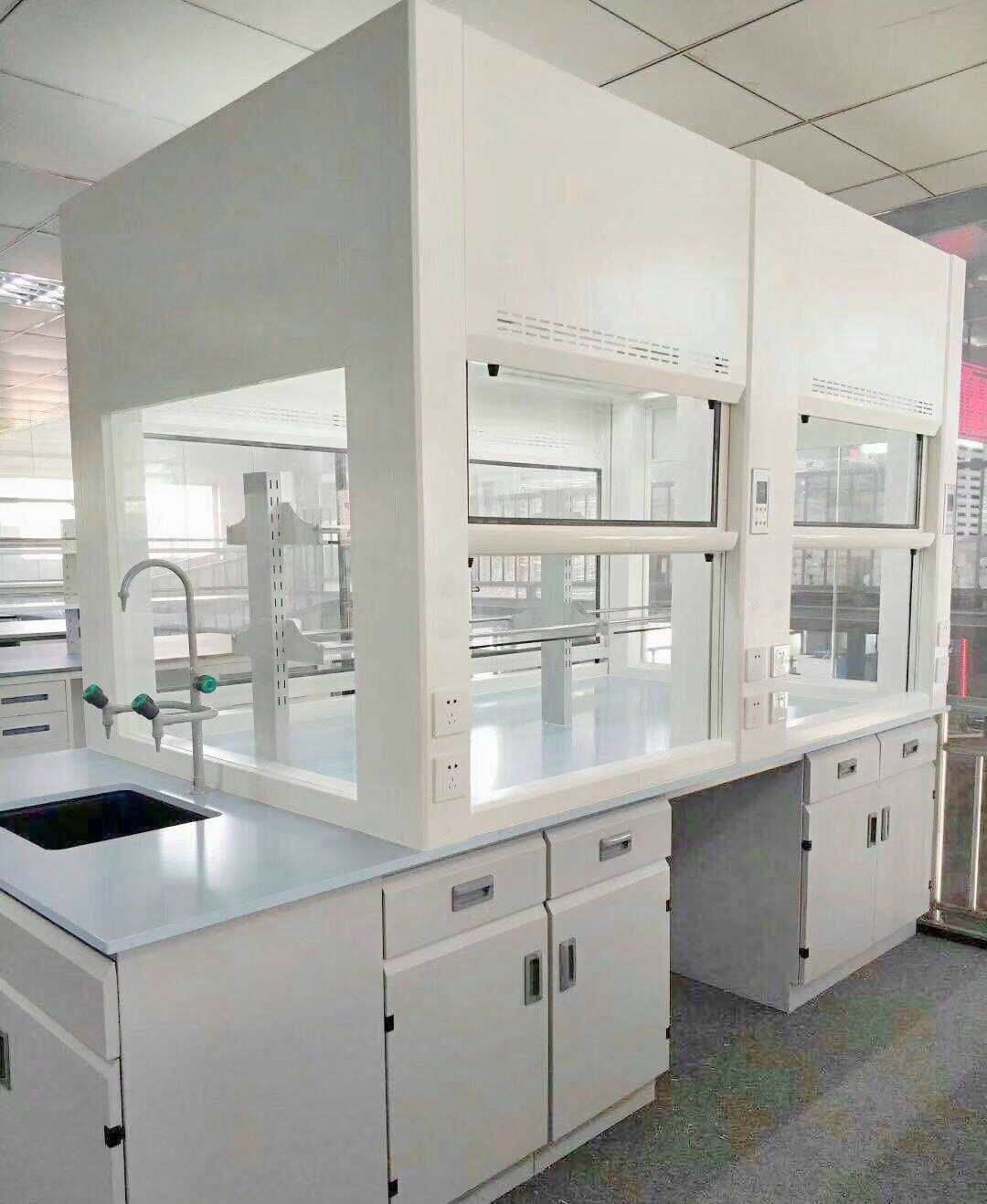

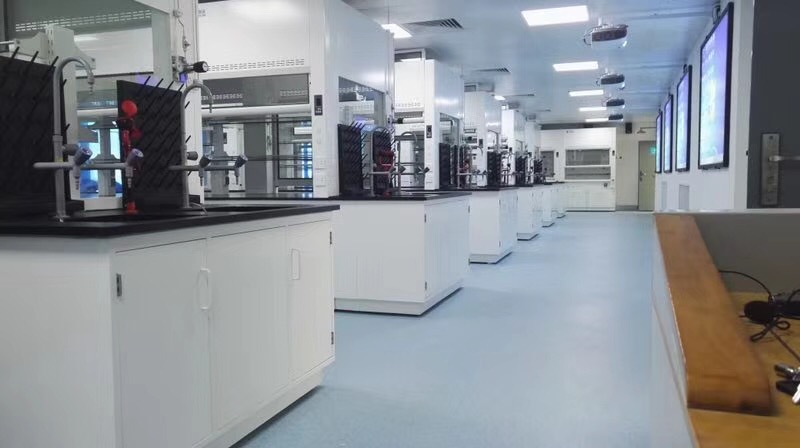

Benchtop Multi-sided Fume Hood Case Study: Compact Chemical Ventilation Solution for Small Laboratories

Project Overview

• Project type: Benchtop fume hood supply & workstation integration

• Application: Chemical preparation, sample digestion, solvent handling, routine R&D

• Installation: On existing bench / on dedicated base cabinet (optional)

• Service provided: OEM/ODM manufacturing + configuration support + export packing

This project was designed for labs where floor space is limited but chemical safety requirements are strict. A benchtop fume hood provides effective containment and exhaust performance while keeping the lab layout flexible.

Client Requirements

The customer’s key requirements were:

1. Compact footprint to fit on a benchtop without major renovation

2. Safe ventilation performance for routine chemical handling

3. Easy-to-clean interior with corrosion-resistant materials

4. Stable sash operation and clear visibility during experiments

5. Utility-ready design (power sockets, optional water/gas fixtures)

6. Fast delivery and export-ready packing for overseas shipment

7. Our Solution (Benchtop Fume Hood Configuration)

   We supplied a benchtop fume hood with a practical configuration for daily lab use:

   Key Features

   • Benchtop design to save floor space and simplify installation

   • Front sash for operator protection and airflow stability

   • Durable interior lining suitable for chemical work

   • Integrated control panel (fan switch / light / sockets as required)

   • Optional service fixtures: water tap, gas tap, cup sink (project-based)

   • Why Benchtop Fume Hoods Are Ideal for Small Labs

     Benchtop fume hoods are often selected when labs need safety upgrades without changing the entire layout:

     • Quick installation: works on an existing bench or base cabinet

     • Lower renovation cost: minimal structural changes vs. full floor-mounted hood lines

     • Flexible layout: easy to relocate or reconfigure with benches and utilities

     • Efficient workflow: pairs well with a nearby sink station and storage cabinets

     • Space optimization: keeps aisles clear for movement and instrument placement

     Safety & Performance Considerations (Selection Tips)

     When choosing a benchtop fume hood, these details matter:

     1. Airflow performance & face velocity
        Stable airflow is essential for containment. Confirm design supports consistent airflow across the sash opening.

     2. Chemical resistance
        Match material to your chemical exposure:

     • PP for strong acids/alkalis and high corrosion environments

     • Steel + coating for general purpose chemistry

     • Stainless steel for specific clean environments and durability needs

     3. Exhaust configuration

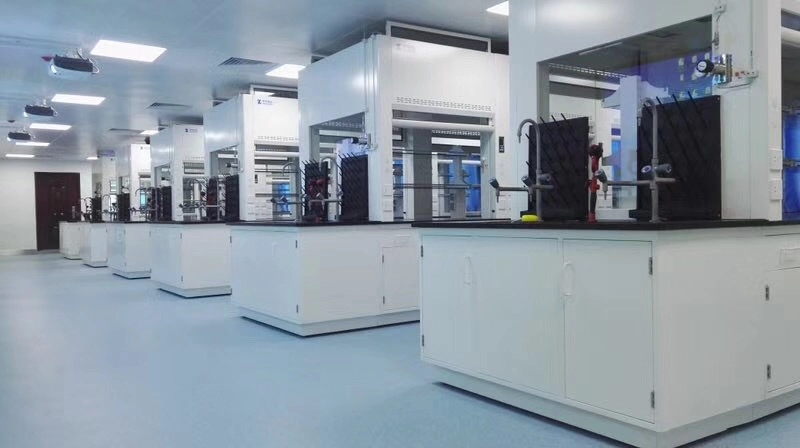

     • Ducted: best for broader chemical compatibility

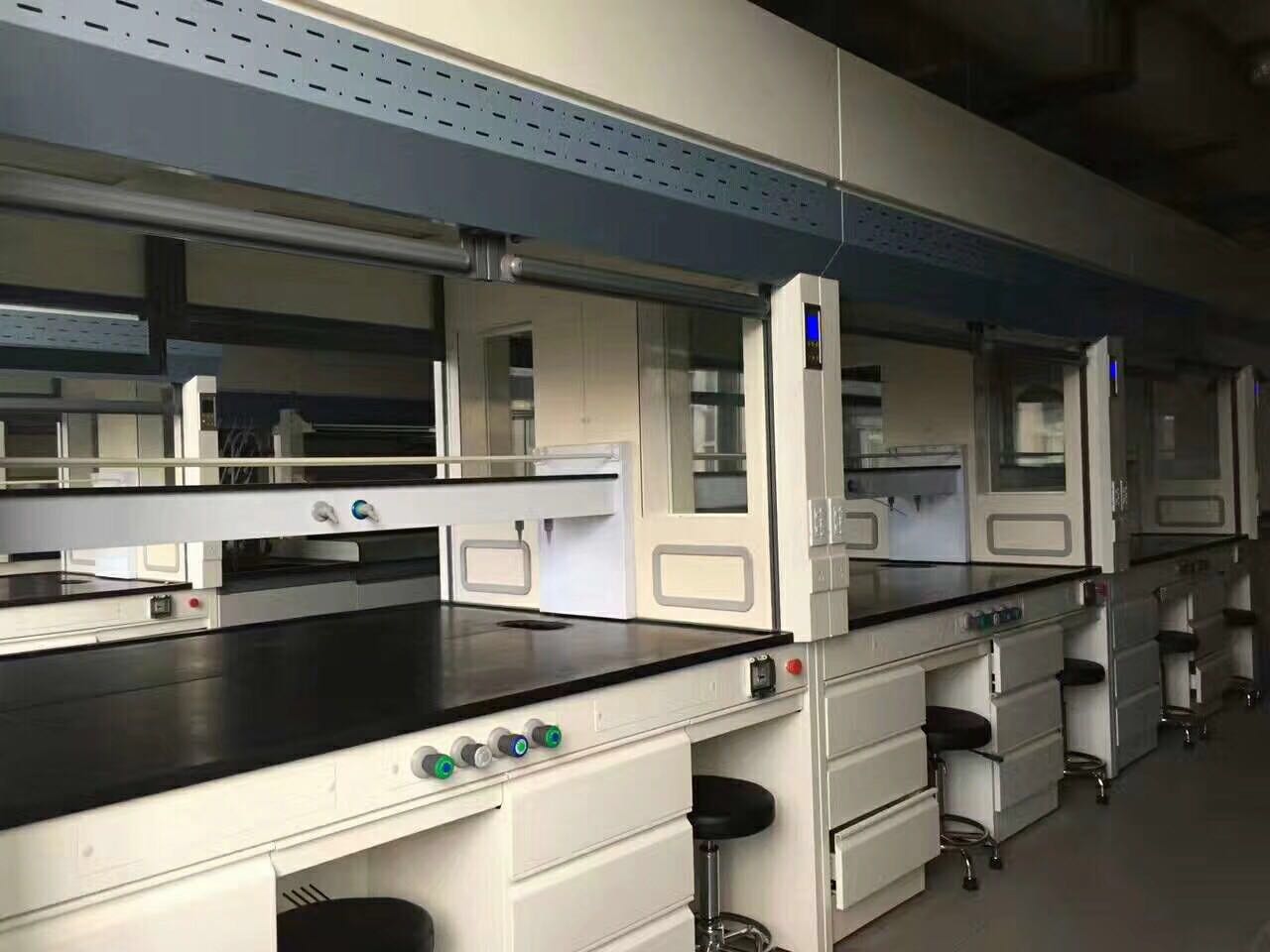

     • Ductless: suitable when ducting is not possible (depends heavily on filter selection)

     4. Sash & visibility
        Smooth sash movement and good visibility reduce operator risk and improve usability.

     Manufacturing Quality & QC

     To ensure consistent performance and export readiness, we conduct:

     • Dimensional checks and assembly inspection

     • Interior finish and sealing verification

     • Electrical component and control panel check

     • Sash alignment and operation test

     • Packaging inspection to protect the hood during shipping

     Packing & Delivery (Export Standard)

     For overseas delivery, we use:

     • Protective film for panels and sash

     • Foam and corner protection to prevent impact damage

     • Reinforced crate / pallet packing for sea freight (if required)

     • Clear labeling for installation and handling

     • Results & Benefits

       After implementation, the client achieved:

       • Safer daily chemical work with contained ventilation

       • Better space utilization without adding bulky floor-mounted systems

       • Cleaner workflow with integrated utilities and organized bench layout

       • Easy maintenance and long-term durability

       Request a Similar Benchtop Fume Hood Solution

       Planning a lab upgrade or a new setup? Send us:

       • room size or layout drawing

       • chemical type and daily process description

       • preferred hood size (1000/1200/1500/1800mm)

       • ducted or ductless requirement

       • required utilities (electric/water/gas)

       We can provide recommended configuration + quotation + layout support.

       FAQ

       1) Benchtop fume hood vs. floor-mounted fume hood—what’s the difference?

       Benchtop hoods sit on a bench or cabinet and save floor space. Floor-mounted hoods are larger and often selected for heavy-duty chemical workflows.

       2) Do benchtop fume hoods need ducting?

       Not always. Ducted models require connection to an exhaust system. Ductless models rely on filtration and must be selected based on chemical compatibility.

       3) What size benchtop fume hood is most common?

       Common widths include 1000mm, 1200mm, 1500mm, and 1800mm. The right size depends on workspace needs and available installation space.

       4) Can you customize the material and utilities?

       Yes. We support customization including material selection (steel/PP/stainless steel), worktop type, socket layout, and optional fixtures.
